VDKR-PP-10

Limited Availability, Contact Sales For More Details.

Printer Friendly
VDKR-PP-10

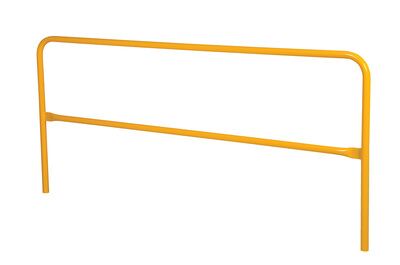

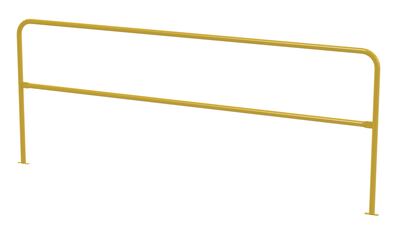

Steel Safety Railing Pour in Place 10 Ft. Length Yellow

Elevated surfaces at any height can lead to a dangerous situation. Protect those areas, like walkways and mezzanine drop-off's with a steel handrail. This design is specifically engineered to be installed directly into the concrete, instead of attaching to the surface. 6” inches have been added to the leg length to accommodate for the direct ground installation. The VDKR series safety rail products comply with U.S. Occupational Safety and Health Administration (OSHA) general industry requirements for guardrail systems in 29 CFR 1910.29.

  • Pour-in-place design
  • Built of schedule 10 steel
  • Mid and hand rail protection
  • Powder coated finish
Assembled Wt.(lbs.): 61 Assembled Size: 1.25"W x 122.25"L x 48.25"H

Total Ship Wt.(lbs.): 96 (only 1 package) Package 1 Size: 48"W x 121"D x 8"H Color: YELLOW Non-Returnable

Overall Height (in.): 48-1/4" Overall Length (in.): 122-1/4" Overall Width (in.): 1-1/4"
Handrail Diameter (in.): 1-5/8" Usable Overall Height (in.): 42" Overall Mid Rail Height (in.): 27-1/4"
Usable Mid Rail Height (in.): 21" Usable Length (in.): 120"

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

90 Days Limited Warranty

Details For Model: VDKR-PP-10
VDKR-PP-10

Steel Safety Railing Pour in Place 10 Ft. Length Yellow

Elevated surfaces at any height can lead to a dangerous situation. Protect those areas, like walkways and mezzanine drop-off's with a steel handrail. This design is specifically engineered to be installed directly into the concrete, instead of attaching to the surface. 6” inches have been added to the leg length to accommodate for the direct ground installation. The VDKR series safety rail products comply with U.S. Occupational Safety and Health Administration (OSHA) general industry requirements for guardrail systems in 29 CFR 1910.29.

  • Pour-in-place design
  • Built of schedule 10 steel
  • Mid and hand rail protection
  • Powder coated finish
Dimensions: 1.25"W x 122.25"L x 48.25"H Sell UOM: EA-Each Color: YELLOW
Material: STEEL UPC: 691215378512 GTIN: 00691215378512
Warranty: -- Shipping Weight: 96 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: US
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Overall Height (in.): 48-1/4" Overall Length (in.): 122-1/4" Overall Width (in.): 1-1/4"
Handrail Diameter (in.): 1-5/8" Usable Overall Height (in.): 42" Overall Mid Rail Height (in.): 27-1/4"
Usable Mid Rail Height (in.): 21" Usable Length (in.): 120"
