VDKR-PP-3

Limited Availability, Contact Sales For More Details.

Printer Friendly
VDKR-PP-3
VDKR-PP-3 VDKR-PP-3 VDKR-PP-3

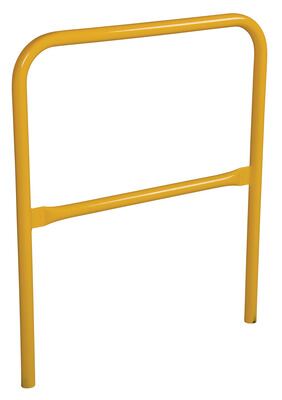

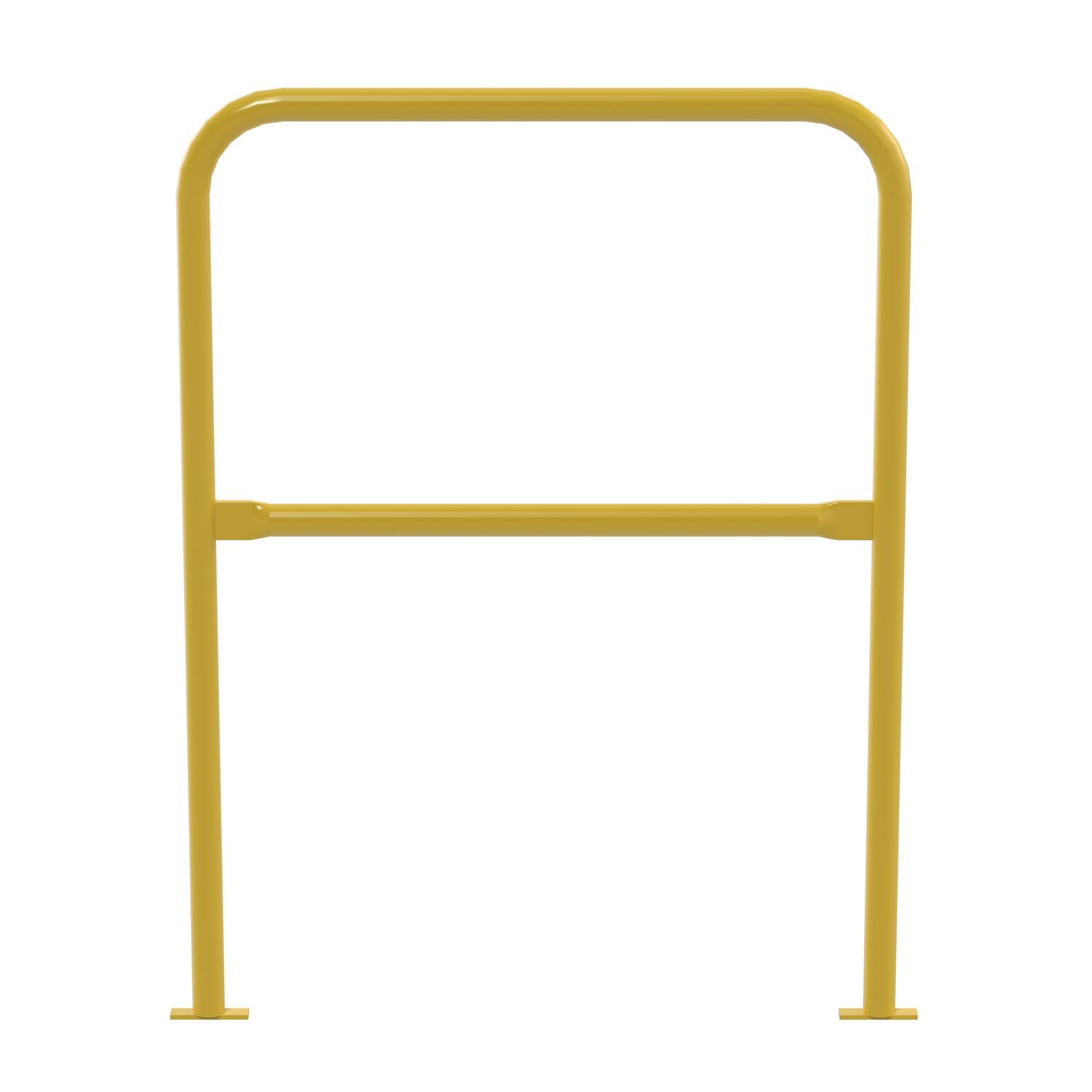

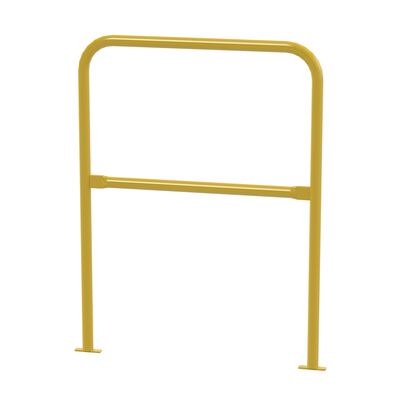

Steel Safety Railing Pour in Place 3 Ft. Length Yellow

Elevated surfaces at any height can lead to a dangerous situation. Protect those areas, like walkways and mezzanine drop-off's with a steel handrail. This design is specifically engineered to be installed directly into the concrete, instead of attaching to the surface. 6” inches have been added to the leg length to accommodate for the direct ground installation. The VDKR series safety rail products comply with U.S. Occupational Safety and Health Administration (OSHA) General industry requirements for guardrail systems in 29 CFR 1910.29.

  • Pour-in-place design
  • Built of schedule 10 steel
  • Mid and hand rail protection
  • Powder coated finish
Assembled Wt.(lbs.): 24 Assembled Size: 1.25"W x 38.25"L x 48.25"H

Total Ship Wt.(lbs.): 25 (only 1 package) Package 1 Size: 37"W x 49"D x 3"H Color: YELLOW Non-Returnable

Overall Length (in.): 38-1/4" Overall Width (in.): 1-1/4" Overall Height (in.): 48-1/4"
Usable Length (in.): 36" Usable Height (in.): 42" Overall Mid Rail Height (in.): 27-1/4"
Usable Mid Rail Height (in.): 21" Handrail Diameter (in.): 1-5/8"

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?

Parcel - Can Go UPS

Image Gallery

PDF Documents

90 Days Limited Warranty

Details For Model: VDKR-PP-3
VDKR-PP-3

Steel Safety Railing Pour in Place 3 Ft. Length Yellow

Elevated surfaces at any height can lead to a dangerous situation. Protect those areas, like walkways and mezzanine drop-off's with a steel handrail. This design is specifically engineered to be installed directly into the concrete, instead of attaching to the surface. 6” inches have been added to the leg length to accommodate for the direct ground installation. The VDKR series safety rail products comply with U.S. Occupational Safety and Health Administration (OSHA) General industry requirements for guardrail systems in 29 CFR 1910.29.

  • Pour-in-place design
  • Built of schedule 10 steel
  • Mid and hand rail protection
  • Powder coated finish
Dimensions: 1.25"W x 38.25"L x 48.25"H Sell UOM: EA-Each Color: YELLOW
Material: STEEL UPC: 691215378536 GTIN: 00691215378536
Warranty: -- Shipping Weight: 25 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: US
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Overall Length (in.): 38-1/4" Overall Width (in.): 1-1/4" Overall Height (in.): 48-1/4"
Usable Length (in.): 36" Usable Height (in.): 42" Overall Mid Rail Height (in.): 27-1/4"
Usable Mid Rail Height (in.): 21" Handrail Diameter (in.): 1-5/8"
