Model Details

← All Products- ← Loading Dock Equipment- ← Loading Dock Equipment -← Premium Truck Scissor Dock Lifts- WL-AR8

WL-AR8

Printer Friendly
Available
WL-AR8
WL-AR8 WL-AR8 WL-AR8 WL-AR8

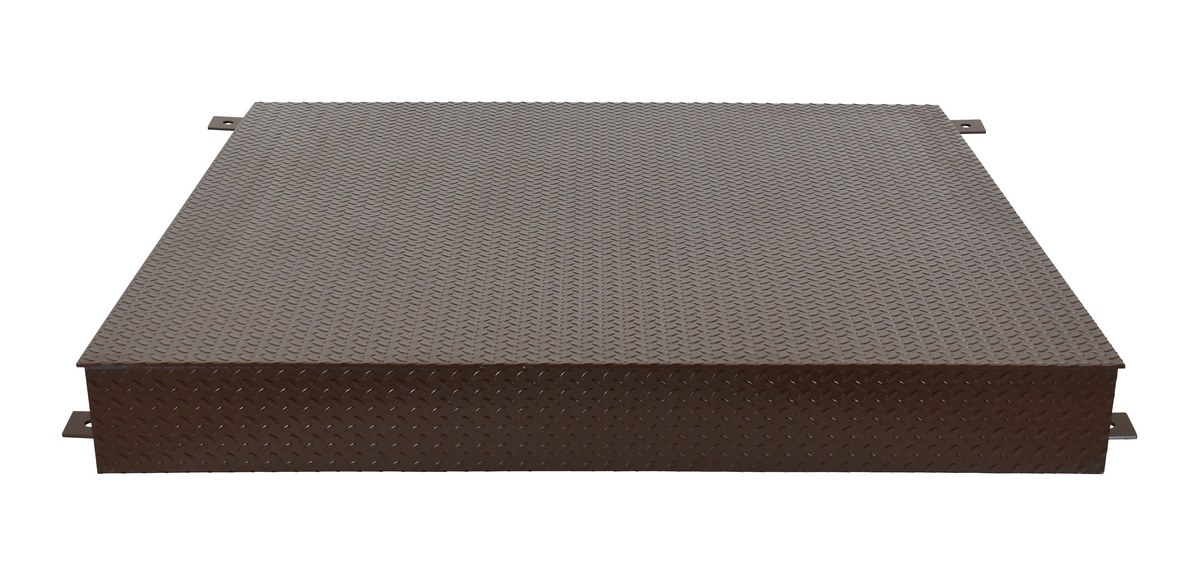

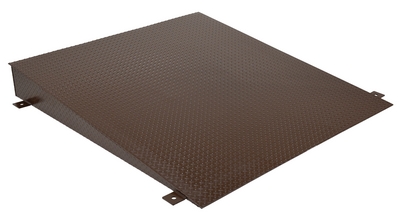

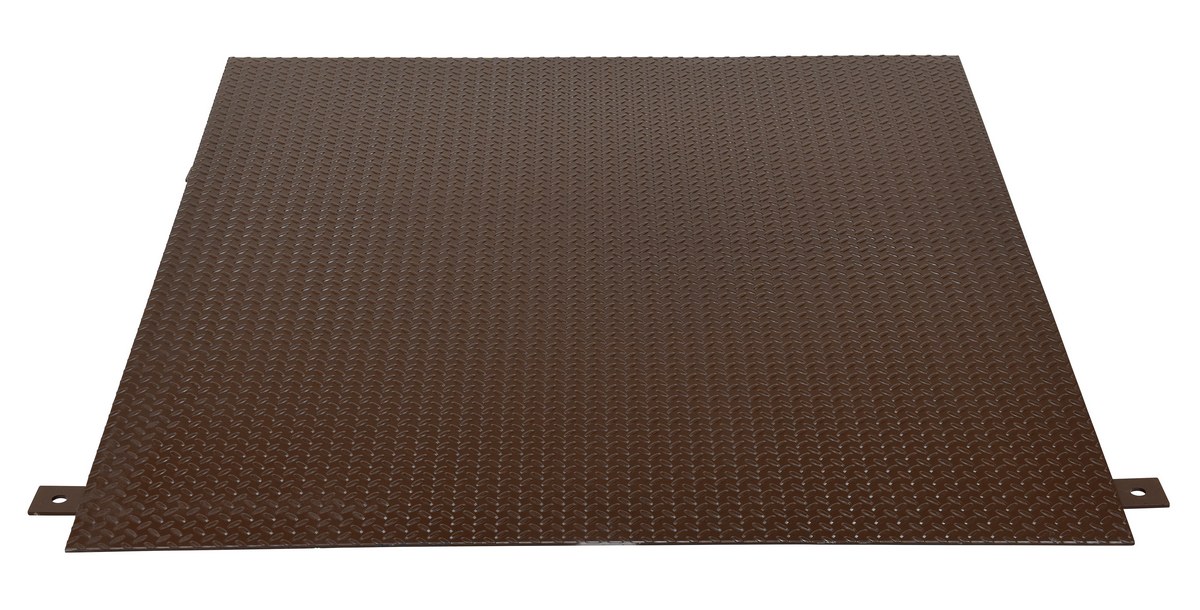

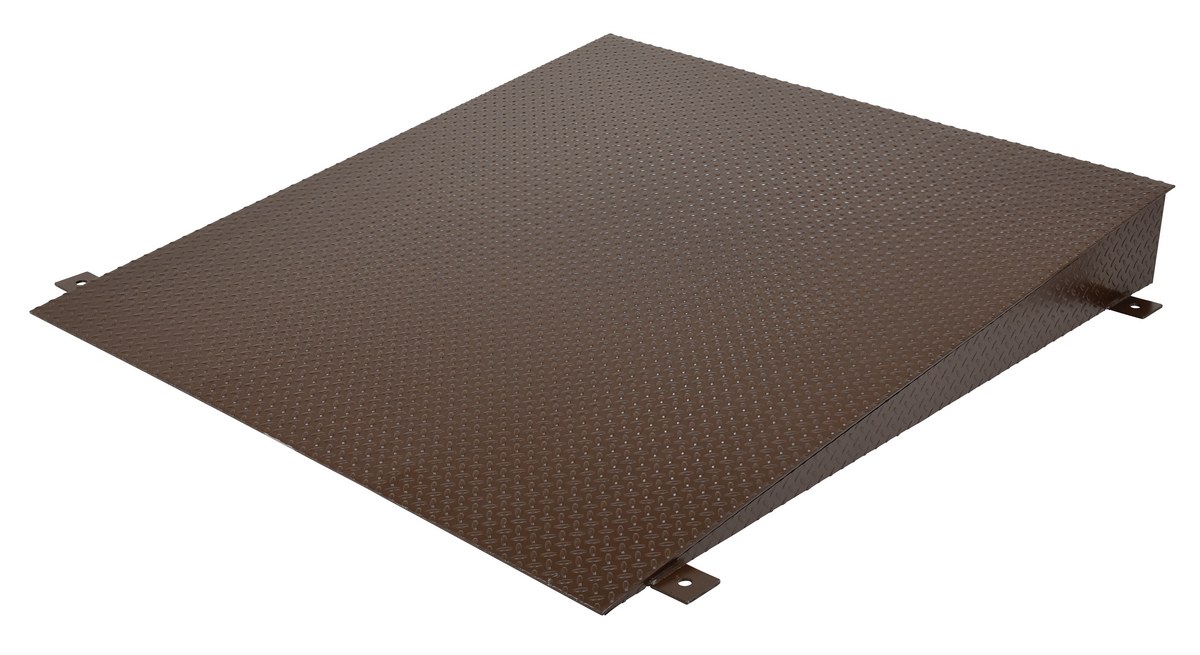

Steel Approach Ramp For Lowered Height Truck Scissor Dock Lift 8 In. x 60 In. Brown

Optional approach ramp for a 8 (in.) Lowered height truck scissor dock lift. Must be anchored to the floor.

  • Optional approach ramp must be anchored to the floor for ideal operation
  • Ideal for a 8" lowered height truck scissor dock lift for maximum efficiency
  • Features durable construction for added strength and long life
  • Use in industrial applications for optimal results
Assembled Wt.(lbs.): 397 Assembled Size: 66"W x 65"L x 8"H

Total Ship Wt.(lbs.): 435 (only 1 package) Package 1 Size: 66"W x 67"D x 14"H Color: Brown

Ramp Angle (degree): 7 Usable Length (in.): 65 Usable Width (in.): 60
Use For Lowered Height Lifts (in.): 8

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

90 Days Limited Warranty

Details For Model: WL-AR8
Available
WL-AR8

Steel Approach Ramp For Lowered Height Truck Scissor Dock Lift 8 In. x 60 In. Brown

Optional approach ramp for a 8 (in.) Lowered height truck scissor dock lift. Must be anchored to the floor.

  • Optional approach ramp must be anchored to the floor for ideal operation
  • Ideal for a 8" lowered height truck scissor dock lift for maximum efficiency
  • Features durable construction for added strength and long life
  • Use in industrial applications for optimal results
Dimensions: 66"W x 65"L x 8"H Sell UOM: -- Color: Brown
Material: -- UPC: -- GTIN: --
Warranty: -- Shipping Weight: 435 Quickship Item? --
Can It Ship UPS? -- Option? -- Origin: --
Assembly: -- Packaging: -- Drawing Required? --
Ramp Angle (degree): 7 Usable Length (in.): 65 Usable Width (in.): 60
Use For Lowered Height Lifts (in.): 8
