Product Family Overview


Electric Powered Tuggers
SERIES: E-TUG, E-TUG-HD

Move loads without excessive stress or strain on the user's body!

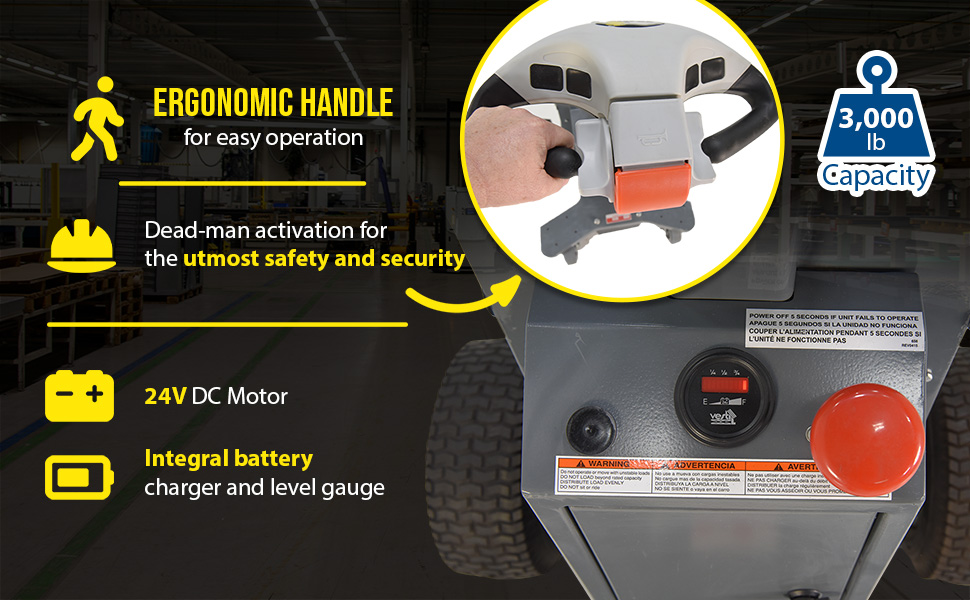

24V DC POWERED

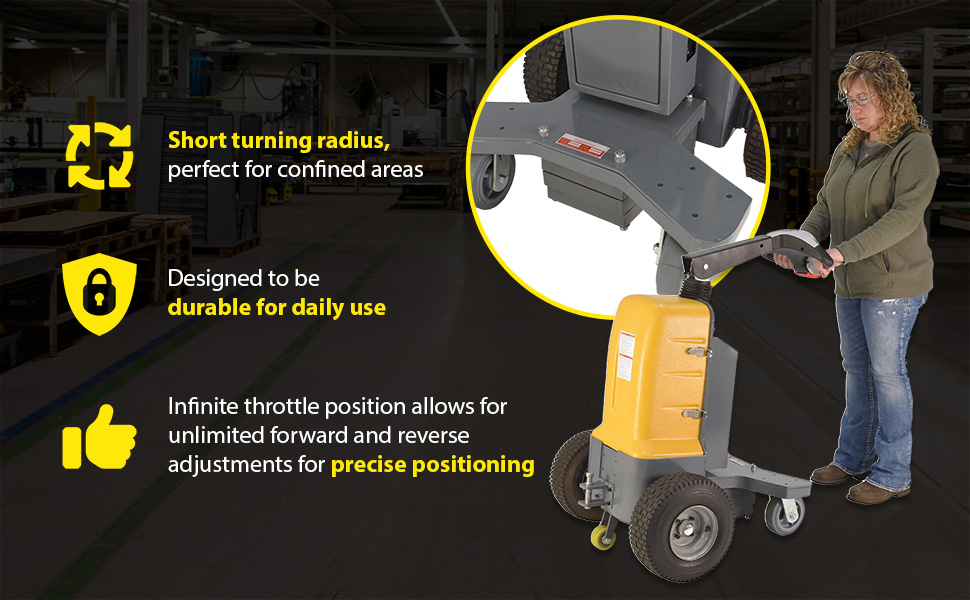

The Electric Powered Tuggers are suitable to use in airports, hospitals, and wholesale and retail stores. They can be used in a variety of applications like pulling industrial carts, hoppers, trash cans, trailers, and tow bars. E-TUG-10/20/30: Ideal to PULL loads without extreme stress or strain on the user's body. E-TUG-HD-30/50/70/100:The tuggers also help reduce the risk of accidents and injuries and improve handling efficiencies. High torque 24V DC drive motor handles heavy-duty jobs. Ergonomic handle features easy to operate throttle with FWD/REV speeds and horn. Includes an electromagnetic disc brake with automatic dead-man feature that activates when the user releases the handle. Includes two (2) 12V batteries, an integral battery charger, and a battery level gauge. Pin Hitch standard, optional attachments available.

Contact Vestil For A Quote On Custom Attachments

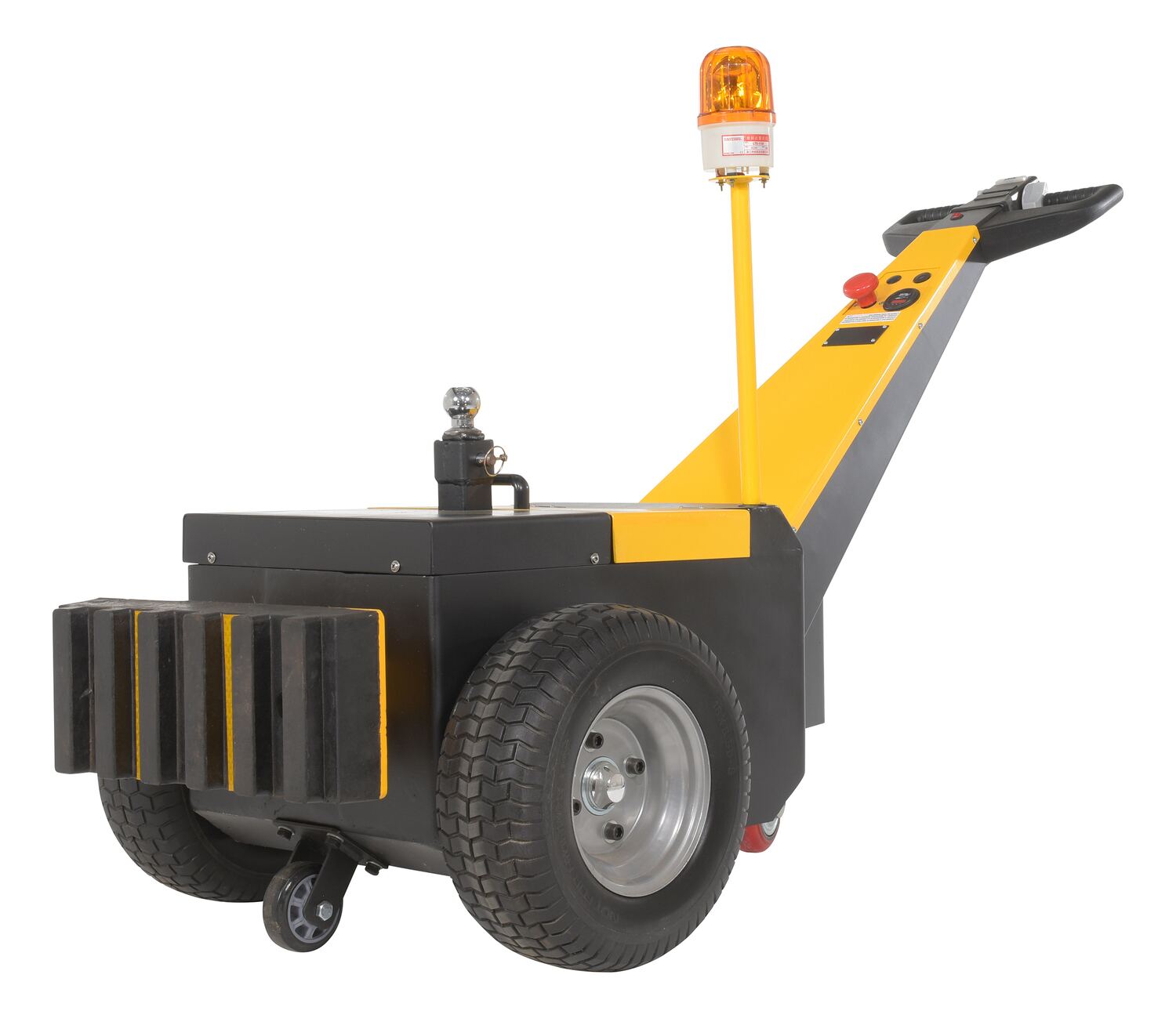

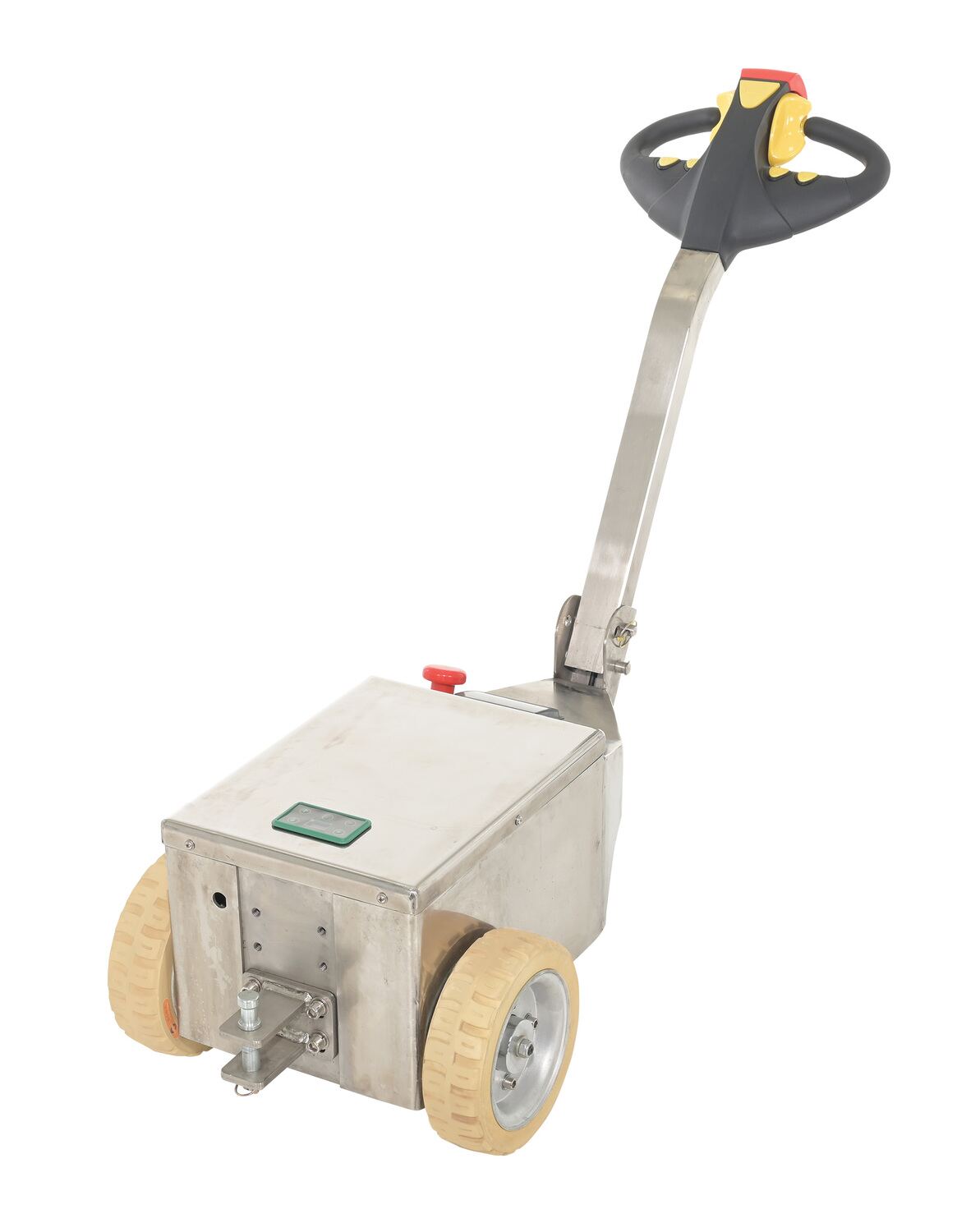

E-TUG-HD shown with E-TUG-HD-RPB-19 Rubber Bumper Attachmen
t

Move loads without excessive stress or strain on the user's body!

24V DC POWERED

The Electric Powered Tuggers are suitable to use in airports, hospitals, and wholesale and retail stores. They can be used in a variety of applications like pulling industrial carts, hoppers, trash cans, trailers, and tow bars. E-TUG-10/20/30: Ideal to PULL loads without extreme stress or strain on the user's body. E-TUG-HD-30/50/70/100:The tuggers also help reduce the risk of accidents and injuries and improve handling efficiencies. High torque 24V DC drive motor handles heavy-duty jobs. Ergonomic handle features easy to operate throttle with FWD/REV speeds and horn. Includes an electromagnetic disc brake with automatic dead-man feature that activates when the user releases the handle. Includes two (2) 12V batteries, an integral battery charger, and a battery level gauge. Pin Hitch standard, optional attachments available.

Contact Vestil For A Quote On Custom Attachments


E-TUG-HD shown with E-TUG-HD-RPB-19 Rubber Bumper Attachmen
t

Additional Models In This Family

Attachments can be found under the Options Tab below

Model Specific Details


All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)

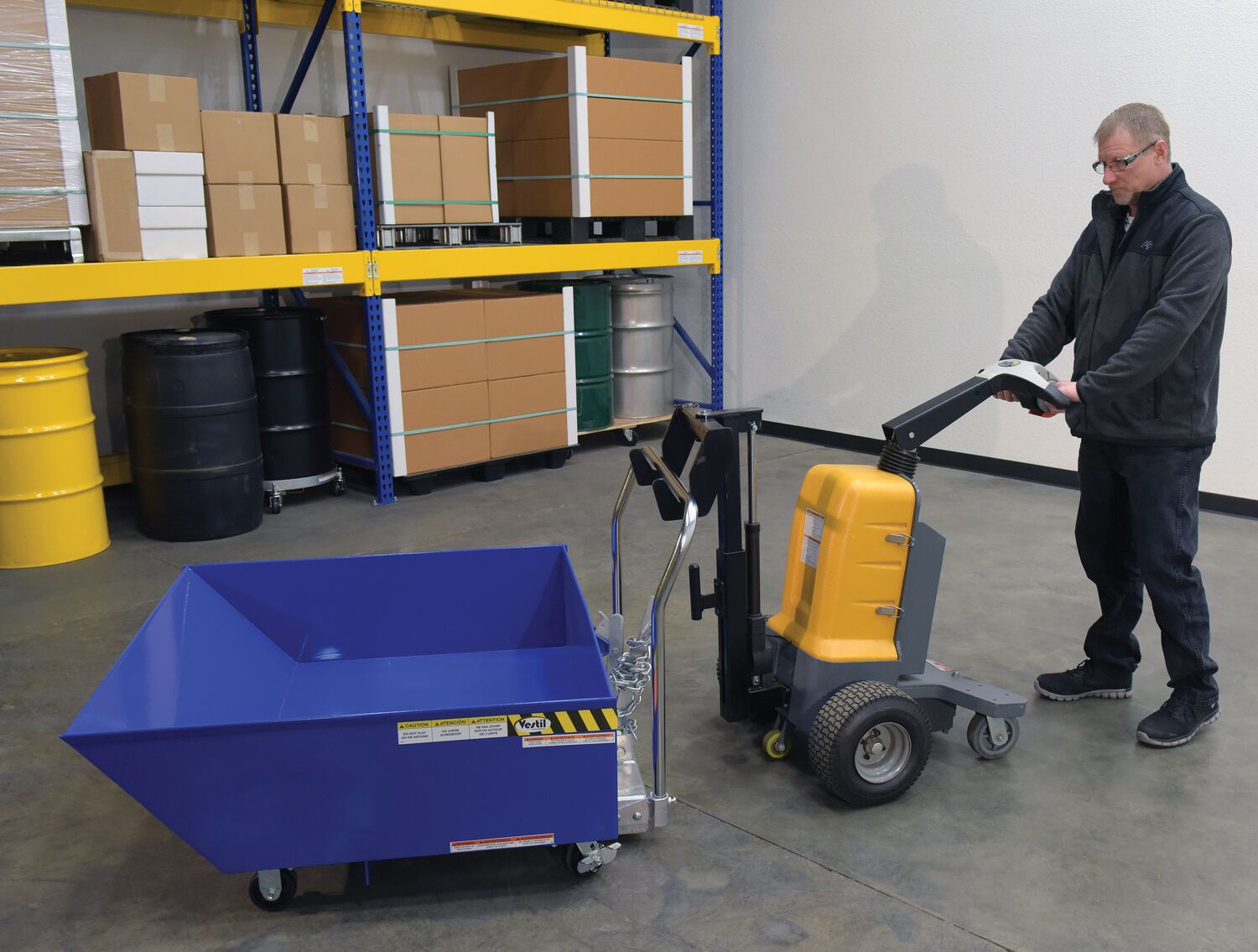

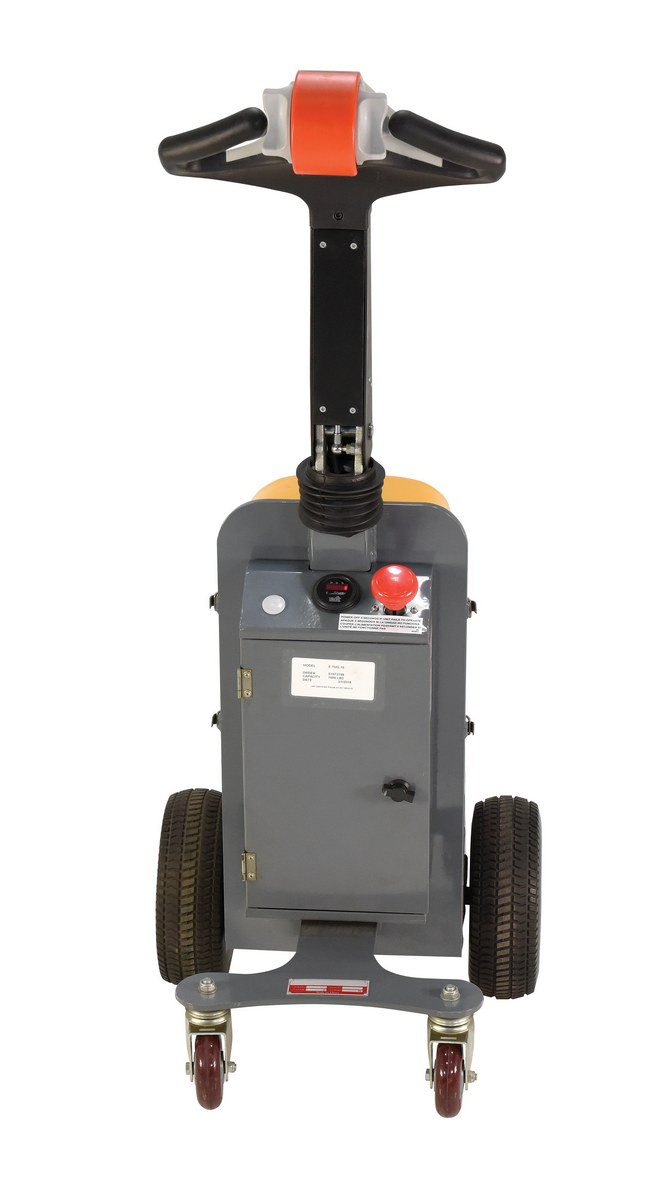

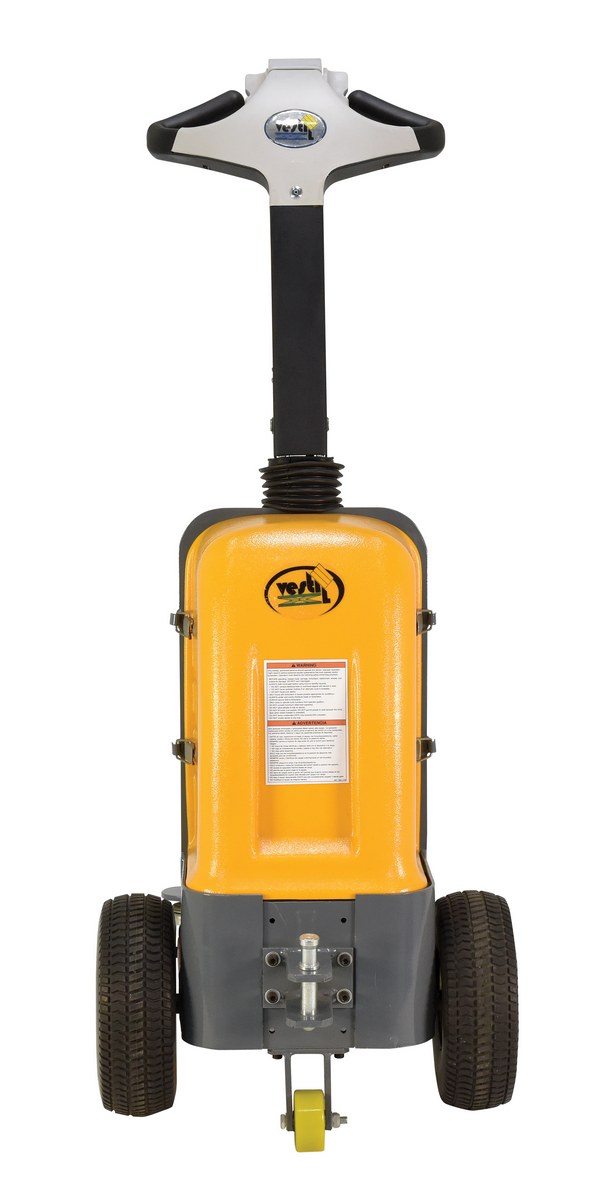

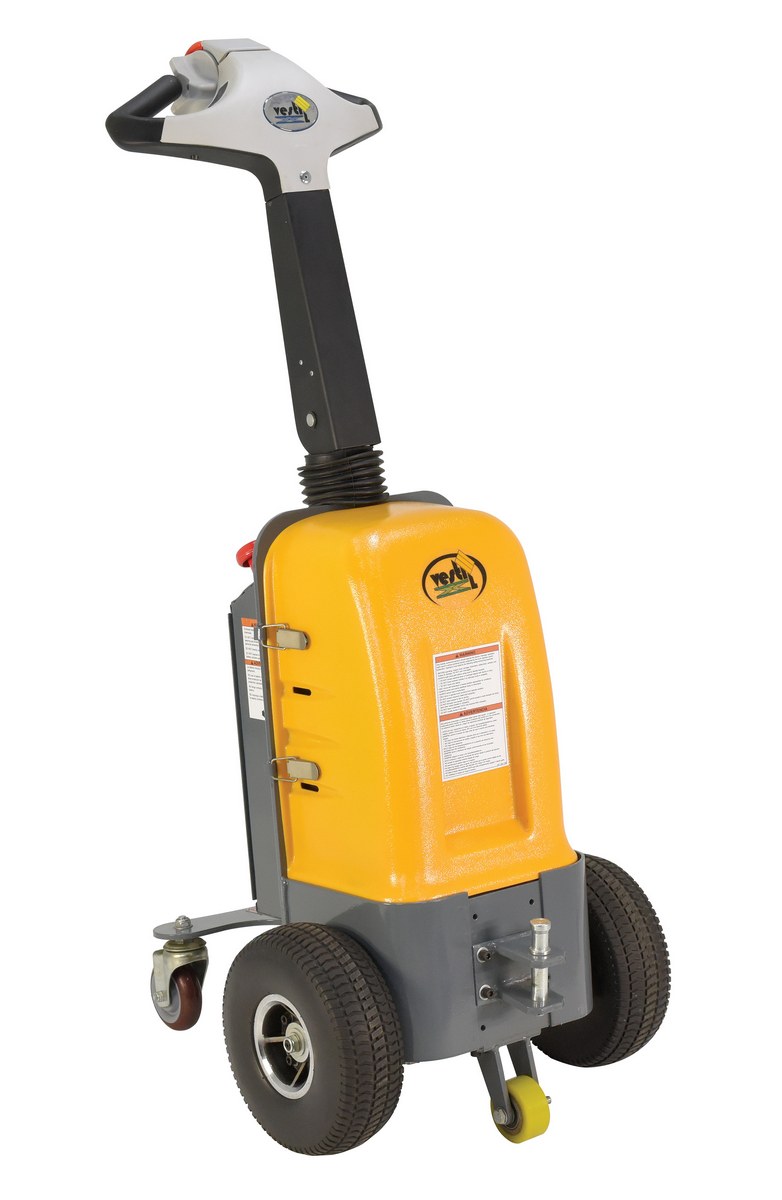

E-TUG-10 E-TUG-101 Year Limited WarrantySteel Electric Powered Tugger 1000 Lb. Pull Capacity Yellow/BlackUniform Pull Capacity (lb.): 1,000
Drive Motor: 24V DC
204

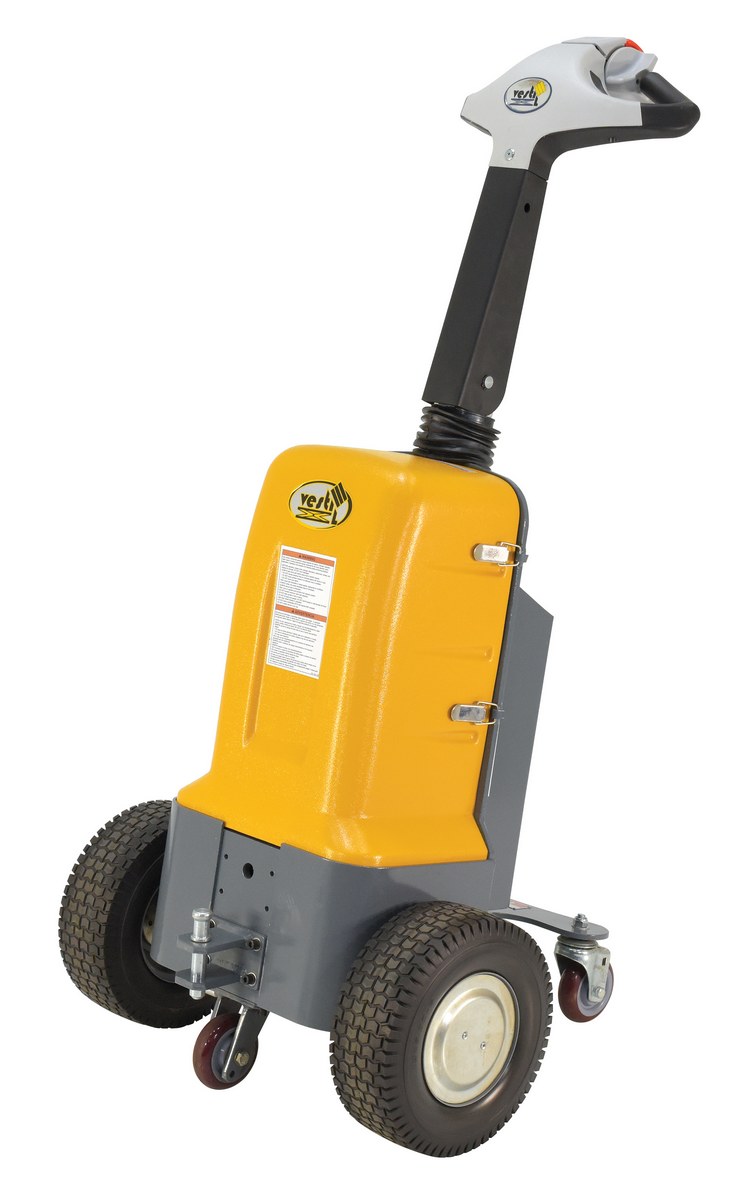

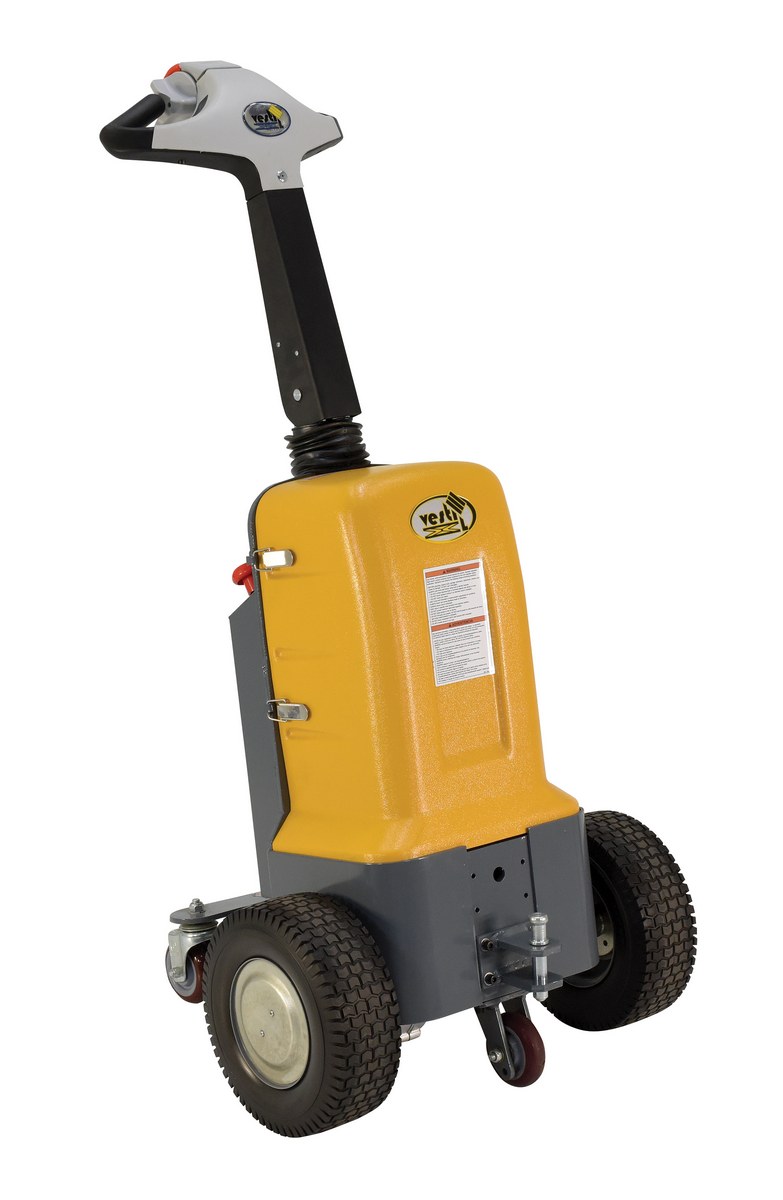

E-TUG-20 E-TUG-201 Year Limited WarrantySteel Electric Powered Tugger 2000 Lb. Pull Capacity Yellow/BlackUniform Pull Capacity (lb.): 2,000
Drive Motor: 24V DC
262

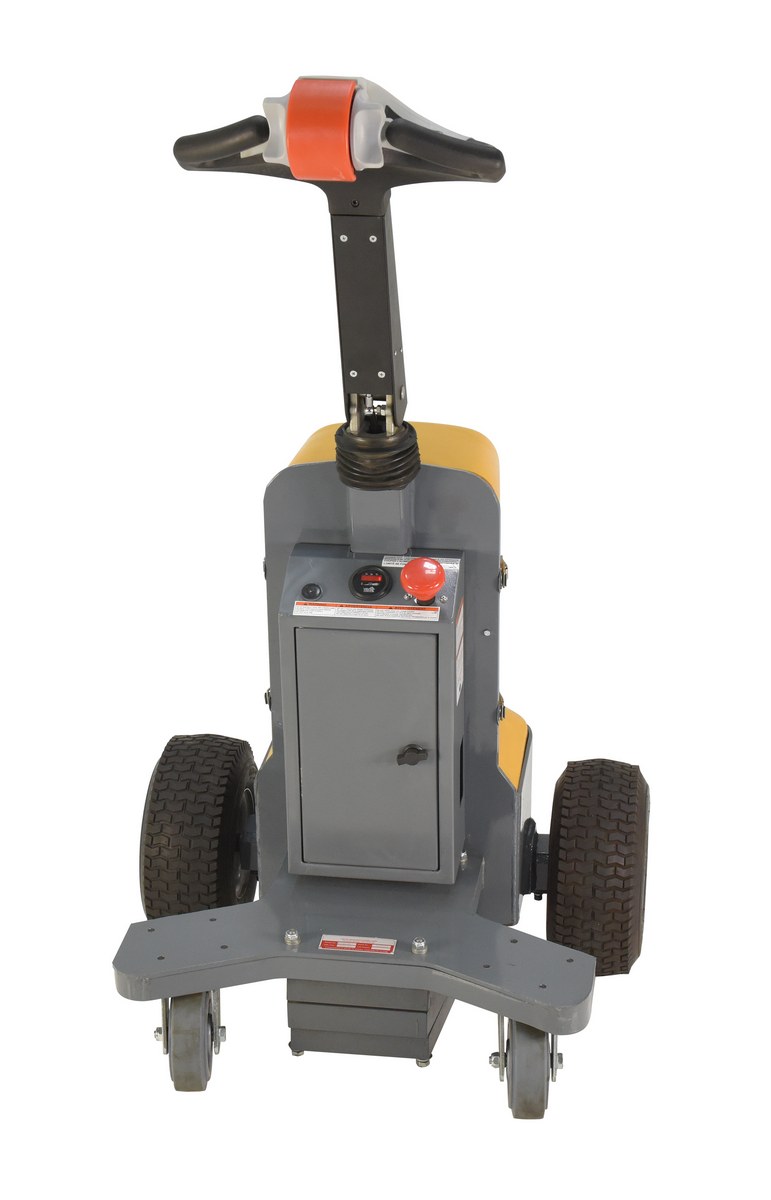

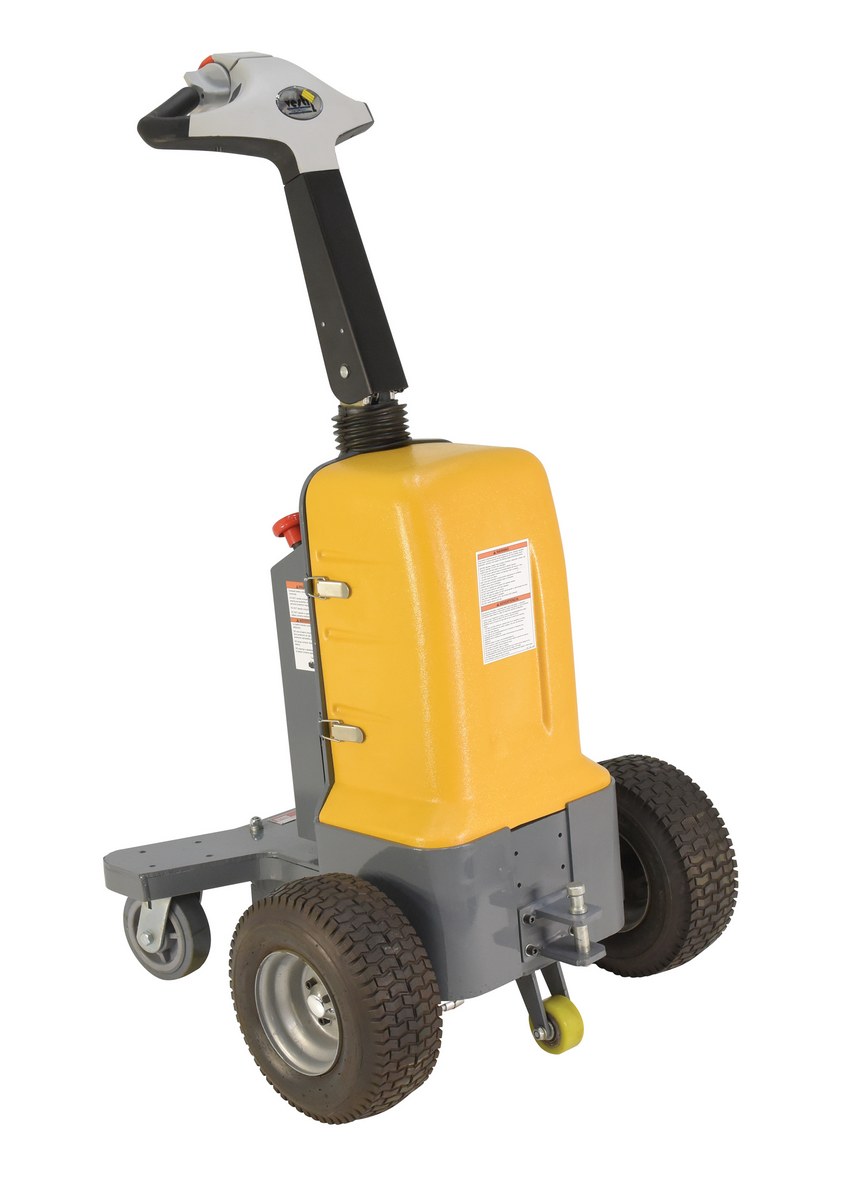

E-TUG-30 E-TUG-301 Year Limited WarrantyElectric Powered Tugger with 3000 Lb. Pull Capacity Yellow/BlackUniform Pull Capacity (lb.): 3,000
Drive Motor: 24V DC
400

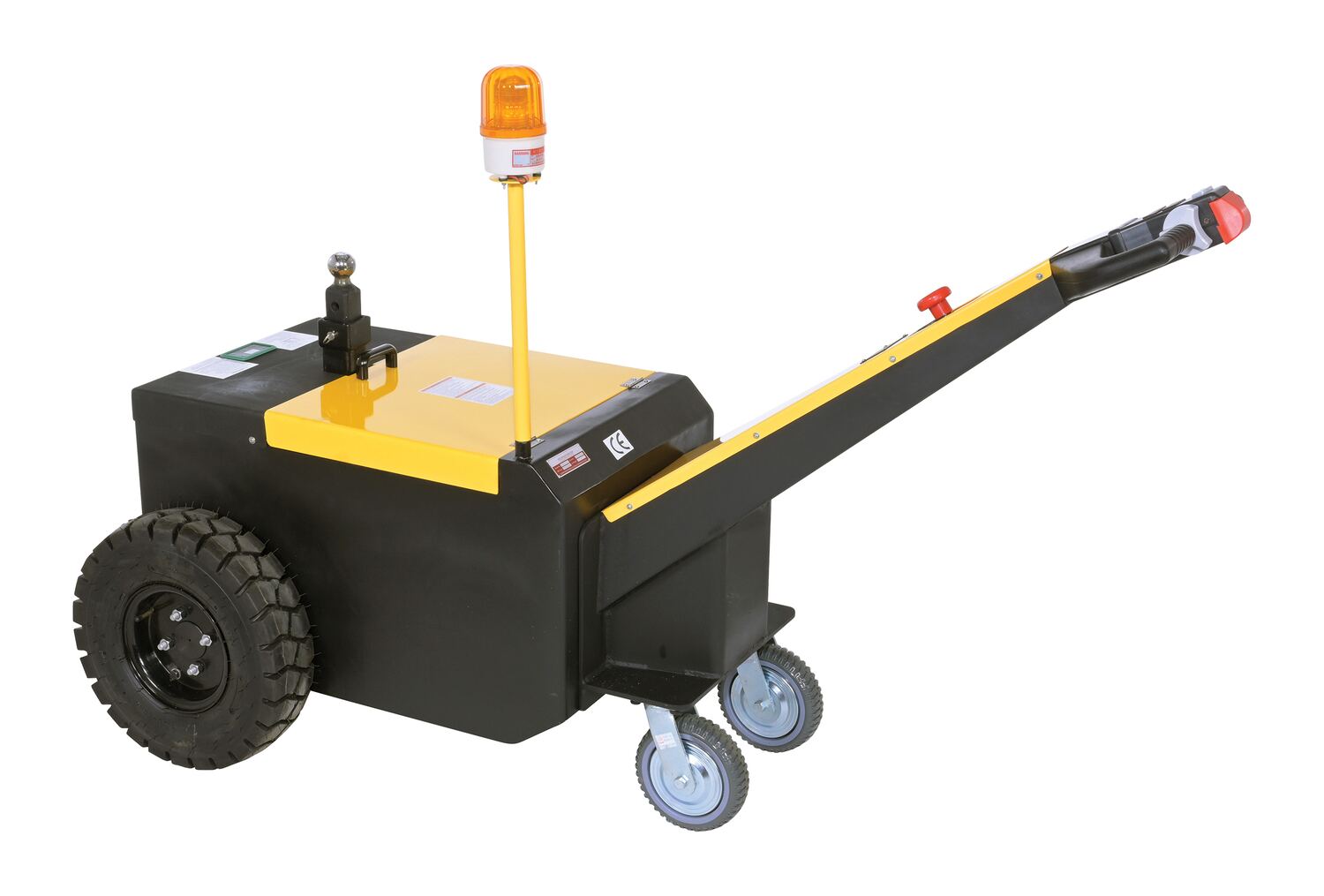

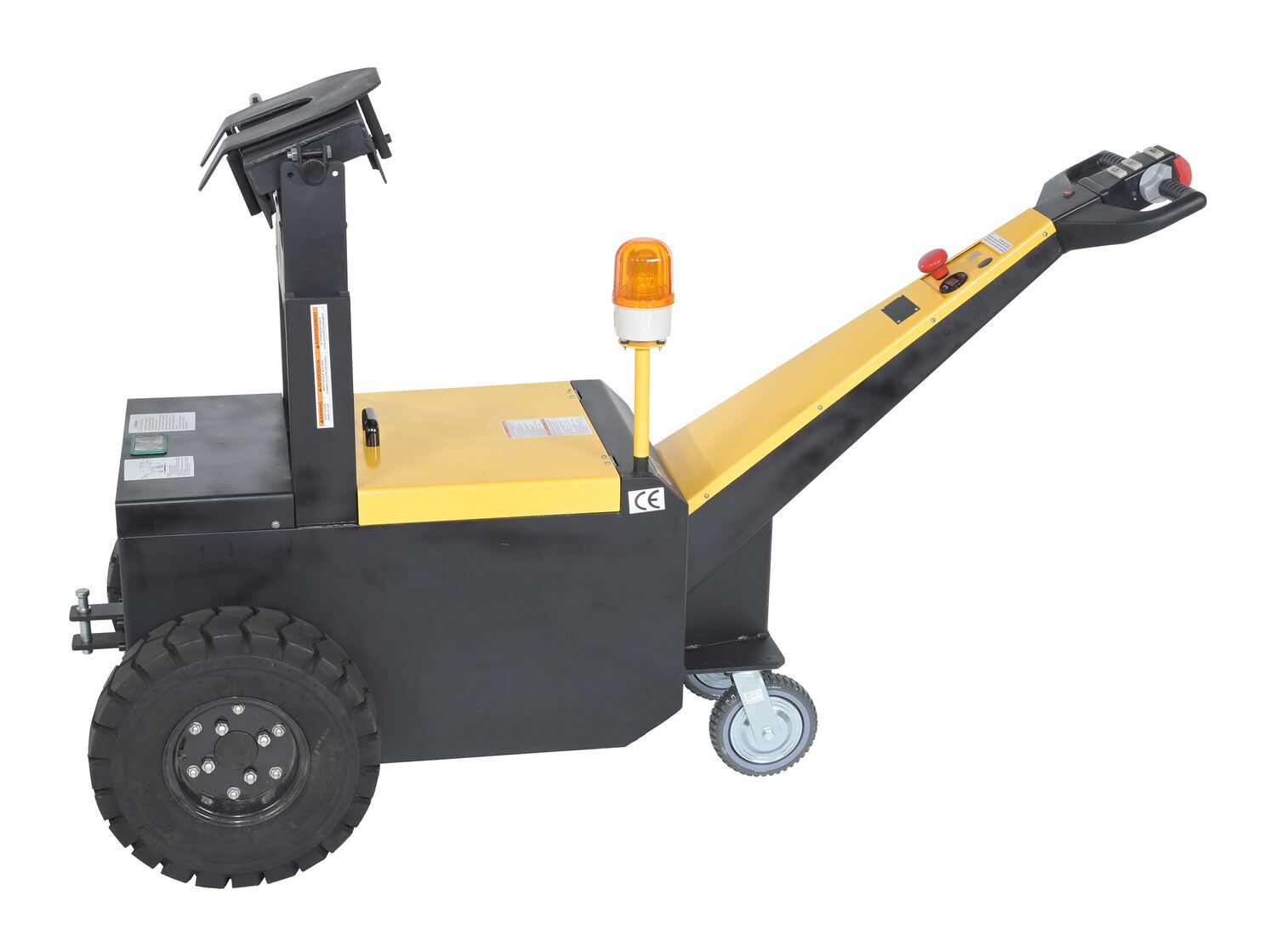

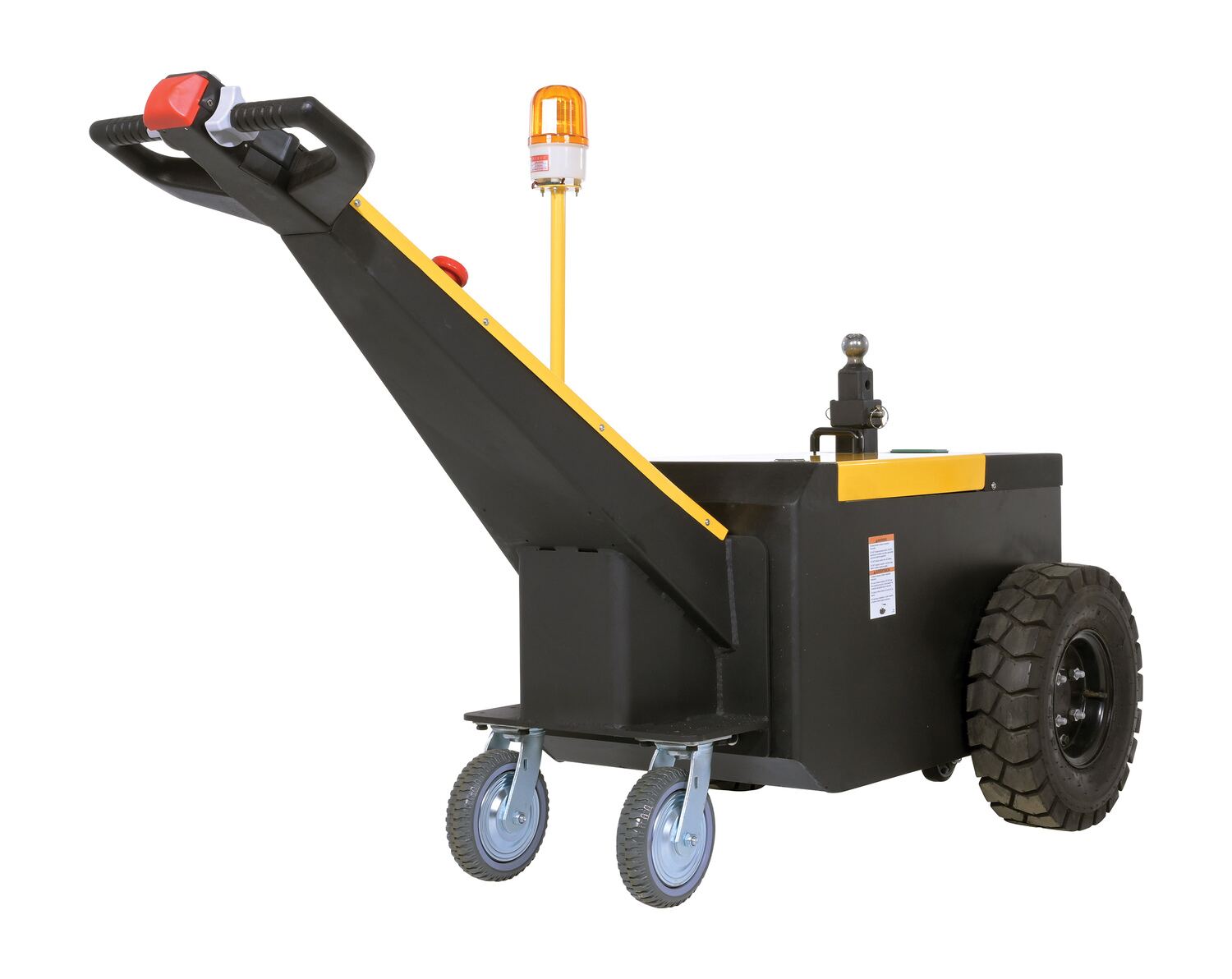

E-TUG-HD-100 E-TUG-HD-1001 Year Limited WarrantySteel Heavy Duty Electric Powered Tugger 10,000 Lb. Pulling Capacity YellowUniform Capacity (lb.): 10000

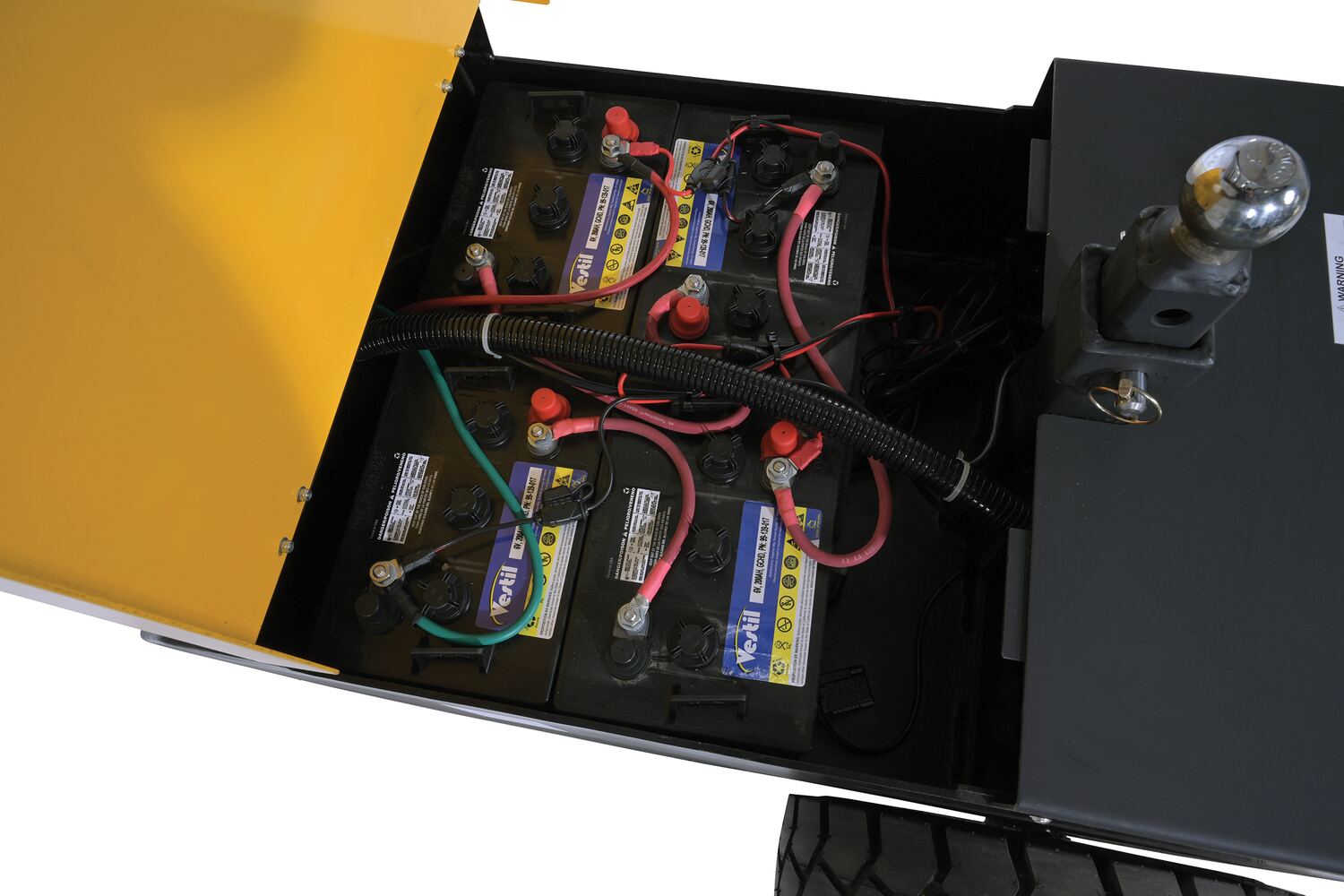

DCV: 4-6V Non-Spillable
1152

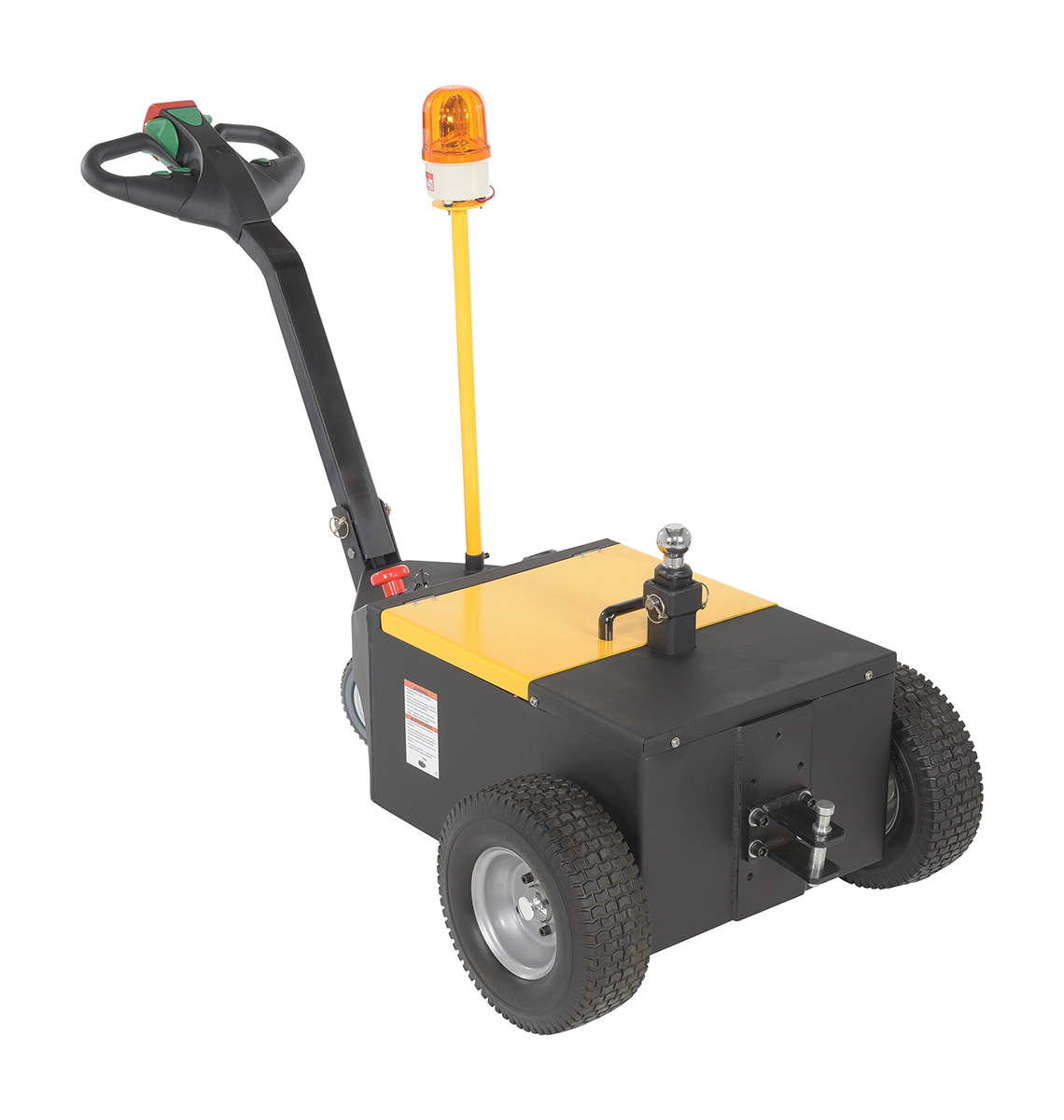

E-TUG-HD-30 E-TUG-HD-301 Year Limited WarrantySteel Heavy Duty Electric Powered Tugger 3000 Lb. Pull Capacity Yellow/BlackUniform Capacity (lb.): 3000
Drive Motor: 24V DC
404

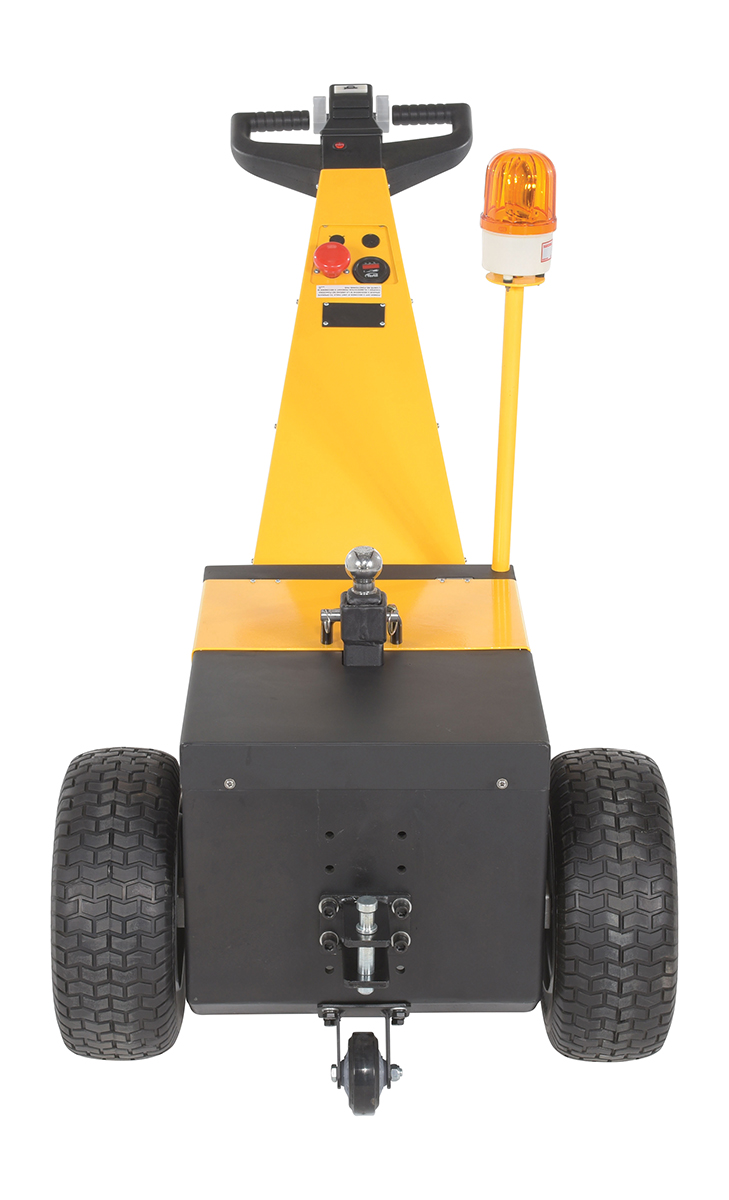

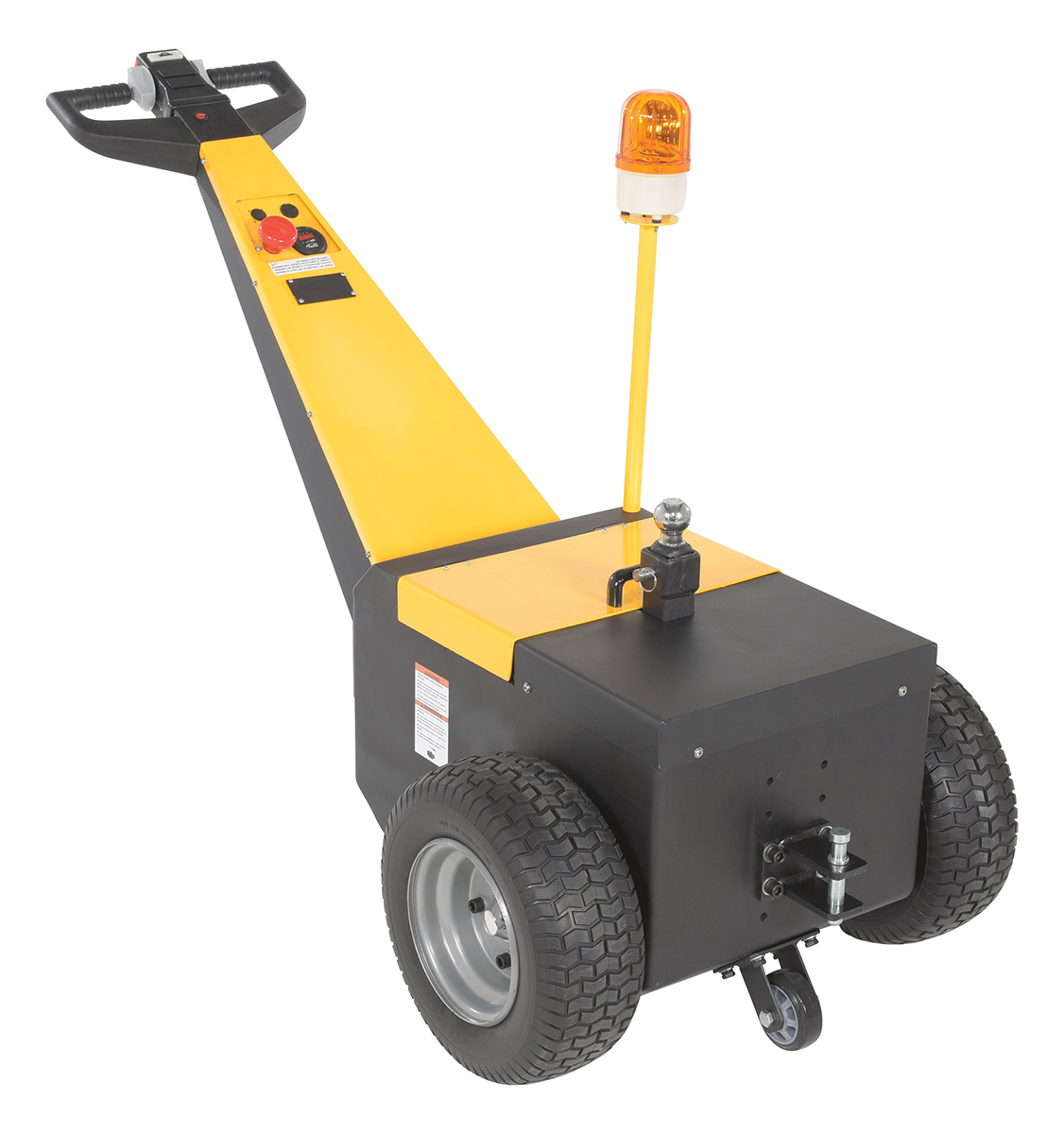

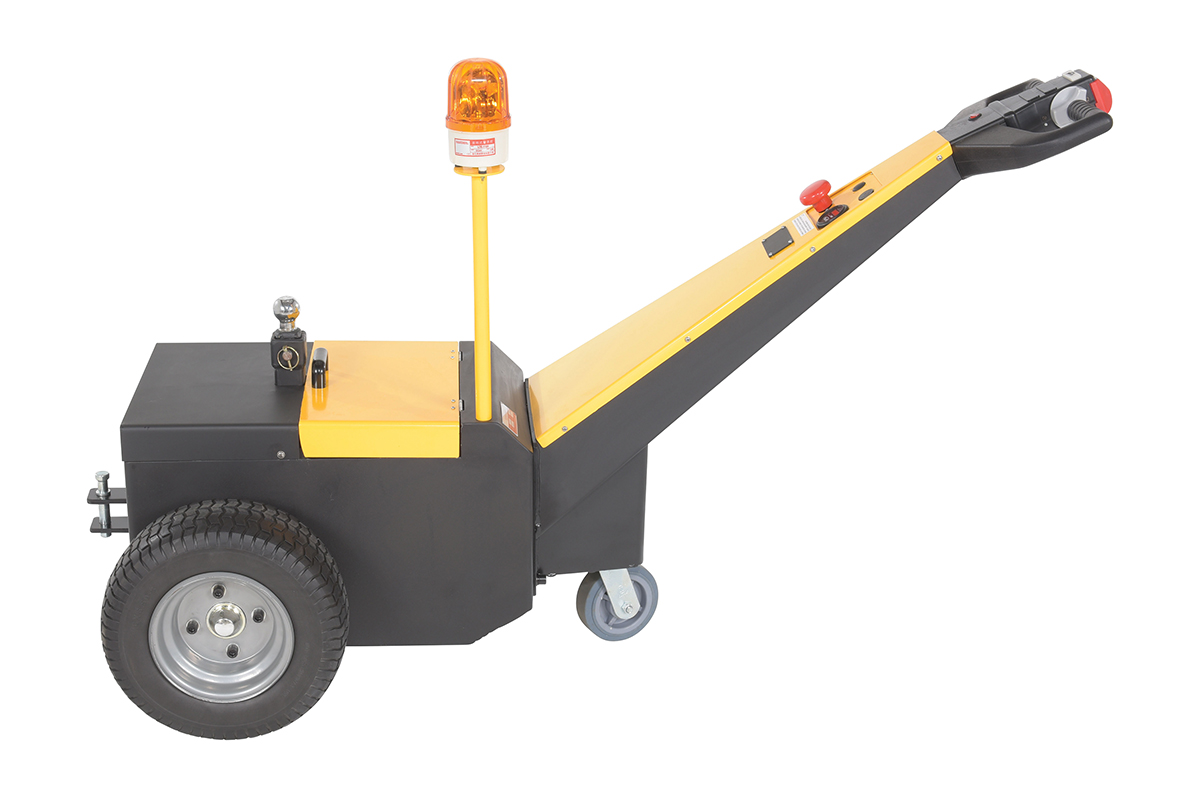

E-TUG-HD-50 E-TUG-HD-501 Year Limited WarrantySteel Heavy Duty Electric Powered Tugger 5000 Lb. Pull Capacity Yellow/BlackUniform Capacity (lb.): 5000
Drive Motor: 24V DC
593

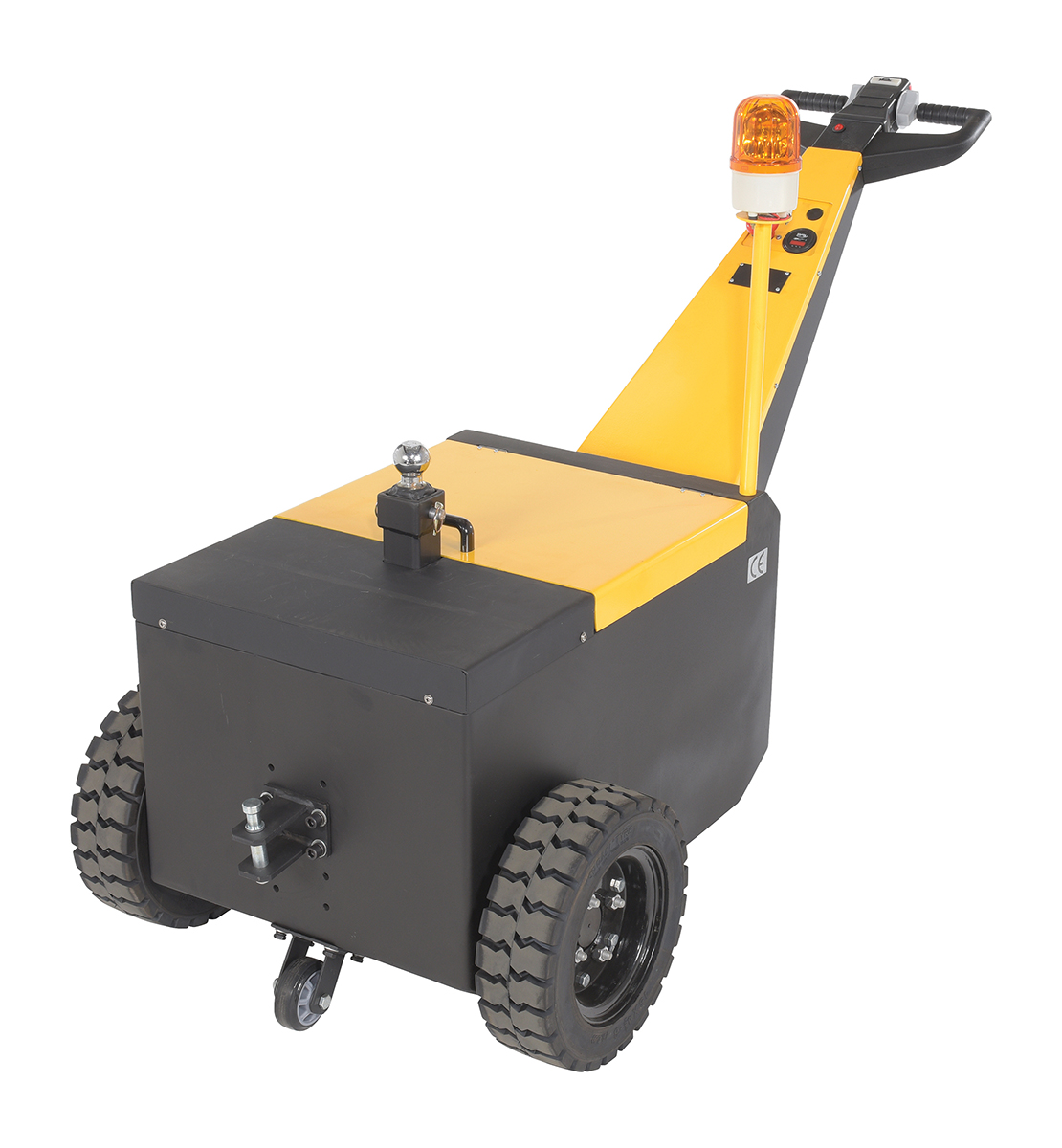

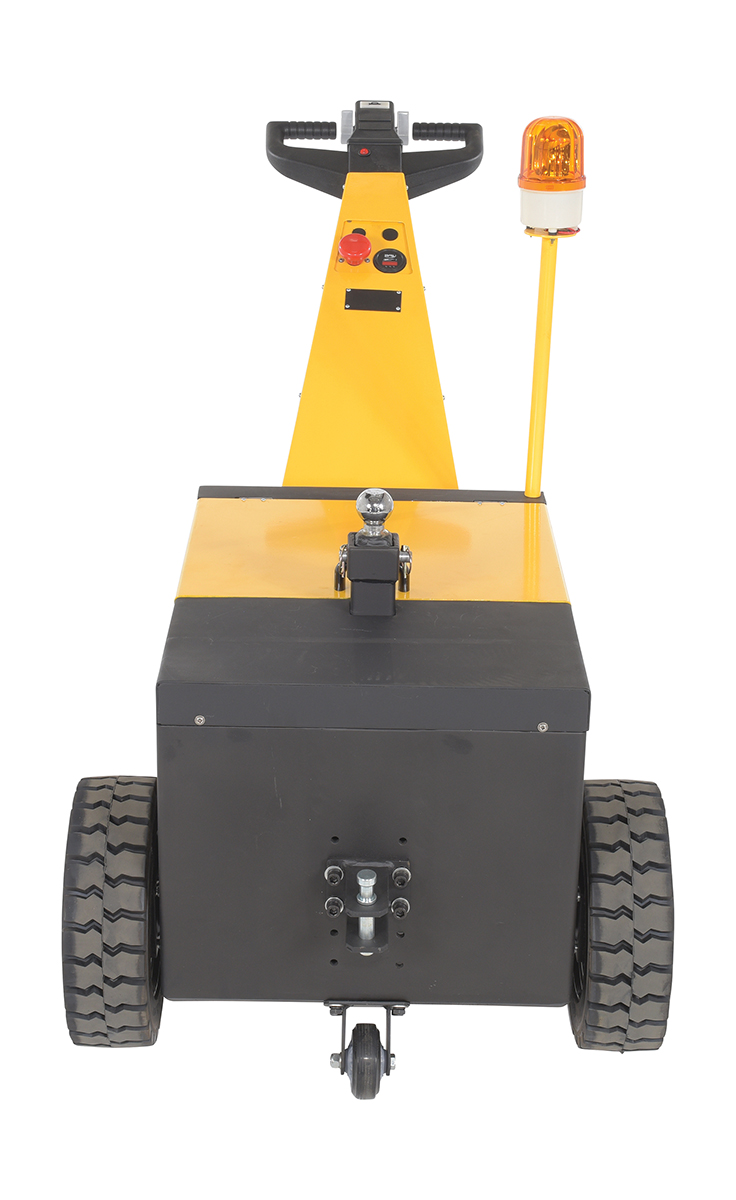

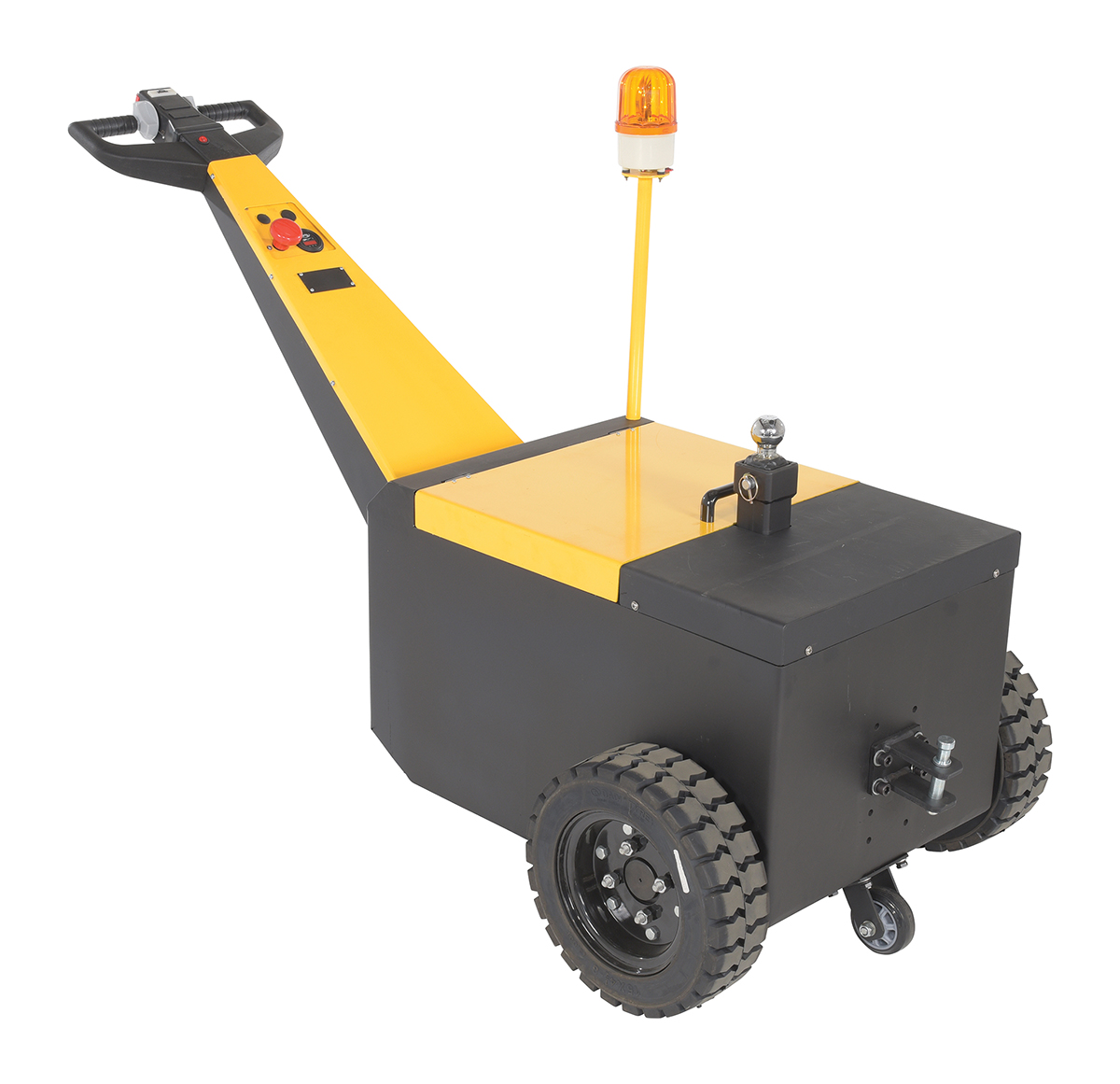

E-TUG-HD-70 E-TUG-HD-701 Year Limited WarrantySteel Heavy Duty Electric Powered Tugger 7000 Lb. Pull Capacity Yellow/BlackUniform Capacity (lb.): 7000
Drive Motor: 24V DC
1008

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

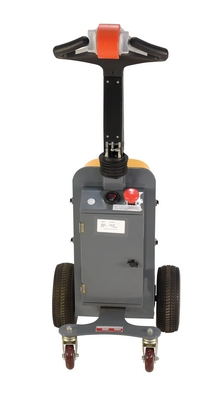

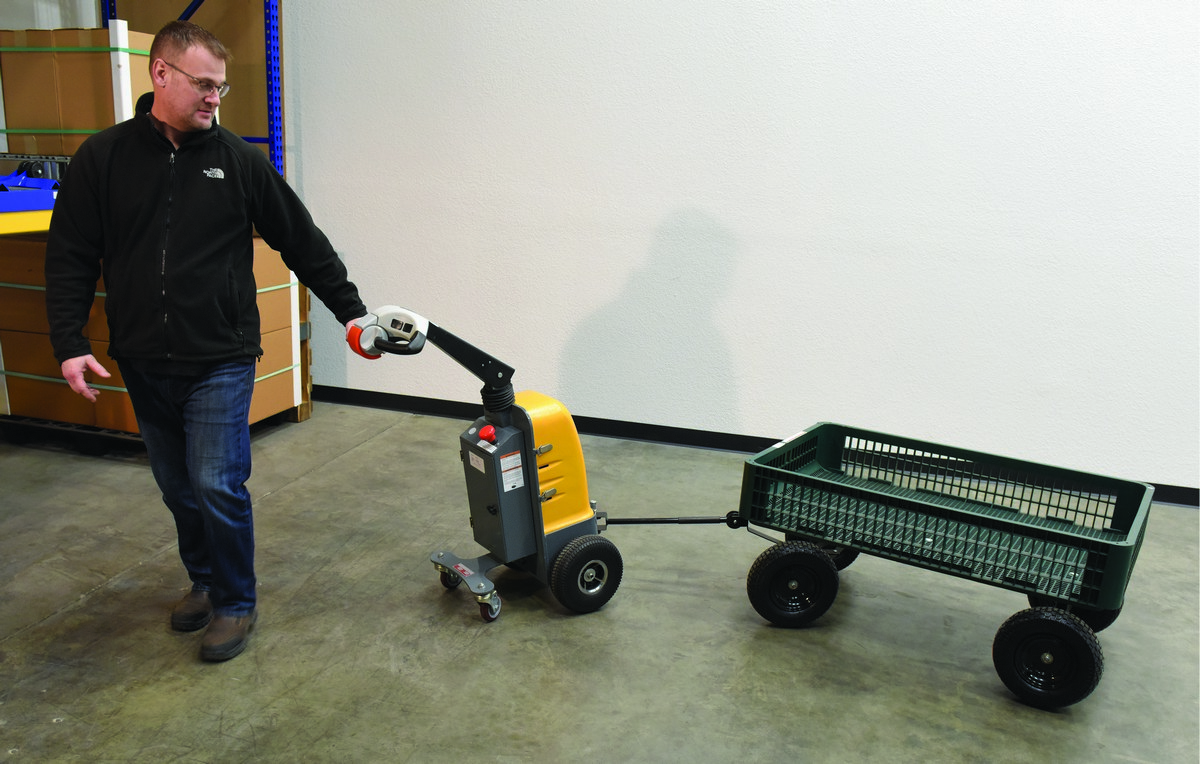

E-TUG-10
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Pull Capacity (lb.): 1,000
Drive Motor: 24V DC
Uniform Pull Capacity (lb.): 1,000
Drive Motor: 24V DC

E-TUG-20
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Pull Capacity (lb.): 2,000
Drive Motor: 24V DC
Uniform Pull Capacity (lb.): 2,000
Drive Motor: 24V DC

E-TUG-30
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Pull Capacity (lb.): 3,000
Drive Motor: 24V DC
Uniform Pull Capacity (lb.): 3,000
Drive Motor: 24V DC

E-TUG-HD-100
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 10000
DCV: 4-6V Non-Spillable
Uniform Capacity (lb.): 10000
DCV: 4-6V Non-Spillable

E-TUG-HD-30
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 3000
Drive Motor: 24V DC
Uniform Capacity (lb.): 3000
Drive Motor: 24V DC

E-TUG-HD-50
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 5000
Drive Motor: 24V DC
Uniform Capacity (lb.): 5000
Drive Motor: 24V DC

E-TUG-HD-70
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 7000
Drive Motor: 24V DC
Uniform Capacity (lb.): 7000
Drive Motor: 24V DC
For More Details of the Option Click the Red Model Button

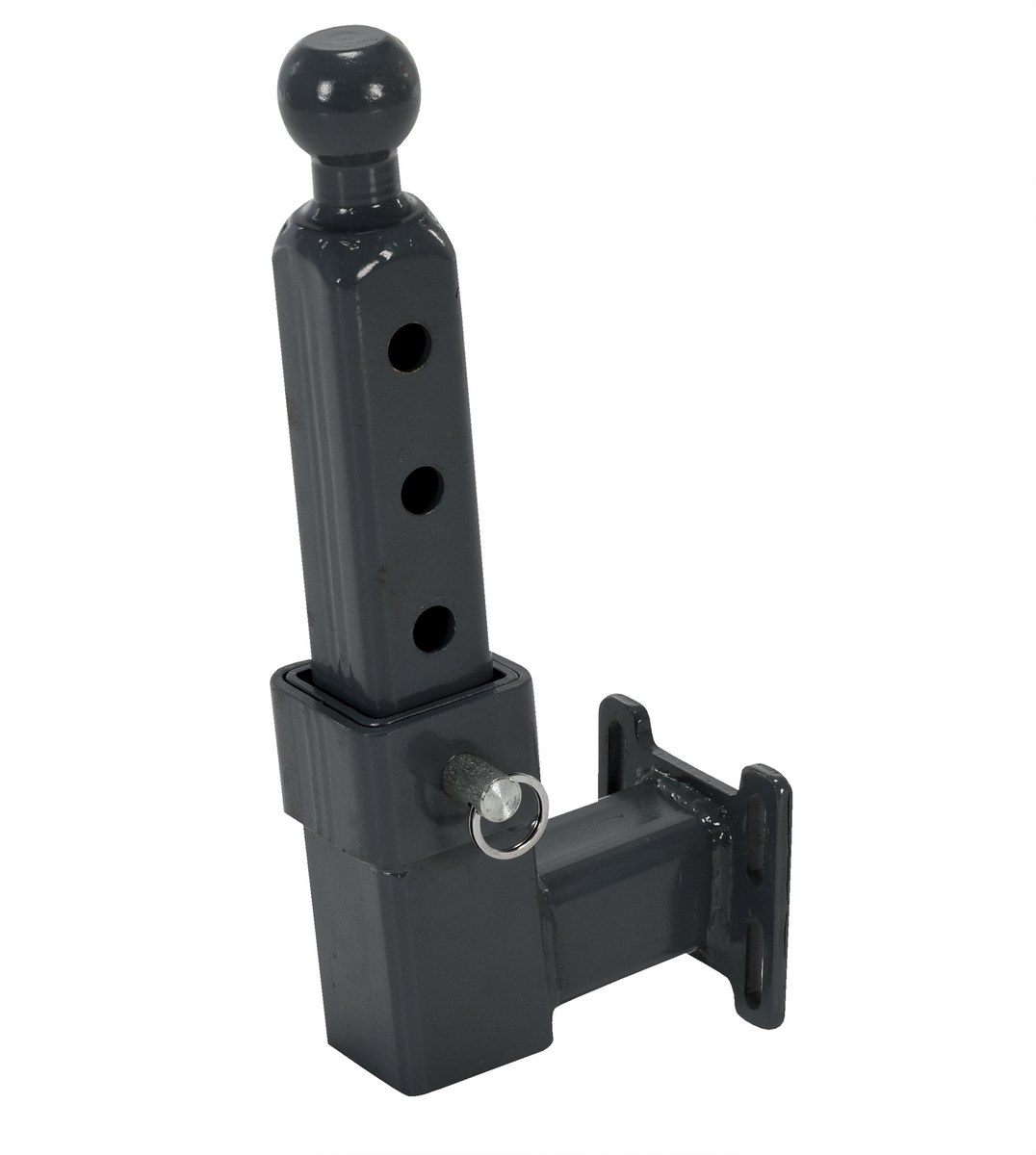

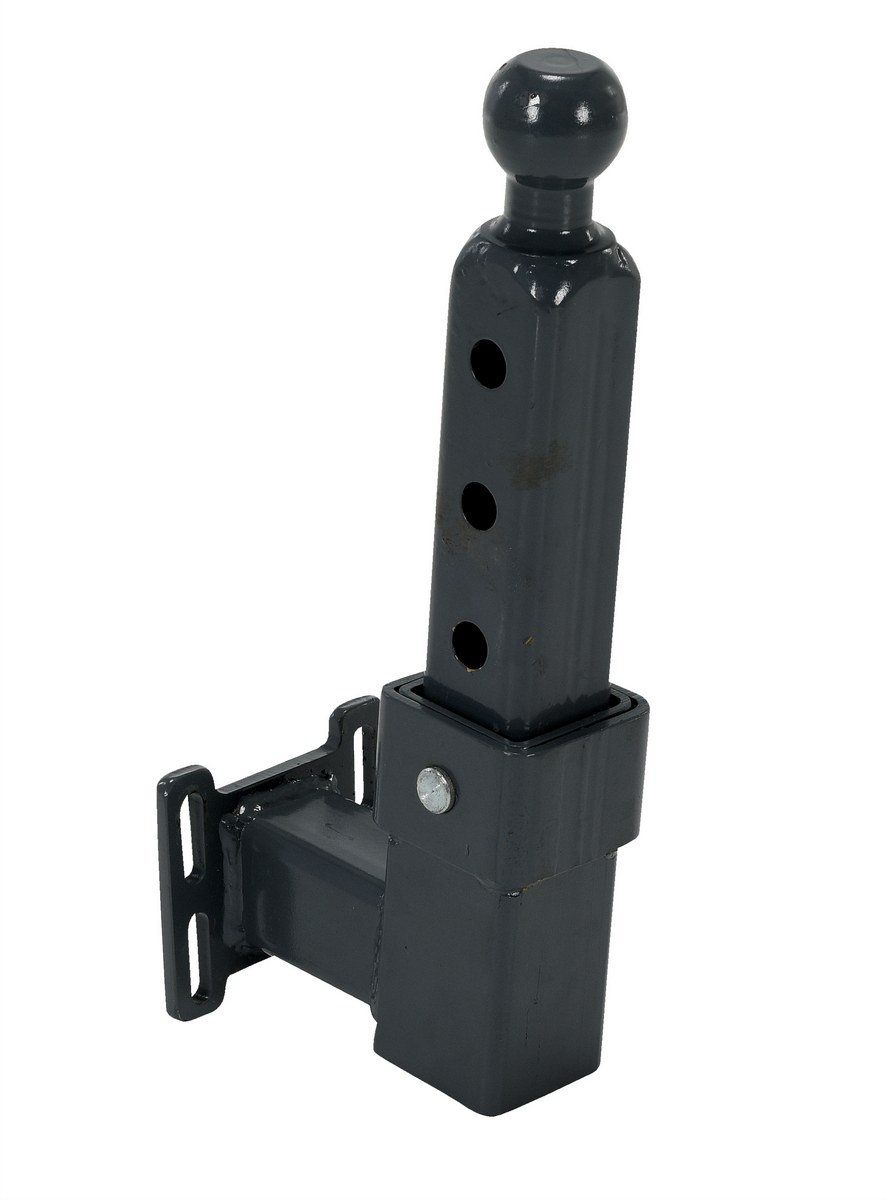

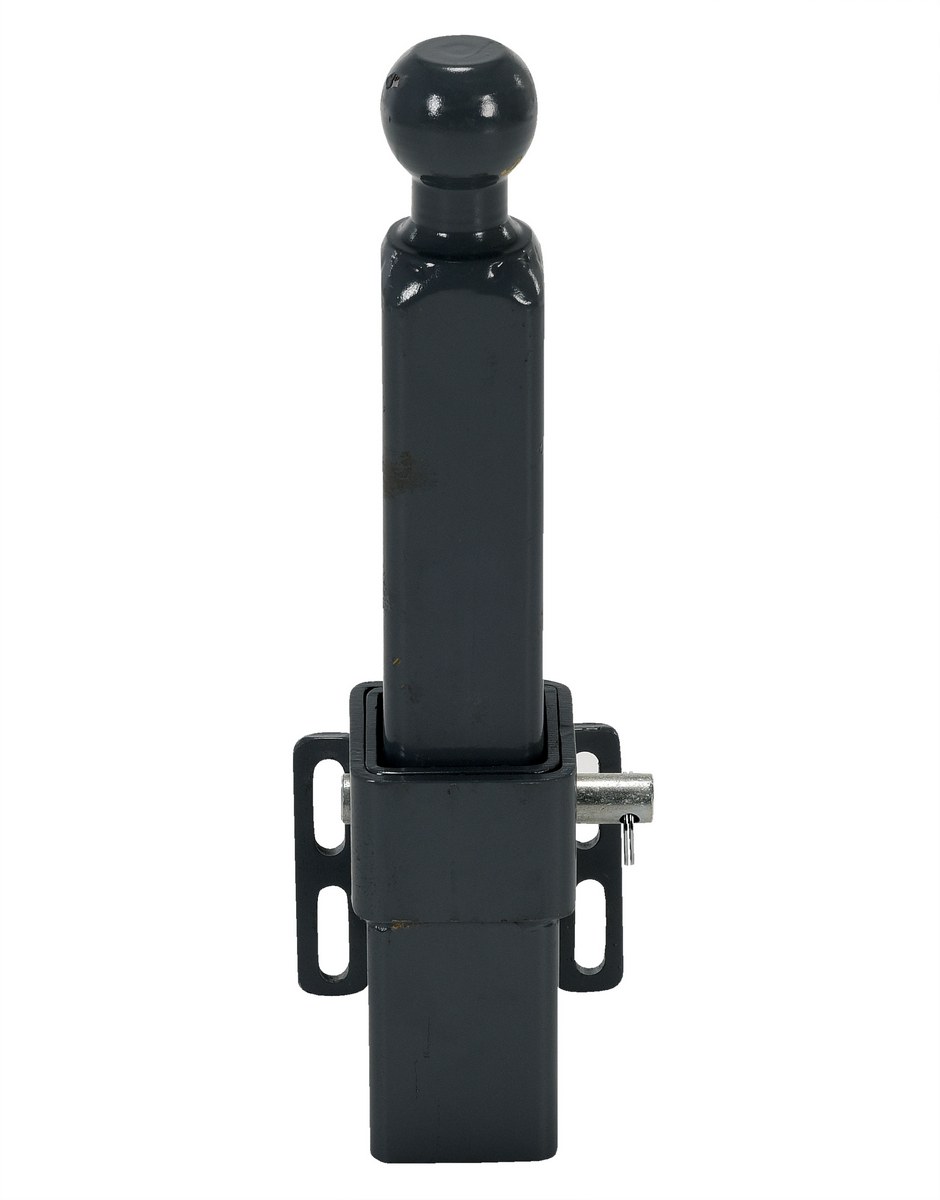

E-TUG-ABMH E-TUG-ABMH90 Days Limited WarrantySteel Adjustable Ball Mount Hitch For E-Tug ModelsInstallation Hardware Included: No
Number of Casters / Wheels: No Wheels / Casters
12

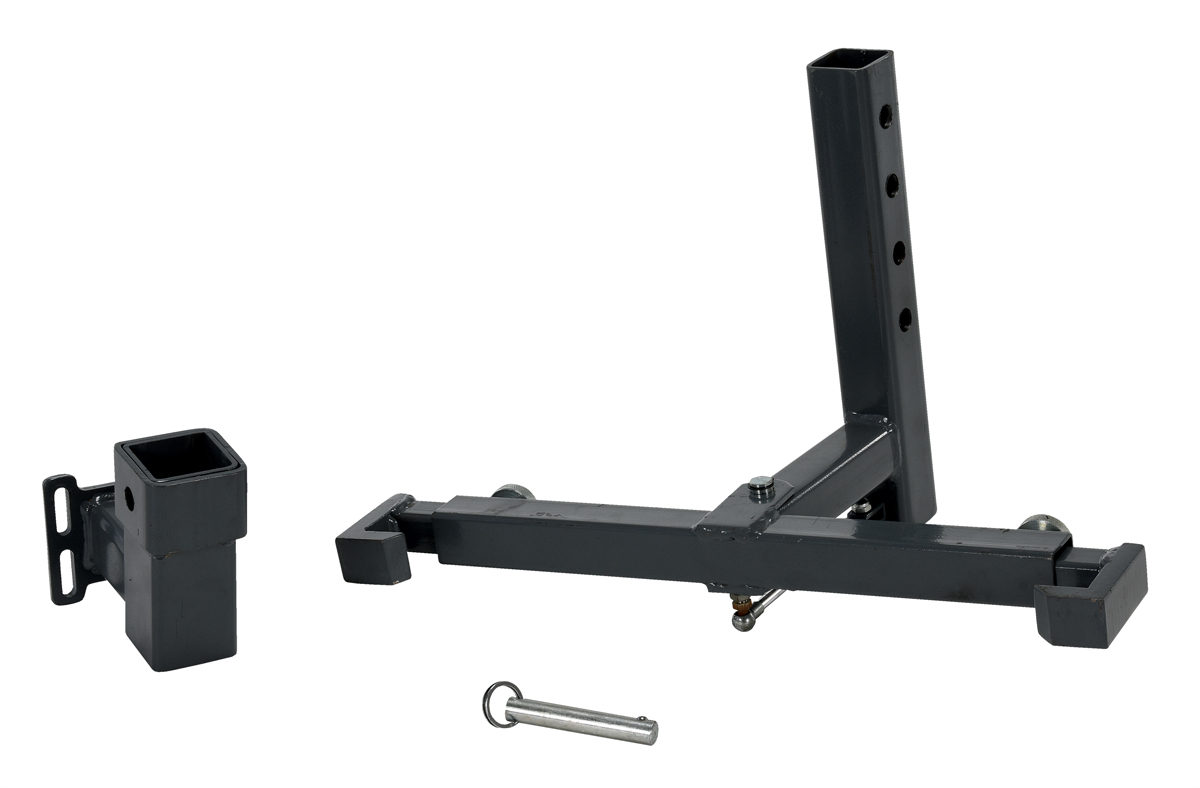

E-TUG-ADSH E-TUG-ADSH90 Days Limited WarrantySteel Adjustable Double Sided Hook For E-Tug ModelsInstallation Hardware Included: Yes
Number of Casters / Wheels: No Wheels / Casters
22

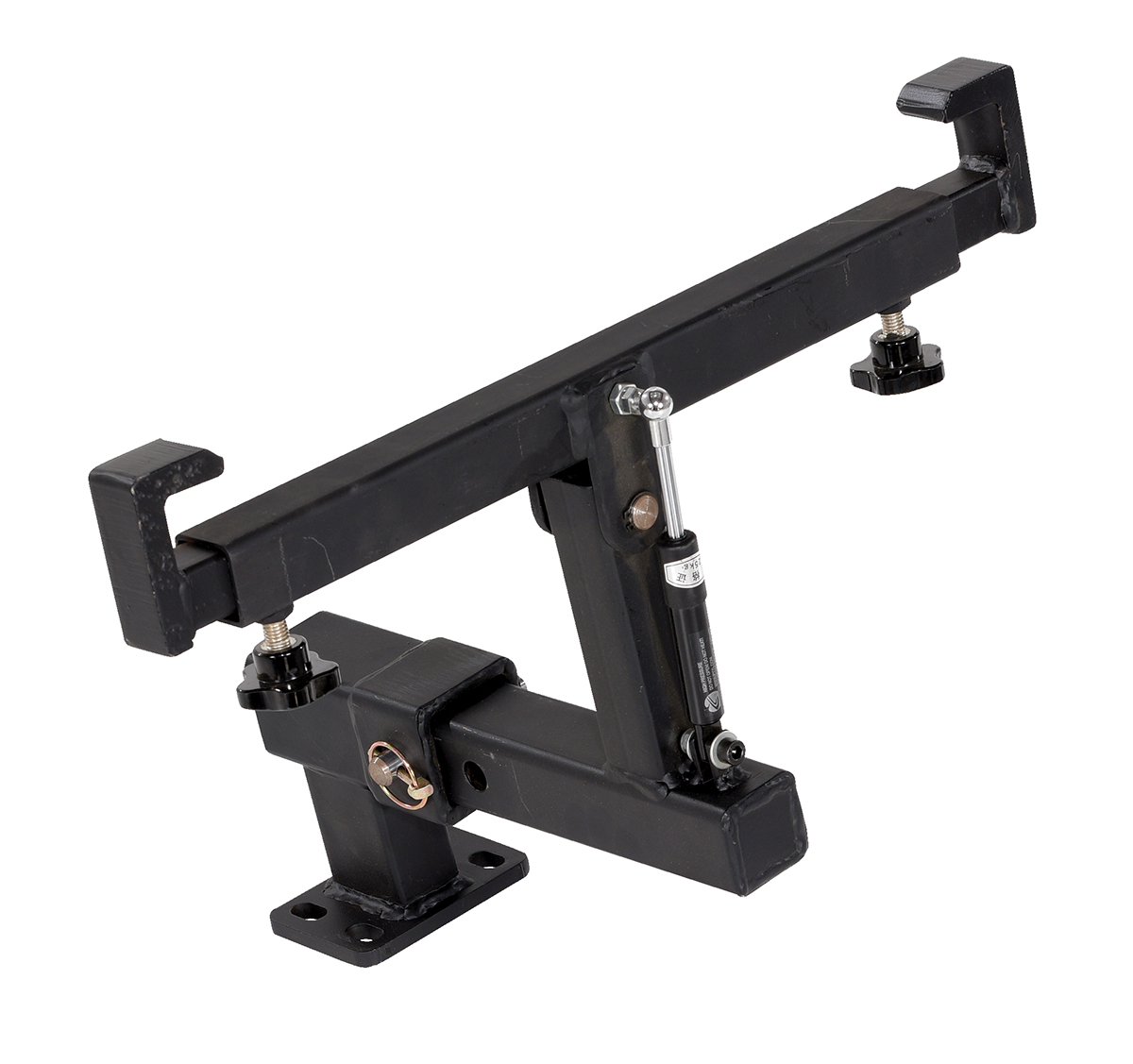

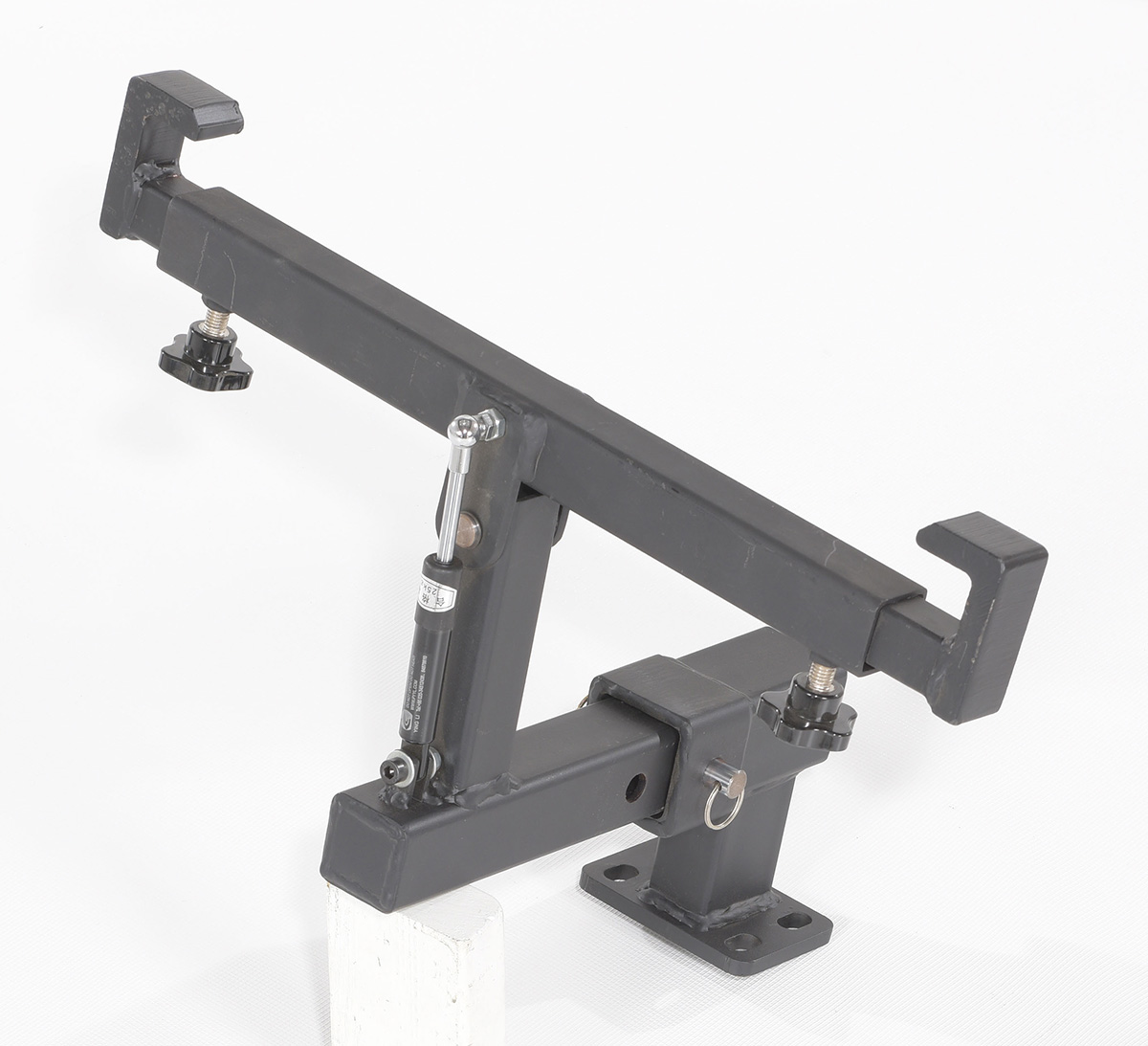

E-TUG-HD-ADSH E-TUG-HD-ADSH90 Days Limited WarrantySteel Adjustable Double Sided Hook For E-Tug-HD Models Black-
25

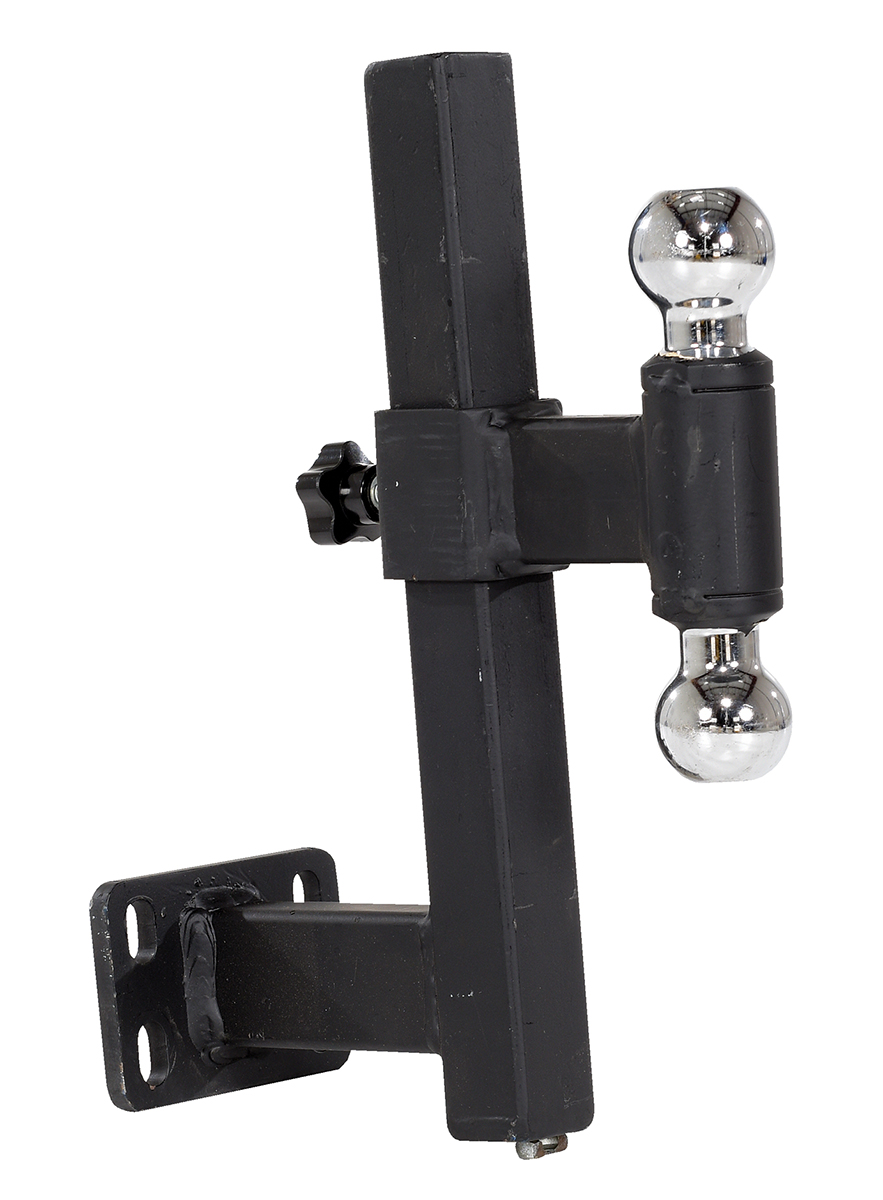

E-TUG-HD-DABH E-TUG-HD-DABH90 Days Limited WarrantySteel Double Ball Hitch Mount For E-Tug-HD Models BlackBall sizes: 1-7/8" & 2"
13

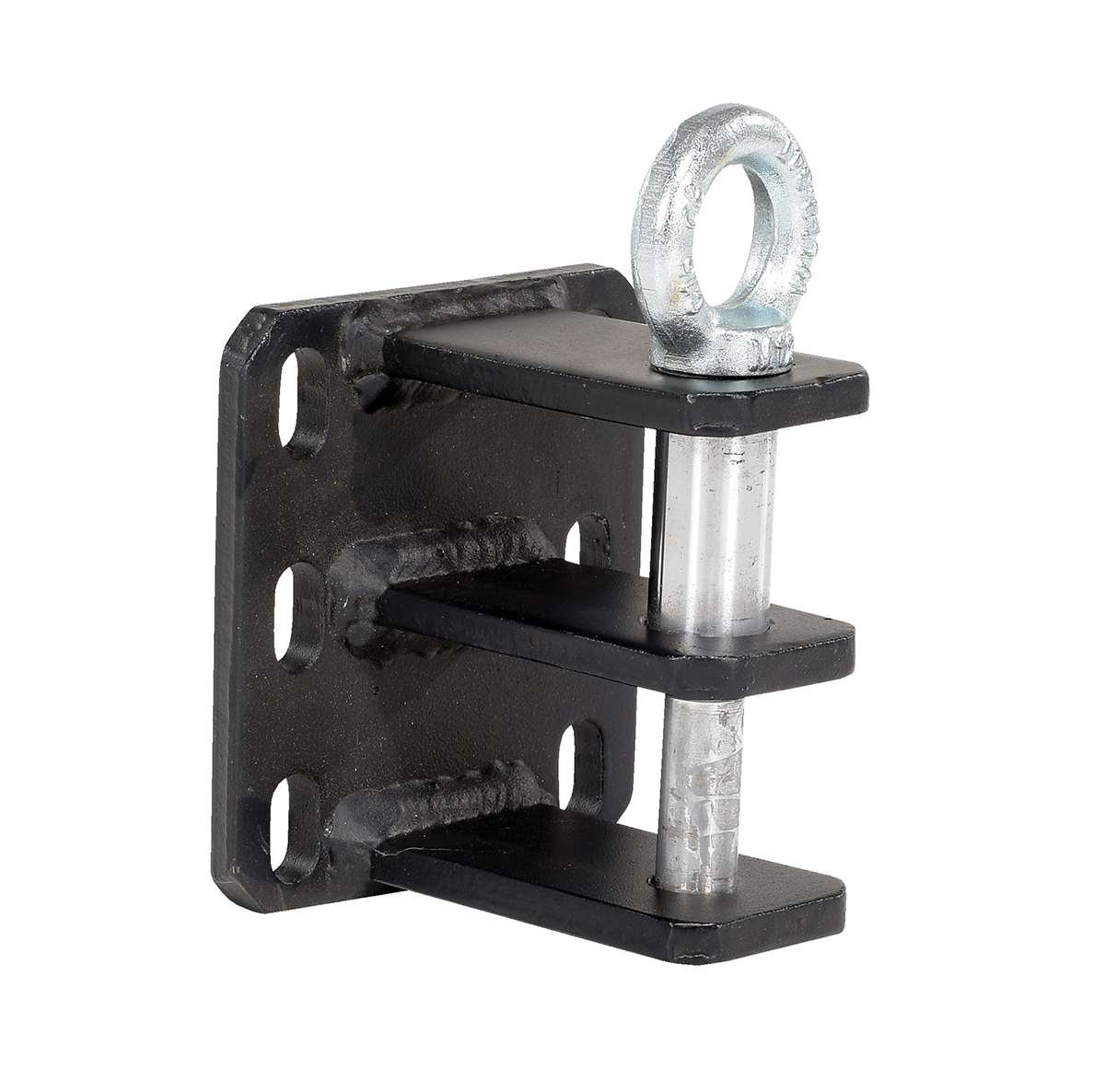

E-TUG-HD-DPINH E-TUG-HD-DPINH90 Days Limited WarrantySteel Double Pin Hitch For E-Tug-HD Models Black-
8

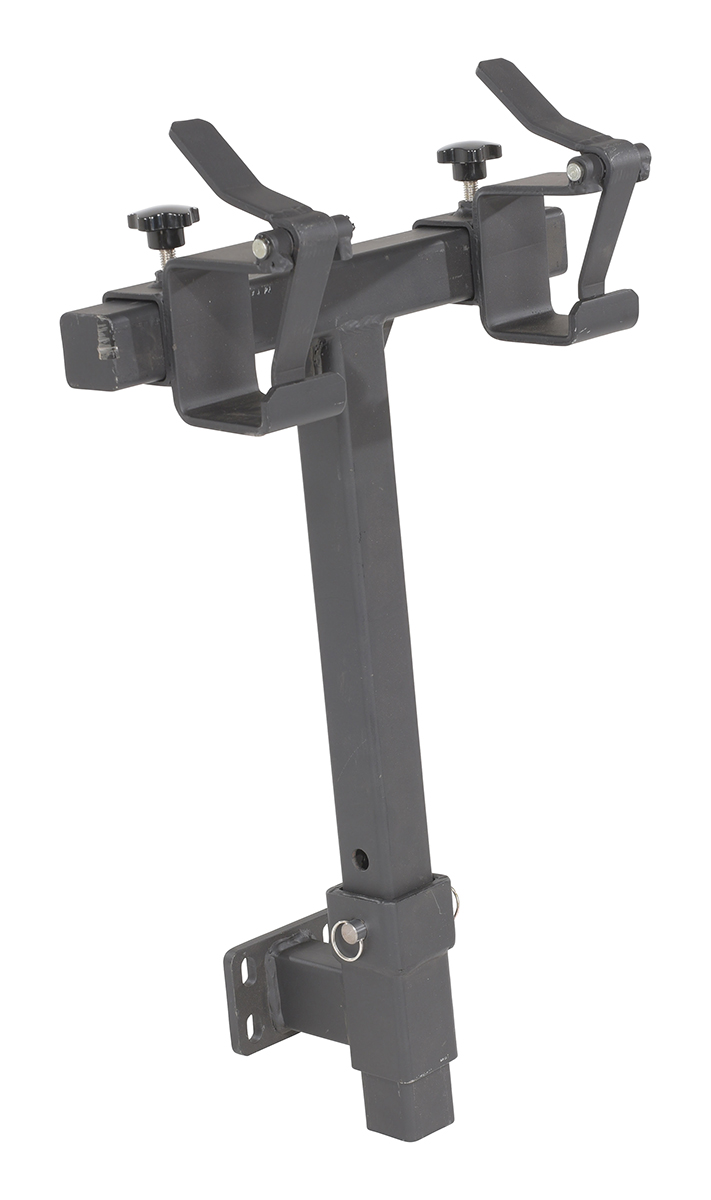

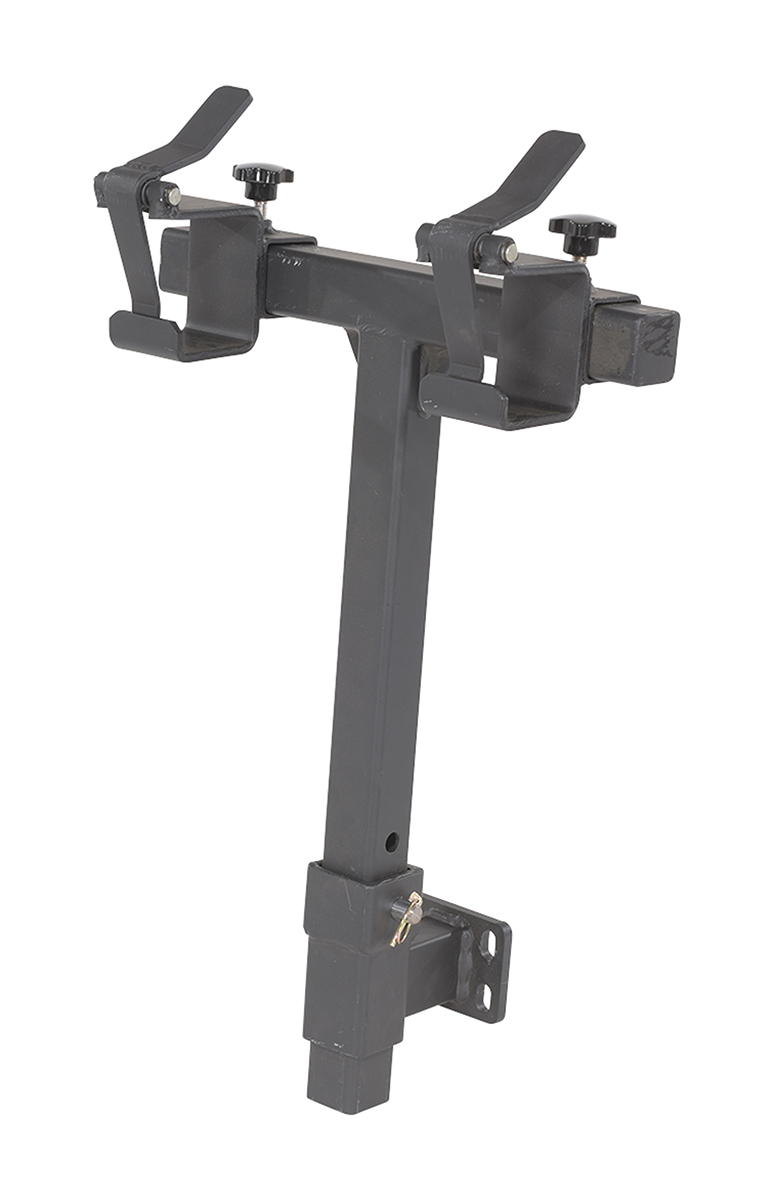

E-TUG-HD-MM E-TUG-HD-MM90 Days Limited WarrantySteel Multi Mover For E-Tug-HD Models Black-
31
E-TUG-HD-PINH E-TUG-HD-PINH90 Days Limited WarrantySteel Pin Hitch For E-Tug-HD Models Black/Silver-
6
E-TUG-HD-RP-16 E-TUG-HD-RP-1690 Days Limited WarrantySteel Roller/Pusher Attachment 16 In. Width For E-Tug-HD Models Black-
76

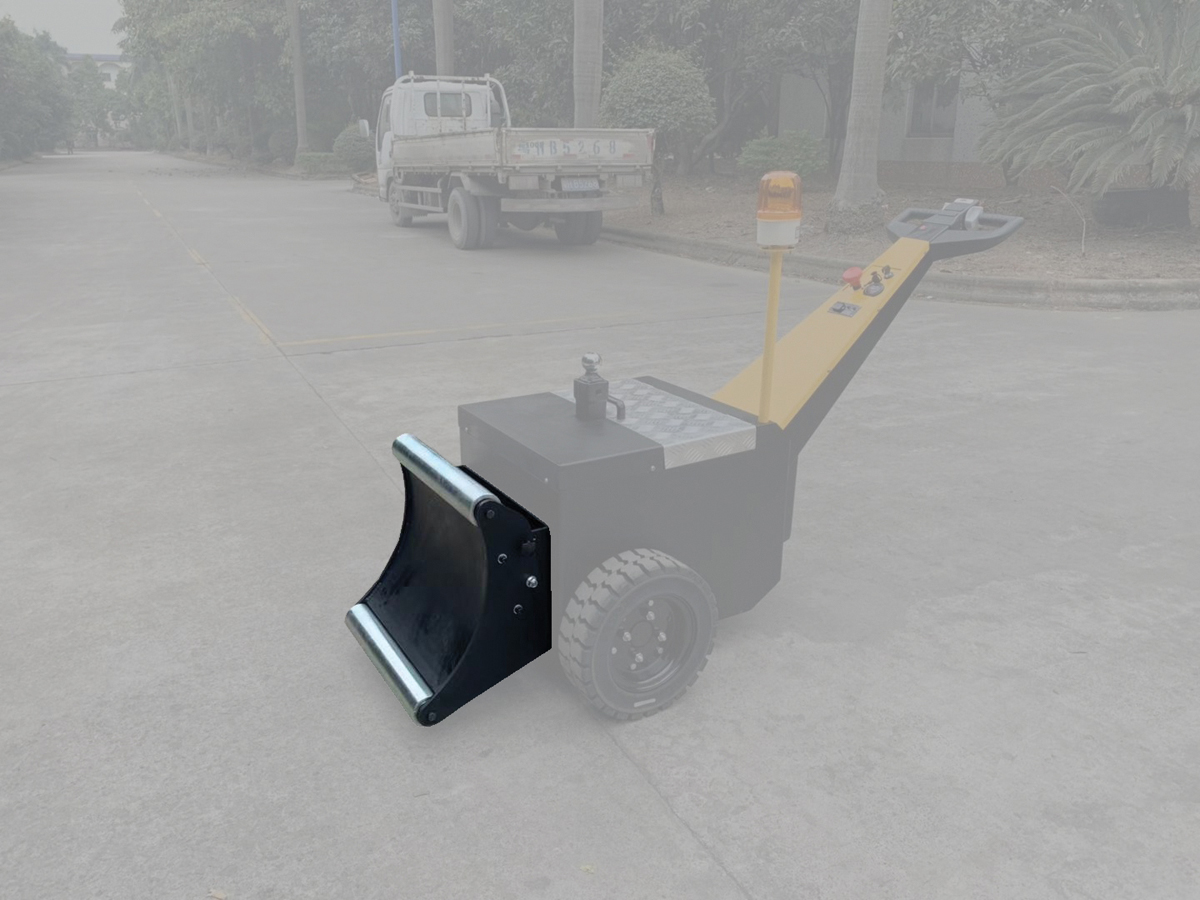

E-TUG-HD-RP-20 E-TUG-HD-RP-2090 Days Limited WarrantySteel Roller/Pusher Attachment 20 In. Width For E-Tug-HD Models Black-
93

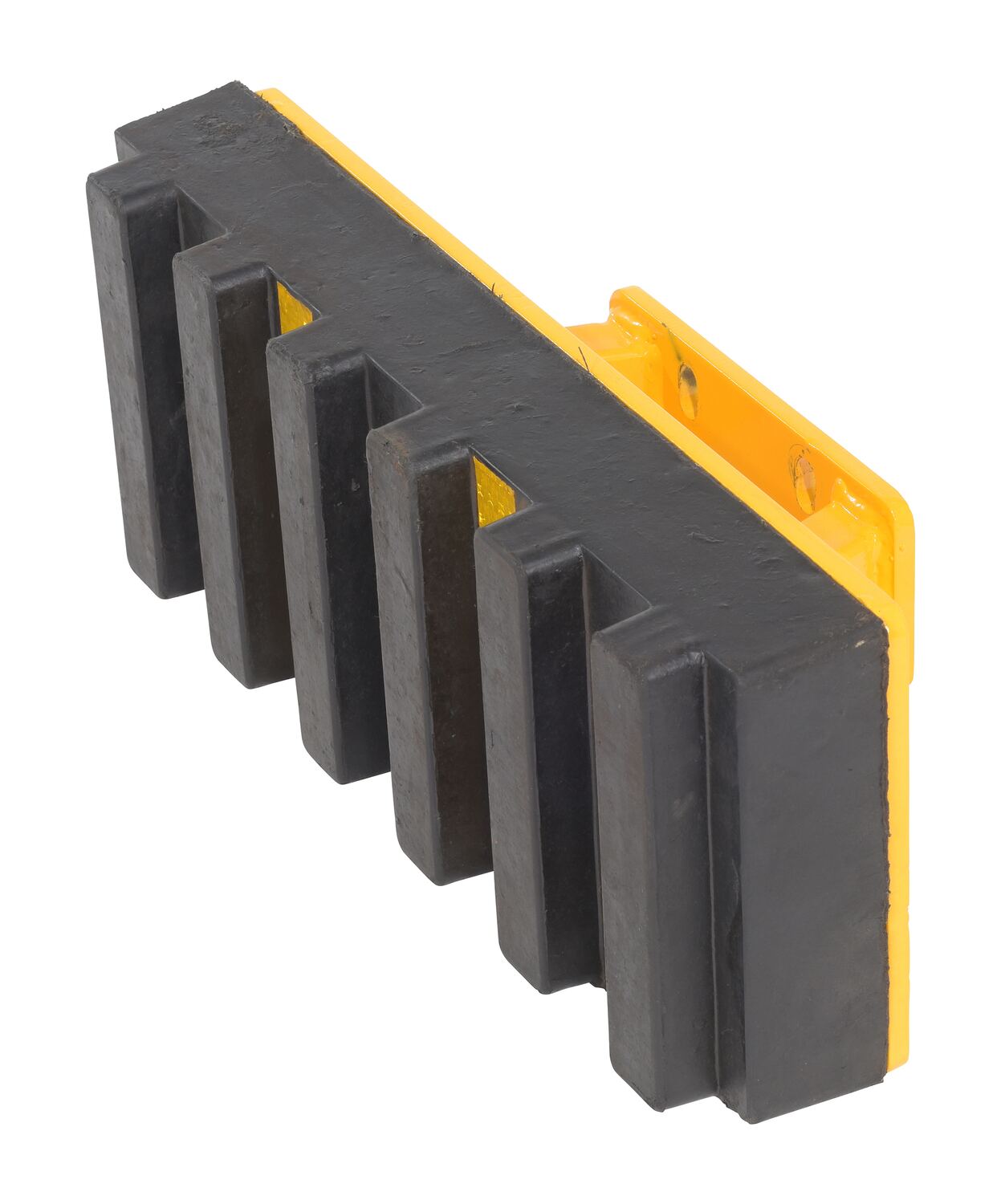

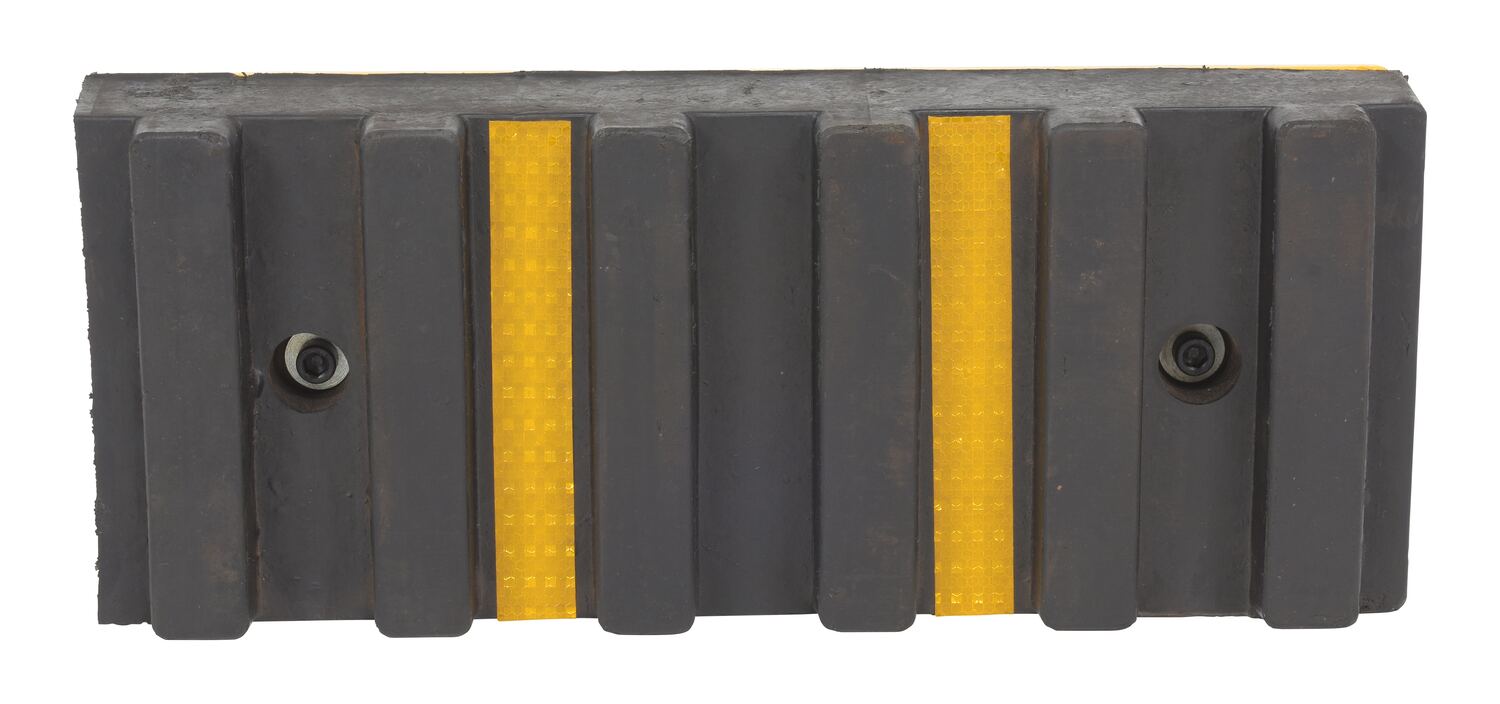

E-TUG-HD-RPB-19 E-TUG-HD-RPB-1990 Days Limited WarrantyRubber Bumper Attachment 19 In.Installation Hardware Included: Yes
Number of Casters / Wheels: No Wheels / Casters
21

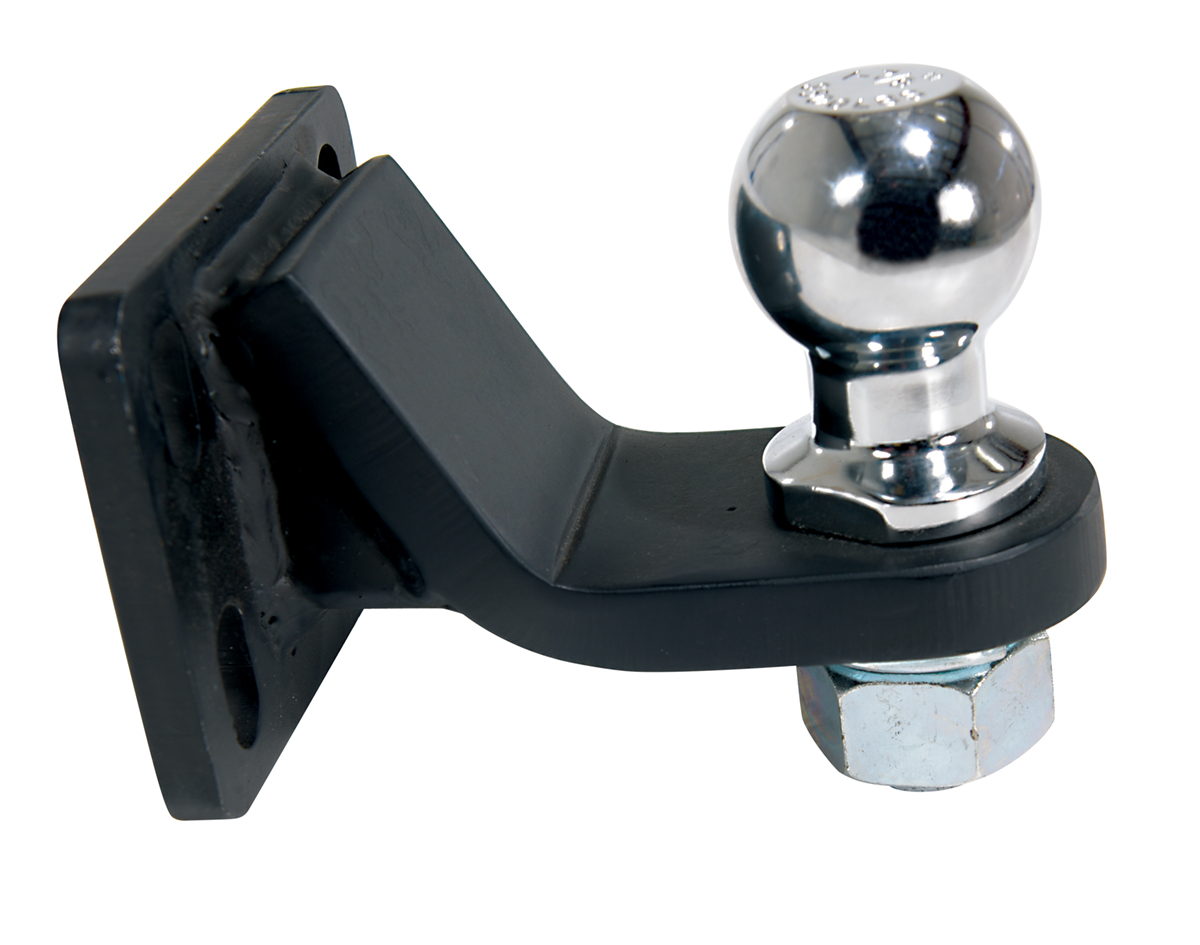

E-TUG-HD-SBH-4 E-TUG-HD-SBH-490 Days Limited WarrantySteel Single Ball Hitch Mount 4 In. Length For E-Tug-HD Models Black-
8

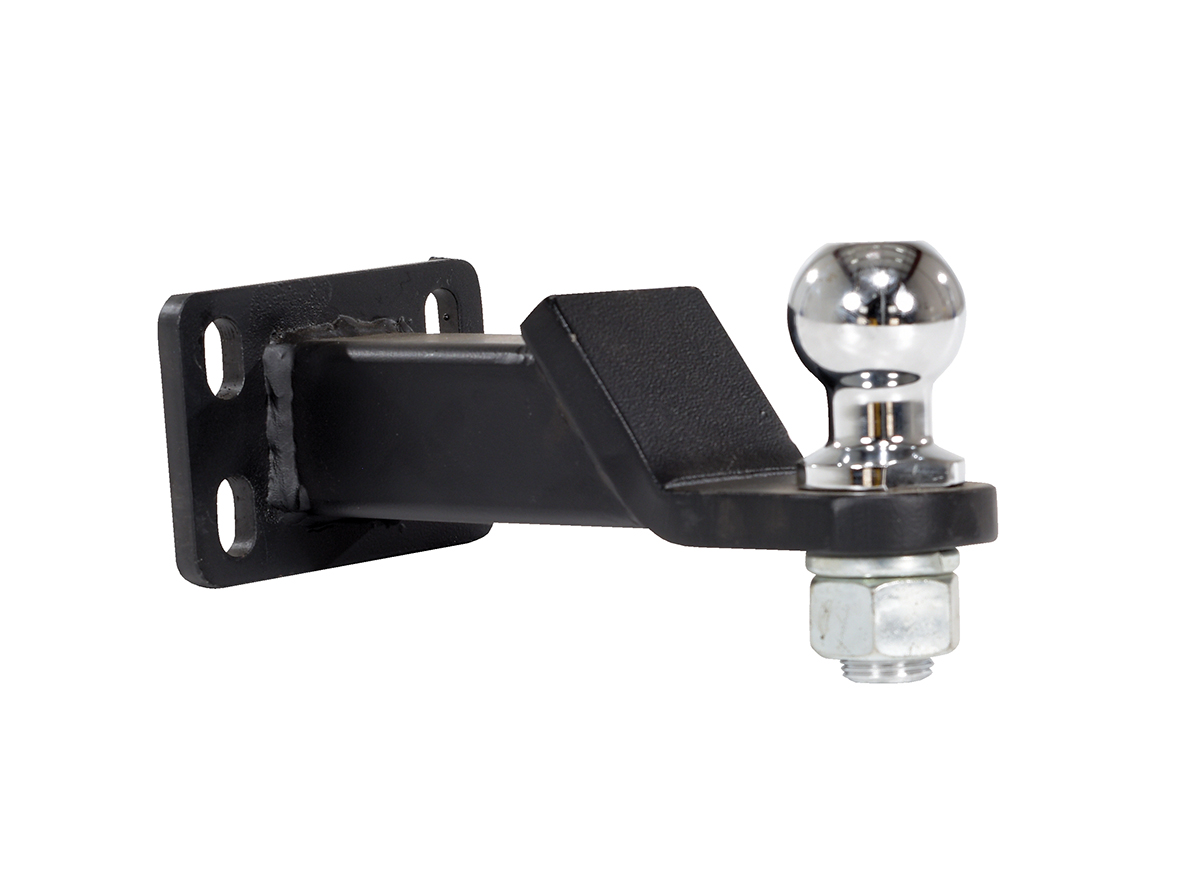

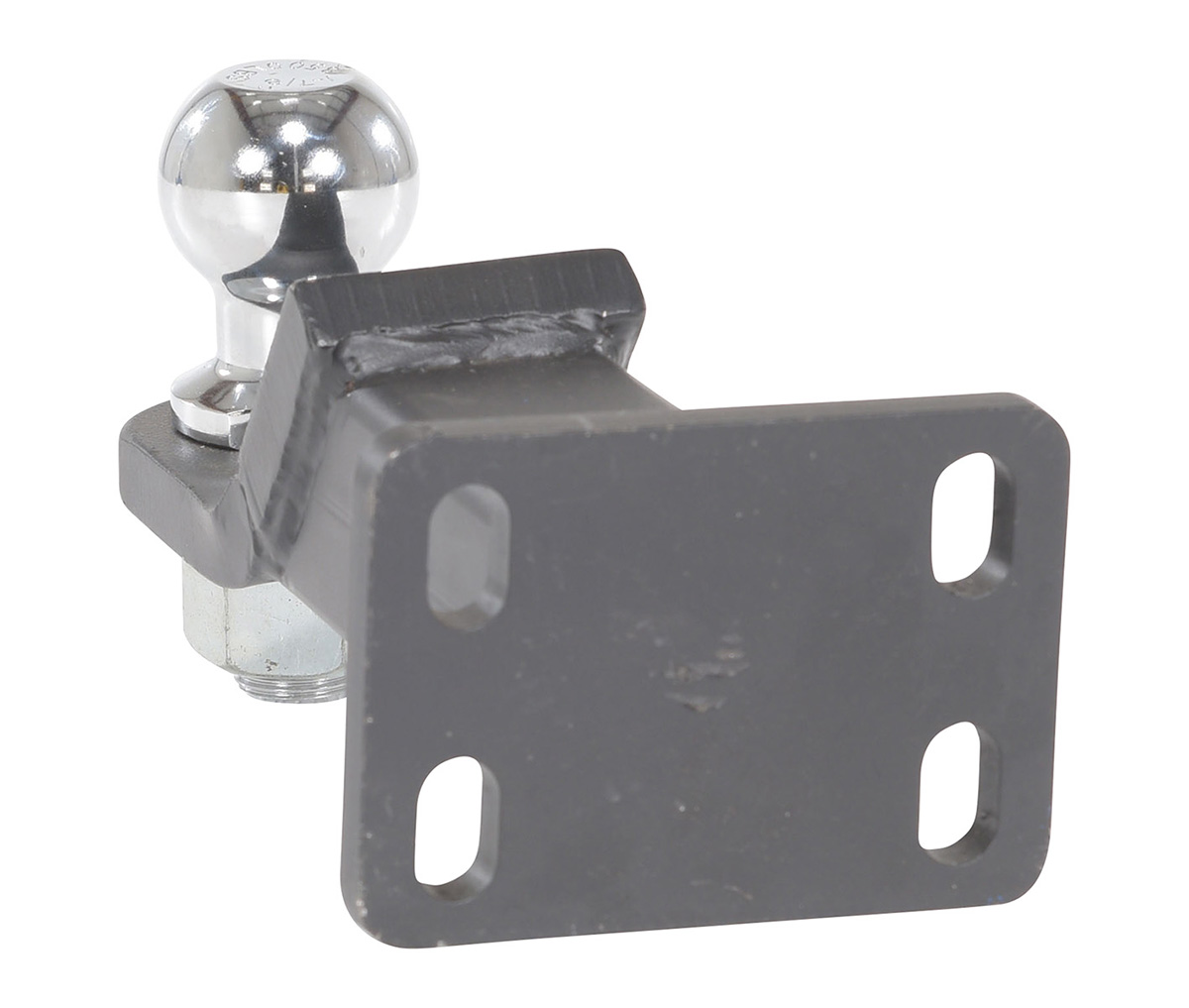

E-TUG-HD-SBH-8 E-TUG-HD-SBH-890 Days Limited WarrantySteel Single Ball Hitch Mount 8 In. Length For E-Tug-HD Models Black-
9

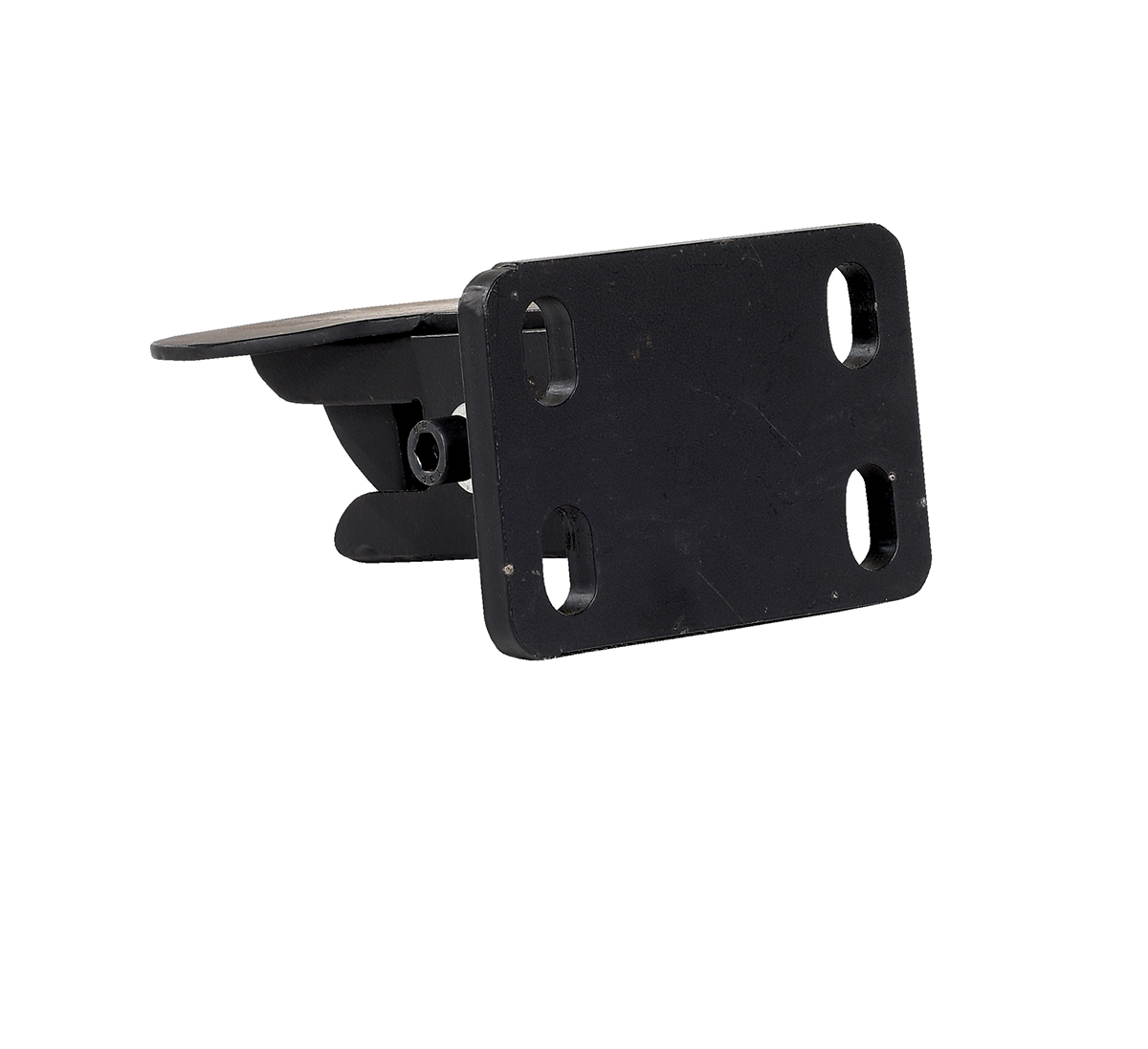

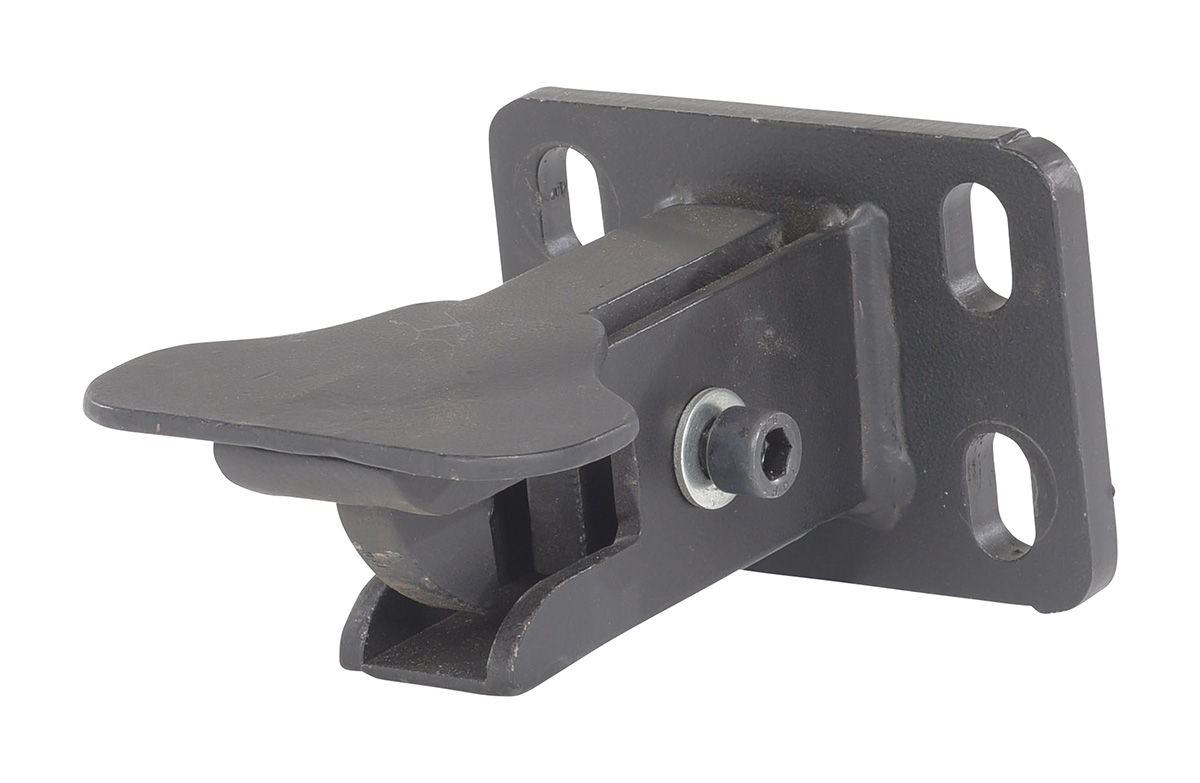

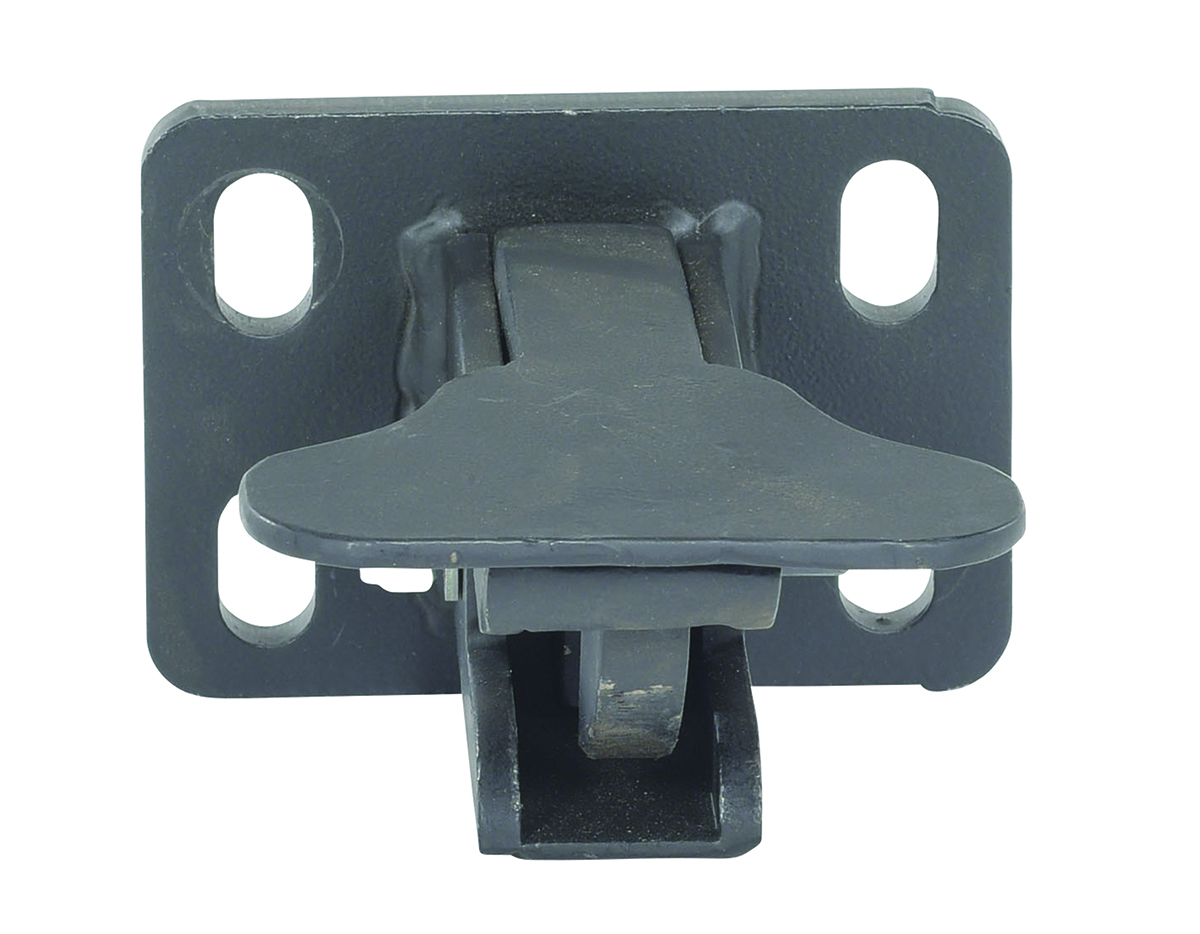

E-TUG-HD-SLH E-TUG-HD-SLH90 Days Limited WarrantySteel Self Locking Hitch For E-Tug-HD Models Black-
5

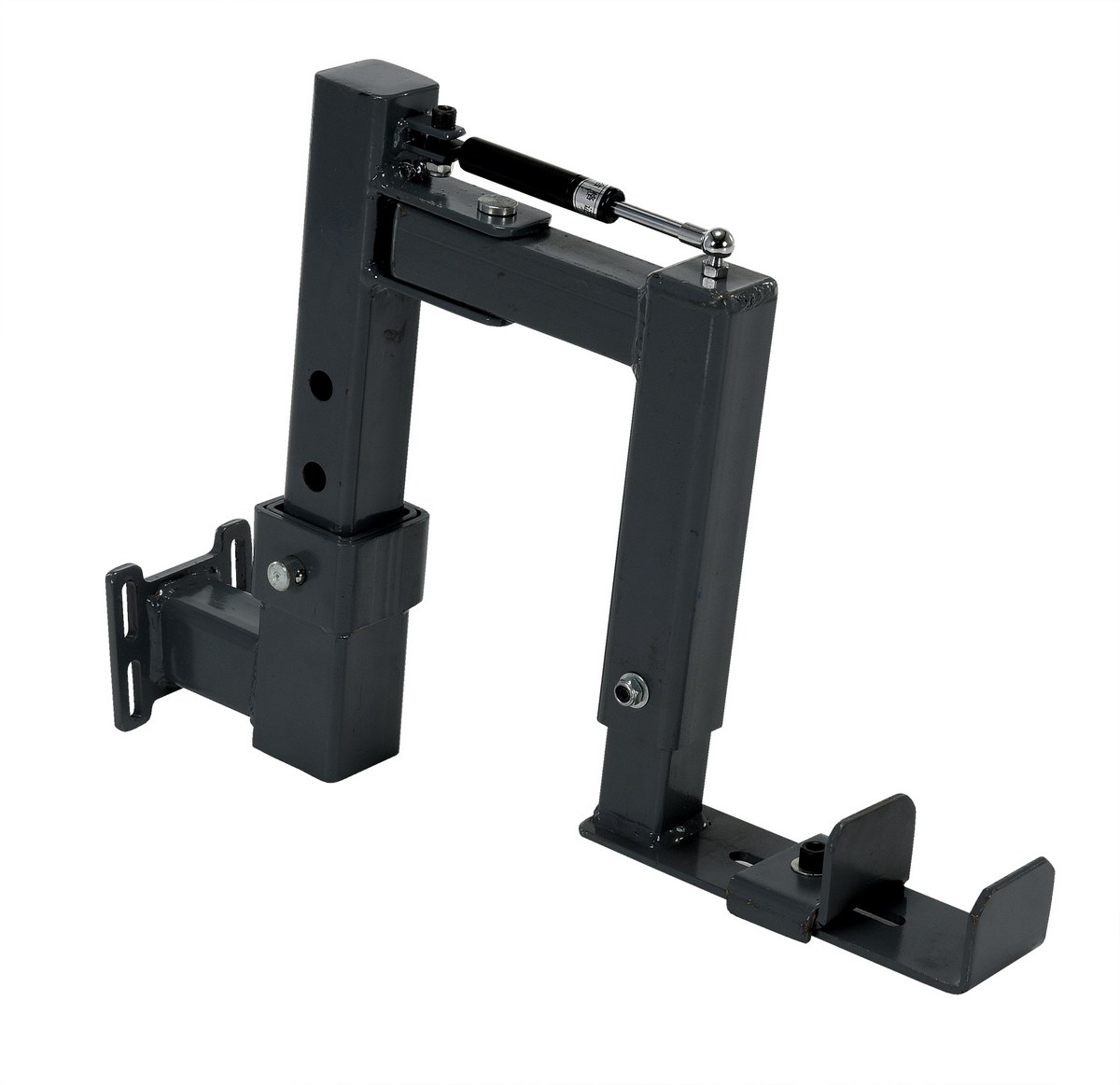

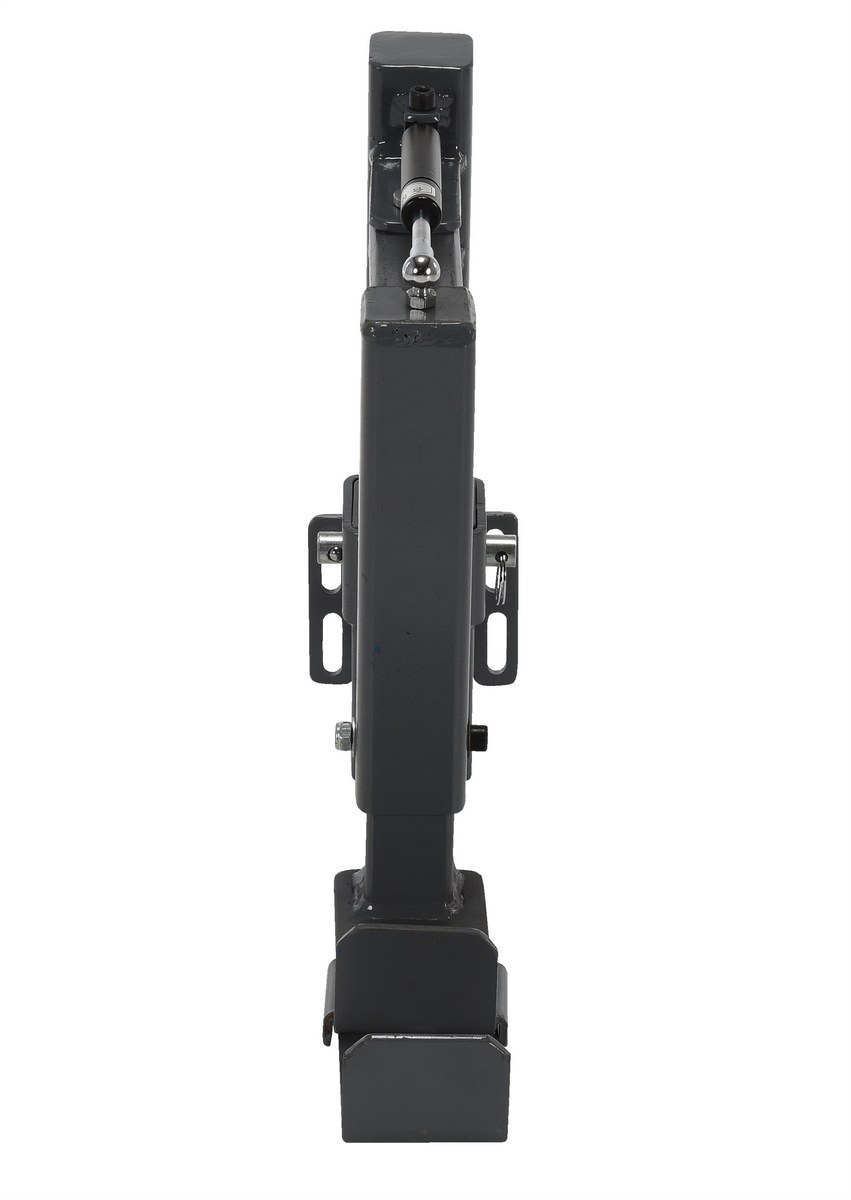

E-TUG-MCLA E-TUG-MCLA90 Days Limited WarrantySteel Spring Loaded Manual Channel Lift For E-Tug Models BlackInstallation Hardware Included:
Number of Casters / Wheels: No Wheels / Casters
22

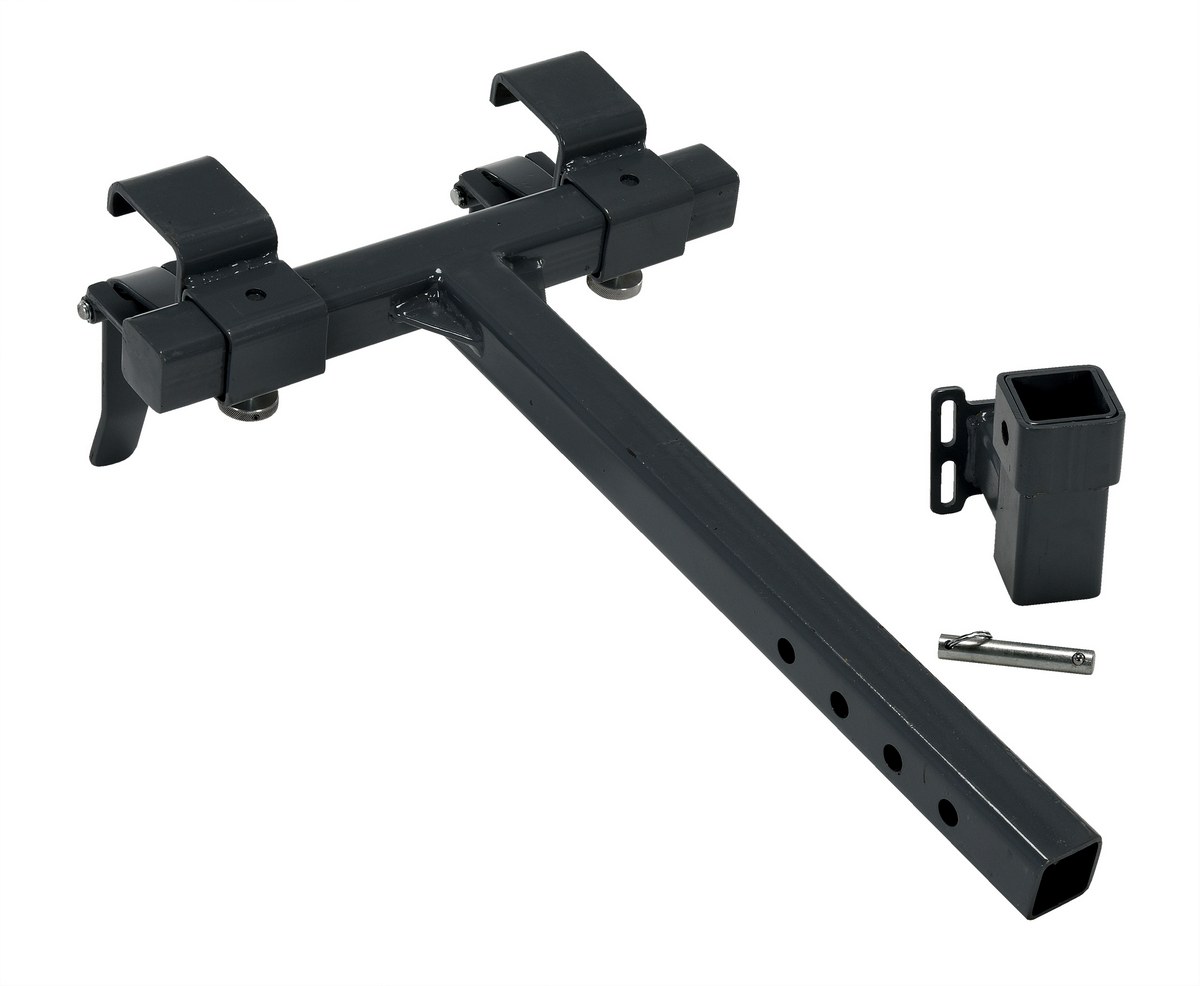

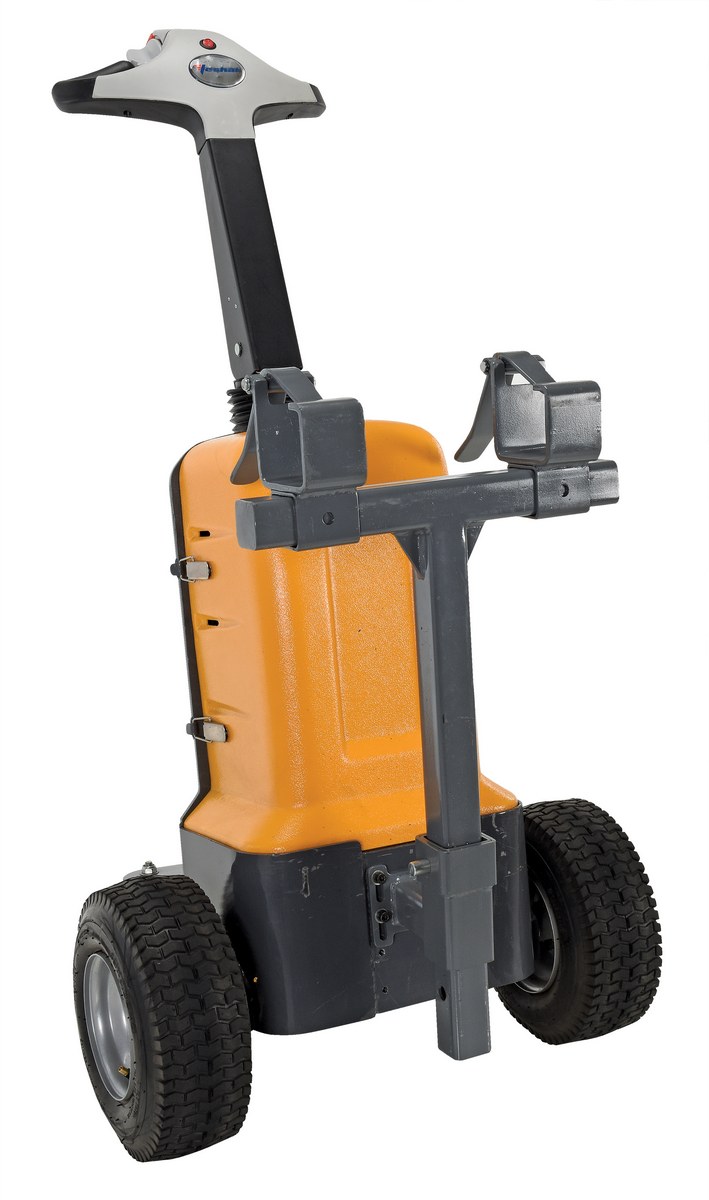

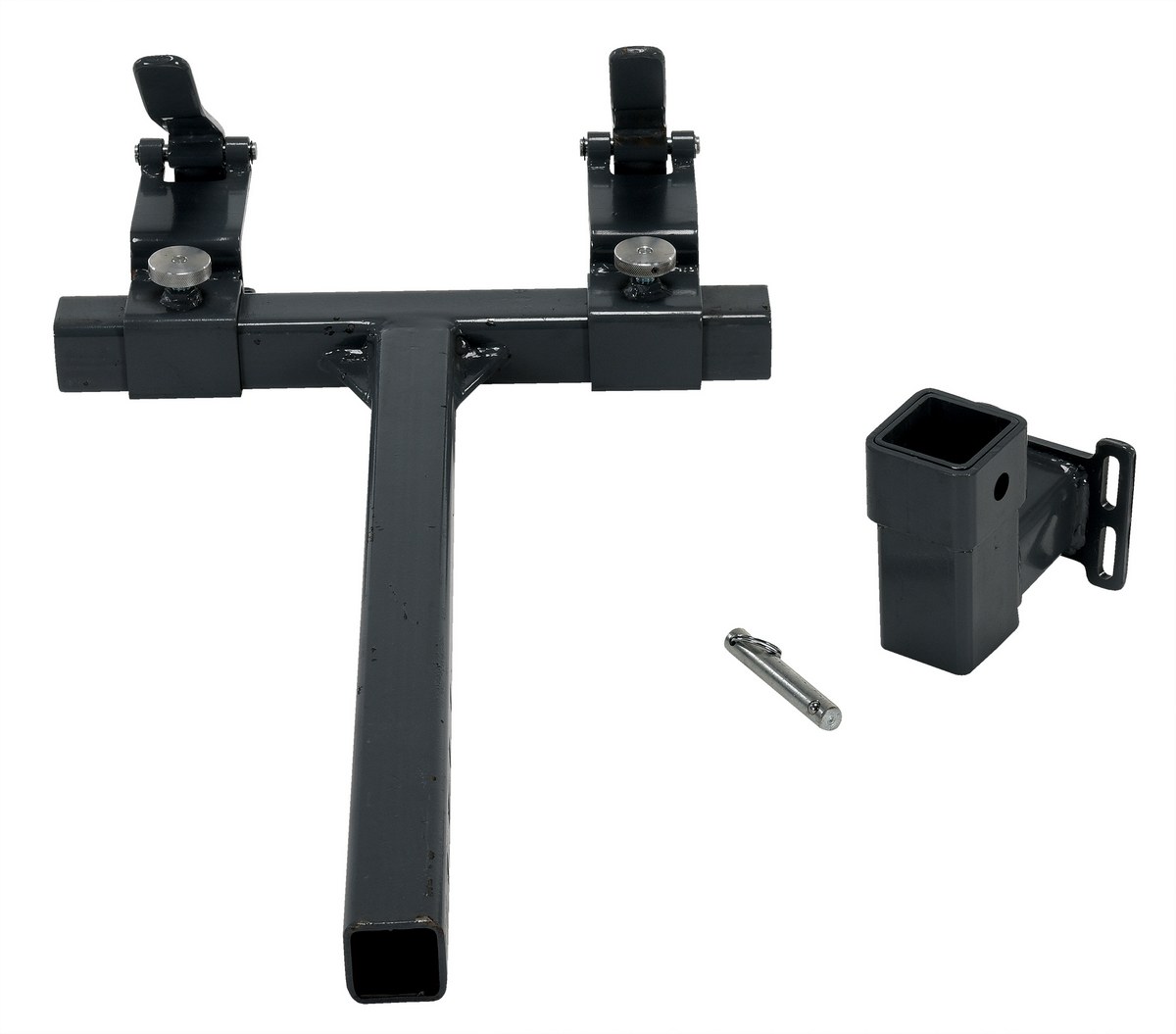

E-TUG-MM E-TUG-MM90 Days Limited WarrantySteel Multi Mover For E-Tug Models BlackInstallation Hardware Included:
Number of Casters / Wheels:
31

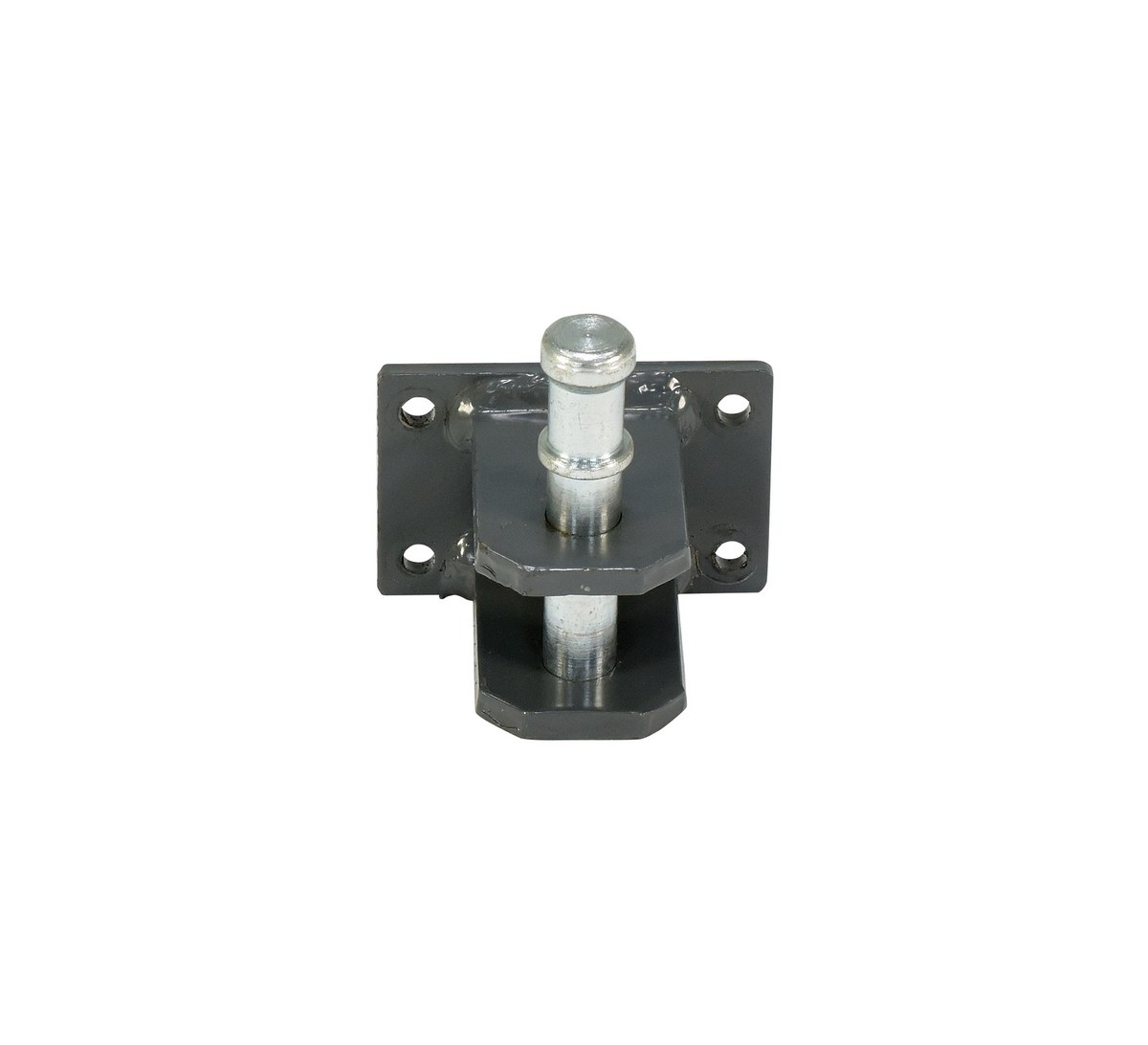

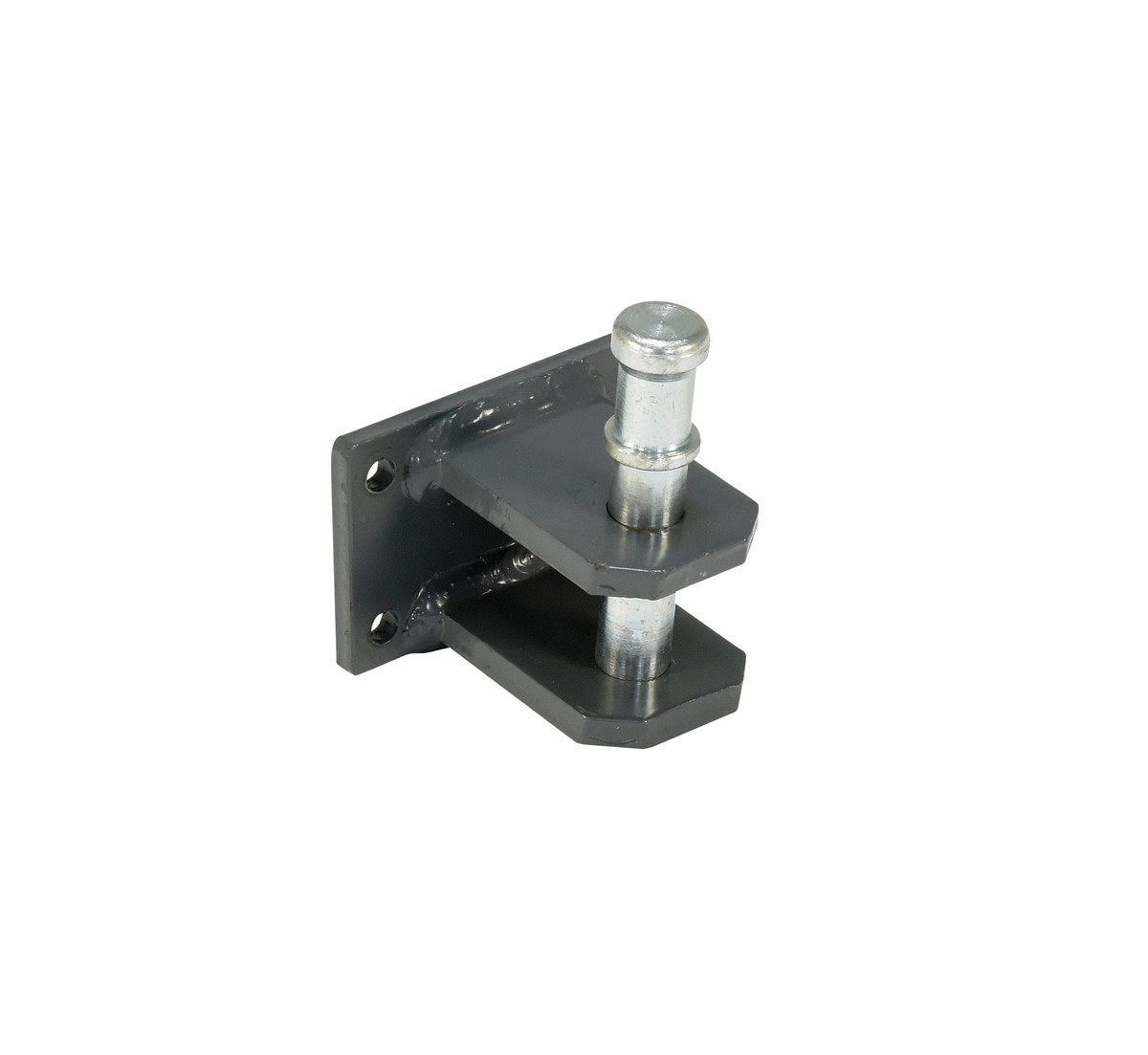

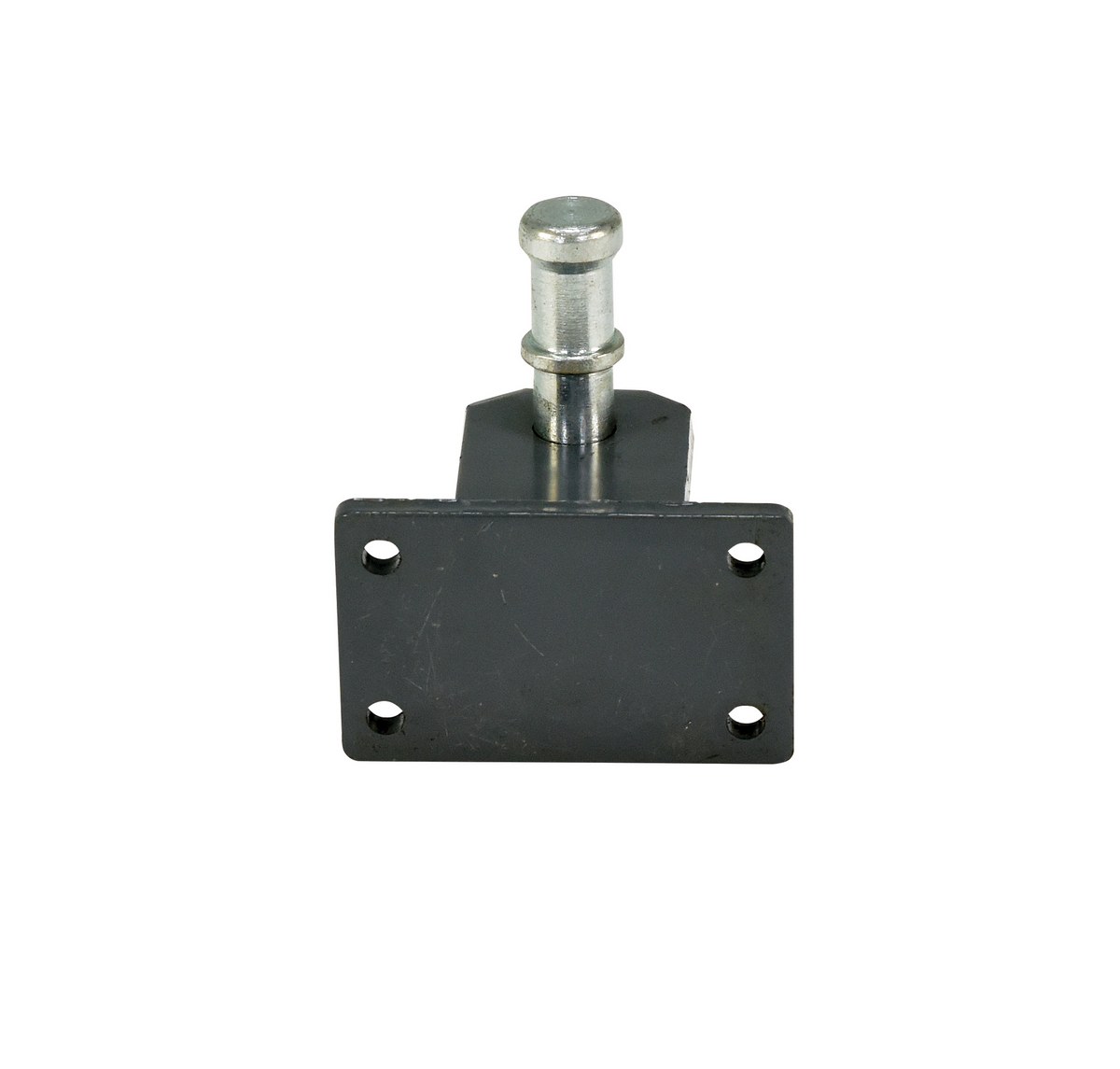

E-TUG-PINH E-TUG-PINH90 Days Limited WarrantySteel Pin Hitch For E-Tug Models Black/SilverPin Shaft Diameter (In): 3/4
Pin Shaft Length (In): 4-5/8
4

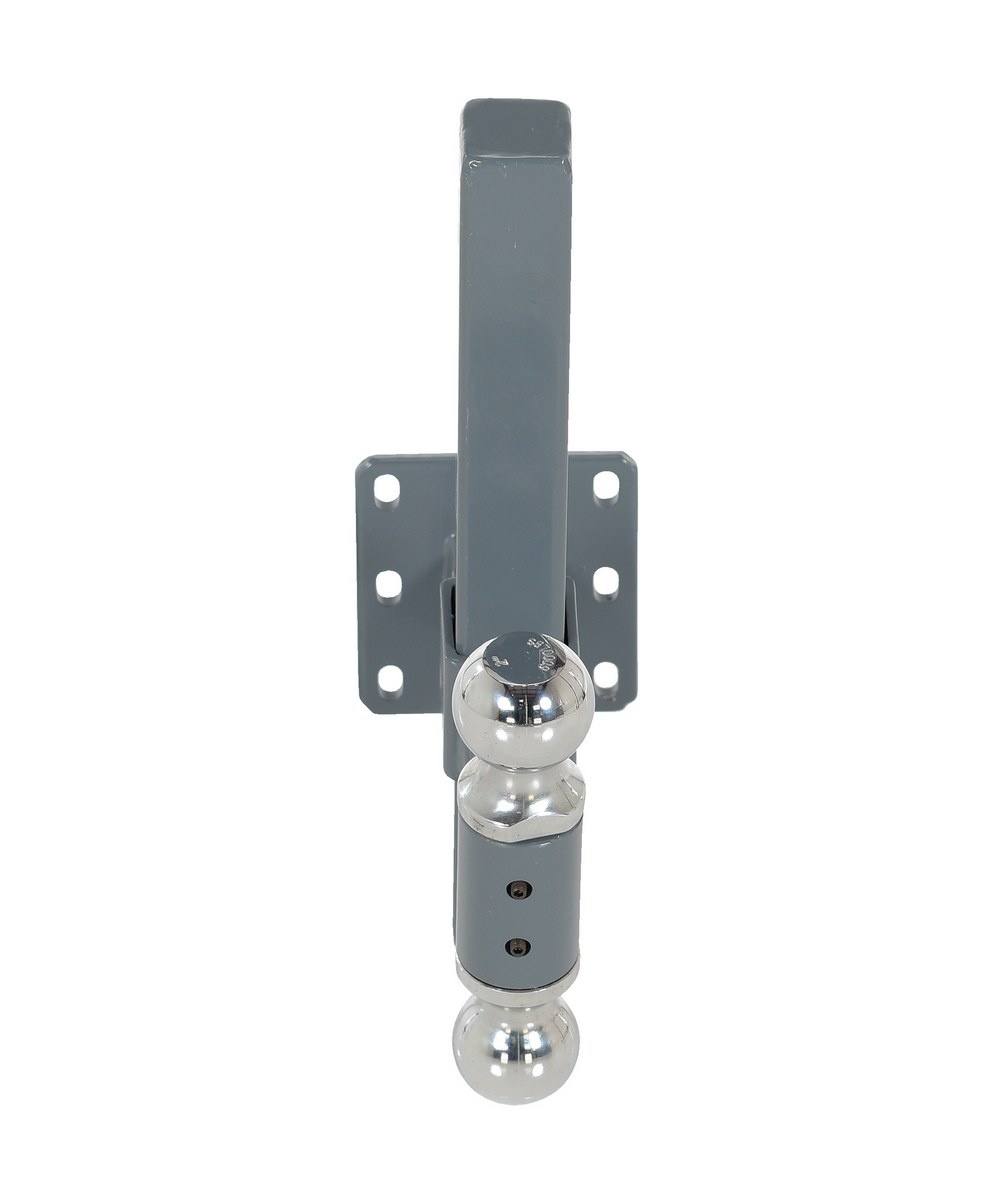

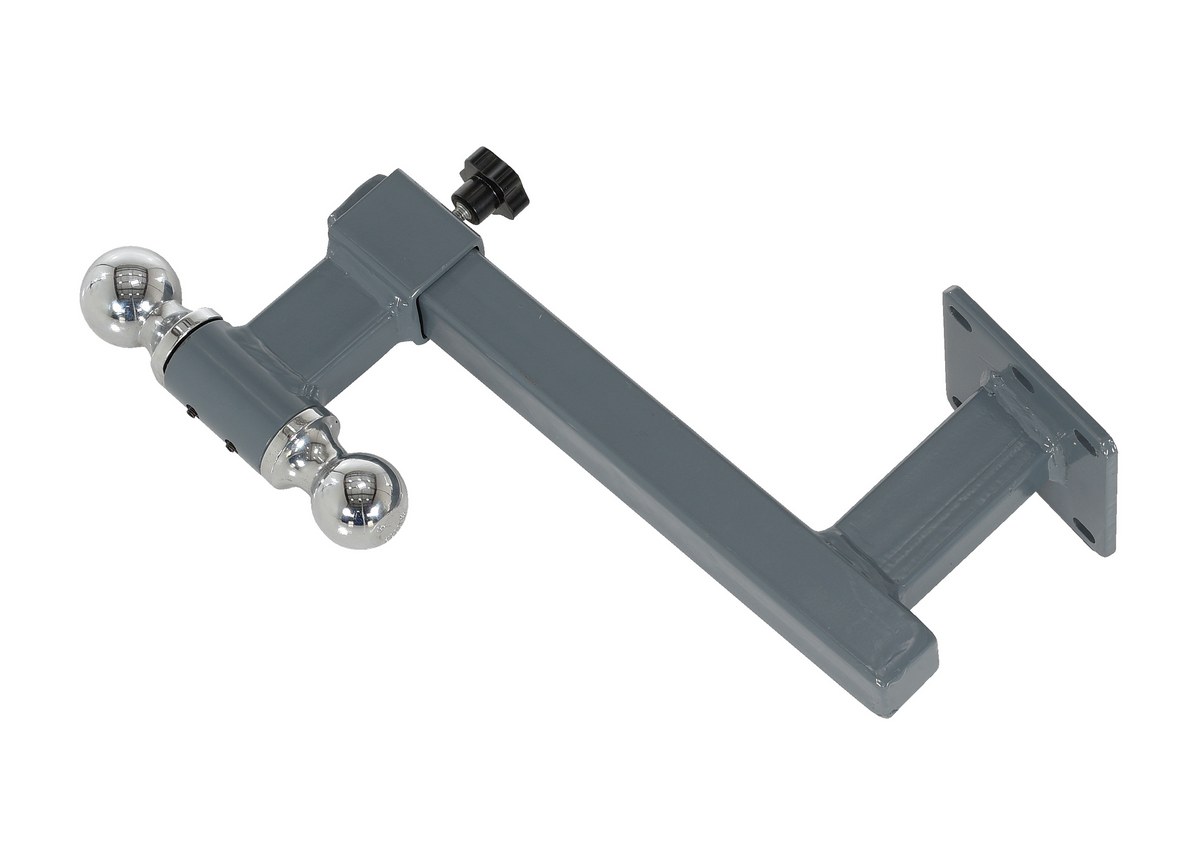

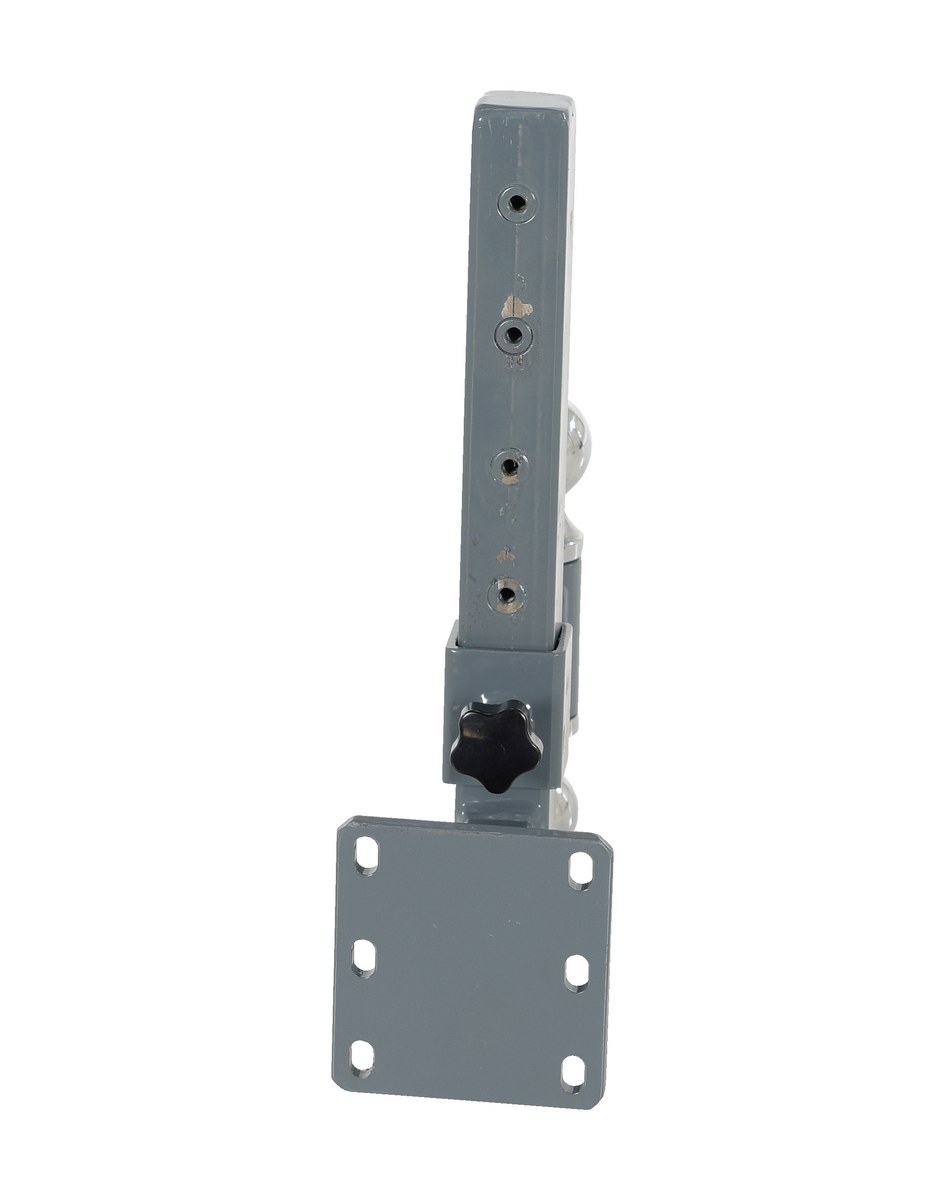

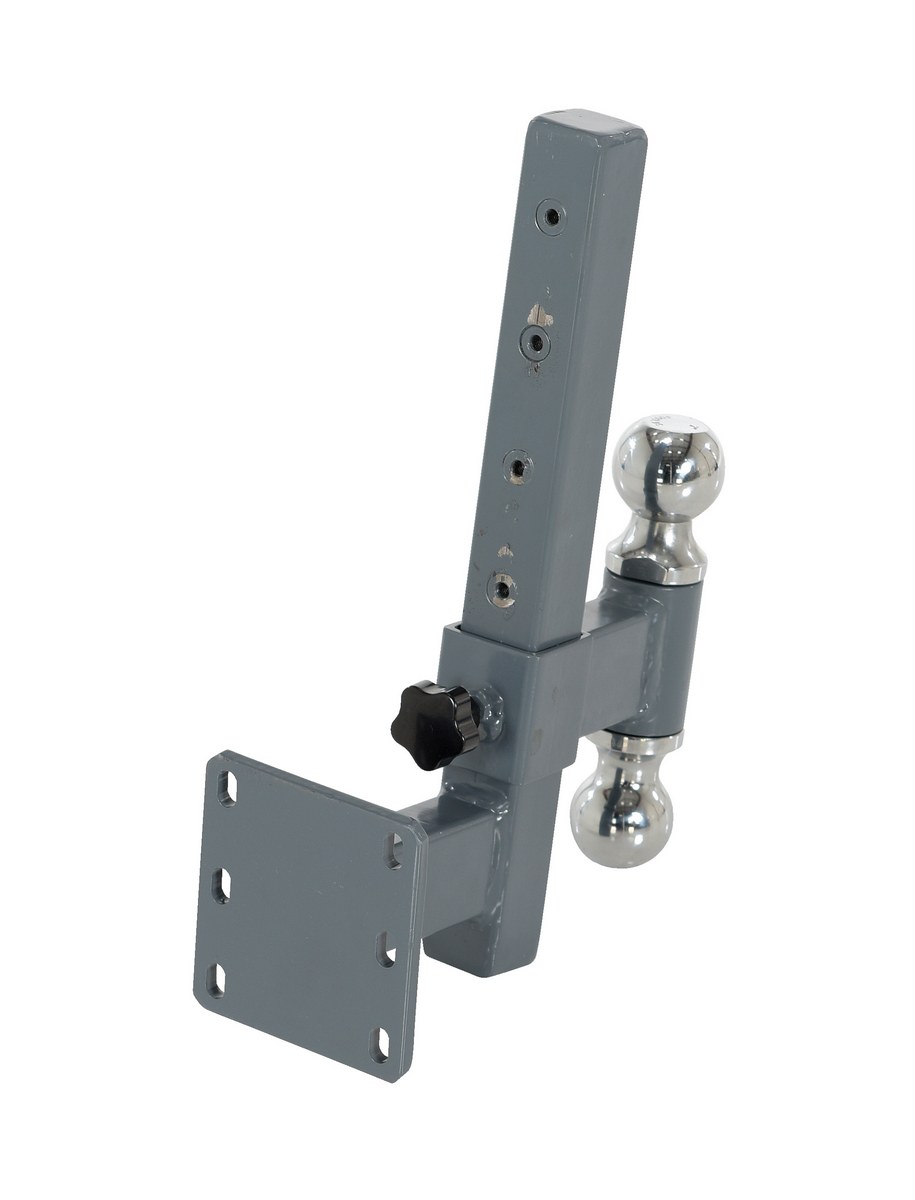

E-TUG-SABH E-TUG-SABH90 Days Limited WarrantySteel Adjustable Single Side Hook Double Ball Hitch Mount For E-Tug Models BlackBall sizes: 1-7/8" & 2"
Attachment Method: Bolt On
14

.

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above

Electric Powered Tuggers PDF's will open in a new window when clicked.

Manuals


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

Testing Certificates


E-TUG-10

E-TUG-20

E-TUG-30

E-TUG-ABMH

E-TUG-ADSH

E-TUG-HD-100

E-TUG-HD-30

E-TUG-HD-50

E-TUG-HD-70

E-TUG-HD-ADSH

E-TUG-HD-DABH

E-TUG-HD-DPINH

E-TUG-HD-MM

E-TUG-HD-PINH

E-TUG-HD-RP-16

E-TUG-HD-RP-20

E-TUG-HD-SBH-4

E-TUG-HD-SBH-8

E-TUG-HD-SLH

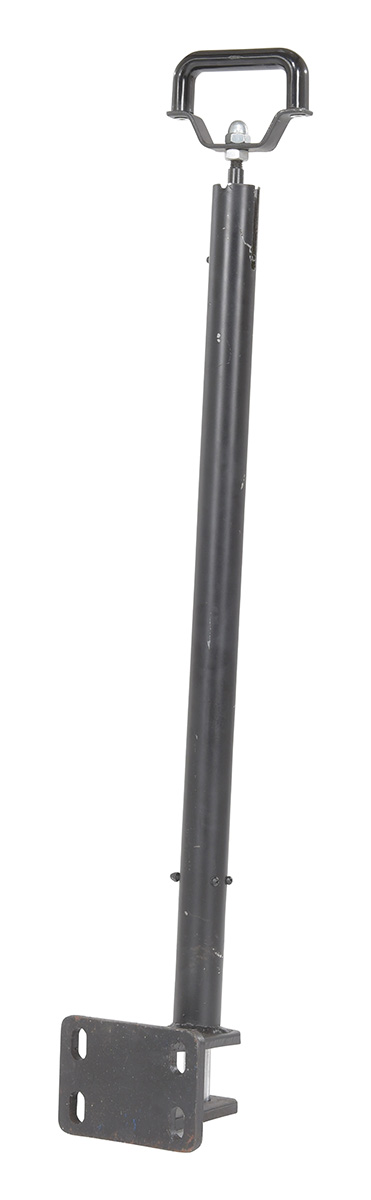

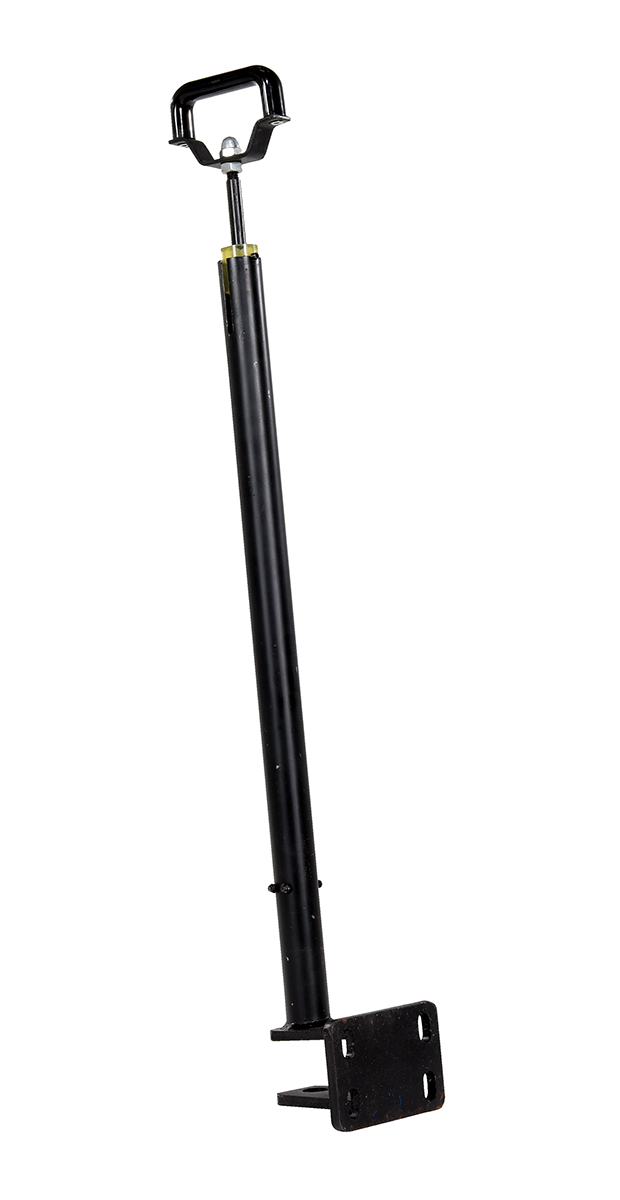

E-TUG-HD-SLPINH

E-TUG-MCLA

E-TUG-MM

E-TUG-PINH

E-TUG-SABH

SDS Sheets

Valve-Regulated Lead Acid Battery Series SDS Sheet for: E-TUG-10
Hydraulic Oil SDS Sheet for: E-TUG-10
Valve-Regulated Lead Acid Battery Series SDS Sheet for: E-TUG-20
Hydraulic Oil SDS Sheet for: E-TUG-20
Valve-Regulated Lead Acid Battery Series SDS Sheet for: E-TUG-30
Hydraulic Oil SDS Sheet for: E-TUG-30
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: E-TUG-HD-30
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: E-TUG-HD-50
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: E-TUG-HD-70

Other PDF's


Directory Links Of Available PDF's For All Products


Q: How long does it take to charge the battery for the E-TUG-30 ?

A: The battery for the E-TUG-10, E-TUG-20, and E-TUG-30 will be fully charged in approximately 5 hours. If the battery is dead it may take up to 8 hours to be fully charged.


Q: How long will the E-TUG-10 run?

A: The E-TUG-10, E-TUG-20, and E-TUG-30 will operate approximately 4 hours of continuous use on a fully charged battery. For intermittent use, you can expect 8 hours .


Q: What is the diameter of the E-TUG-PINH?

A: The diameter of the pin (E-TUG -PINH) is approximately 3/4".


Q: Can the tugger be used on an incline?

A: The E-TUG-10, E-TUG-20, and E-TUG-30 will operate efficiently on a slope of 2-3 degrees.


Q: What is the service range of the ball hitches?

A: The service range of the E-TUG-SABH is 14-15/16 to 23-5/8. The service range of the E-TUG-ABMH is 15-1/2 to 21-1/2.


Q: What is the life cycle of spring on the E-TUG-HD-SLH?

A: The life cycle of spring for moderate use is approximately 1 to 2 years.


Q: Is the orientation of the hitch E-TUG-HD-SLH relevant?

A: Yes. The hitch is designed for horizontal pulling only.


Q: What is the life cycle of the hitch E-TUG-HD-SLH ?

A: The life cycle of the hitch is approximately one year with moderate use.

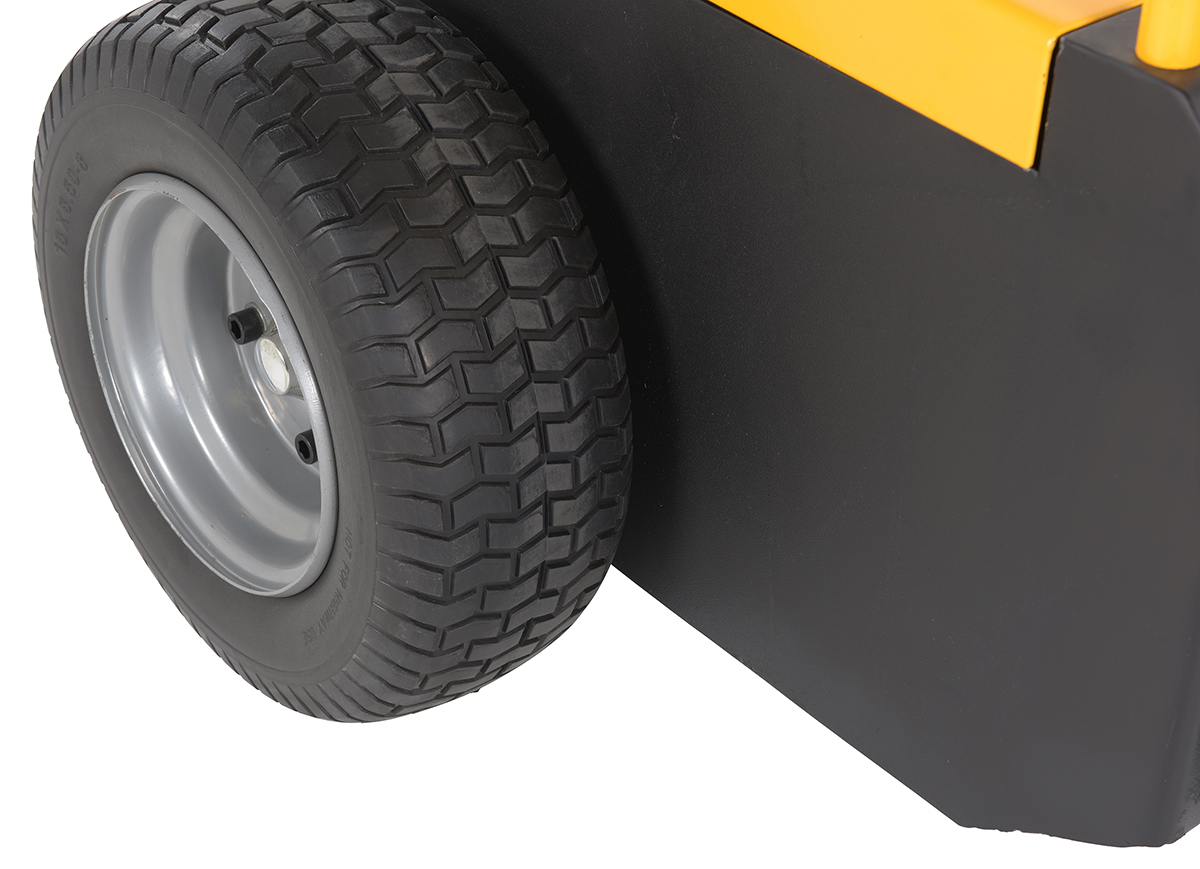

Q: The wheels on the tugger are foam filled. What material are the front casters?

A: The front casters are poly on poly.


Q: What is the IP rating of the E-TUG-20?

A: The IP rating is IP54.


Q: What is the adjustment range for this attachment?

A: The hook adjustment range is from 18-1/2" - 26".


Q: What are the dims of the hitch pin on the unit?

A: The dimensions of the hitch pin are E-TUG-PINH 3/4" SHAFT / 15/16" HEAD / 4 5/8" LONG.


Q: What is the speed of this unit?

A: Factory speed is set at 2.8MPH unloaded and 2.2MPH loaded.


Q: Is the E-TUG-HD-50 CSA or UL compliant?

A: Yes the E-TUG-HD-50 is CSA/UL compliant.


Q: Can you tell me what the distance is between each hole is going vertical and horizontal on the E-TUG-HD-SBH-8?

A: Horizontal- 2 7/8 in (3 3/8 in on center) Vertical- 7/8 in (1 3/4 in on center)


Q: What are the mounting hole dimensions for the E-TUG-HD-SLH?

A: The mounting hole dimensions are as follows: 3 1/2 in wide on center x 1 7/8 in tall on center Holes are 1/2 in wide x 7/8 in tall


Q: What are the ball sizes on E-TUG-SABH and E-TUG-HD-DABH?

A: Both hitches have a double ball that are 1-7/8" & 2"


Q: What is the distance between the two horizontal plates on E-TUG-HD-PINH?

A: 1-3/4"
