Counter-Balanced Powered Drive Lifts (S-CB)

Model #			Description	Attributes	Net Wt. (lbs)

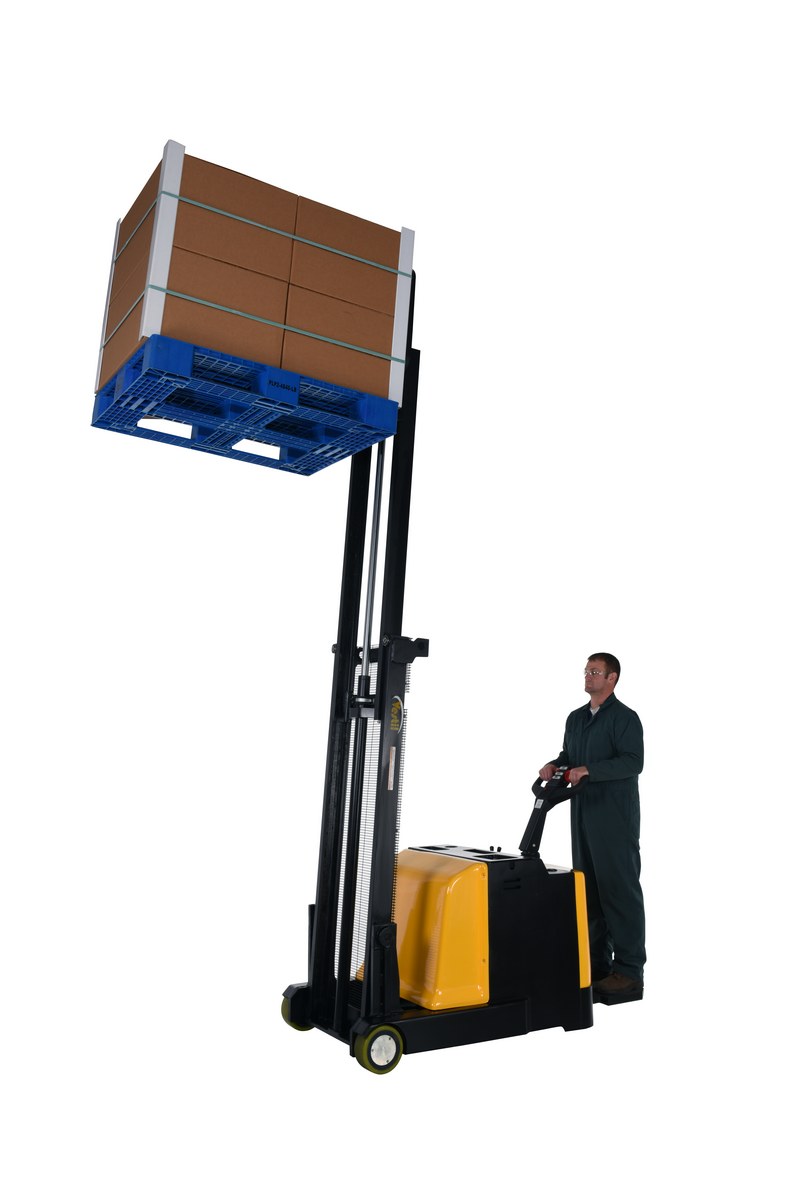

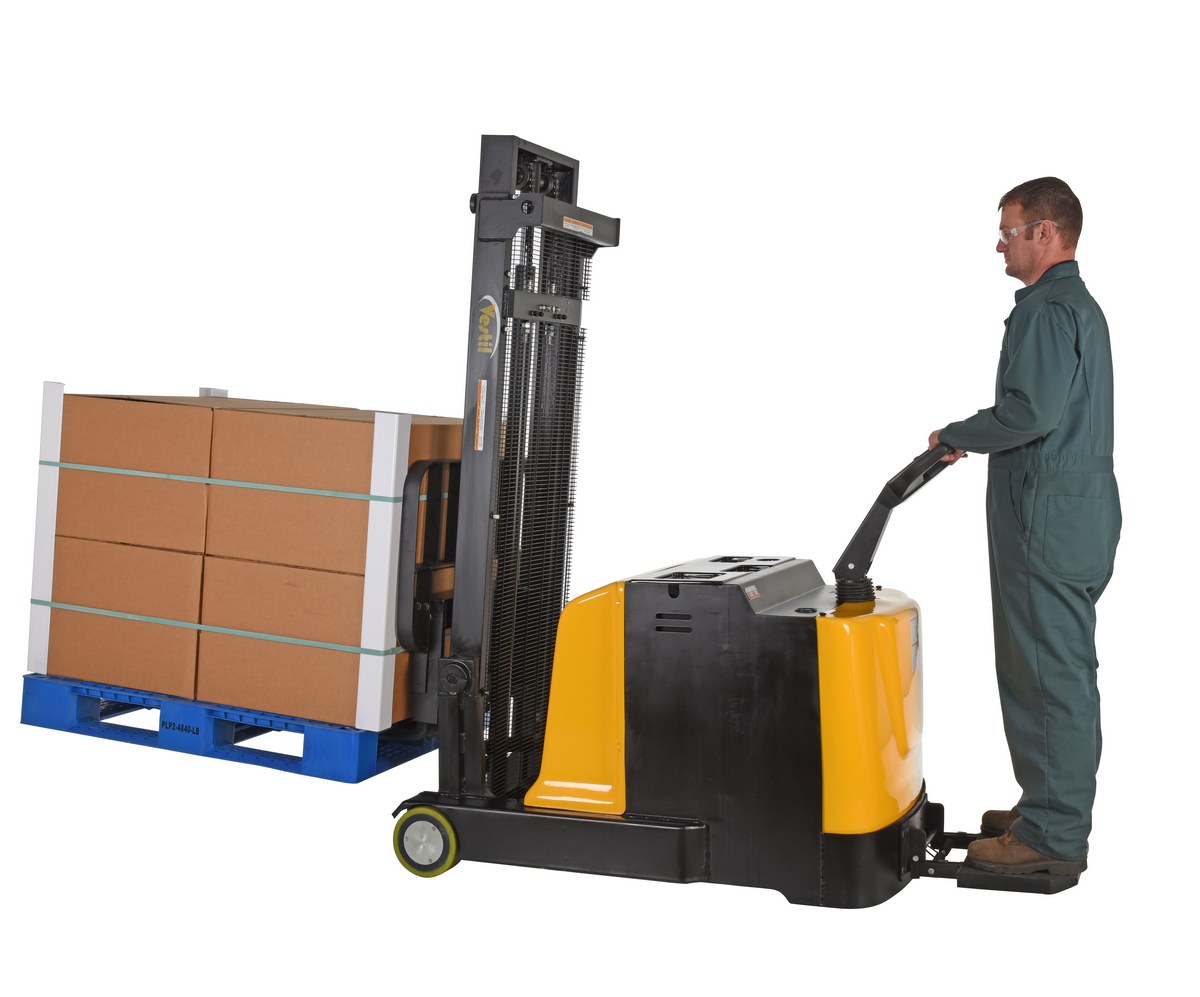

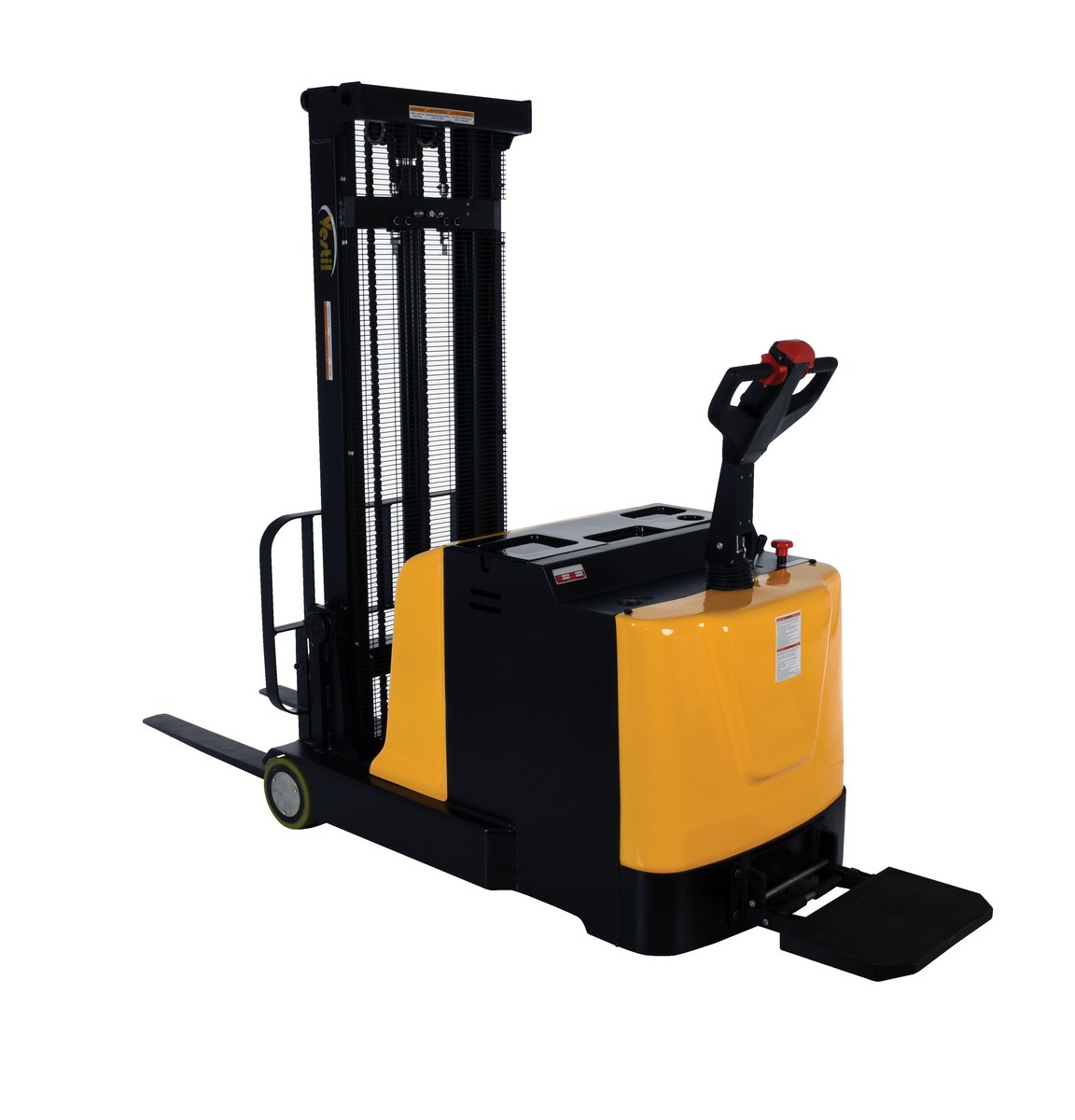

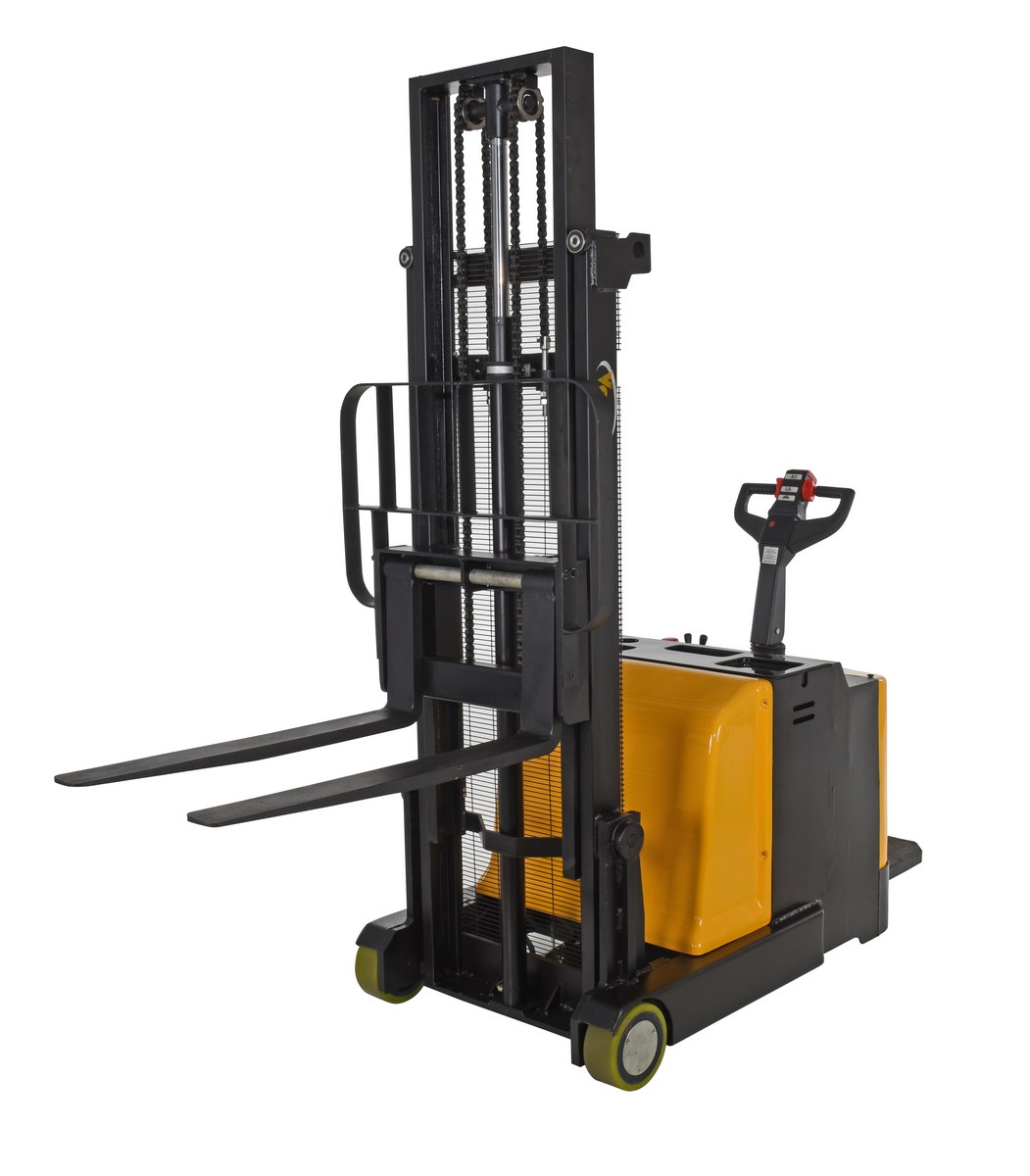

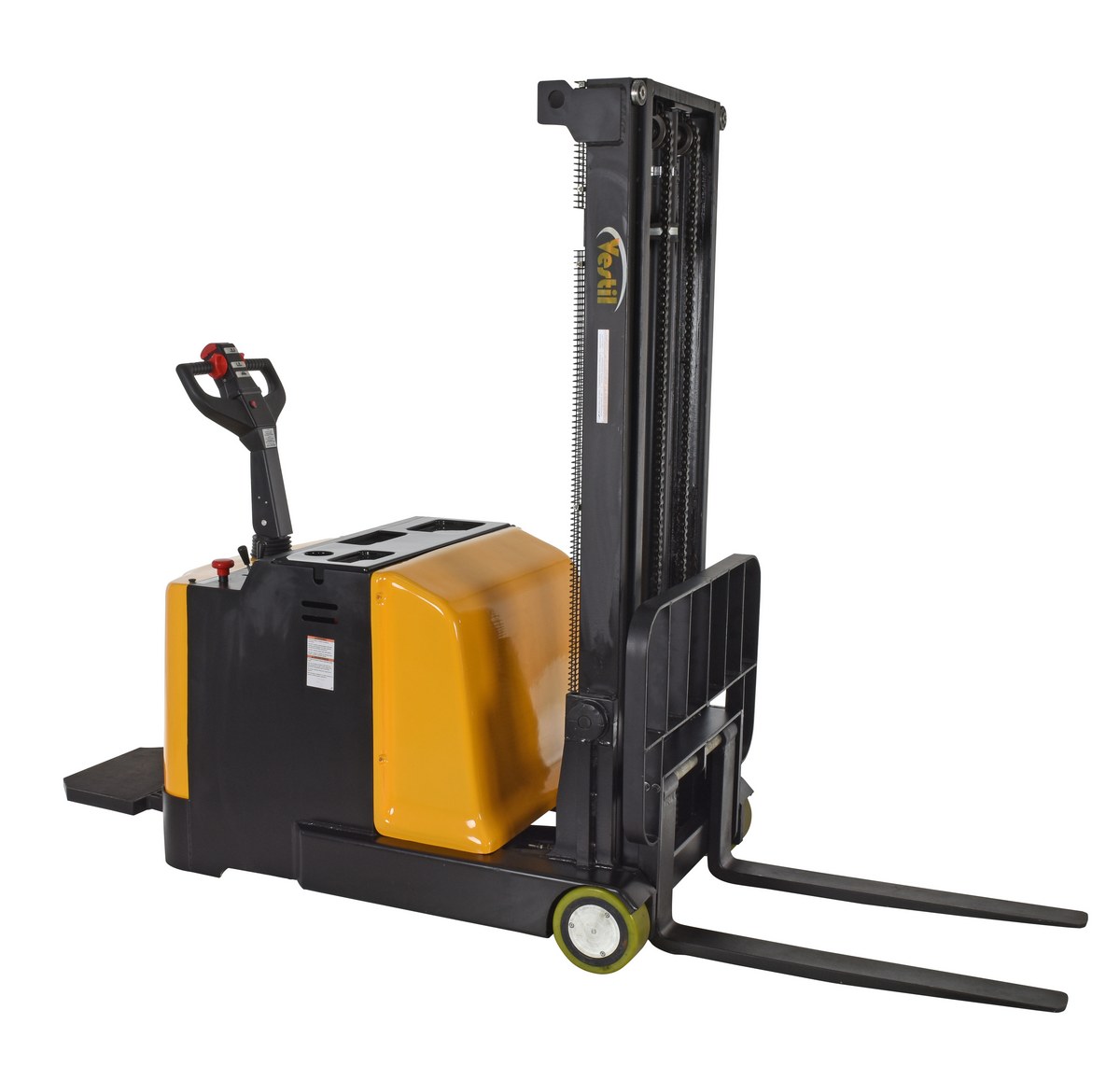

S-2CB-118		1 Year Limited Warranty	Steel Counter Balanced Powered Drive Lift 2 In. to 118 In. Raised Height 2,000 Lb. Capacity Black / Yellow	Uniform Capacity at 0 in to 62 in Raised Height (lb.): 2,000 Uniform Capacity at 62 in to 118 in Raised Height (lb.): 1,000	2652

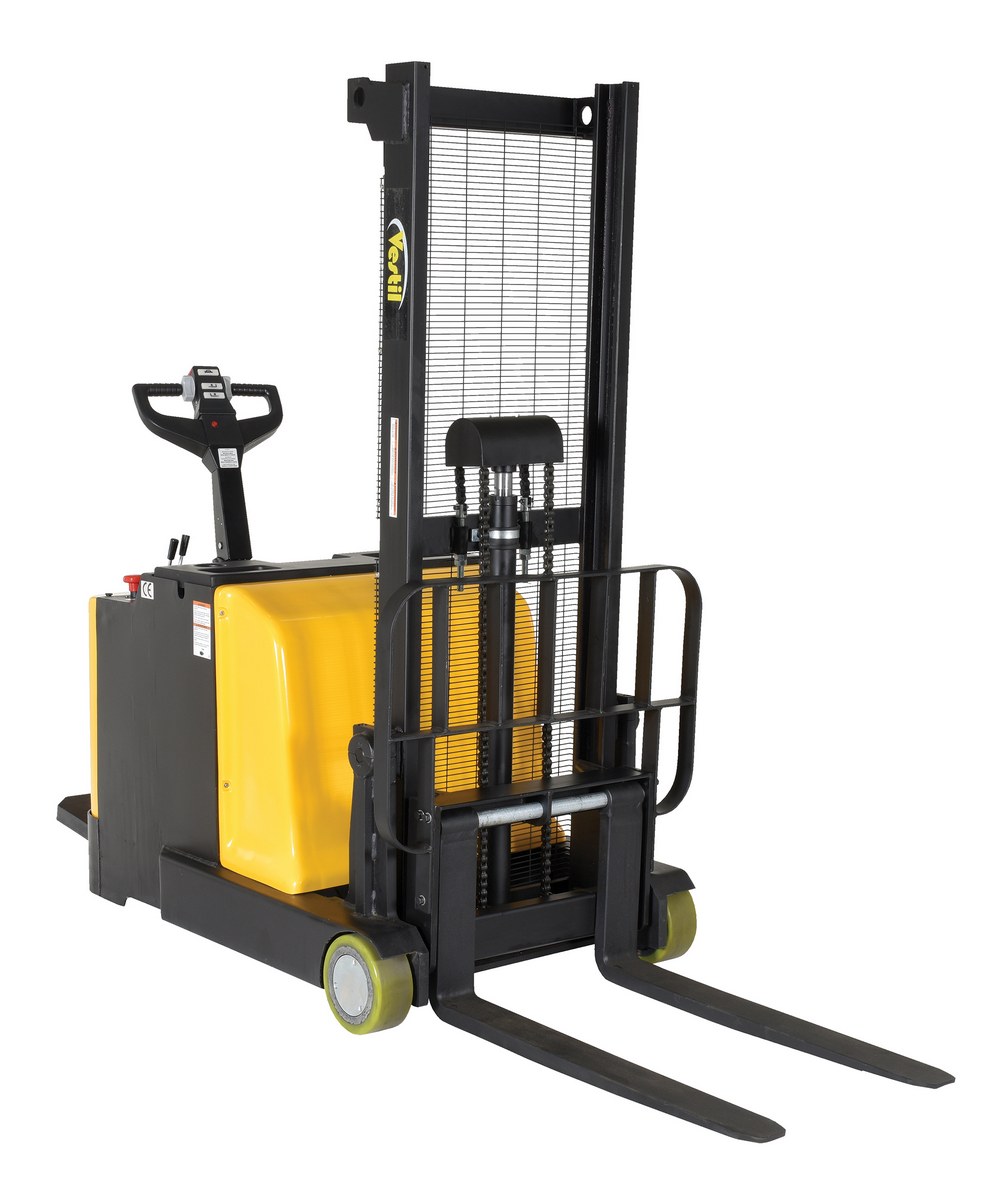

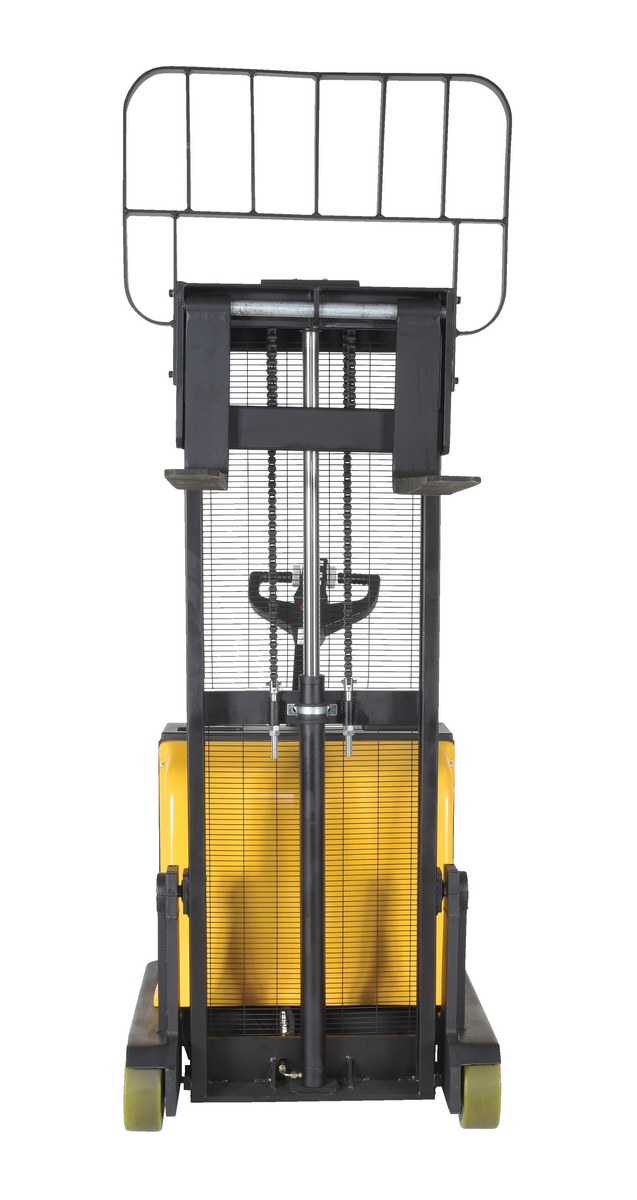

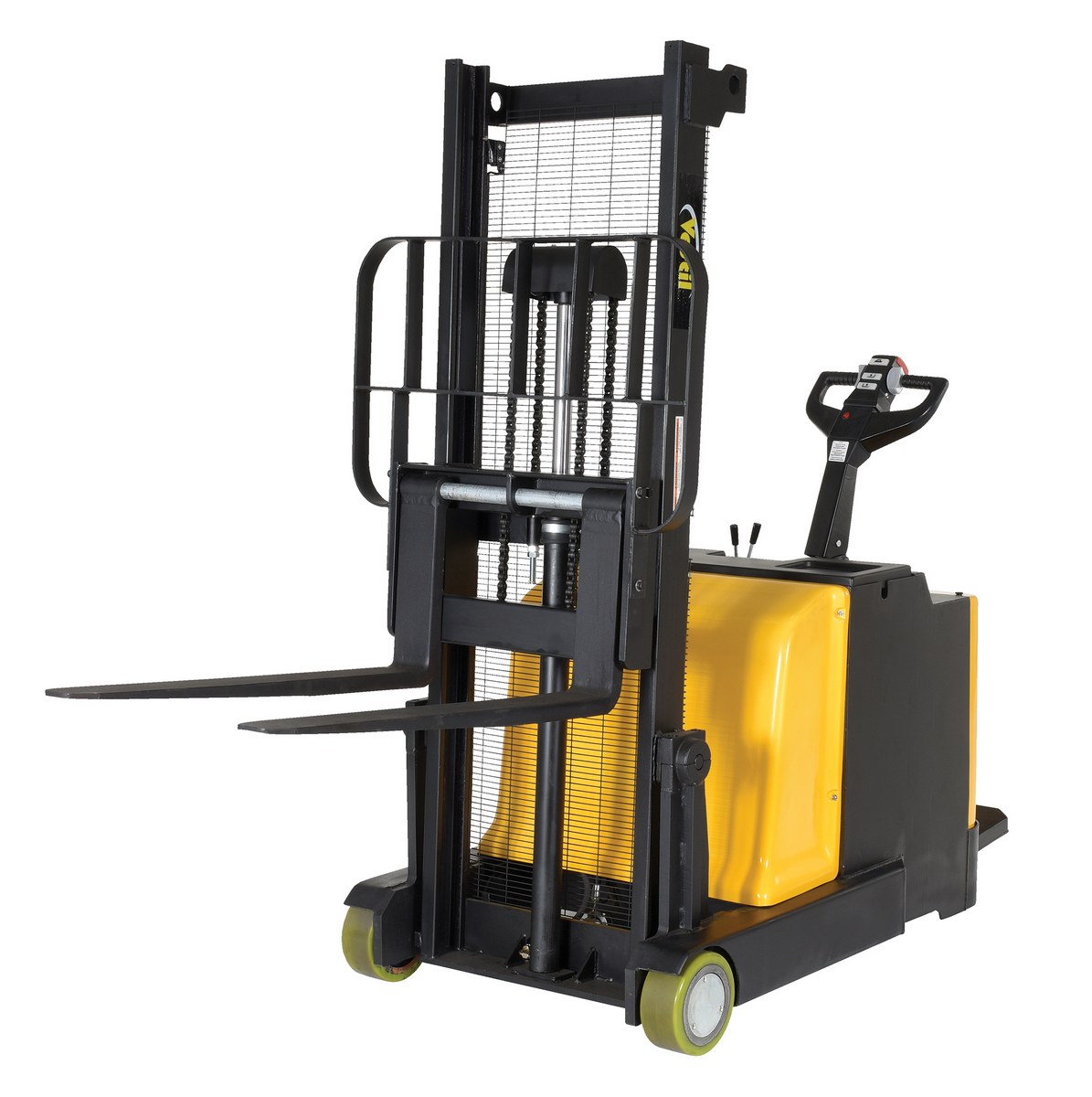

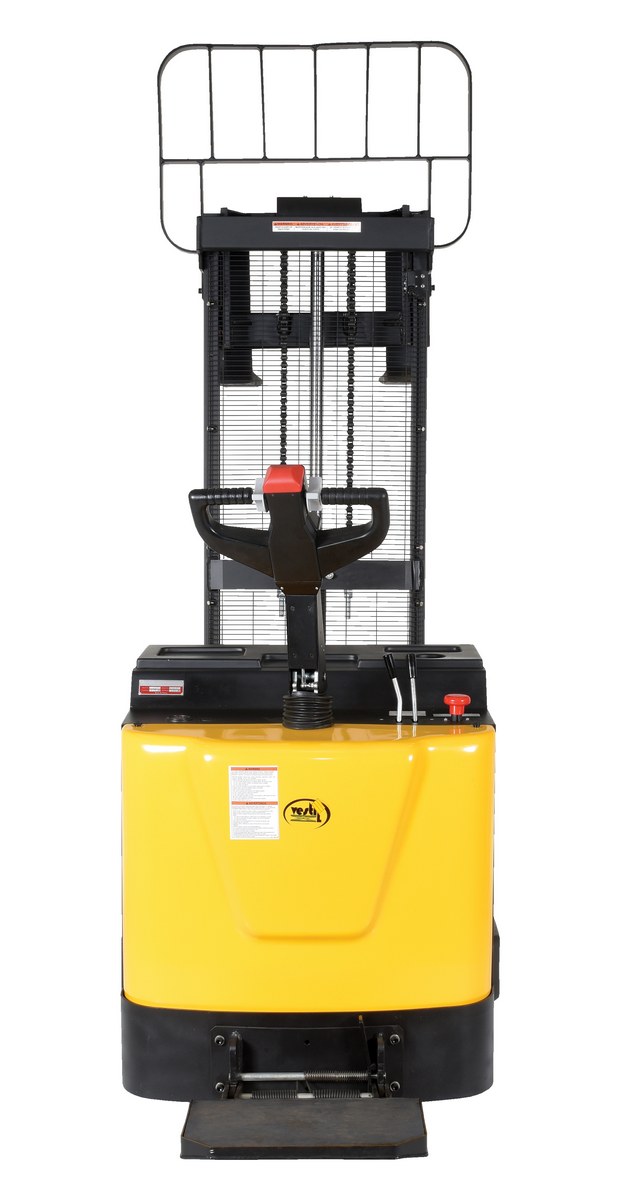

S-2CB-62		1 Year Limited Warranty	Steel Counter Balanced Powered Lift 2 In. to 62 In. Raised Height 2,000 Lb. Capacity Black / Yellow	Uniform Capacity (lb.): 2000 Fork Length (in.): 36-1/4	2496

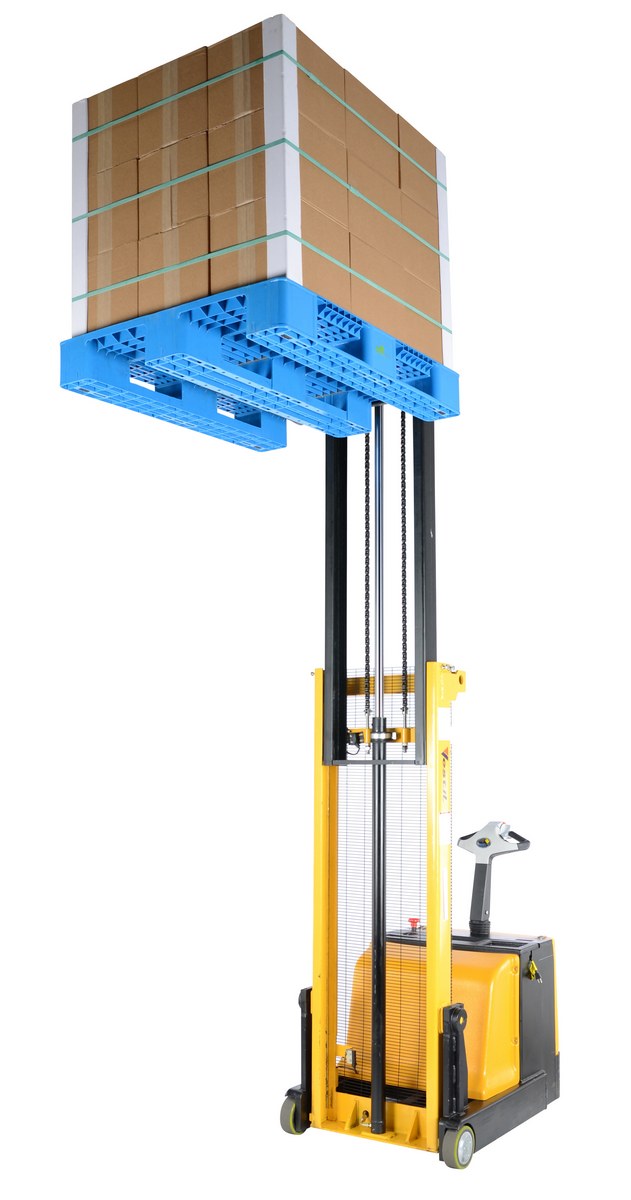

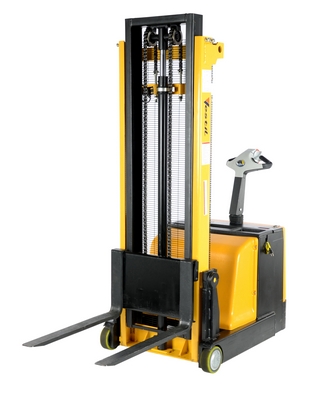

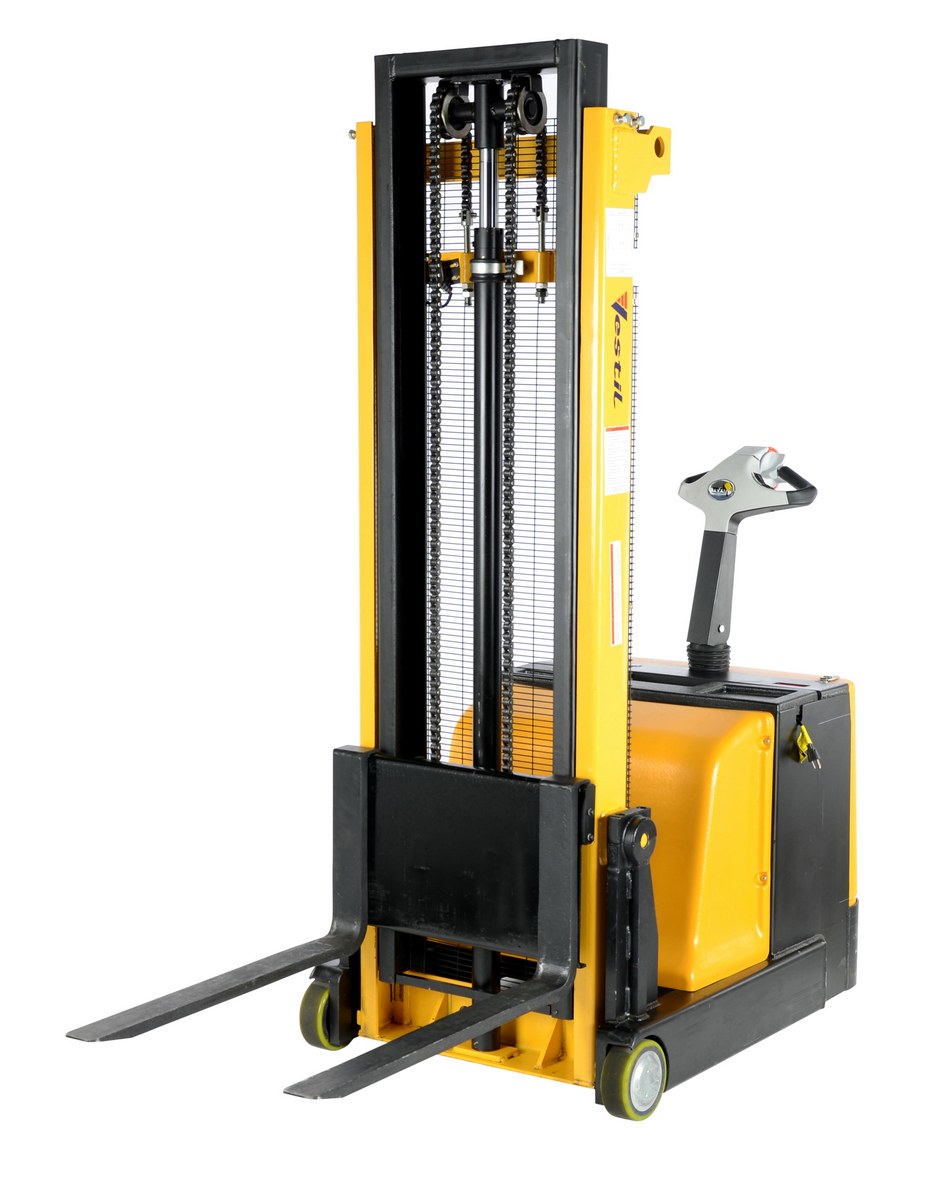

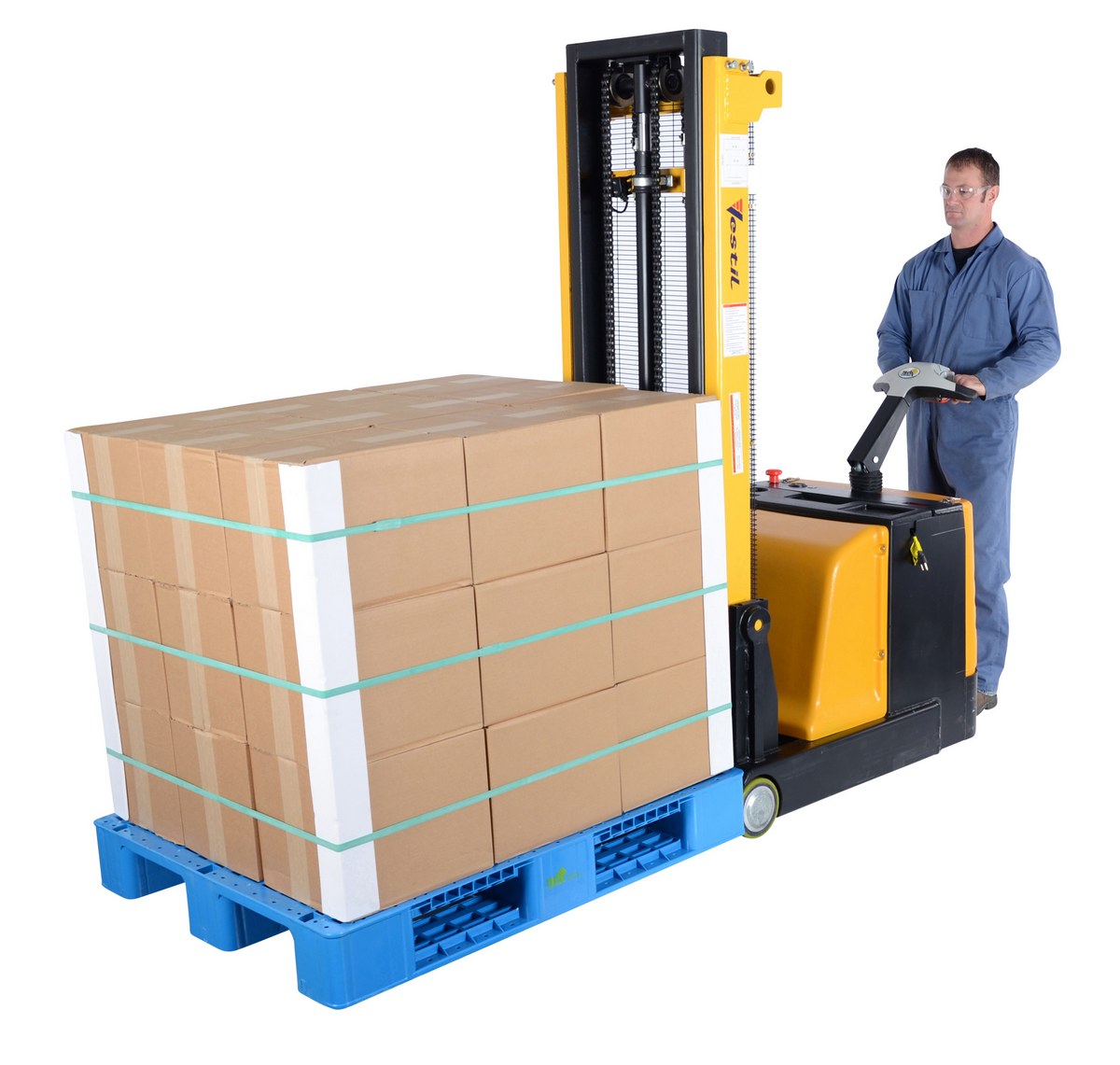

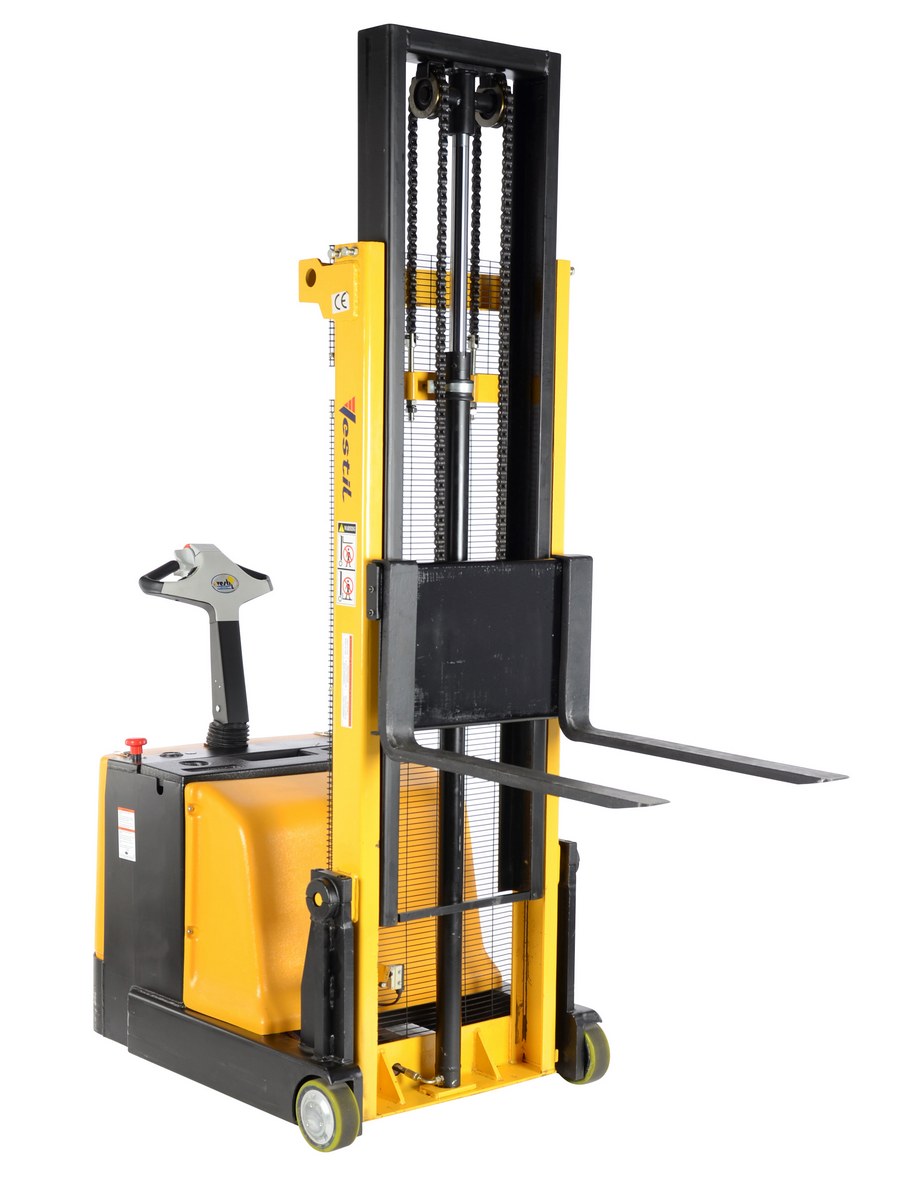

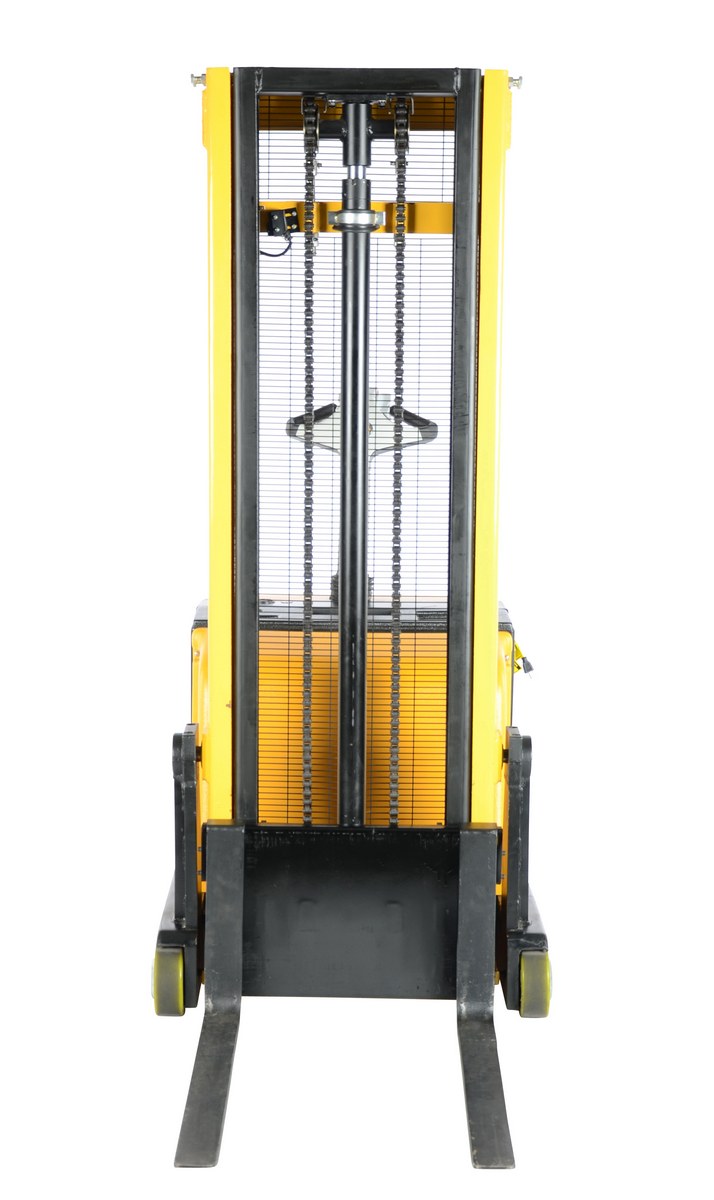

S-CB-118	POPULAR	1 Year Limited Warranty	Steel Counter Balanced Powered Drive Lift 2 In. to 118 In. Raised Height 1,000 Lb. Capacity Black / Yellow	Uniform Capacity (lb.) at 0-62 (in.): 1,000 Uniform Capacity (lb.) at 62-118 (in.): 500	2140

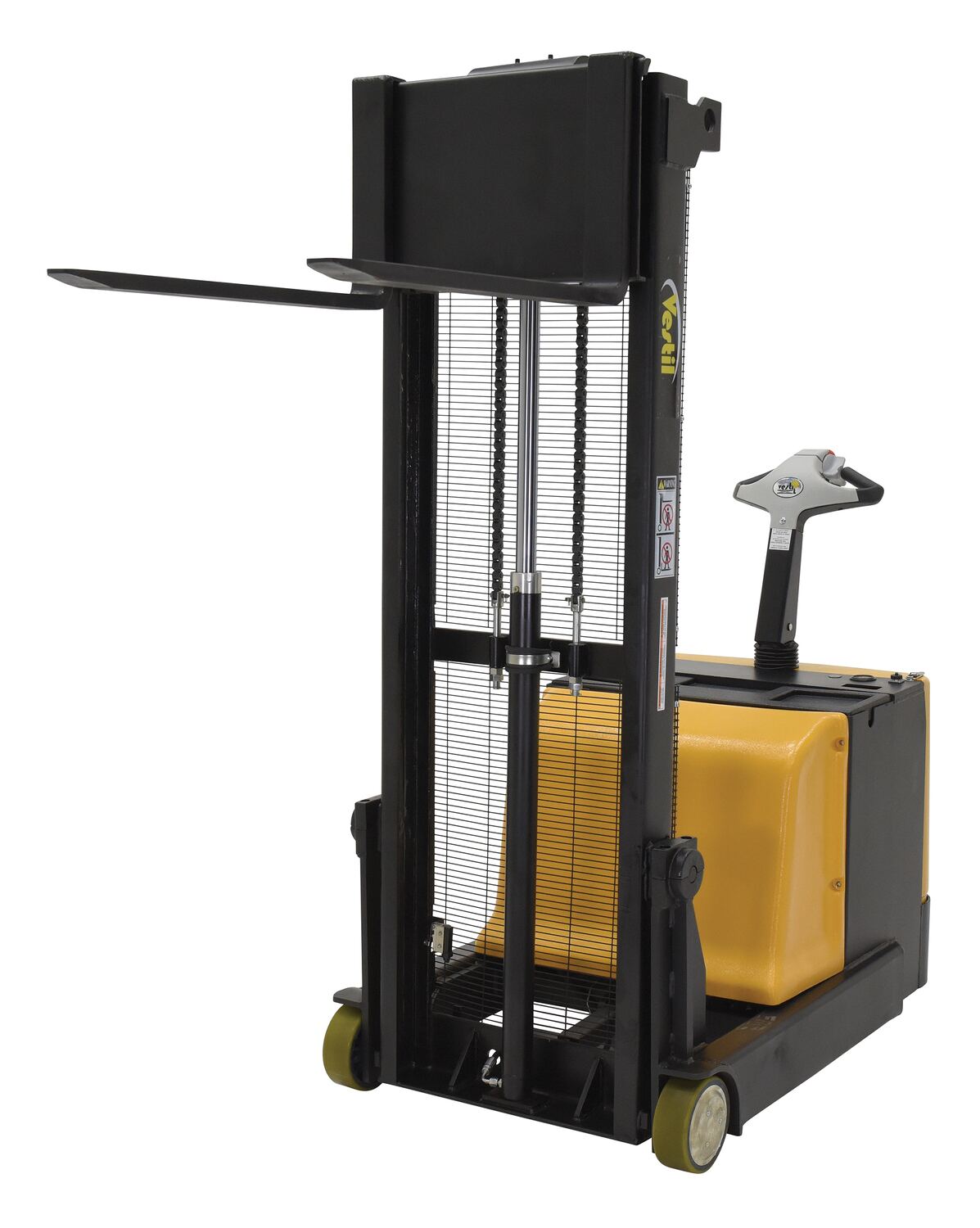

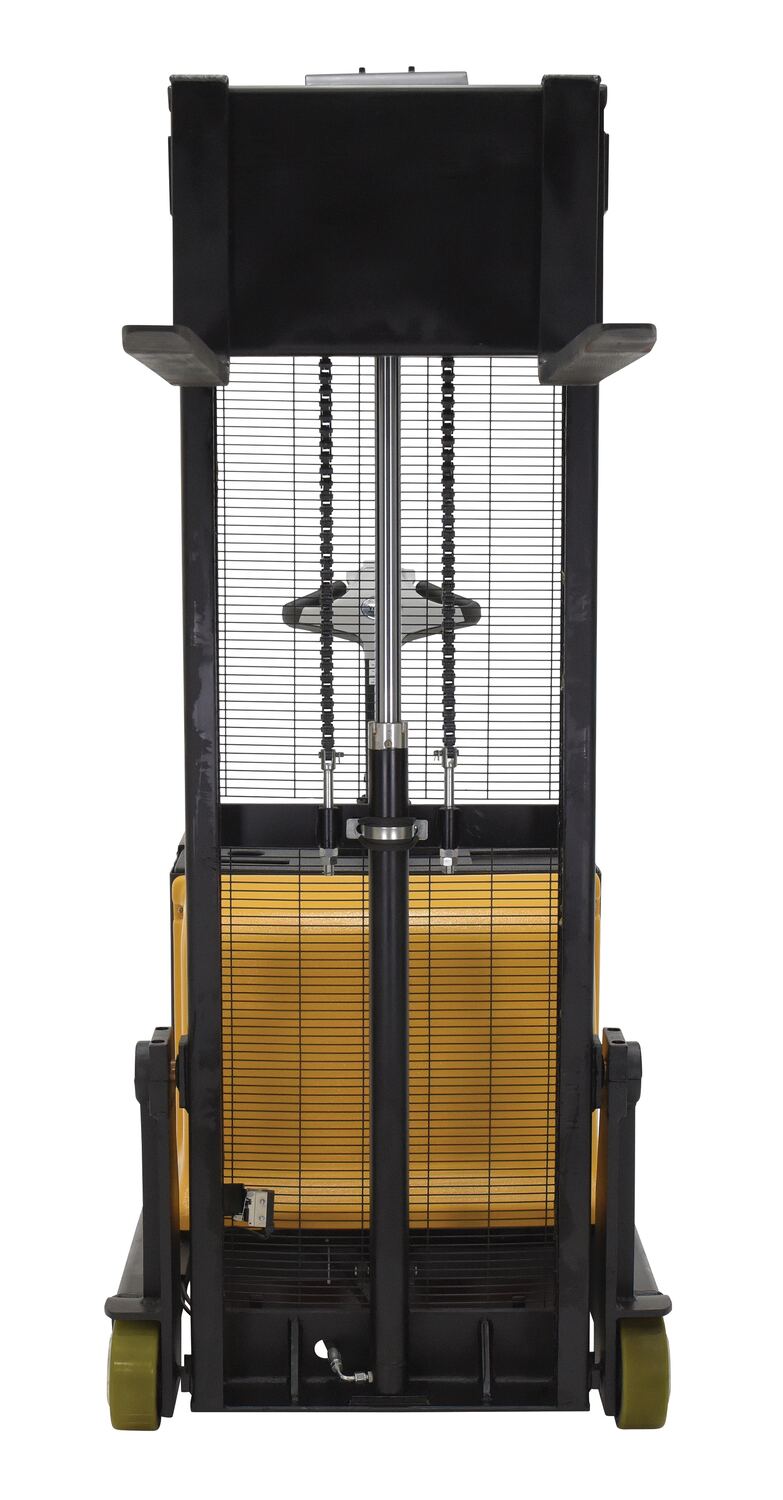

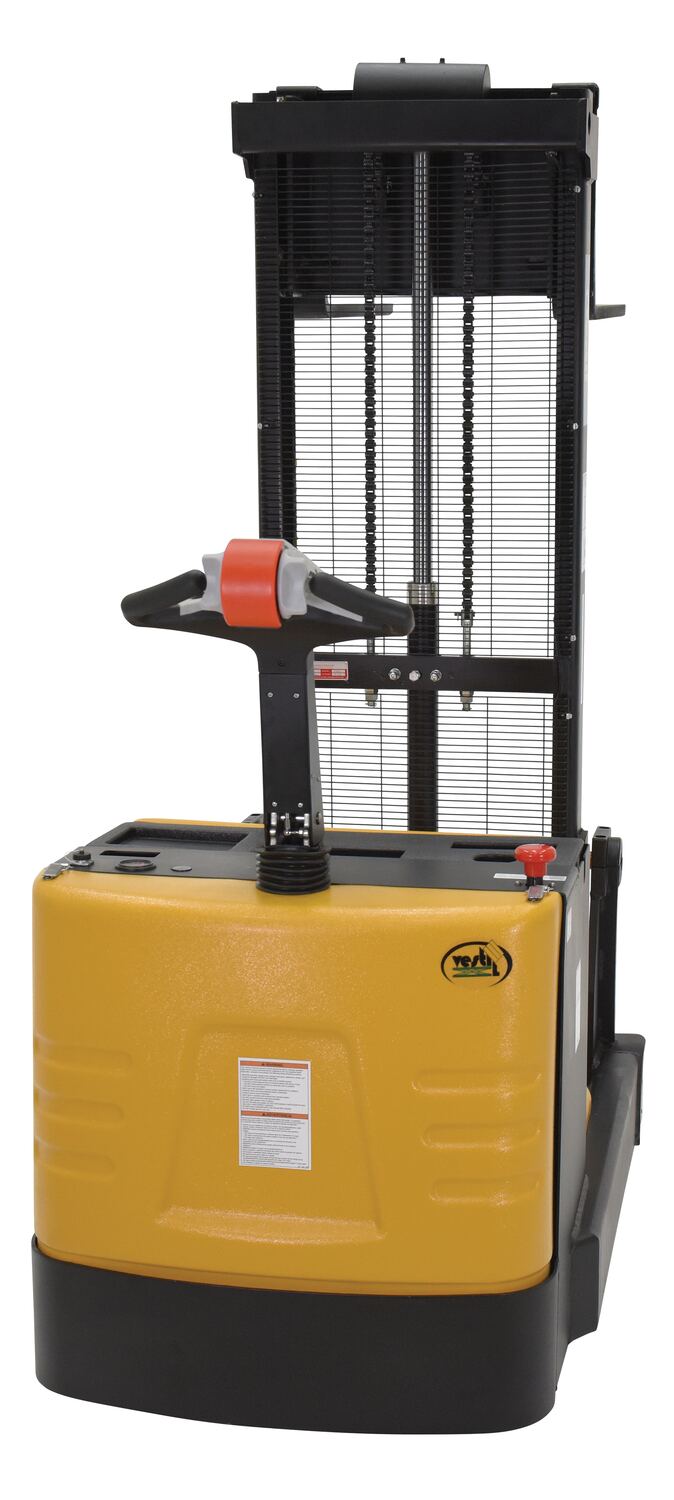

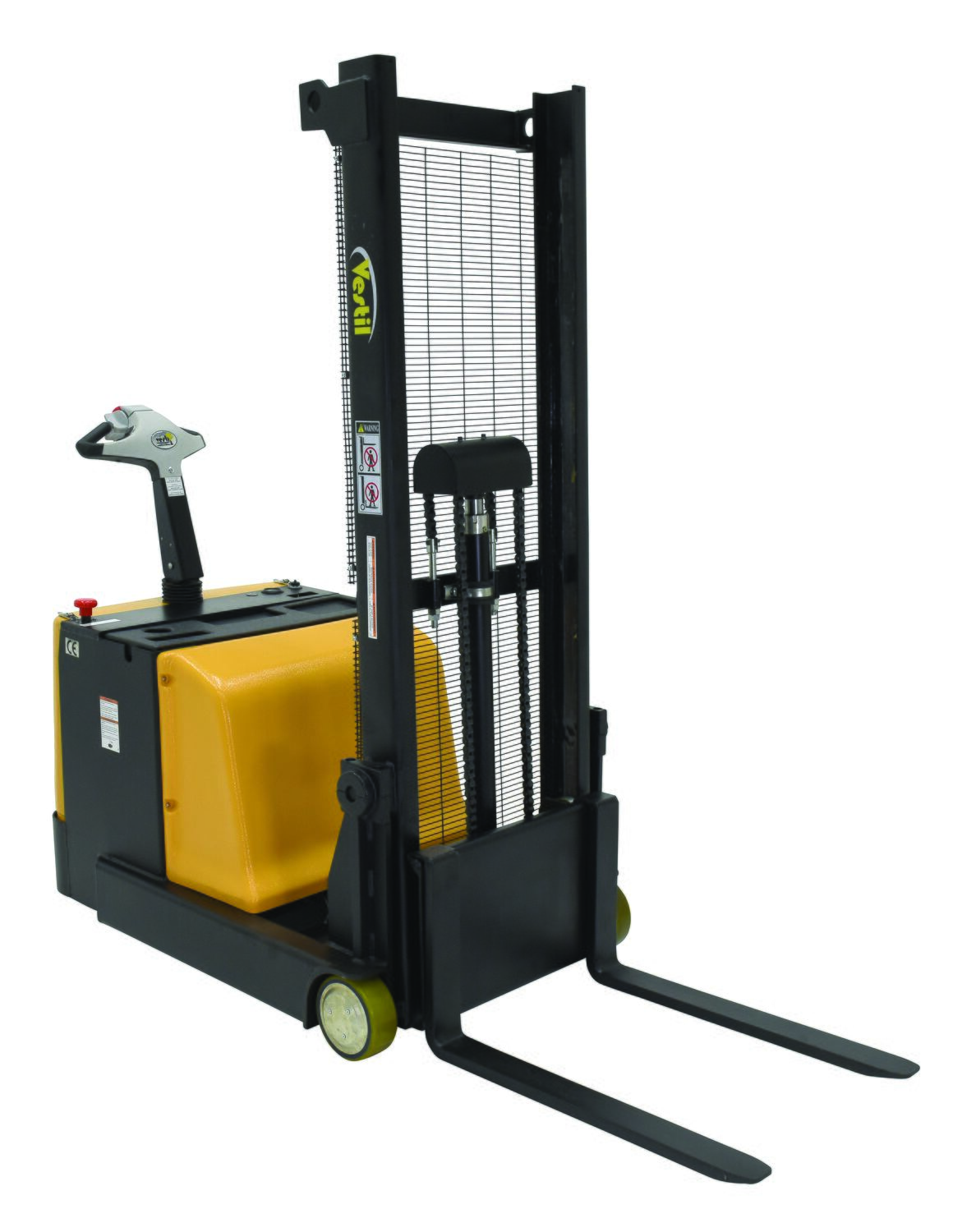

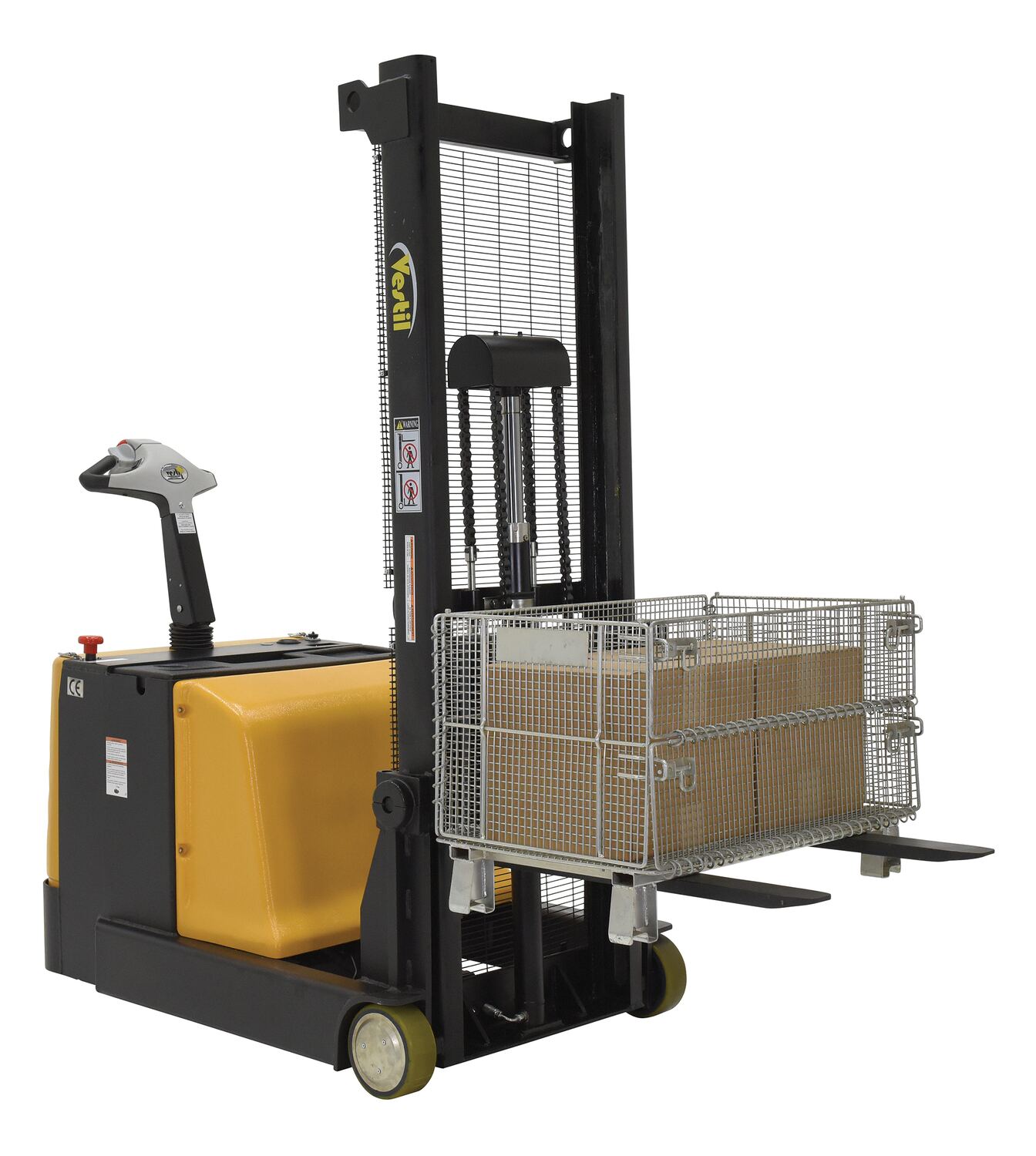

S-CB-62		1 Year Limited Warranty	Steel Counter Balanced Powered Lift 2 In. to 62 In. Raised Height 1,000 Lb. Capacity Black / Yellow	Uniform Capacity (lb.) at 0-62 (in.): 1,000 Fork Width Minimum/Maximum (in.): 6-3/8 to 23-5/8	1850

* S-2CB* model's Include rider platform (ground clearance 1-1/2")

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Dimension Image = Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

For More Details of the Option Click the Red Model Button

Model	Details	Icons	Wt.

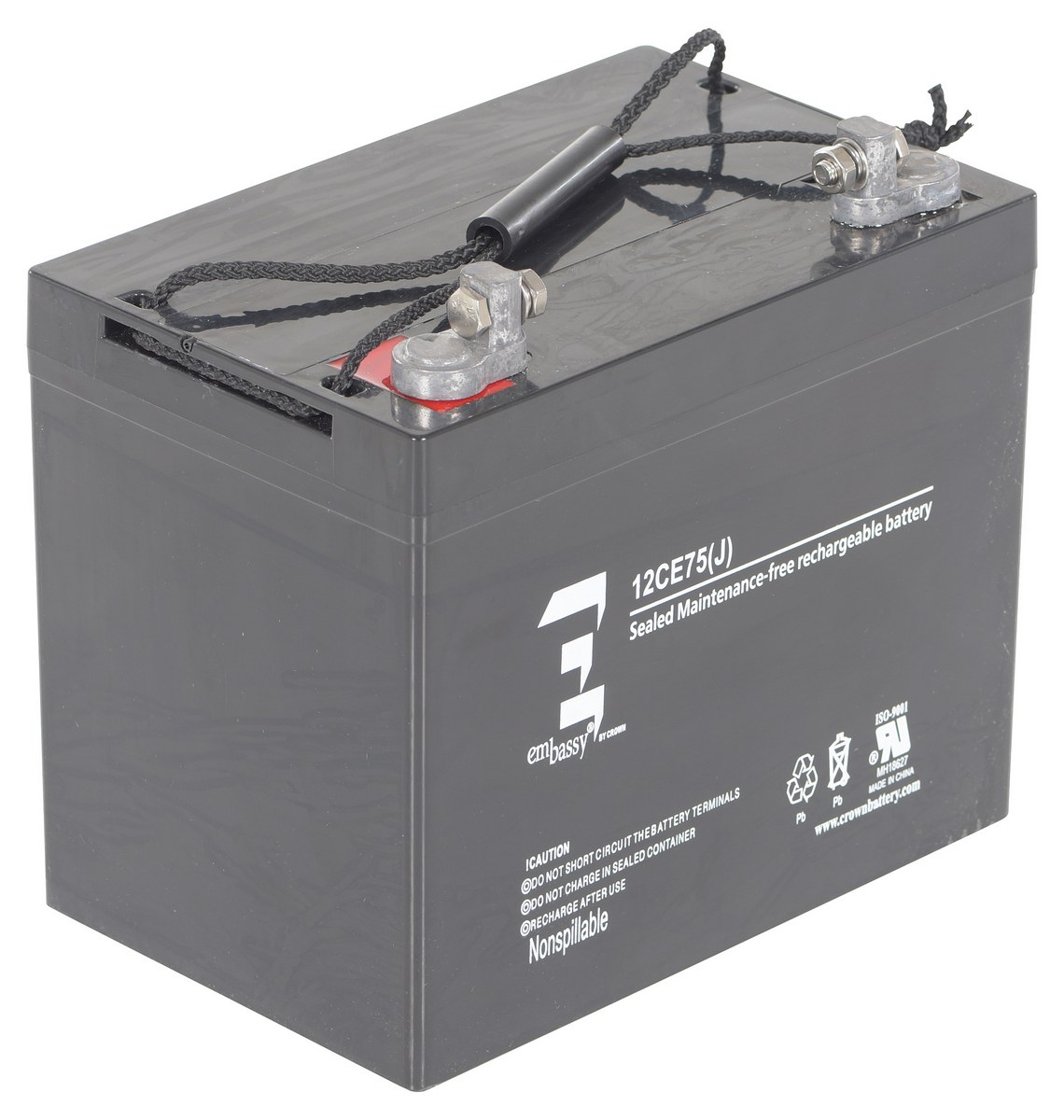

AGM-UPG-2-12V	Factory Installed Lead Acid Absorbed Glass Mat (AGM) Upgrade…	1 Year Limited Warranty	120

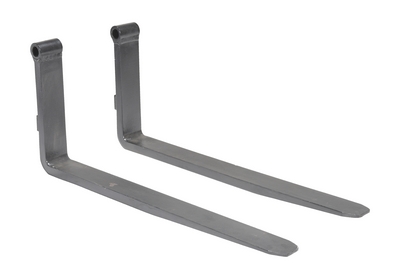

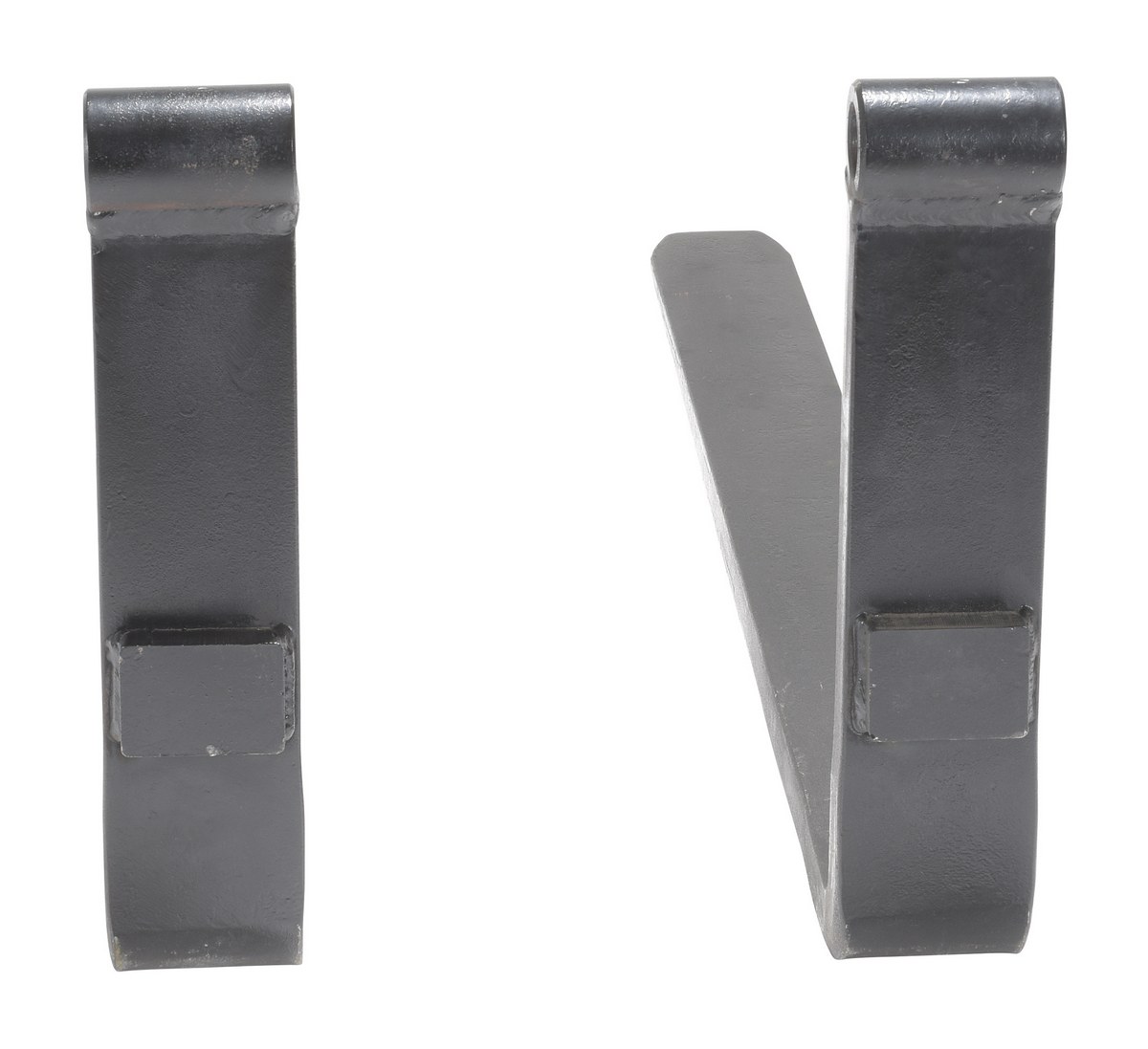

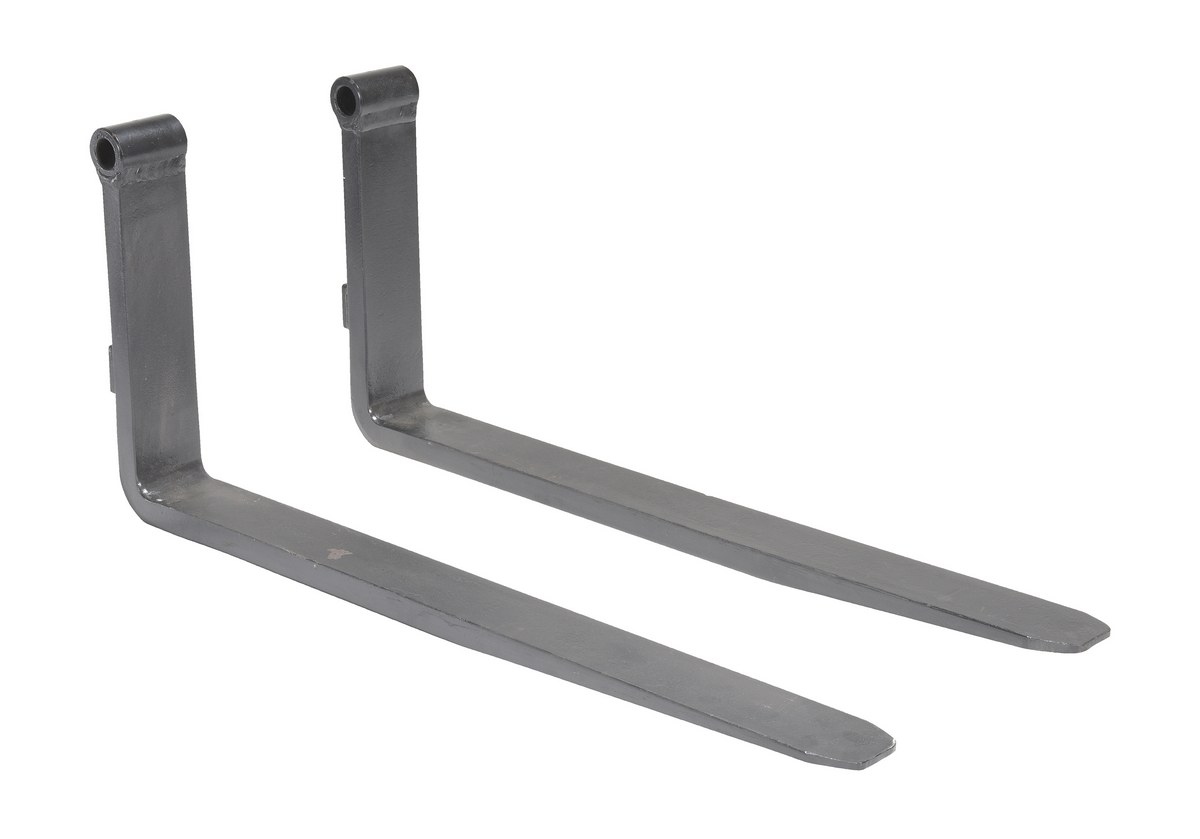

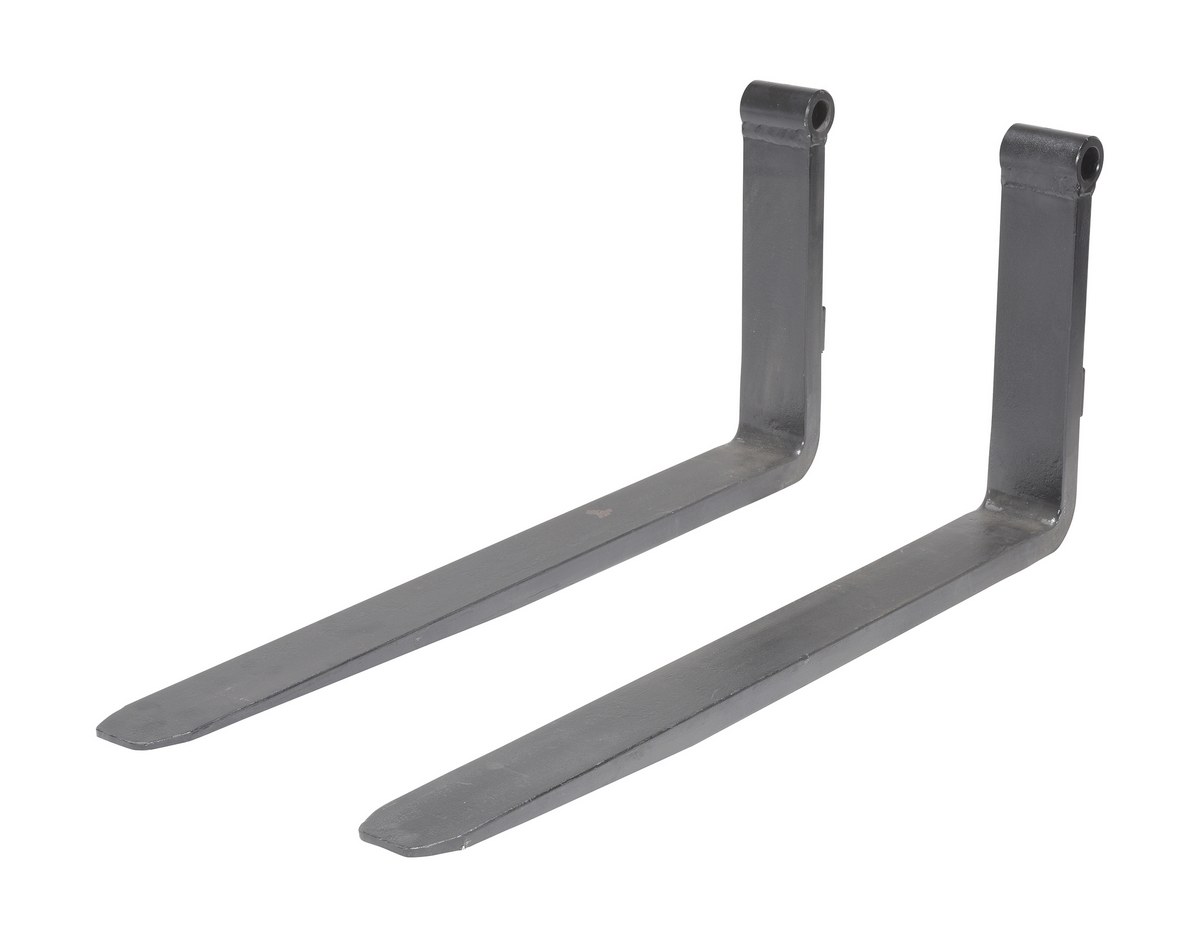

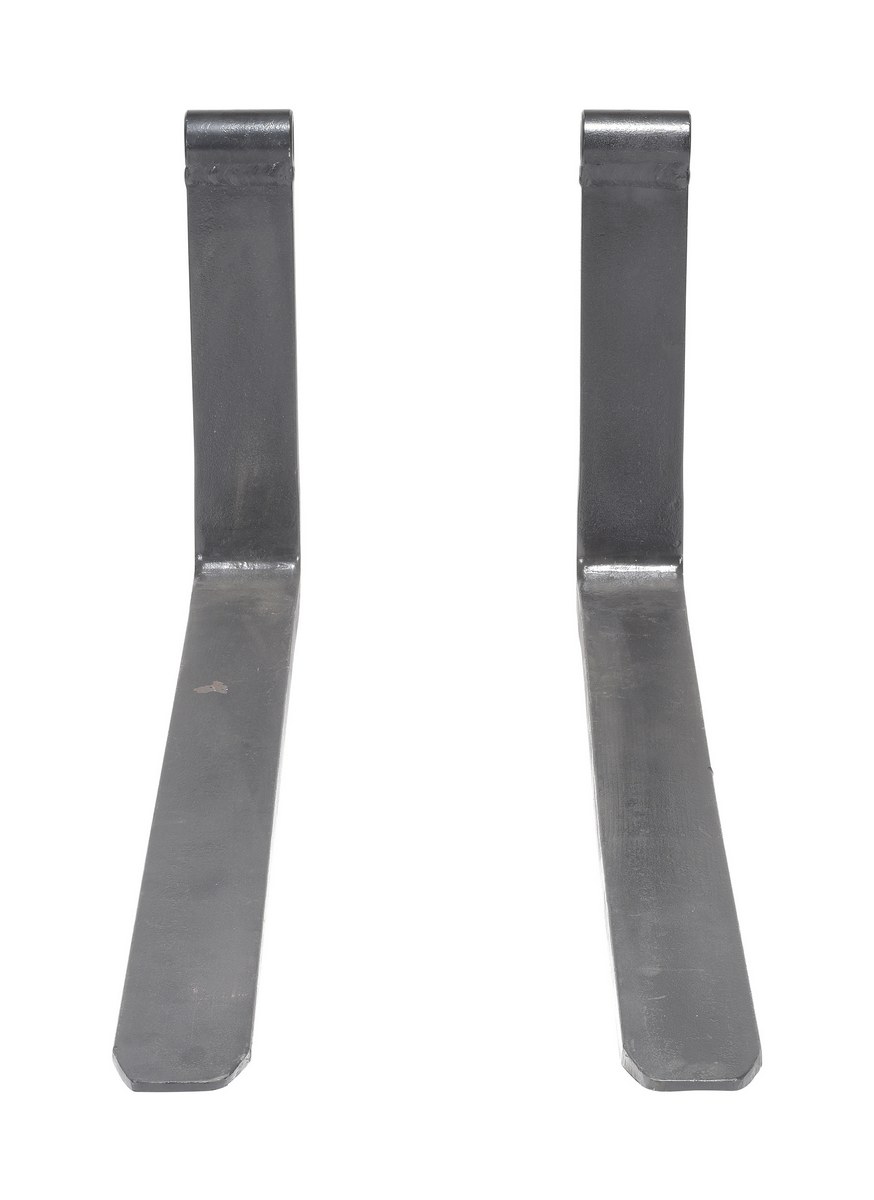

S-2CB-42-FK	Steel Forks 42 In. Long For Counter Balanced Powered Lift Mo…	1 Year Limited Warranty	191

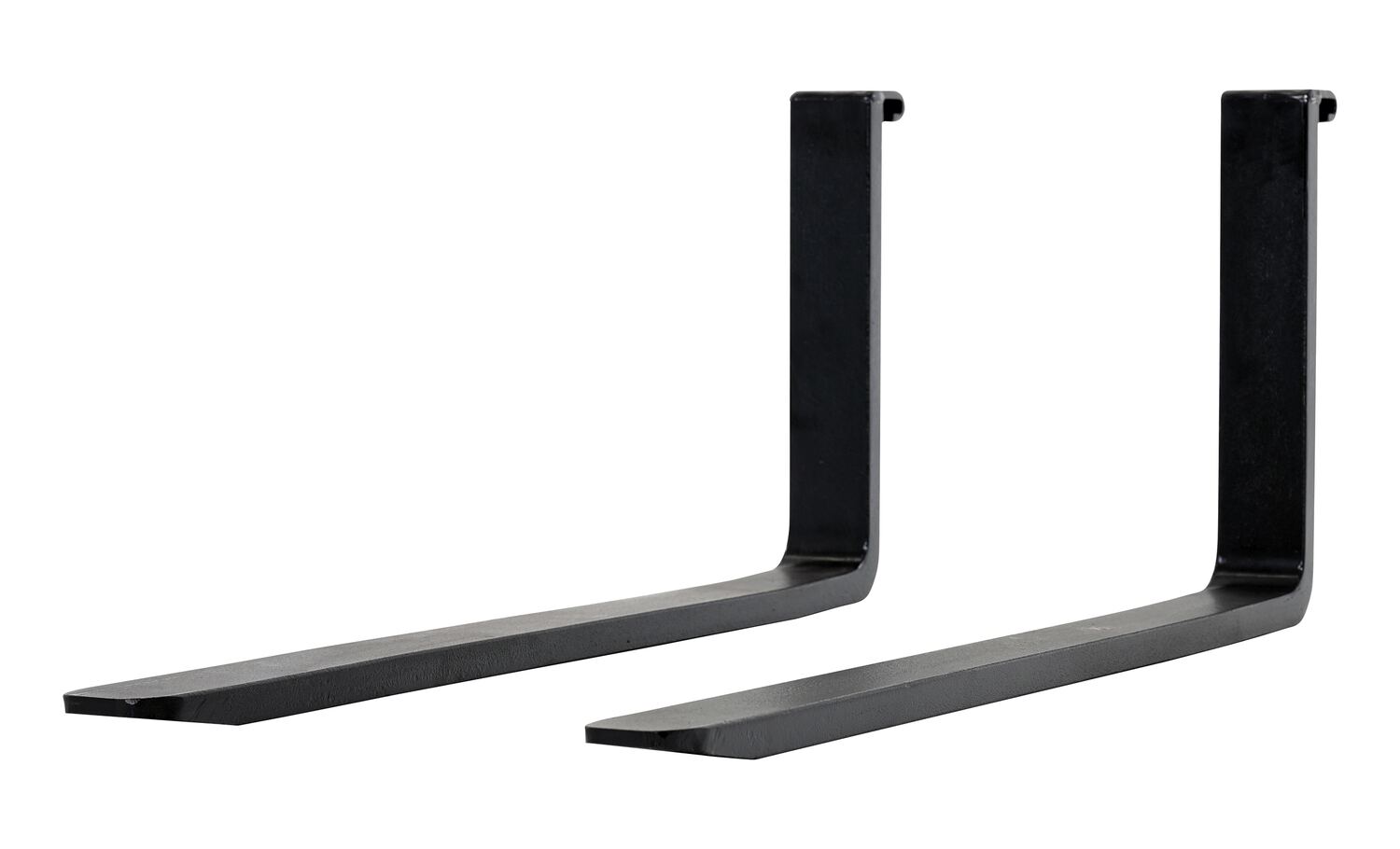

S-CB-42-FK	Steel Forks for Stackers 42 In. Length 500 Lb. Capacity Blac…	1 Year Limited Warranty	205

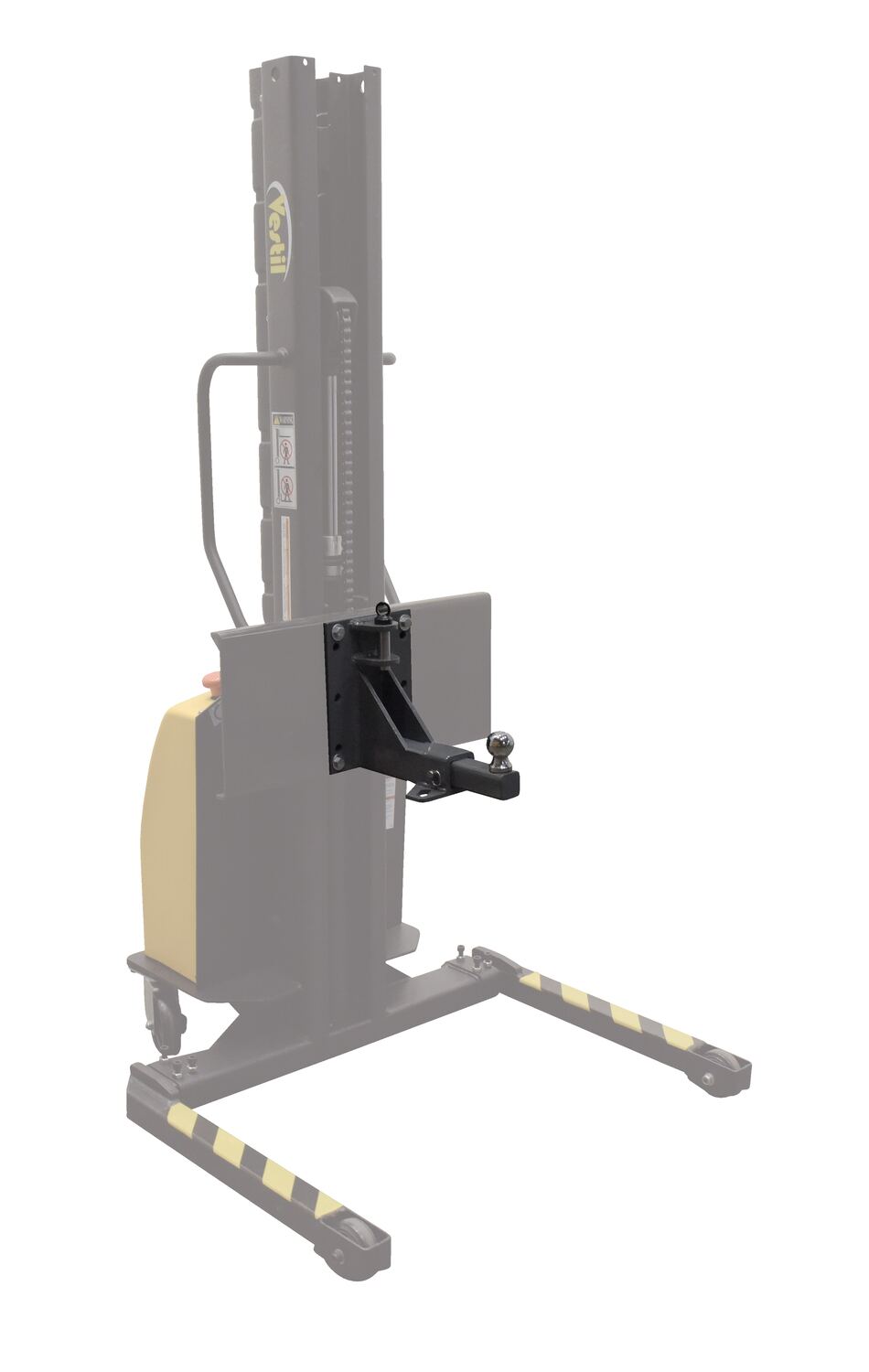

S-CB-BAH	Steel Counter Balanced Power Lift Single Ball Hitch Attachme…	1 Year Limited Warranty	37

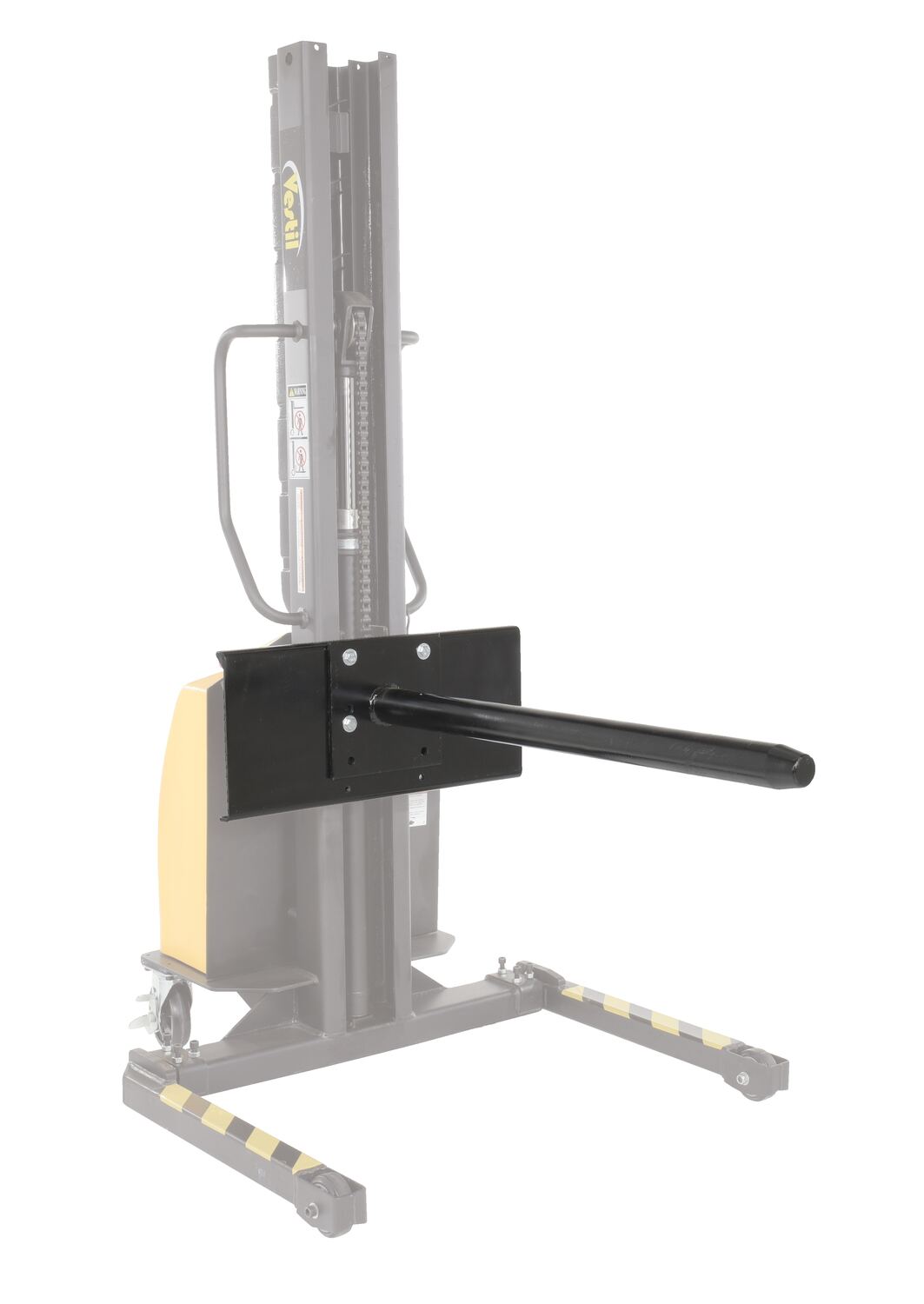

S-CB-PRP	Steel Counter Balanced Power Lift Pole Attachment Black	1 Year Limited Warranty	35

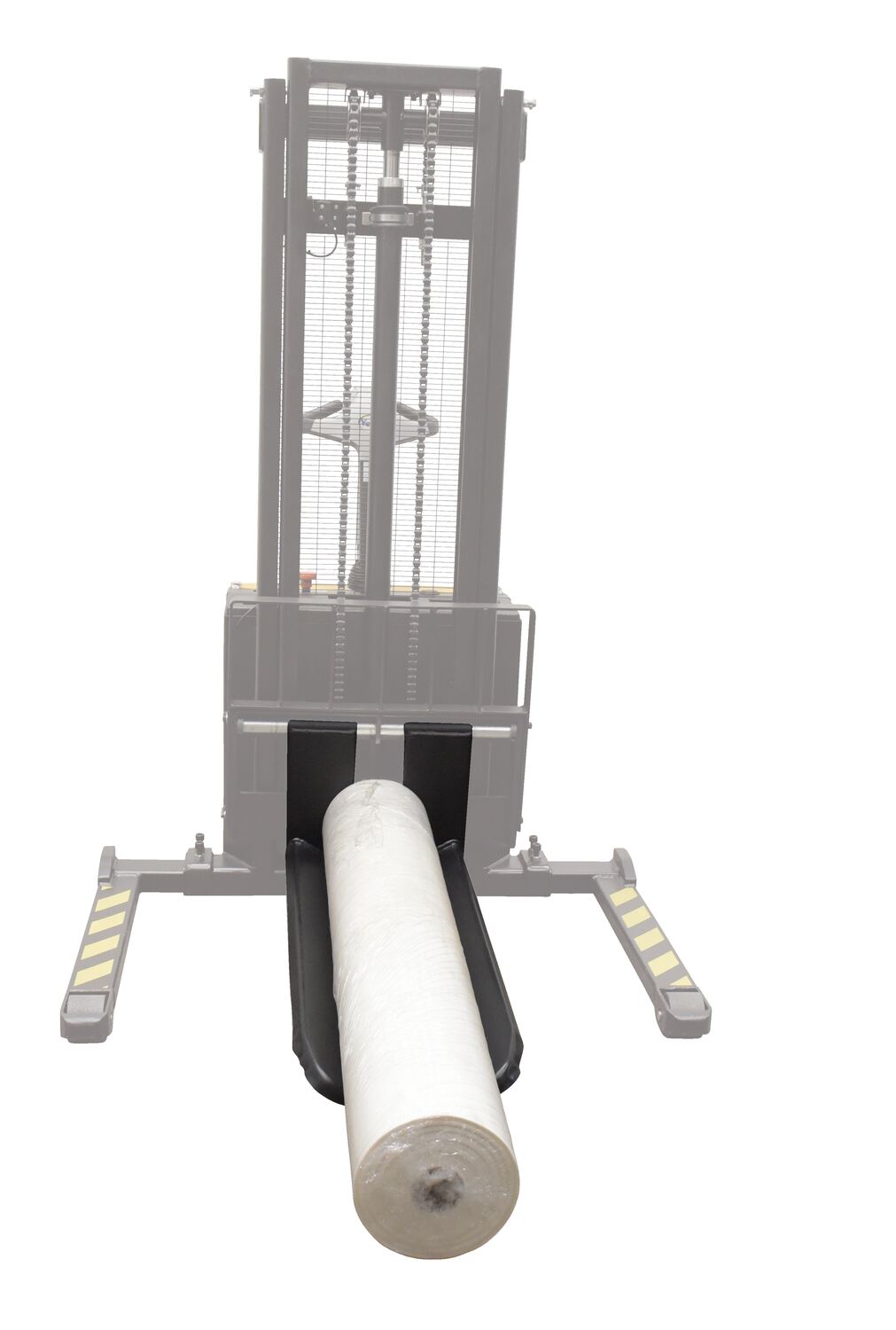

S-CB-RFK	Steel Counter Balanced Power Lift Roll Fork Attachment Black	1 Year Limited Warranty	111

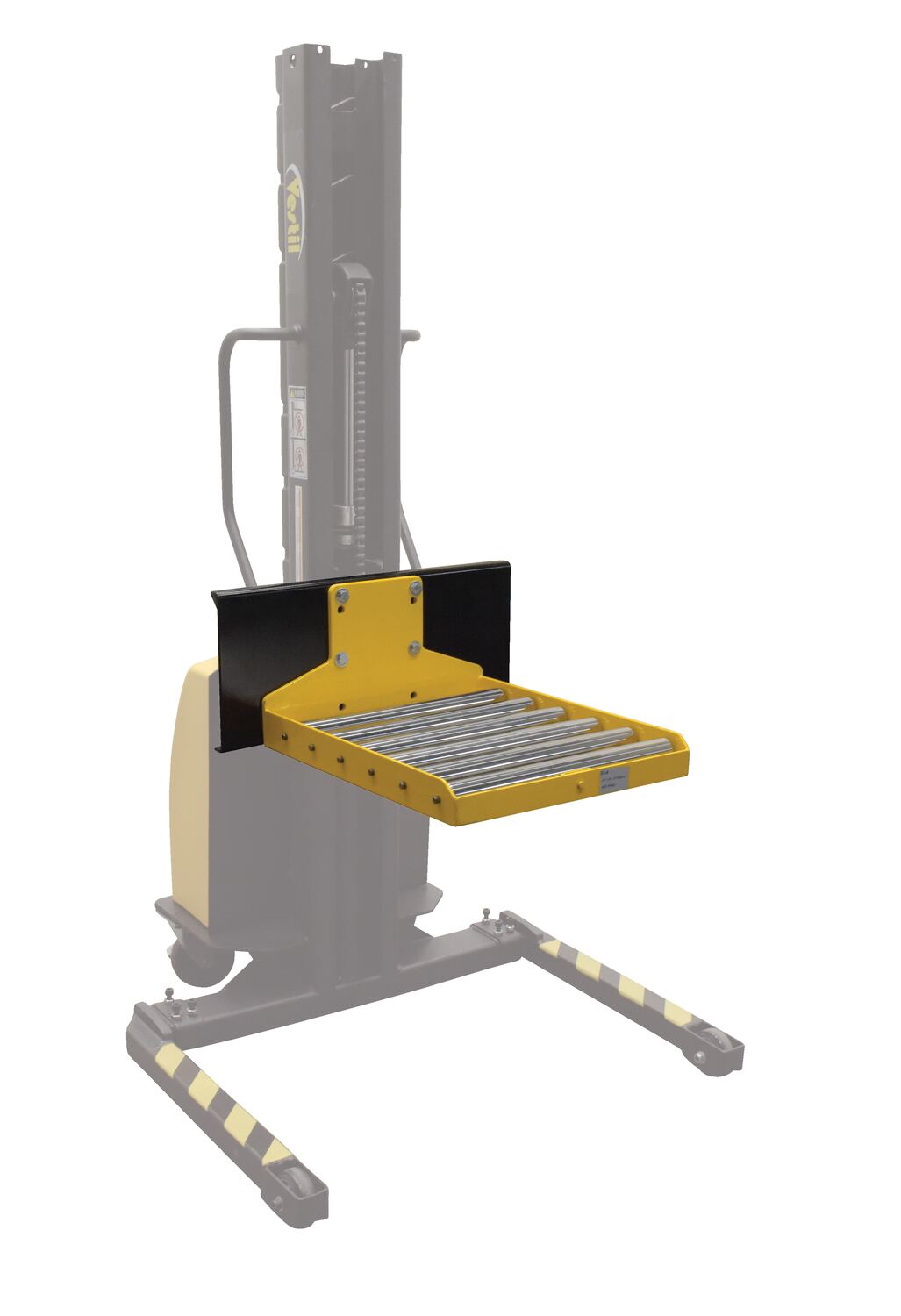

S-CB-RP	Steel Counter Balanced Power Lift Roller Platform Attachment…	1 Year Limited Warranty	57

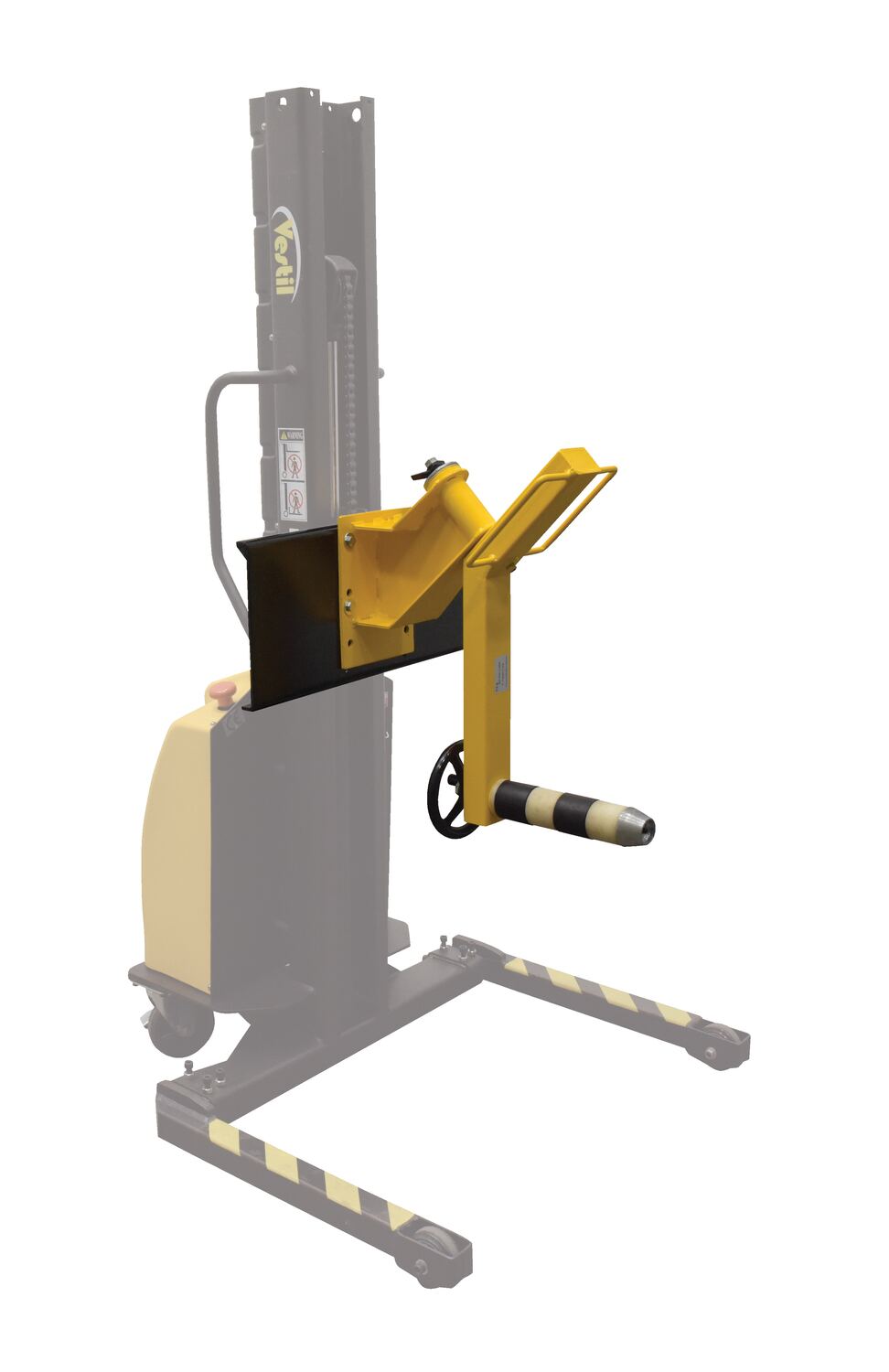

S-CB-RR	Steel Counter Balanced Power Lift Reel Rotator Attachment Ye…	1 Year Limited Warranty	55

Model	Image	PDFs	Description	Capacity	Wt (lbs.)
AGM-UPG-4-6V			AGM Battery Upgrade (4x6V) w/ purchase w/ new unit	-	67
S-2CB-DRR-FK		-	Drum/Roll/Reel Forks for S-2CB Models	1200	140
S-AA-DRR-FK		-	Drum/Roll/Reel Forks for S-2CB Models	1200	140
S-DK		-	Factory Installed Steel Removable Platform 46 In. x 28 In. x 2 In. For S-2CB models	2000	40

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above

PDFs will open in a new window when clicked.

Manuals

S-CB-118

S-2CB

Survey Sheets

No Survey Sheets For This Product

Engineering Drawings

S-2CB-62

S-2CB-118

S-CB-62

S-CB-118

Testing Certificates

S-2CB-118

S-2CB-42-FK

S-2CB-62

S-CB-118

S-CB-62

S-CB-BAH

S-CB-PRP

S-CB-RFK

S-CB-RP

S-CB-RR

SDS Sheets

Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid
S-2CB-118 SDS

Hydraulic Oil
S-2CB-118 SDS

Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid
S-2CB-62 SDS

Hydraulic Oil
S-2CB-62 SDS

Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid
S-CB-118 SDS

Hydraulic Oil
S-CB-118 SDS

Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid
S-CB-62 SDS

Hydraulic Oil
S-CB-62 SDS

Other PDFs

Counter-Balanced Powered Drive Lifts Mailing Brochure

Applications

Trucking Companies

Warehouses

Gas Stations

Superstores

Moving Companies

Postal Services

Loading Docks

Packaging Areas

I'm interested in adding the 42" forks to the S-2CB-62 stacker. What would the load center be with the longer forks?

The S-2CB-42-FK load center would be 21" when installed on the S-2CB-62 stacker.

Is S-CB-118 a class 2 carriage?

This is not a class 2 carriage.

Are the forks removable on the S-CB-118?

Yes! The forks on the S-CB-118 are removable.

What is the free lift on the counterbalanced stackers?

There is not a "free lift" on the counterbalanced stackers. It will lift at a 2:1 ratio. For every 2" the forks raise , the mast will raise 1".

Will the S-2CB-42-FK forks come installed on the stacker?

When the S-2CB-42 is ordered with the counter balanced stacker, the original forks will be shipped on the stacker and the 42" forks will be sent along the side.

Does S-DK work with S-CB models?

S-DK does not work with S-CB models, but it does work with S-2CB models.
