Caster Steer Towable Trailers
SERIES: CSTT

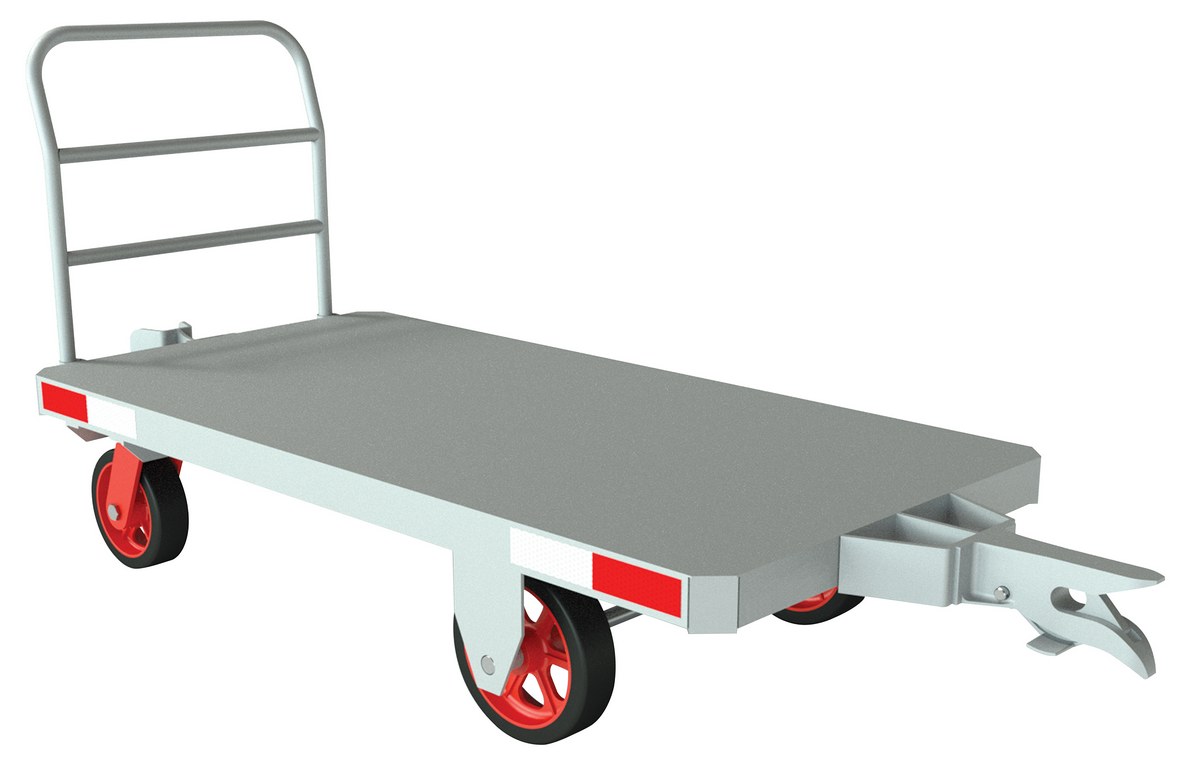

Caster Steer Trailers are engineered for power towing. Units are standard with heavy duty couplers and swivel casters drop-forged steel construction with integrally forged kingpin and precision thrust bearing. Standard wheels are 10"x3" swivel casters in the front, and 12"x3" polyurethane or mold on rubber casters in the back of the trailer (to make it easier to maneuver). Handle is 26" high above deck and channel reinforced pipe sockets at swivel end. Other custom deck sizes and hardwood decks available, contact factory.

  • Engineered for power towing
  • Features heavy duty couplers and swivel casters
  • Includes drop-forged steel construction with precision thrust bearing
  • Front swivel end has channel reinforced pipe sockets

Caster Steer Trailers are engineered for power towing. Units are standard with heavy duty couplers and swivel casters drop-forged steel construction with integrally forged kingpin and precision thrust bearing. Standard wheels are 10"x3" swivel casters in the front, and 12"x3" polyurethane or mold on rubber casters in the back of the trailer (to make it easier to maneuver). Handle is 26" high above deck and channel reinforced pipe sockets at swivel end. Other custom deck sizes and hardwood decks available, contact factory.

  • Engineered for power towing
  • Features heavy duty couplers and swivel casters
  • Includes drop-forged steel construction with precision thrust bearing
  • Front swivel end has channel reinforced pipe sockets

Other Specialty Carts

 Chair and Table Rack Economical Pallet & Container Transporters PRAIL Cart Portable Parts Bin

How To Order
Share:

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
CSTT-36-4MR CSTT-36-4MR1 Year Limited WarrantyCaster Steel Towing Trailers 36 In. x 72 In. 3000 Lb. Capacity GrayUniform Capacity (lb.): 3,000
Front Swivel Caster Diameter/Width (in.): 10 x 3		551
CSTT-36-4P CSTT-36-4P1 Year Limited WarrantyCaster Steel Towing Trailers 36 In. x 72 In. 4000 Lb. Capacity GrayUniform Capacity (lb.): 4,000
Front Swivel Caster Diameter/Width (in.): 10 x 3		551
CSTT-48-4MR CSTT-48-4MR1 Year Limited WarrantyCaster Steel Towing Trailers 48 In. x 96 In. 3000 Lb. Capacity GrayUniform Capacity (lb.): 3,000
Front Swivel Caster Diameter/Width (in.): 10 x 3		625
CSTT-48-4P CSTT-48-4P1 Year Limited WarrantyCaster Steel Towing Trailers 48 In. x 96 In. 4000 Lb. Capacity GrayUniform Capacity (lb.): 4,000
Front Swivel Caster Diameter/Width (in.): 10 x 3		625

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

CSTT-36-4MR
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 3,000
Front Swivel Caster Diameter/Width (in.): 10 x 3
Uniform Capacity (lb.): 3,000
Front Swivel Caster Diameter/Width (in.): 10 x 3

CSTT-36-4P
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Front Swivel Caster Diameter/Width (in.): 10 x 3
Uniform Capacity (lb.): 4,000
Front Swivel Caster Diameter/Width (in.): 10 x 3

CSTT-48-4MR
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 3,000
Front Swivel Caster Diameter/Width (in.): 10 x 3
Uniform Capacity (lb.): 3,000
Front Swivel Caster Diameter/Width (in.): 10 x 3

CSTT-48-4P
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Front Swivel Caster Diameter/Width (in.): 10 x 3
Uniform Capacity (lb.): 4,000
Front Swivel Caster Diameter/Width (in.): 10 x 3
Caster Steer Towable Trailers PDF's will open in a new window when clicked.

Manuals

No Owners Manuals For This Product


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

No Approval Drawings For This Product

Testing Certificates


CSTT-36-4MR

CSTT-36-4P

CSTT-48-4MR

CSTT-48-4P

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...
