Fully Powered Bale Clamp & Lift Stackers

model: S-CB-2751-BCF

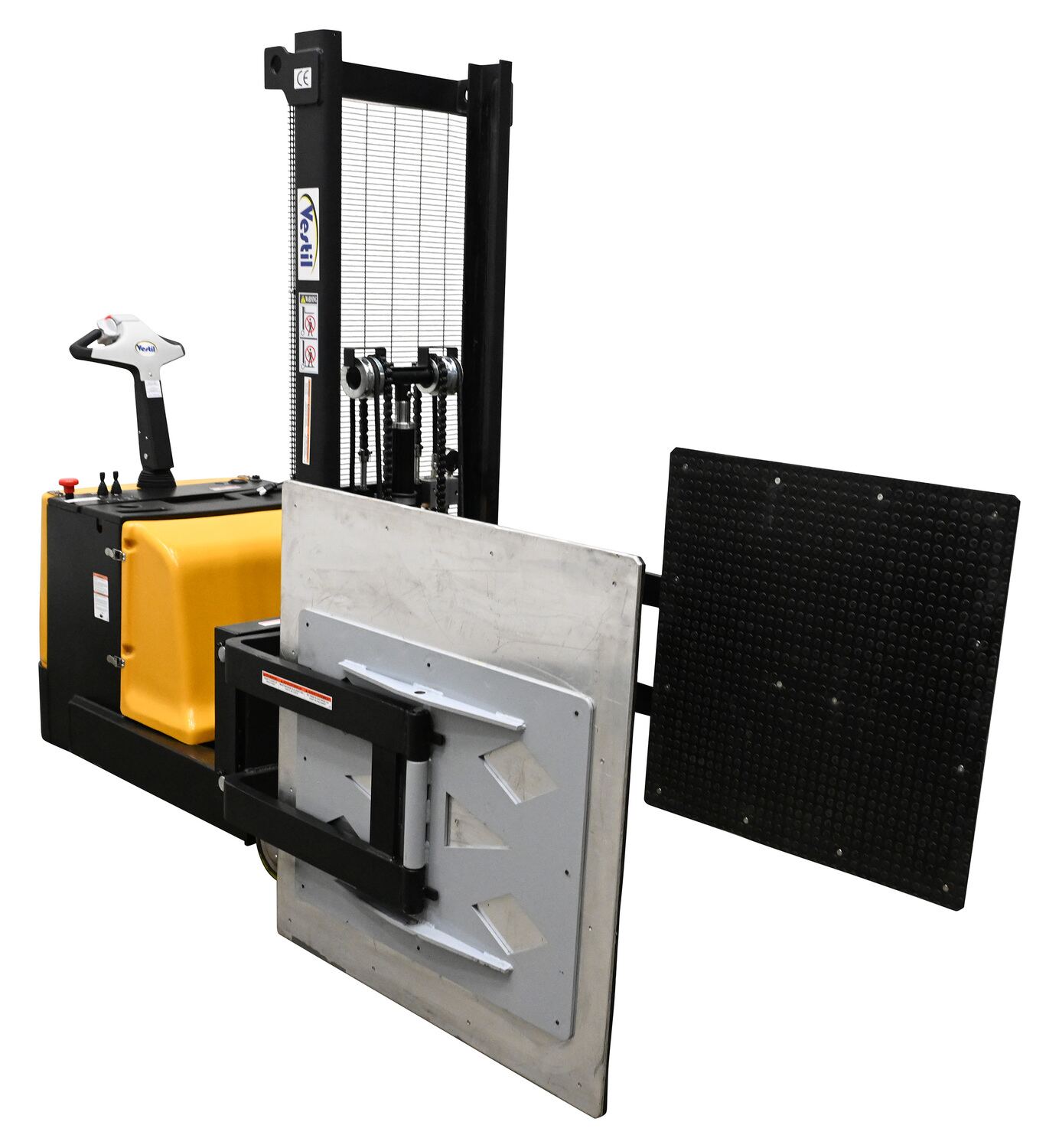

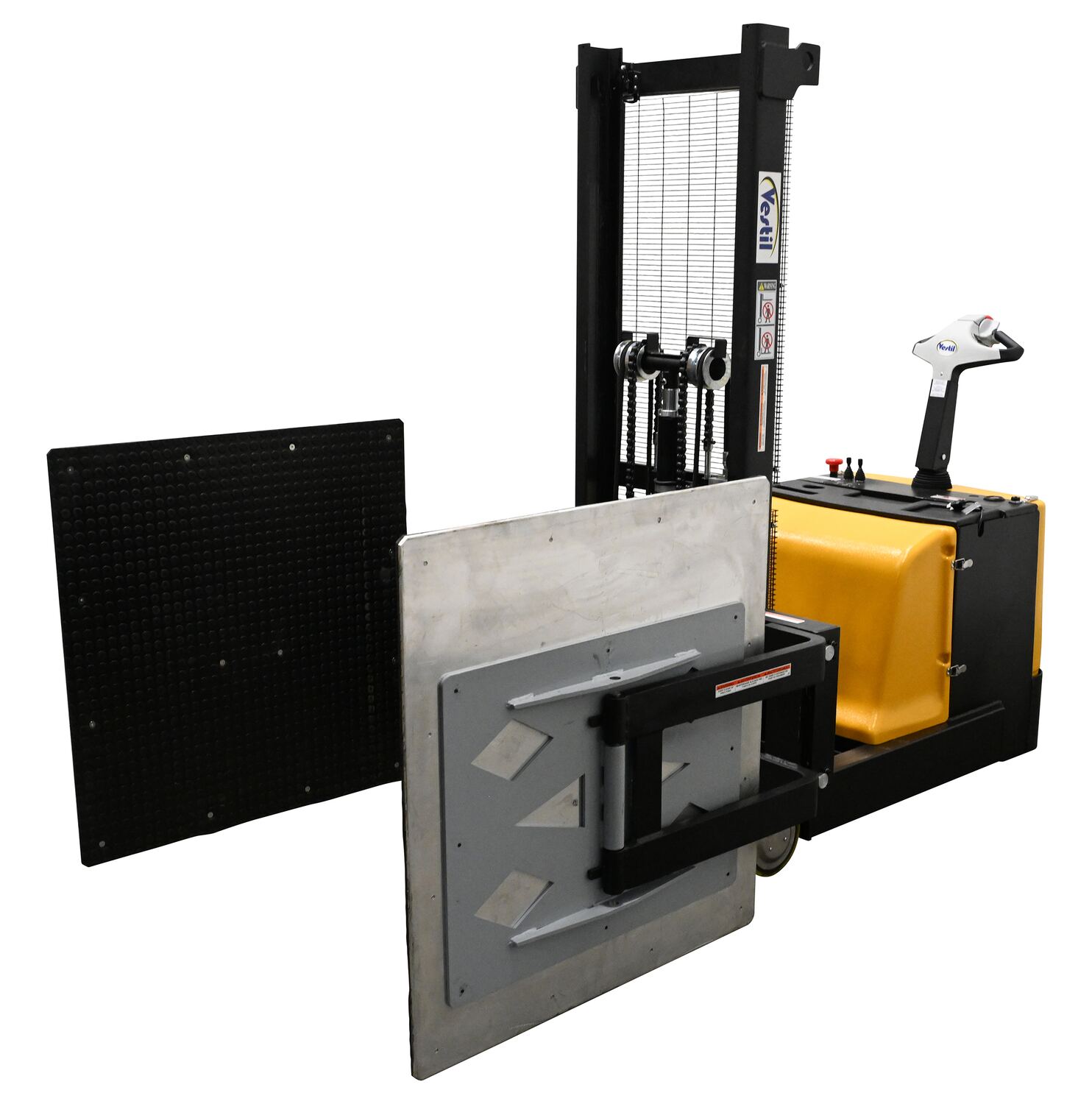

S-CB-2751-BCF_A.jpg S-CB-2751-BCF_D.jpg S-CB-2751-BCF_E.jpg S-CB-2751-BCF_G.jpg S-CB-2751-BCF_I.jpg S-CB-2751-BCF_J.jpg S-CB-2751-BCF_K.jpg S-CB-2751-BCF_M.jpg More Images +
Fully Powered Bale Clamp & Lift Stackers
SERIES: S-CB-BCF

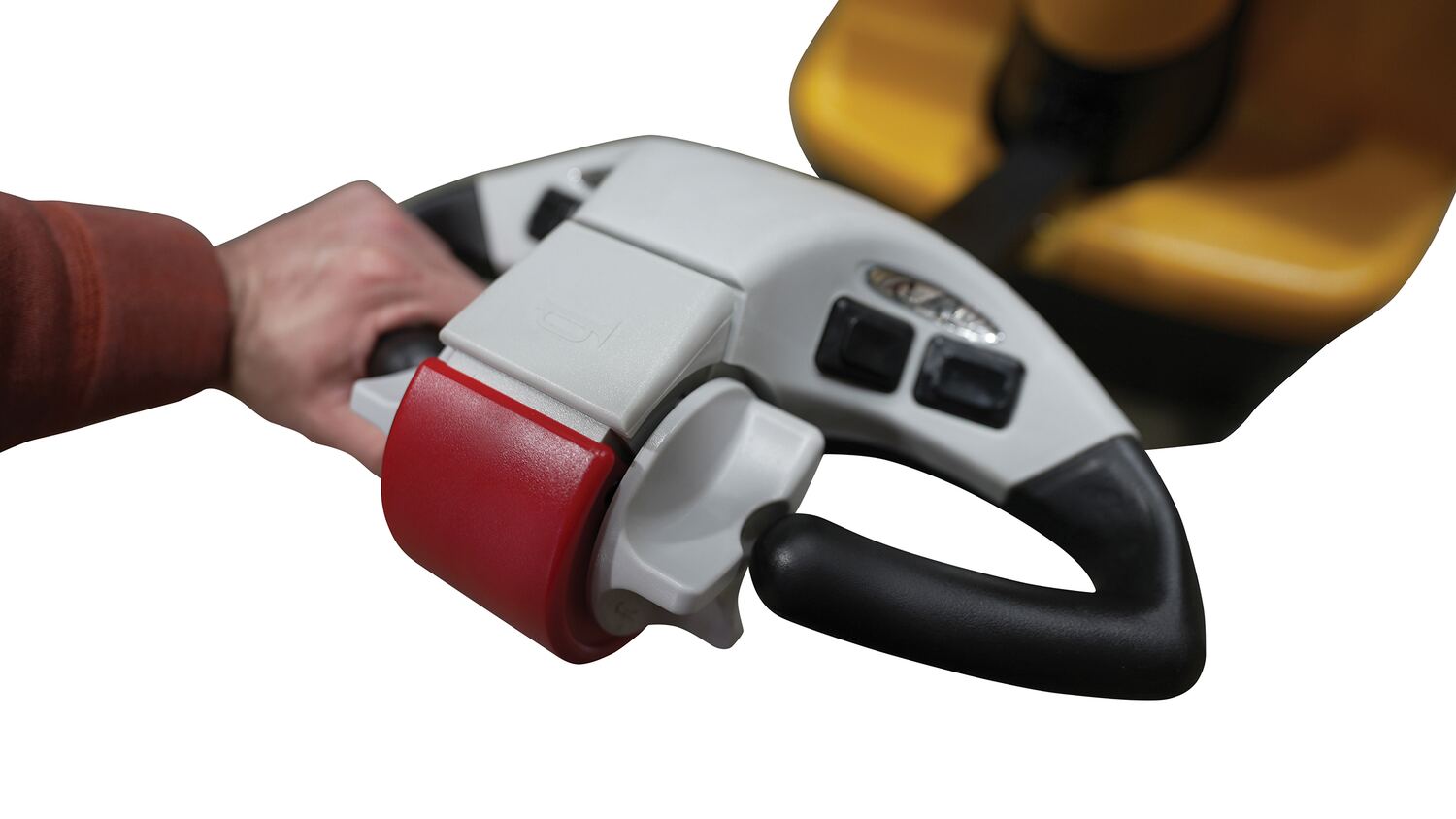

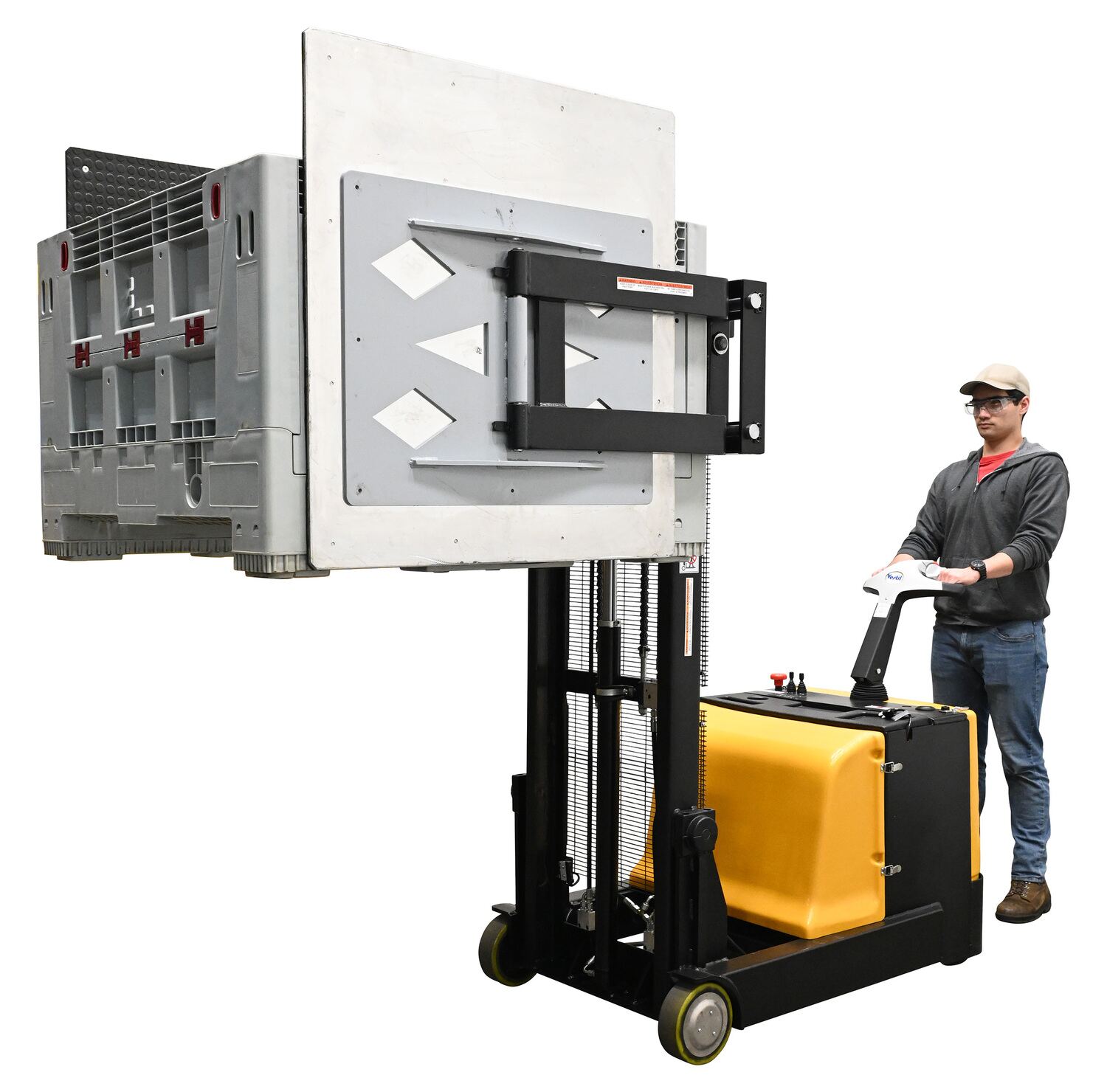

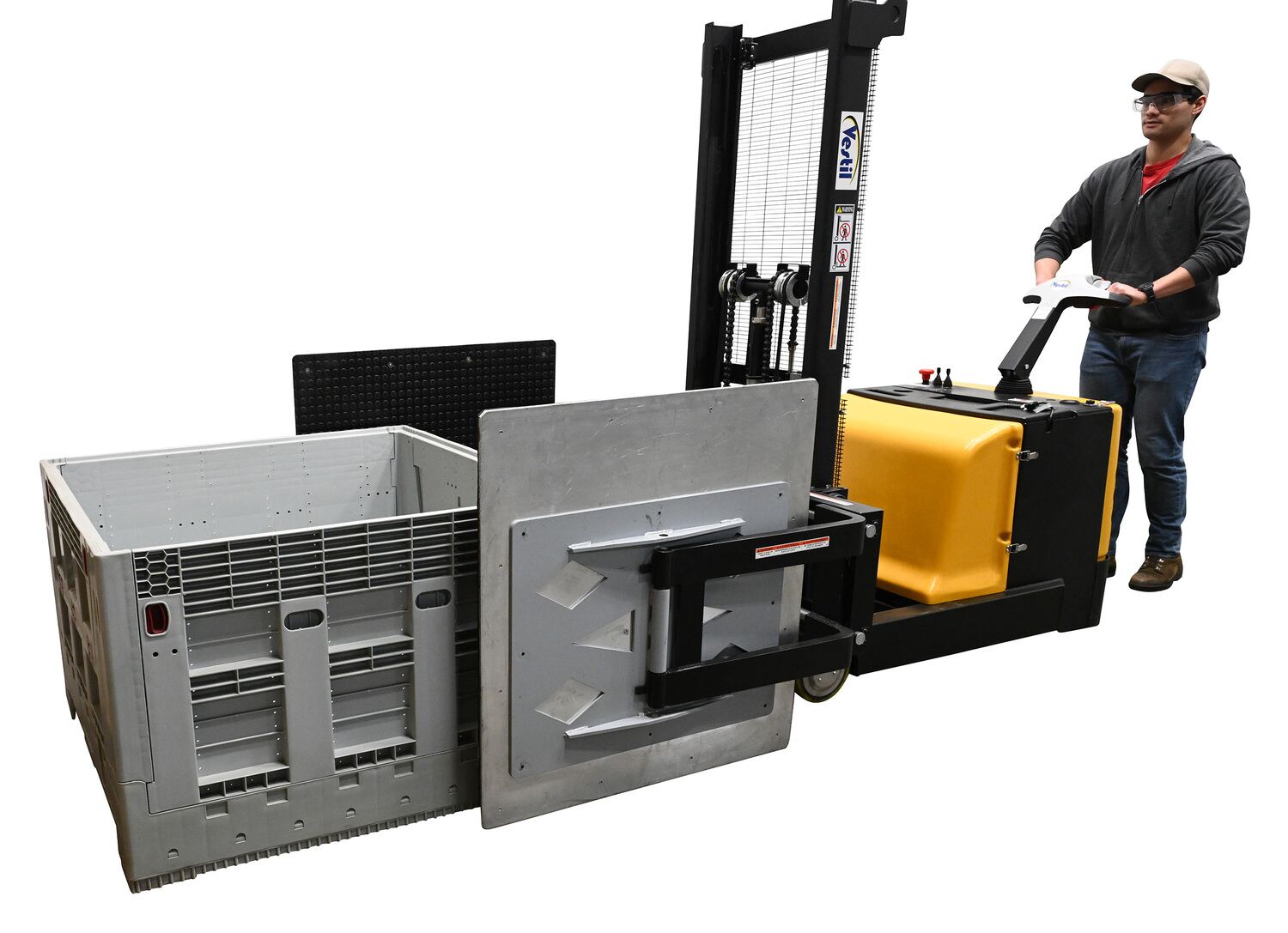

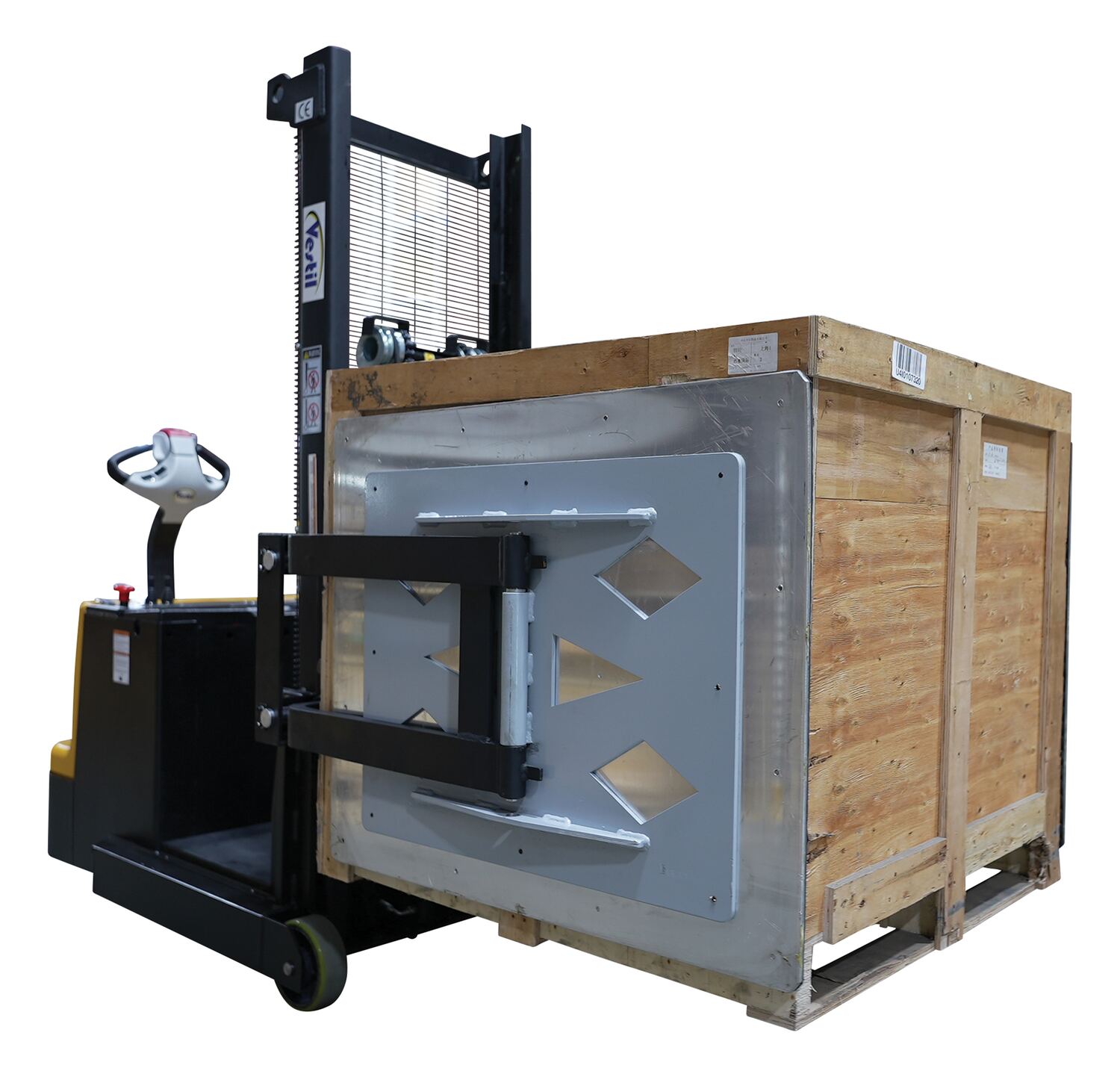

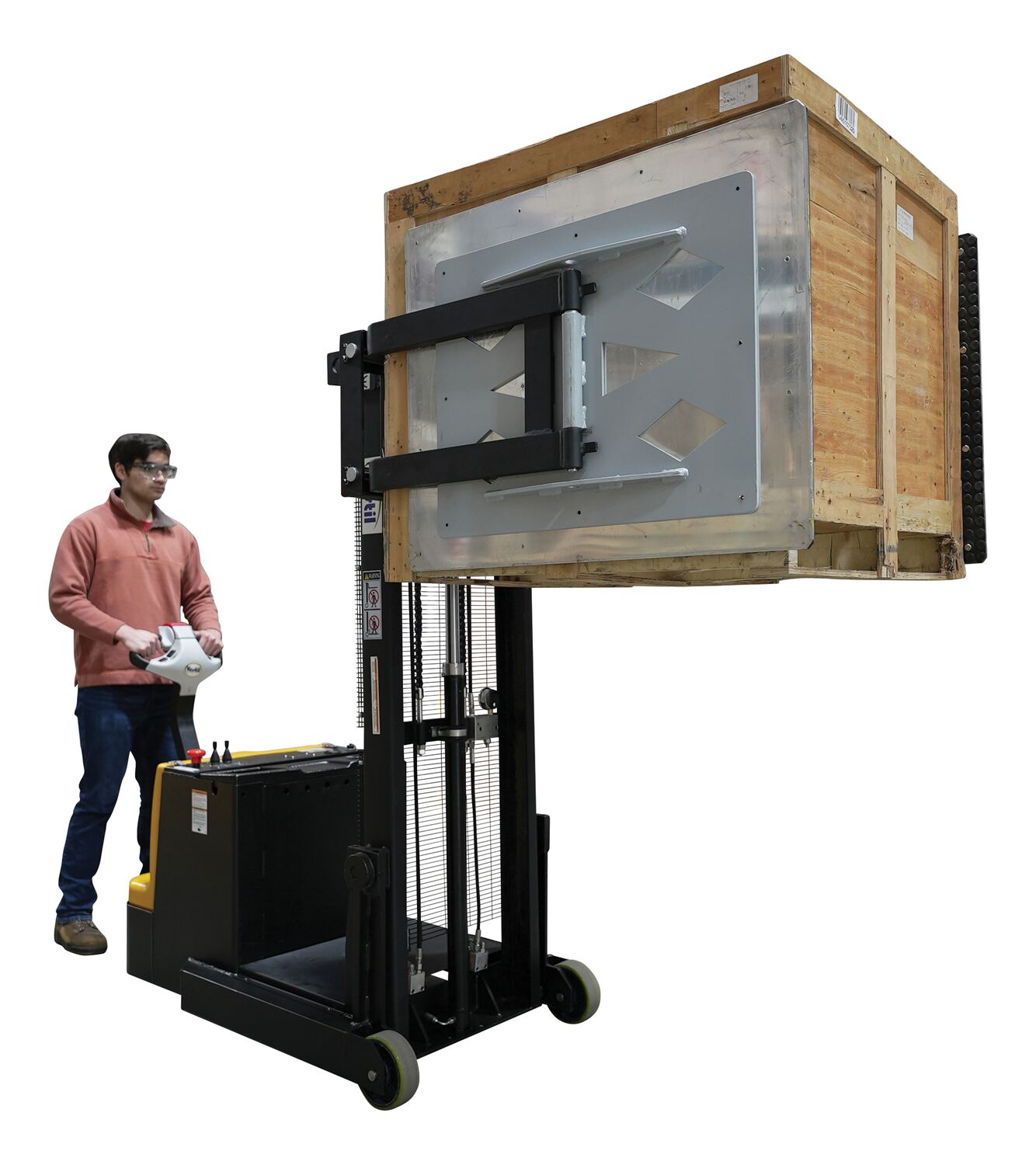

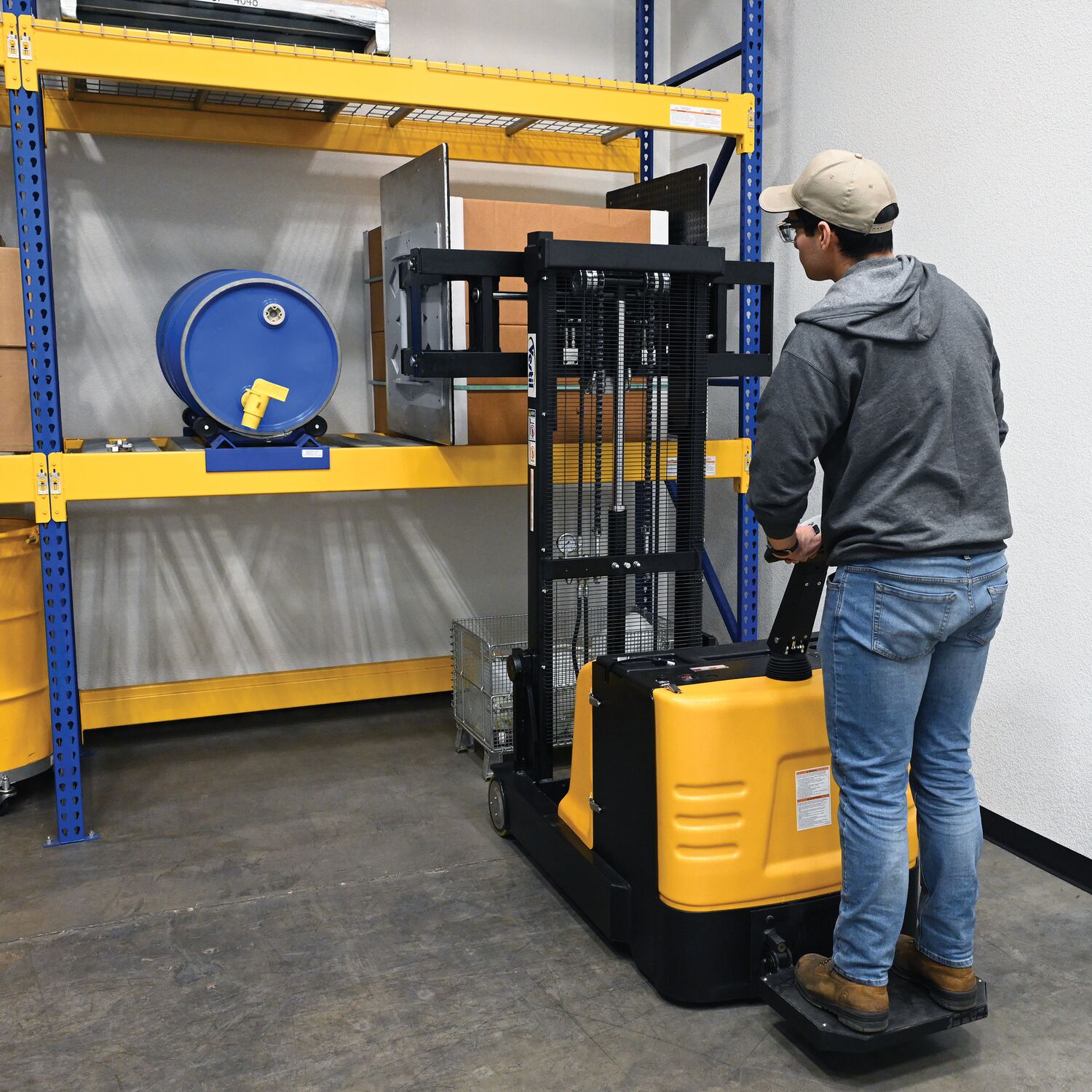

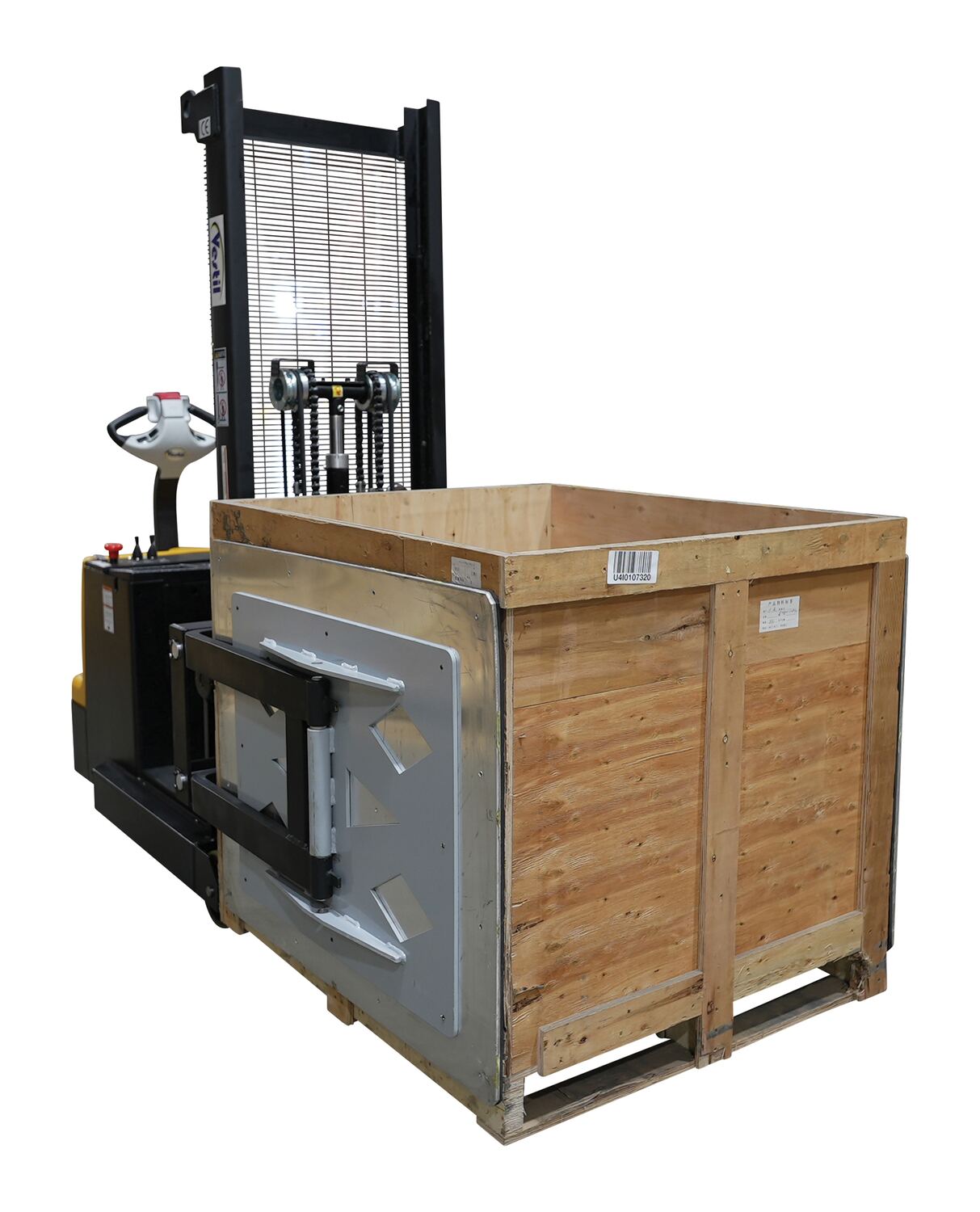

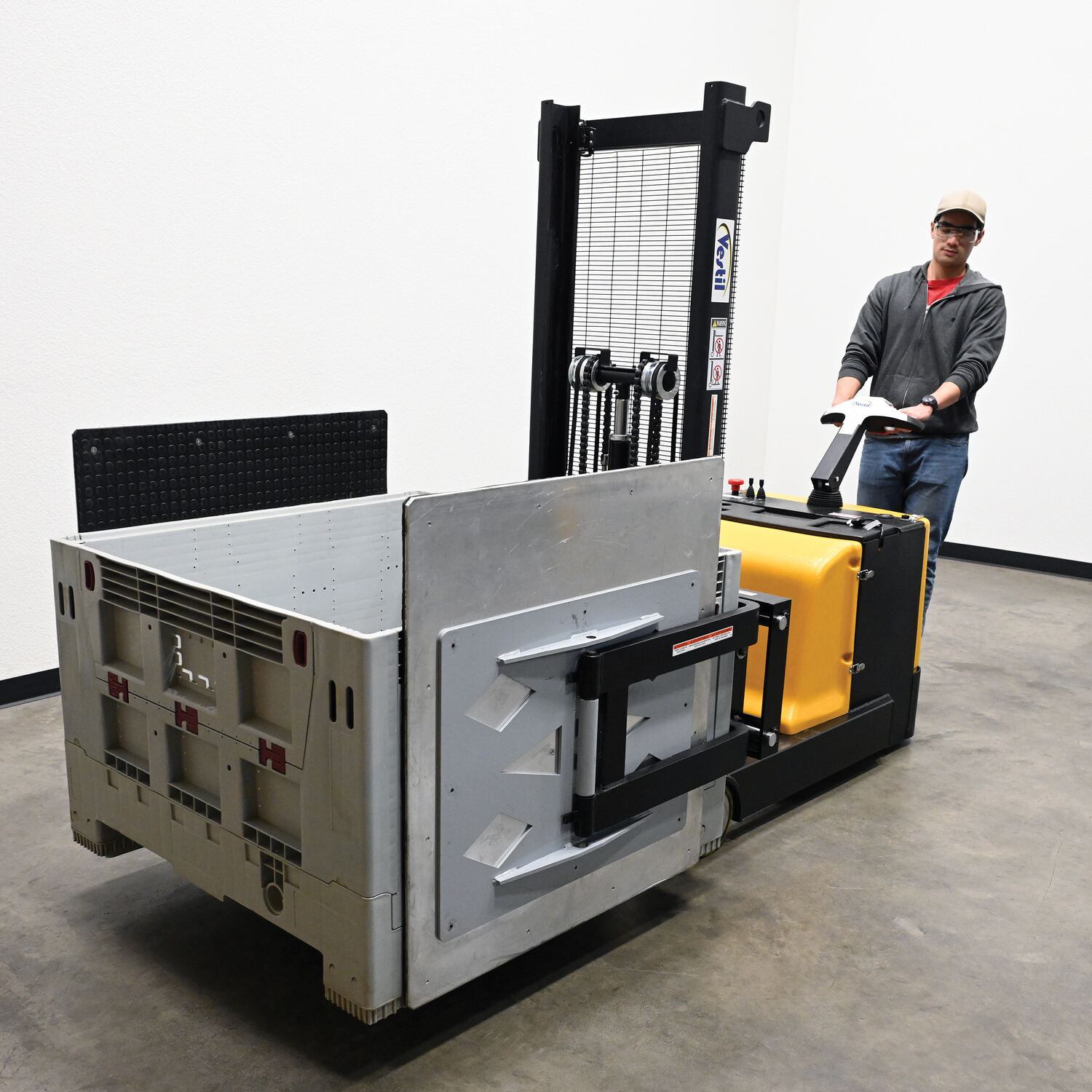

This counter balance design is ideal for die loading, machine feeding, and for loading and unloading trucks. An ergonomic handle features easy-to-operate throttle with infinite adjustment of forward and reverse speeds, lift/lower controls. When actuated, the emergency reverse belly switch instantly reverses direction and moves the unit forward (away from the operator) until the switch is released or after five seconds have elapsed. The built-in safety circuit will automatically disable the entire unit if the emergency reverse belly switch is activated for more than 5 seconds after which the unit must be re-set to return to normal operating conditions. Stacker rolls smoothly on poly-on-steel steer & load wheels. Features 0.7 KW drive and 2.0 KW lift motor. 3-4 hour operation at full charge - 8 hours when used intermittently.

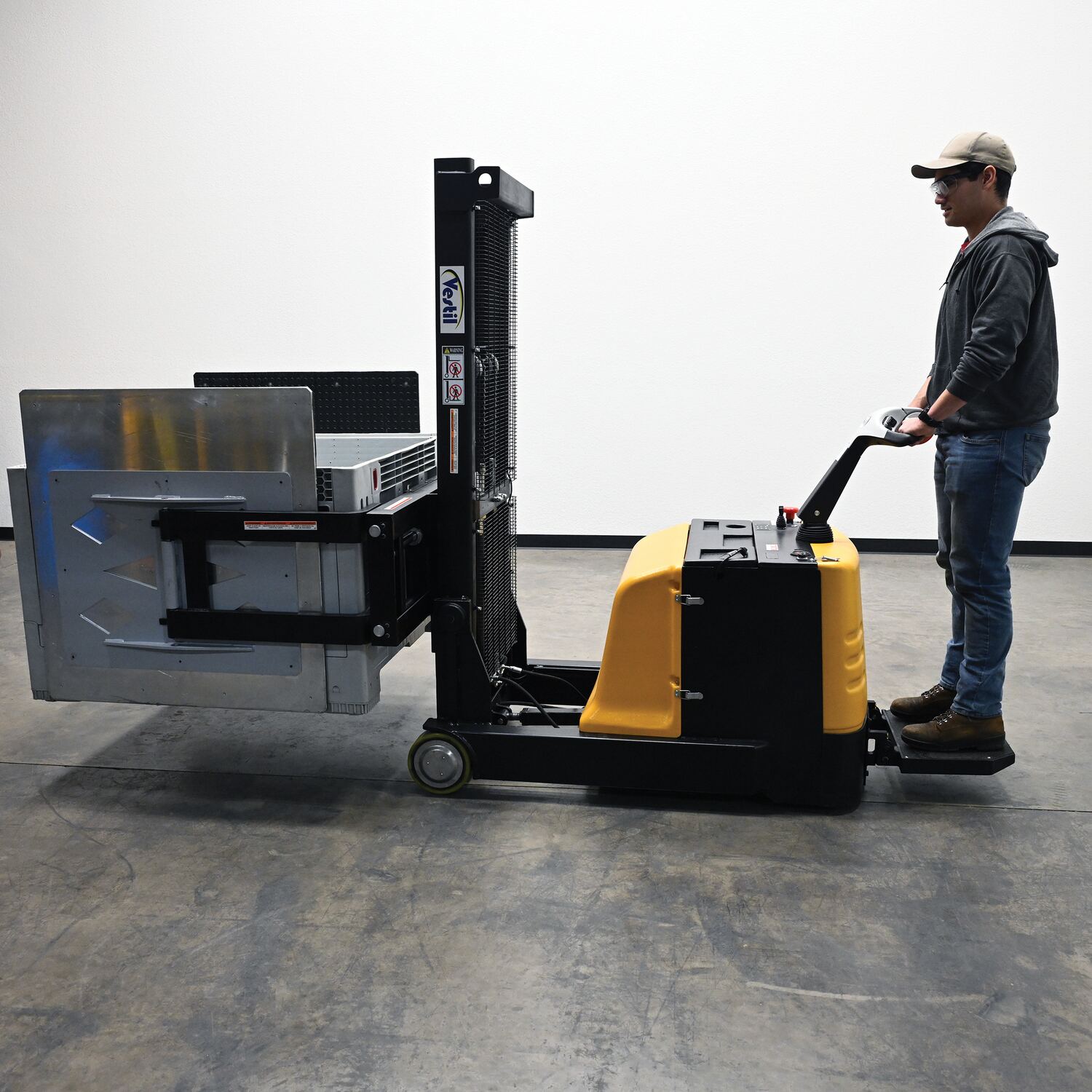

  • Ride-on Platform
  • Poly-on-steel steer and load wheels
  • Powered by two 12V lead acid batteries

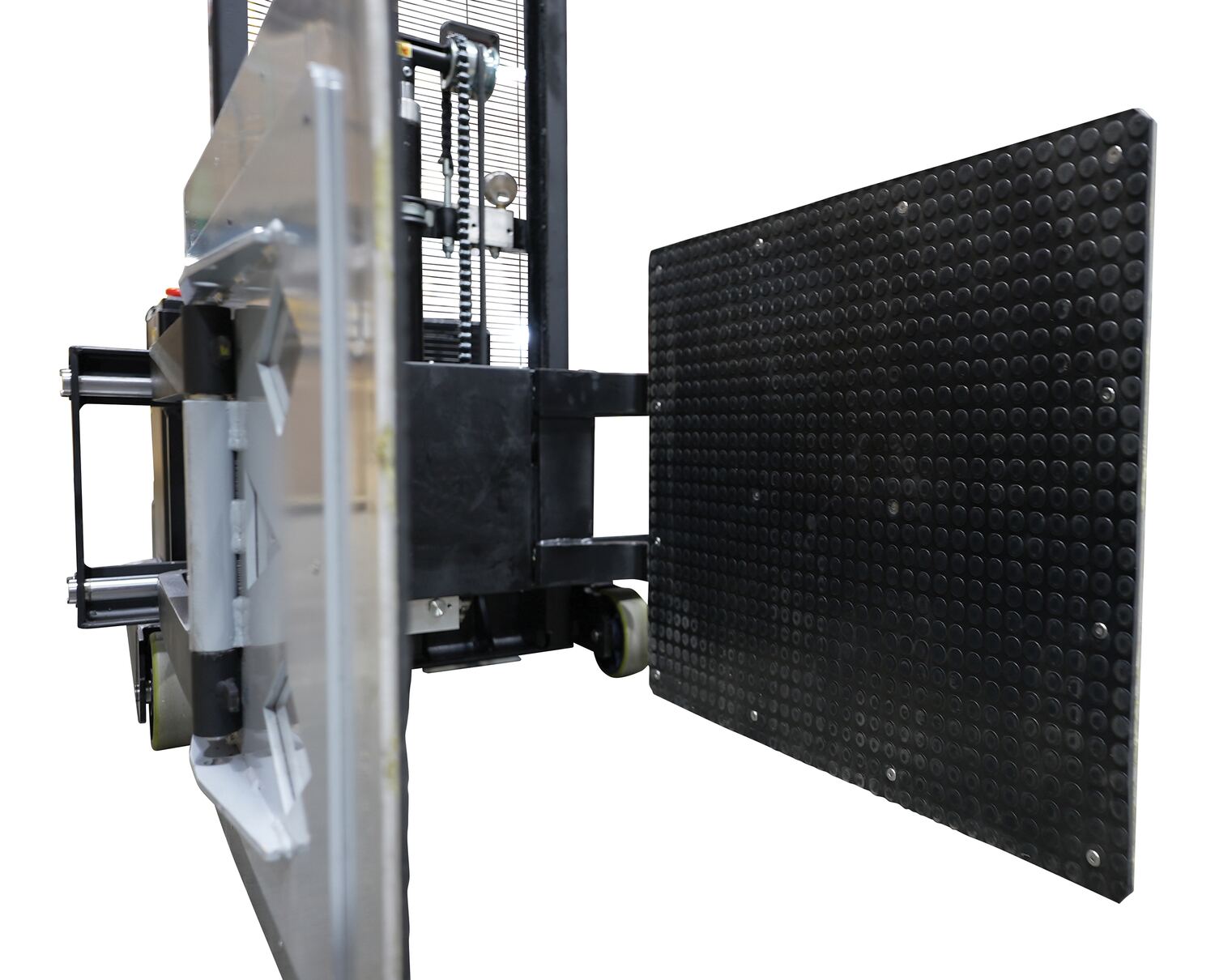

  • Bale/Box clamping range: 23"-41" & 27"-51" models available

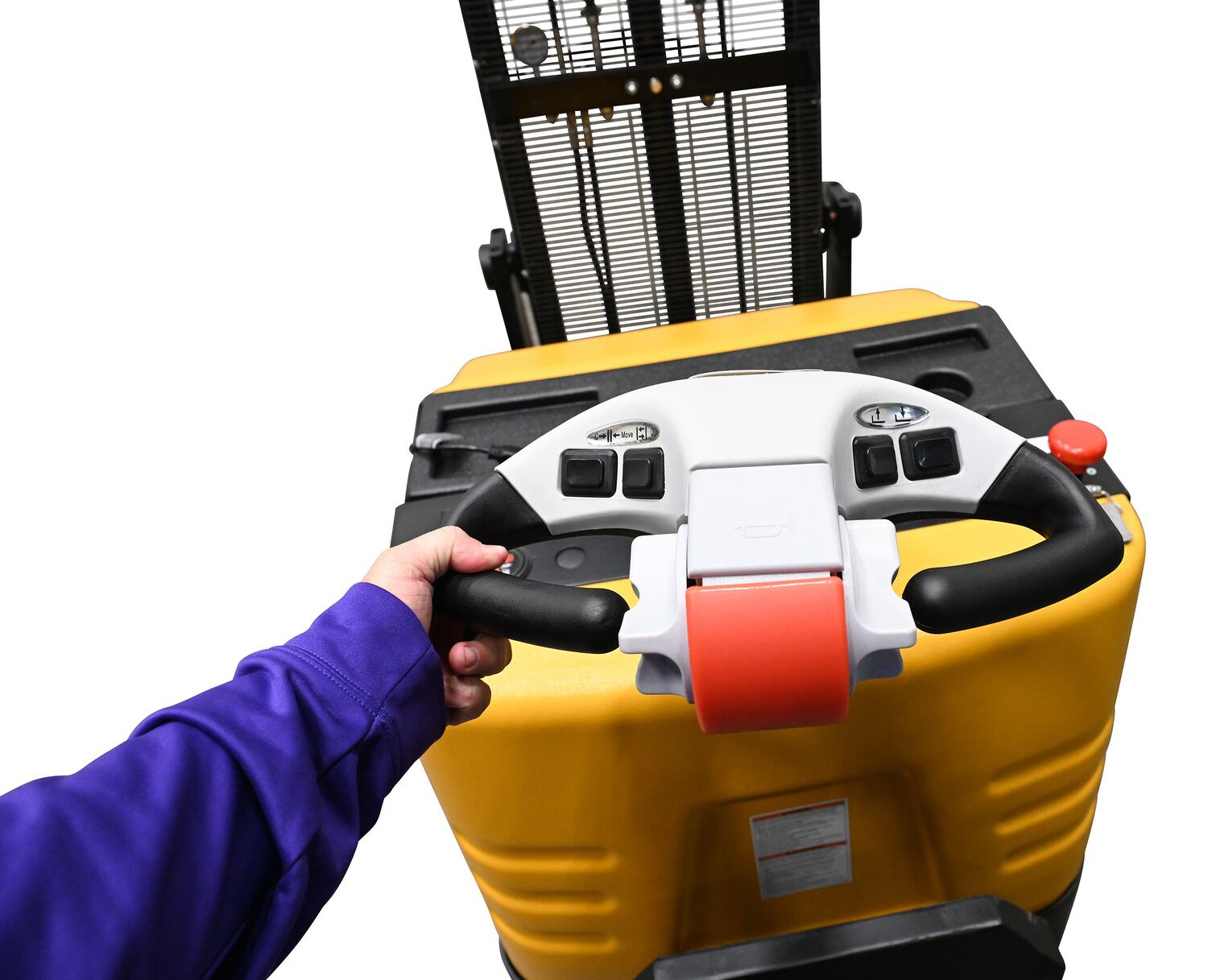

S-CB-2751-BCF_E.jpgS-CB-2751-BCF

Check Out Vestil's Other Stackers:
Stacker with Powered Lift | Specialty Stackers | Stackers with Powered Drive and Powered Lift | Pallet Master/Servers | Manual & Electric Stackers | Counter-Balanced Powered Drive Lifts | Rough Terrain Stacker | Narrow Mast Stackers with Powered Lift | Double Mast Stackers with Powered Drive and Powered Lift | Stackers with Lithium Ion Battery | Combination Hand Pump and Electric Stackers | Variable Speed Drive Double Mast Fully Powered Stacker | Narrow Mast Stackers with Powered Drive and Powered Lift | Gas Powered All Terrain Pallet Trucks & Stackers | Semi-Electric Powered Drum Gripper | Powered Stacker with Power Drive, Power Lift, & Power Fork Reach | Electric Stackers (Pramac) | Manual & Electric Stackers (Pramac)

Fully Powered Bale Clamp & Lift Stackers

model: S-CB-2751-BCF

Model # Description Attributes Net Wt.
(lbs)
S-CB-2341-BCF NEW S-CB-2341-BCF1 Year Limited WarrantyCounter Balanced Powered 23 In. - 41 In. Bale Clamp Lifter 800 Lb. Capacity Black/YellowUniform Capacity (lbs.): 800
Minimum Clamp Width (in.): 23.625		101
S-CB-2751-BCF NEW S-CB-2751-BCF1 Year Limited WarrantyCounter Balanced Powered 27 In. - 51 In. Bale Clamp Lifter 800 Lb. Capacity Black/YellowUniform Capacity (lbs.): 800
Minimum Clamp Width (in.): 27.625		2641

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Dimension Image = Works w/ Skid Only = Flatbed Truck Required

S-CB-2341-BCF
S-CB-2751-BCF
PDFs will open in a new window when clicked.

Manuals

No Owners Manuals For This Product

Survey Sheets

No Survey Sheets For This Product

Engineering Drawings

S-CB-2341-BCF

S-CB-2751-BCF

Testing Certificates

S-CB-2341-BCF

S-CB-2751-BCF

SDS Sheets


Hydraulic Oil
S-CB-2341-BCF SDS


Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid
S-CB-2341-BCF SDS


Hydraulic Oil
S-CB-2751-BCF SDS


Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid
S-CB-2751-BCF SDS

Other PDFs


Fully Powered Counter Balanced Bale Clamps Mailing Brochure
What is the turning radius of model S-CB-2751-BCF?
54"
