Portable Uni-Tilts

model: UNI-P-4848-4

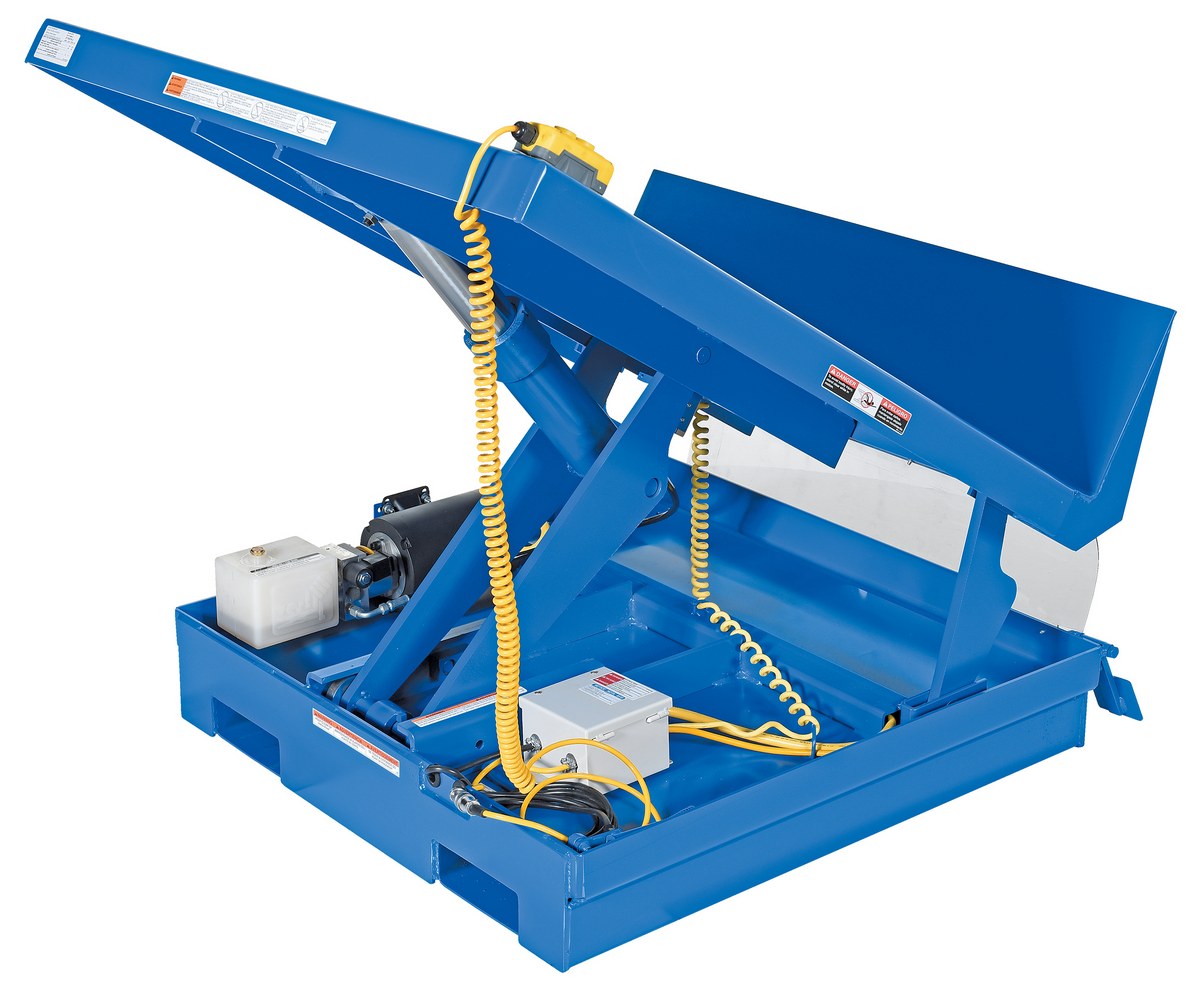

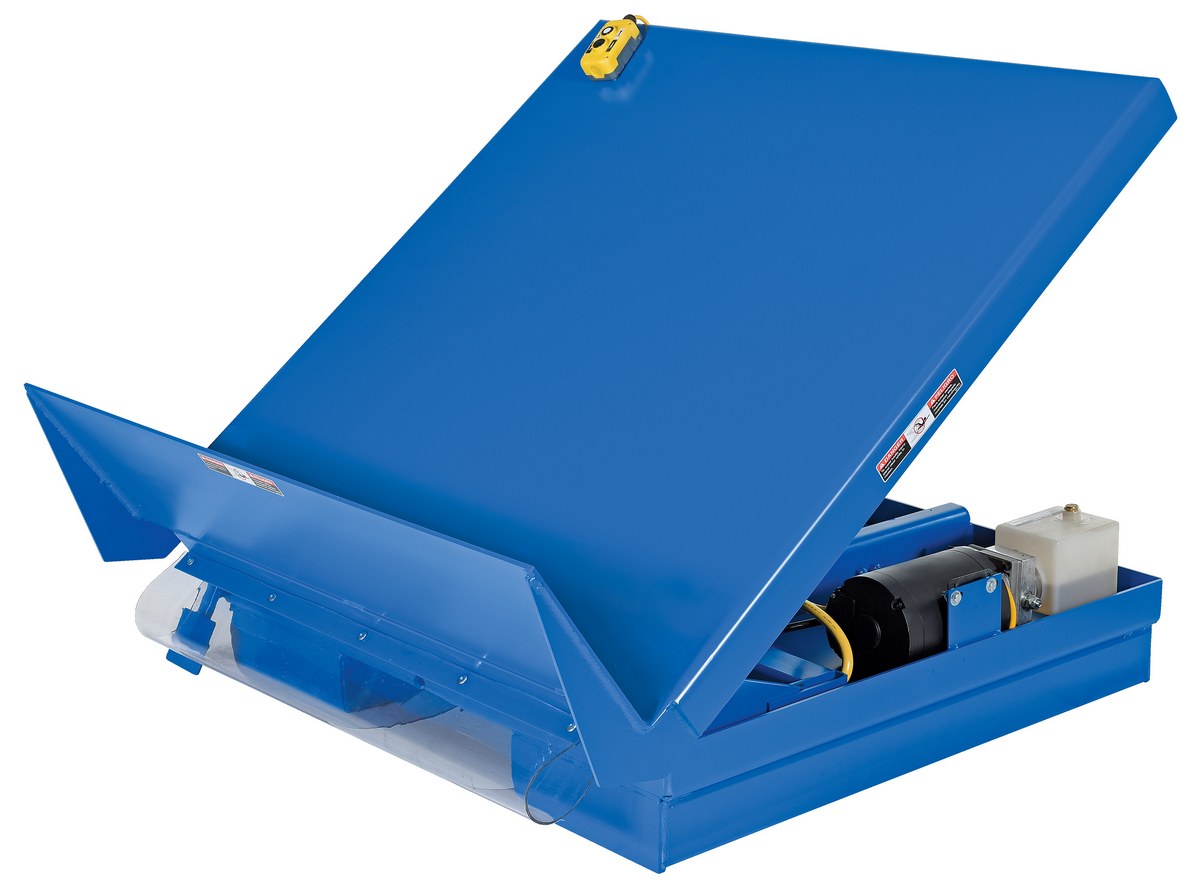

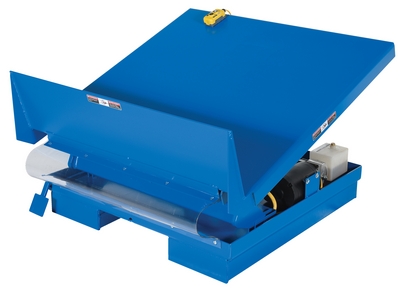

UNI-P-4848-4_D.jpg UNI-P-4848-4_M.jpg UNI-P-4848-4_N.jpg UNI-P-4848-4_F.jpg UNI-P-4848-4_G.jpg UNI-P-4848-4_H.jpg UNI-P-4848-4_O.jpg UNI-P-4848-4_J.jpg More Images +
Portable Uni-Tilts
SERIES: UNI-P

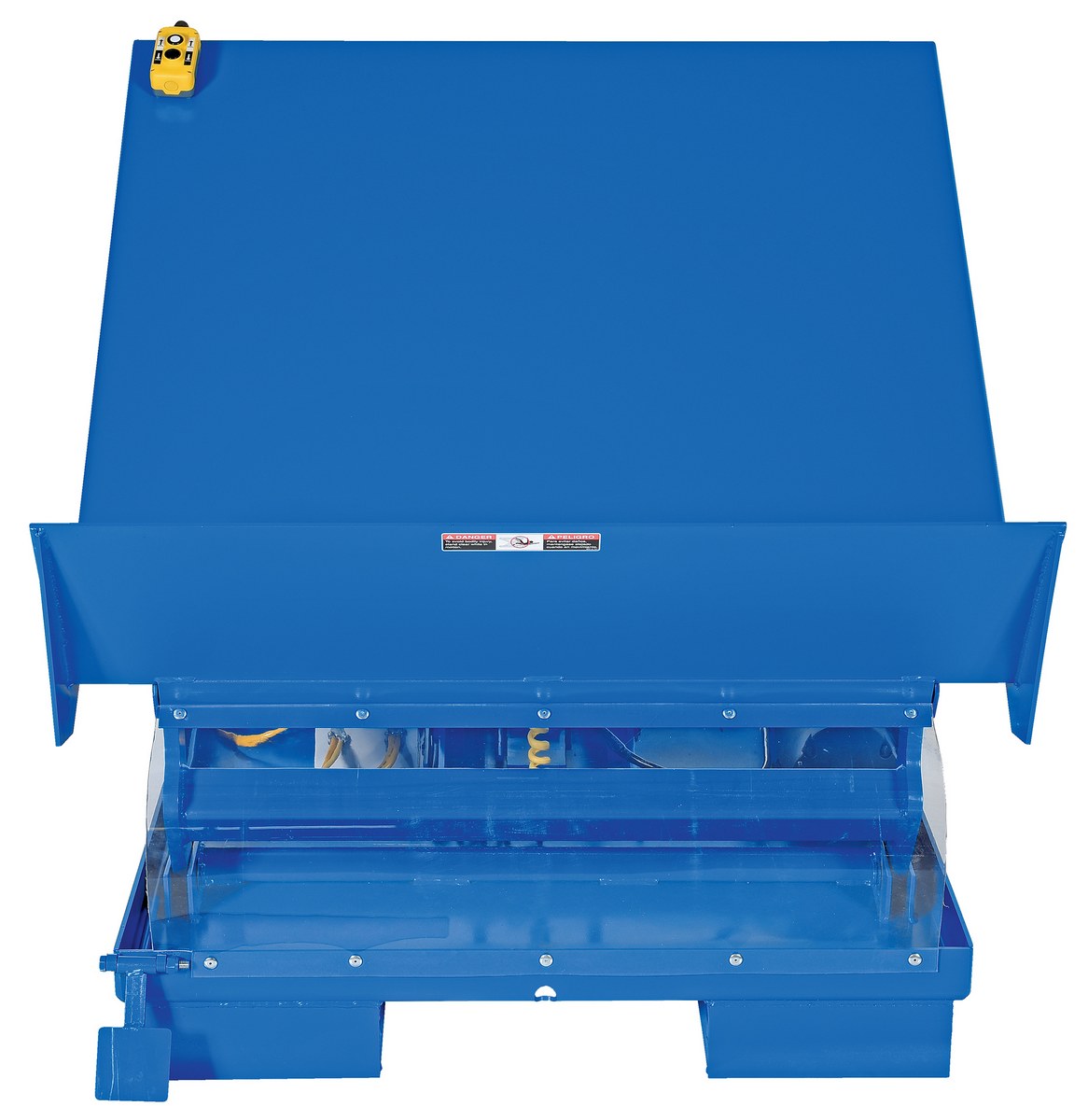

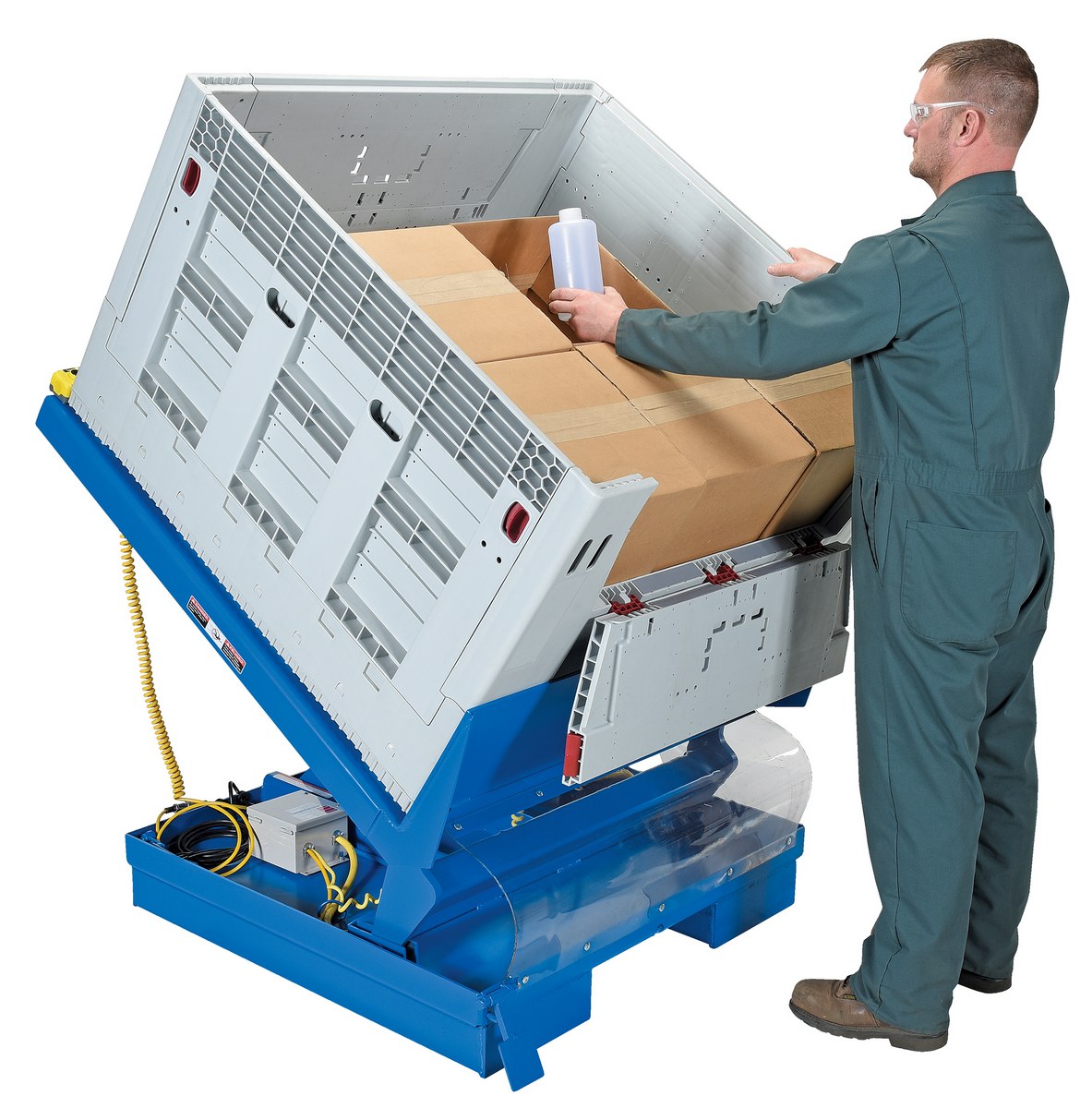

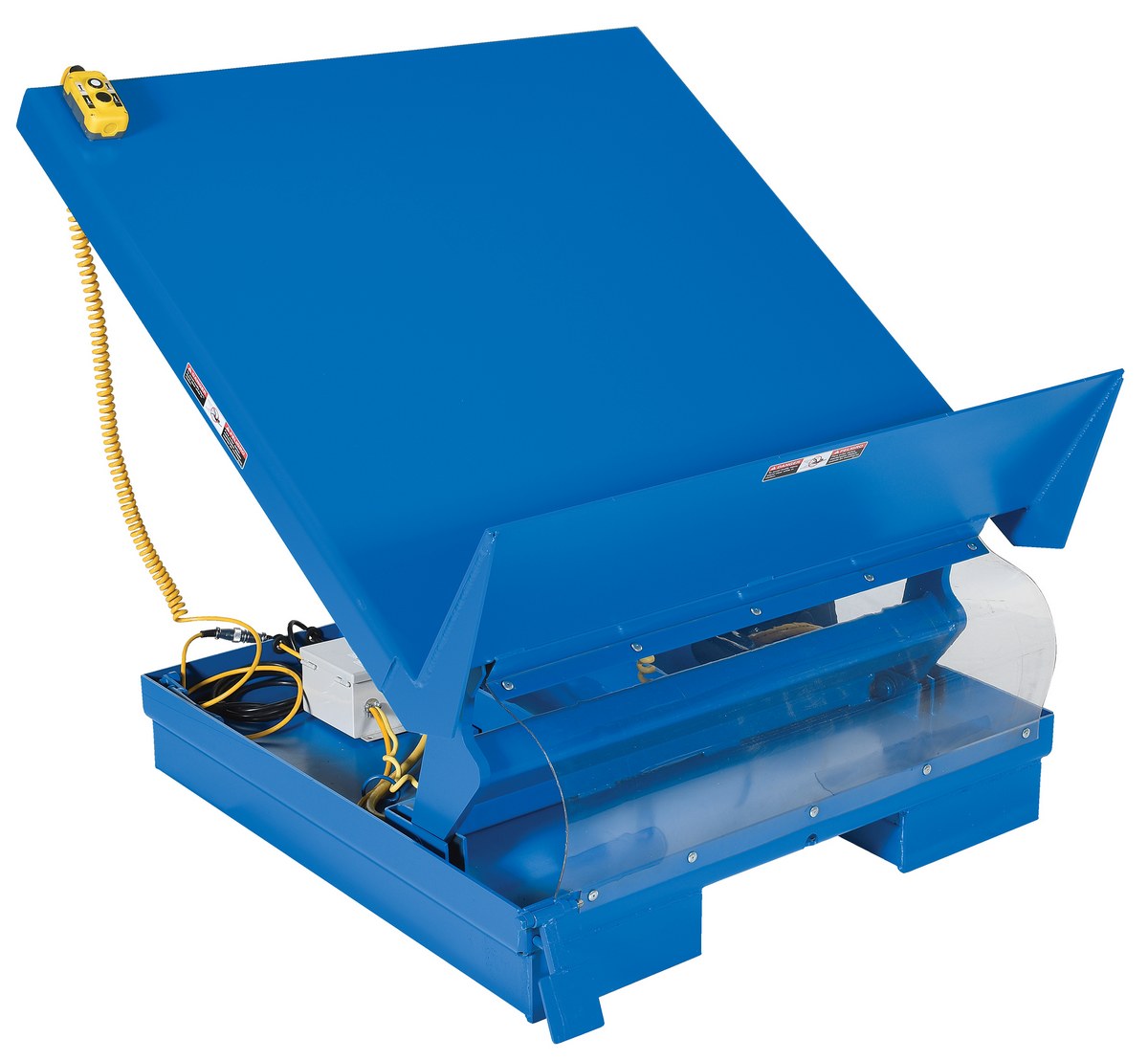

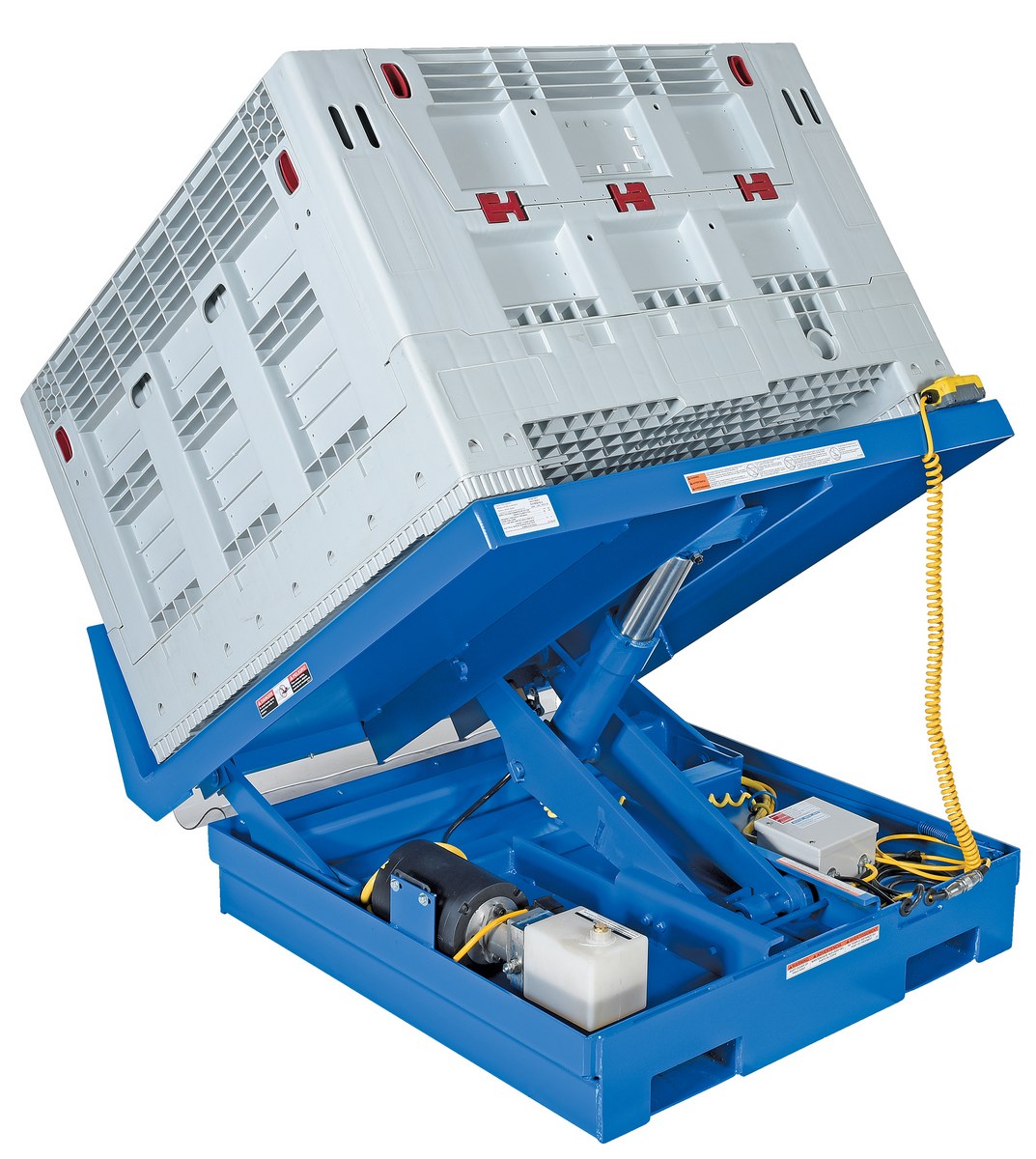

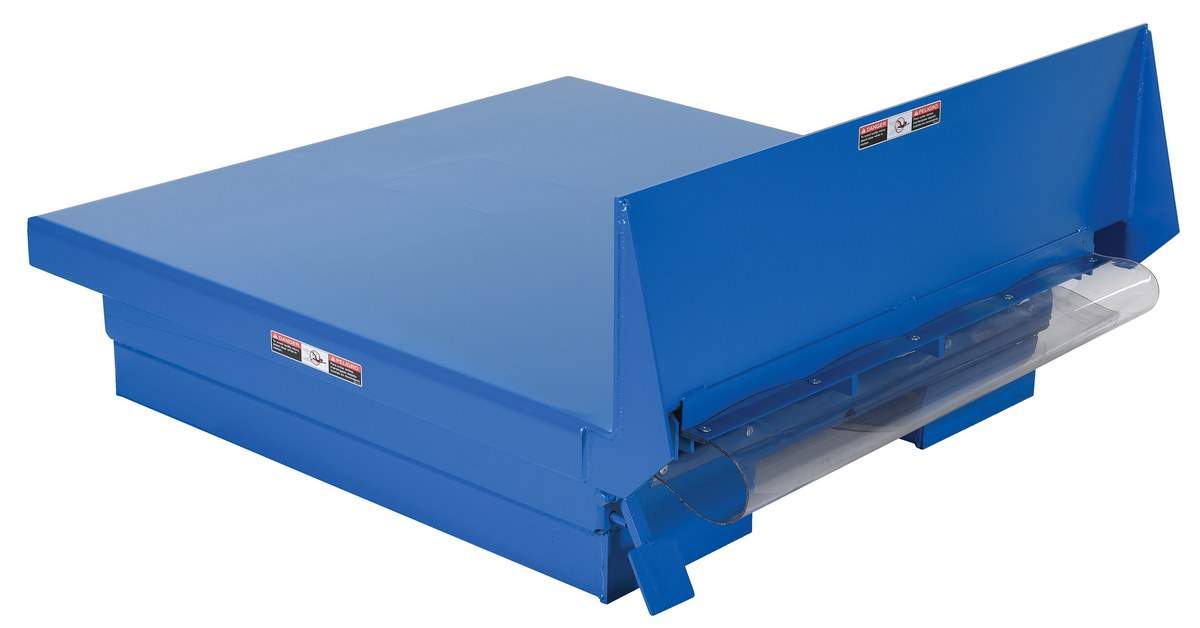

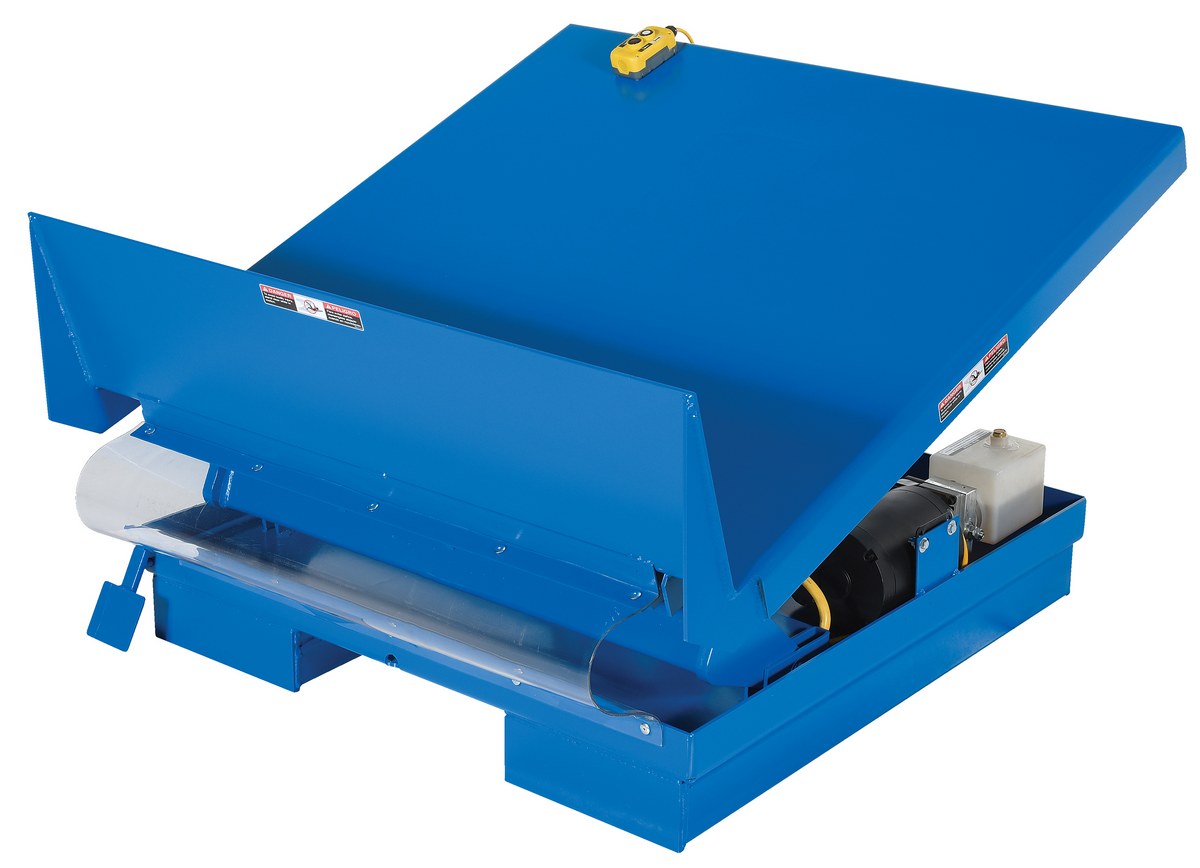

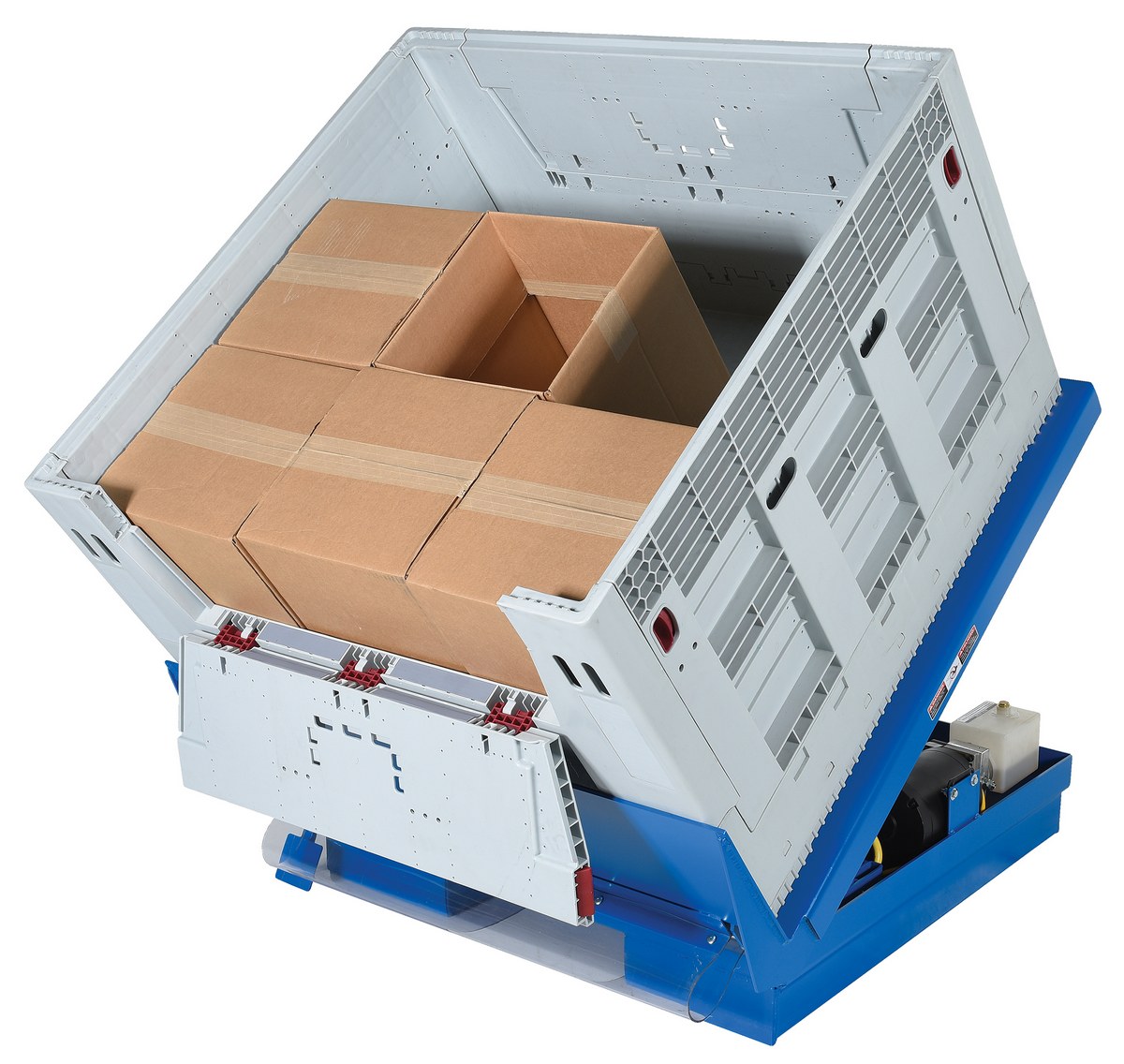

UNI-P-4848-4The portable Uni-Tilt can transport your tilter from workstation to workstation quickly and easily with a fork truck. Usable fork pockets 2-1/2"H x 7-1/2"W with 24" fork centers. The unique design reduces fatigue by minimizing repetitive bending and stretching required to obtain components from containers. The platform has a high lip the tilt side and a selector pedal that allows the operator to lift while tilting or tilt then lift. The unit has a hand pendant control standard and optional voltages available.

  • Ergonomic design reduces fatigue and back injuries increasing productivity
  • Welded steel construction provides long lasting rugged use
  • 40 Degrees tilt angle offers better ergonomics and operator comfort
  • Platform end lip safely supports containers when tilted
Portable Uni-Tilts

model: UNI-P-4848-4

Model # Description Attributes Net Wt.
(lbs)
UNI-P-4848-4
UNI-P-4848-41 Year Limited WarrantySteel Fork Truck Portable Uni-Tilt 48 In x 48 In 460 Volt 3 Phase 4,000 Lb. Capacity BlueUniform Capacity (lb.): 4000
Platform Width (in.): 48		1525

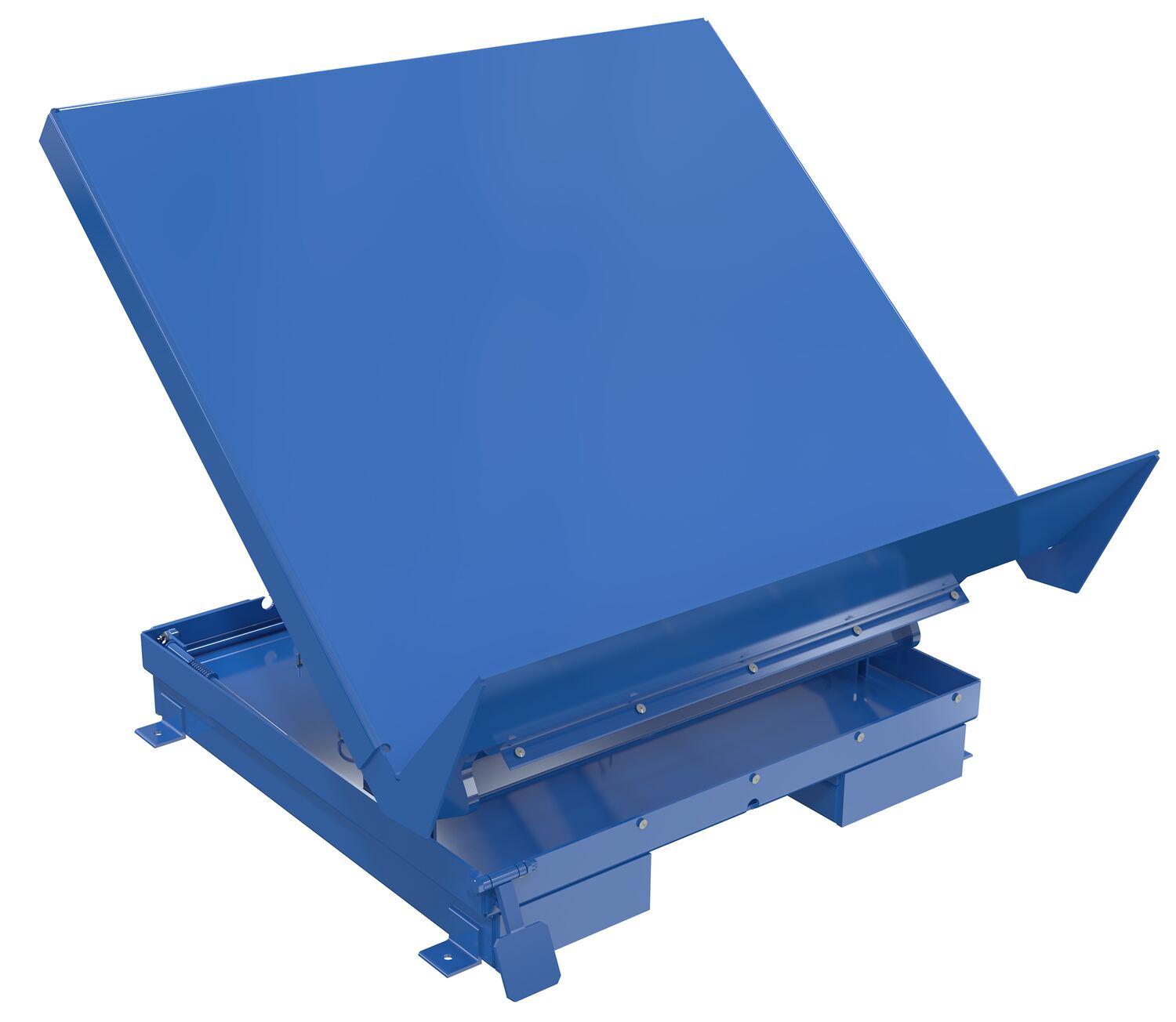

UNI-P-5448-4
UNI-P-5448-41 Year Limited WarrantySteel Fork Truck Portable Uni-Tilt 54 In x 48 In 460 Volt 3 Phase 4,000 Lb. Capacity BlueUniform Capacity (lb.): 4000
Platform Width (in.): 54		1500

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Dimension Image = Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below
UNI-P-4848-4
UNI-P-5448-4
For More Details of the Option Click the Red Model Button
No options available for this product.
Model Image Details Icons Wt.
HCP-2642 HCP-2642 Optional Hand Control Pedestal
If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
PDFs will open in a new window when clicked.

Manuals

No Owners Manuals For This Product

Survey Sheets

UNI

Engineering Drawings

UNI-P-4848-4

UNI-P-5448-4

Testing Certificates

UNI-P-4848-4

UNI-P-5448-4

SDS Sheets


Hydraulic Oil
UNI-P-4848-4 SDS


Hydraulic Oil
UNI-P-5448-4 SDS

Other PDFs

No "Other PDFs" For This Product
What is the standard voltage and phase? Can the voltage and phase be changed?
The lift tables come standard 460 V 3 phase. The voltage and phase can be changed. For details, please see "options for electric hydraulic equipment" or contact a sales associate for voltage options.
