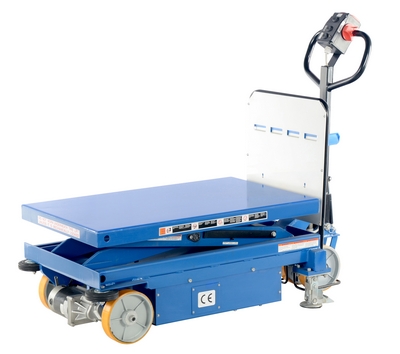

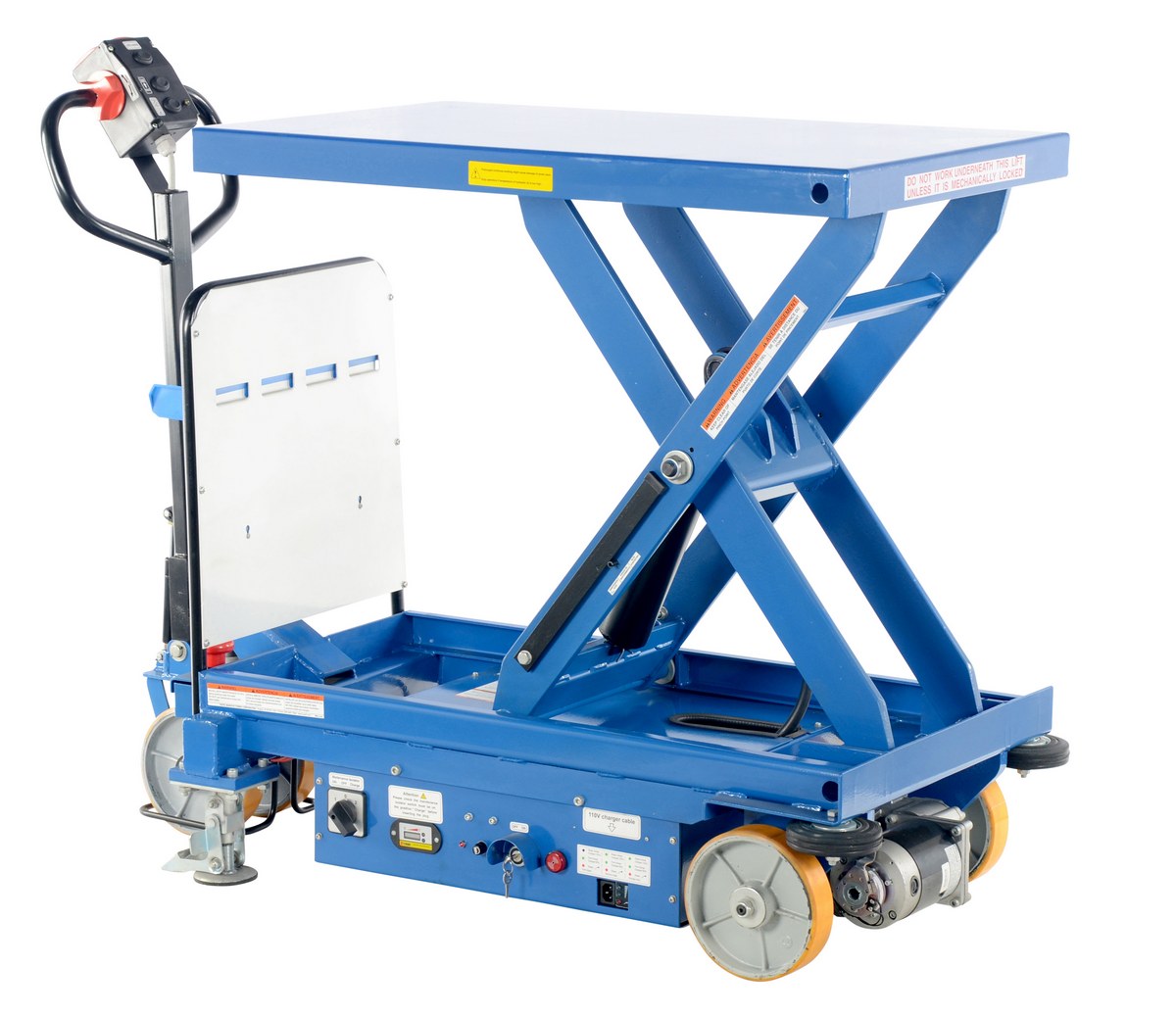

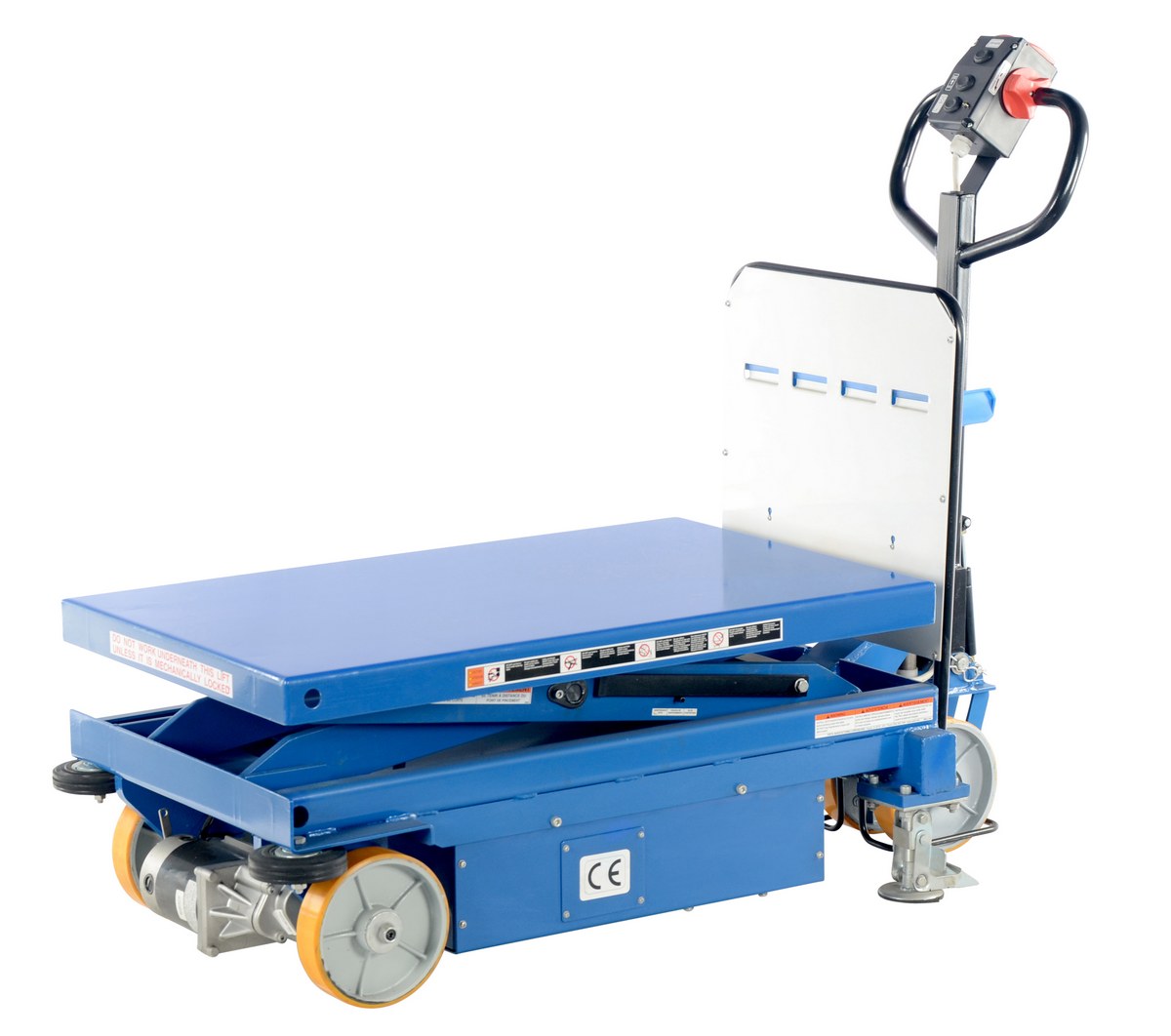

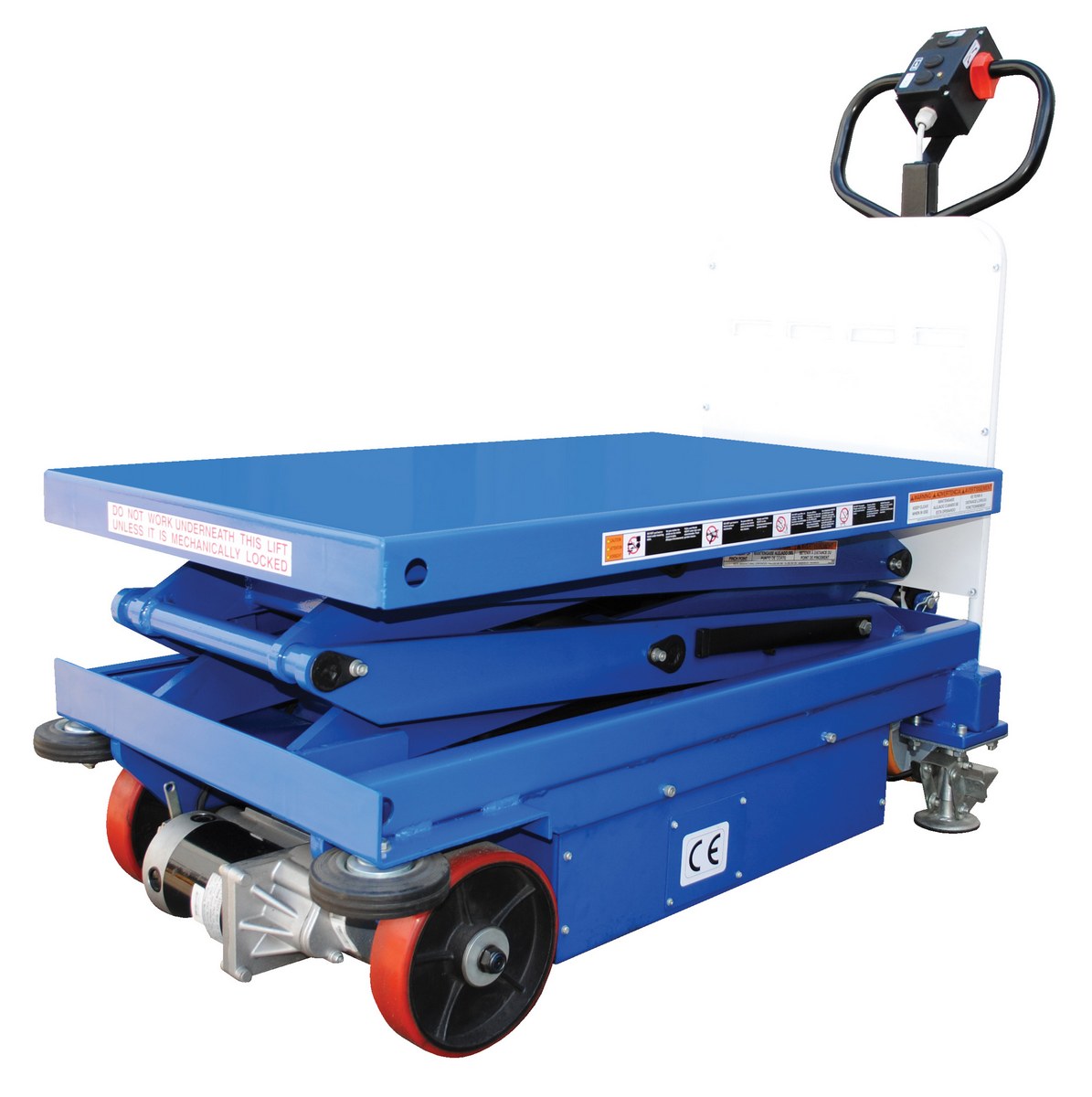

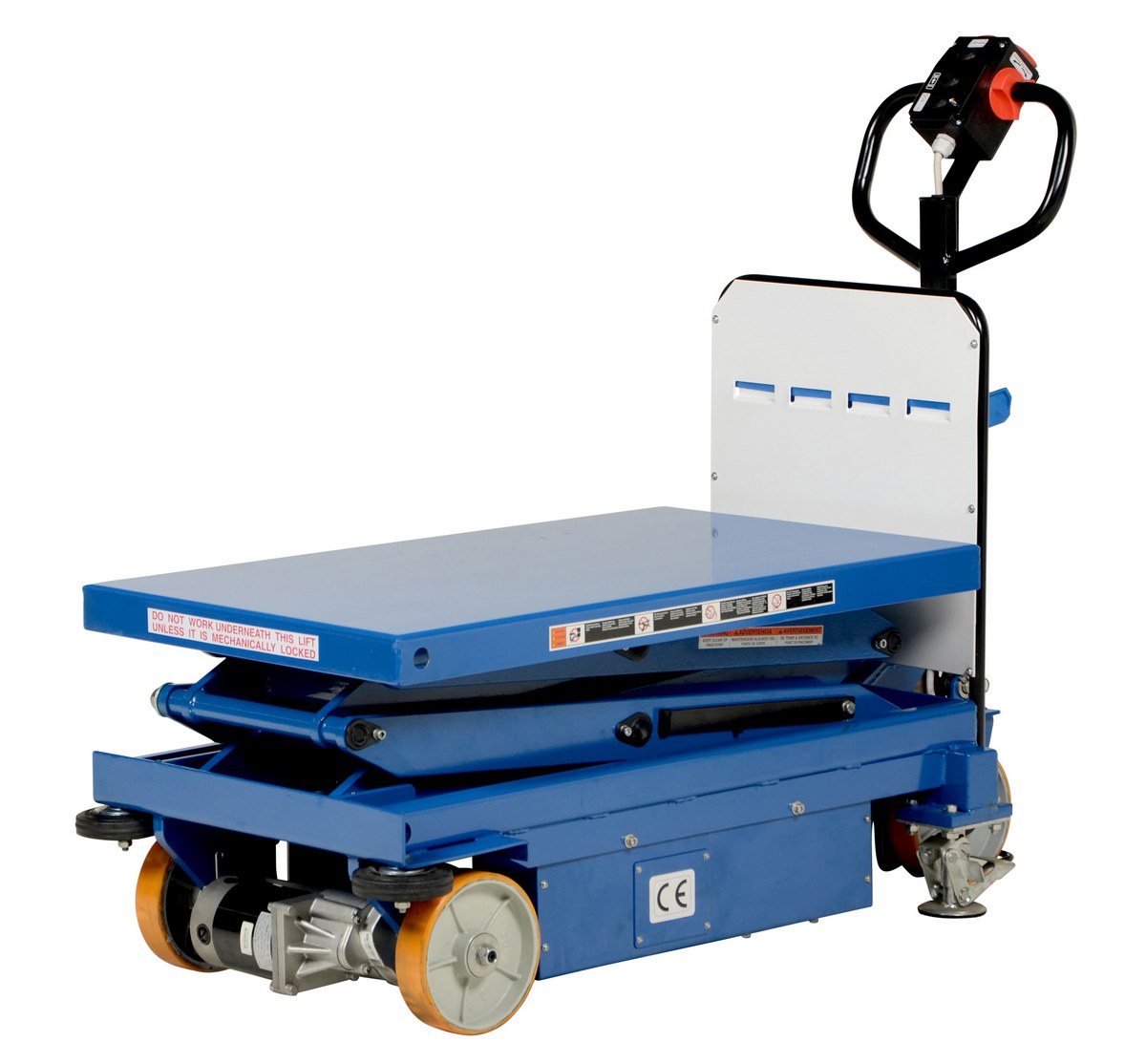

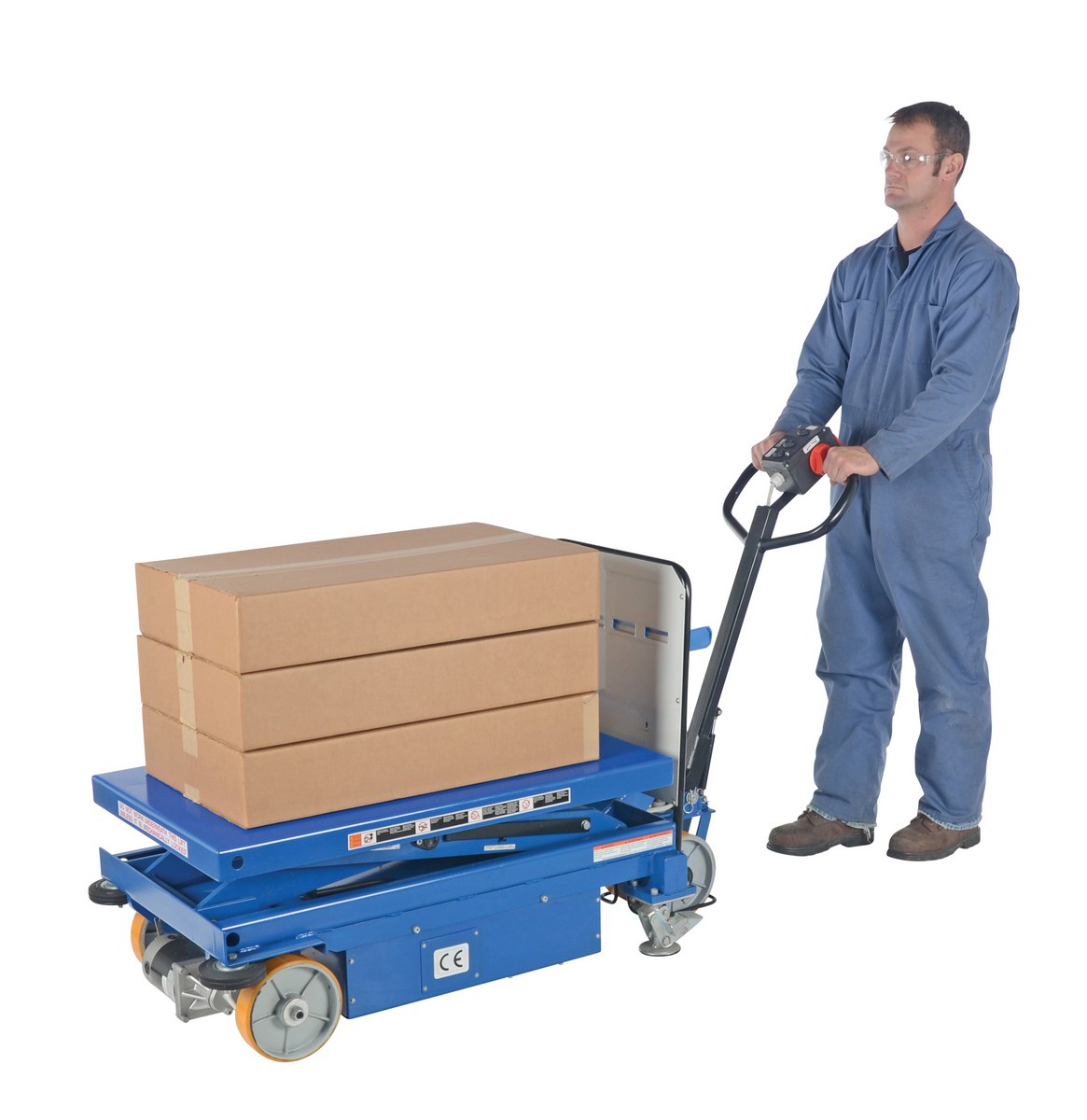

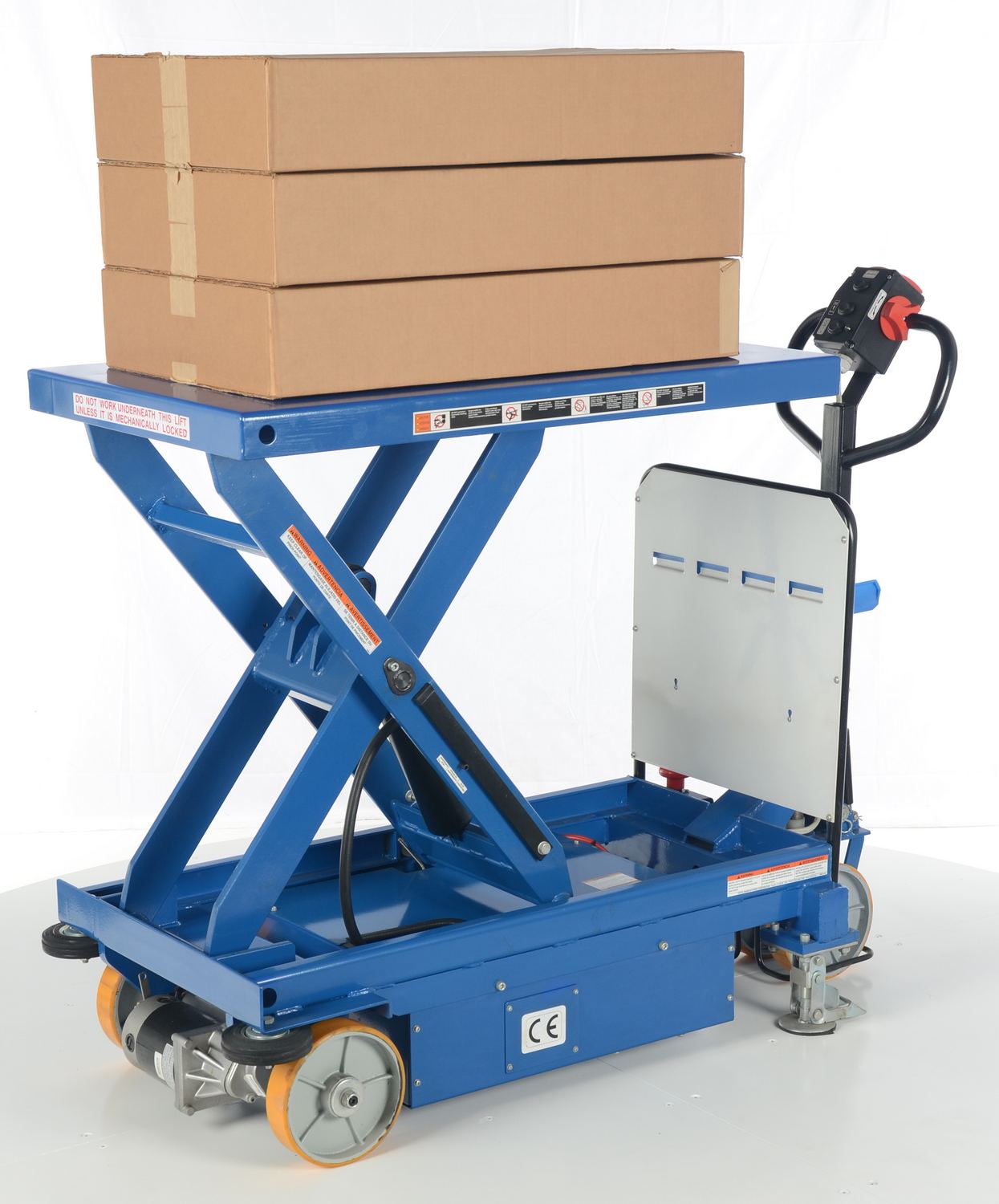

Powered Drive and Powered Lift Hydraulic Scissor Carts24V DC STANDARD

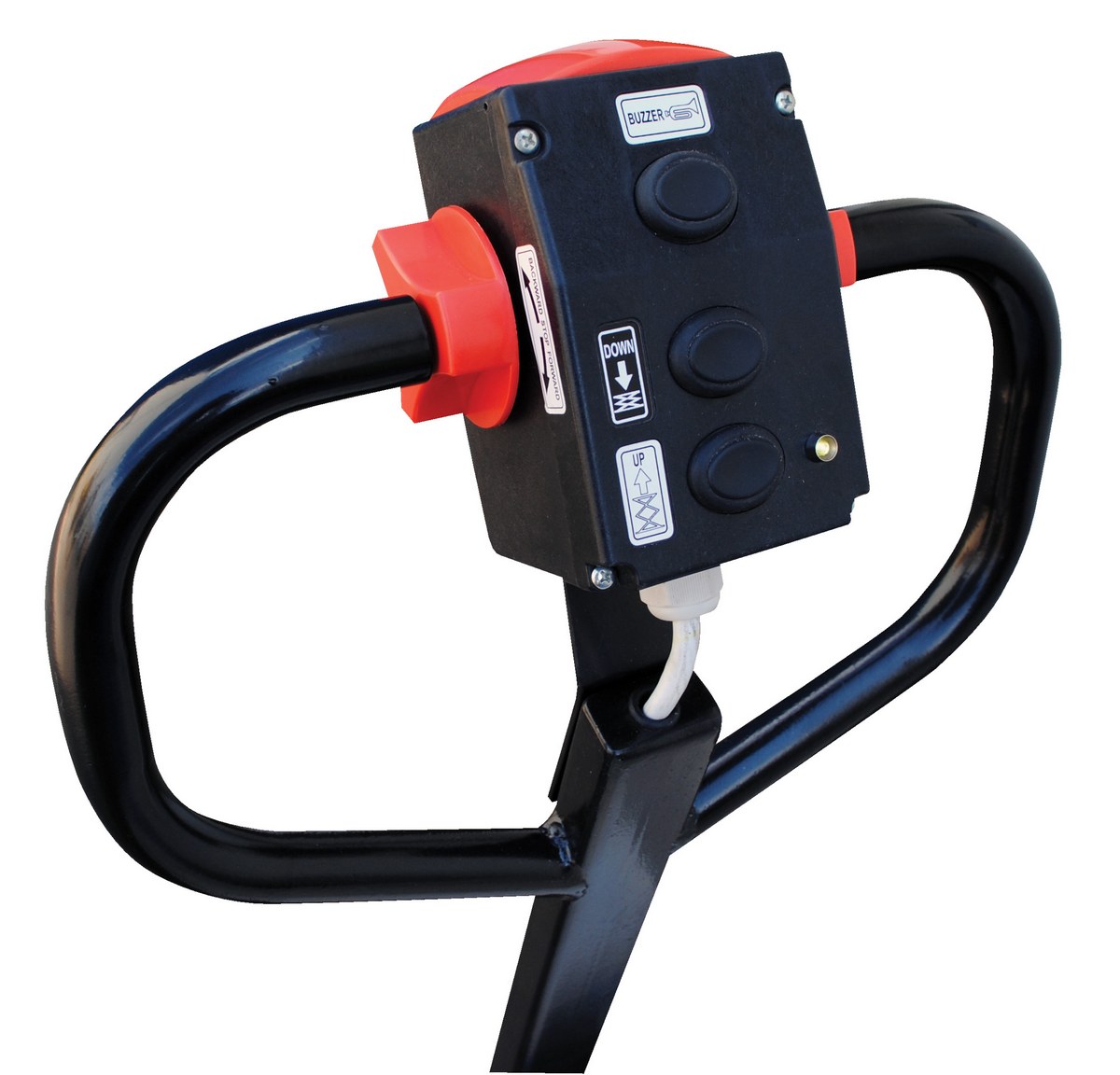

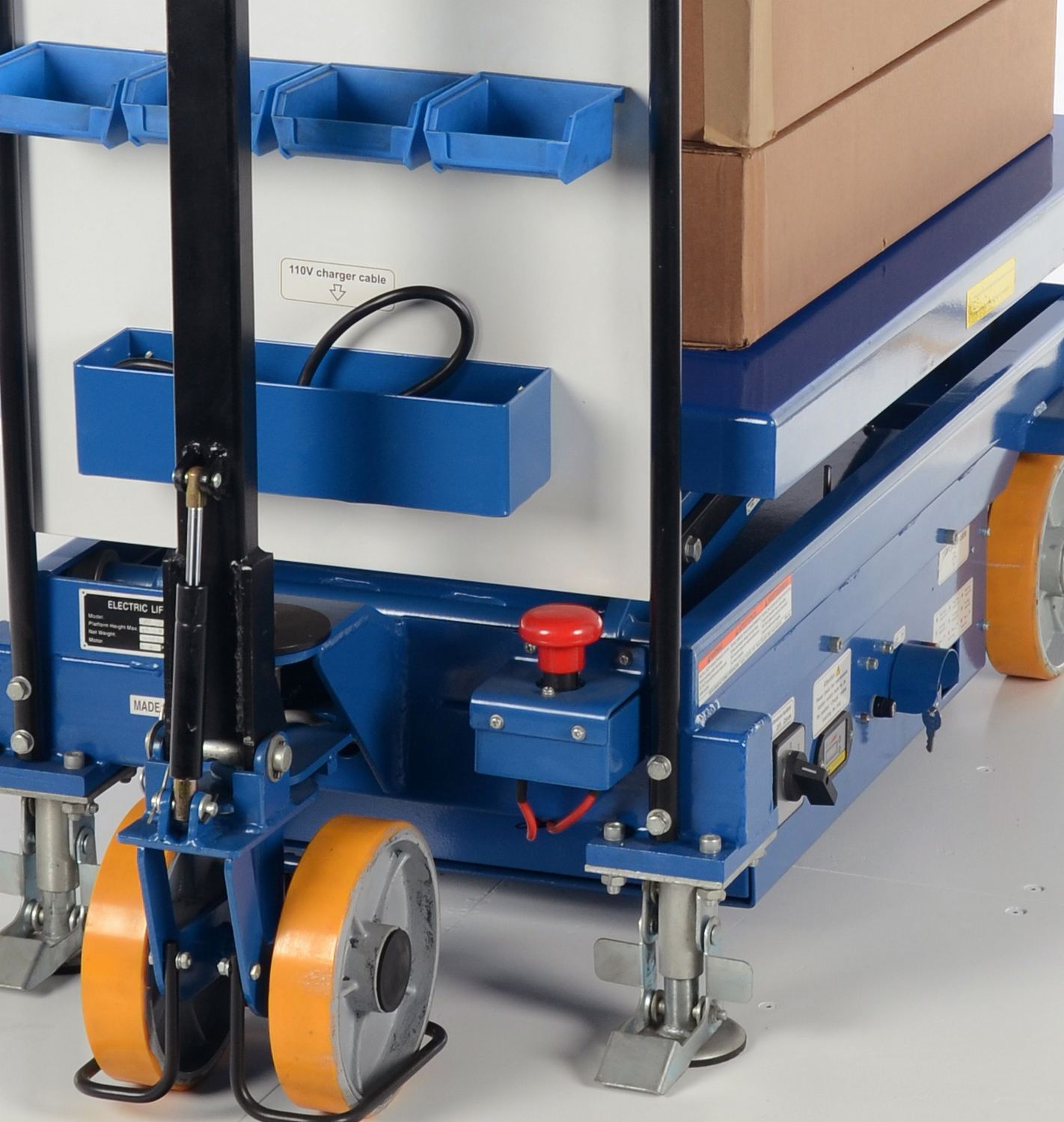

Fully powered carts provide users with motorized, variable-speed travel as well as powered lifting capability. Carts roll smoothly and quietly on poly-on-steel wheels. High torque 24V DC drive and lift motors handle heavy-duty jobs. Standard features: easy-to operate throttle that adjusts forward and reverse speeds over a range of 0-3.7 mph, deck level control buttons (raise and lower), emergency reverse function, automatic braking, horn, key switch, integrated battery charger, and battery charge indicator. These carts use two 12V batteries.
- Unique lift design quickly raises & lowers material
- Ergonomic cart design improves user safety
- Caster construction provides easy portability when loaded
- Steel construction offers long lasting rugged use
Portable Electric Hydraulic Lift Table w/ Attached Hoist
Air Hydraulic Carts
Traction Drive Electric Hydraulic Elevating Carts
Partially Stainless Steel Hydraulic Elevating Carts
| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|
| CART-1000-DC-CTD | |  | 1 Year Limited Warranty | Steel Powered Drive and Powered Lift Hydraulic Single Scissor Cart 24 In. x 40 In. 1000 Lb. Capacity Blue | Uniform Capacity (lb.): 1000 Platform Width (in.): 24 | 492 | |

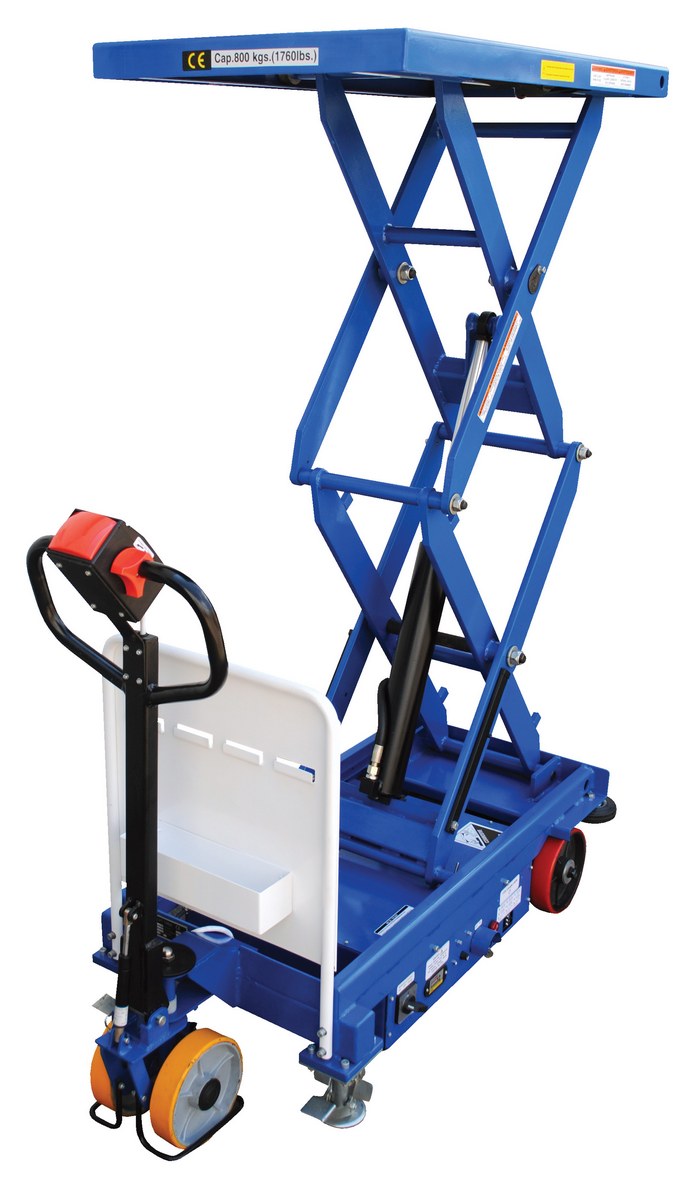

| CART-1000D-DC-CTD | |  | 1 Year Limited Warranty | Steel Double Powered Drive and Powered Lift Hydraulic Double Scissor Cart 24 In. x 40 In. 1000 Lb. Capacity Blue | Uniform Capacity (lb.): 1000 Platform Width (in.): 24 | 762 | |

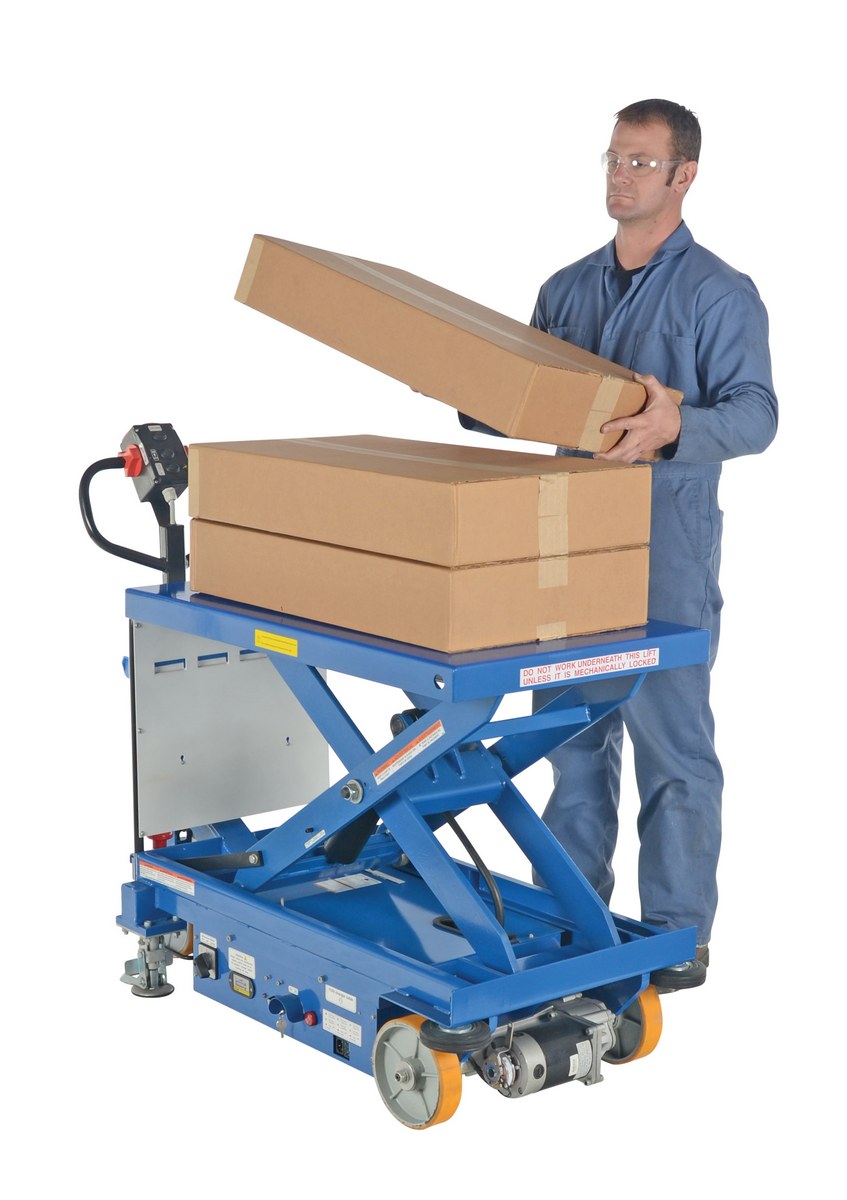

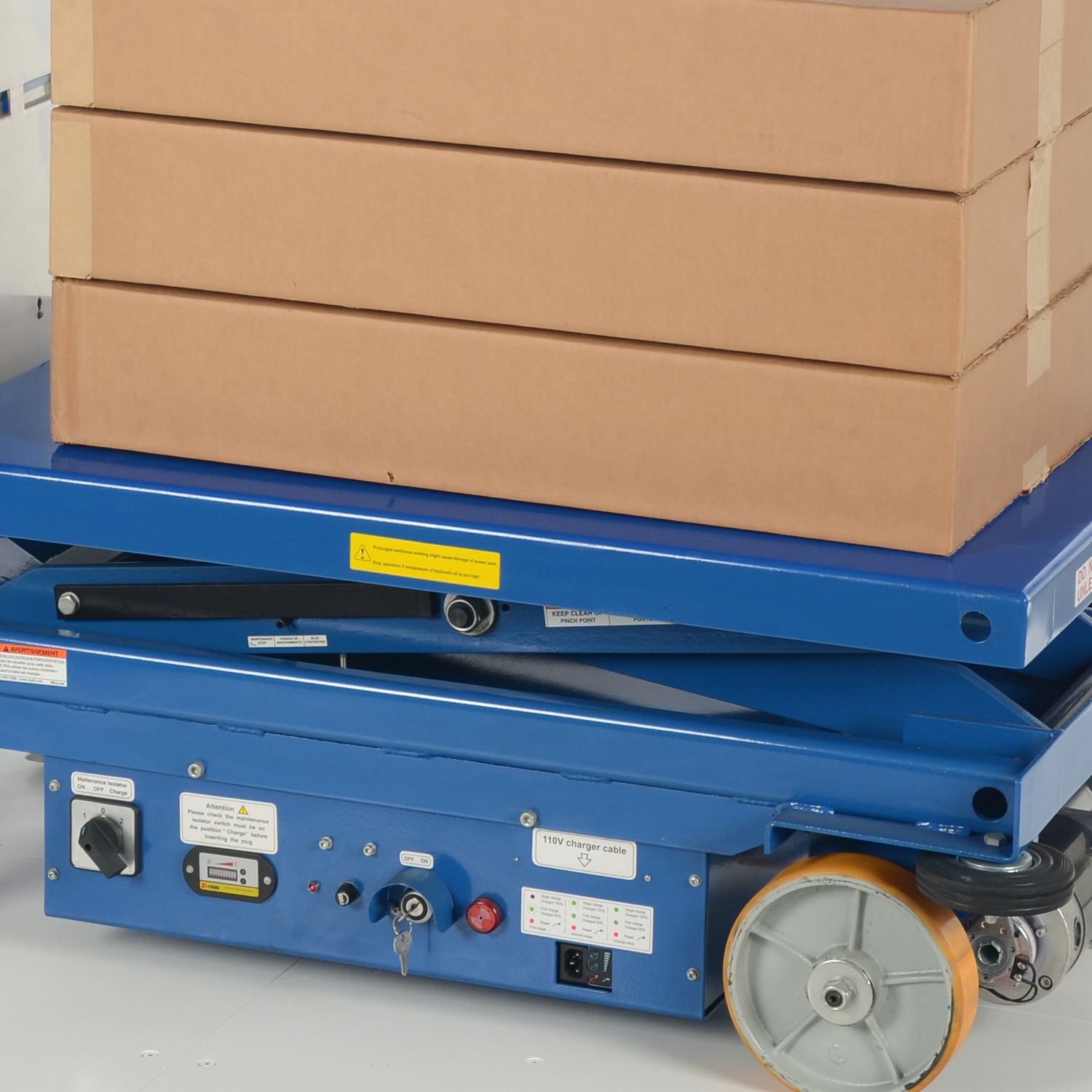

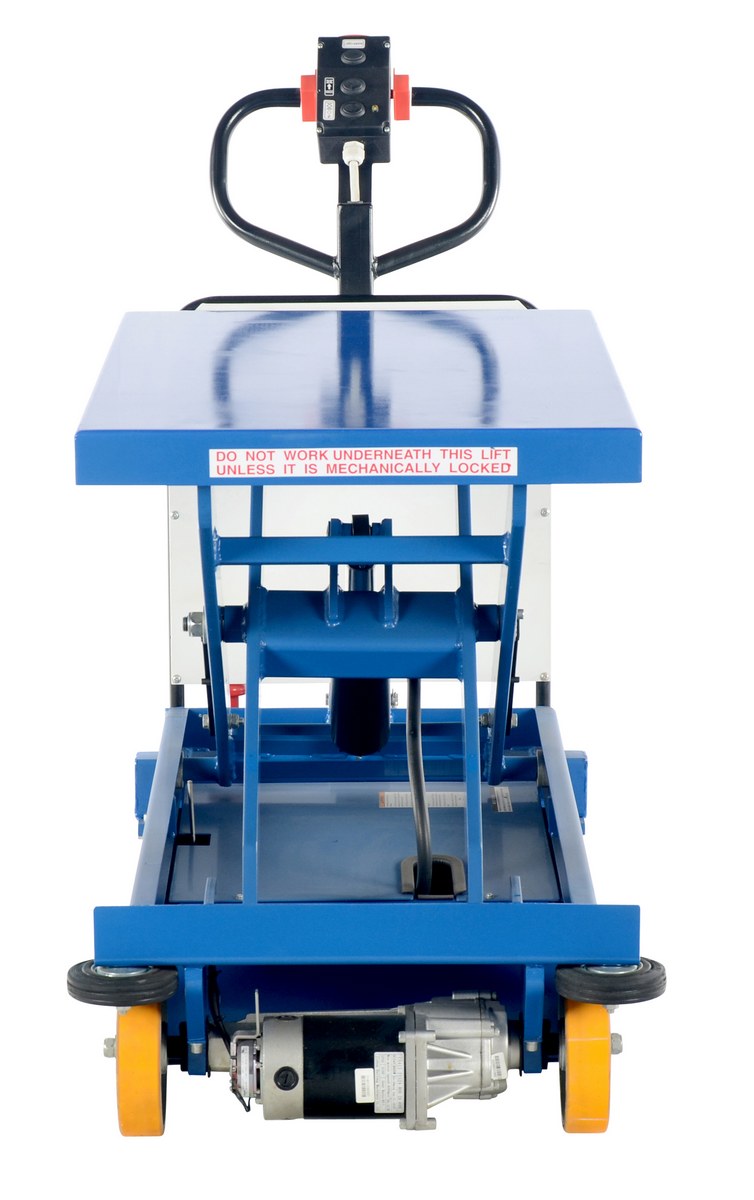

| CART-1500-DC-CTD | |  | 1 Year Limited Warranty | Steel Powered Drive and Lift Hydraulic Scissor Cart 40 In. x 24 In. 1500 Lb. Capacity Blue | Uniform Capacity (lb.): 1500 Platform Width (in.): 24 | 670 | |

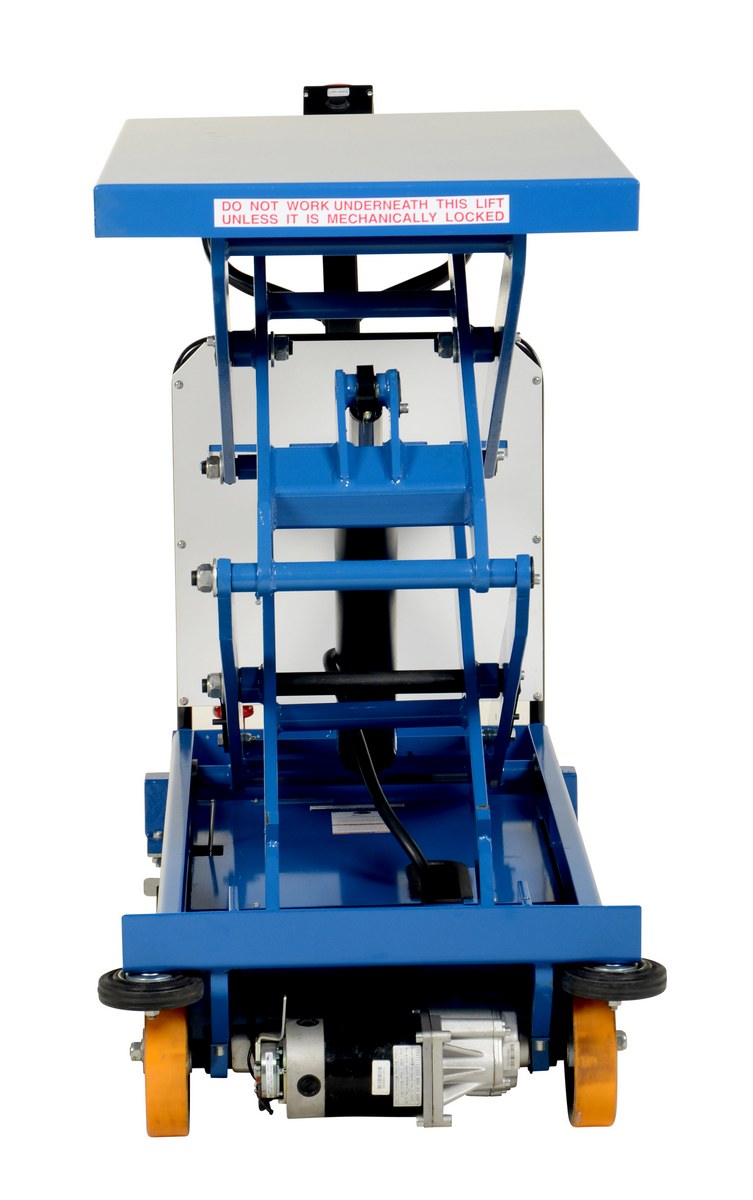

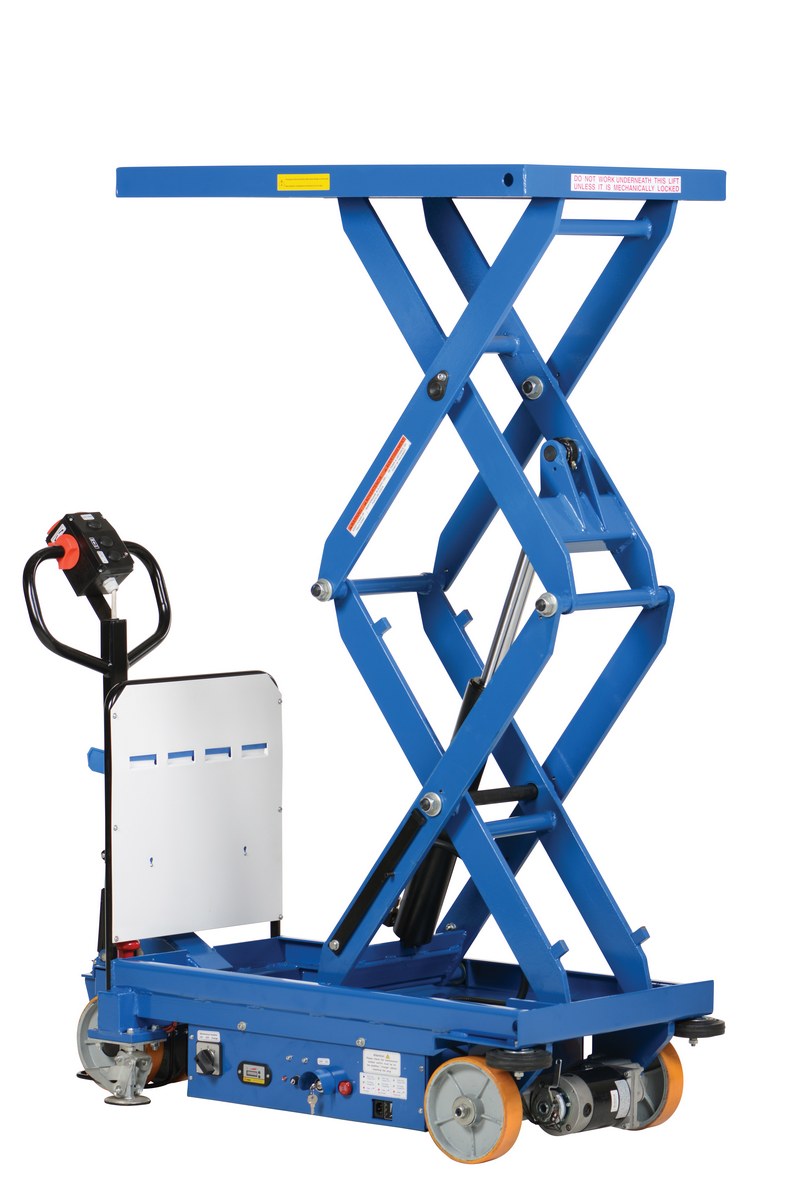

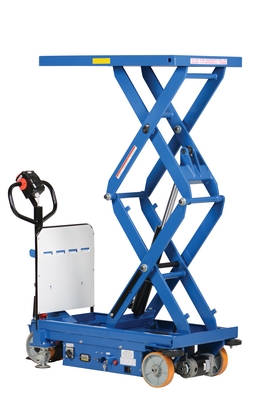

| CART-1500D-DC-CTD | POPULAR |  | 1 Year Limited Warranty | Steel Powered Drive and Lift Hydraulic Double Scissor Cart 40 In. x 24 In. 1500 Lb. Capacity Blue | Uniform Capacity (lb.): 1500 Platform Width (in.): 24 | 706 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
Manuals
Survey Sheets
Approval Drawings
Testing Certificates
SDS Sheets
Lead Acid Battery SDS Sheet for: CART-1000-DC-CTD
Hydraulic Oil SDS Sheet for: CART-1000-DC-CTD
Lead Acid Battery SDS Sheet for: CART-1000D-DC-CTD
Hydraulic Oil SDS Sheet for: CART-1000D-DC-CTD
Lead Acid Battery SDS Sheet for: CART-1500-DC-CTD
Hydraulic Oil SDS Sheet for: CART-1500-DC-CTD
Lead Acid Battery SDS Sheet for: CART-1500D-DC-CTD
Hydraulic Oil SDS Sheet for: CART-1500D-DC-CTD
Other PDF's
Directory Links Of Available PDF's For All Products
Q: What is the time it takes to raise the cart to the max height?
A: The CART-1500-DC-CTD unloaded would take 11 seconds to max height. When the cart is loaded it would take 13 seconds to raise to max height.
Q: How many lifts per battery charge for the CART-1500-DC-CTD?
A: 20-30 cycles per continuous use per charge.
Q: How many seconds to fully raise CART-1000D-DC-CTD with and without a load?
A: With a load, it takes 18 seconds to fully raise. Without a load, it takes 16 seconds to fully raise.
 |
|||||||||||||||||||||||||||
