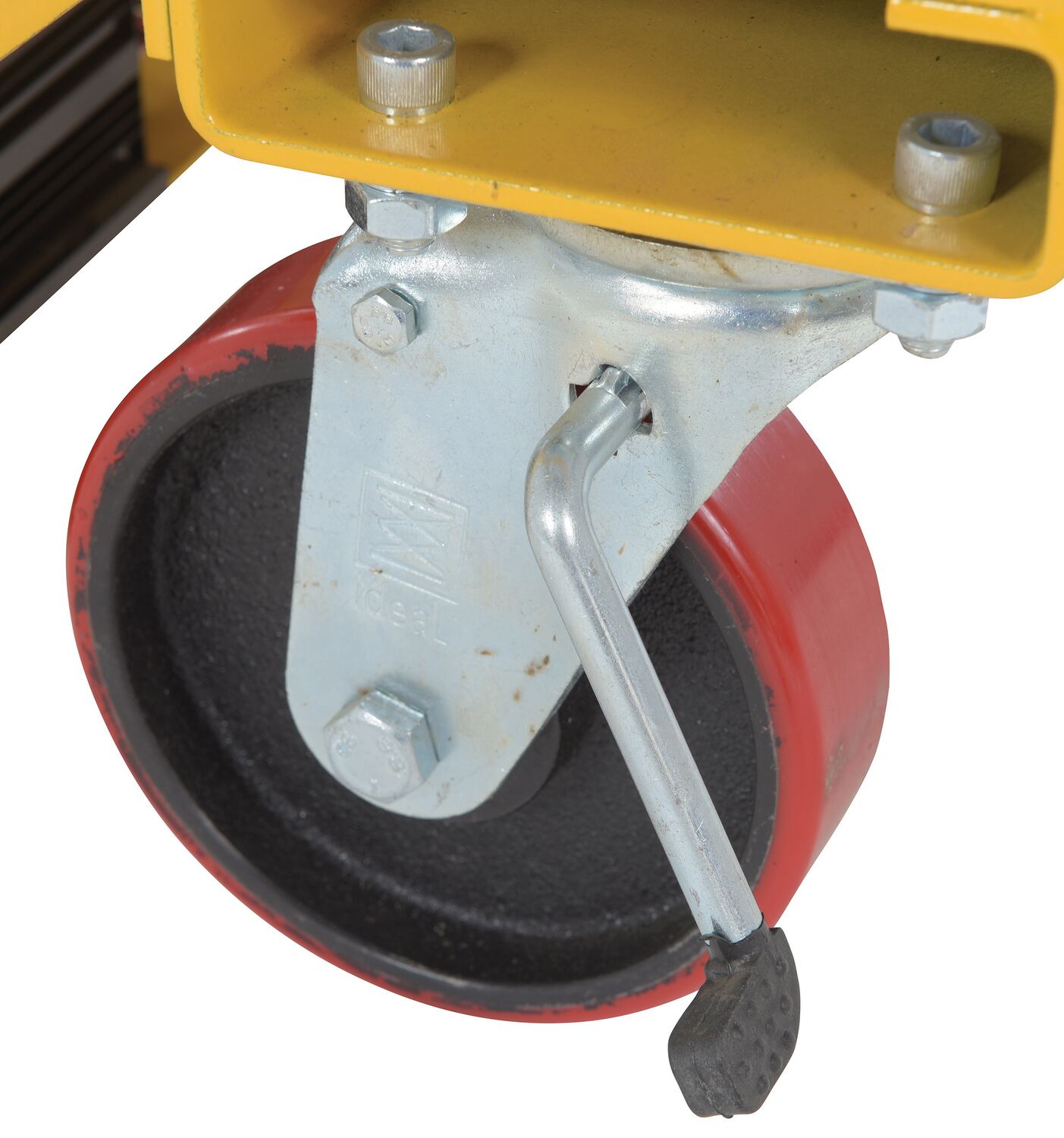

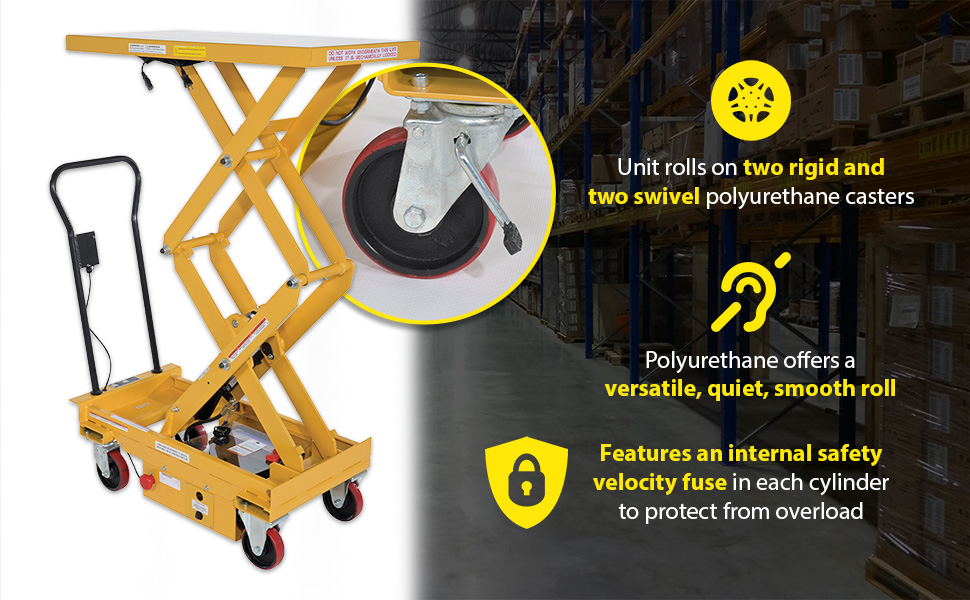

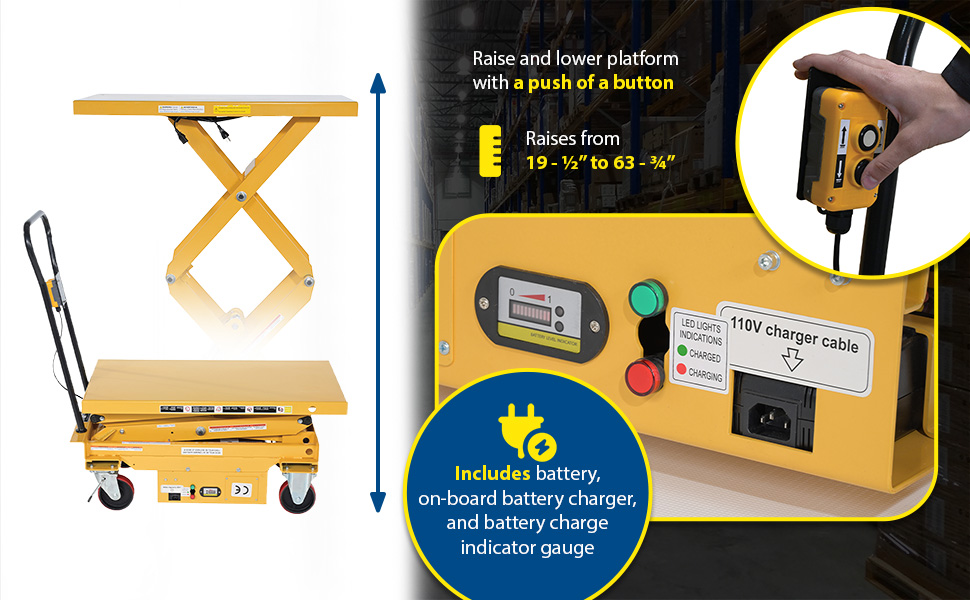

DC Powered Hydraulic Elevating CartsThese carts are ideal for quick lifting and ergonomic material handling. Battery-powered units allow operators to raise and lower platform with the push of a button. *Units roll on two (2) rigid and two (2) swivel polyurethane casters while the others roll on 5" poly-on-steel casters. Includes one (1) 12V battery and an on-board charger.
Air Hydraulic Carts
Low Profile Scissor Cart w/ Auto-Shift
Hydraulic Elevating CartsAdditional Models In This Family
CART-1000D-DC

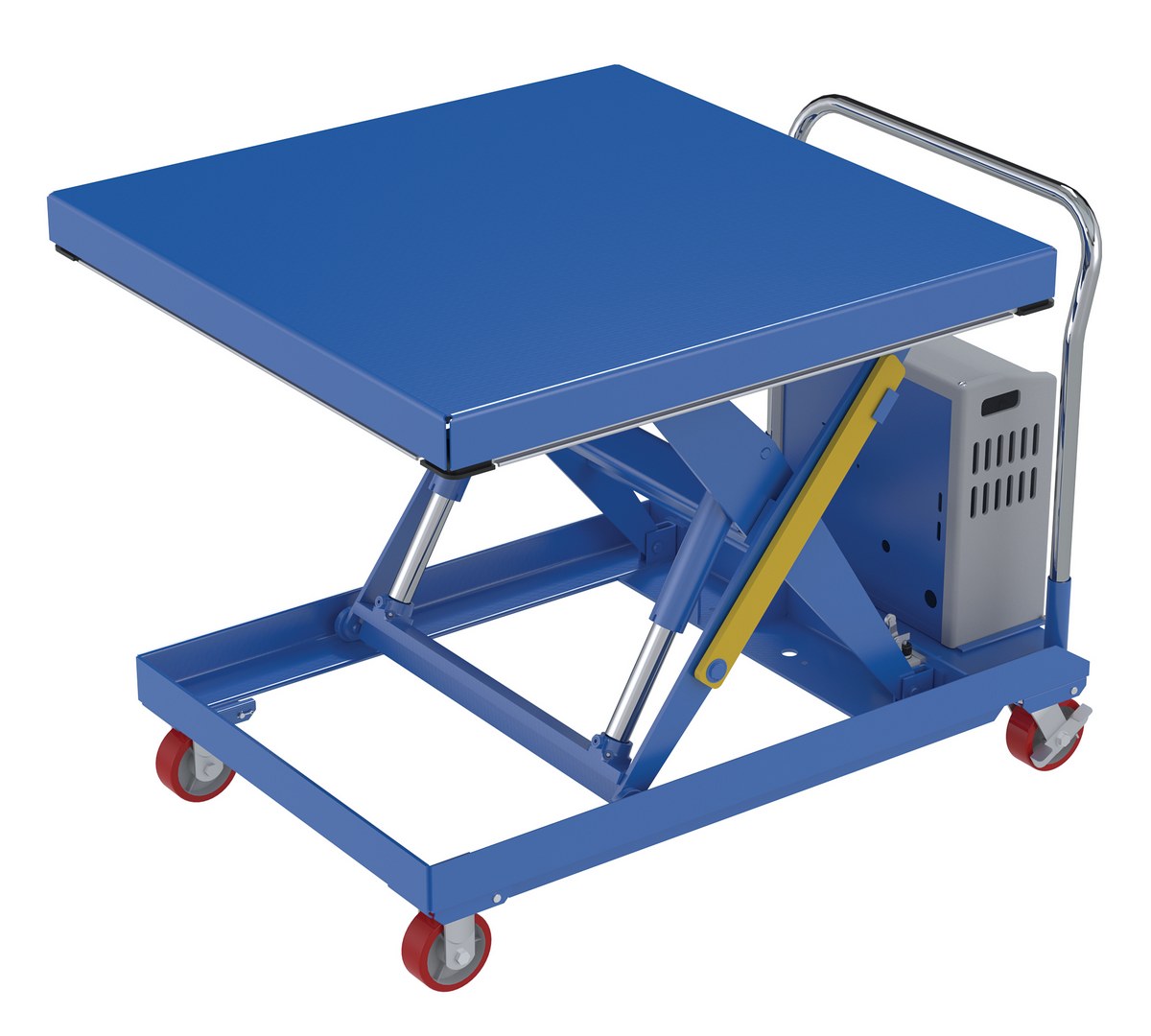

CART-2000-4242-DC
CART-1000-DC

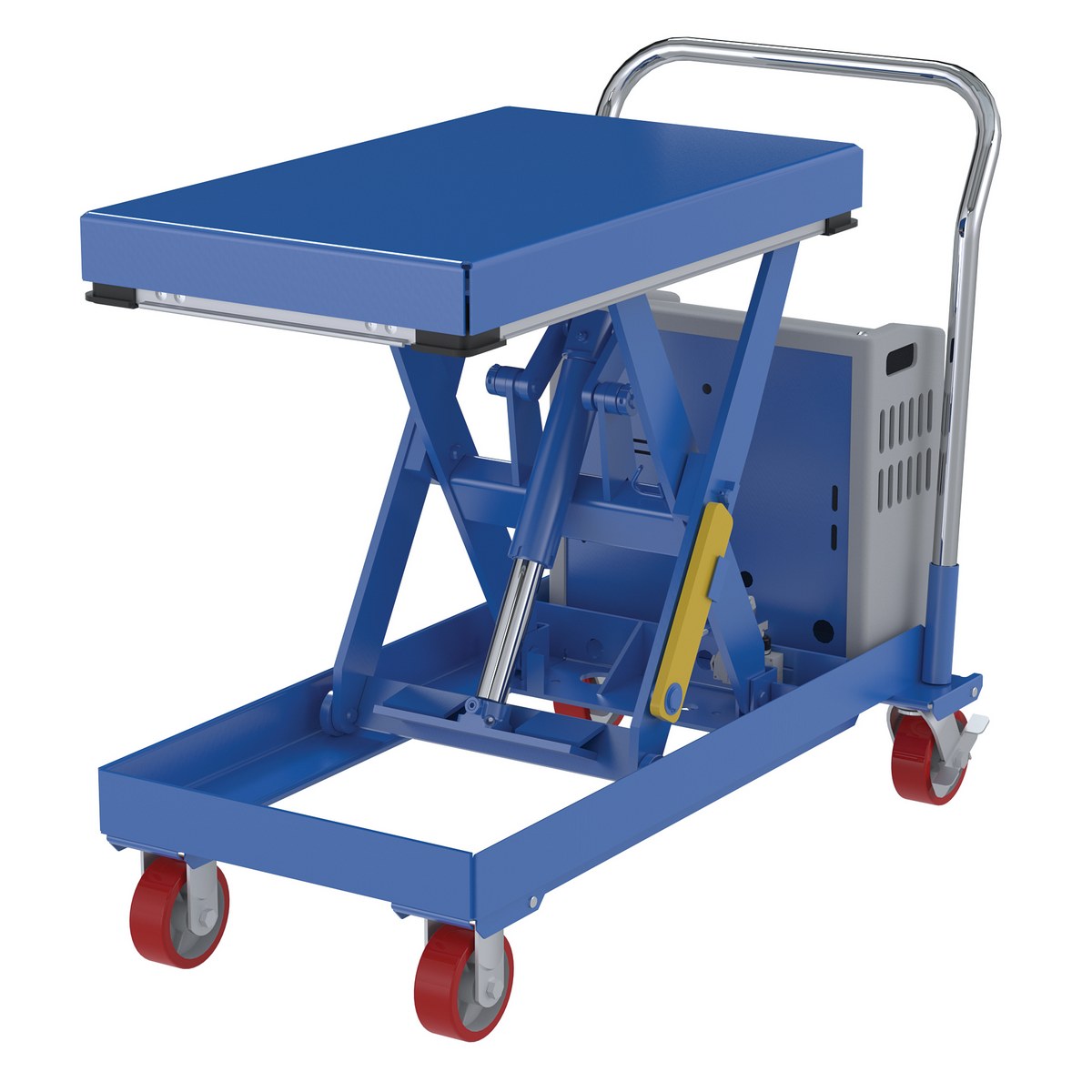

CART-500-2033-DC
CART-1000-WD-DC

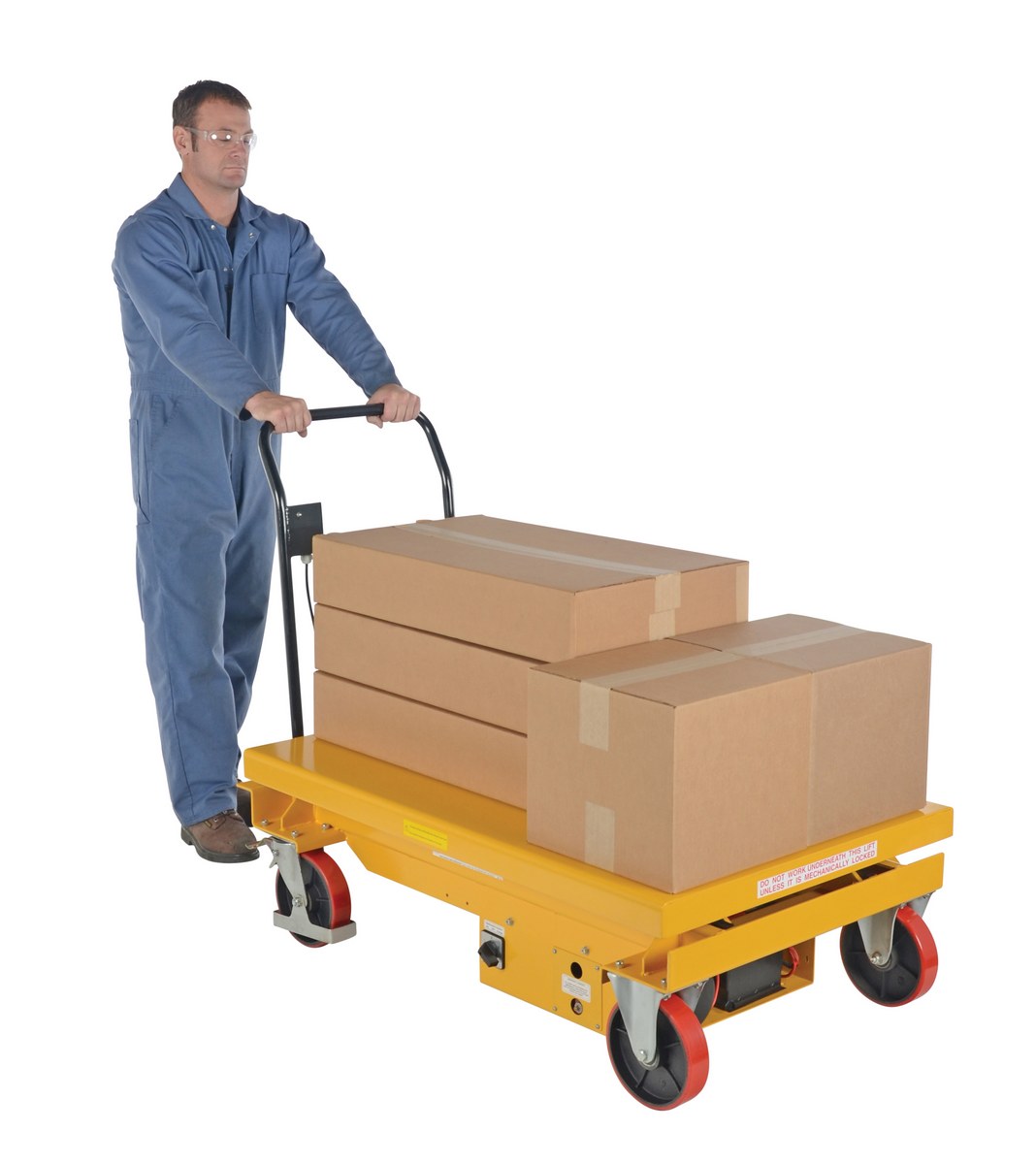

CART-1000-WD-DC

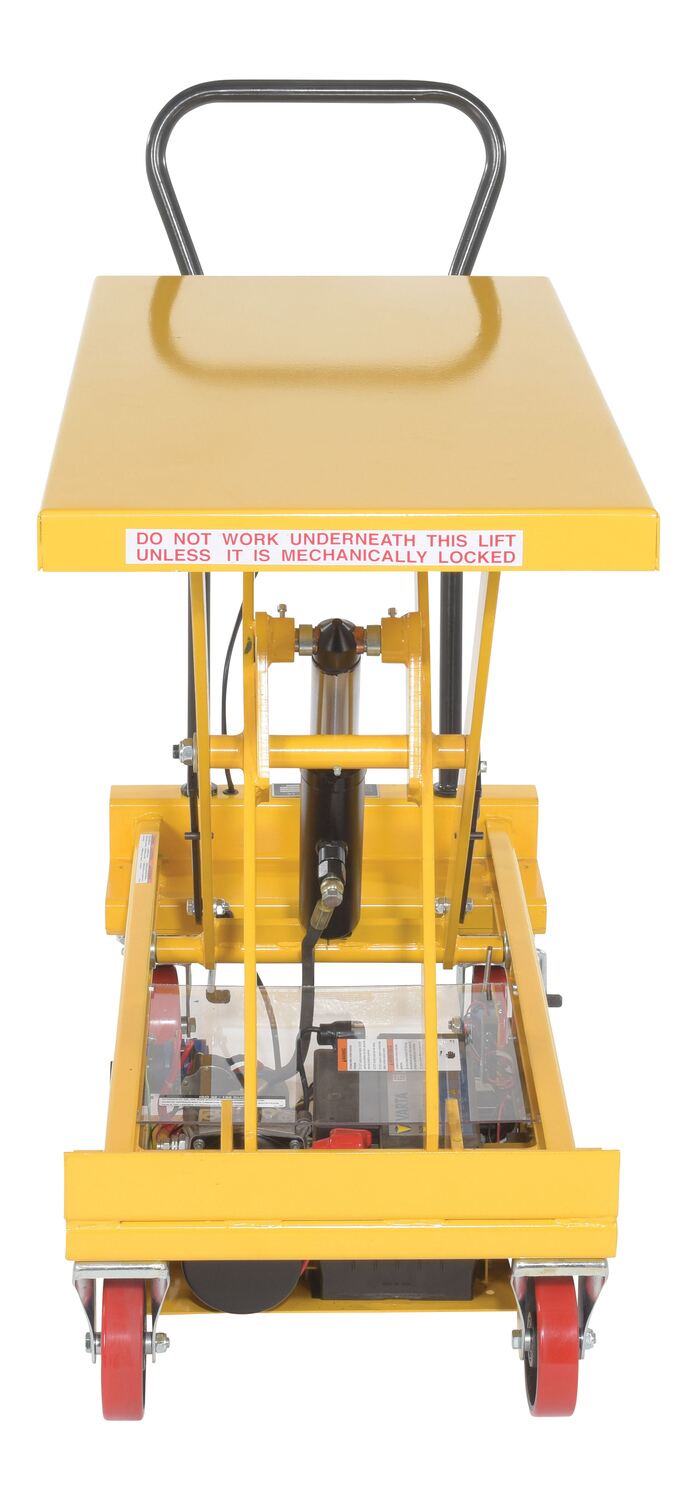

CART-1000-DC

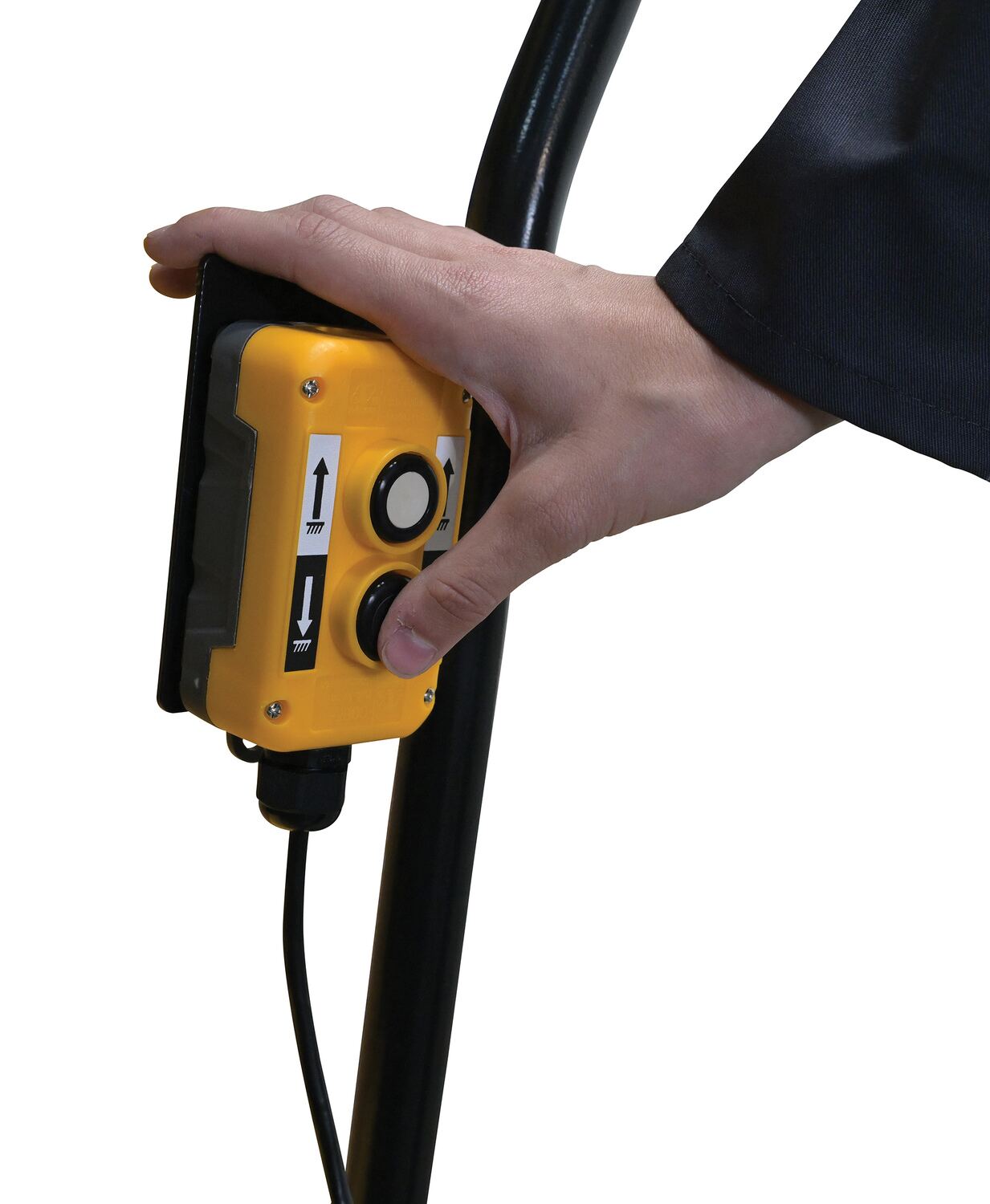

CART-1000D-DC

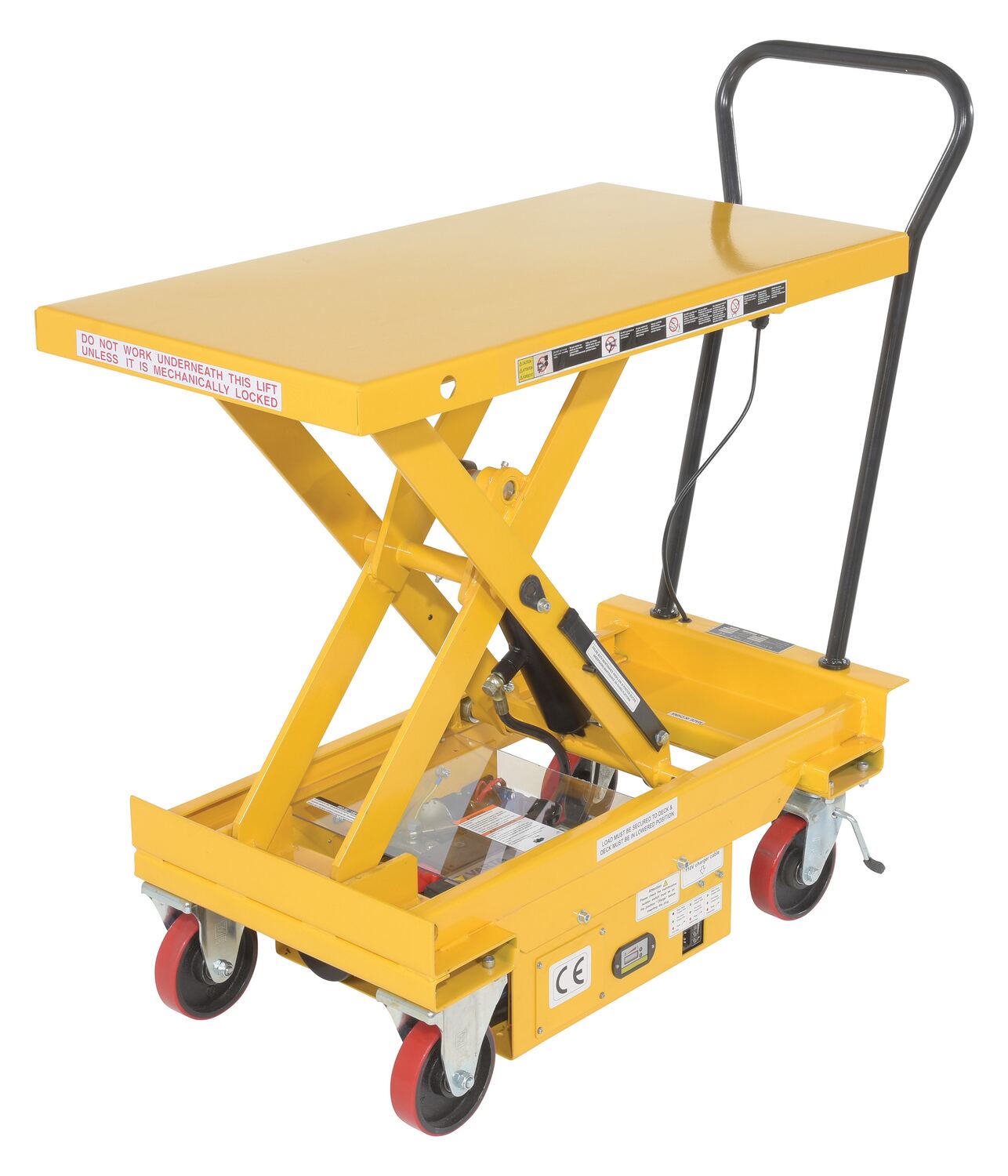

CART-1000-DC
CART-1000D-DC

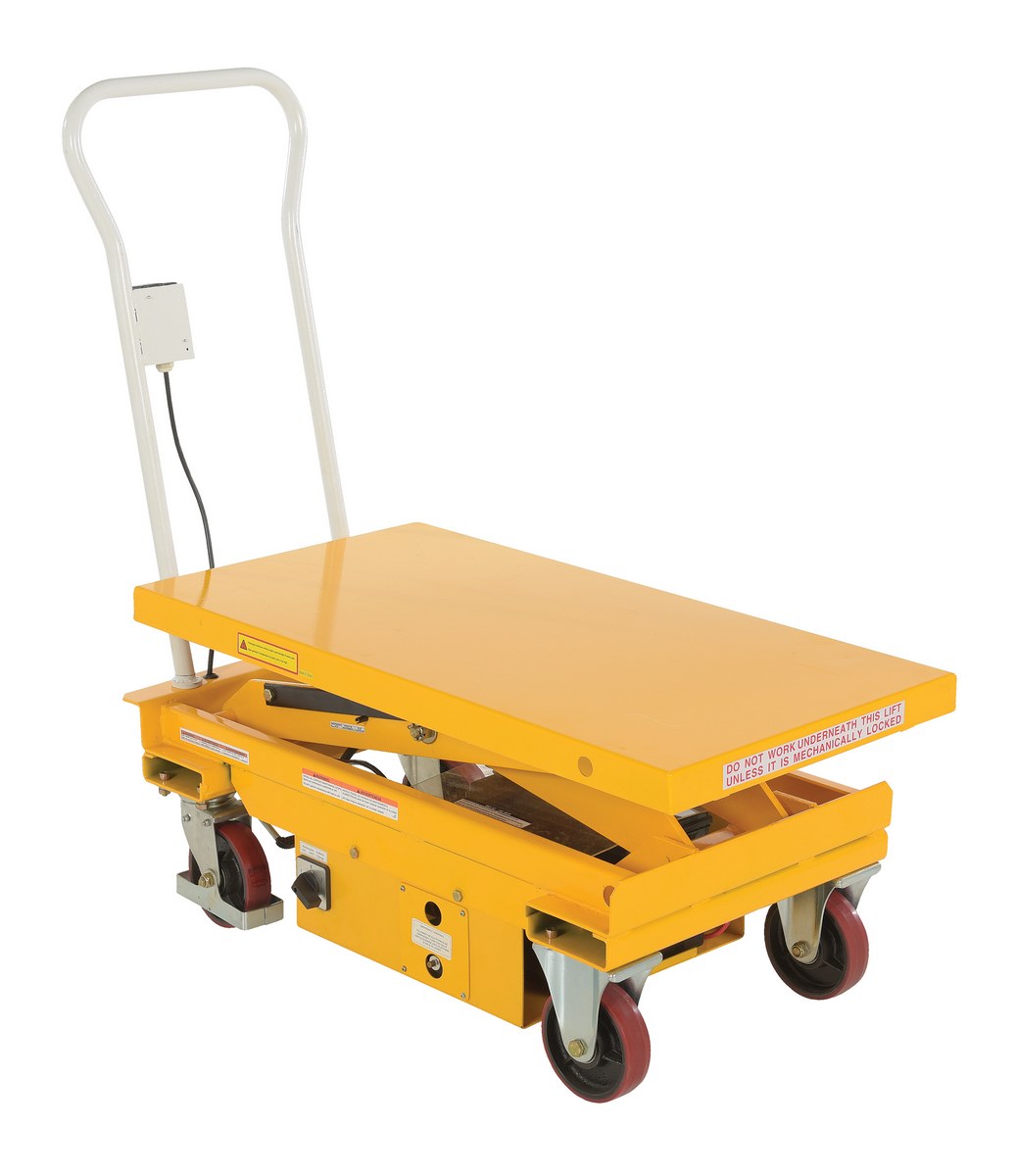

CART-2000-DC-C
CART-1000D-DC
CART-1000D-DC
CART-1000D-DC
CART-1000D-DC
All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|
| CART-500-2033-DC | | 1 Year Limited Warranty | Steel 12V DC Hydraulic Elevating Cart 20 In. x 33 In. 500 Lb. Capacity Blue | Uniform Capacity (lb.): 500 Platform Width (in.): 20-3/8 | 355 | ||

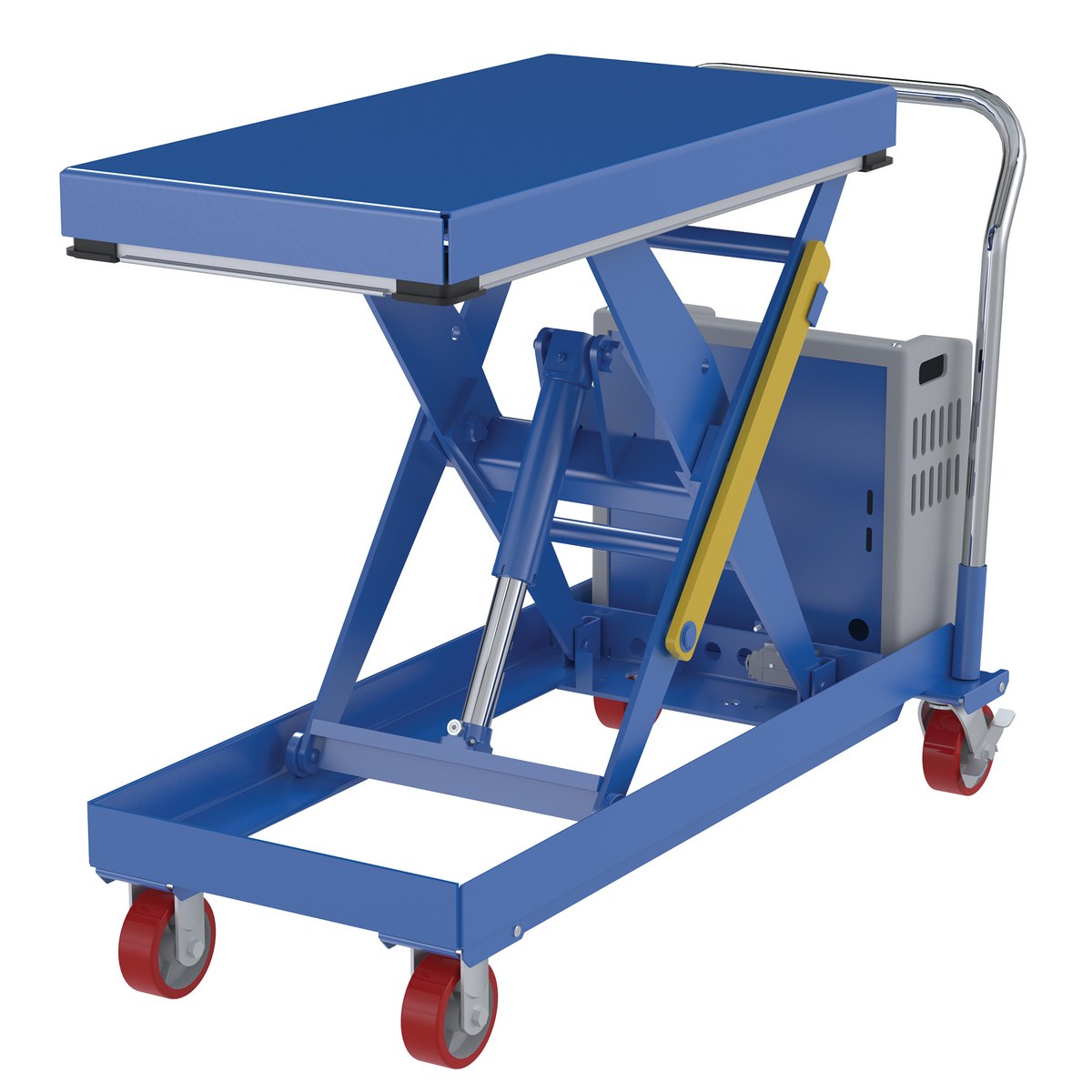

| CART-1000-2040-DC |  | 1 Year Limited Warranty | Steel 12V DC Powered Hydraulic Elevating Cart 20 In. x 40 In. 1000 Lb. Capacity Blue | Uniform Capacity (lb.): 1000 Platform Width (in.): 20-3/8 | 413 | ||

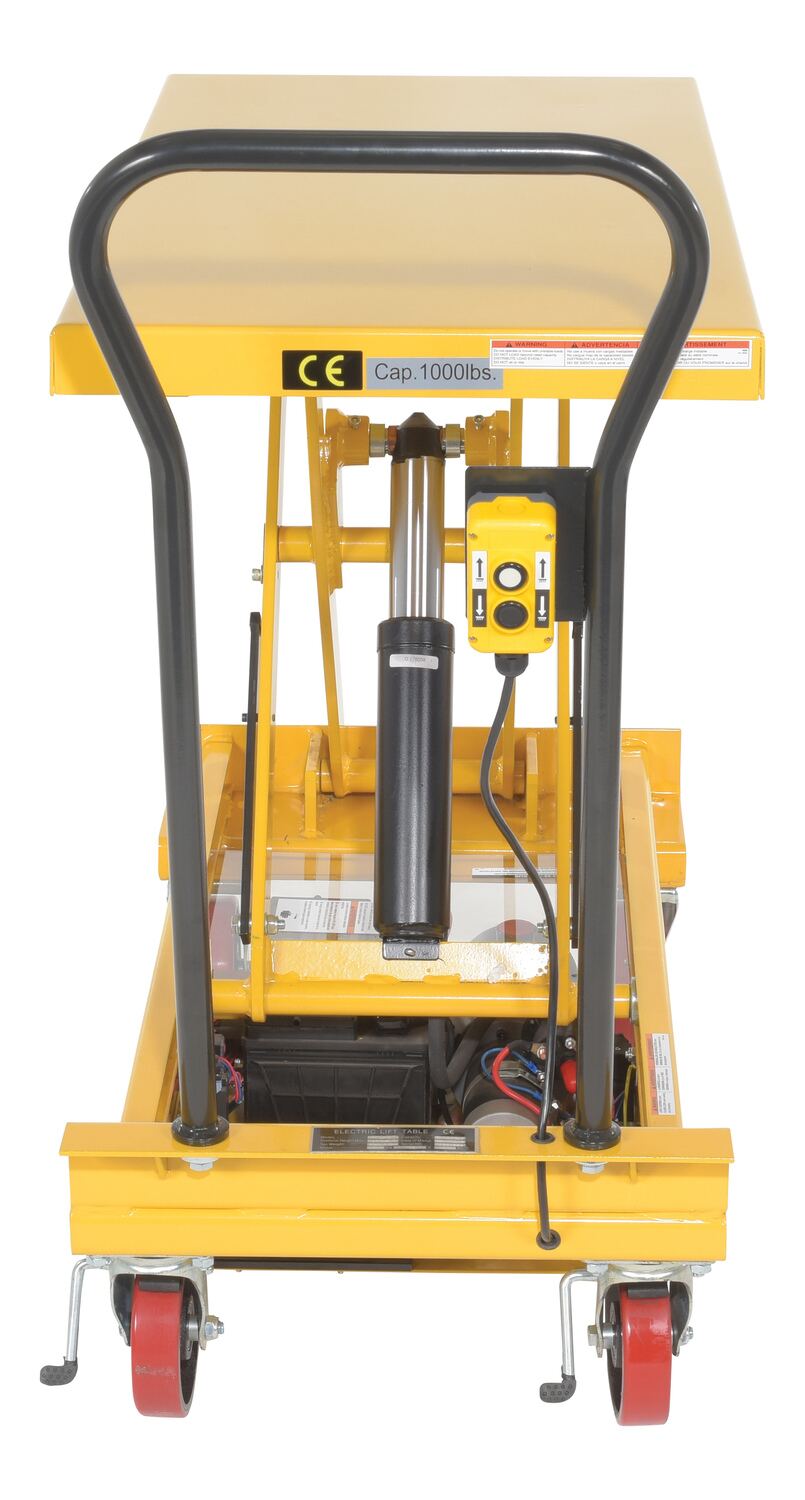

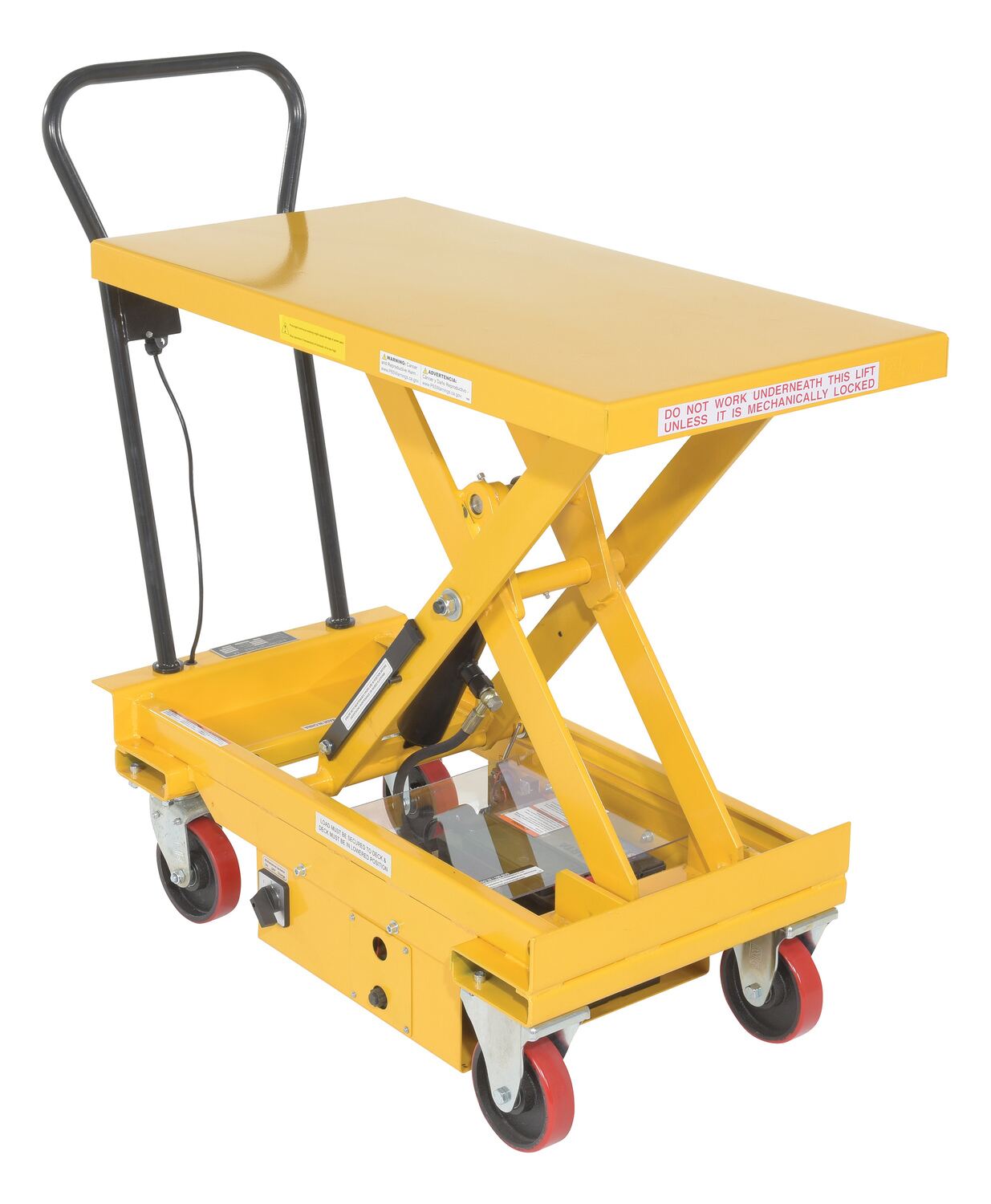

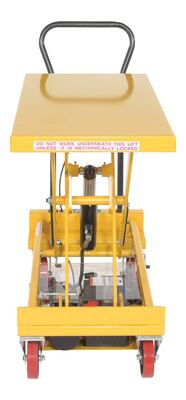

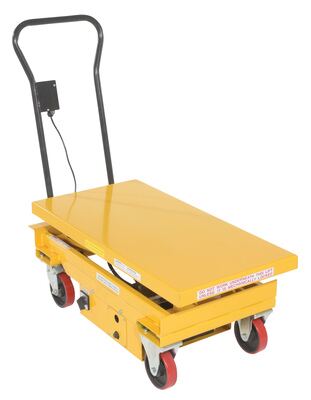

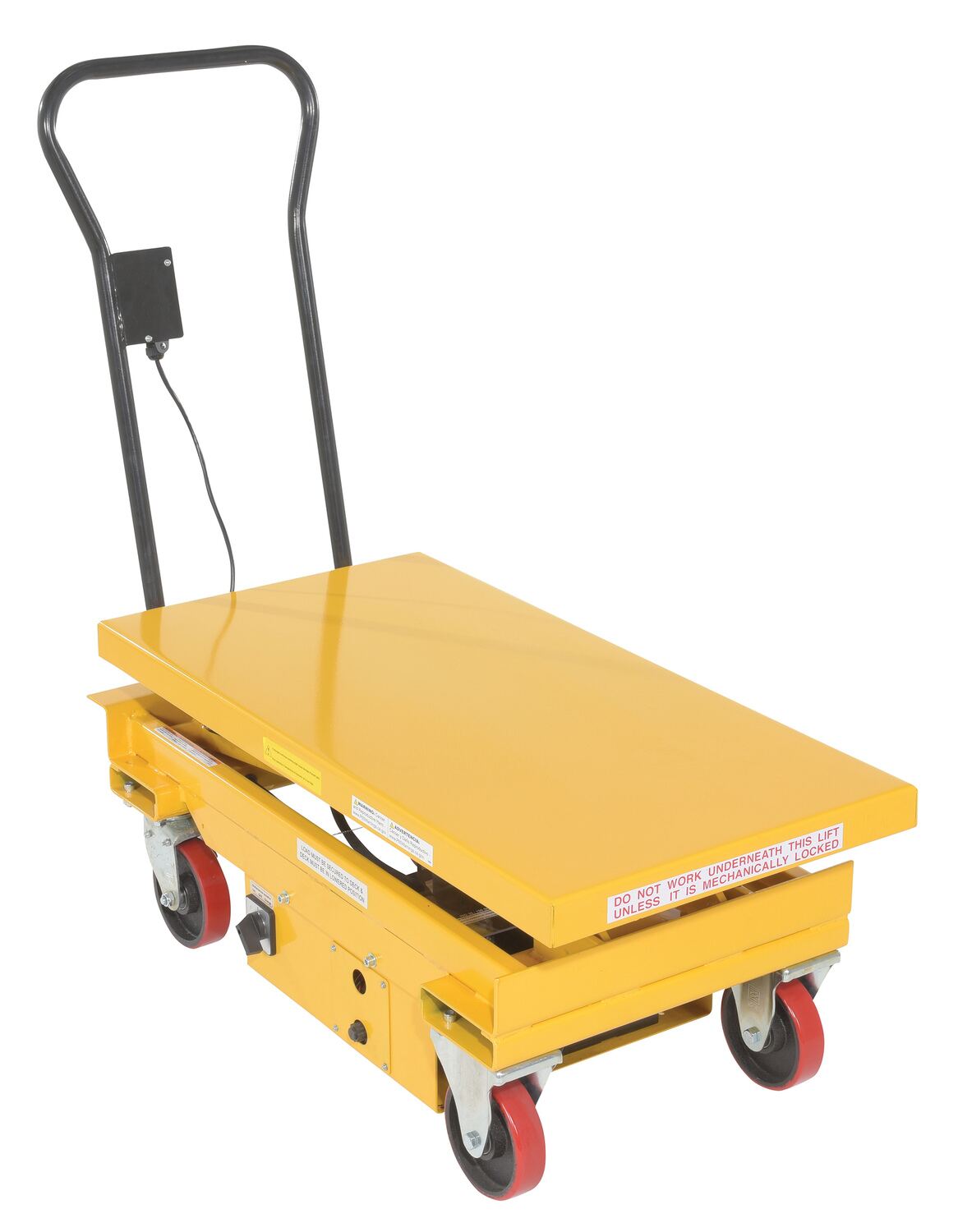

| CART-1000-DC | | 1 Year Limited Warranty | Steel DC Powered Hydraulic Single Scissor Cart 20-1/2 In. x 39-3/4 In. 1000 Lb. Capacity Yellow | Uniform Capacity (lb.): 1000 Platform Width (in.): 20-1/2 | 394 | ||

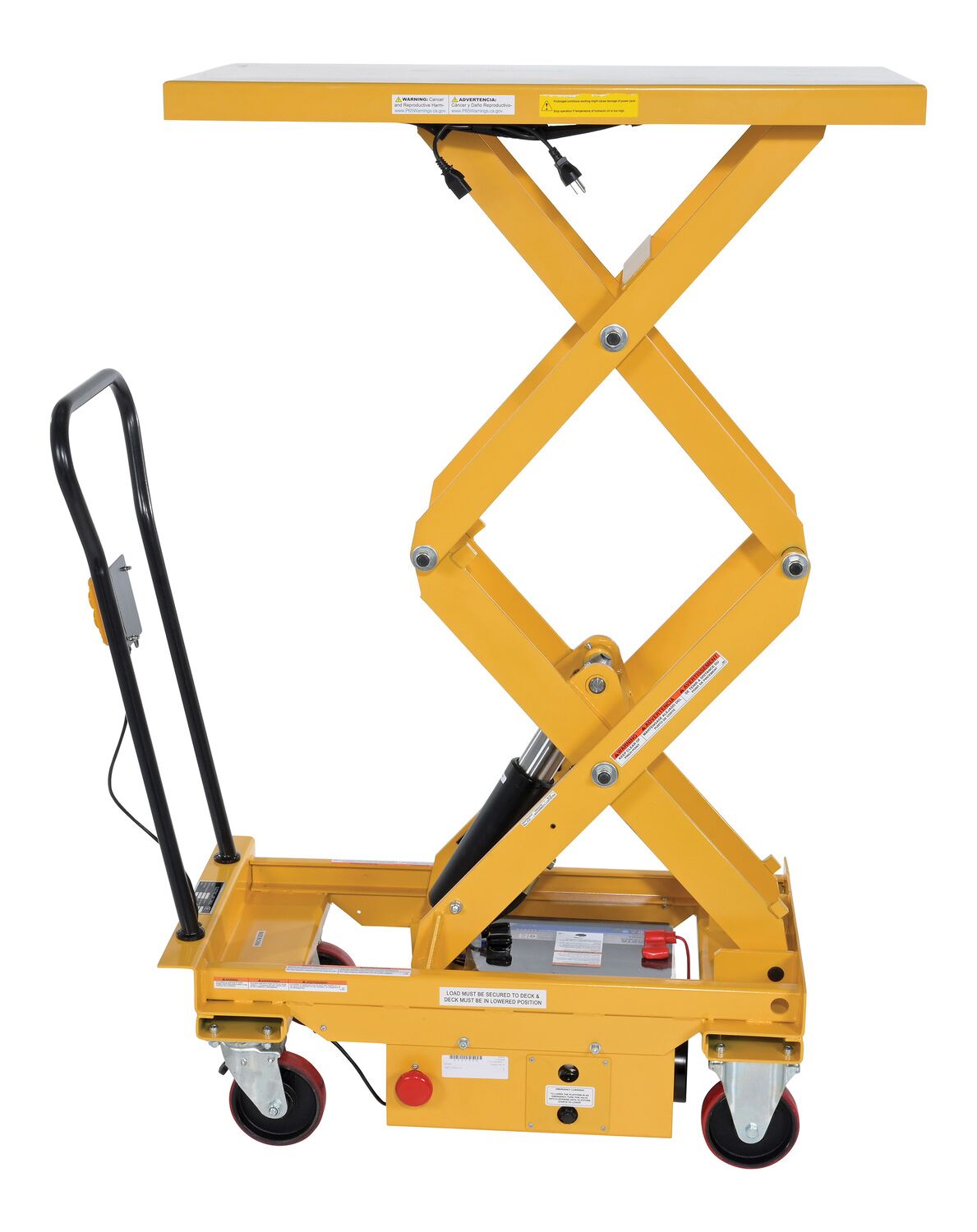

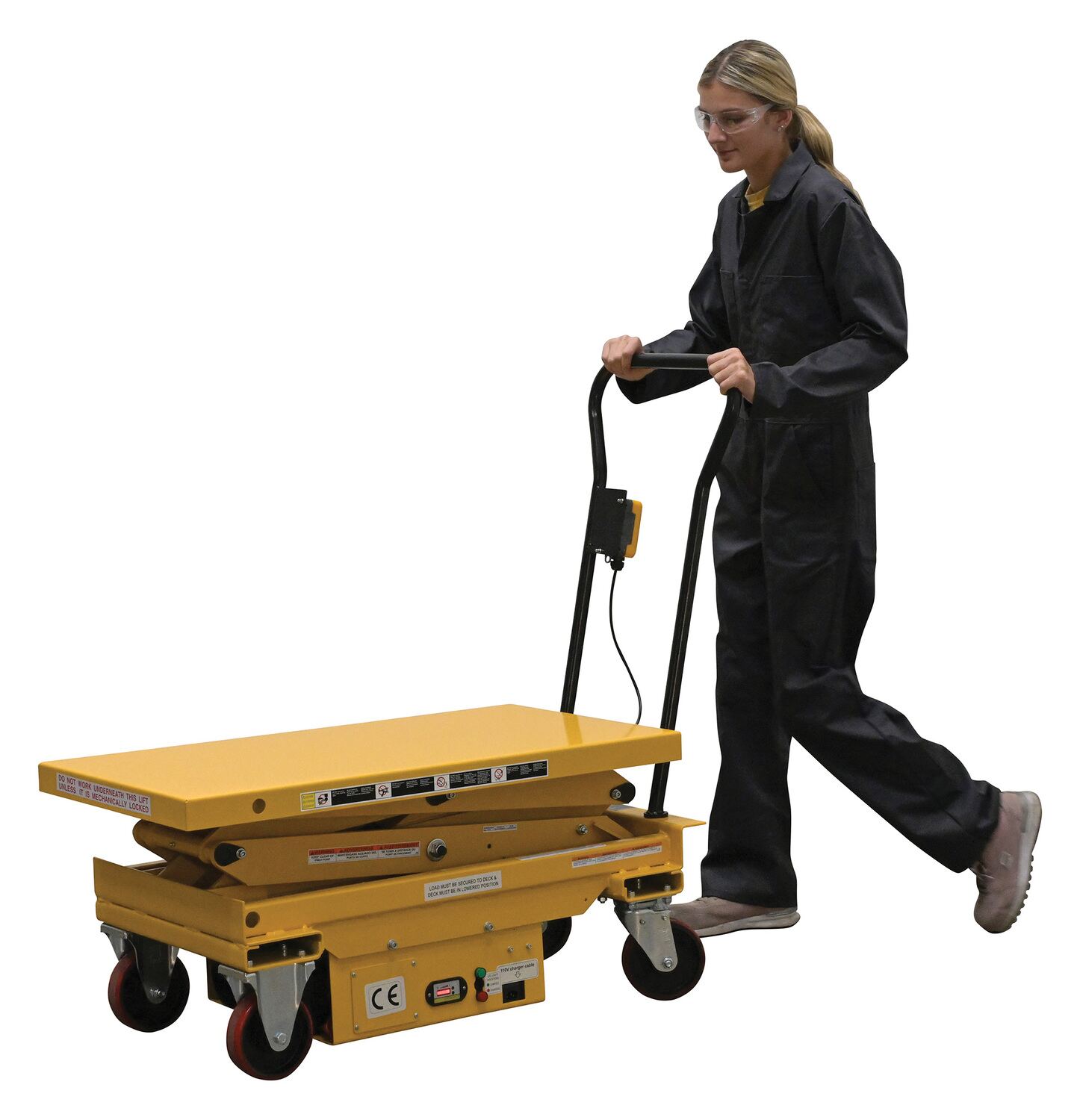

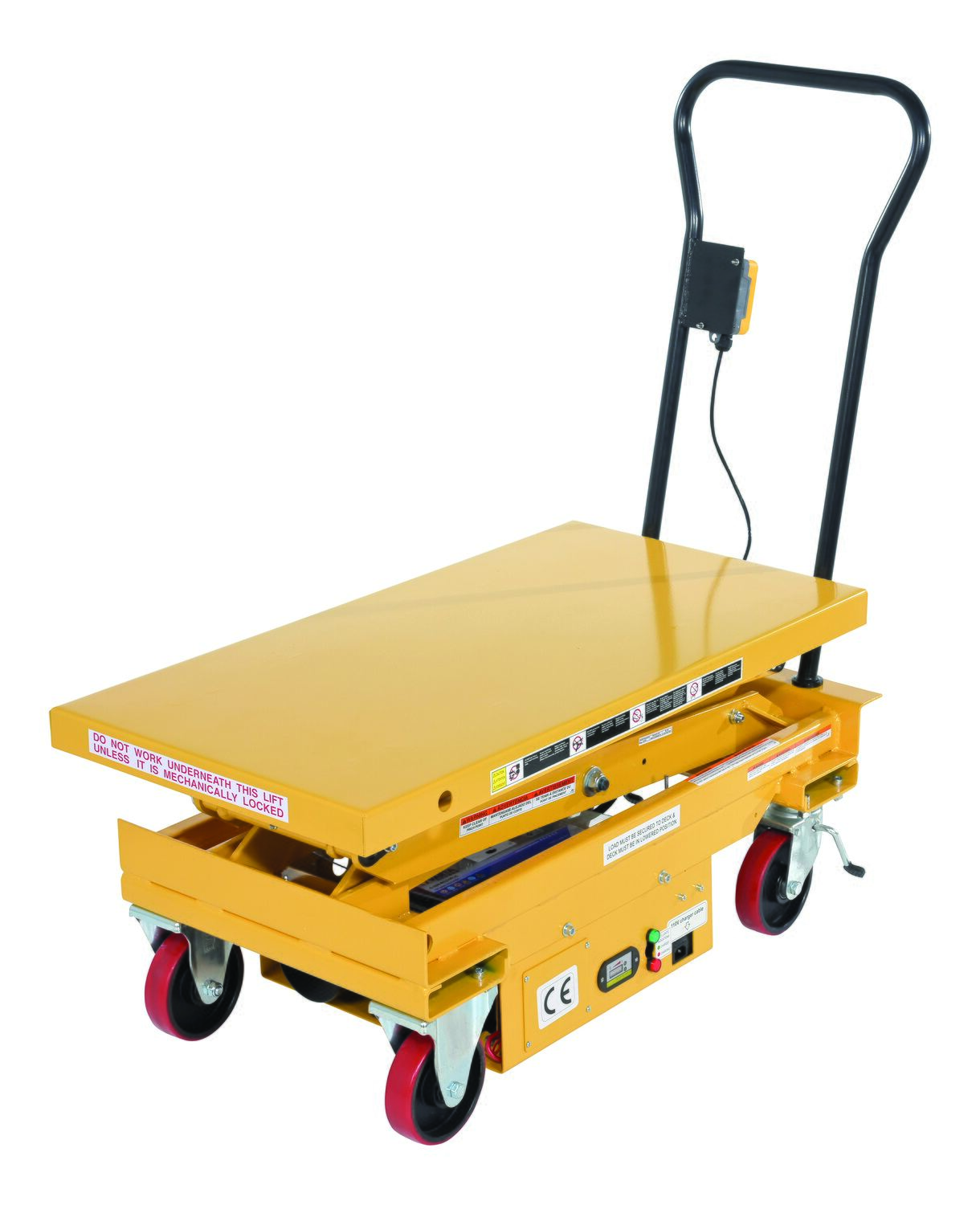

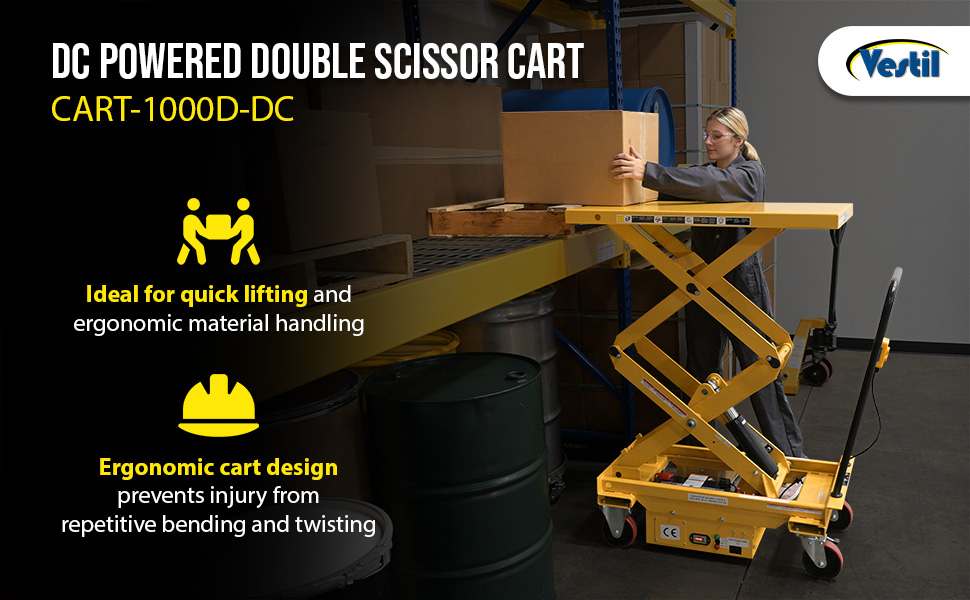

| CART-1000D-DC | POPULAR |  | 1 Year Limited Warranty | Steel DC Powered Hydraulic Double Scissor Cart 20-1/2 In. x 39-3/4 In. 1000 Lb. Capacity Yellow | Uniform Capacity (lb.): 1000 Platform Width (in.): 20-1/2 | 466 | |

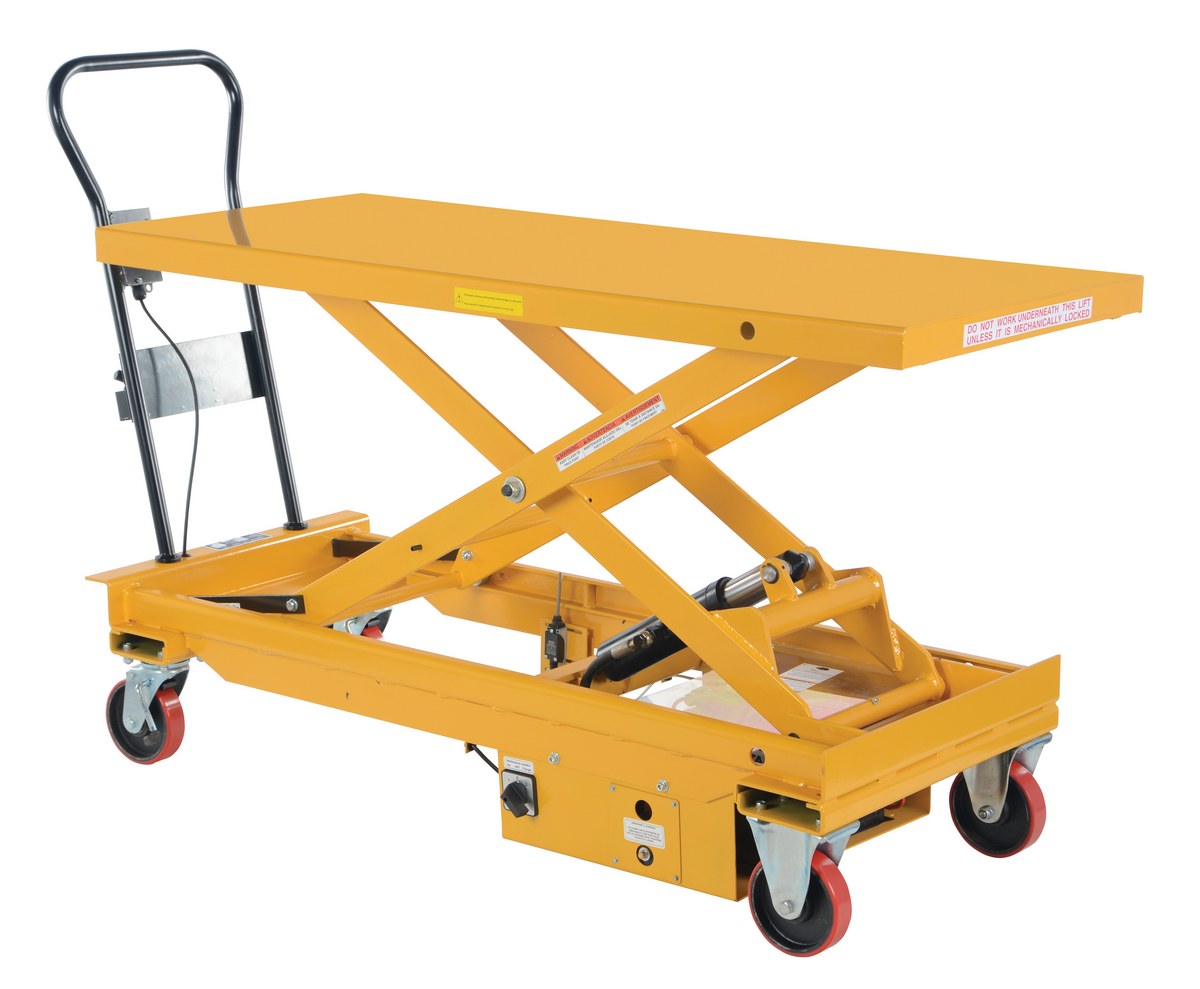

| CART-1000-LD-DC |  | 1 Year Limited Warranty | Steel DC Powered Hydraulic Single Scissor Cart 24-1/2 In. x 60 In. 1000 Lb. Capacity Yellow | Uniform Capacity (lb.): 1000 Platform Width (in.): 24-1/2 | 509 | ||

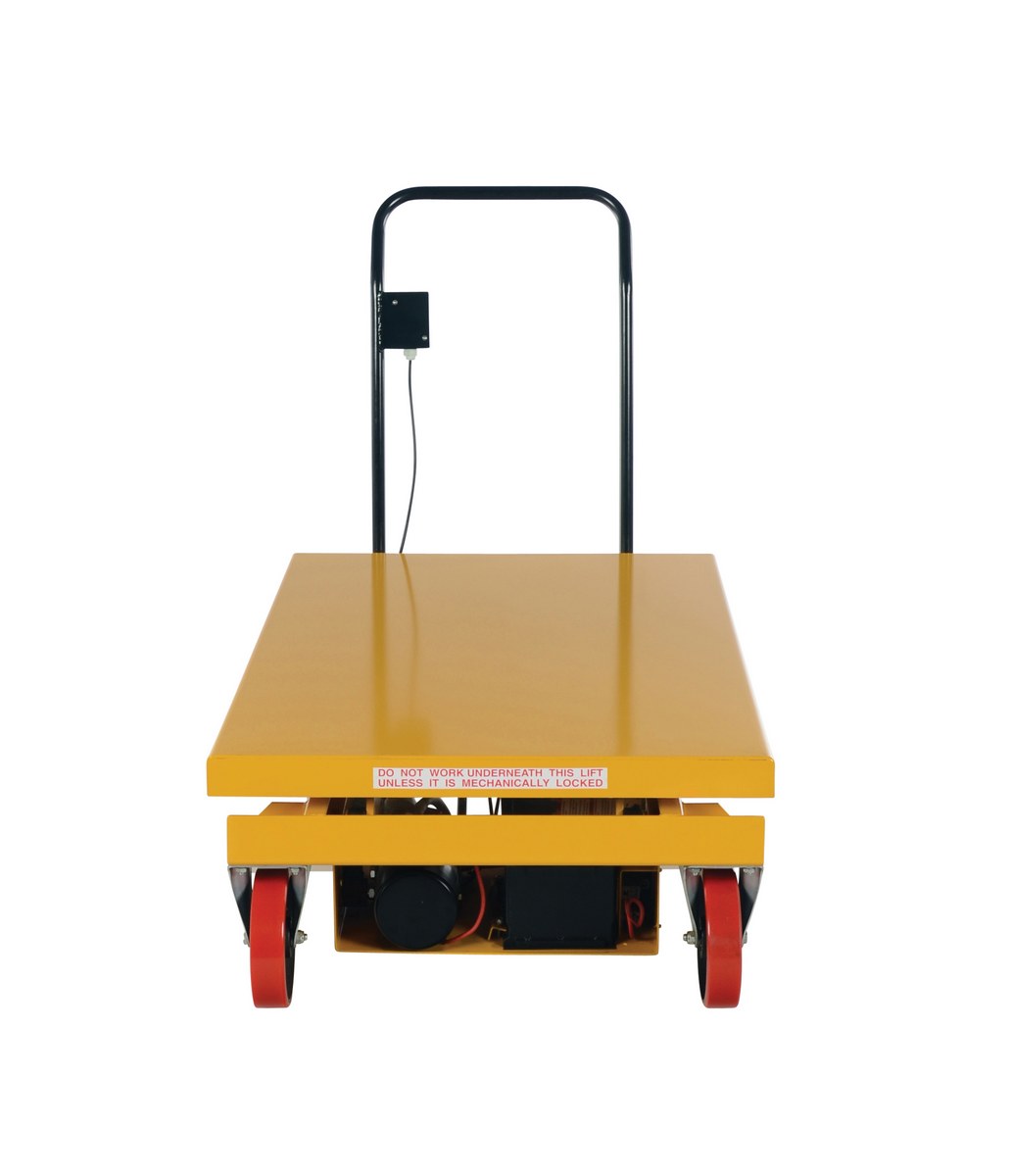

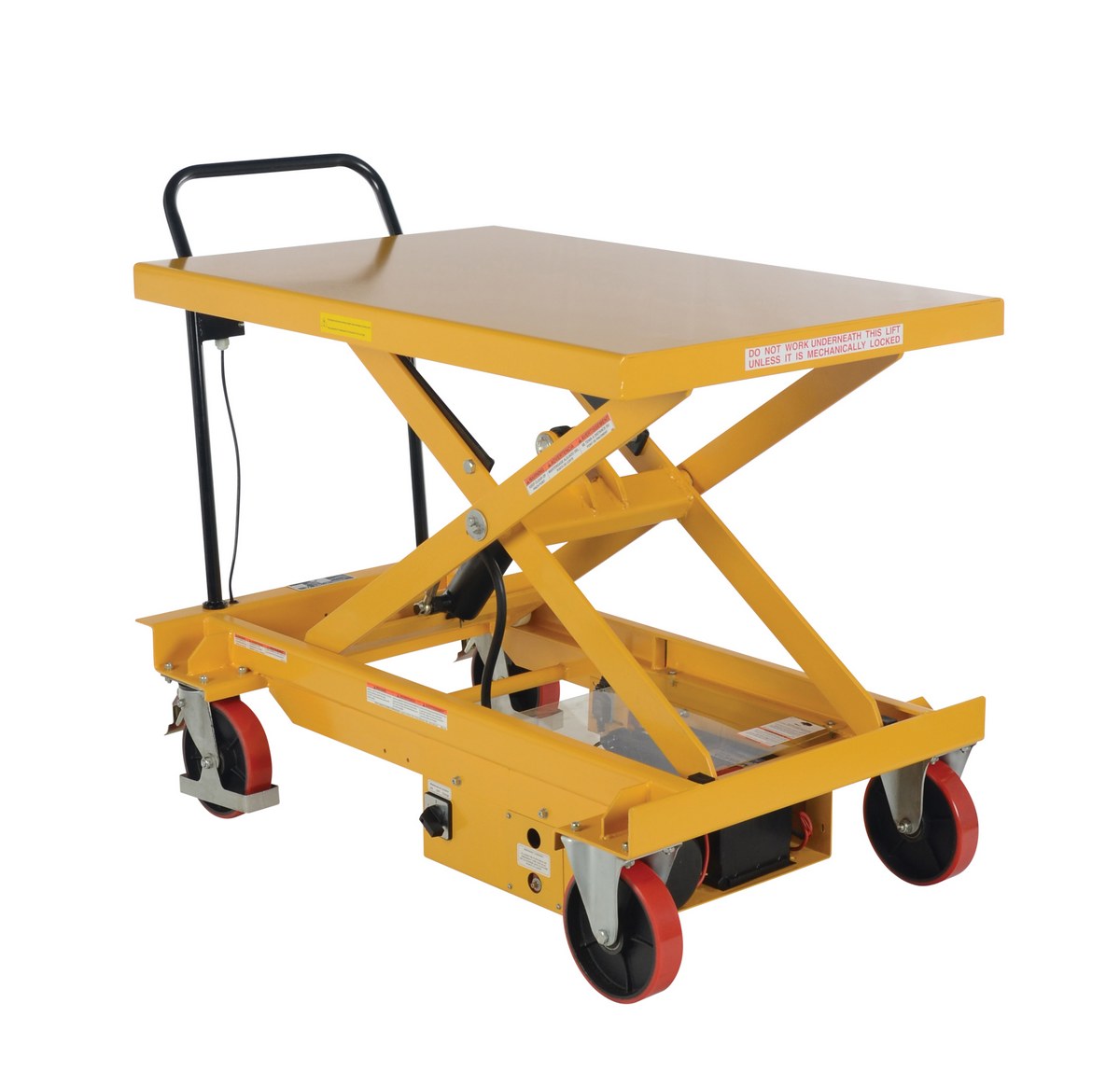

| CART-1000-WD-DC | | 1 Year Limited Warranty | Steel DC Power Hydraulic Single Scissor Cart 47-1/4 In. x 31-1/2 In. 1000 Lb. Capacity Yellow | Uniform Capacity (lb.): 1000 Platform Width (in.): 31-1/2 | 578 | ||

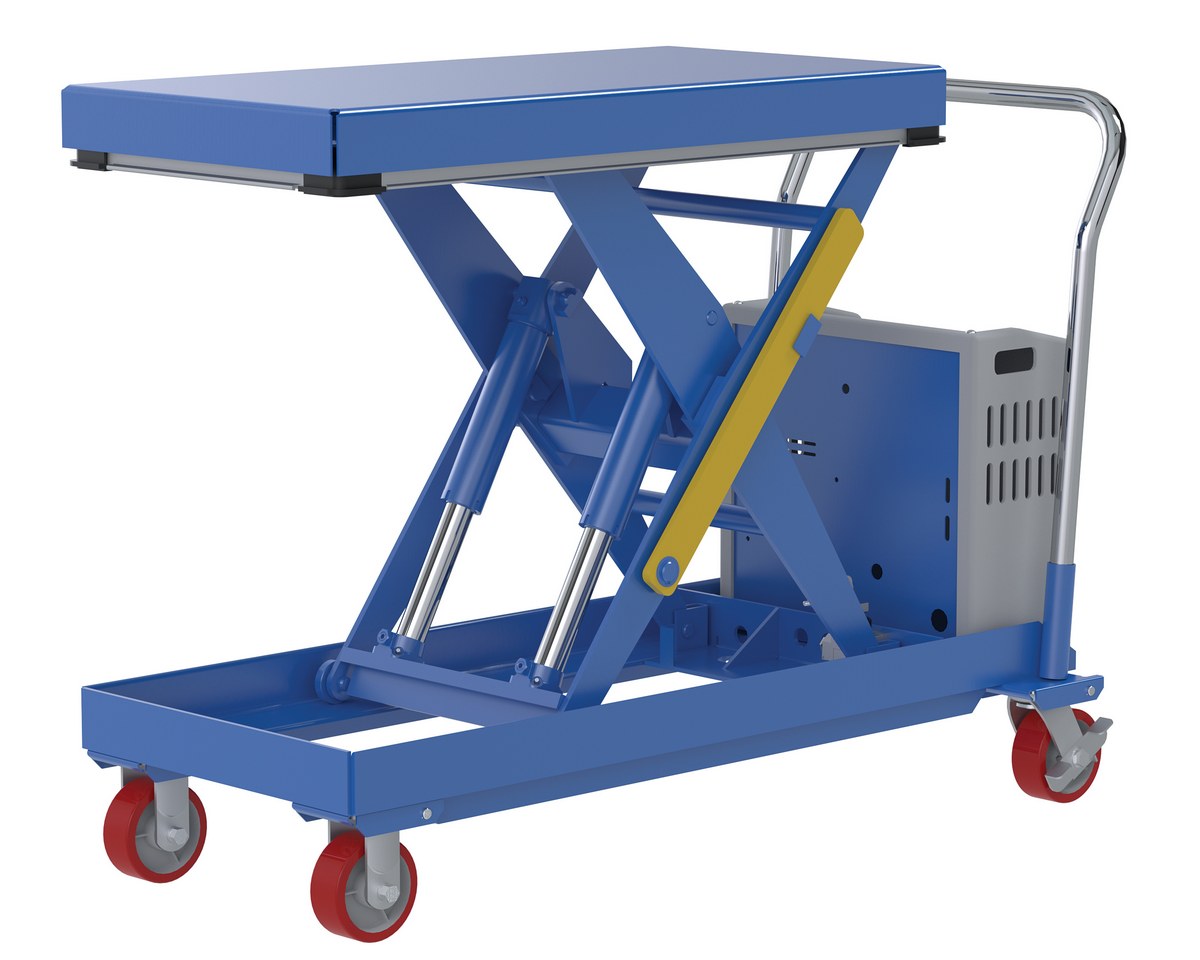

| CART-2000-2040-DC |  | 1 Year Limited Warranty | Steel 12V DC Powered Hydraulic Elevating Cart 20 In. x 40 In. 2000 Lb. Capacity Blue | Uniform Capacity (lb.): 2000 Platform Width (in.): 20-3/8 | 393 | ||

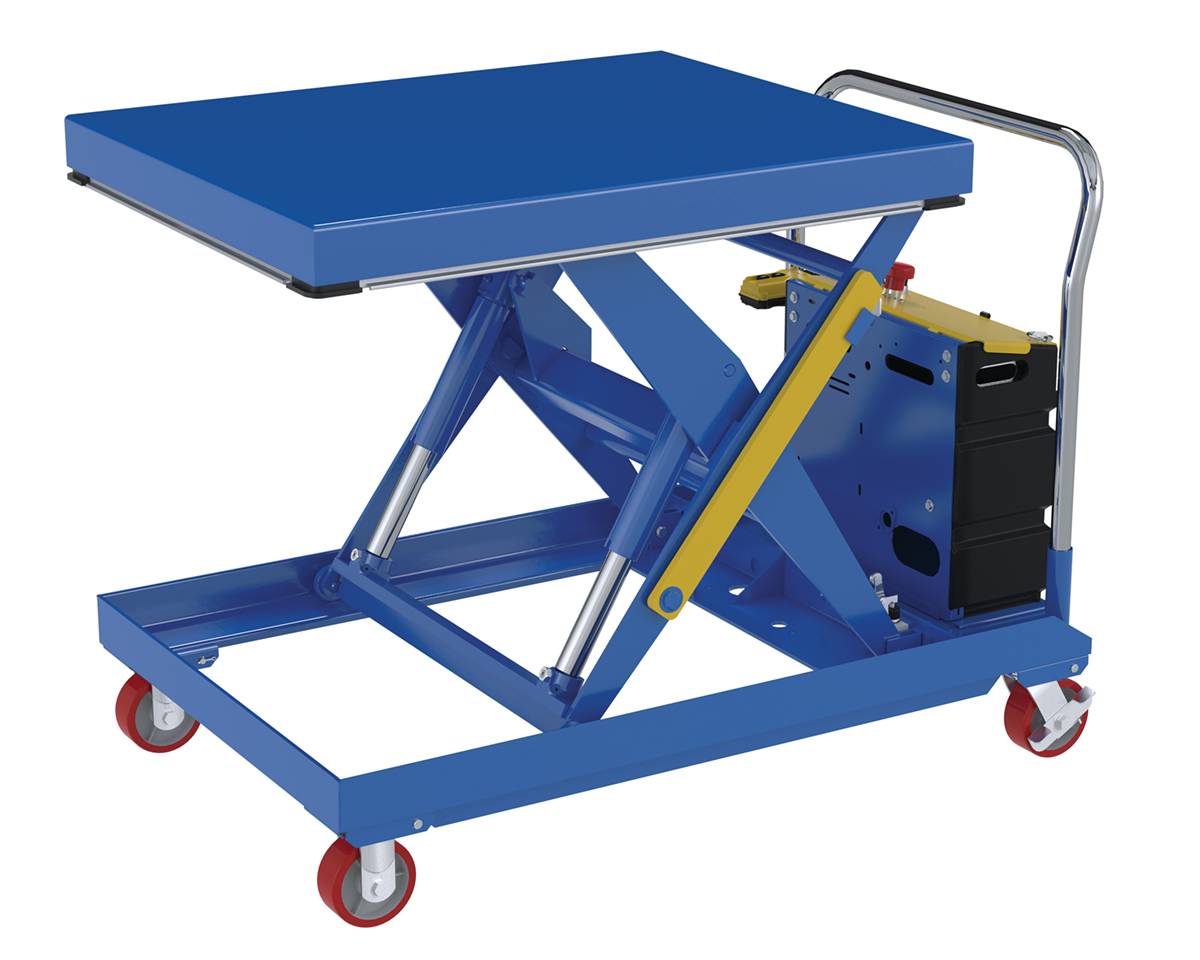

| CART-2000-3240-DC |  | 1 Year Limited Warranty | Steel 12V DC Powered Hydraulic Elevating Cart 32 In. x 40 In. 2000 Lb. Capacity Blue | Uniform Capacity (lb.): 2000 Platform Width (in.): 32-3/8 | 478 | ||
| CART-2000-4242-DC | | 1 Year Limited Warranty | Steel 12V DC Powered Hydraulic Elevating Cart 42 In. x 42 In. 2000 Lb. Capacity Blue | Uniform Capacity (lb.): 2000 Platform Width (in.): 42-3/8 | 528 | ||

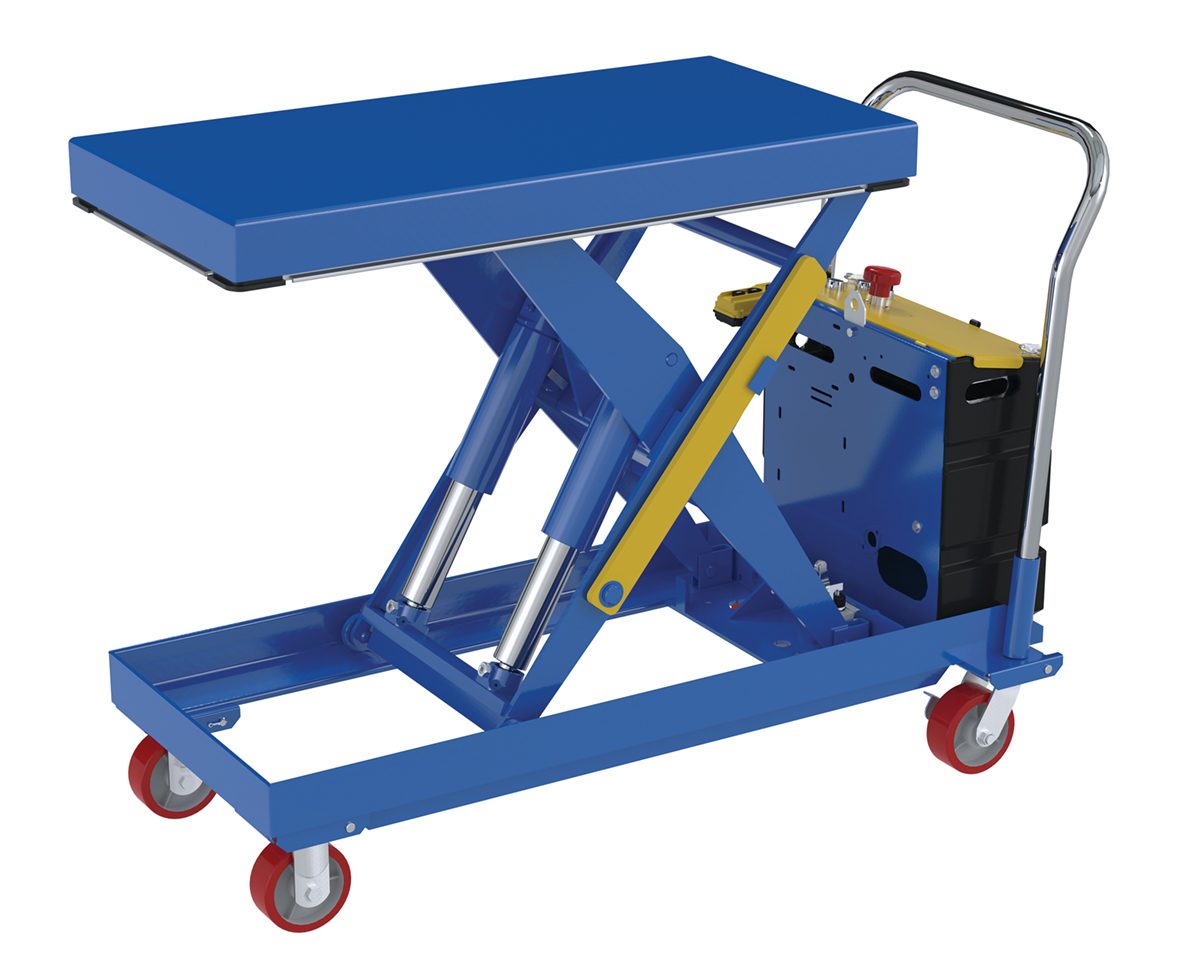

| CART-2500-2040-DC |  | 1 Year Limited Warranty | Steel 12V DC Hydraulic Elevating Cart 20 In. x 40 In. 2500 Lb. Capacity Blue | Uniform Capacity (lb.): 2500 Platform Width (in.): 20-3/8 | 436 | ||

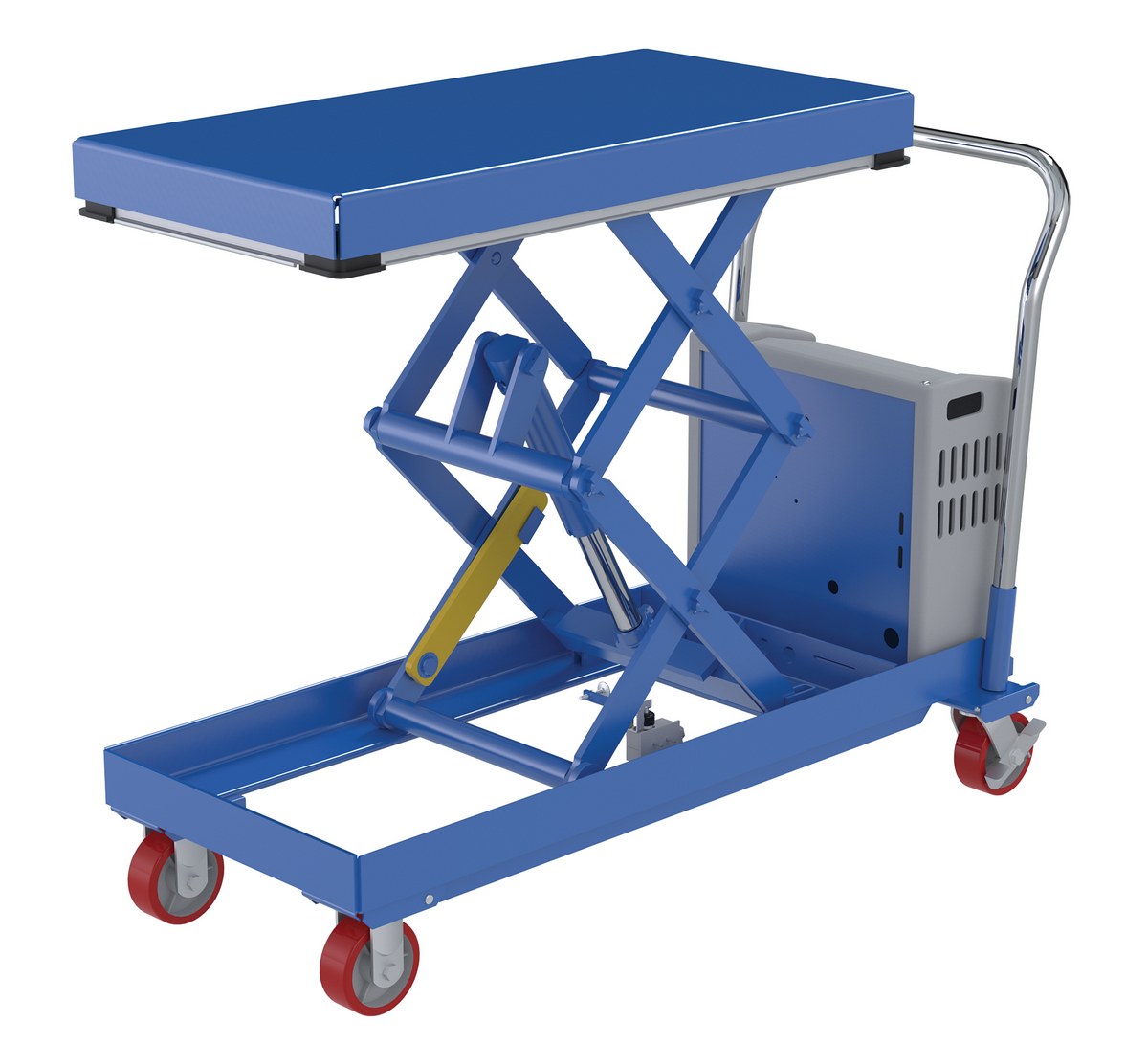

| CARTD-750-2040-DC |  | 1 Year Limited Warranty | Steel 12V DC Hydraulic Elevating Cart 20 In. x 40 In. 750 Lb. Capacity Blue | Uniform Capacity (lb.): 750 Platform Width (in.): 20-3/8 | 358 | ||

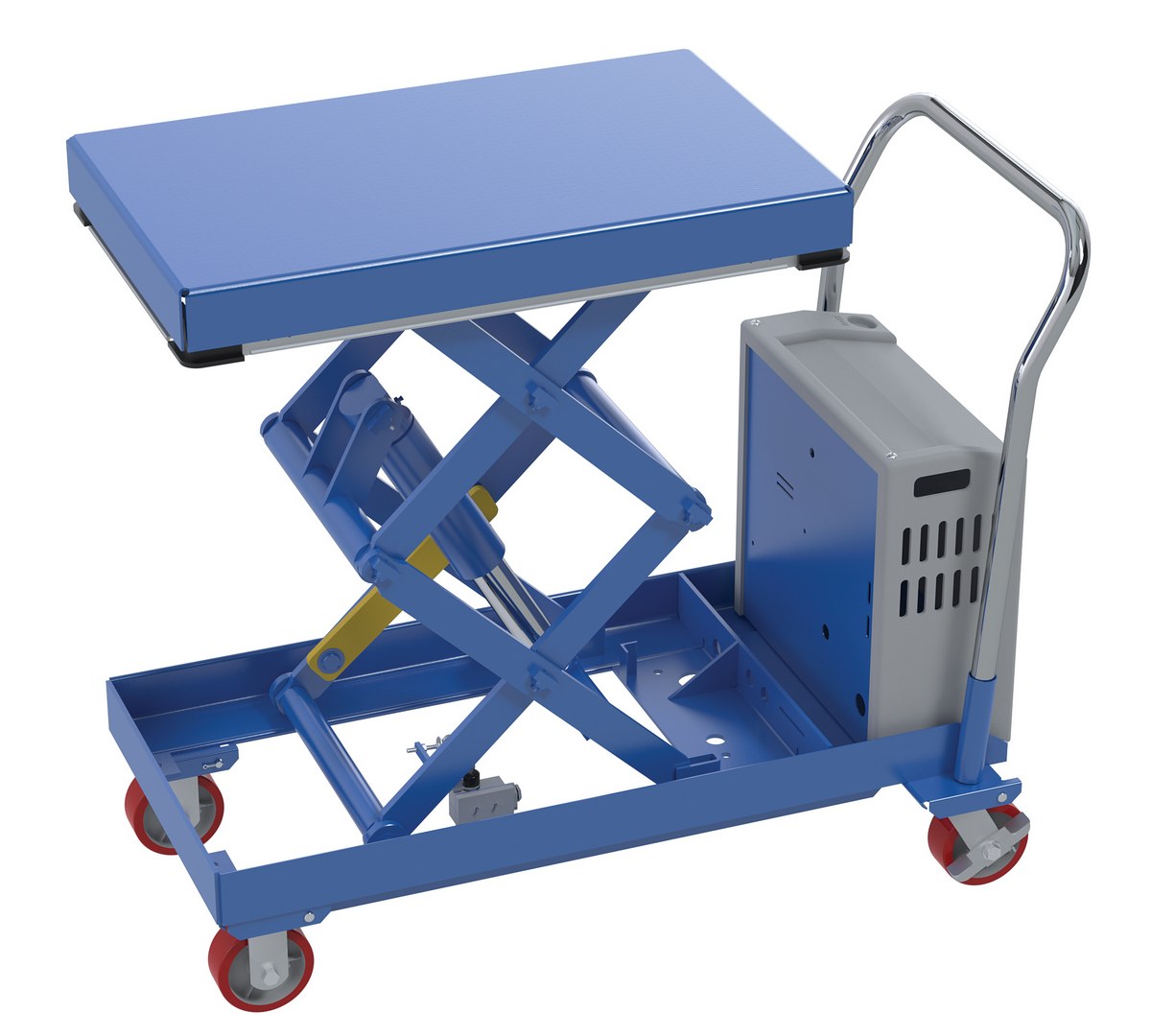

| CARTD-1000-2033-DC |  | 1 Year Limited Warranty | Steel 12V DC Hydraulic Elevating Cart 20 In. x 33 In. 1000 Lb. Capacity Blue | Uniform Capacity (lb.): 1000 Platform Width (in.): 20-3/8 | 364 | ||

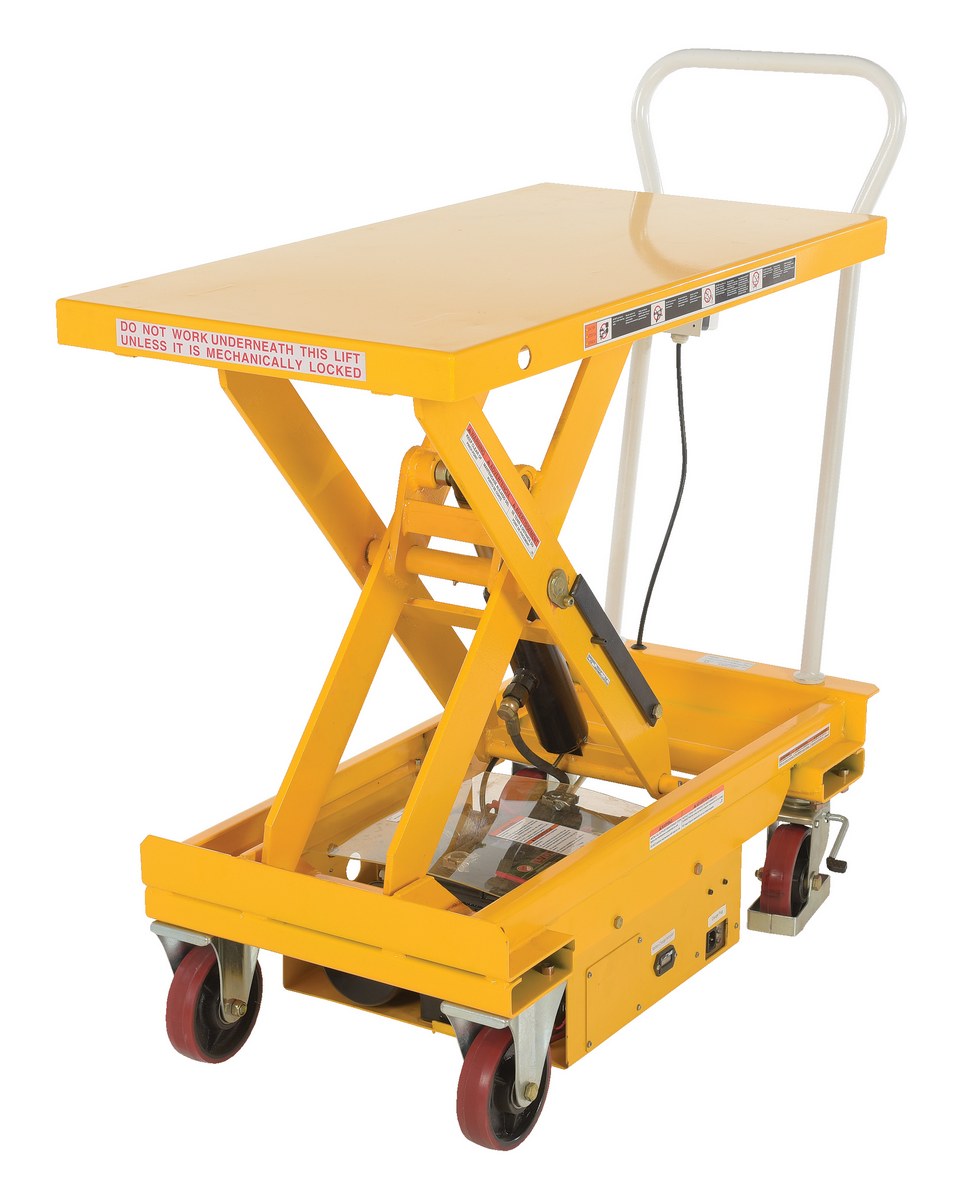

| CART-2000-DC-C |  | 1 Year Limited Warranty | Steel Hydraulic Elevating Cart 20 In. x 40 In. 2000 Lb. Capacity Yellow | Uniform Capacity (lb.): 2000 Platform Width (in.): 20 | 442 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
No Model Numbers Associated To This Product Page
DC Powered Hydraulic Elevating Carts PDF's will open in a new window when clicked.
Manuals
Survey Sheets
Approval Drawings
Testing Certificates
SDS Sheets
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: CART-1000-2040-DC
Hydraulic Oil SDS Sheet for: CART-1000-2040-DC
Lead Acid Battery SDS Sheet for: CART-1000-DC
Hydraulic Oil SDS Sheet for: CART-1000-DC
Lead Acid Battery SDS Sheet for: CART-1000D-DC
Hydraulic Oil SDS Sheet for: CART-1000D-DC
Lead Acid Battery SDS Sheet for: CART-1000-LD-DC
Hydraulic Oil SDS Sheet for: CART-1000-LD-DC
Lead Acid Battery SDS Sheet for: CART-1000-WD-DC
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: CART-2000-2040-DC
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: CART-2000-3240-DC
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: CART-2000-4242-DC
Valve-Regulated Lead Acid Batteries SDS Sheet for: CART-2000-DC-C
Hydraulic Oil SDS Sheet for: CART-2000-DC-C
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: CART-2500-2040-DC
Hydraulic Oil SDS Sheet for: CART-2500-2040-DC
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: CART-500-2033-DC
Hydraulic Oil SDS Sheet for: CART-500-2033-DC
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: CARTD-1000-2033-DC
Hydraulic Oil SDS Sheet for: CARTD-1000-2033-DC
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: CARTD-750-2040-DC
Hydraulic Oil SDS Sheet for: CARTD-750-2040-DC
Other PDF's
No "Other PDFs" For This Product...
Directory Links Of Available PDF's For All Products
Q: On the CART-1000-LD-DC what is the raise and lower time?
A: The raise time is 15 seconds. The lower time is 13 seconds.
Q: Is the battery charger UL listed?
A: Yes the battery charger is UL listed.
Q: What is the amp draw of the hydraulic system on CART-1000-DC?
A: 148 amps with load and 54 amps without load.
Q: What force is required to begin pushing/moving CART-1000D-DC when it is loaded?
A: 70 lbs.
