Thin Spins| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|

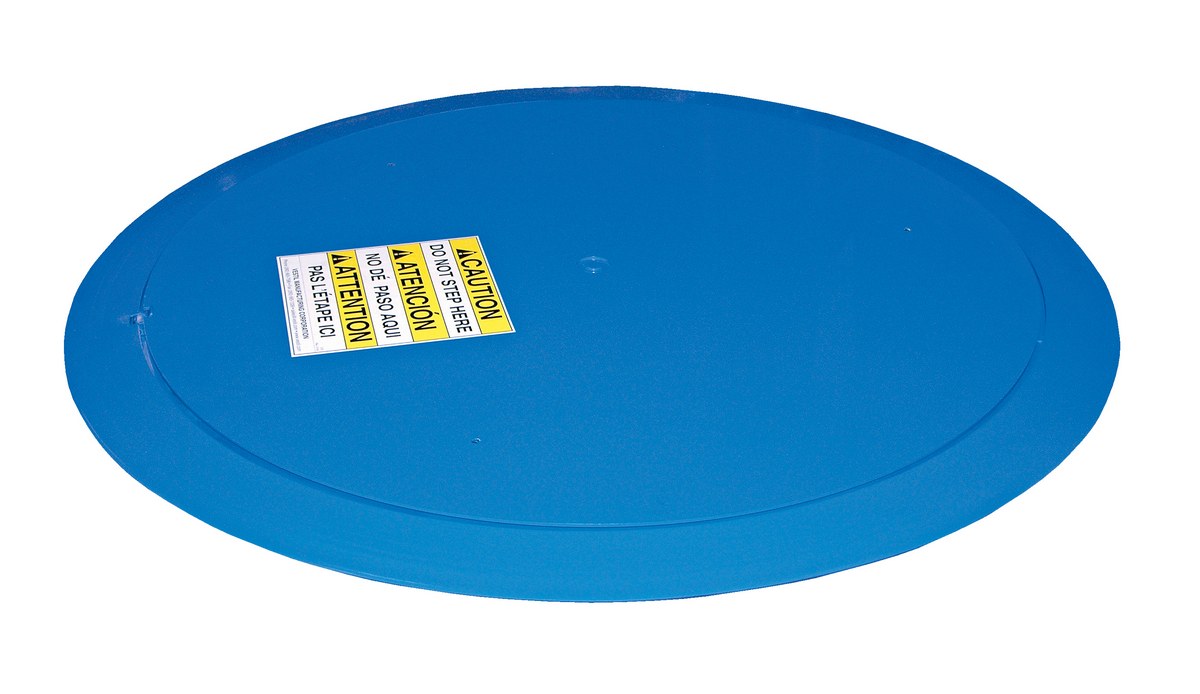

| LP-4000T |  | 90 Days Limited Warranty | Steel Thin Spin 59-11/16 In Diameter 4000 Lb. Capacity Blue | Uniform Capacity (lb.): 4,000 Usable Diameter (in.): 51 | 270 | ||

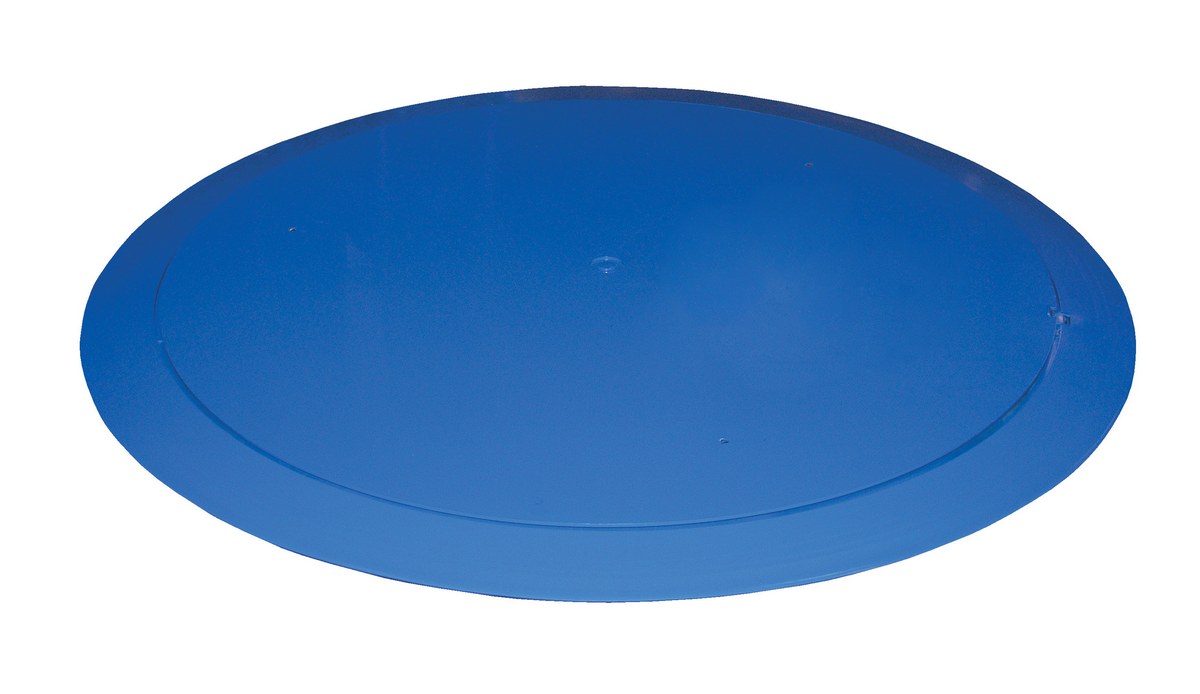

| LP-4000T-39 |  | 90 Days Limited Warranty | Steel Thin Spin 47-11/16 In Diameter 4000 Lb. Capacity Blue | Uniform Capacity (lb.): 4,000 Usable Diameter (in.): 39 | 189 | ||
| LP-4000T-39-SS | |  | 90 Days Limited Warranty | Stainless Steel Thin Spin 47-11/16 In. Diameter 4000 Lb. Capacity Silver | Uniform Capacity (lb.): 4,000 Usable Diameter (in.): 39 | 206 | |

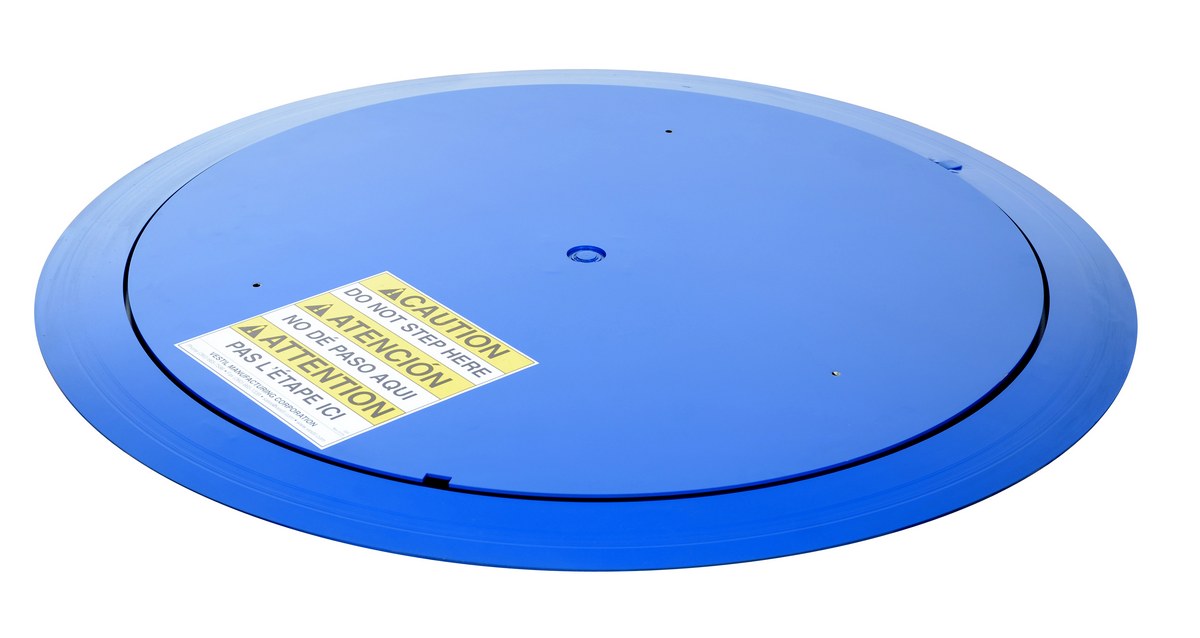

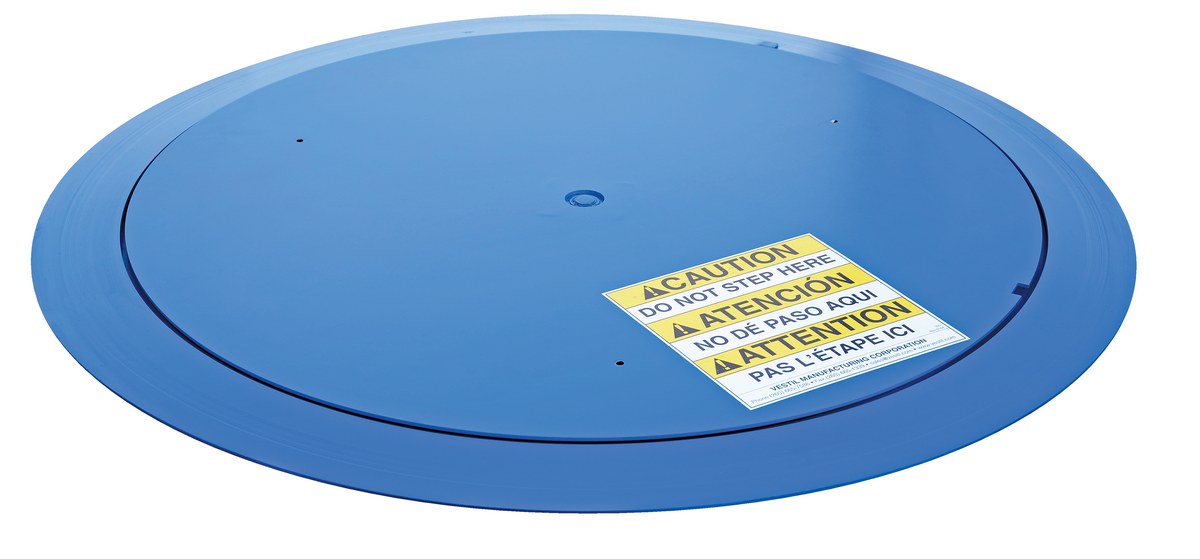

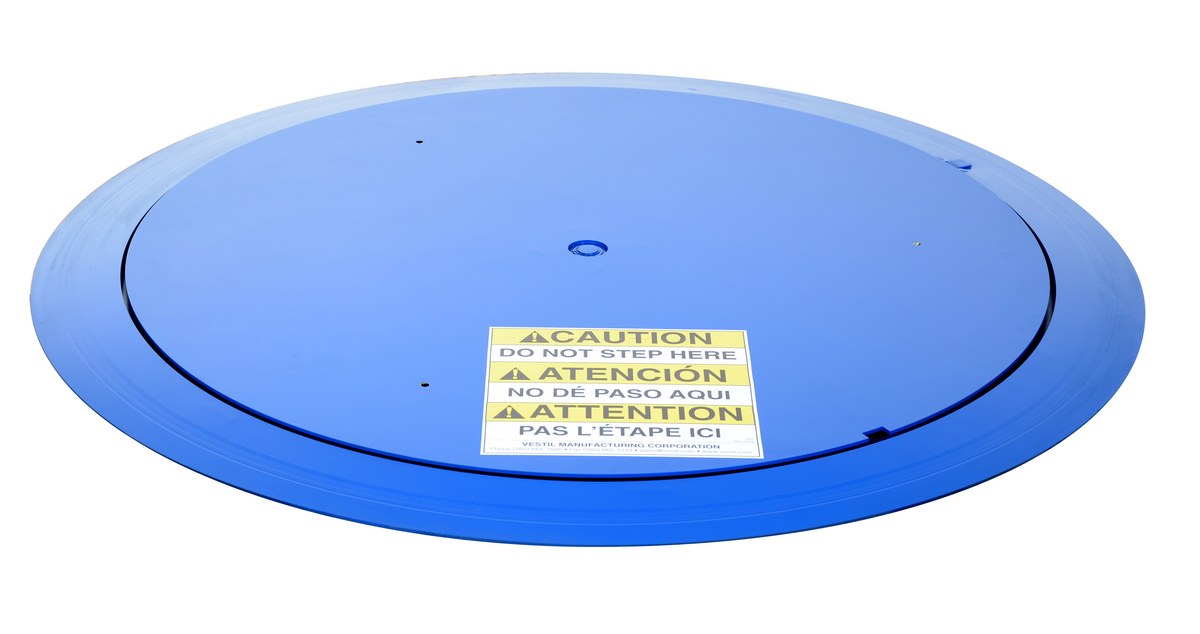

| LP-4000T-45 |  | 90 Days Limited Warranty | Steel Thin Spin 53-11/16 In Diameter 4000 Lb. Capacity Blue | Uniform Capacity (lb.): 4,000 Usable Diameter (in.): 45 | 257 | ||
| LP-4000T-45-SS | |  | 90 Days Limited Warranty | Stainless Steel Thin Spin 53-11/16 In. Diameter 4000 Lb. Capacity Silver | Uniform Capacity (lb.): 4,000 Usable Diameter (in.): 45 | 253 | |

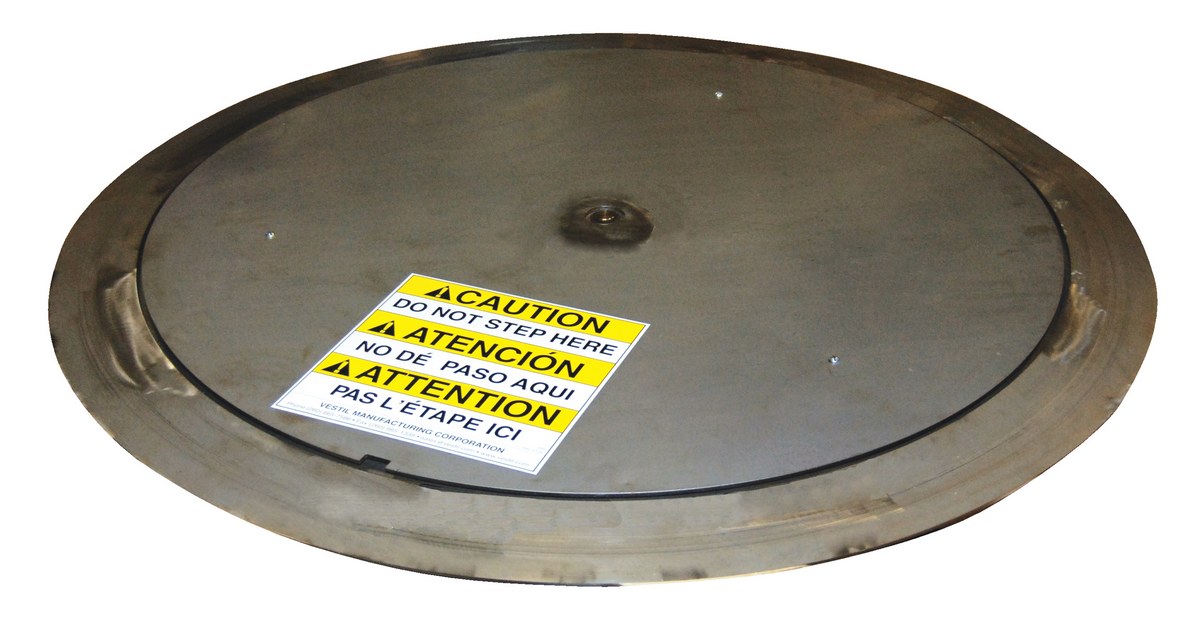

| LP-4000T-SS | |  | 90 Days Limited Warranty | Stainless Steel Thin Spin 59-11/16 In. Diameter 4000 Lb. Capacity Blue | Uniform Capacity (lb.): 4,000 Usable Diameter (in.): 51 | 300 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Dimension Image = Works w/ Skid Only = Flatbed Truck Required
| Model | Image | Details | Icons | Wt. |
|---|---|---|---|---|

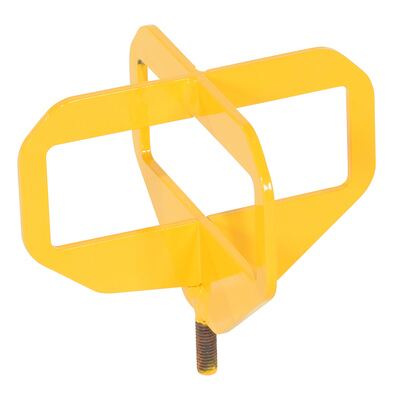

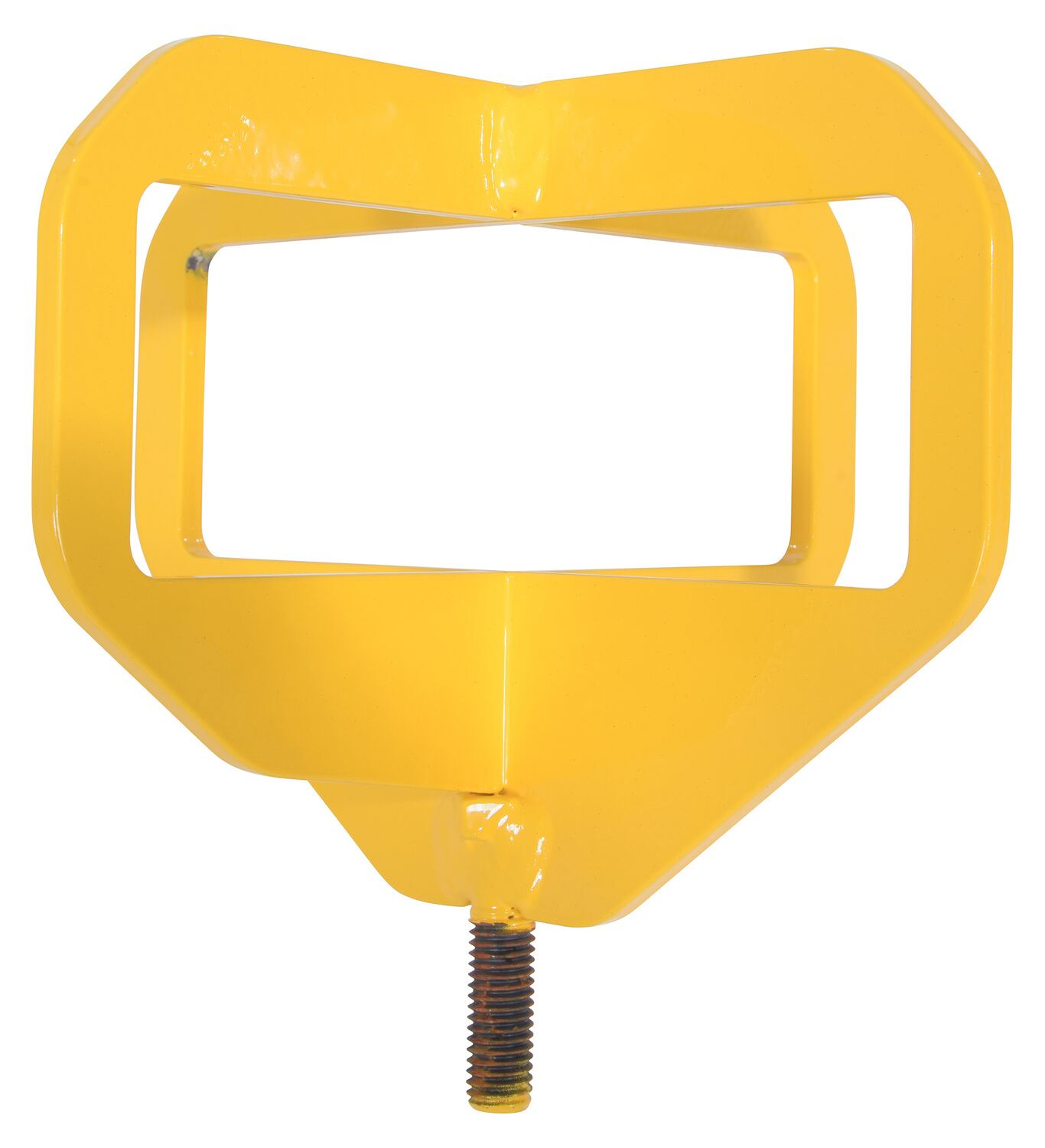

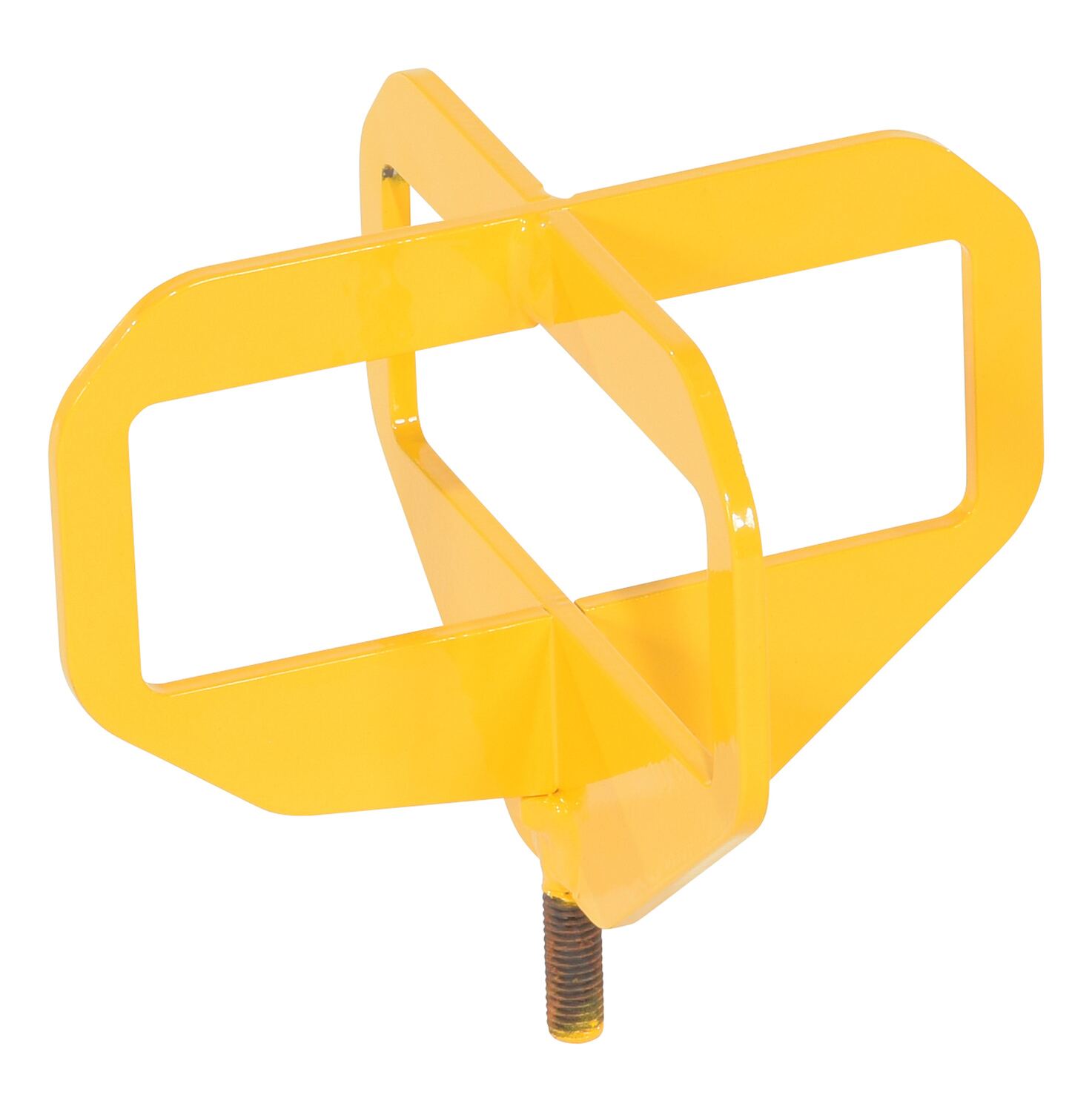

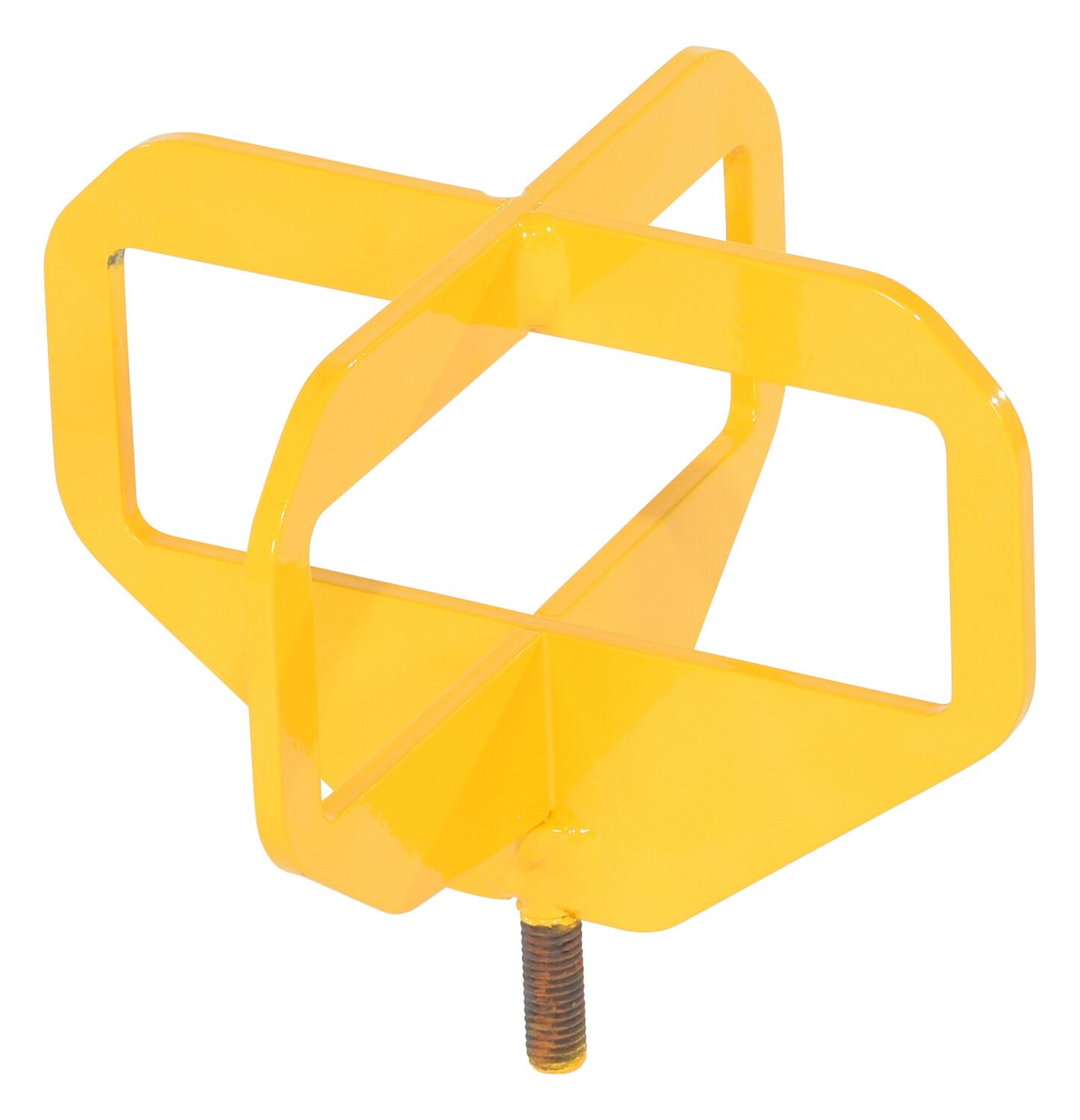

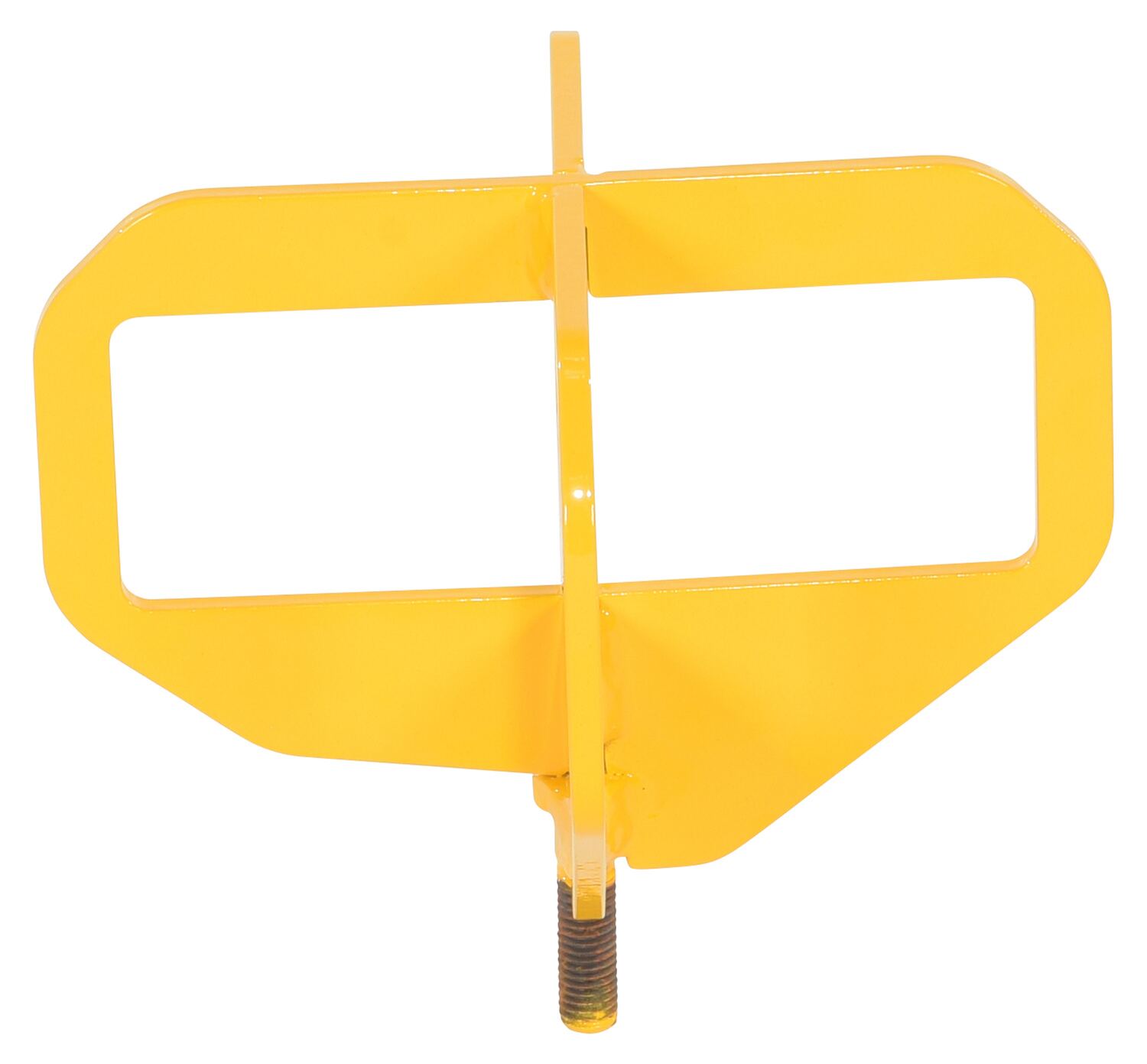

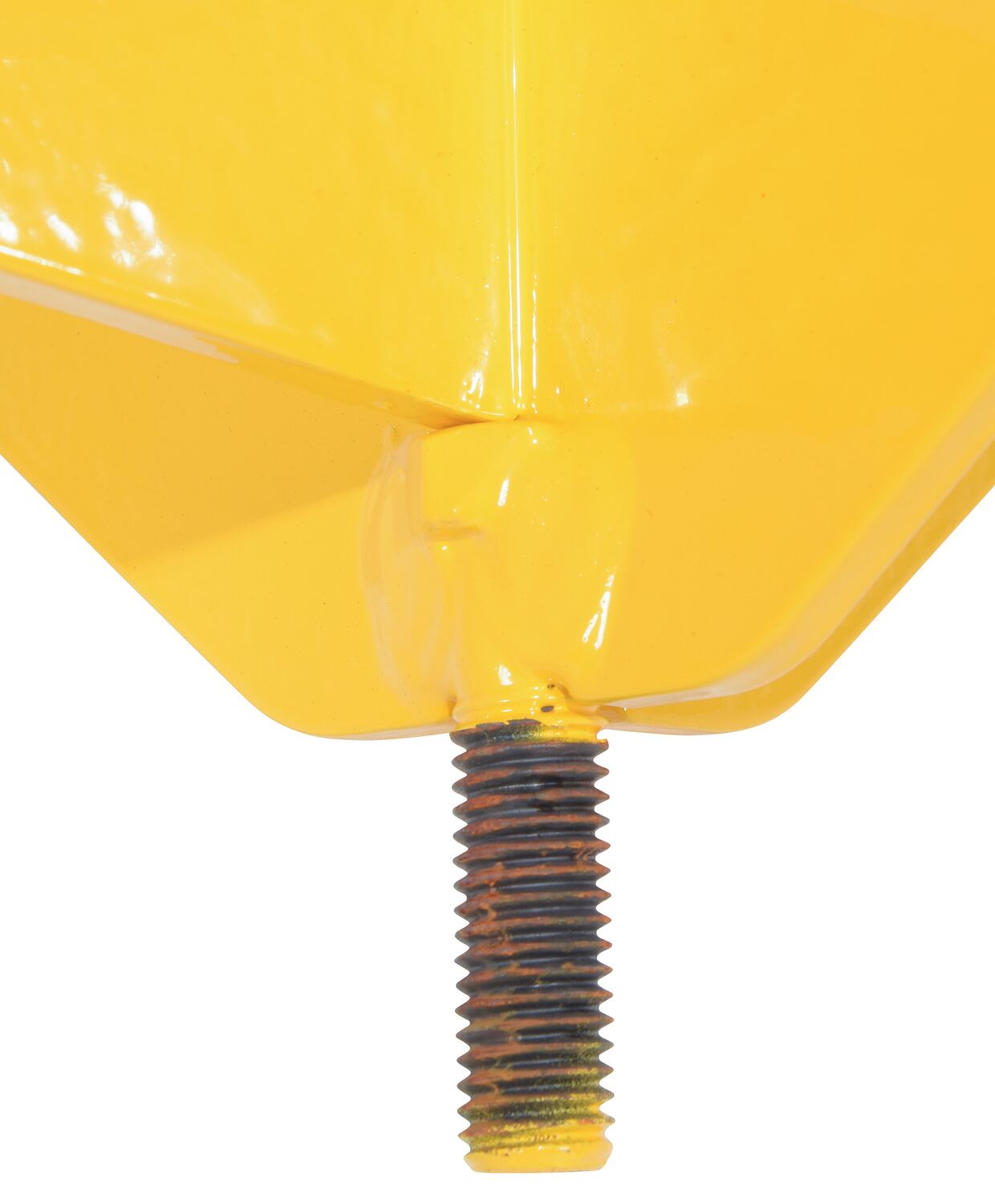

| LP-LL |  | Steel Thin Spin Lifting Loop Yellow | 90 Days Limited Warranty | 6 |
.
|
|||||||||||||||||||||||||||||||||||||
Thin Spins |
|||||||||||||||||||||||||||||||||||||
 |
|||||||||||||||||||||||||||||||||||||
When confronted with minimum floor space and only a hand pallet truck, the Thin Spin low-profile carousel is ideal for loading and unloading pallet applications. The Thin Spin is pallet truck loadable because of its sleek 7/8" overall height. The effective ramping length is 4-3/8"; slope is a mere 11 degrees. A safety detent lock restricts carousel rotation when not in use. Units require a starting force of 35 lbs. and a maintaining force of 25 lbs. Units are not suitable for wash down applications. Please contact factory. * Low-Profile design is ideal for use with Pallet Trucks Optional Lifting Loop:
|
|||||||||||||||||||||||||||||||||||||
 |
|||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||
Options. |
|||||||||||||||||||||||||||||||||||||
