Turntables with Powered Height Adjustment

model: TT-N-30-LA

TT-N-30-LA_D.jpg TT-N-30-LA_A.jpg TT-N-30-LA_B.jpg TT-N-30-LA_C.jpg TT-N-30-LA_1.jpg TT-N-30-LA_2.jpg More Images +
Turntables with Powered Height Adjustment
SERIES: TT

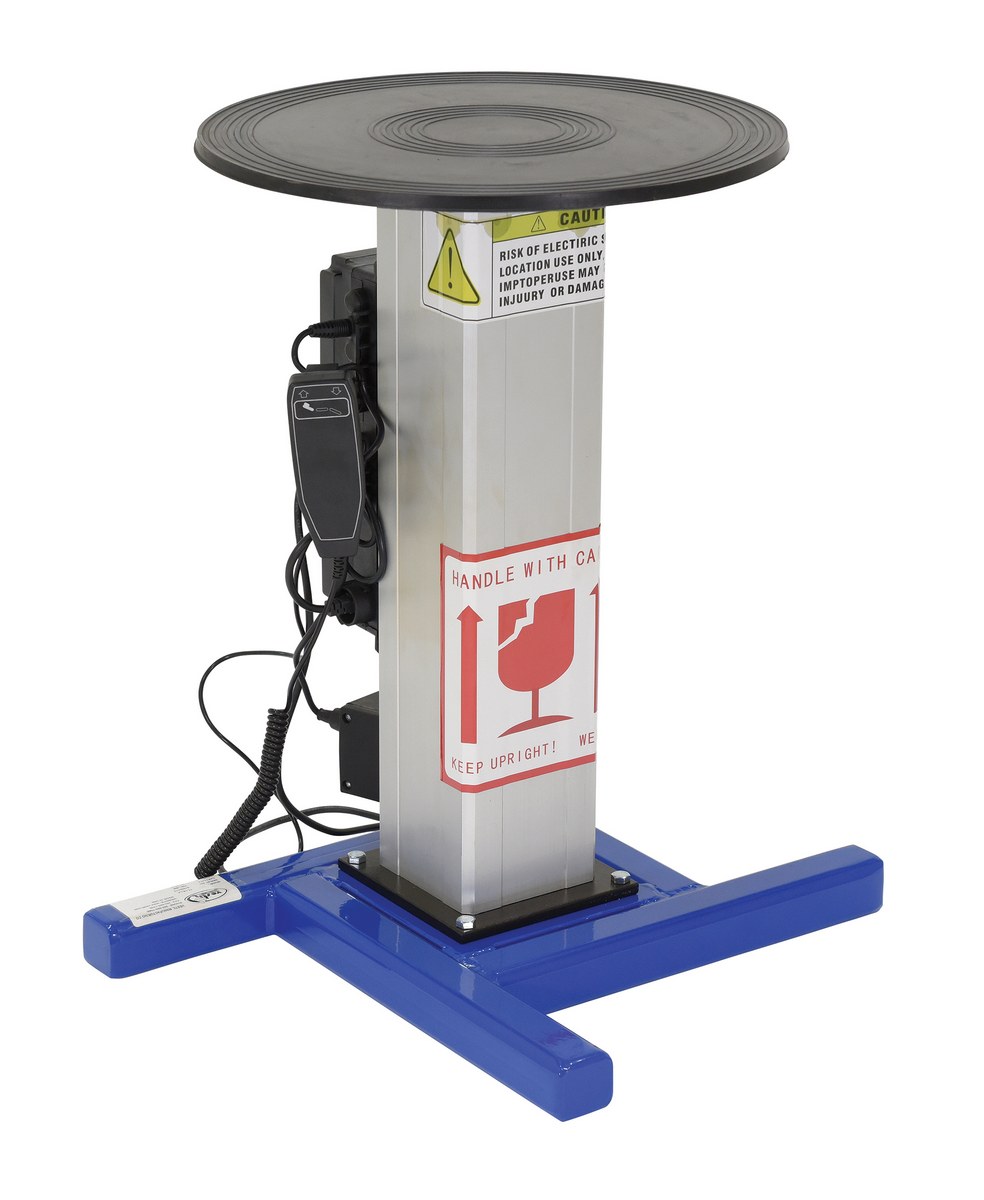

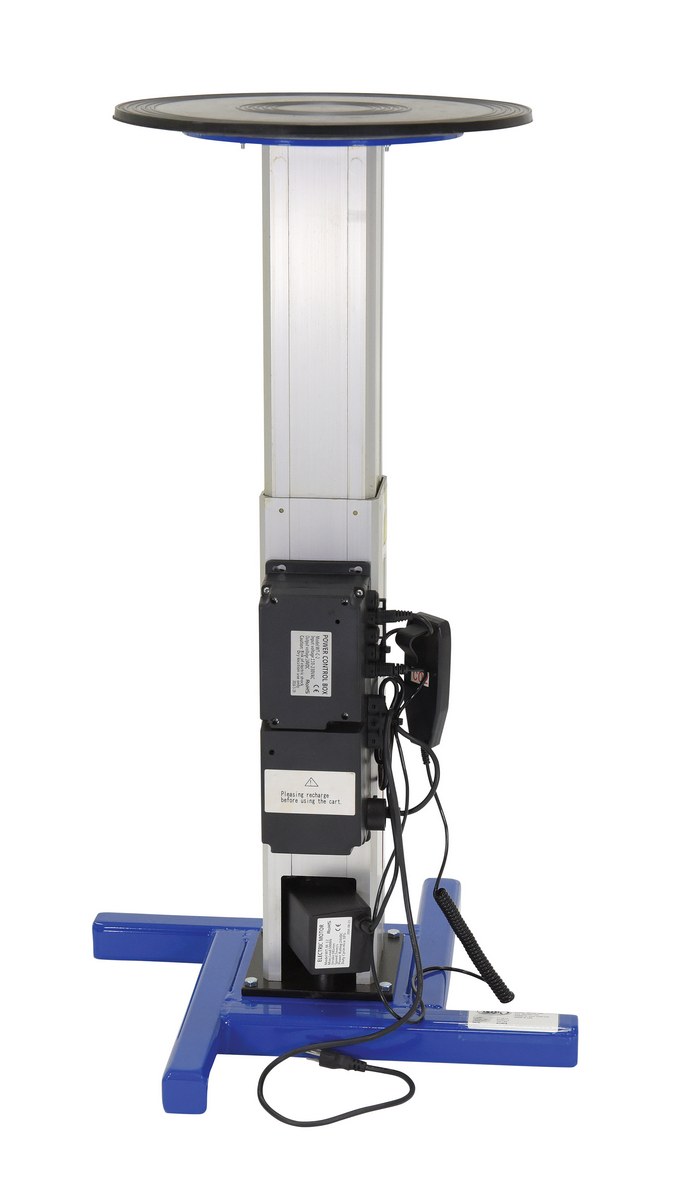

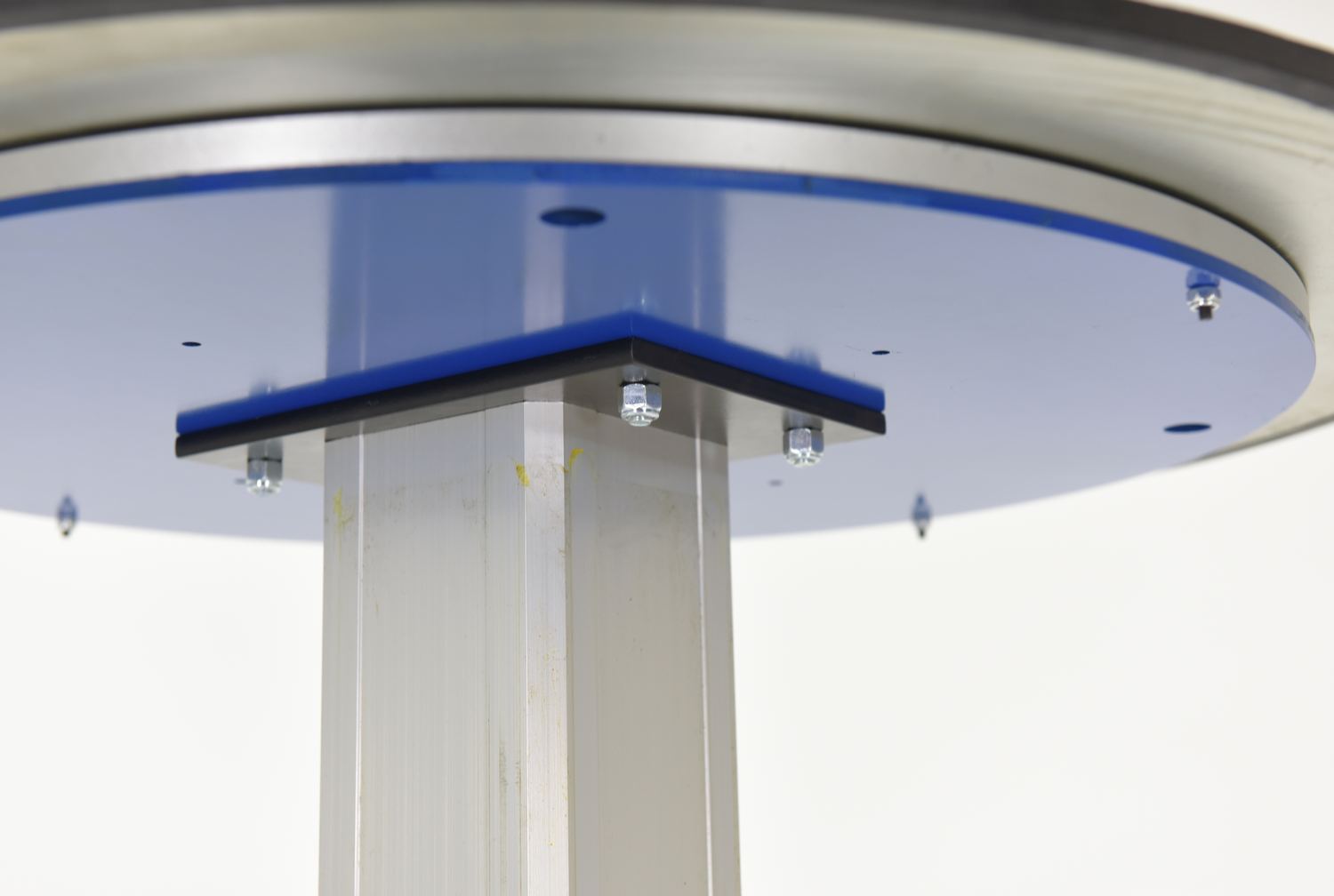

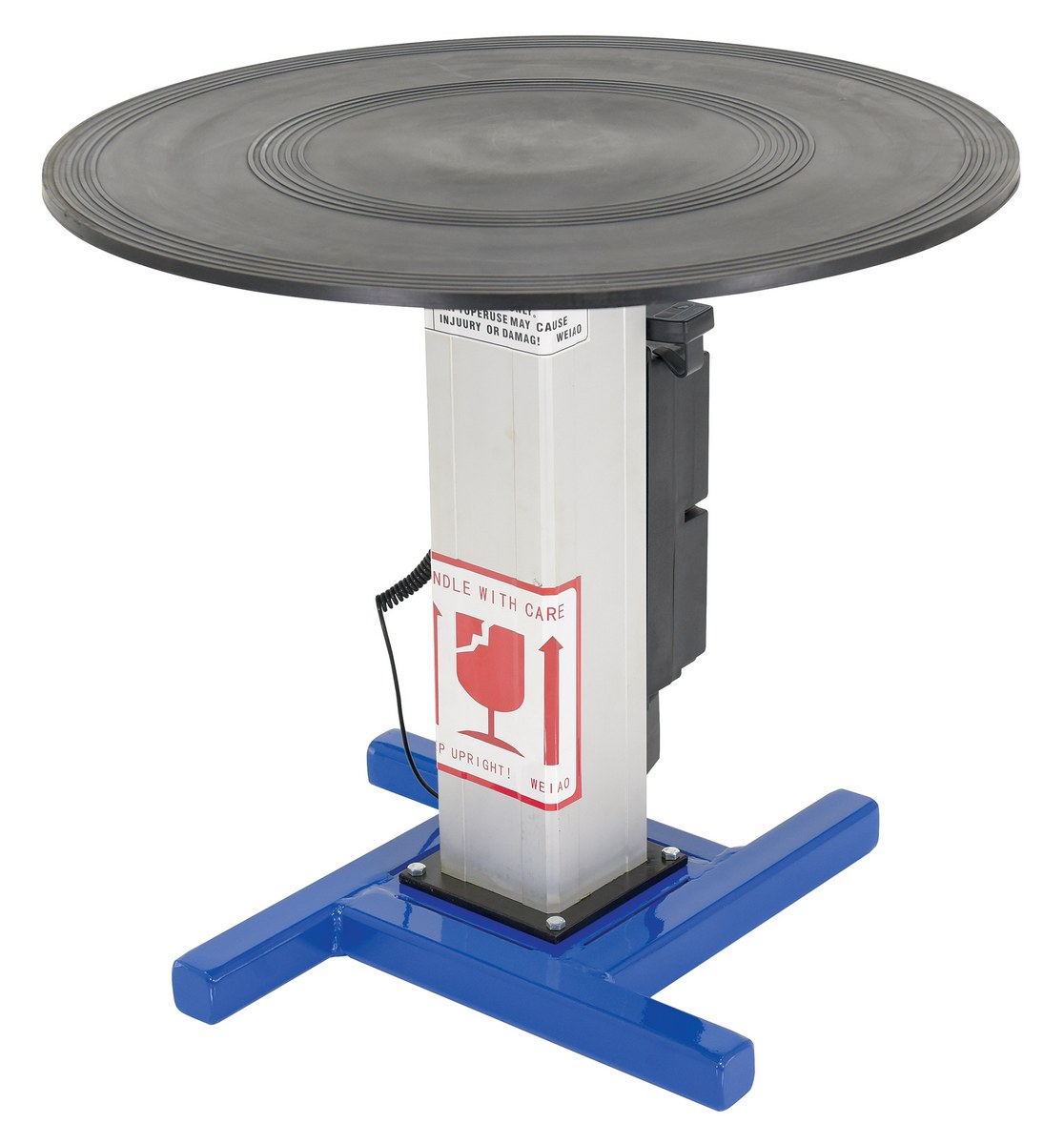

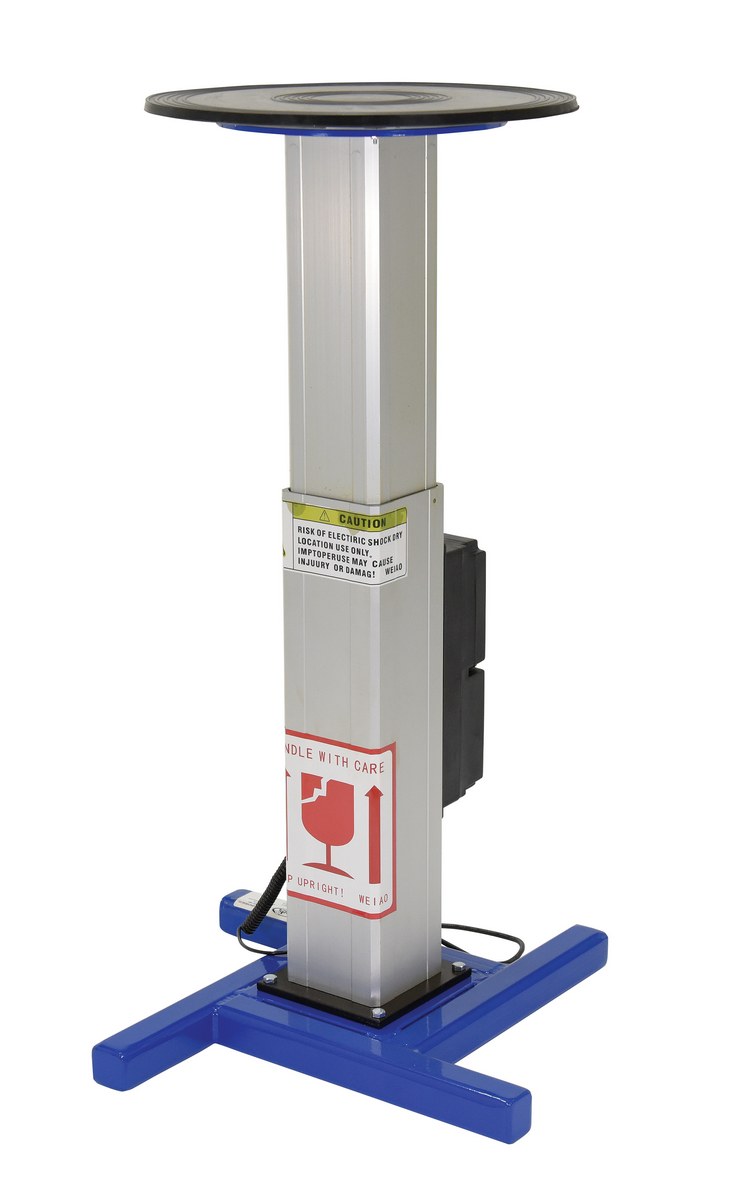

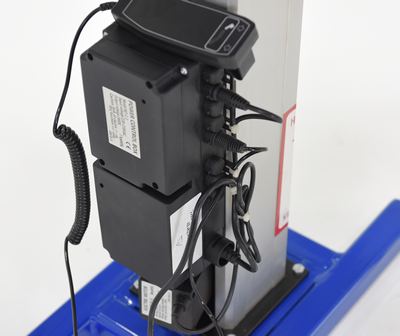

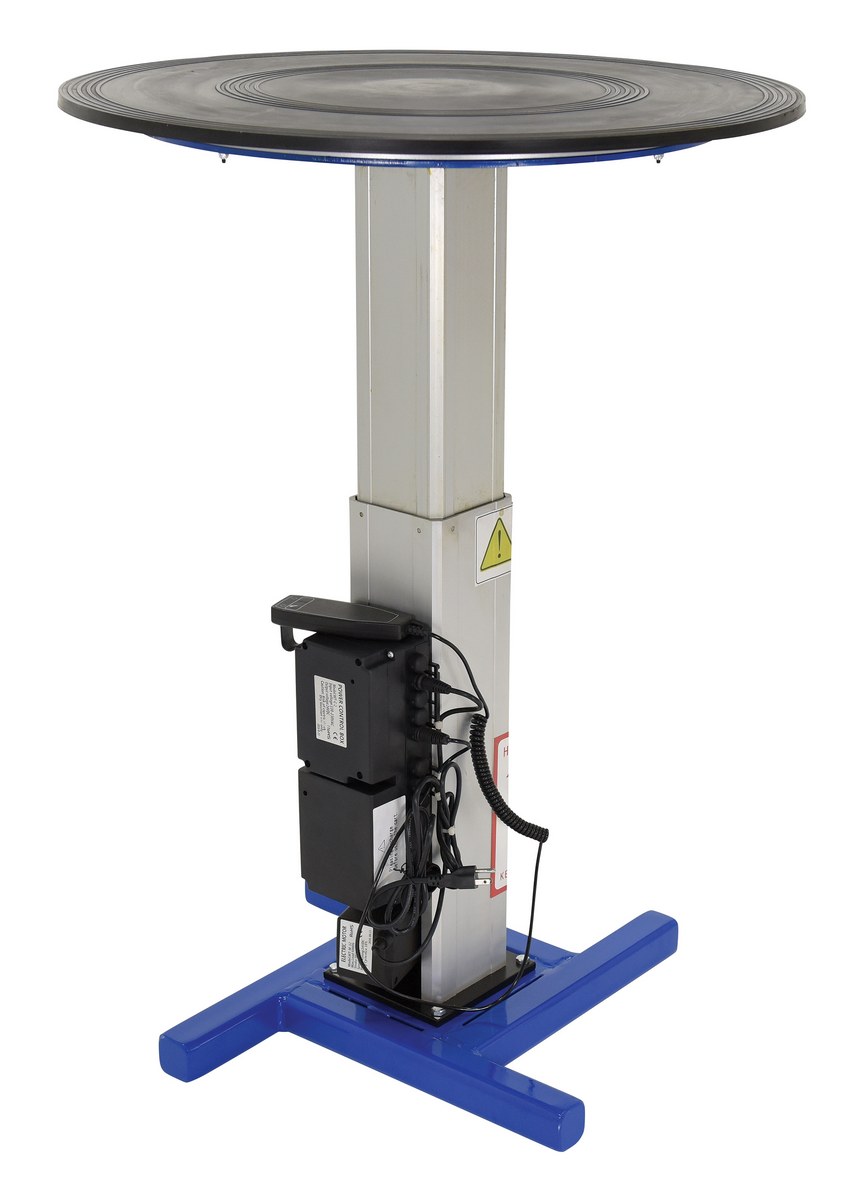

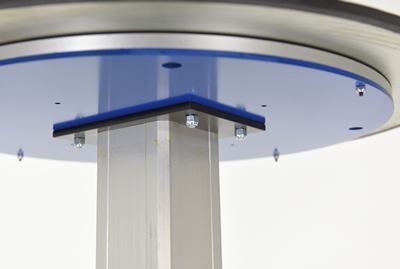

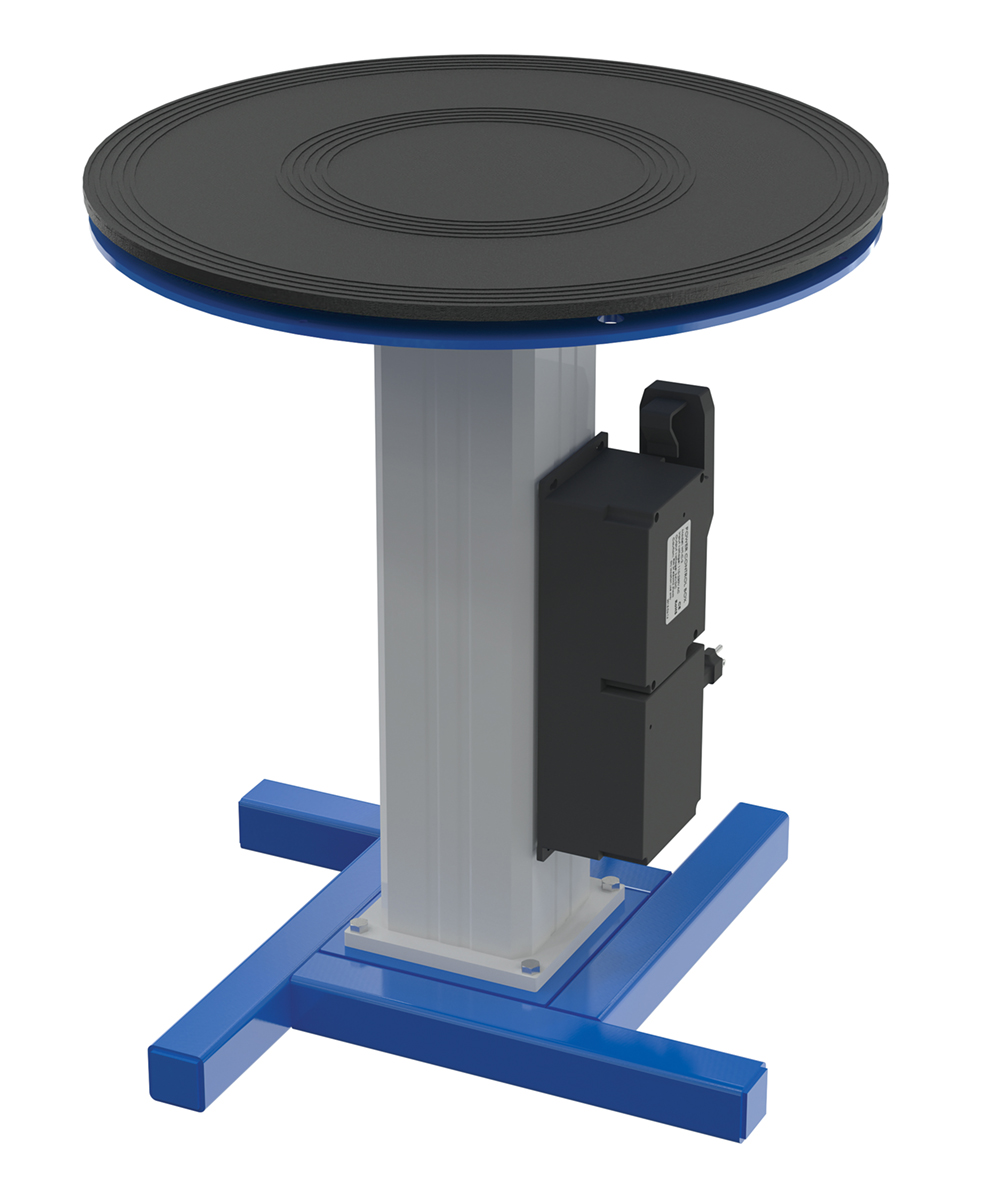

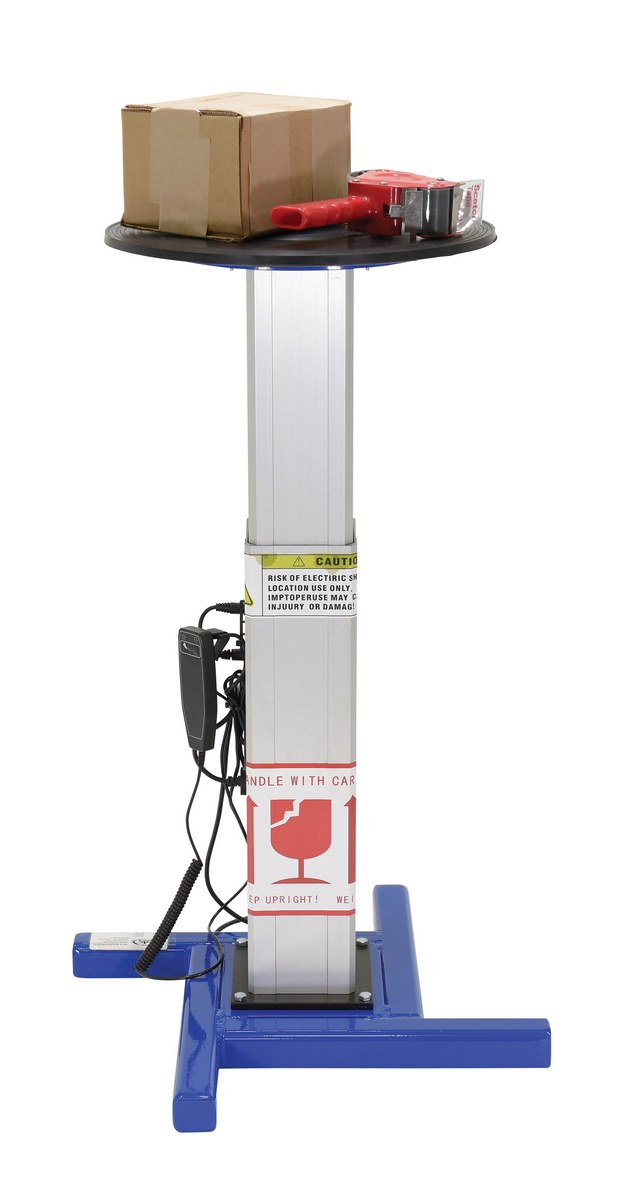

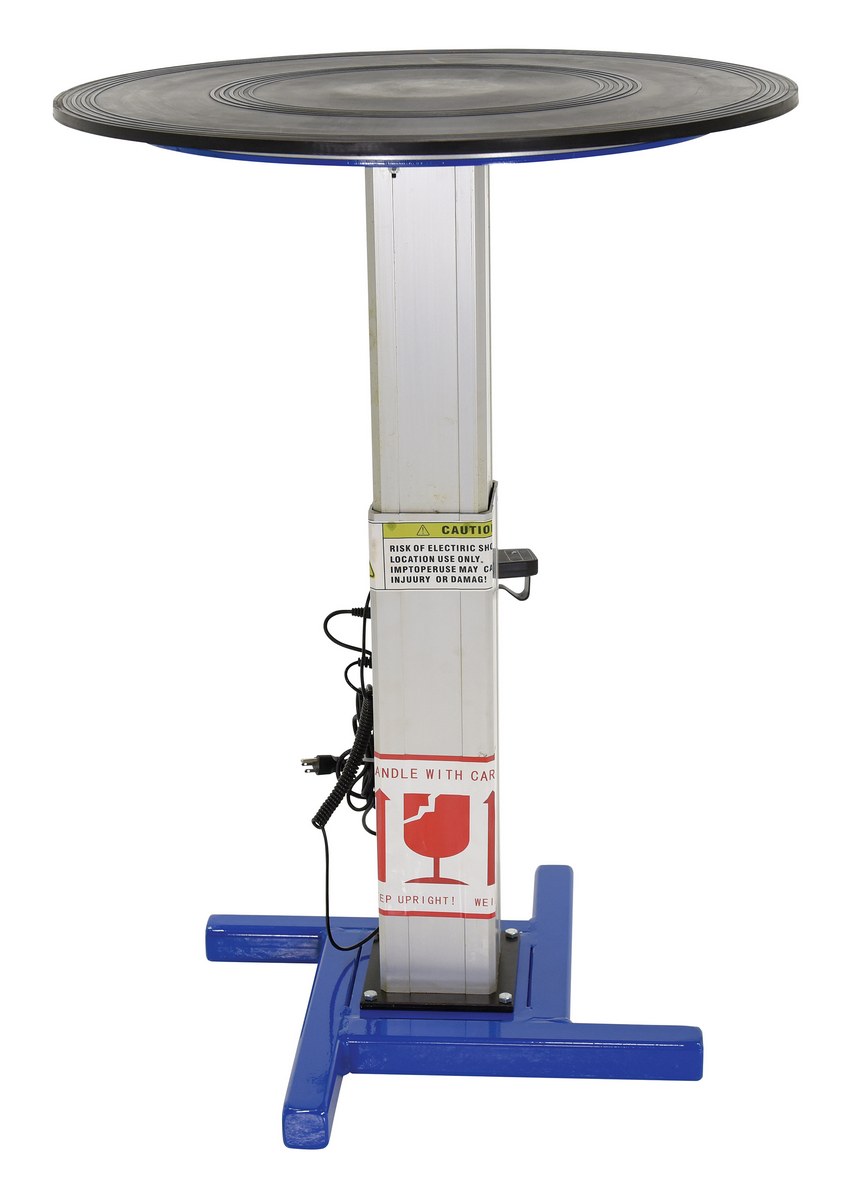

Turntables with Powered Height Adjustment allow the operator to raise or lower turntable to an ergonomic height. Each unit has a 360 degree manual turntable. Rugged 5/16" steel plate construction. DC power with hand control for height adjustment and features an on-board charger. Hand held pendant control connects to power unit with a coil cord. Height is adjusted with linear-actuator.

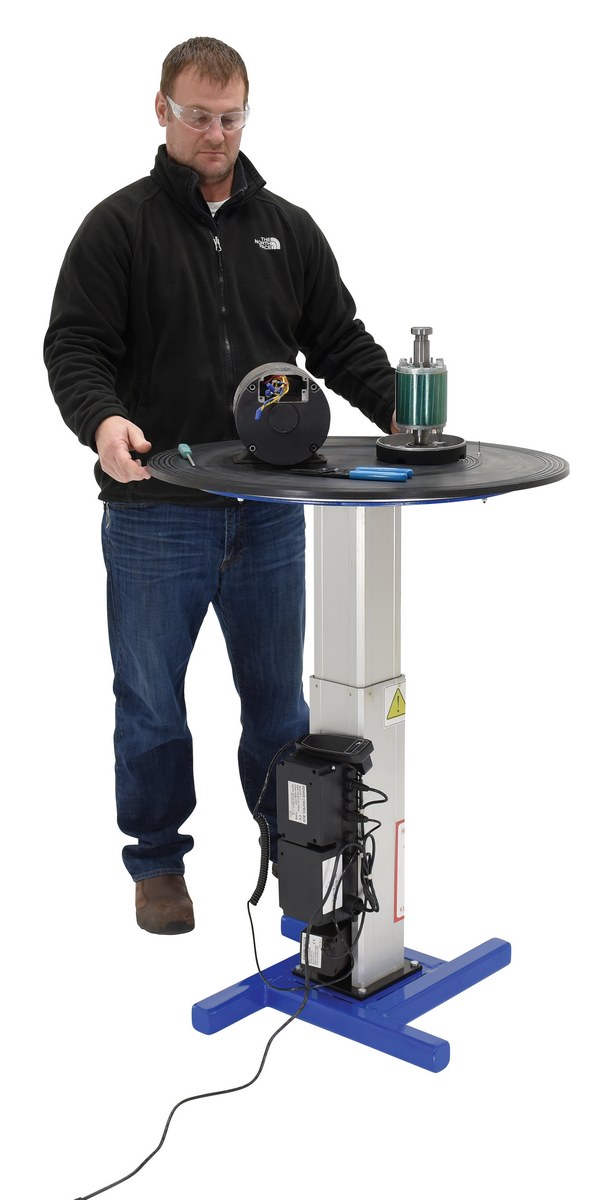

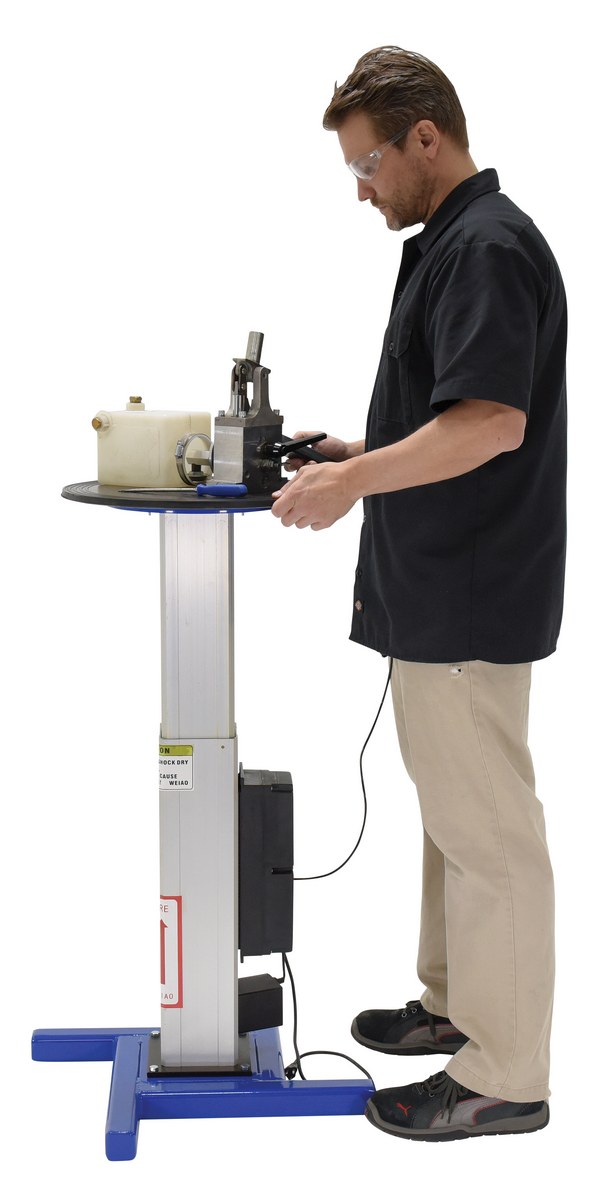

  • Manually rotated turntable allows easy ergonomic positioning
  • Power height adjustment provides maximum operator convenience
  • Rubber top surface provides added grip while turning product
  • Turntable motion allows access to areas out of view without walking around
Turntables with Powered Height Adjustment

model: TT-N-30-LA

Model # Description Attributes Net Wt.
(lbs)
TT-18-LA TT-18-LA90 Days Limited WarrantySteel Turntable 18 In. Diameter DC Powered 27-43 In. Height Adjustment 24V 750 Lb. Capacity BlueUniform Capacity (lb.): 750
Turntable Diameter (in.): 18		234
TT-N-24-LA TT-N-24-LA90 Days Limited WarrantySteel Turntable 24 In. Diameter DC Powered 28-43 In. Height Adjustment 24V 750 Lb. Capacity BlueUniform Capacity (lb.): 750
Turntable Diameter (in.): 24		290
TT-N-30-LA TT-N-30-LA90 Days Limited WarrantySteel Turntable 30 In. Diameter DC Powered 28-43 In. Height Adjustment 24V 750 Lb. Capacity BlueUniform Capacity (lb.): 750
Turntable Diameter (in.): 30		330

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Dimension Image = Works w/ Skid Only = Flatbed Truck Required

TT-18-LA
TT-N-24-LA
TT-N-30-LA
PDFs will open in a new window when clicked.

Manuals

TT-LA

TT

Survey Sheets

TT-18-LA

Engineering Drawings

TT-18-LA

TT-N-24-LA

TT-N-30-LA

Testing Certificates

TT-18-LA

TT-N-24-LA

TT-N-30-LA

SDS Sheets

Lithium Ion Rechargeable Battery Cell
TT-18-LA SDS

Lithium Ion Rechargeable Battery Cell
TT-N-24-LA SDS

Lithium Ion Rechargeable Battery Cell
TT-N-30-LA SDS

Other PDFs

No "Other PDFs" For This Product







Visit Our Youtube Channel For All Available Videos For All Products
Can you adjust the height of Model: TT-18-LA while the turntable is rotating?
The turntable top and the linear actuator function independently of one another. The turntable is manual rotation, and the linear actuated height adjustment is powered.
How fast does it move up and down?
It takes approximately 1-1/2 minutes to go from the lowered position to the raised position.
