Beam Clamps

Print Friendly

Related Items
Model Chart
PDF's
Image Gallery
Beam Clamps

model: BC-8

BC-8_A.jpg BC-8_B.jpg BC-8_C.jpg BC-8_E.jpg BC-8_F.jpg BC-8_G.jpg BC-8_H.jpg BC-8_I.jpg More Images +
Beam Clamps
SERIES: BC

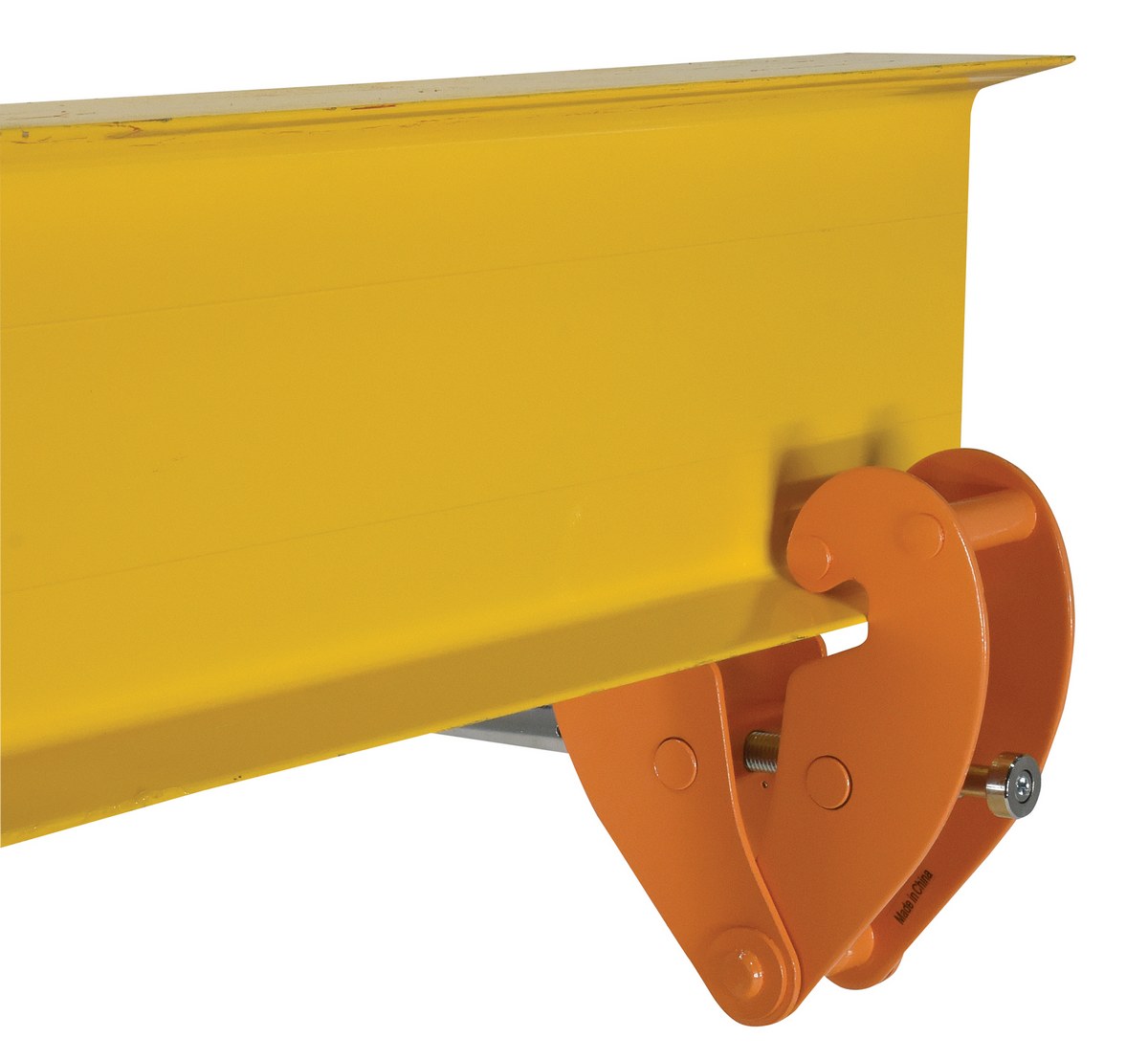

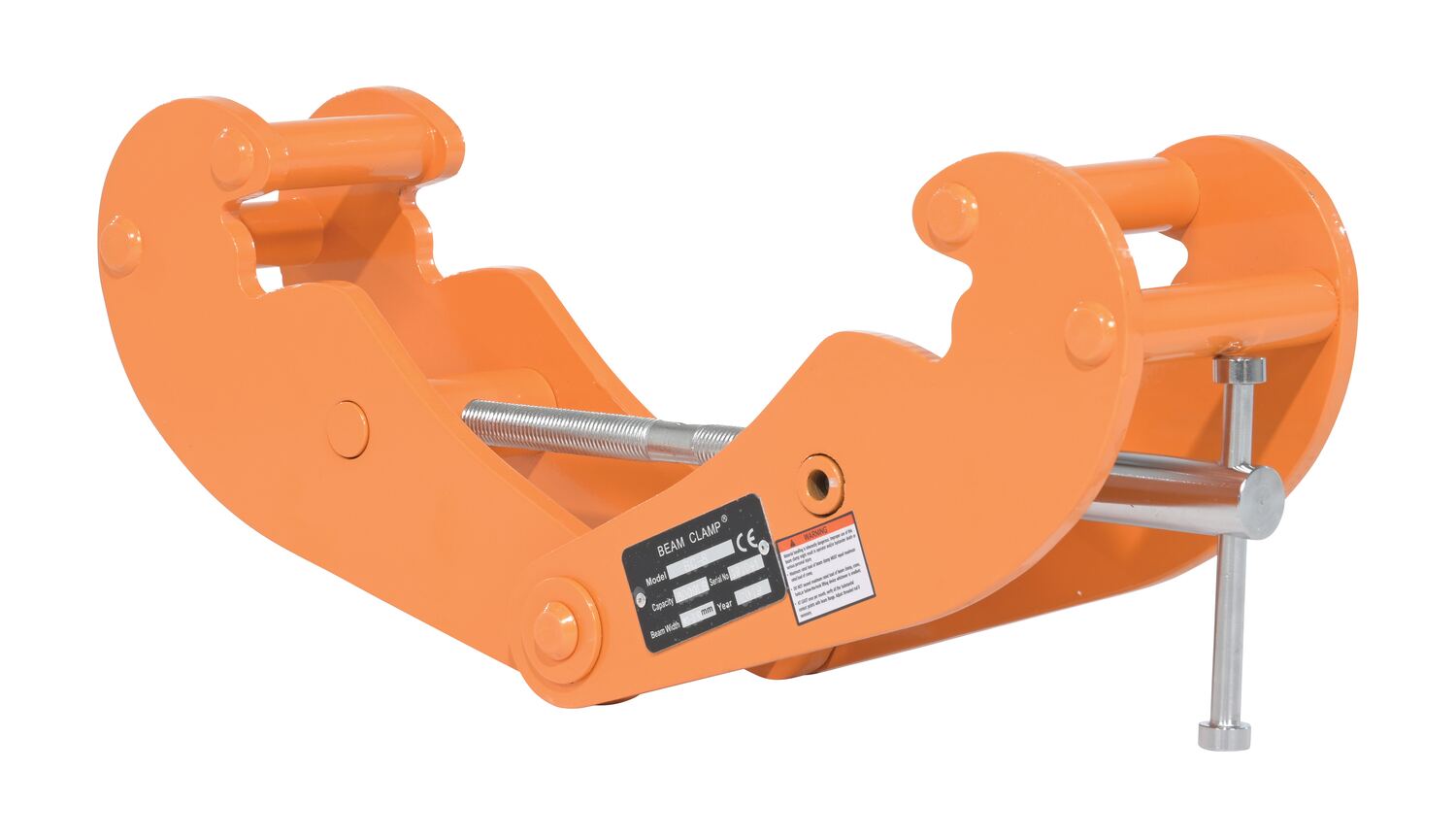

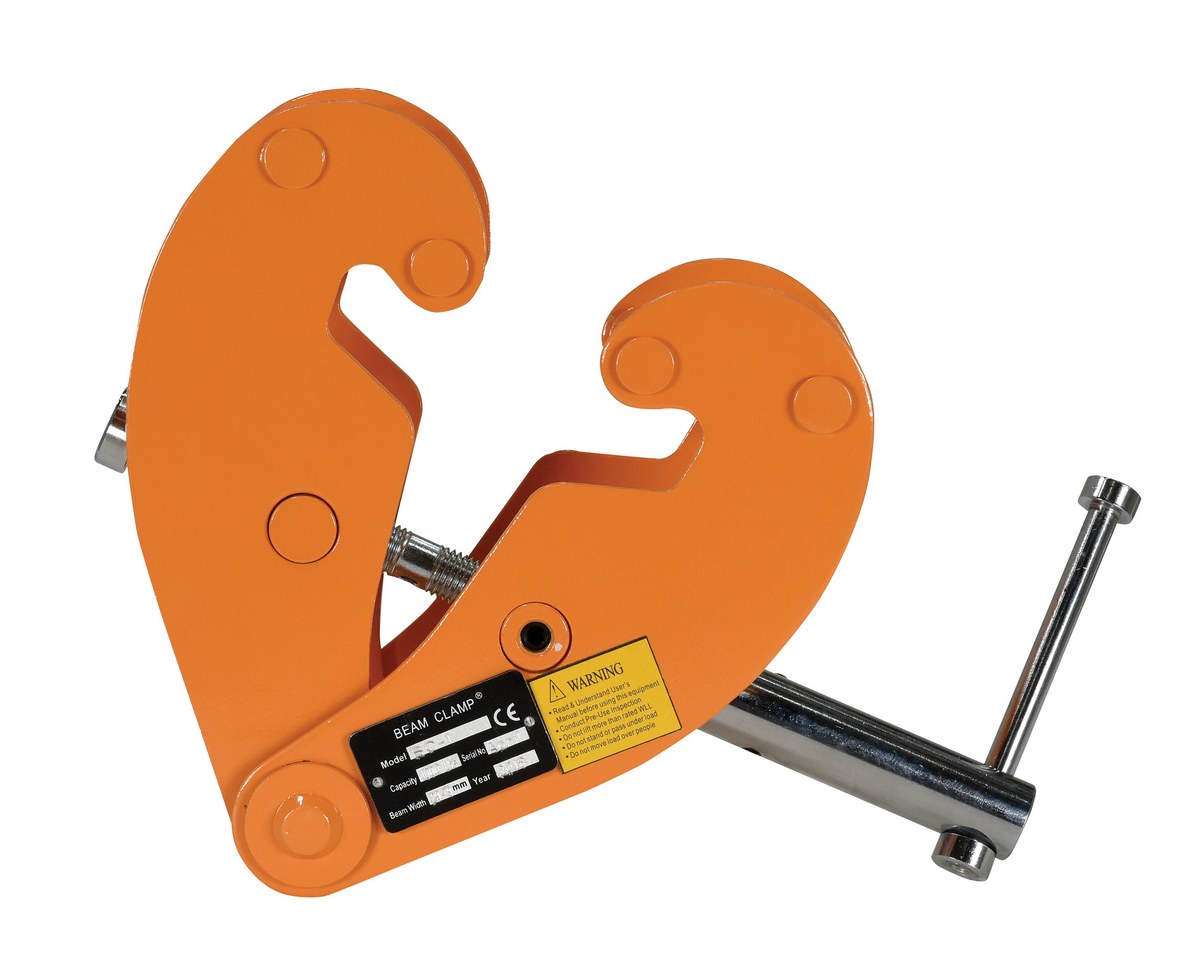

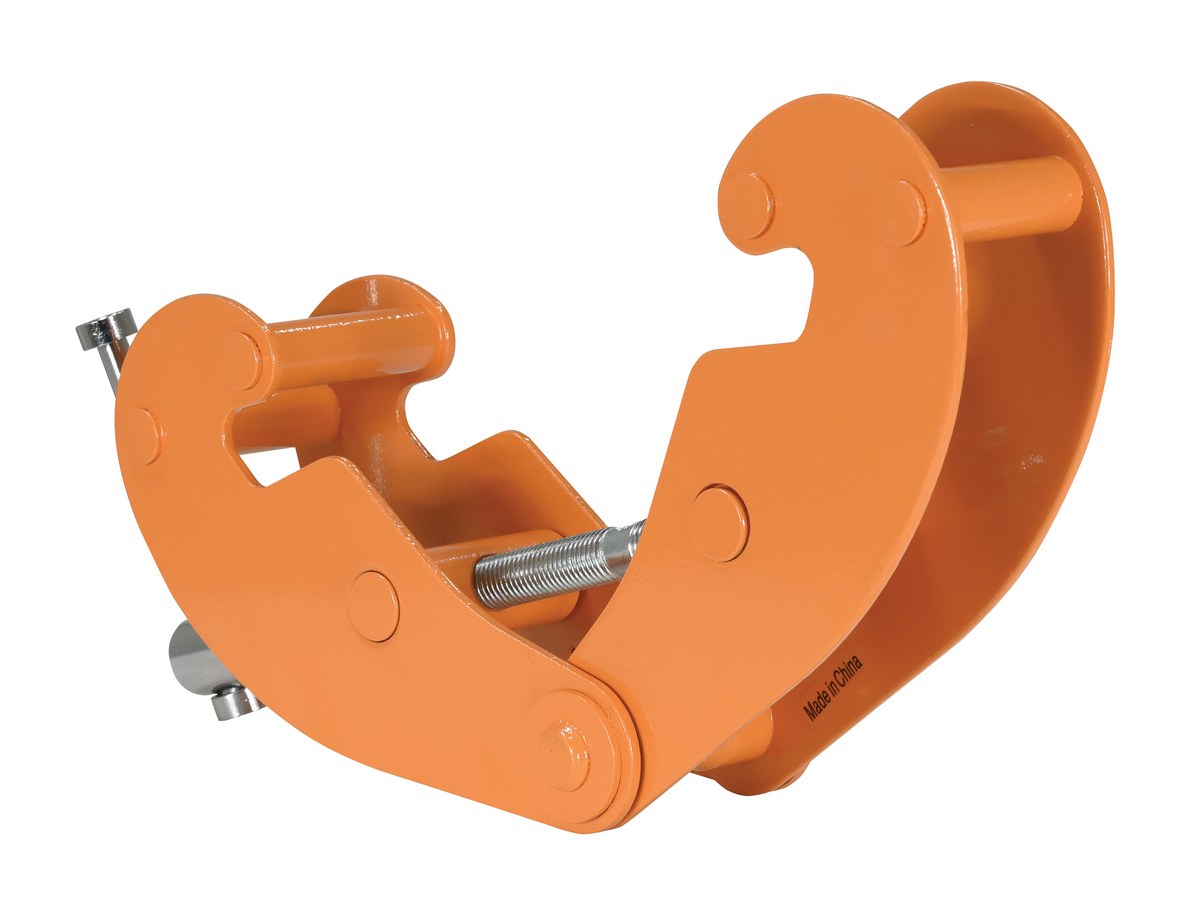

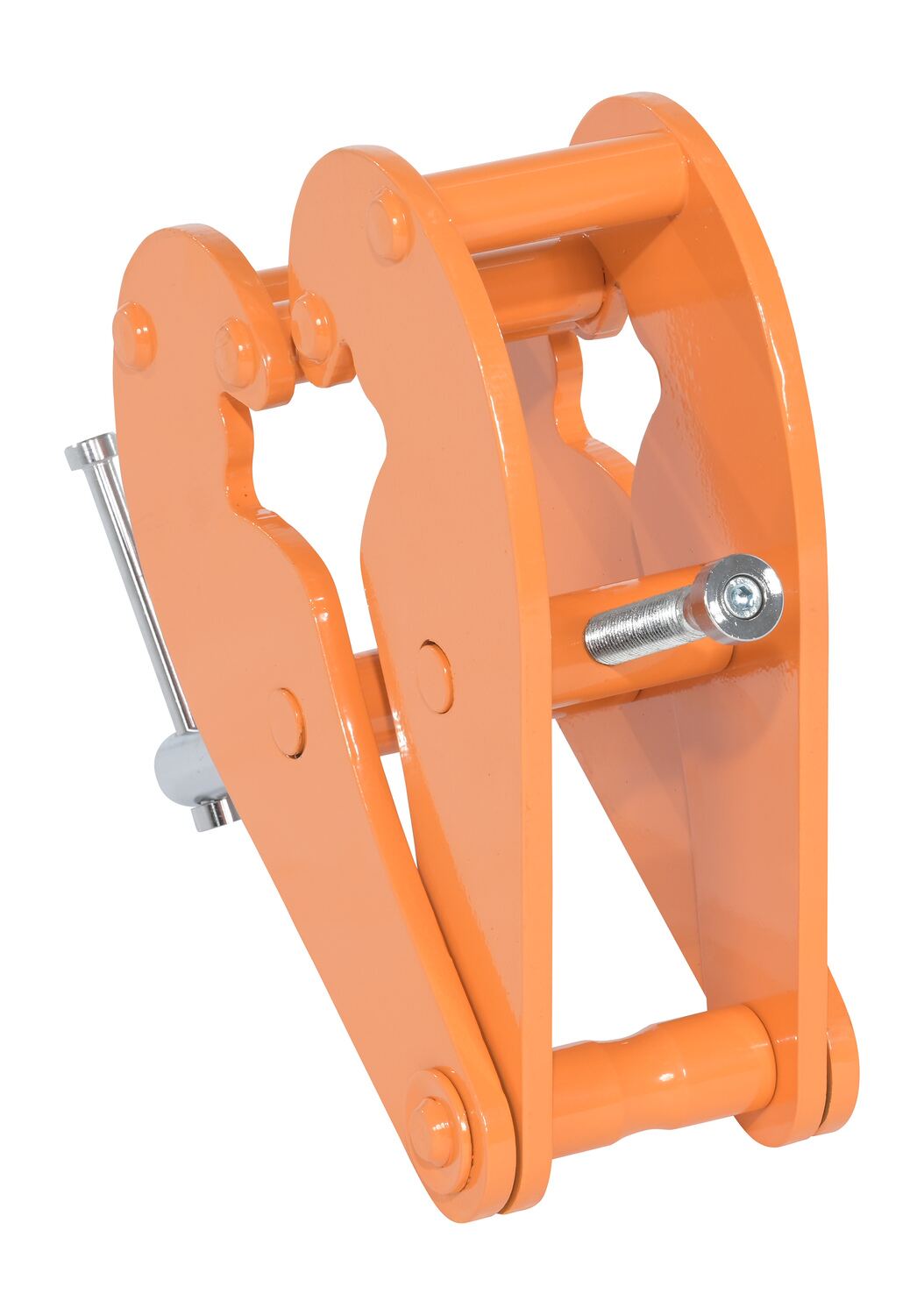

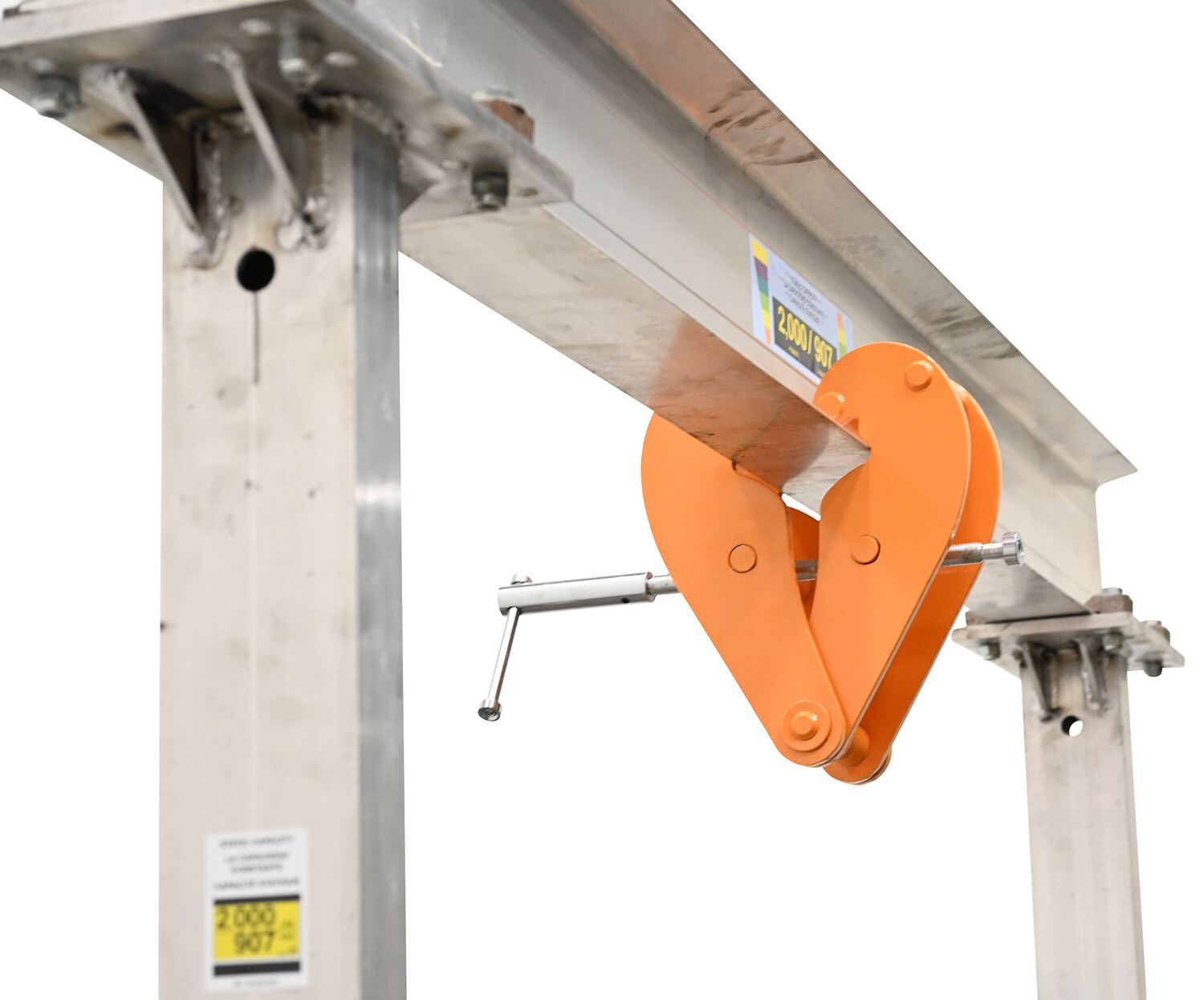

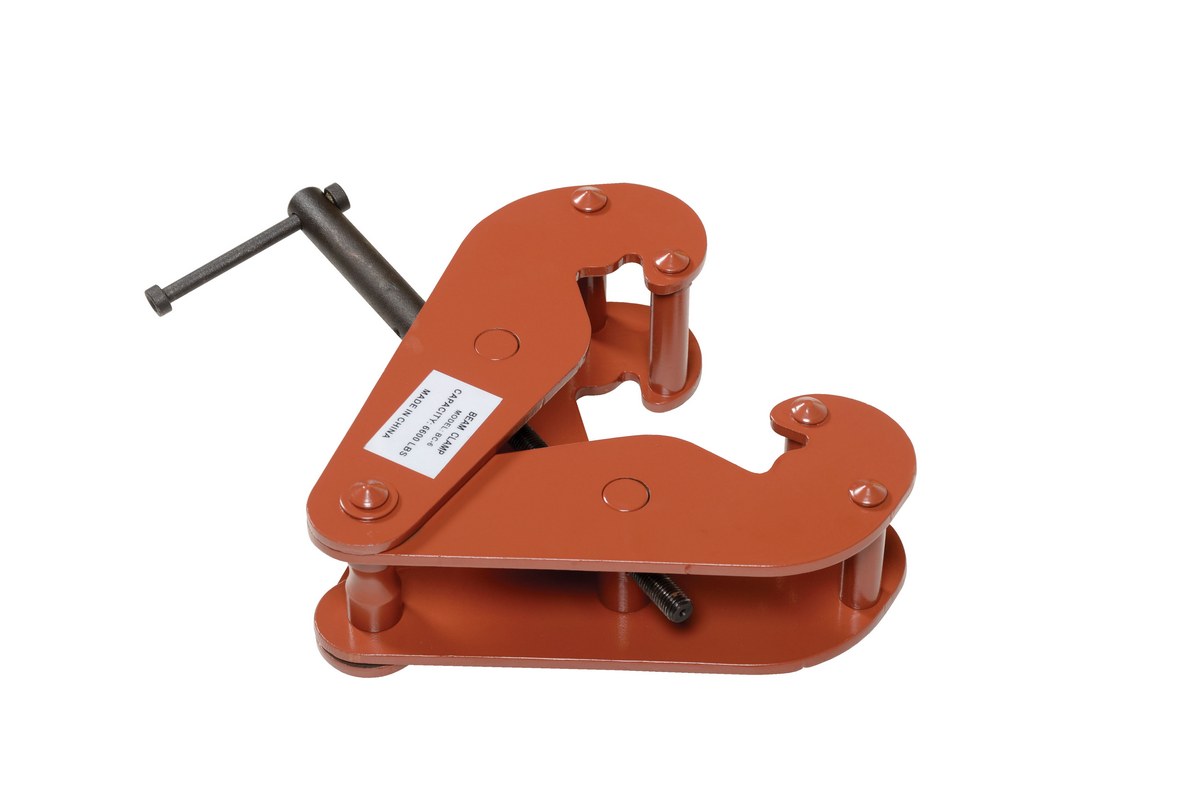

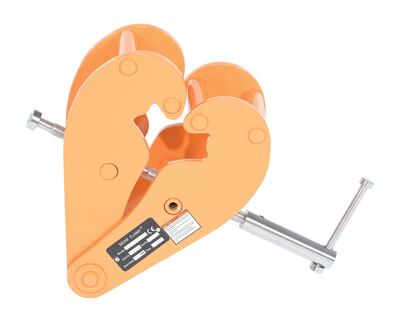

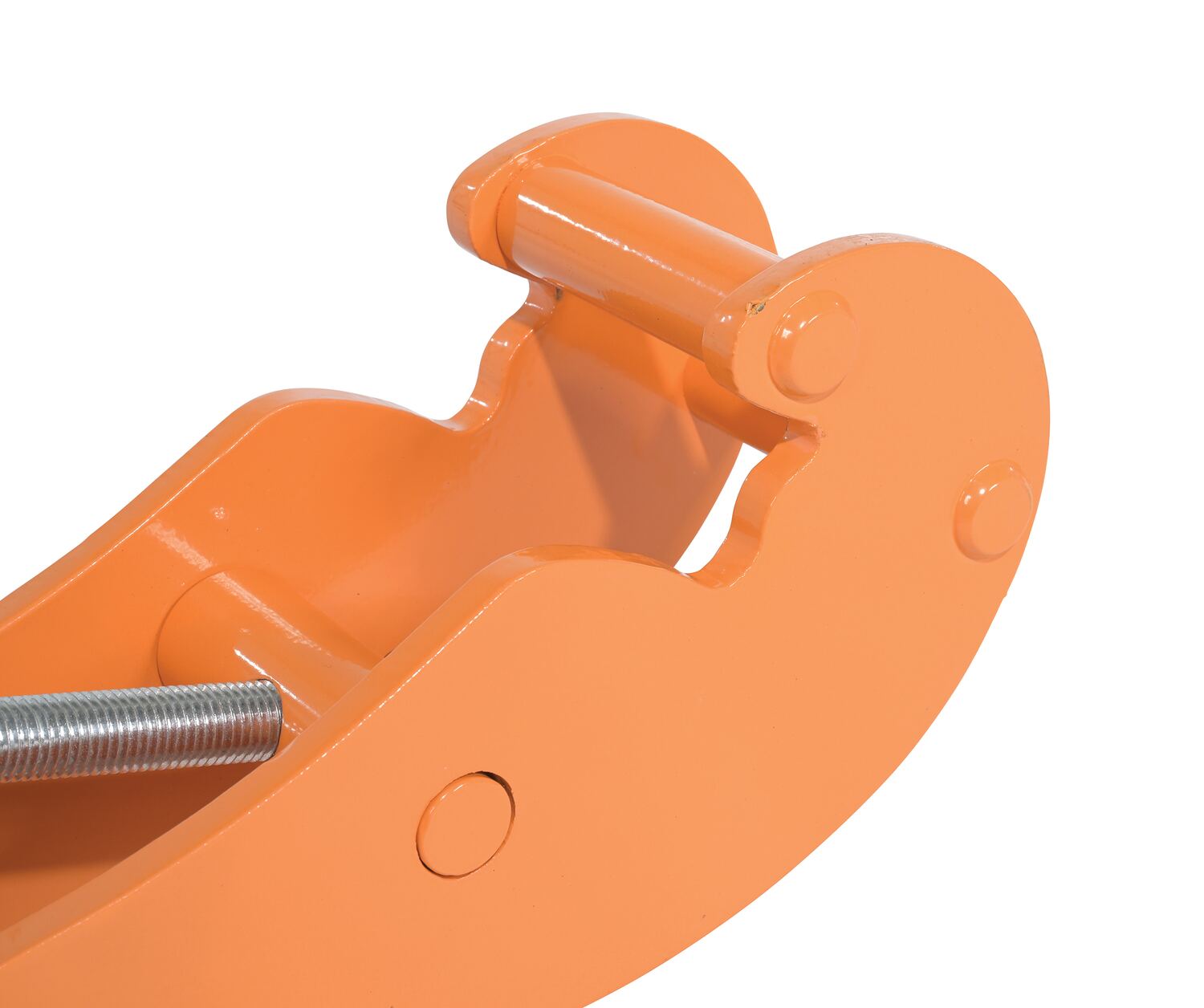

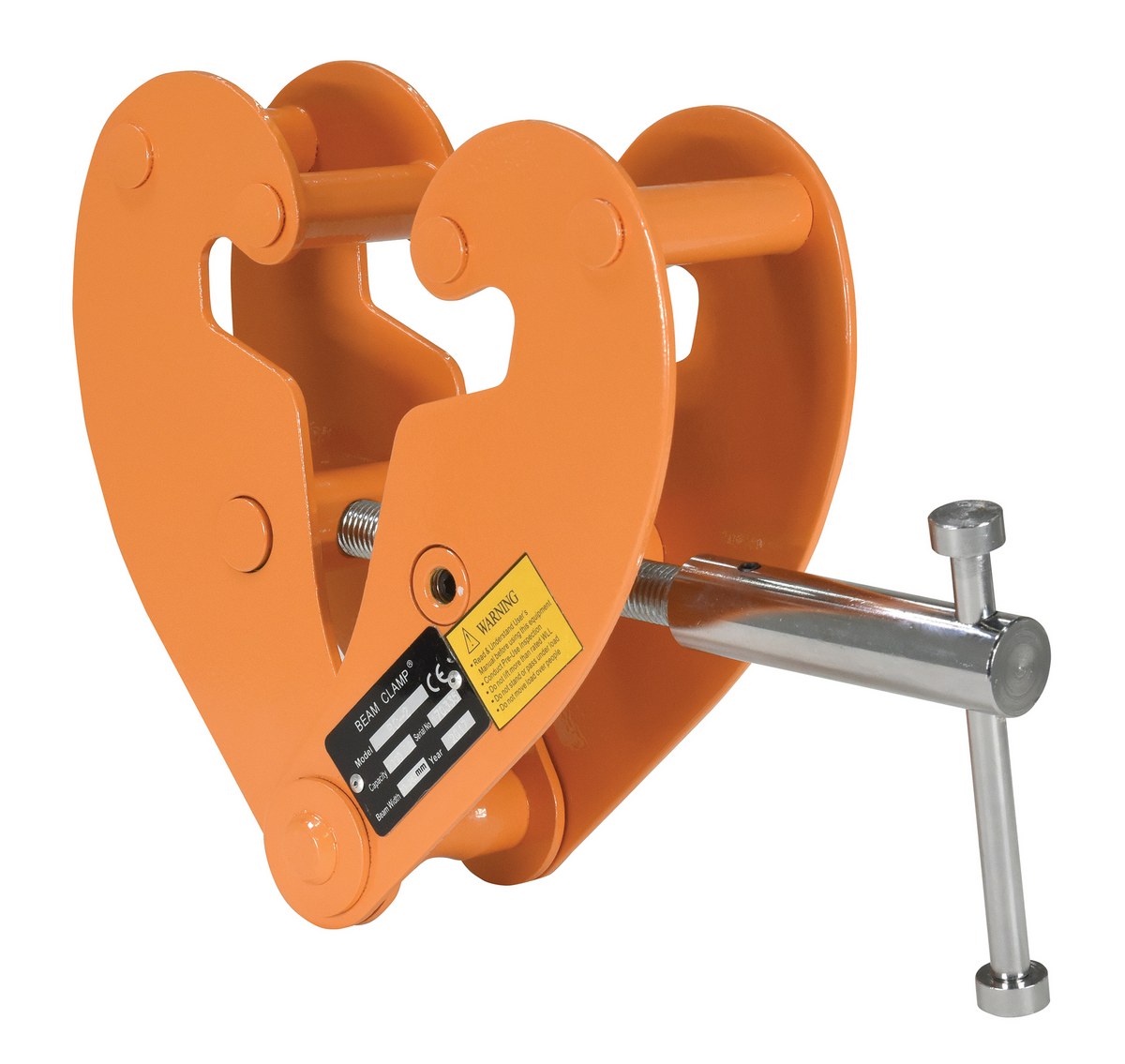

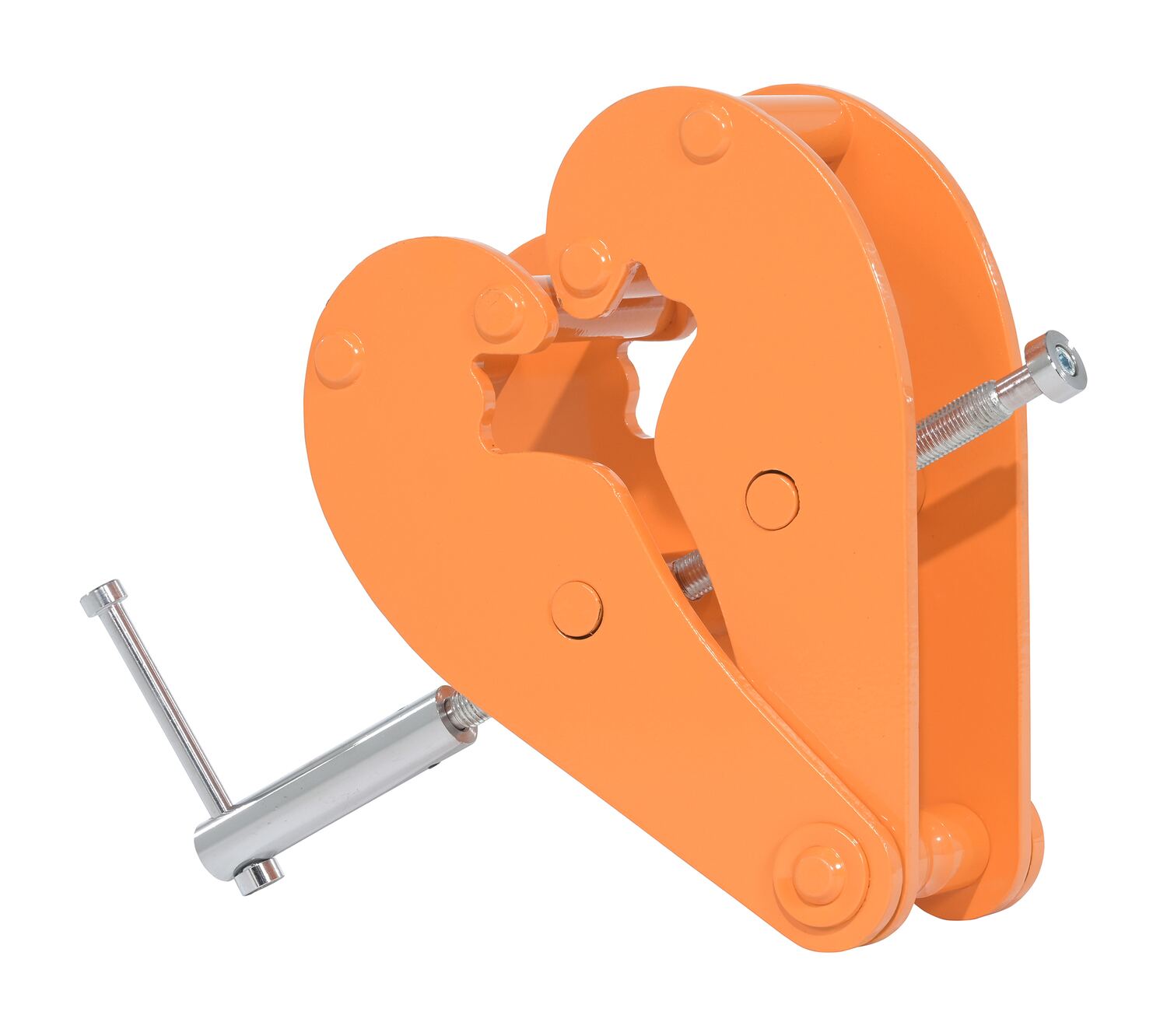

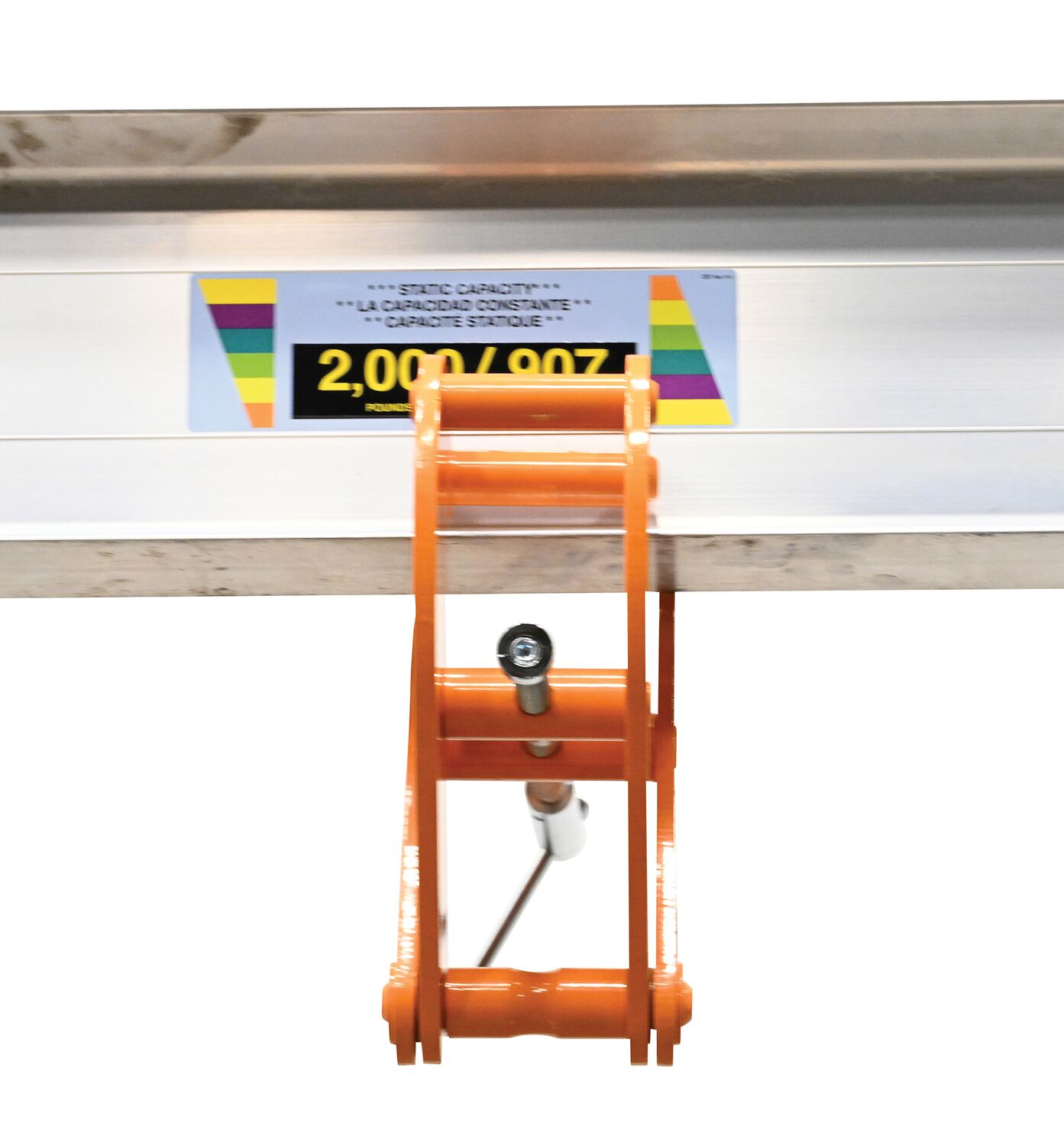

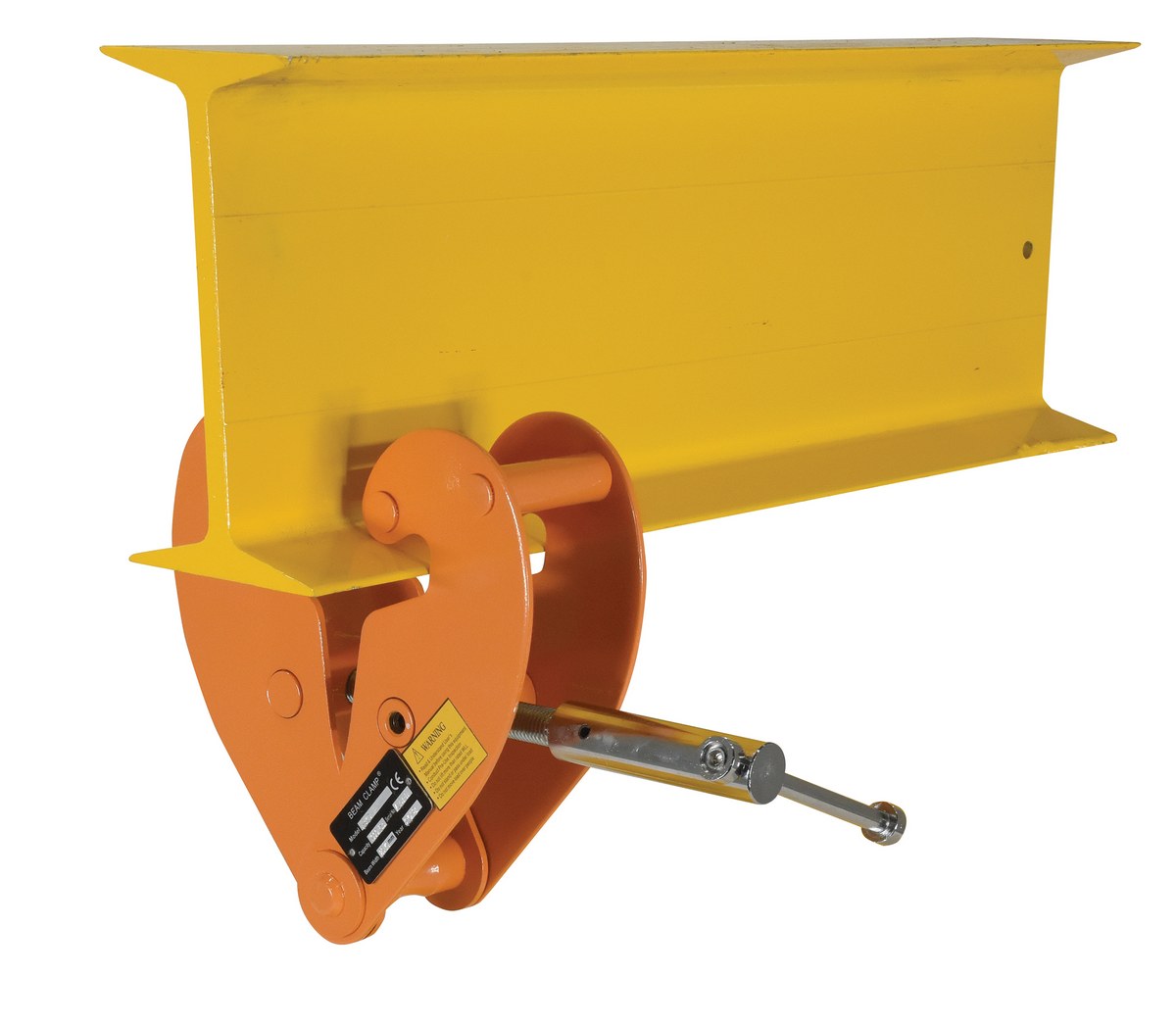

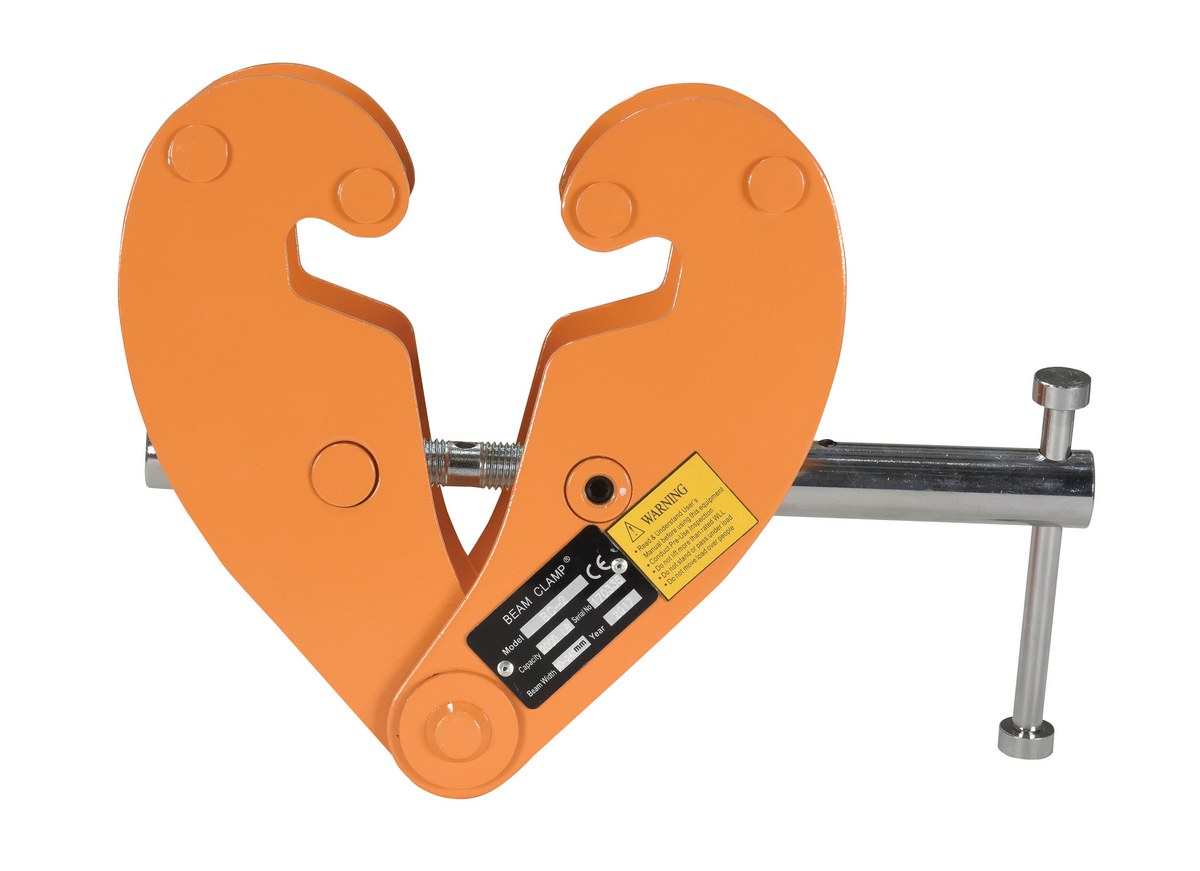

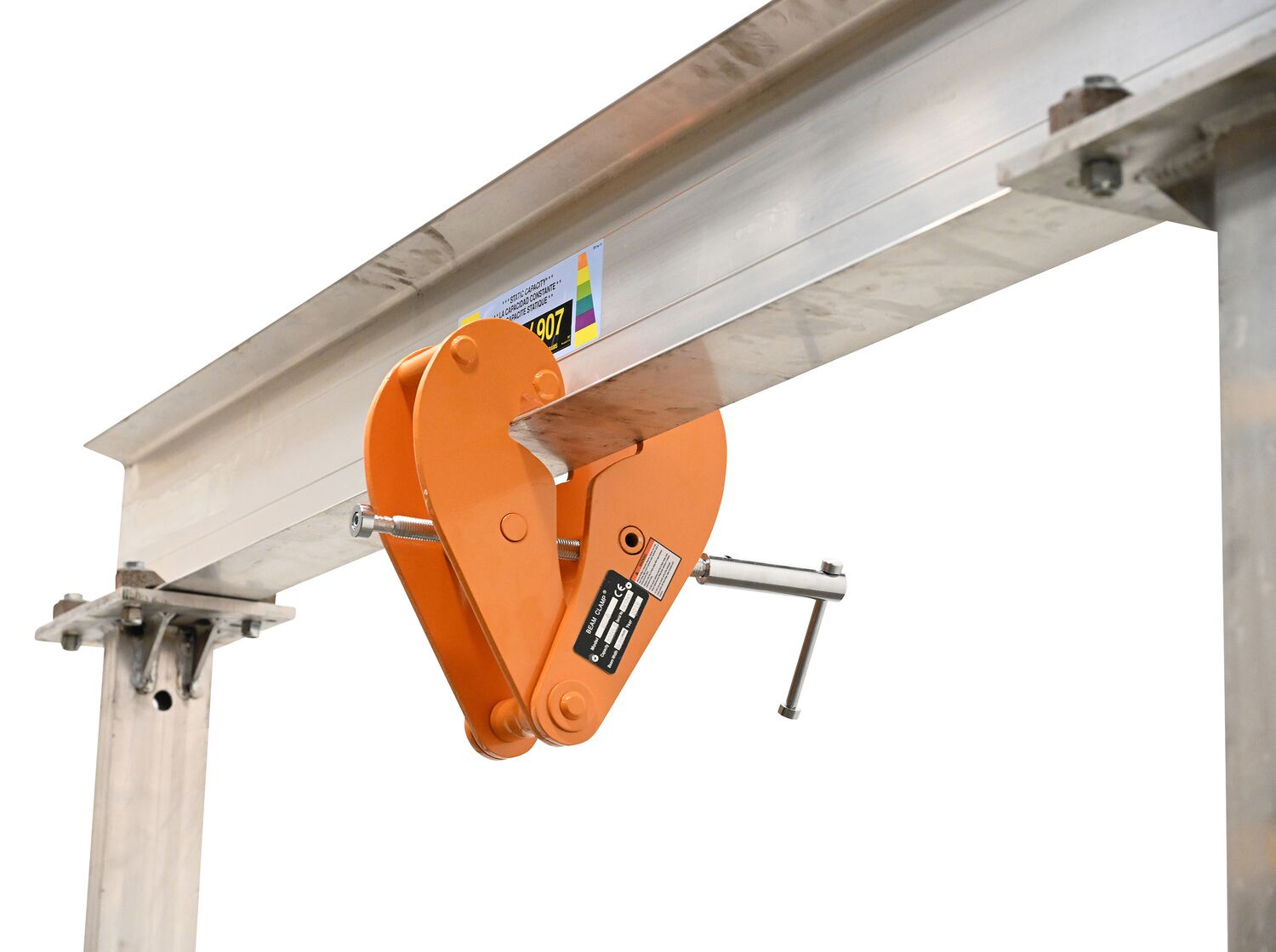

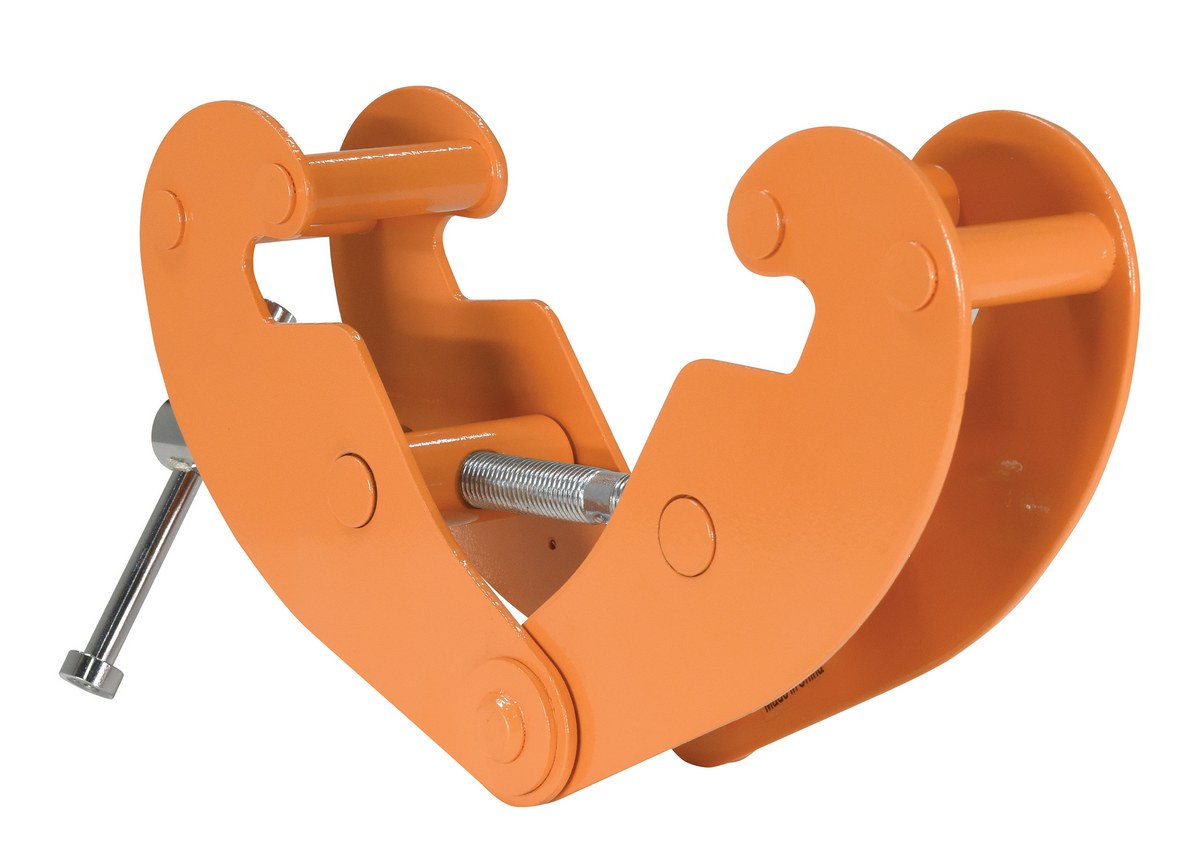

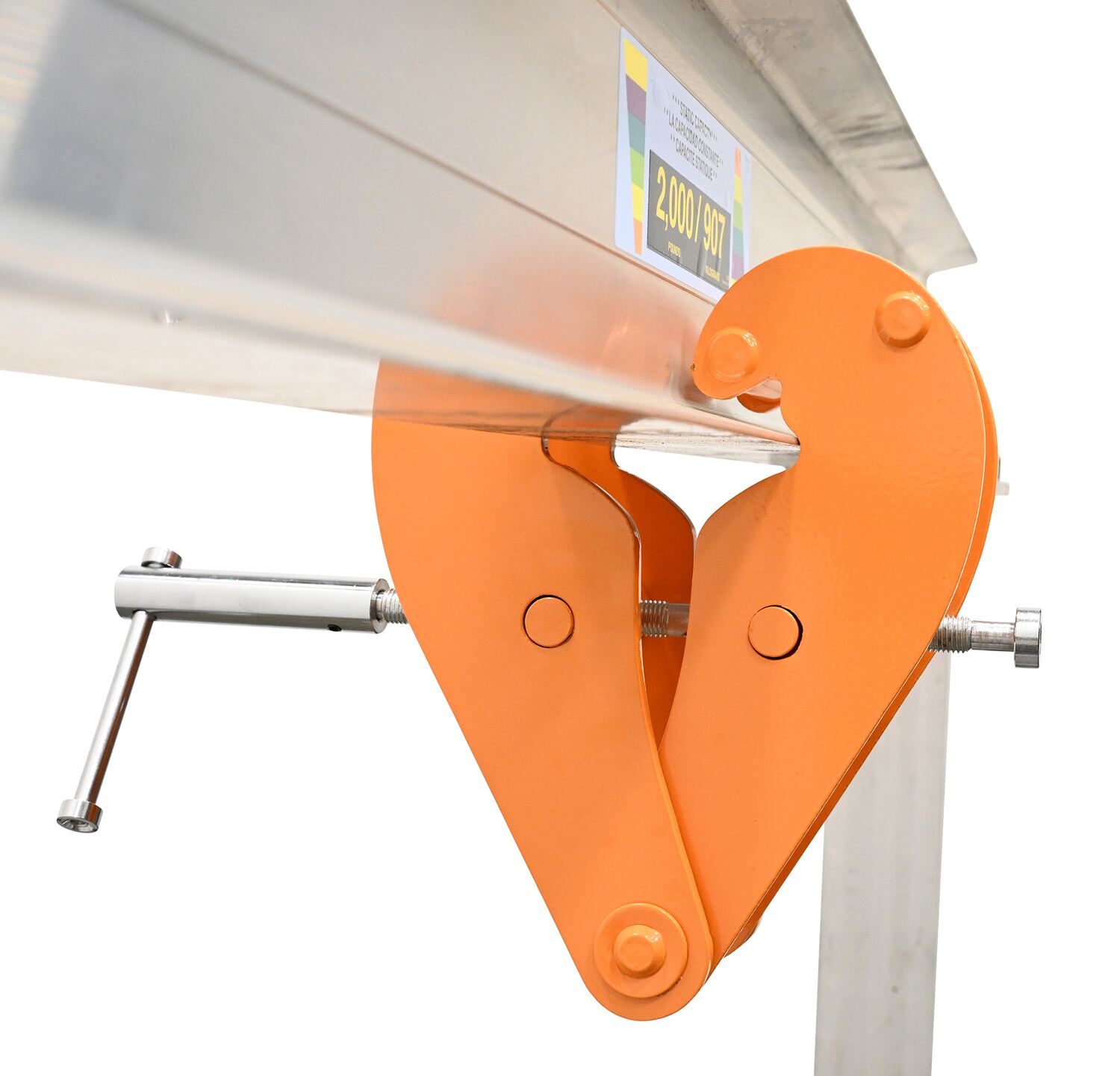

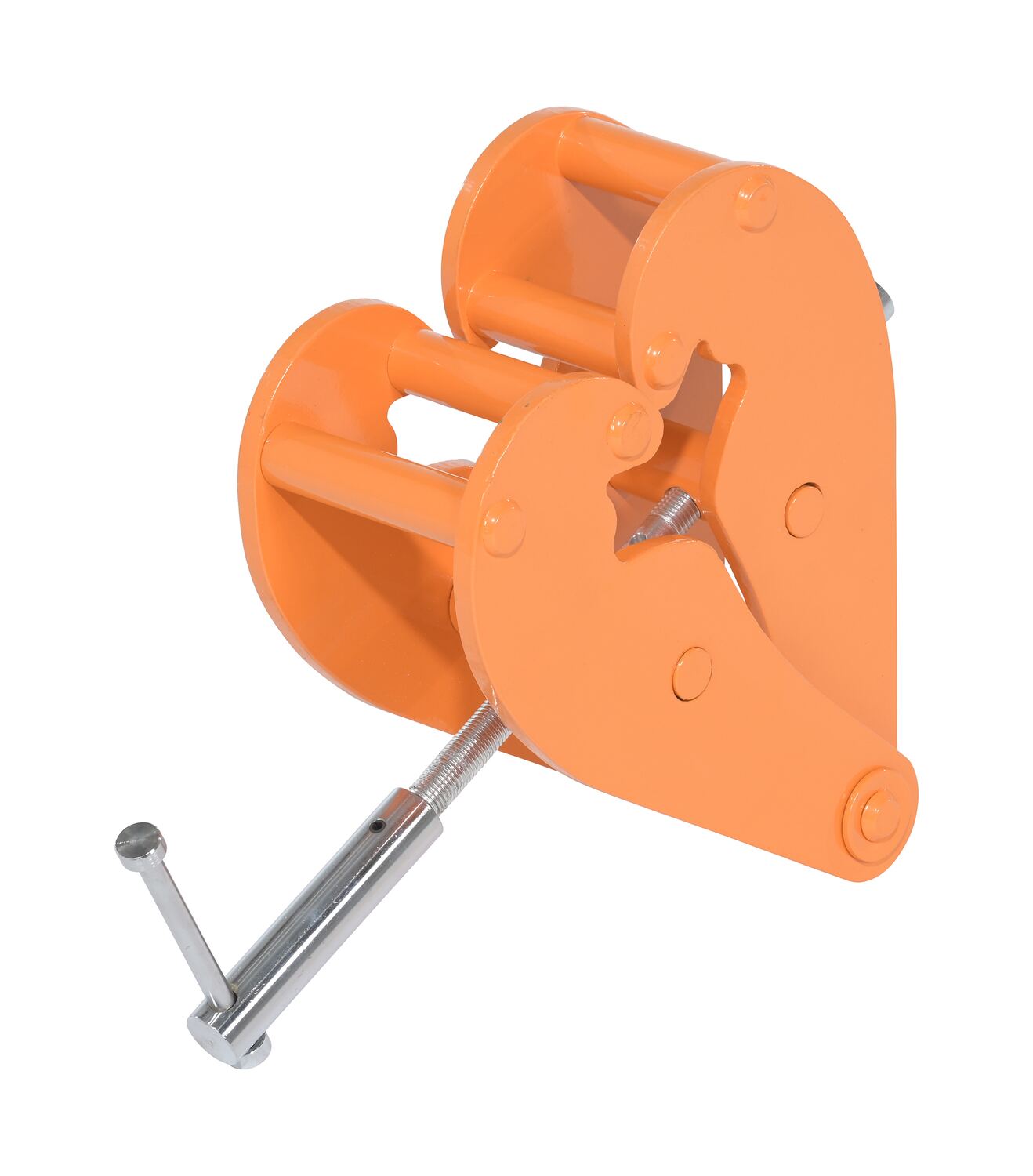

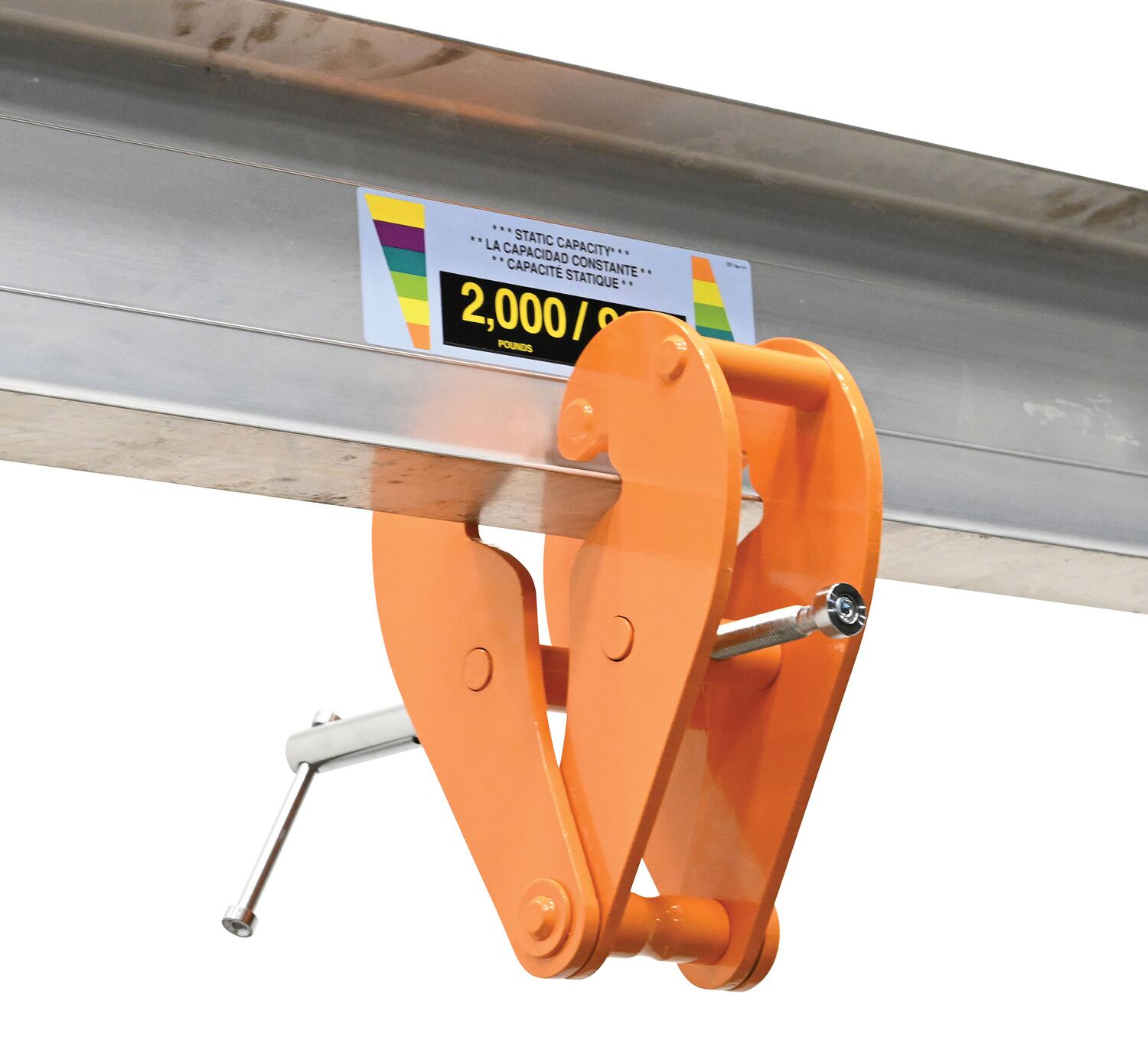

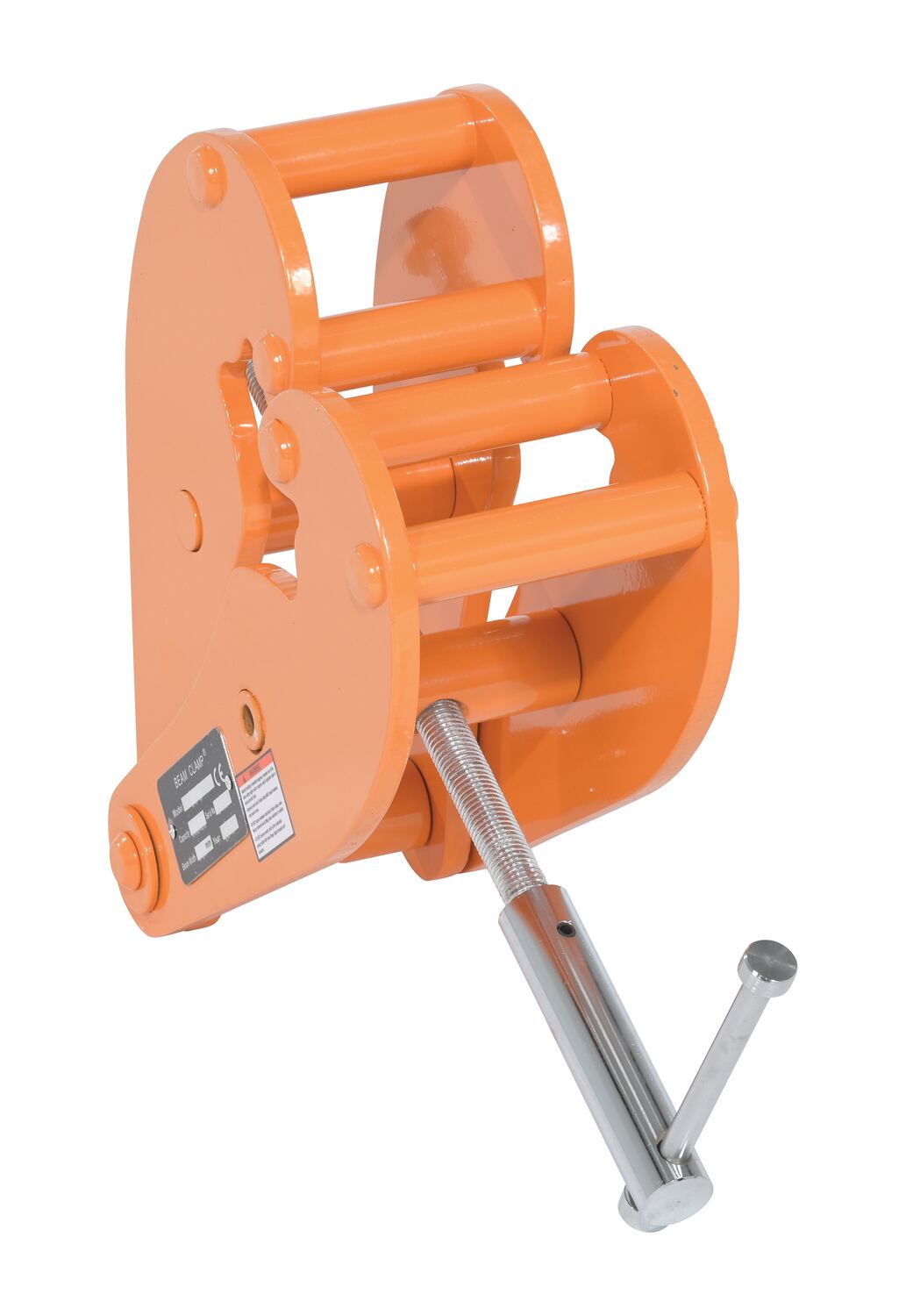

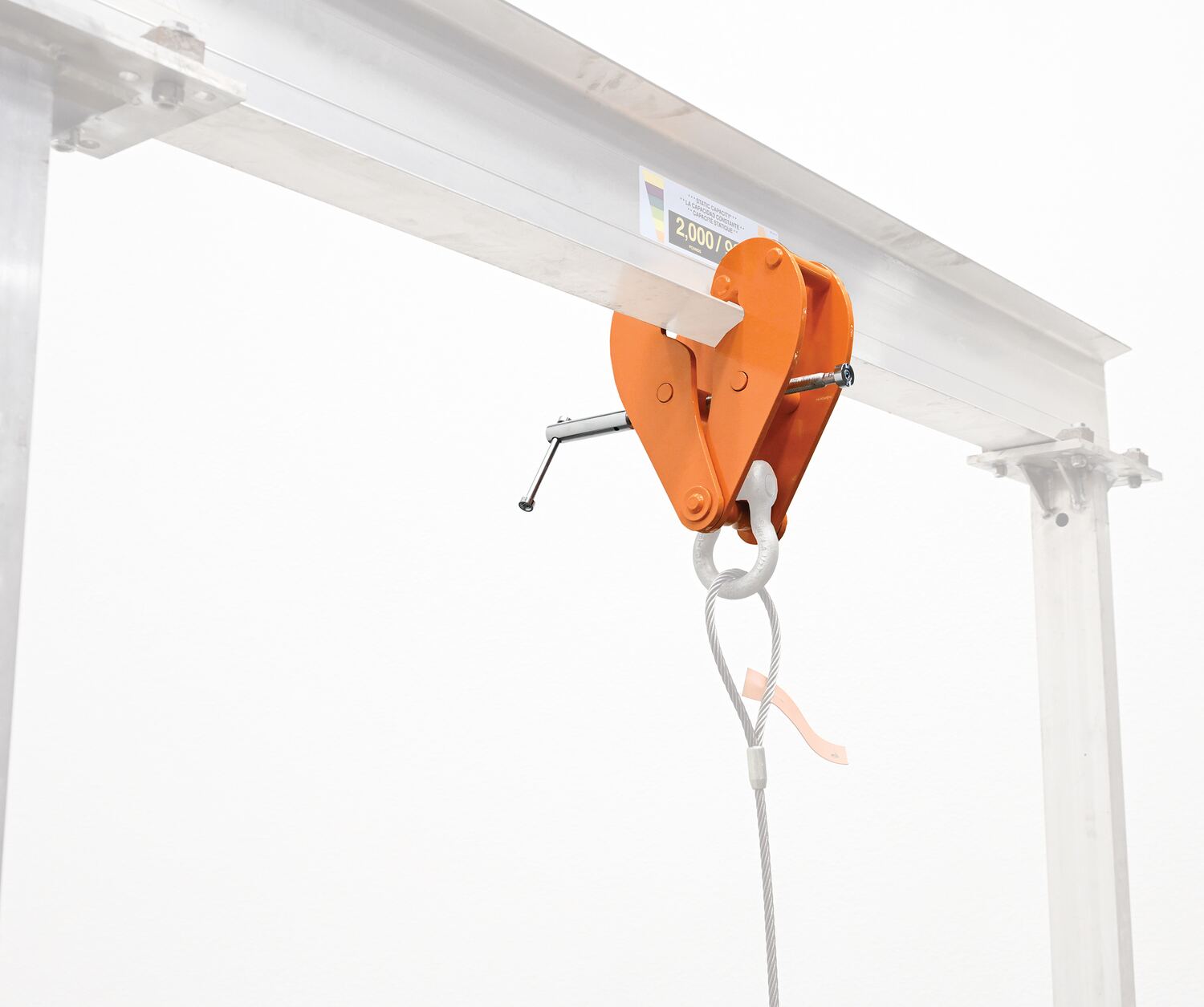

BC-8Designed to reduce the I-beam flange stress by distributing loads away from the flange edges during overhead lifting applications. These versatile units can be interchanged from one gantry to another in a matter of seconds with its easy mechanical adjustment mechanism. A bar is located at the bottom of the beam clamp for attaching a hoist (sold separately). Steel construction and painted finish.

  • Manual locking screw mechanism easily adjusts width
  • Unique design provides a fixed-position lifting point
  • Mechanical adjustment allows interchanging between gantry cranes
  • Solid steel construction provides long lasting rugged use
Beam Clamps

model: BC-8

Model # Description Attributes Net Wt.
(lbs)
BC-1 BC-190 Days Limited WarrantySteel Beam Clamp Horizontal Lift Style 16-1/2 In. x 3-1/2 In. x 6-1/4 In. 1000 Lb. Capacity OrangeUniform Capacity (lb.): 1,000
Fits Beam Flange Width (in.): 3-1/8 to 9-5/8		10
BC-10 BC-1090 Days Limited WarrantySteel Beam Clamp Horizontal Lift Style 21-1/4 In. x 5-1/4 In. x 7-3/4 In. 10000 Lb. Capacity OrangeUniform Capacity (lb.): 10000
Fits Beam Flange Width (in.): 3-1/2 to 12-1/4		38
BC-2 BC-290 Days Limited WarrantySteel Beam Clamp Horizontal Lift Style 16-1/2 In. x 3-1/2 In. x 6-1/4 In. 2000 Lb. Capacity OrangeUniform Capacity (lb.): 2,000
Fits Beam Flange Width (in.): 3-1/8 to 9-5/8		10
BC-4 BC-490 Days Limited WarrantySteel Beam Clamp Horizontal Lift Style 16 In. x 4 In. x 6-1/2 In. 4000 Lb. Capacity OrangeUniform Capacity (lb.): 4,000
Fits Beam Flange Width (in.): 3-1/8 to 9-5/8		12
BC-6 BC-690 Days Limited WarrantySteel Beam Clamp Horizontal Lift Style 20-1/4 In. x 5-1/4 In. x 7-3/4 In. 6000 Lb. Capacity OrangeUniform Capacity (lb.): 6,000
Fits Beam Flange Width (in.): 3-1/2 to 12-1/4		28
BC-8 BC-890 Days Limited WarrantySteel Beam Clamp Horizontal Lift Style 21-1/4 In. x 5-1/4 In. x 7-3/4 In. 8000 Lb. Capacity OrangeUniform Capacity (lb.): 8,000
Fits Beam Flange Width (in.): 3-1/2 to 12-1/4		38

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Dimension Image = Works w/ Skid Only = Flatbed Truck Required

BC-1
BC-10
BC-2
BC-4
BC-6
BC-8
PDFs will open in a new window when clicked.

Manuals

BC

Survey Sheets

No Survey Sheets For This Product

Engineering Drawings

No Approval Drawings For This Product

Testing Certificates

BC-1

BC-10

BC-2

BC-4

BC-6

BC-8

SDS Sheets

No SDS Sheets For This Product

Other PDFs

No "Other PDFs" For This Product







Visit Our Youtube Channel For All Available Videos For All Products
What is the length dimension of a BC-1 from the I-beam clamping point to the bottom of the clamp?
The dimension is dependent on the width of beam that it is installed on. Here are some measurements as reference.
Closed end of range 6". In the middle of its range 5". Open end of range 4".
