Wheel Chair Ramps

model: D-TR-88

D-TR-88_1.jpg D-TR-88_A.jpg D-TR-88_B.jpg D-TR-88_C.jpg D-TR-88_D.jpg D-TR-88_E.jpg D-TR-88_F.jpg D-TR-88_G.jpg More Images +
Wheel Chair Ramps
SERIES: D

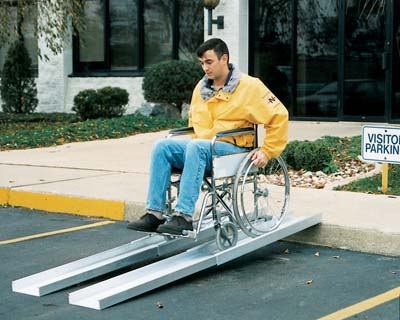

The Americans with Disabilities Act requires that all buildings must be accessible to disabled persons. Failure to comply may result in monetary damages and civil penalties. According to ADA rules and regulations, for every inch of rise you must have a foot of ramp in length.

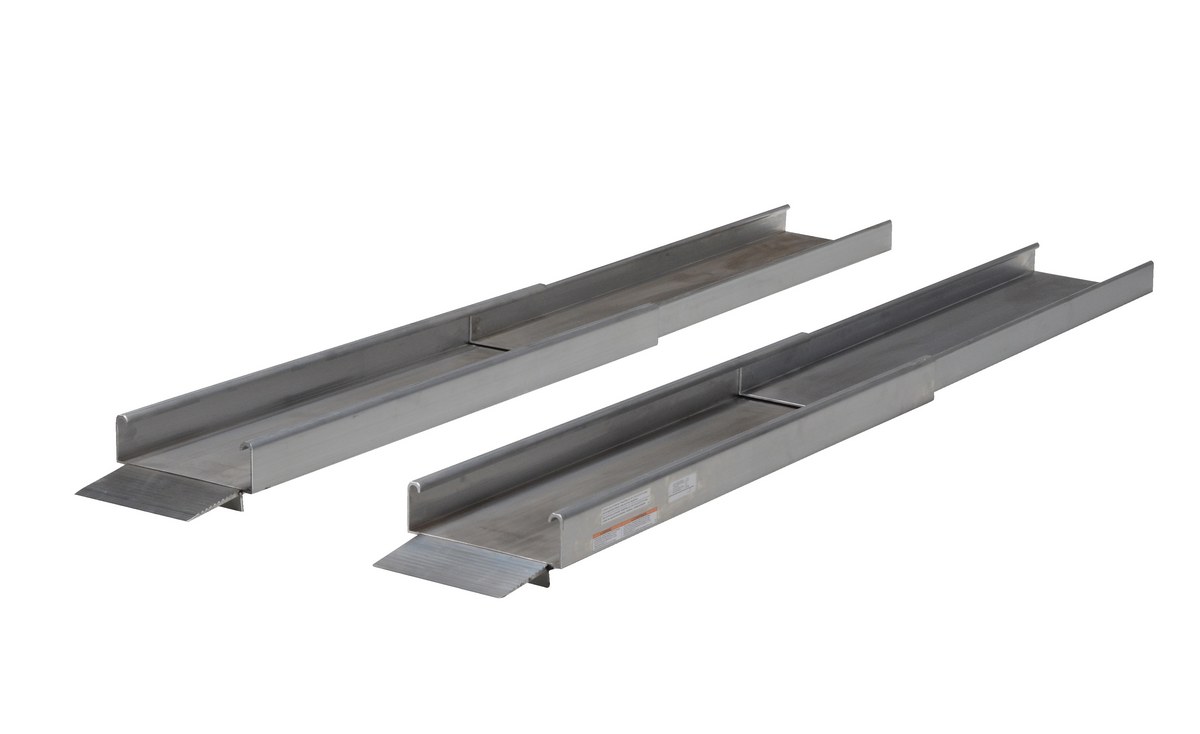

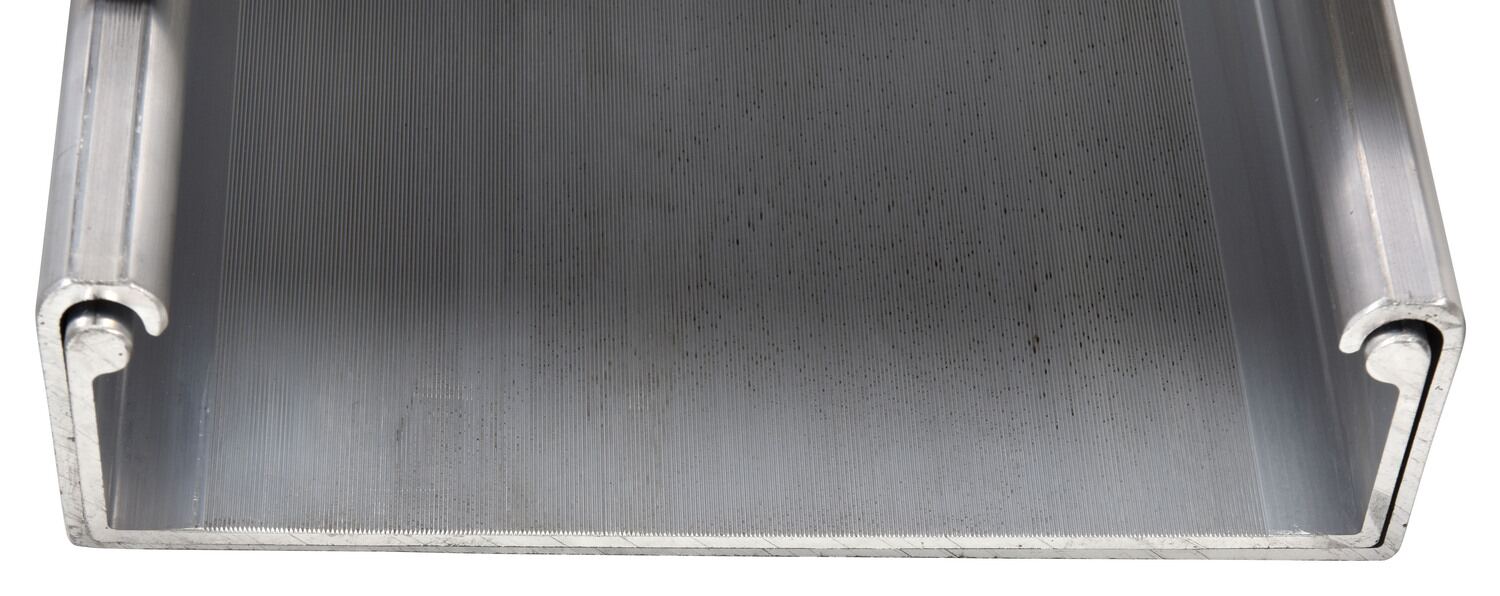

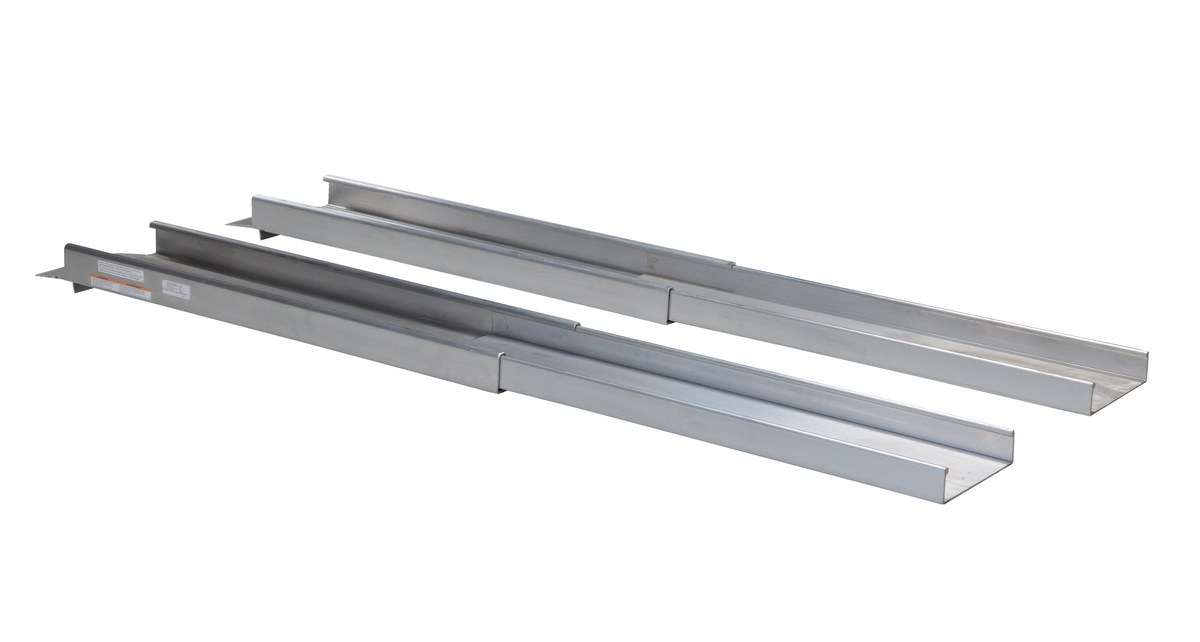

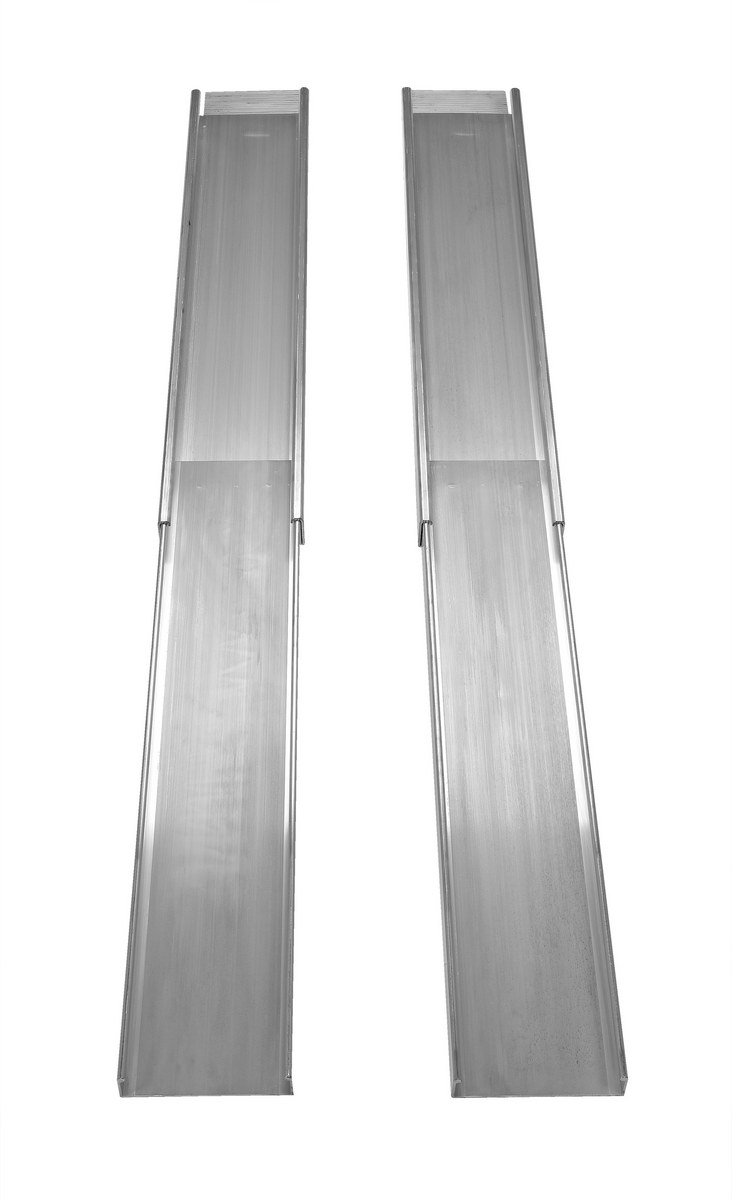

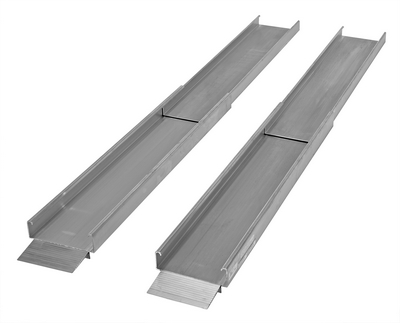

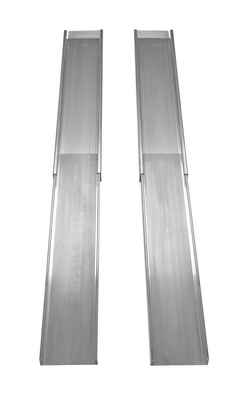

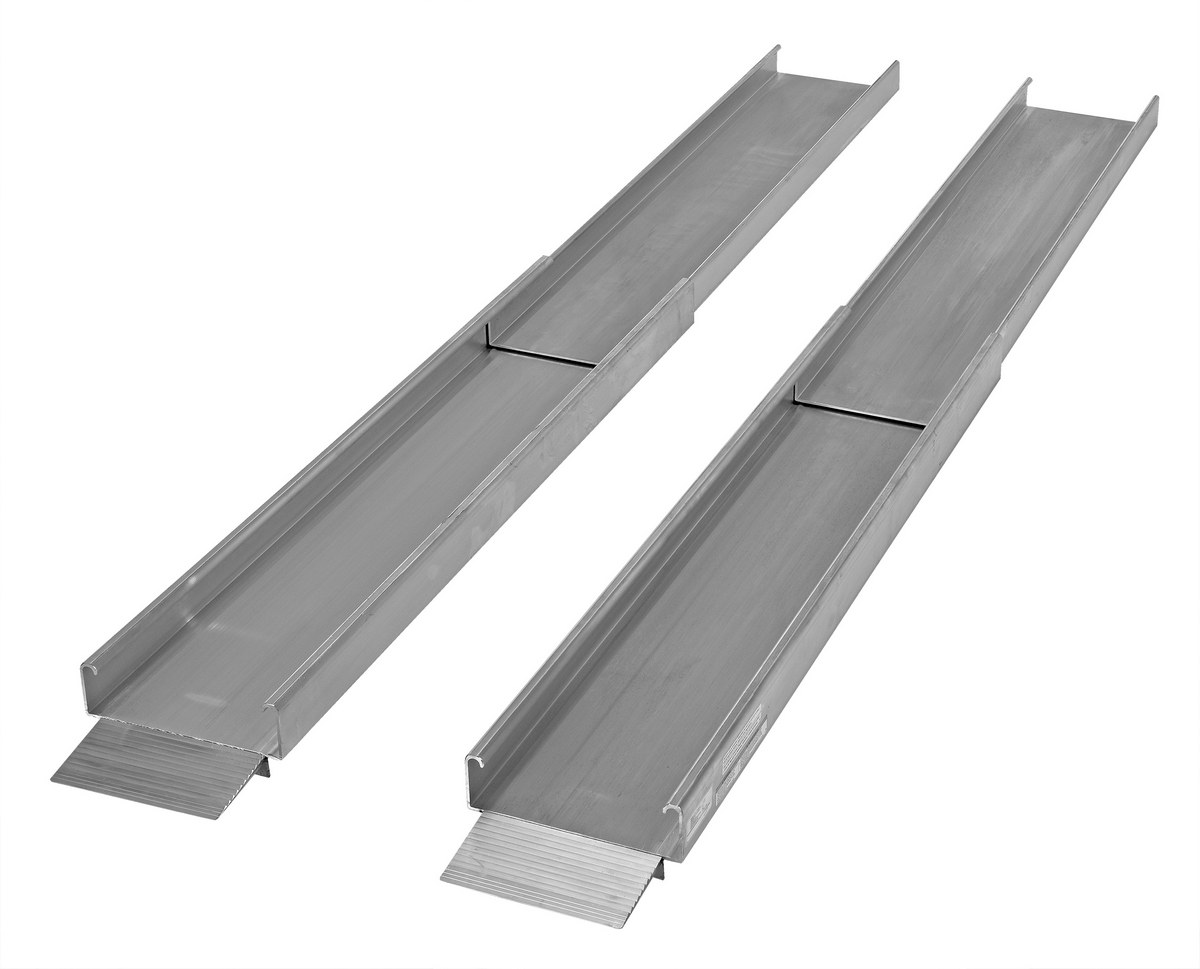

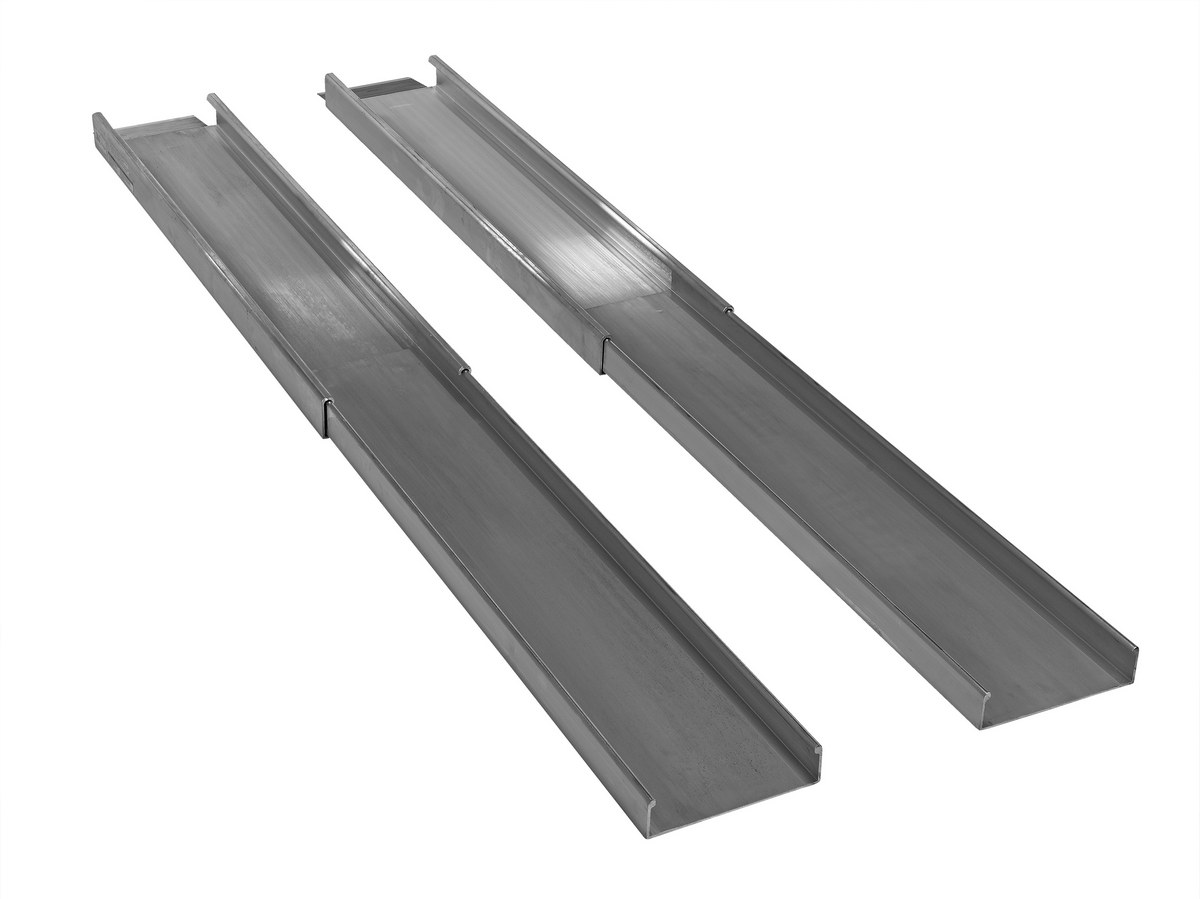

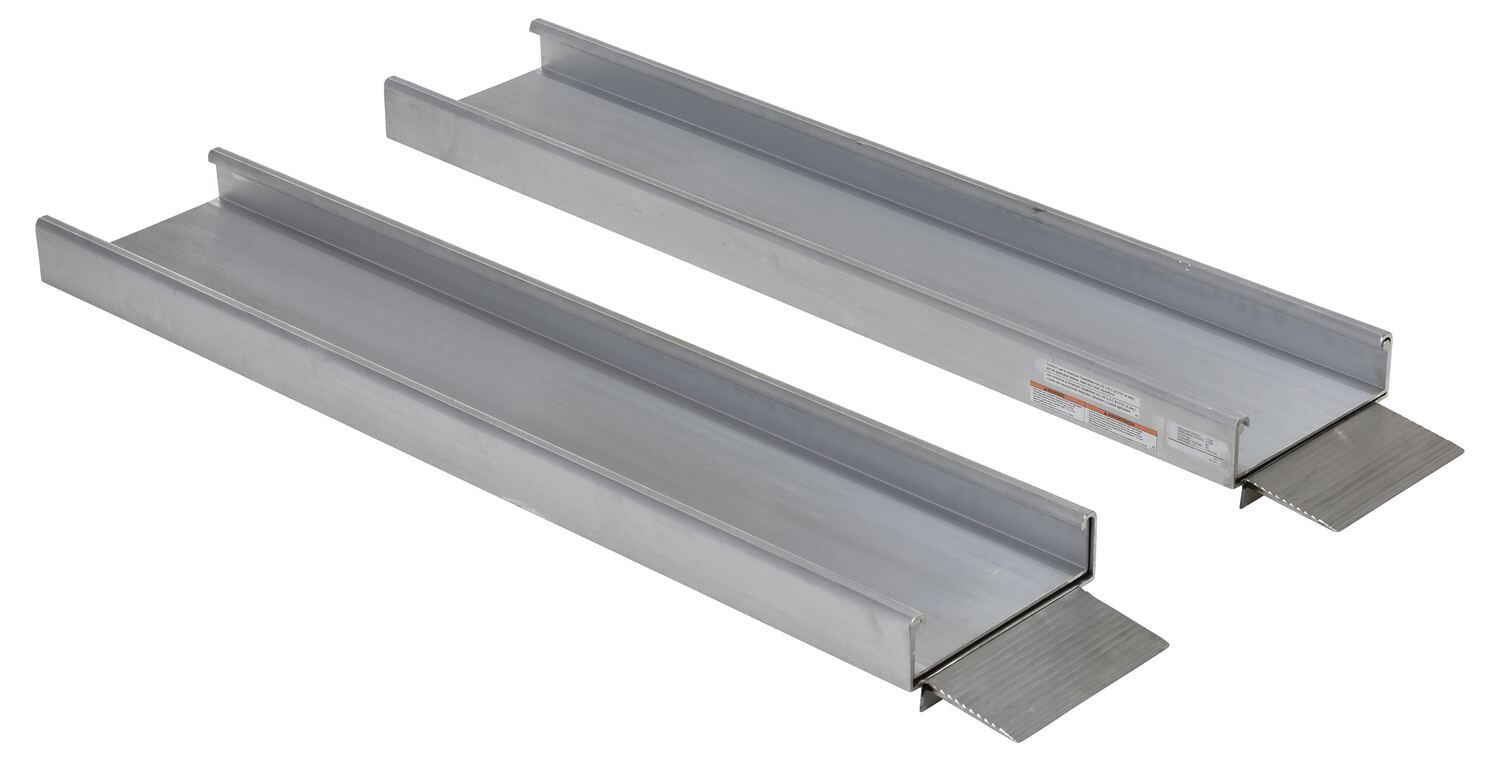

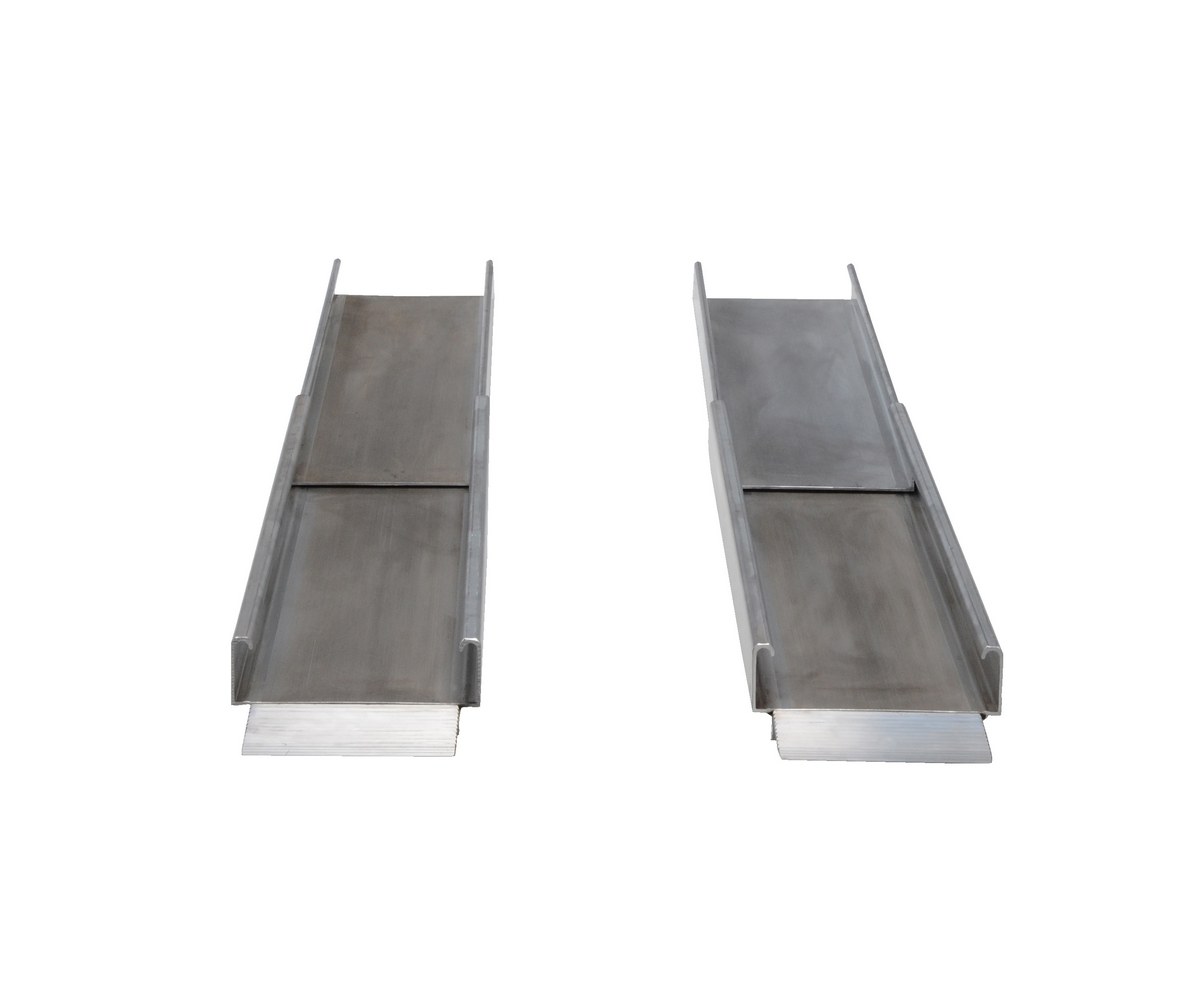

TELESCOPIC RAMP is constructed of lightweight aluminum extrusion. Top surface is serrated for positive traction.

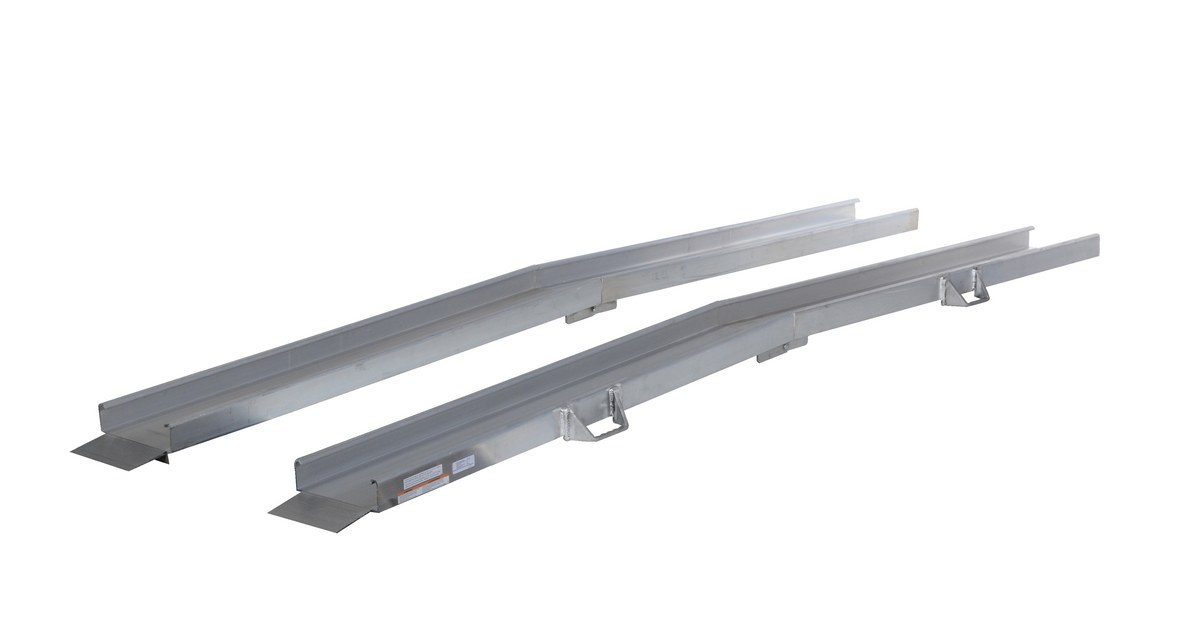

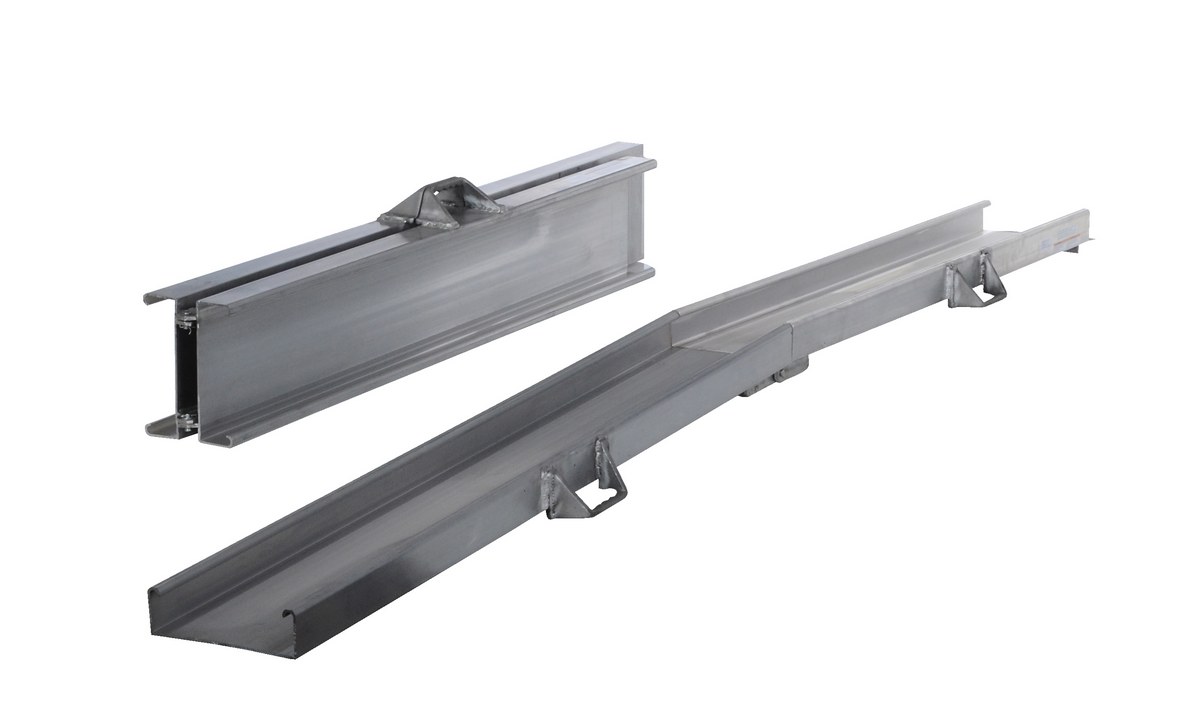

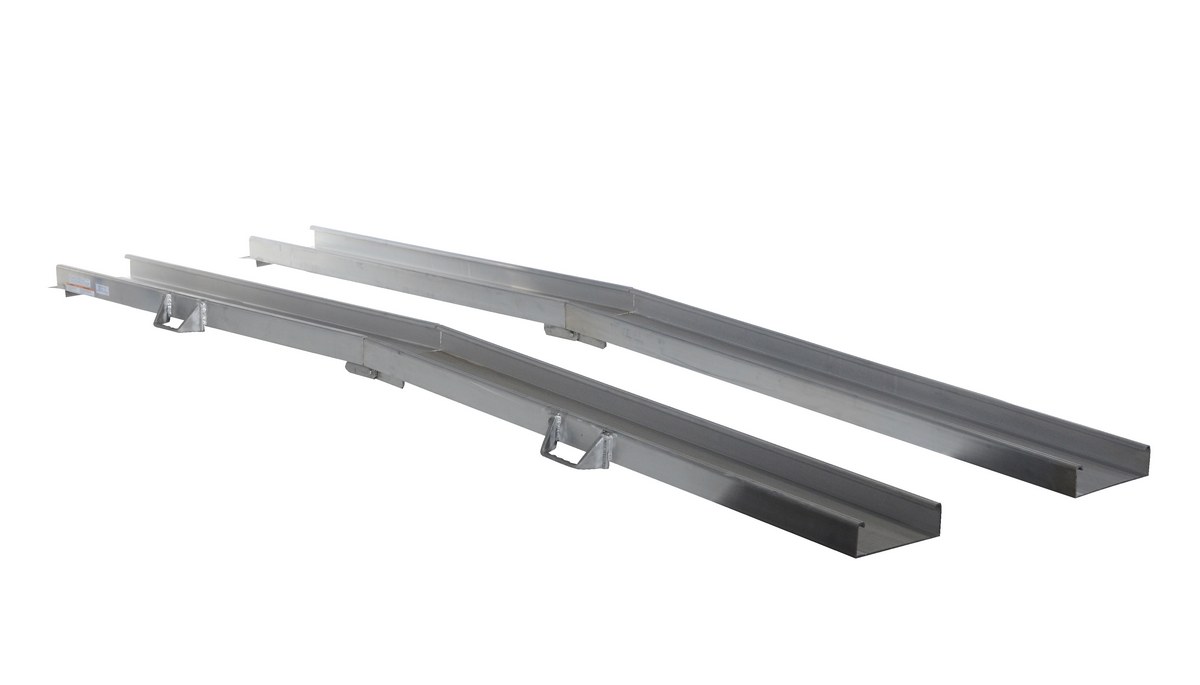

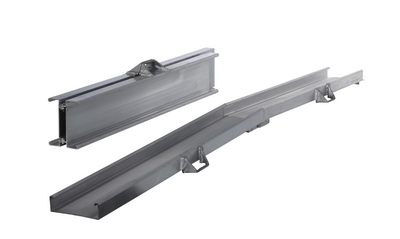

FOLD-A-WAY RAMP easy, one person storage and handling. Slip-resistant surface provides extra traction. Each ramp comes with 2 handles for easy positioning.

  • Allows buildings to be accessible to disabled persons
  • Grated top surface provides positive traction
  • Lightweight aluminum makes portability easy
  • Specially designed to meet ADA regulations
Wheel Chair Ramps

model: D-TR-88

Model # Description Attributes Net Wt.
(lbs)
D-FAR-120 D-FAR-12090 Days Limited WarrantyAluminum Foldaway Wheelchair Ramp 120 In. Length With 4 In. Lip 550 Lb. Capacity SilverUniform Capacity (lb.): 550
Usable Width/Length (in.): 7-7/8 x 120		70

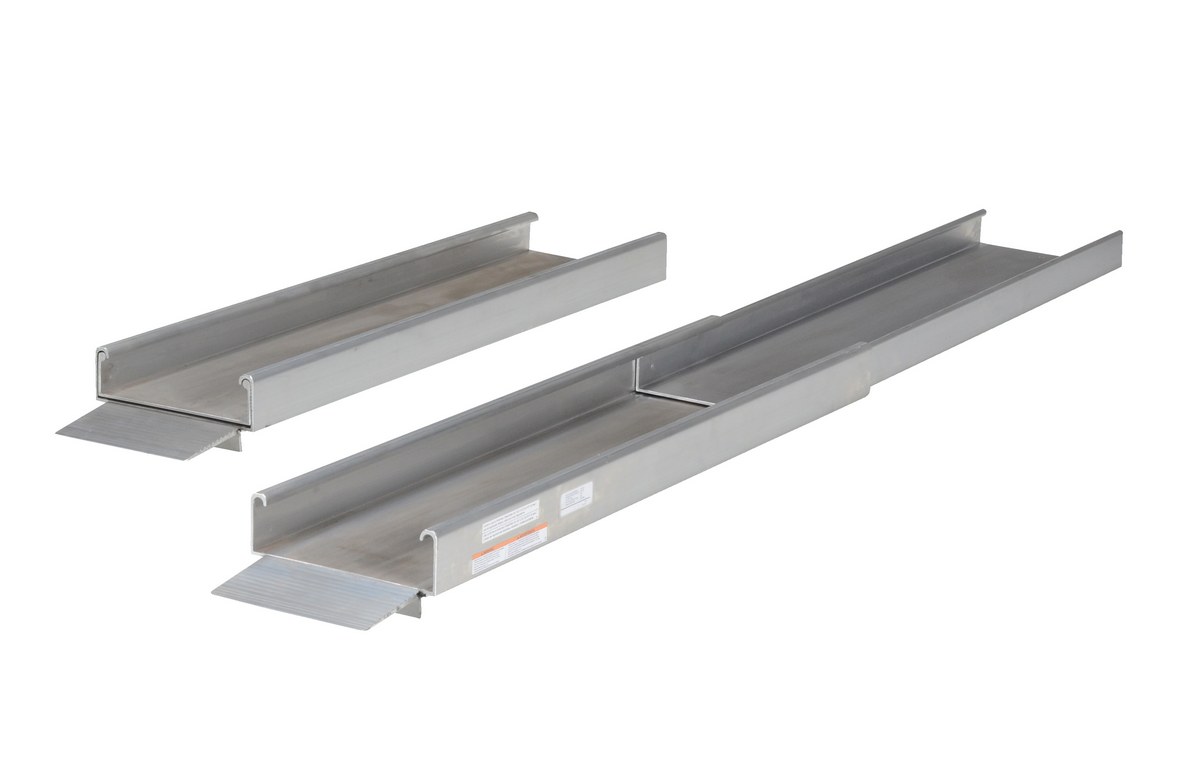

D-TR-72 D-TR-7290 Days Limited WarrantyExtruded Aluminum Wheelchair Ramp Light Telescopic 72 In. Usable Length 550 Lb. Capacity SilverUniform Capacity (lb.): 550
Usable Width (in.): 7-7/8		38

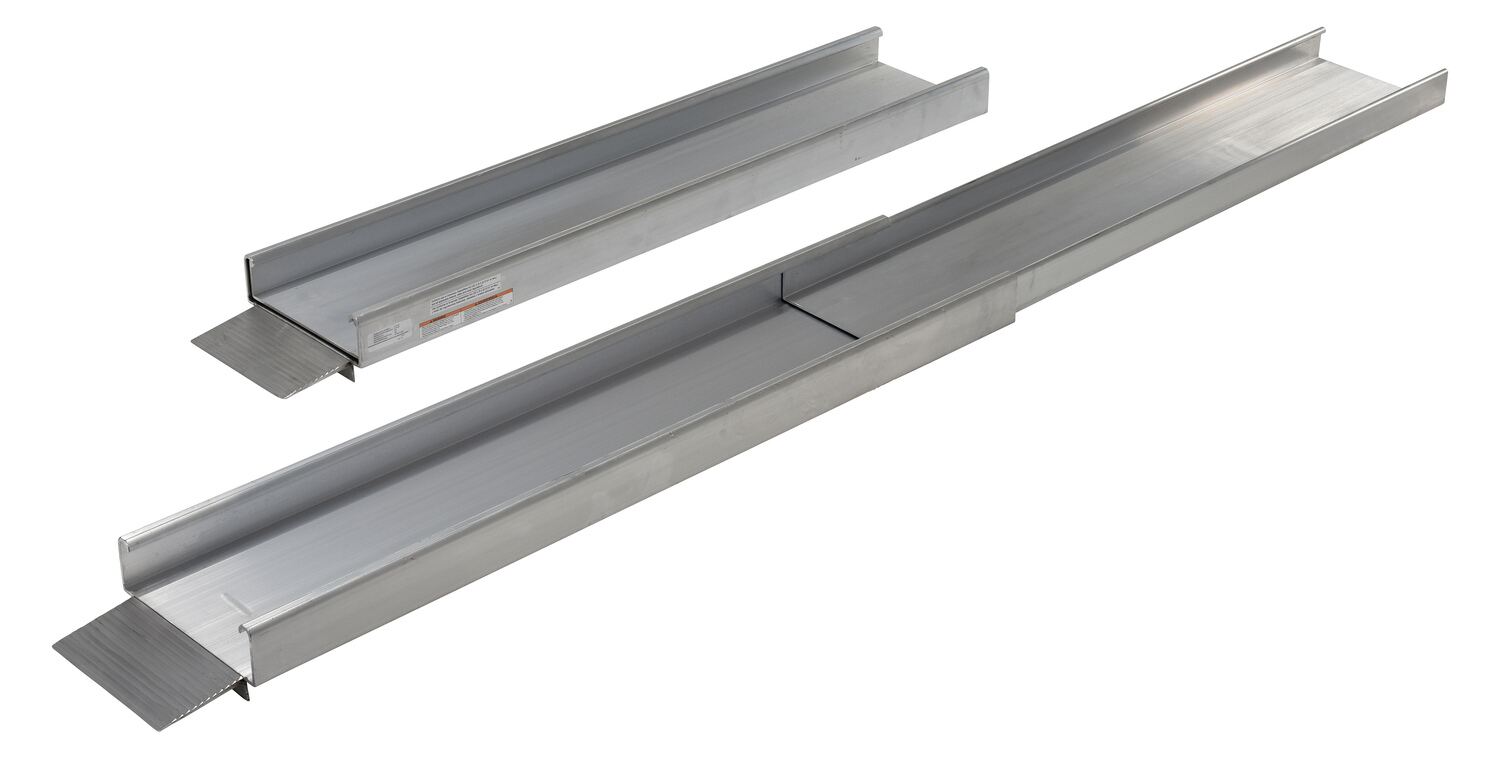

D-TR-88 D-TR-8890 Days Limited WarrantyExtruded Aluminum Wheelchair Ramp Light Telescopic 88 In. Usable Length 550 Lb. Capacity SilverUniform Capacity (lb.): 550
Usable Width (in.): 7-7/8		44

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Dimension Image = Works w/ Skid Only = Flatbed Truck Required

D-FAR-120
D-TR-72
D-TR-88
PDFs will open in a new window when clicked.

Manuals

No Owners Manuals For This Product

Survey Sheets

No Survey Sheets For This Product

Engineering Drawings

D-FAR-120

D-TR-72

D-TR-88

Testing Certificates

D-FAR-120

D-TR-72

D-TR-88

SDS Sheets

No SDS Sheets For This Product

Other PDFs

No "Other PDFs" For This Product
For D-TR-72, what keeps the extended ramp in place/what prevents the ramp from collapsing when extended? Is there some kind of safety anti-retracting device on the unit? When it is retracted, how does it stay in place? Is there some kind of latch or pin to hold it in the retracted position?

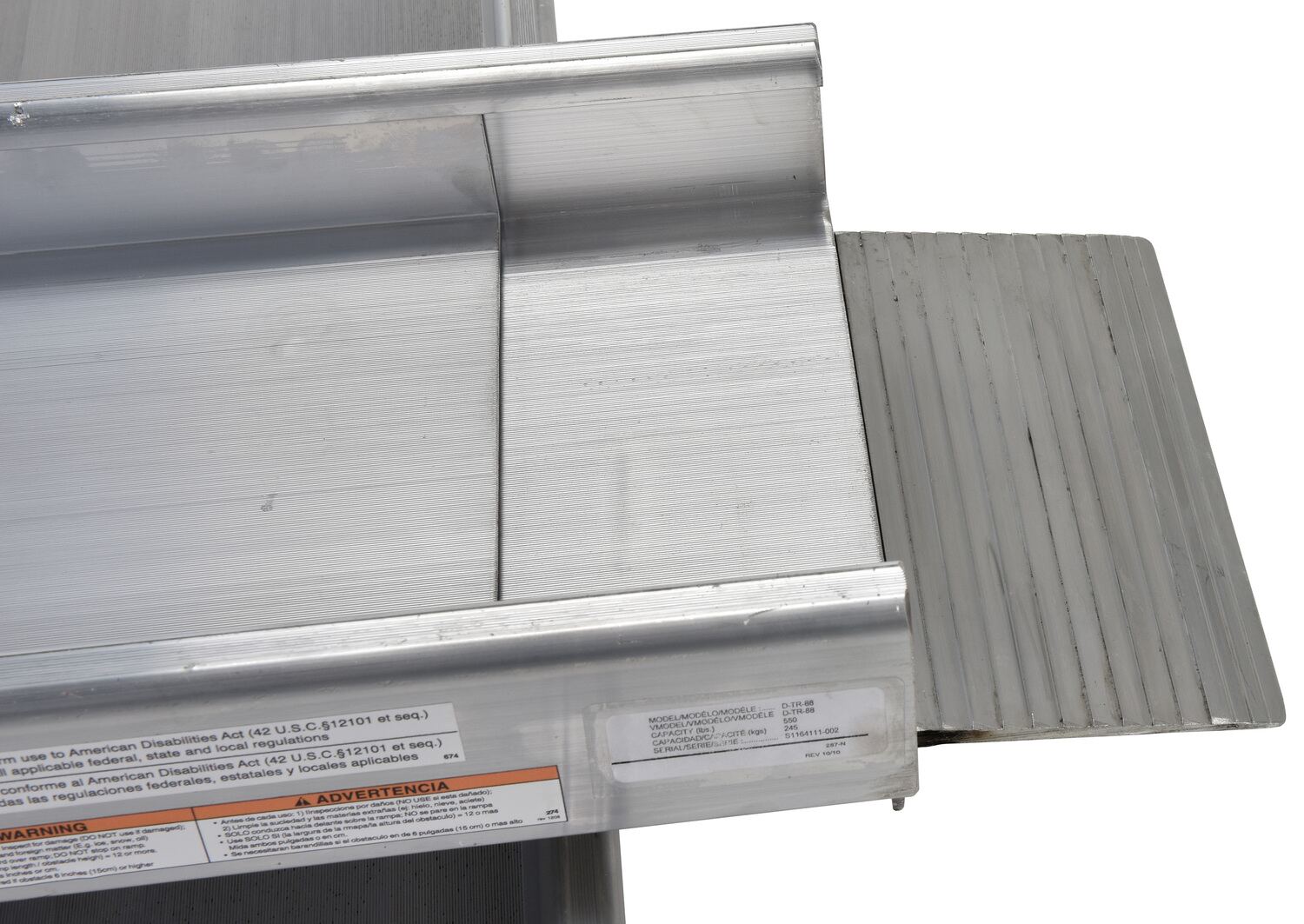

It is held in place from friction and ground contact. These are used at such a gradual angle that when the lip is resting on the upper surface, and the bottom of the ramp is in contact with the ground. There is a plate welded to the underside of the top ramp, at the upper end of it, and then there's also a plate welded to the TOP of bottom ramp section, at the lower end of it. This will prevent the two ramps from overextending/coming apart.
