Hand Winches

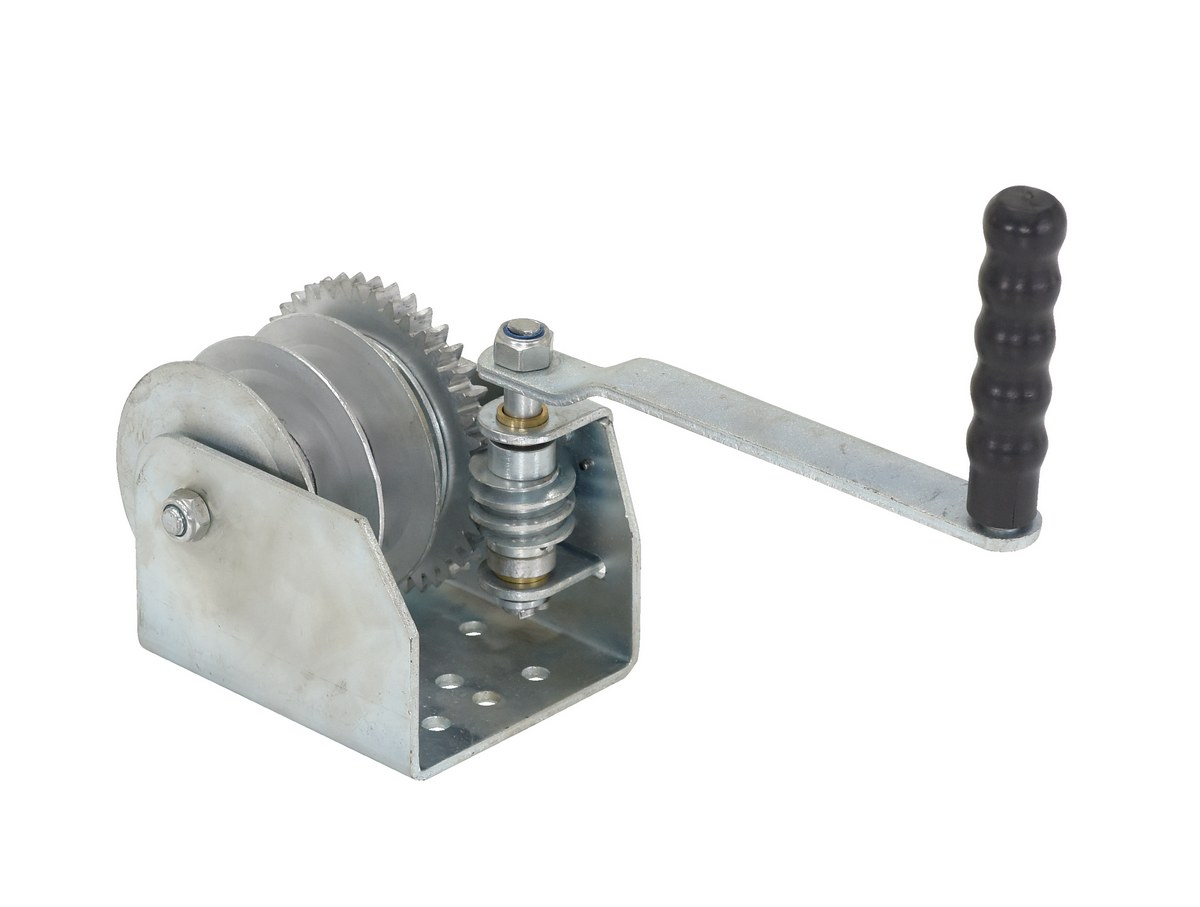

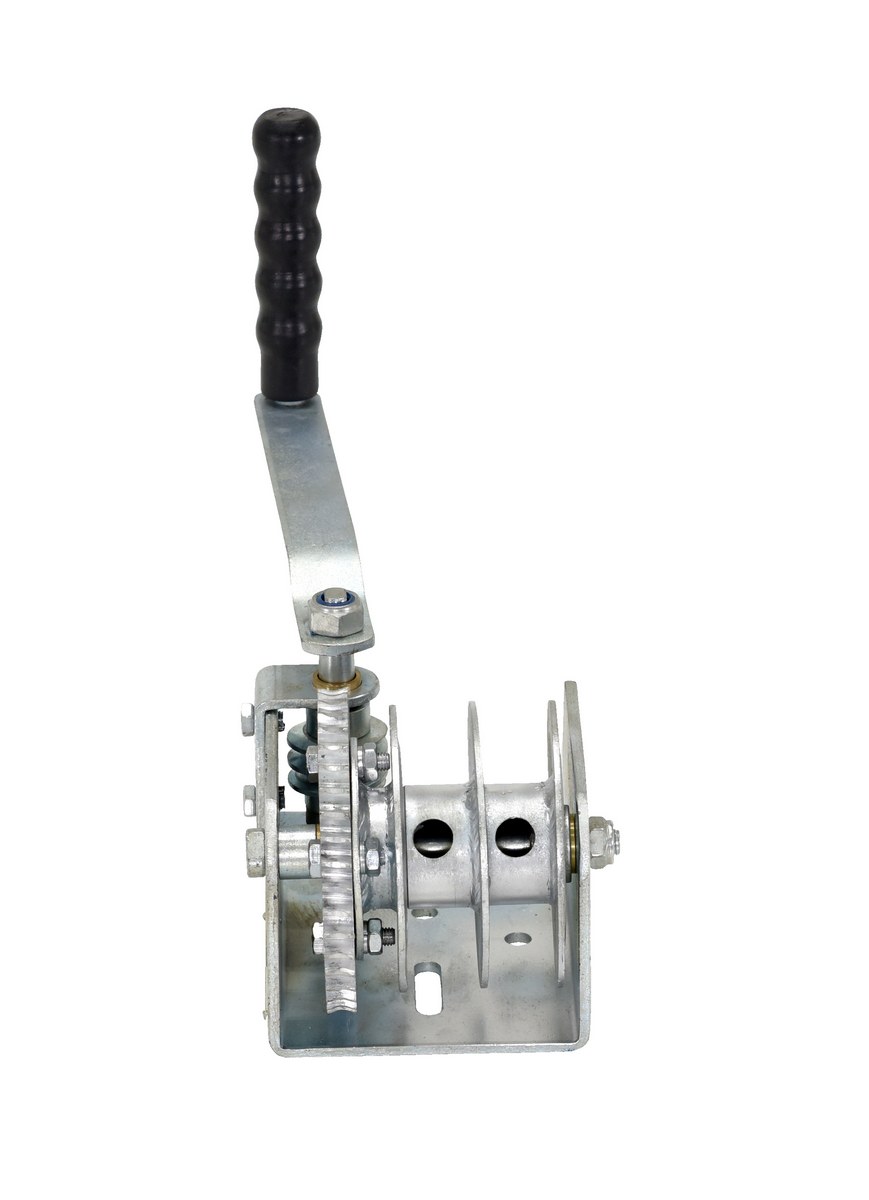

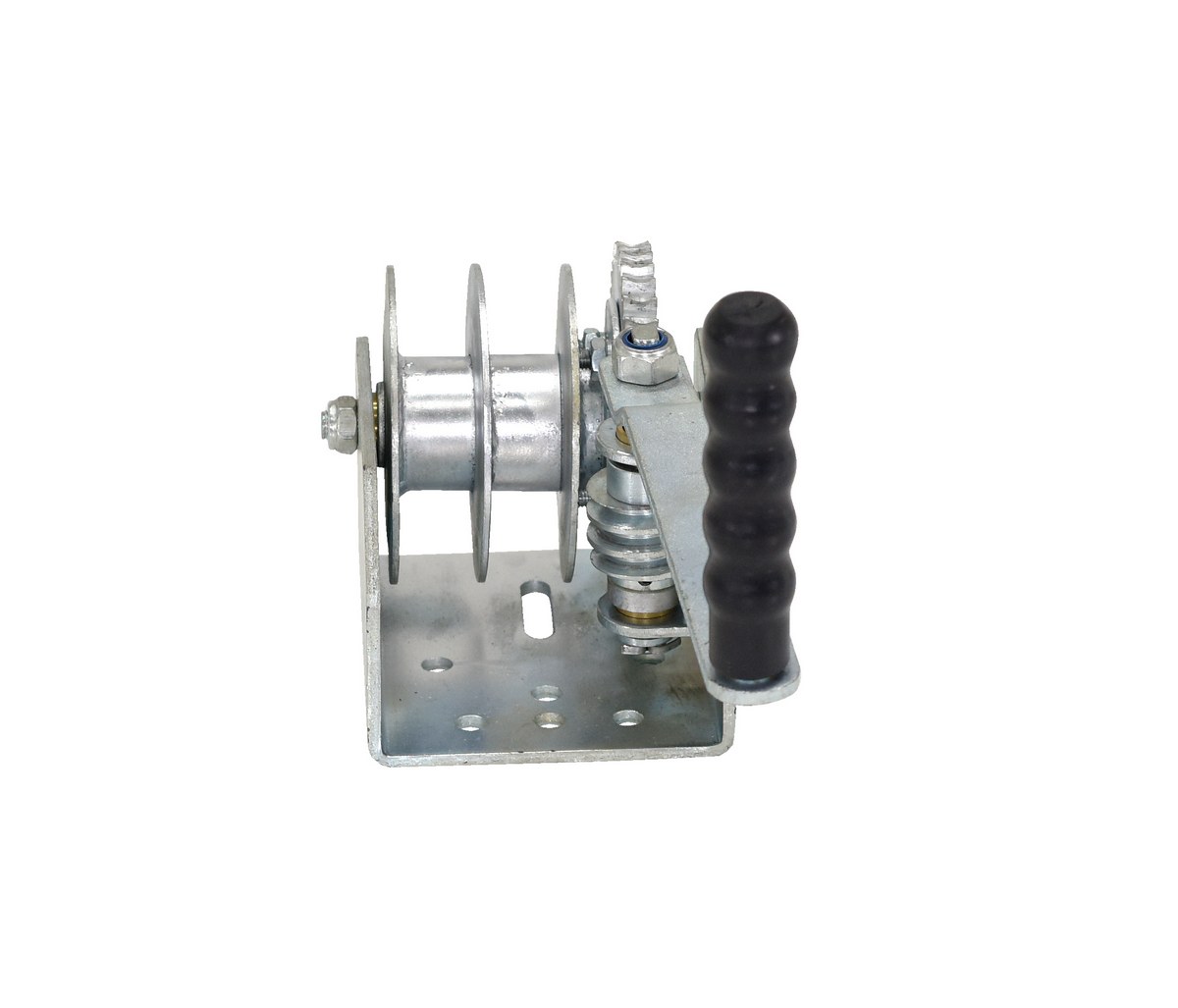

model: WALL-D

WALL-D_A.jpg WALL-D_B.jpg WALL-D_C.jpg WALL-D_D.jpg More Images +
Hand Winches
SERIES: WALL

Wall Mounted Hand Winches Pulling devices that use a wire, rope or cable to move heavy loads. Constructed of steel worm gear drives with zinc plated finish. Pinion gear shaft with lubricated down bushings provide smooth operation and long life.

Stainless Steel Hand Winches are constructed of 304 stainless steel for corrosion resistance. Machine cut spur gears ensure smooth accurate operation, while protective gear covers keep dirt out and help prevent worker injuries. Winches feature copper bushings, a drum clamp for easy attachment of wire rope (not included), and an automatic brake for positive load control during lifting and lowering operations. The pulling capacity is in the horizontal position.

Hand Winches

model: WALL-D

Model # Description Attributes Net Wt.
(lbs)

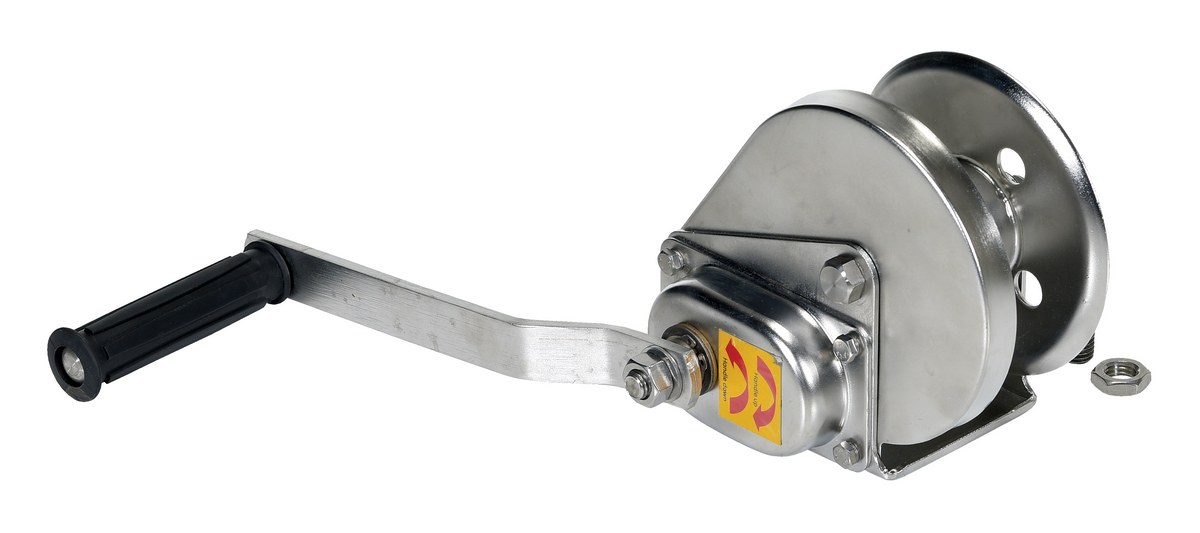

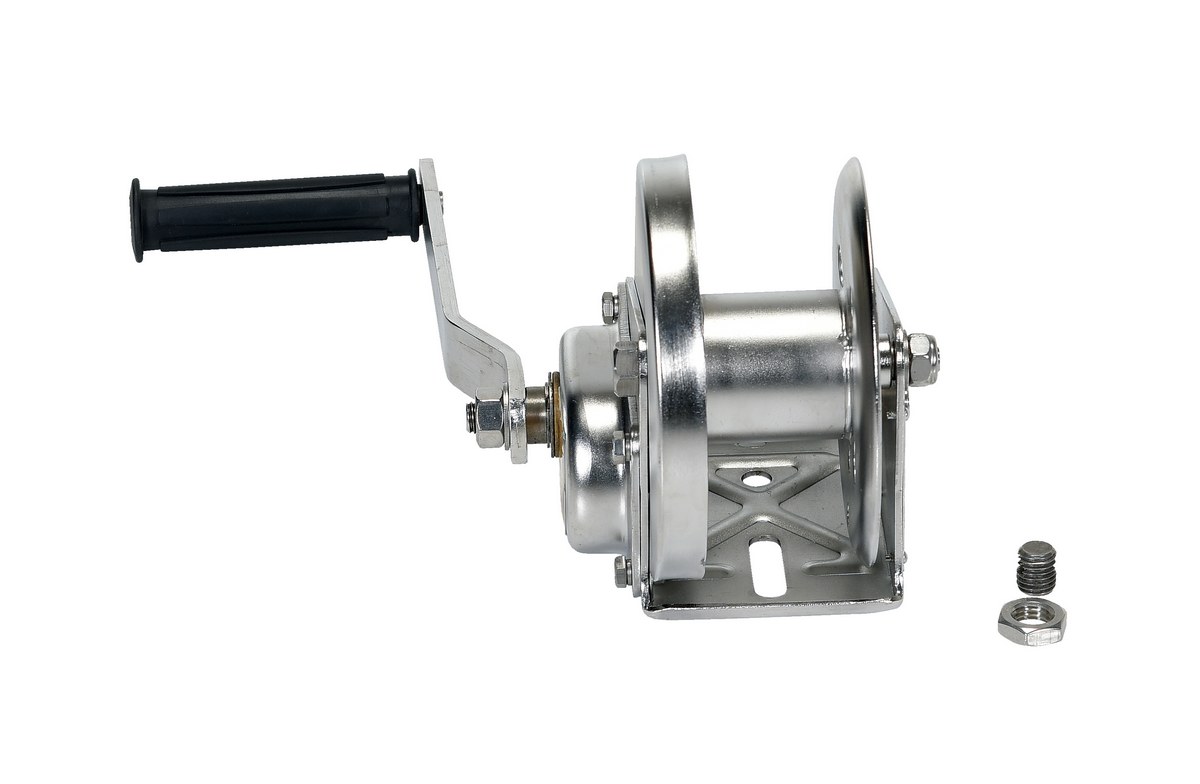

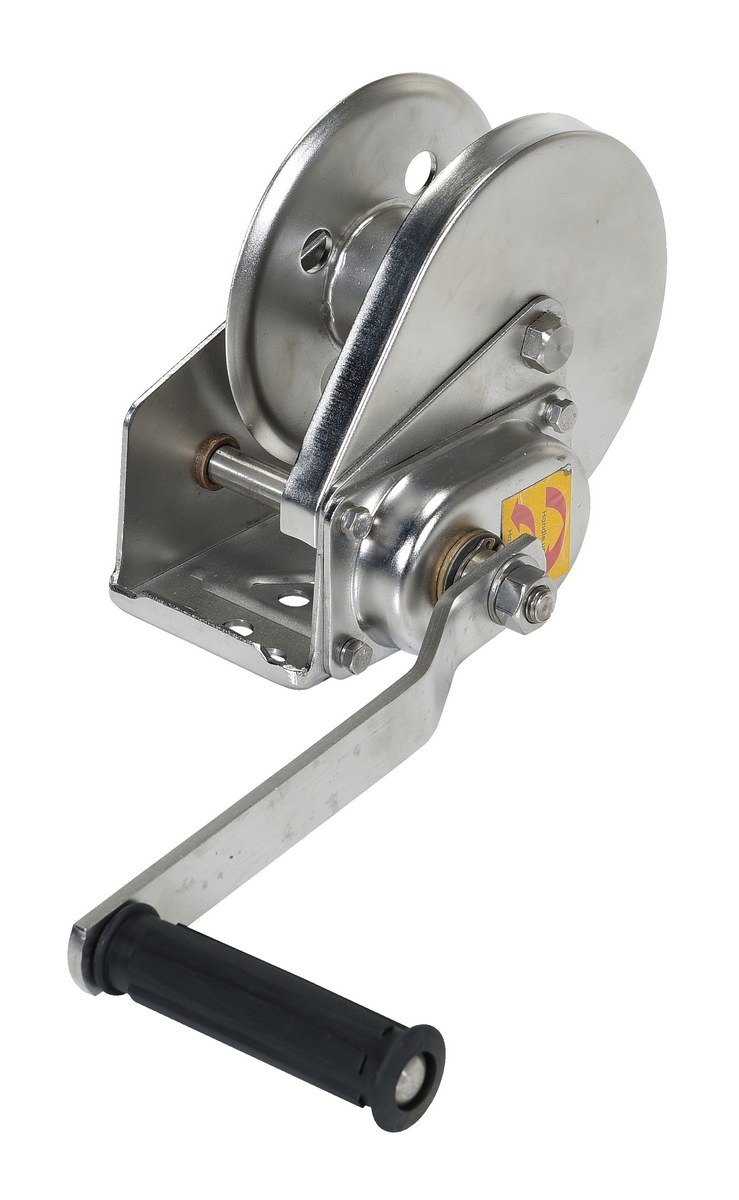

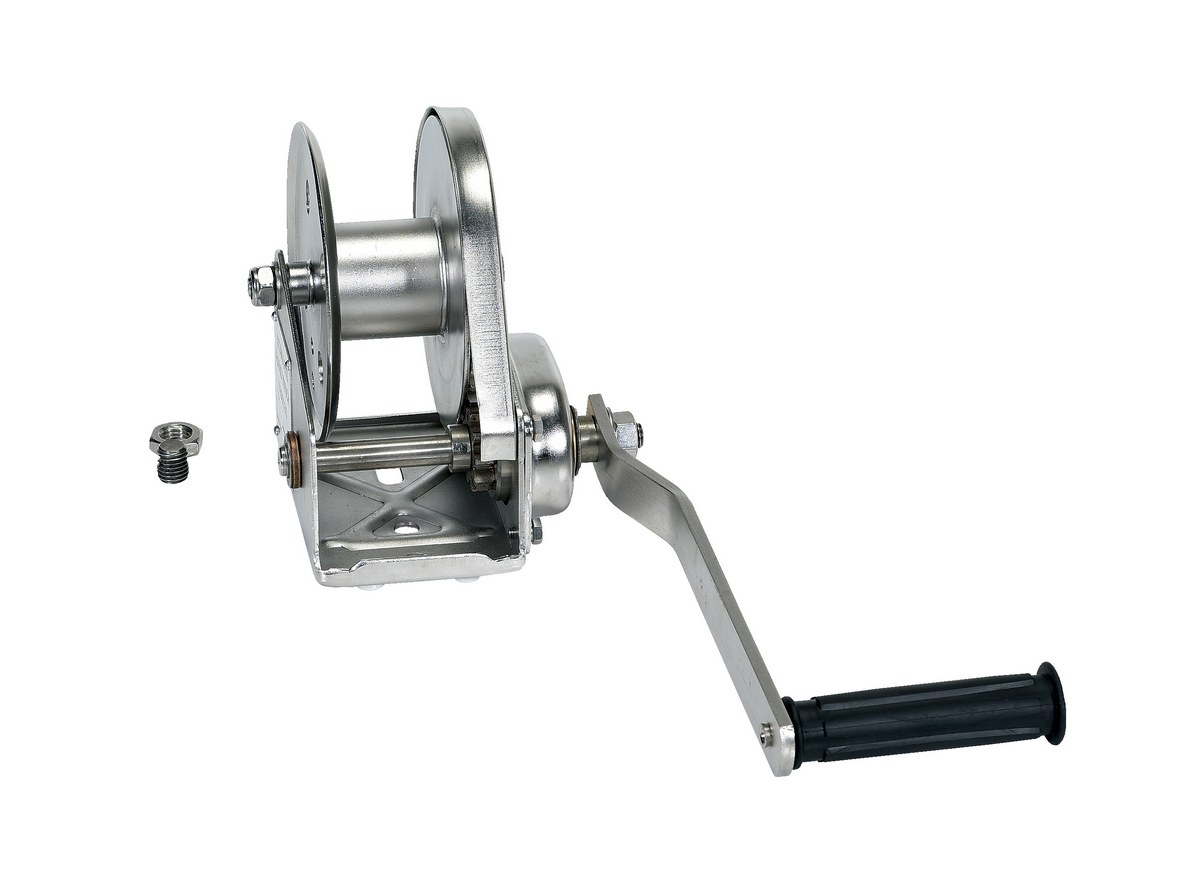

HWSS-1200-NR HWSS-1200-NR30 Days Limited WarrantyStainless Steel Hand Winch 1200 Lb. Capacity SilverUniform Capacity (lb.): 1200
Gear Ratio: 4.2:1		9

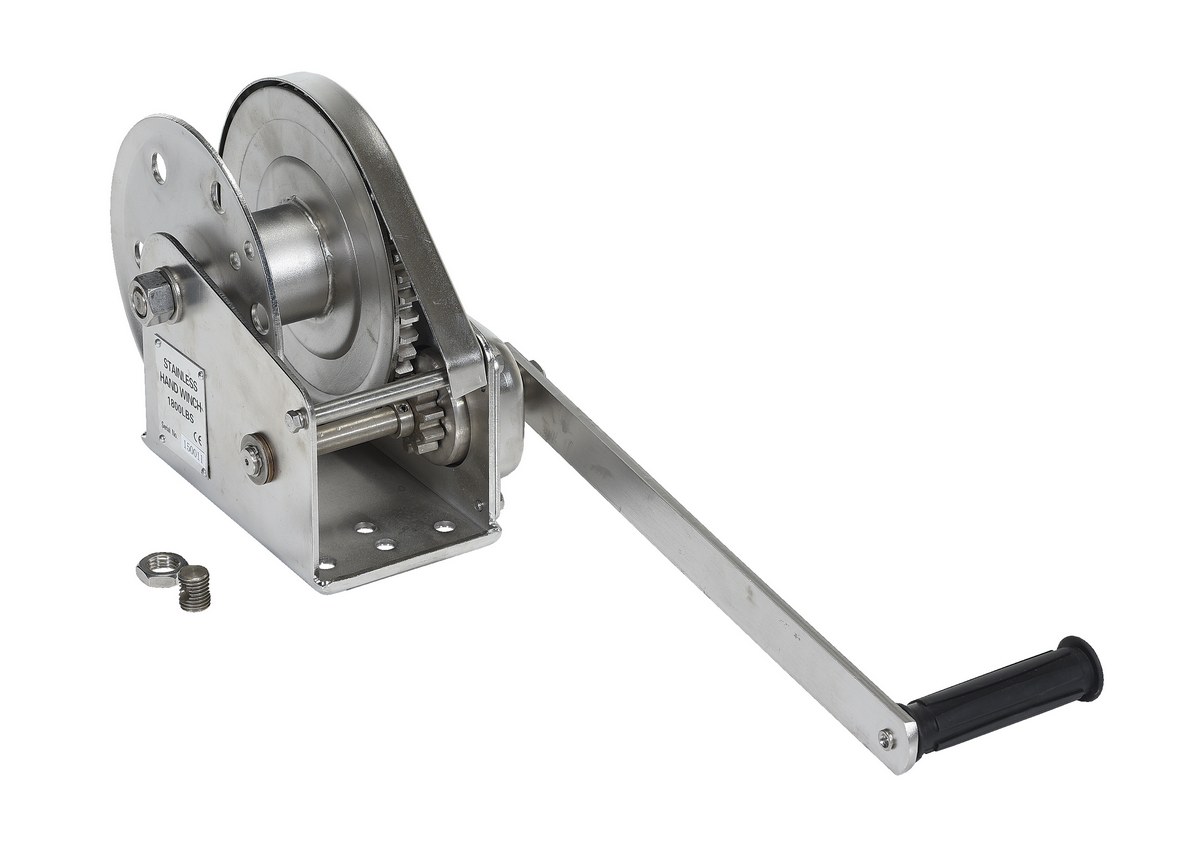

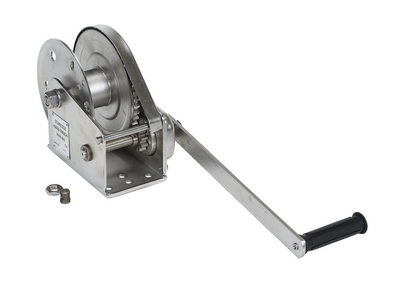

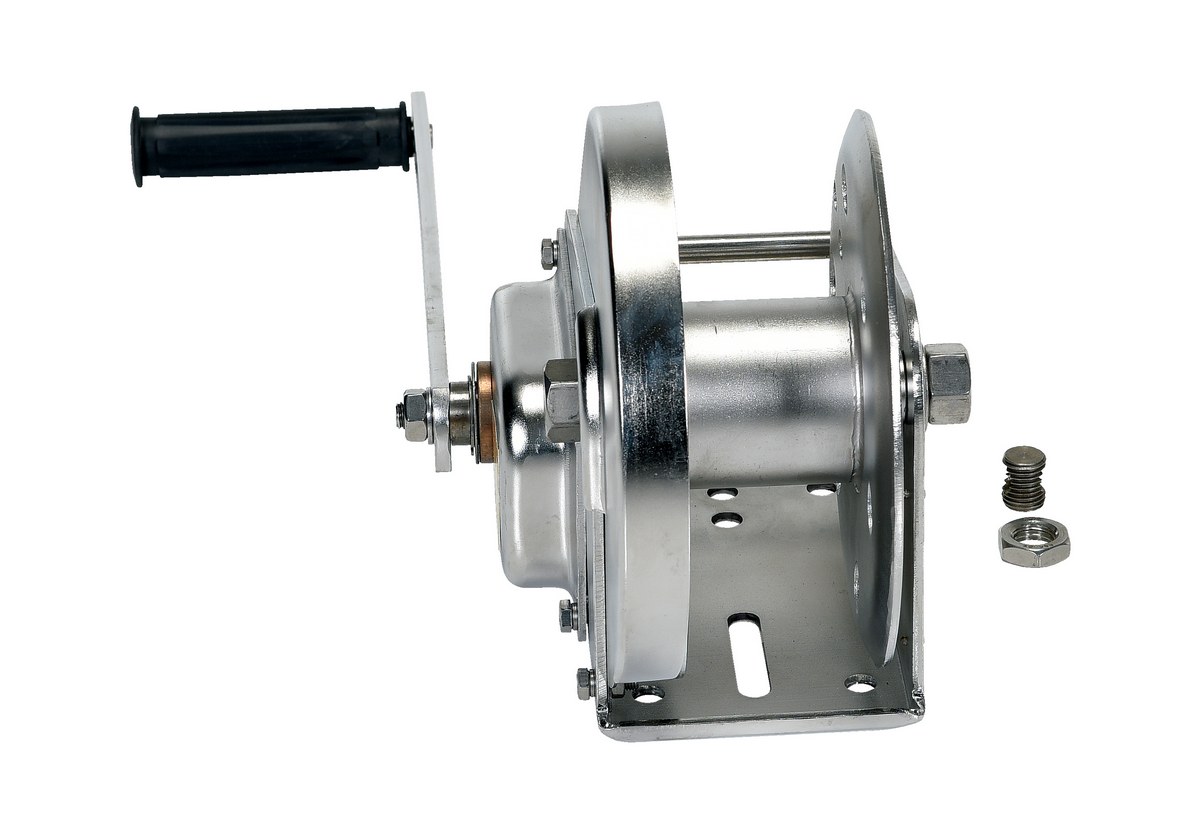

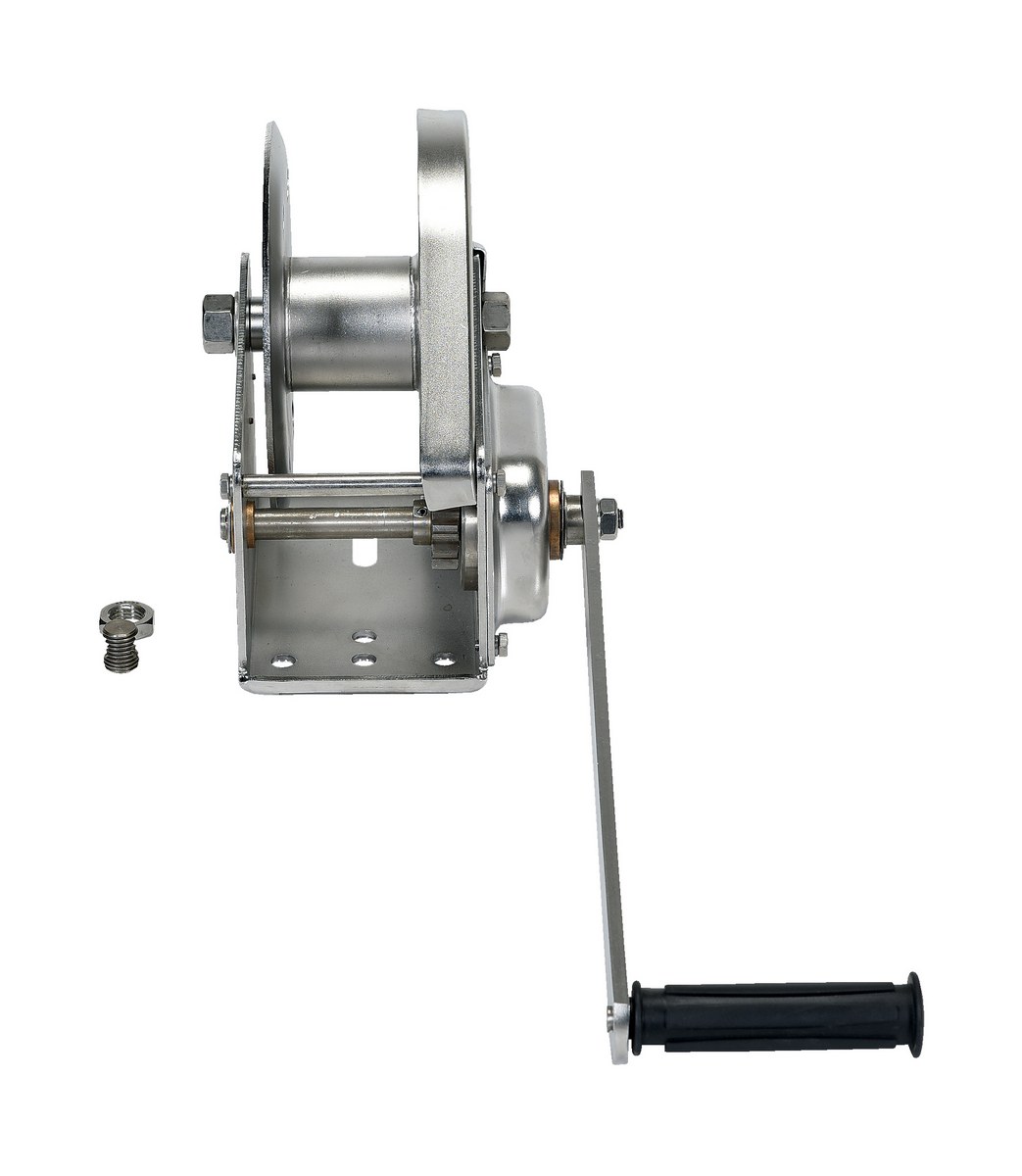

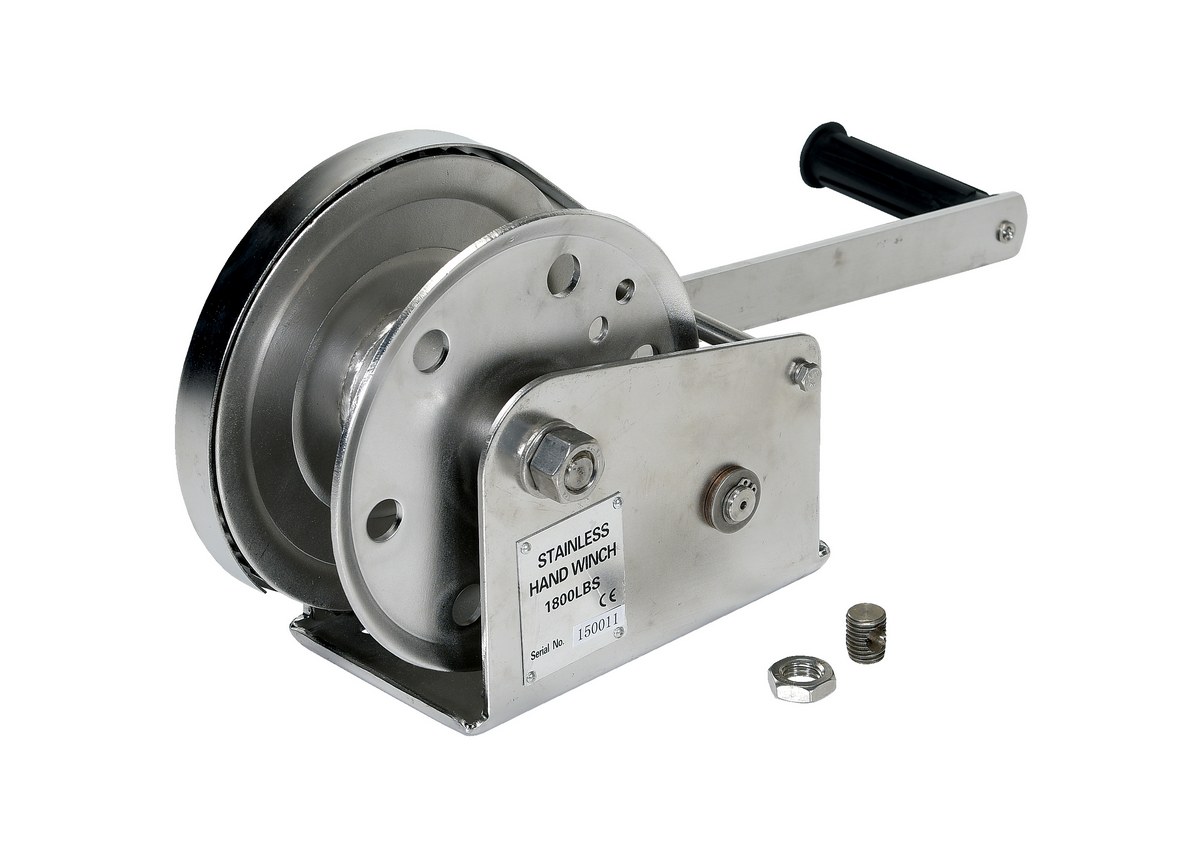

HWSS-1800-NR HWSS-1800-NR30 Days Limited WarrantyStainless Steel Hand Winch 1800 Lb. Capacity SilverUniform Capacity (lb.): 1800
Gear Ratio: 5:1		17

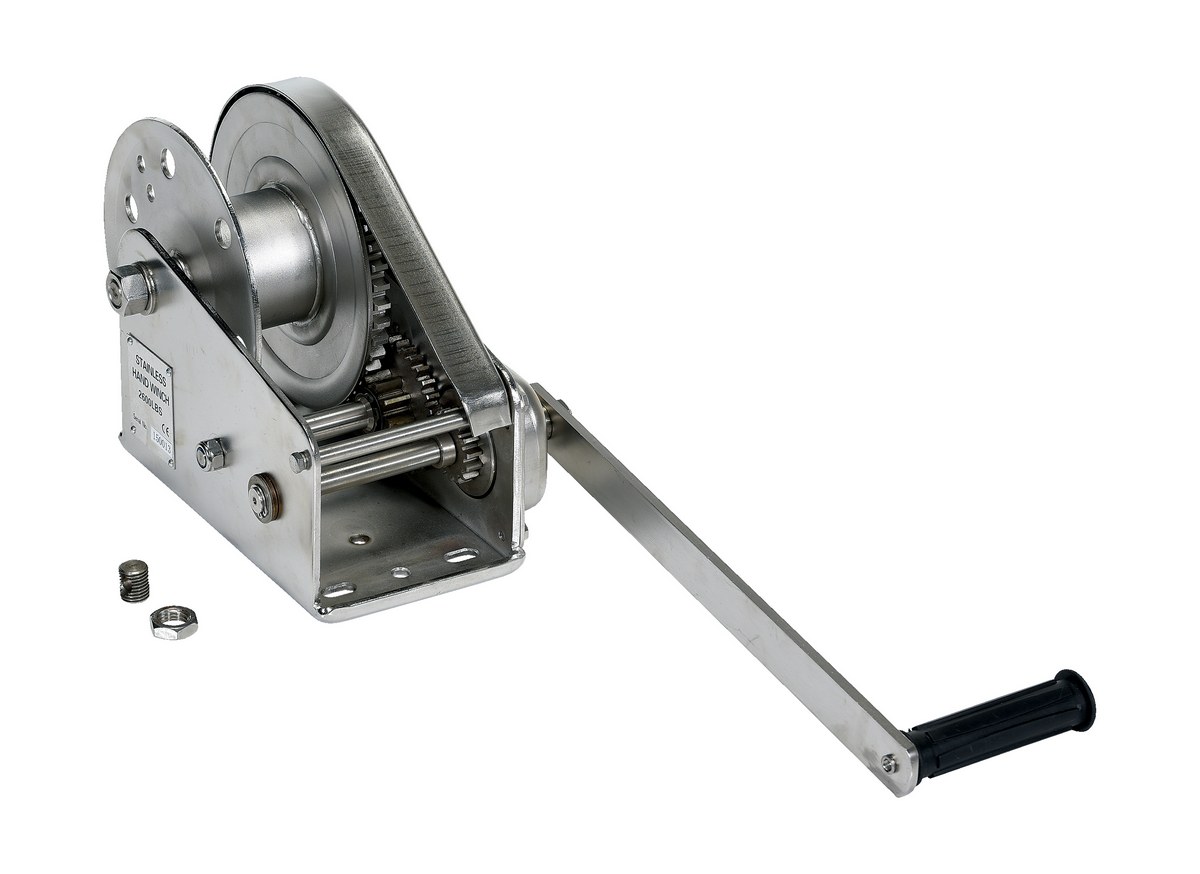

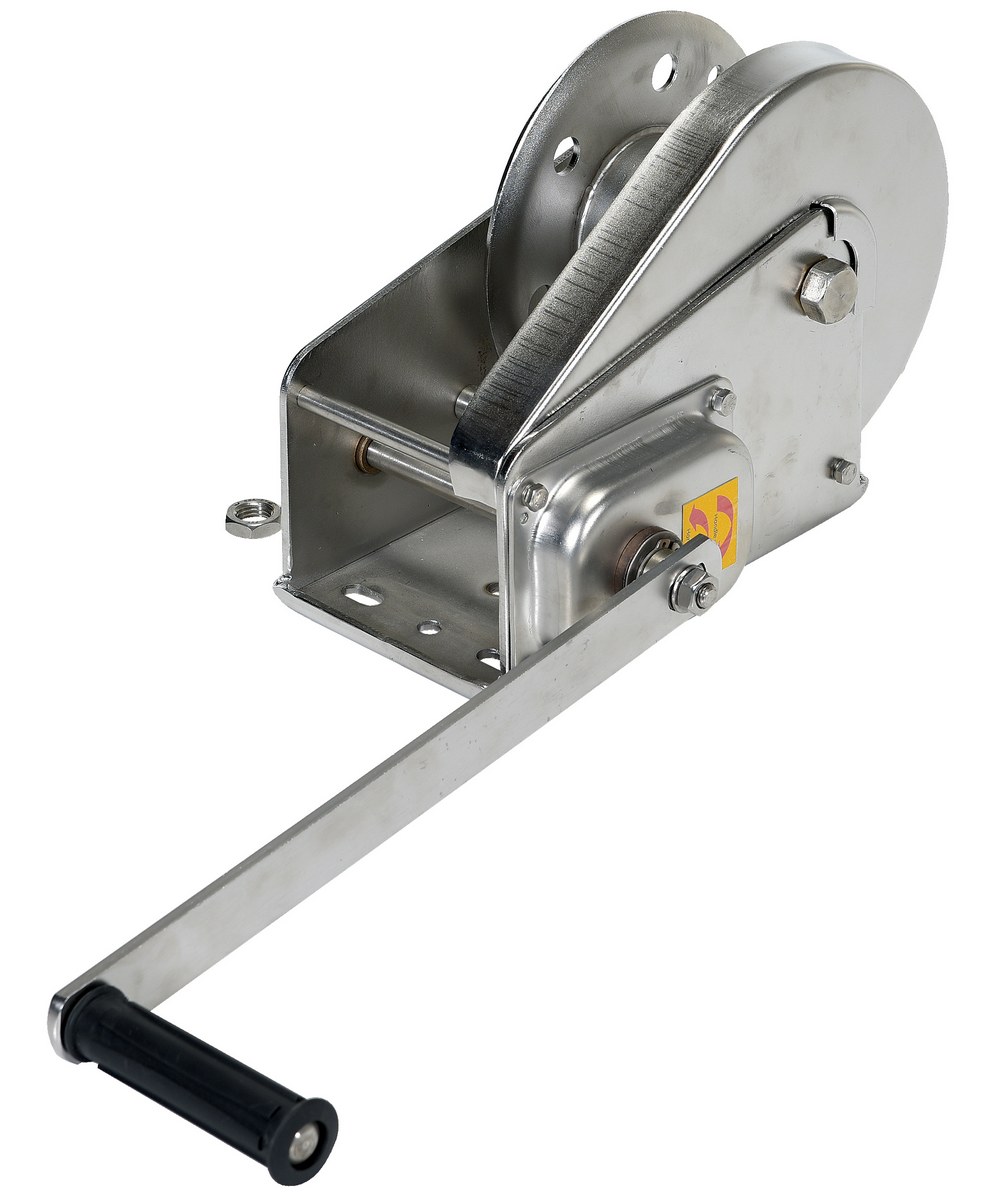

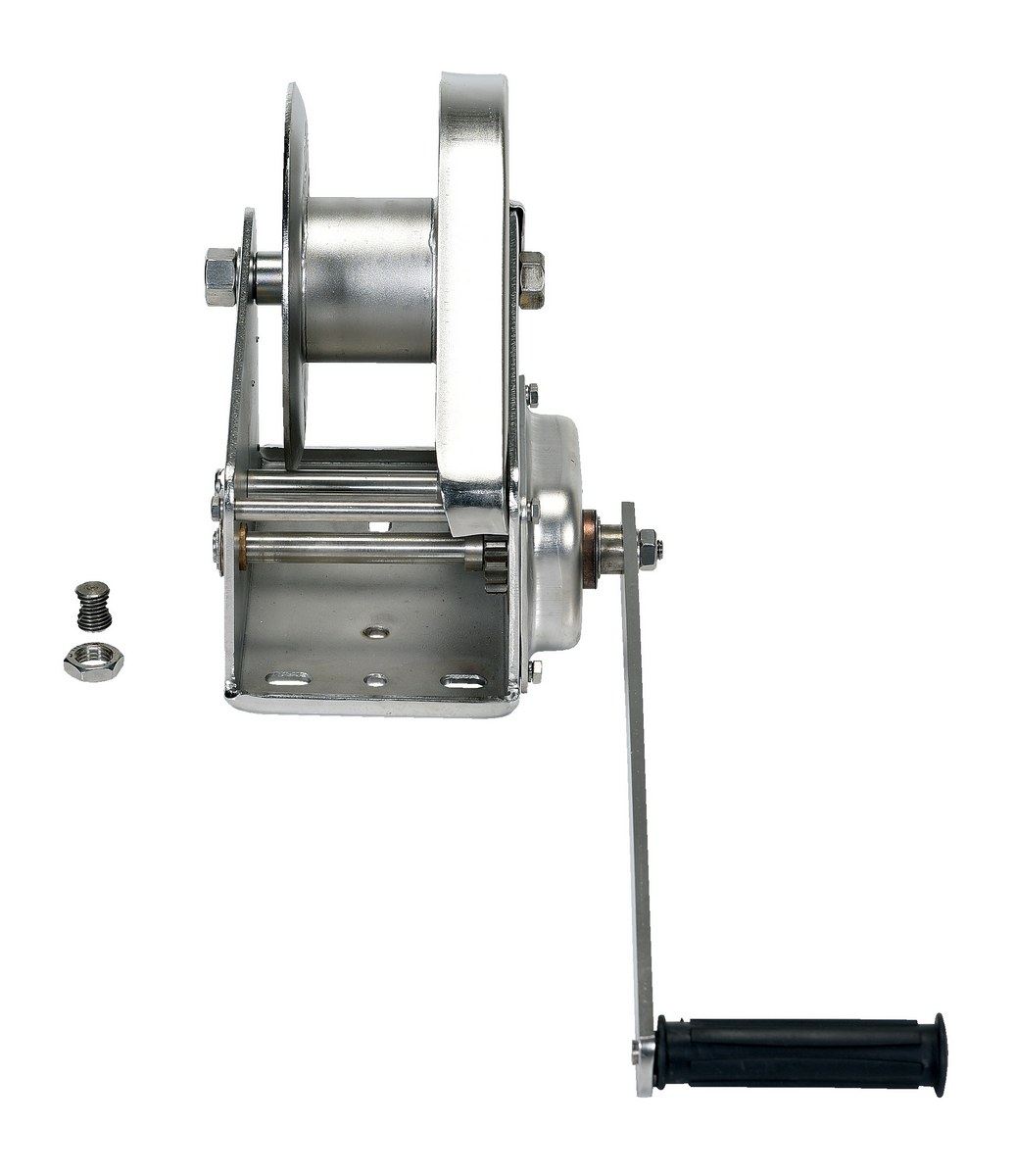

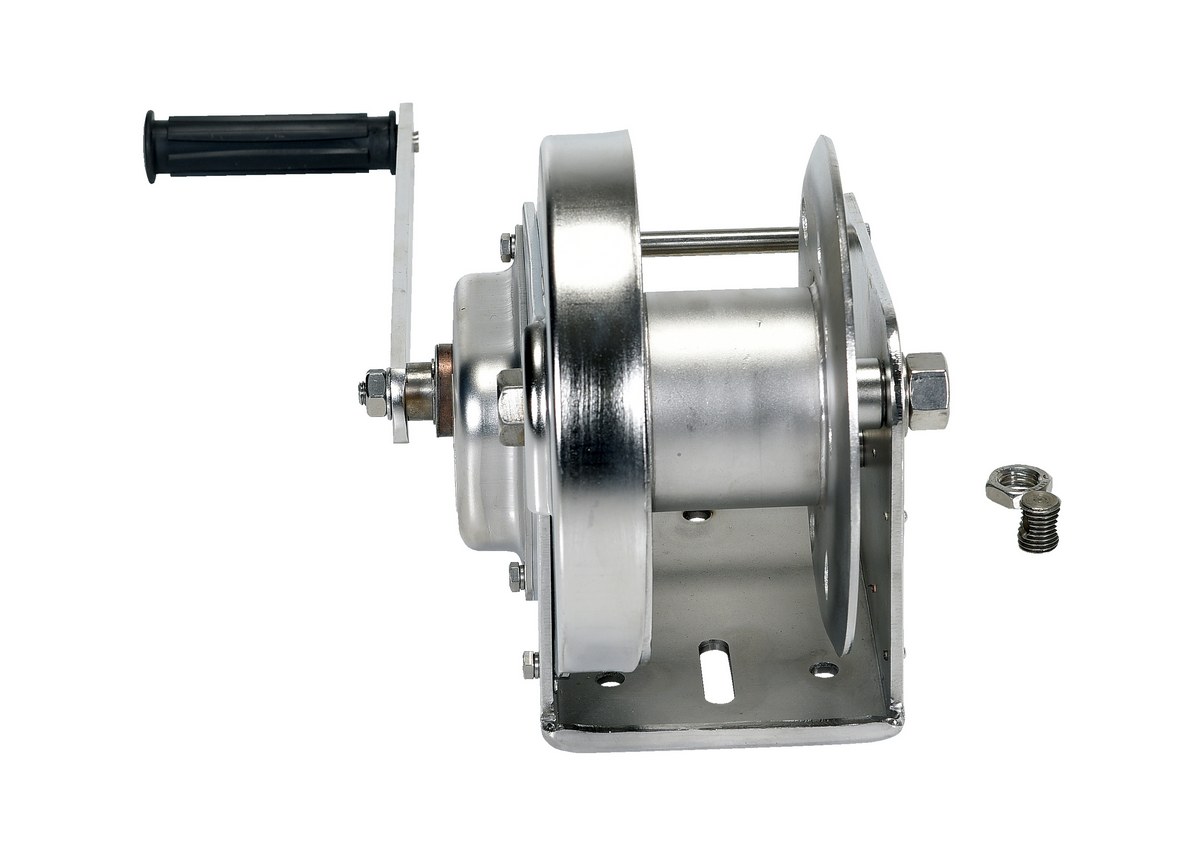

HWSS-2600-NR HWSS-2600-NR30 Days Limited WarrantyStainless Steel Hand Winch 2600 Lb. Capacity SilverUniform Capacity (lb.): 2600
Gear Ratio: 10:1		22

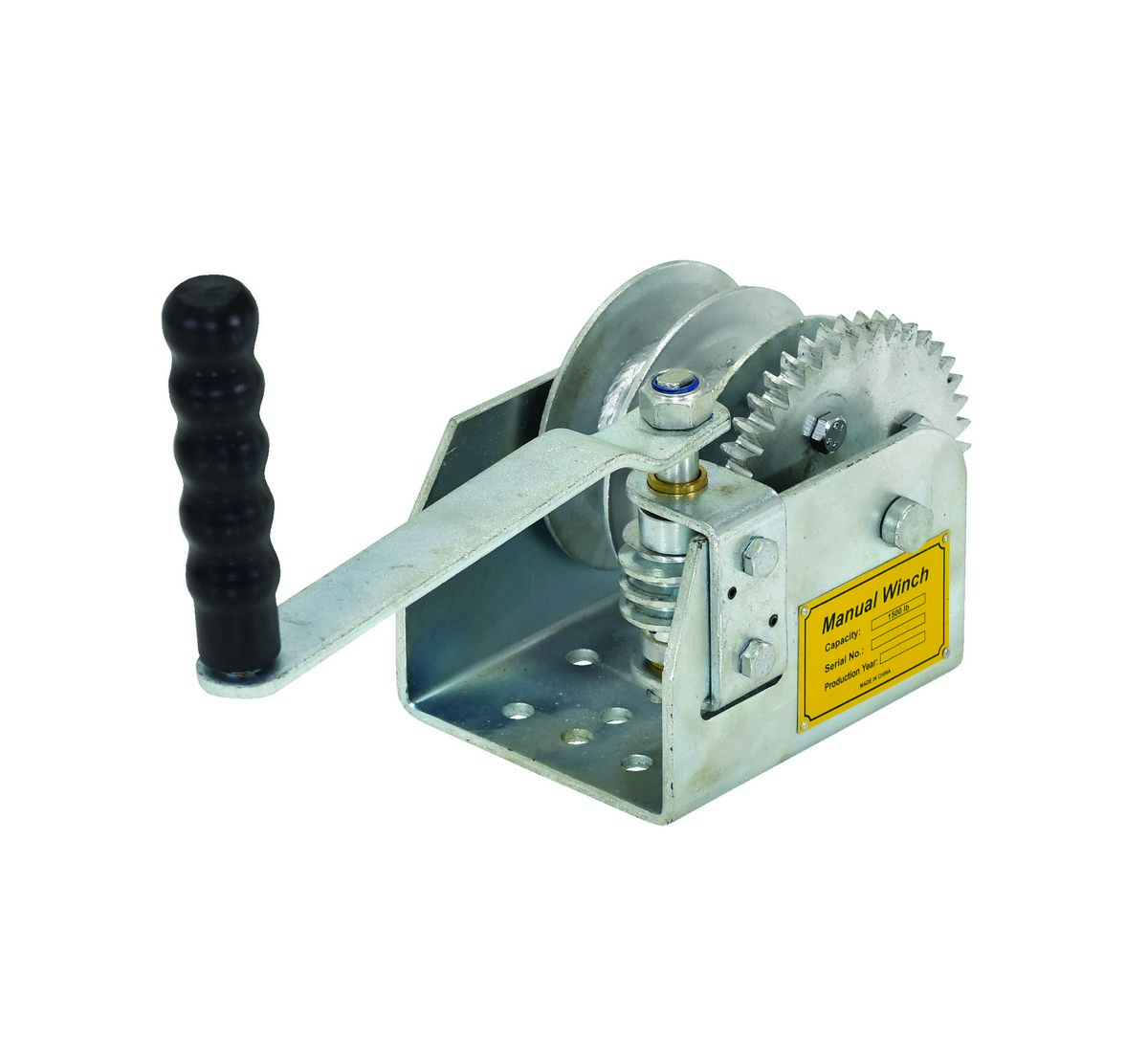

WALL-D WALL-D30 Days Limited WarrantySteel Double Wall Mounted Hand Winch 1500 Lb. Capacity SilverUniform Capacity (lb.): 1,500
Handle Length (in.): 6.6		13

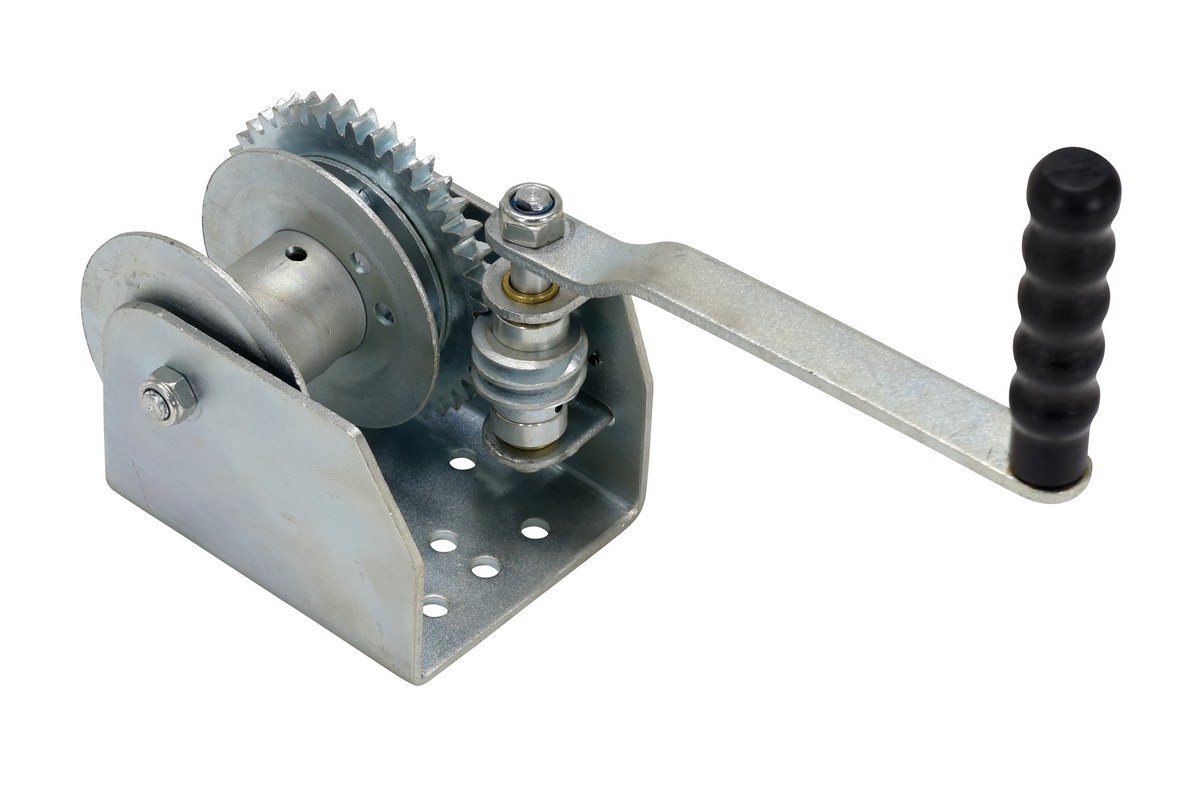

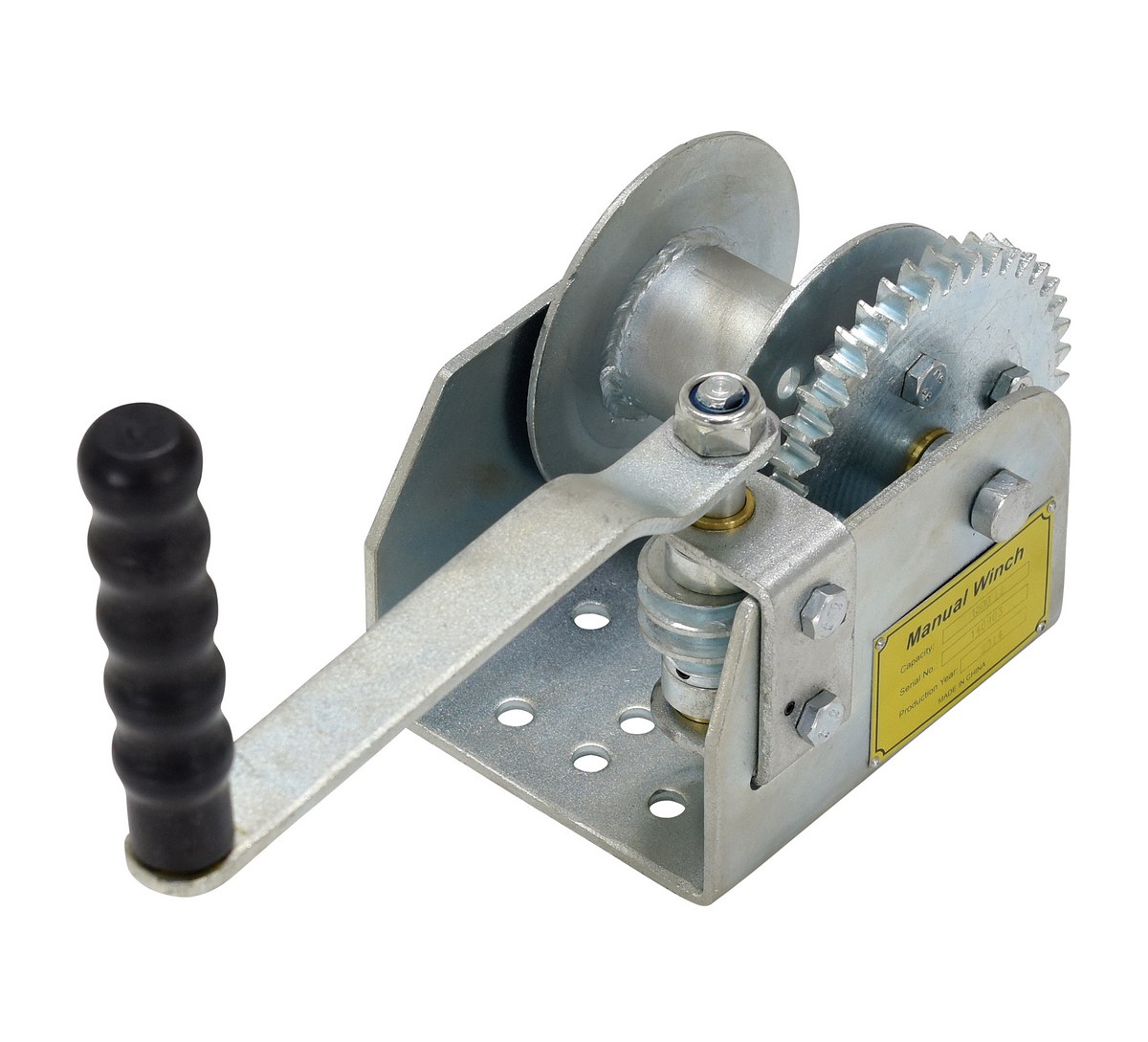

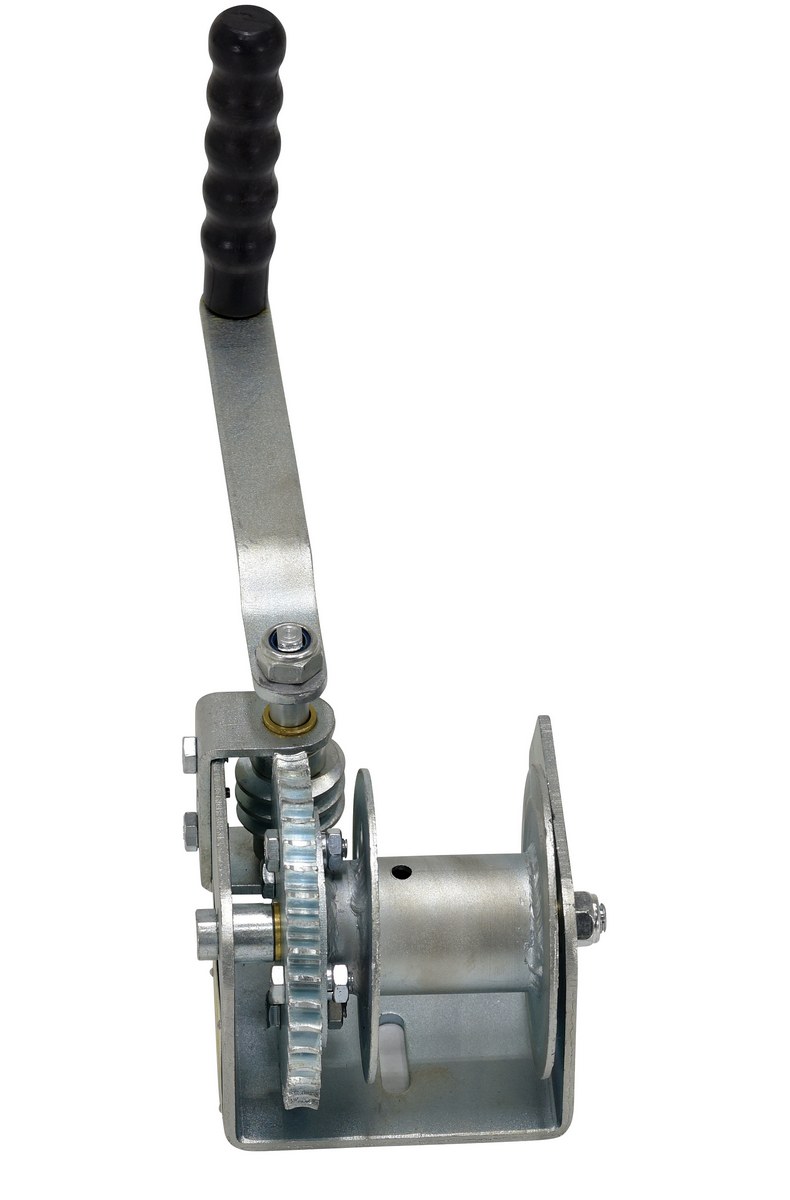

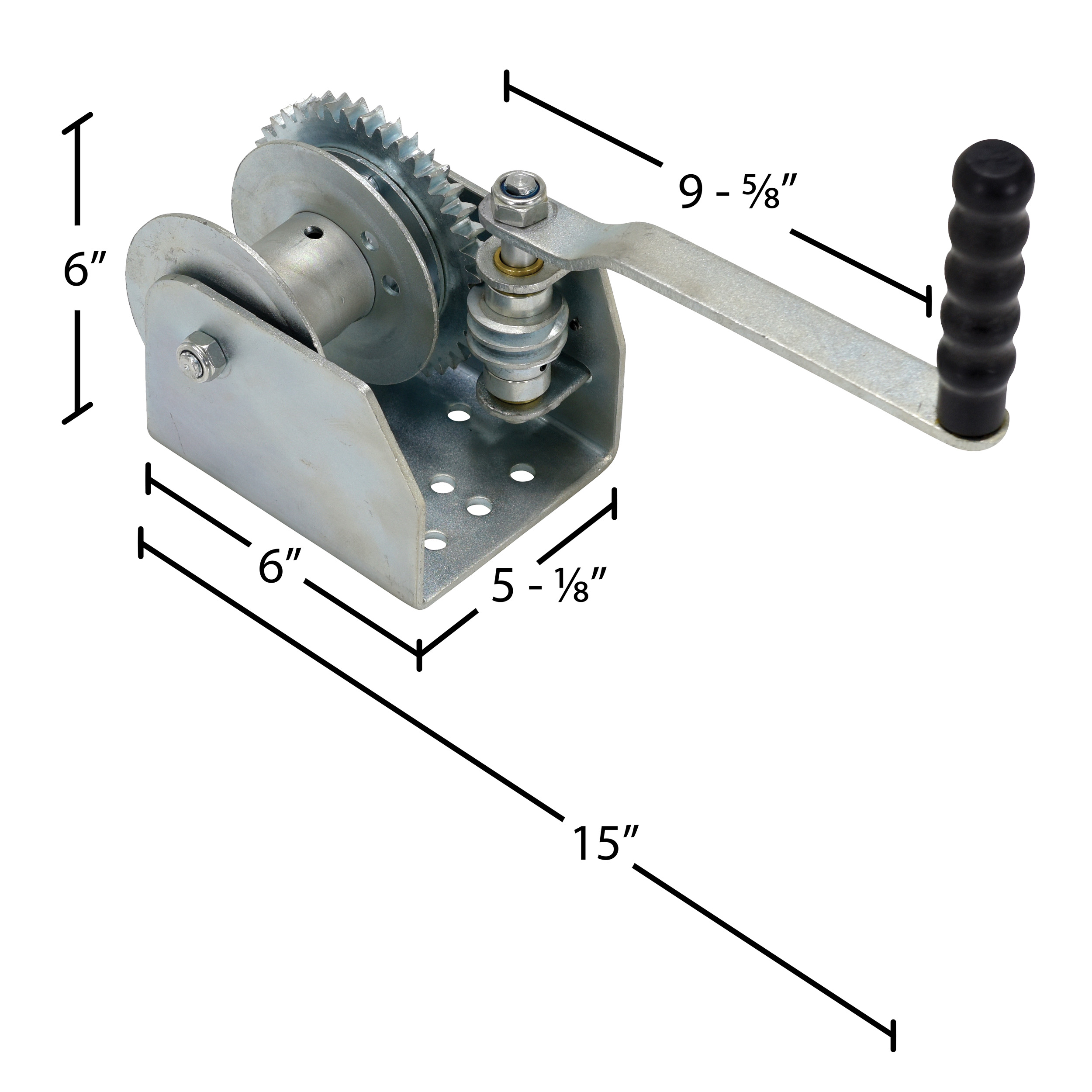

WALL-S WALL-S30 Days Limited WarrantySteel Single Wall Mounted Hand Winch 1500 Lb. Capacity SilverUniform Capacity (lb.): 1,500
Handle Length (in.): 9.6		12

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Dimension Image = Works w/ Skid Only = Flatbed Truck Required

HWSS-1200-NR
HWSS-1800-NR
HWSS-2600-NR
WALL-D
WALL-S
PDFs will open in a new window when clicked.

Manuals

No Owners Manuals For This Product

Survey Sheets

No Survey Sheets For This Product

Engineering Drawings

HWSS-1200-NR

HWSS-1800-NR

HWSS-2600-NR

WALL-D

WALL-S

Testing Certificates

HWSS-1200-NR

HWSS-1800-NR

HWSS-2600-NR

WALL-D

WALL-S

SDS Sheets

No SDS Sheets For This Product

Other PDFs

No "Other PDFs" For This Product







Visit Our Youtube Channel For All Available Videos For All Products

Enhanced Product Content

WALL-S
WALL-S WALL-S A+ Content - 1

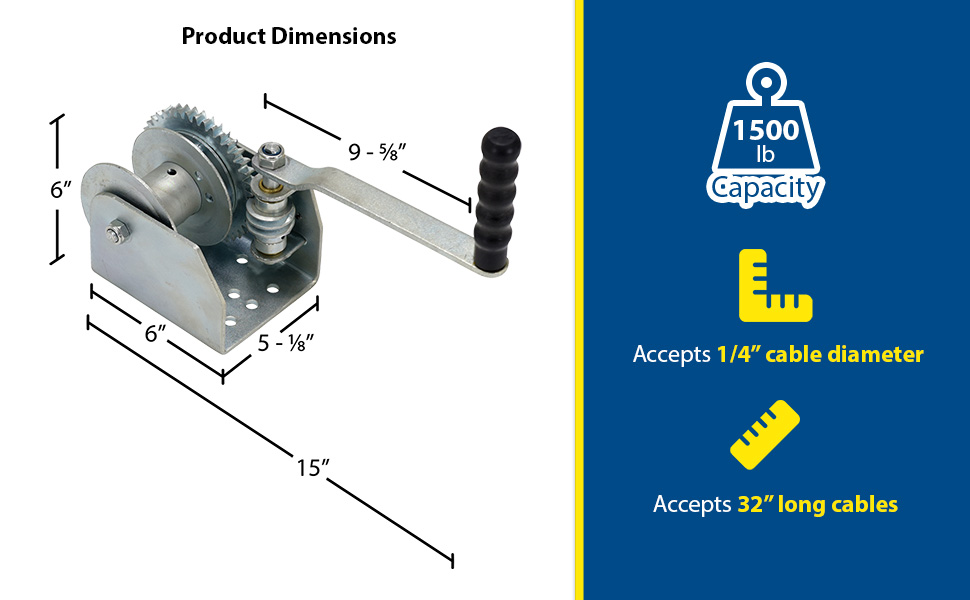

WALL-S WALL-S A+ Content - 3

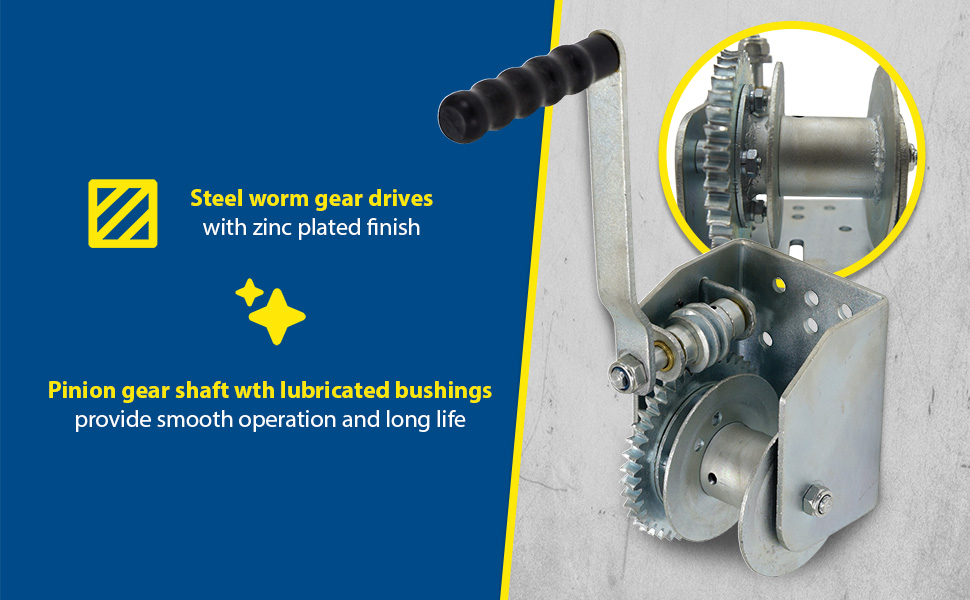

WALL-S WALL-S A+ Content - 2
What is the largest diameter the WALL-D can accommodate?
The largest diameter the WALL-D can handle is 3/16".
Does this product lock in both directions?
The handle is locked in both directions unless it is released.
How much 1/4" rope can I put on the WALL-D winch?
The WALL-D can accommodate 32'.
Does this model have or need a brake?
WALL-D & WALL-S, they have a friction plate so they do not unwind uncontrollably.
What is the recommended wire rope gauge and max length?
On the WALL-D we recommend 1/4 in wire x 26 in long.
What is the material of the black grips on the handles?
The black grips on the handles are rubber.
How is the rope released once it is locked for WALL-S and WALL-D?
WALL-S and WALL-D are worm gear winches. This means the rope, wire, or cable will not release until the manual crank handle is turned to raise or lower the load.
