Manual and Worm Gear Hand Winches

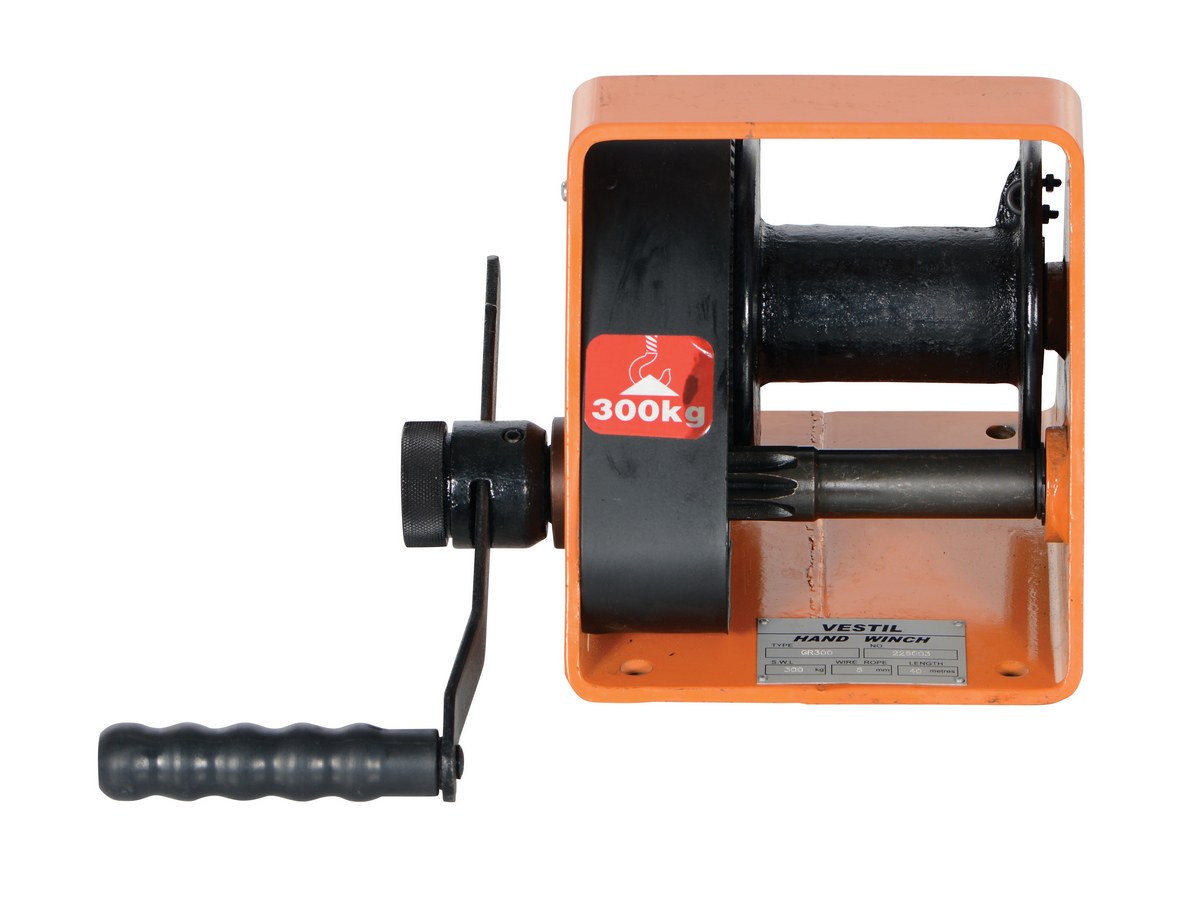

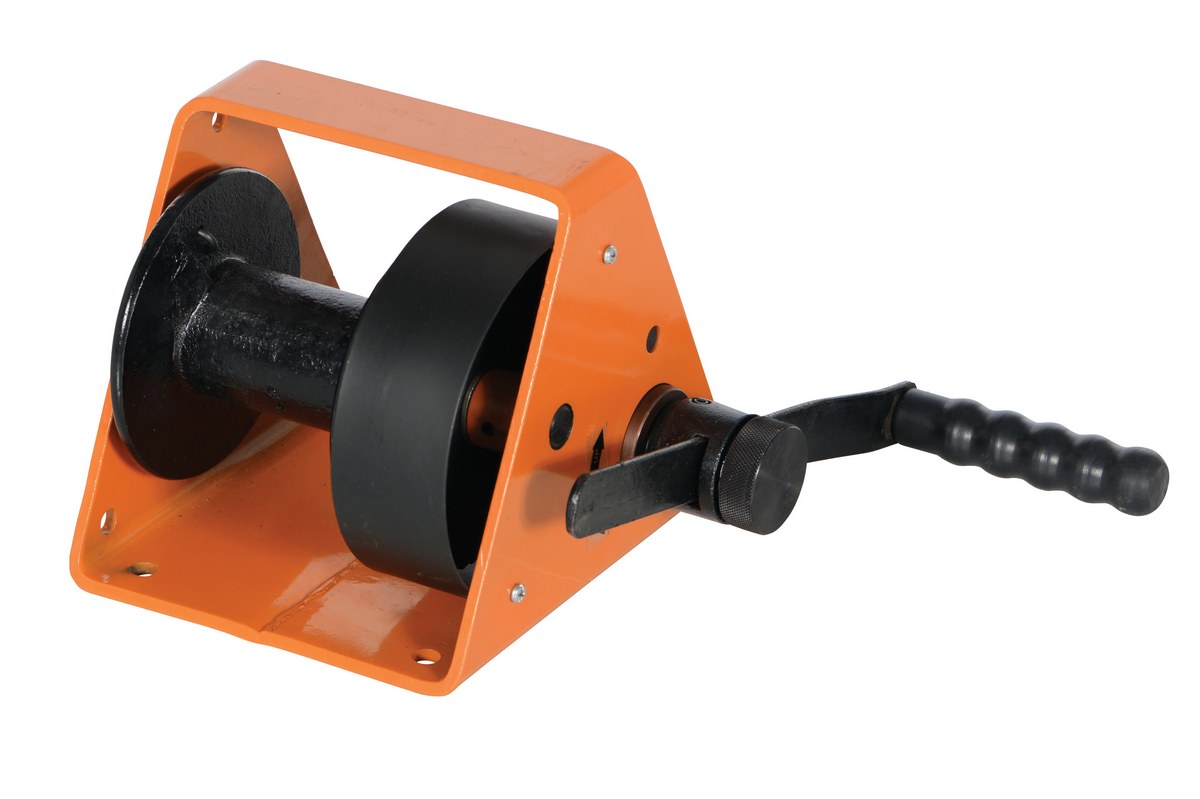

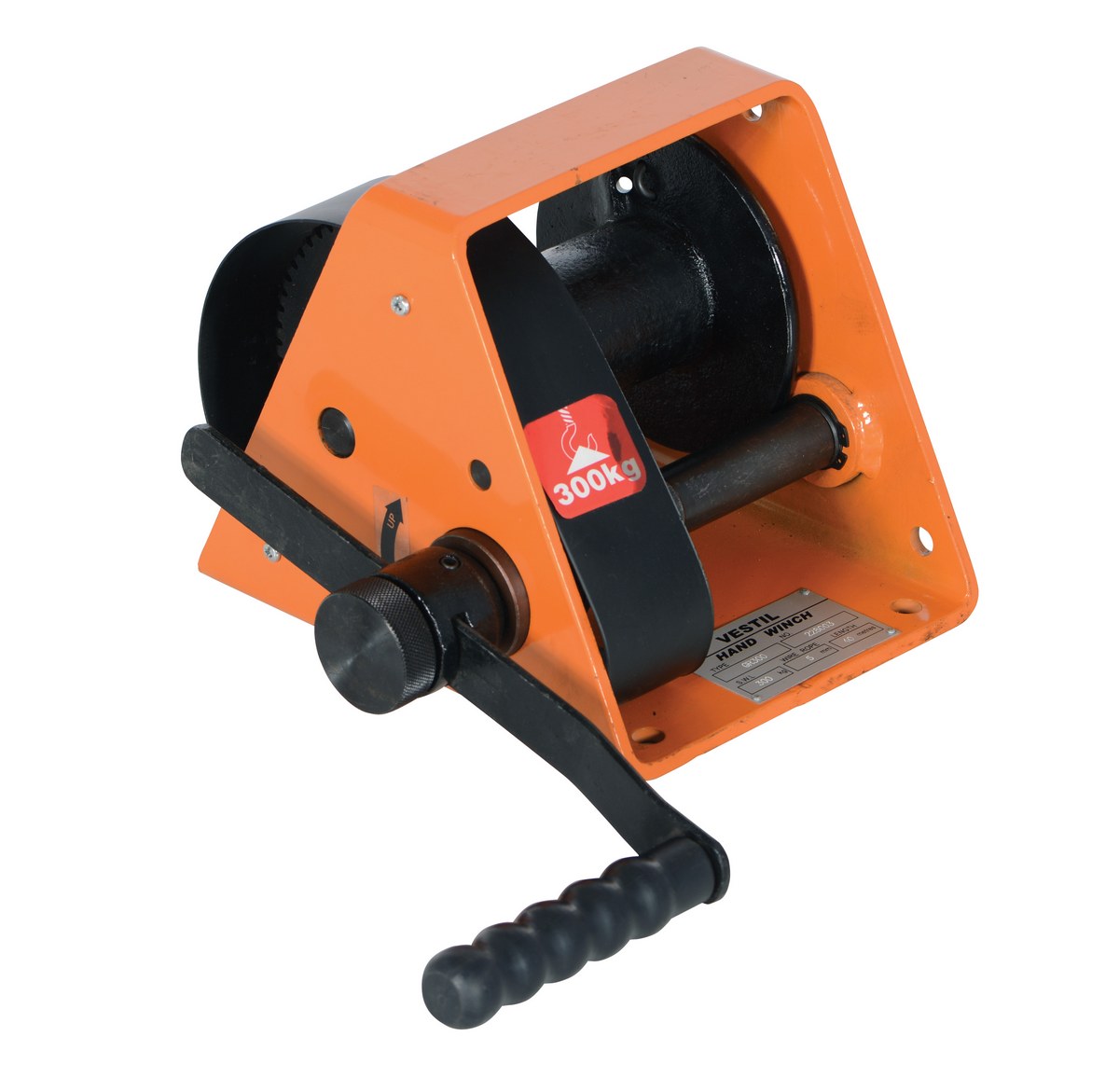

Manual and Worm Gear Hand WinchesManual hand-operated gear drive winch, model HWG-600, is designed for many lifting, lowering and pulling applications. Equipped with a load pressure brake that holds the load at any required height during hoisting and lowering and prevents and unintentional lowering of the load. Adjustable crank handle for fast lifting of smaller loads, resulting in lowest possible handle effort and rapid winding of he rope. All rotating parts are maintenance-free. Suitable for operation in ambient temperatures of 14 degrees through 120 degrees Fahrenheit. Capacity 600 lbs.

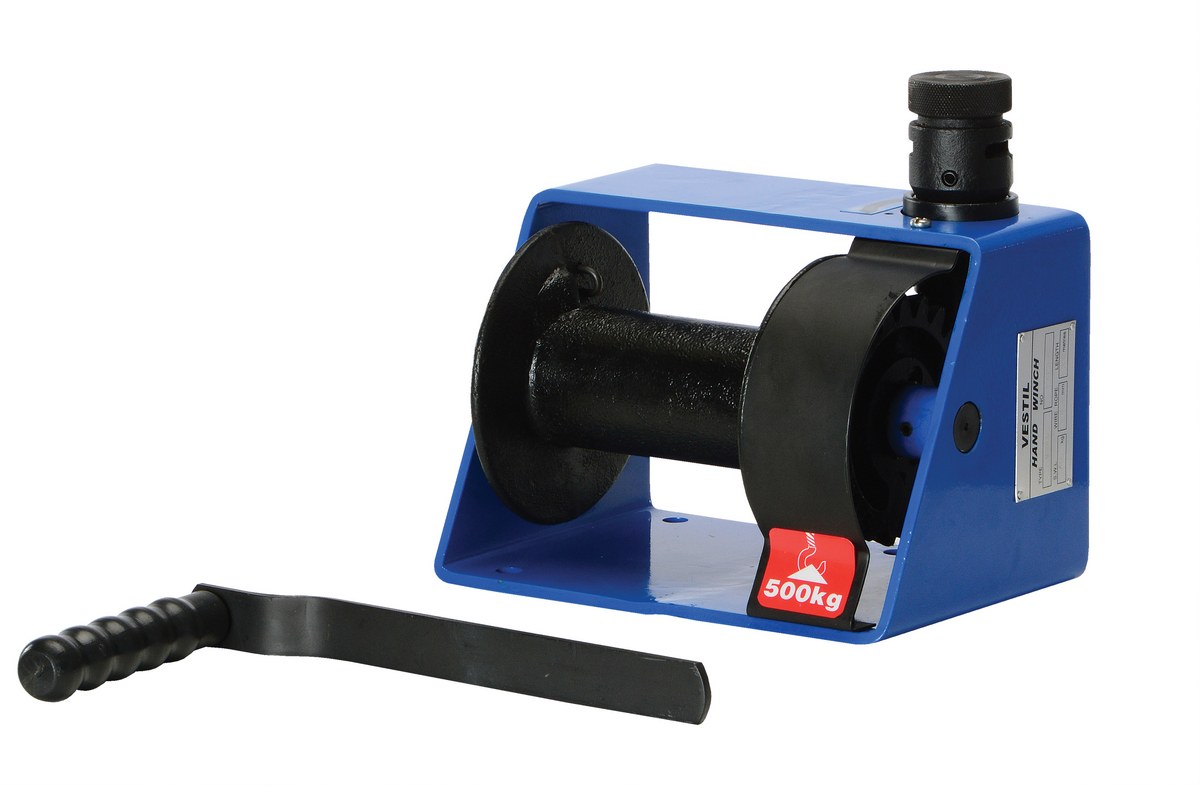

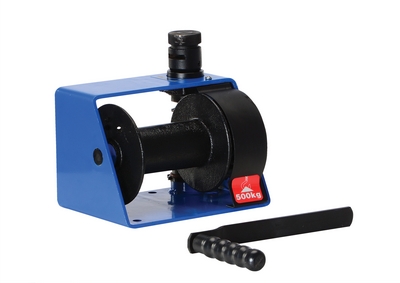

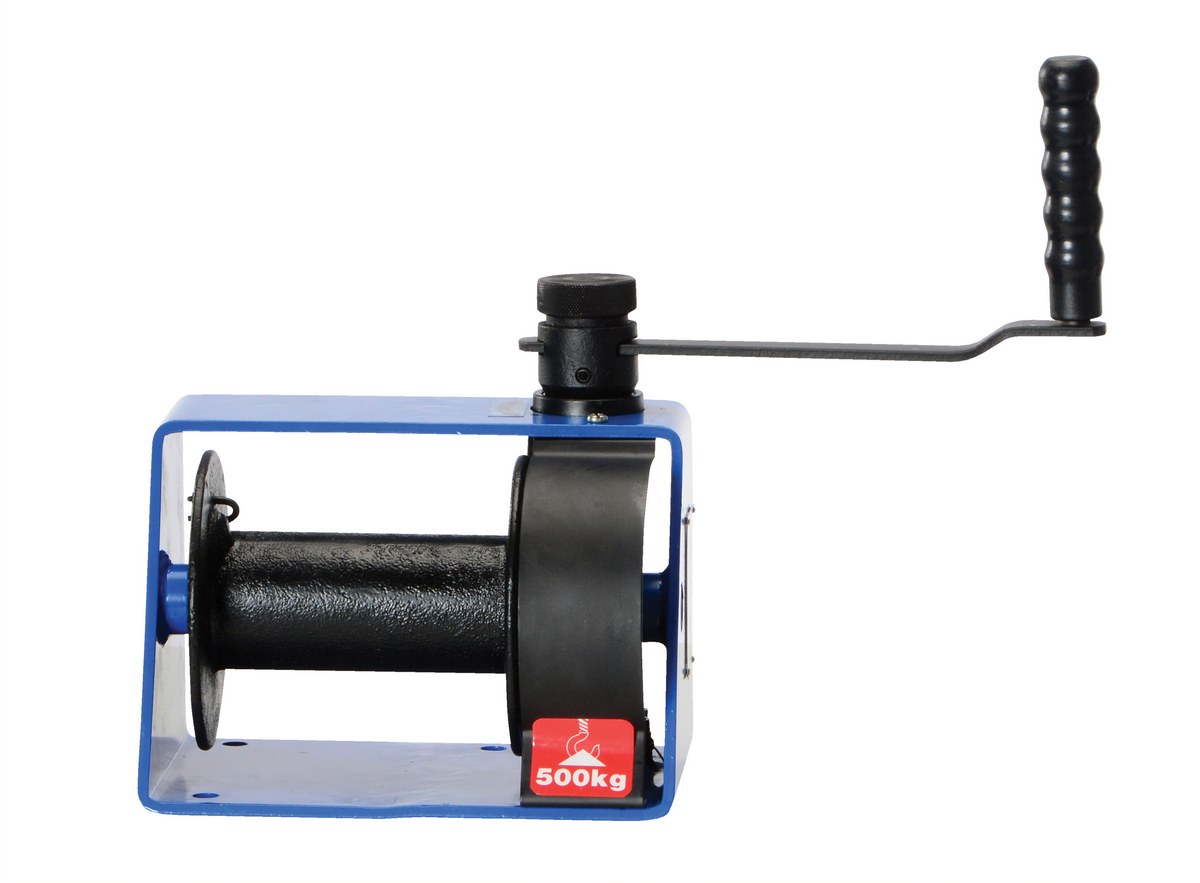

Worm gear winch, model HWV-1000, allows for better load control and features a reinforced frame, comfort-grip handle. Worm gear provides load holding capability when handle is released. Reel stops automatically, locking load in place whenever the handle is released. High quality enamel paint finish, dipped and baked. Crank handle can be adjusted in length. Winch housing and rope drum are made from robust steel plate. Capacity 1,000 lbs. Cable not included.
| Model # | Description | Attributes | Net Wt. (lbs) | ||||
|---|---|---|---|---|---|---|---|
| HWG-600 |  | 30 Days Limited Warranty | Steel Manual Hand Winch 600 Lb. Capacity Orange | Uniform Capacity (lb.): 600 Wire Rope (in.): 3/16 | 36 | ||
| HWV-1000 |  | 30 Days Limited Warranty | Steel Hand Winch Vertical Handle Worm Gear 1000 Lb. Capacity Blue | Uniform Capacity (lb.): 1,000 Wire Rope (in.): 1/4 | 35 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
A: The hole pattern is 8" apart center of hole to center of hole X 5-3/4" apart center of hole to center of hole. The holes are 1/2" diameter.
|
|||||||||||||||||
Manual and Worm Gear Hand Winches |
|||||||||||||||||
 |
|||||||||||||||||
Manual hand-operated gear drive winch, model HWG-600, is designed for many lifting, lowering and pulling applications. Equipped with a load pressure brake that holds the load at any required height during hoisting and lowering and prevents and unintentional lowering of the load. Adjustable crank handle for fast lifting of smaller loads, resulting in lowest possible handle effort and rapid winding of he rope. All rotating parts are maintenance-free. Suitable for operation in ambient temperatures of 14 degrees through 120 degrees Fahrenheit. Capacity 600 lbs. Worm gear winch, model HWV-1000, allows for better load control and features a reinforced frame, comfort-grip handle. Worm gear provides load holding capability when handle is released. Reel stops automatically, locking load in place whenever the handle is released. High quality enamel paint finish, dipped and baked. Crank handle can be adjusted in length. Winch housing and rope drum are made from robust steel plate. Capacity 1,000 lbs. Cable not included. |
|||||||||||||||||
 |
|||||||||||||||||
|
|||||||||||||||||
