Magnetic Lifters

model: ML-6

ML-6_A.jpg ML-6_B.jpg ML-6_C.jpg ML-6_D.jpg ML-6_E.jpg ML-6_F.jpg More Images +
Magnetic Lifters
SERIES: ML

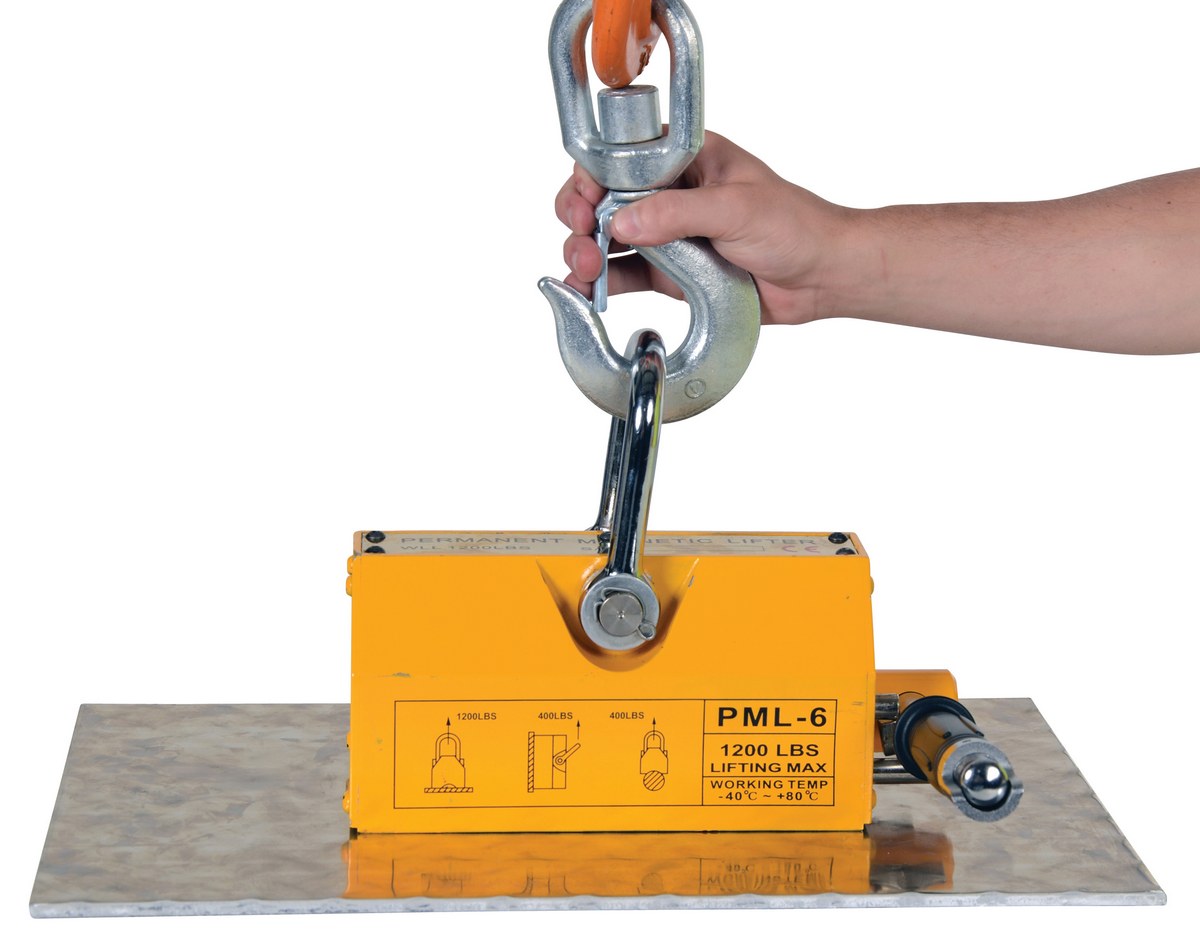

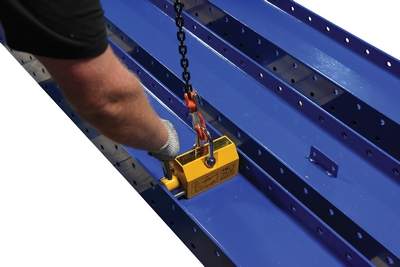

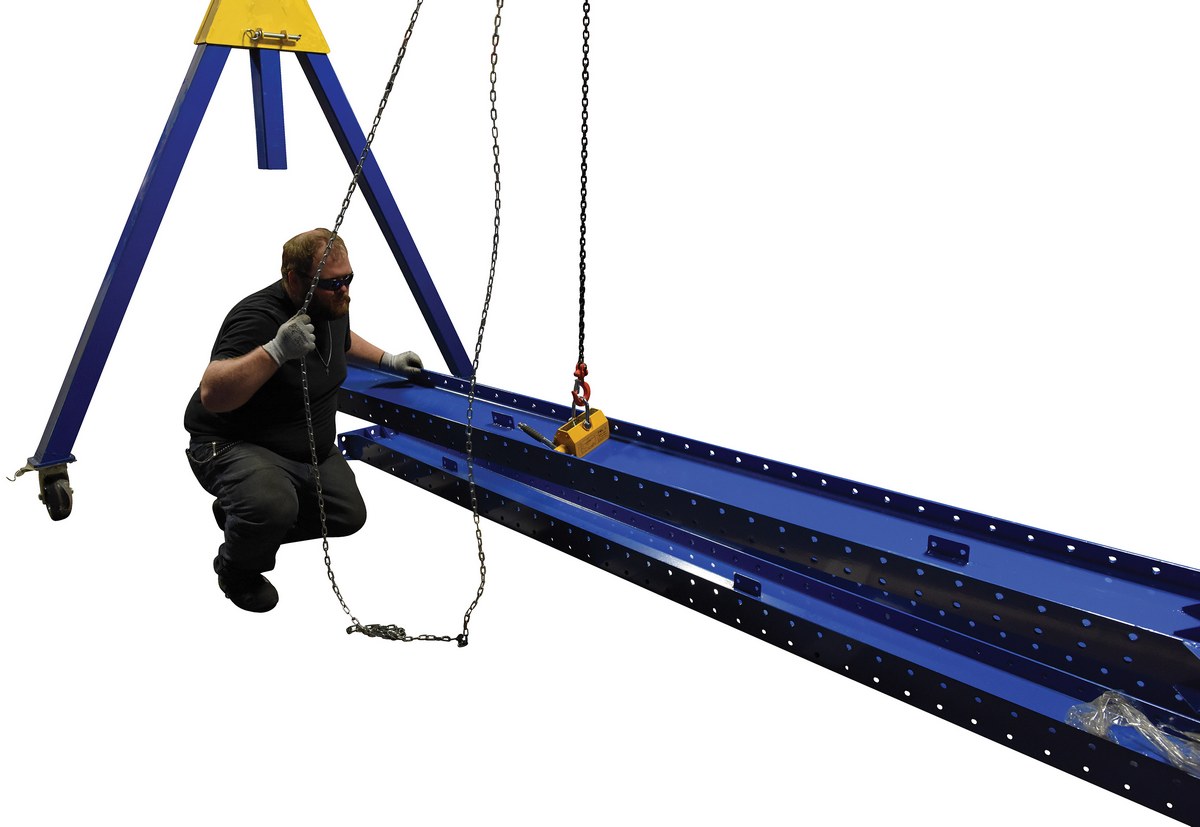

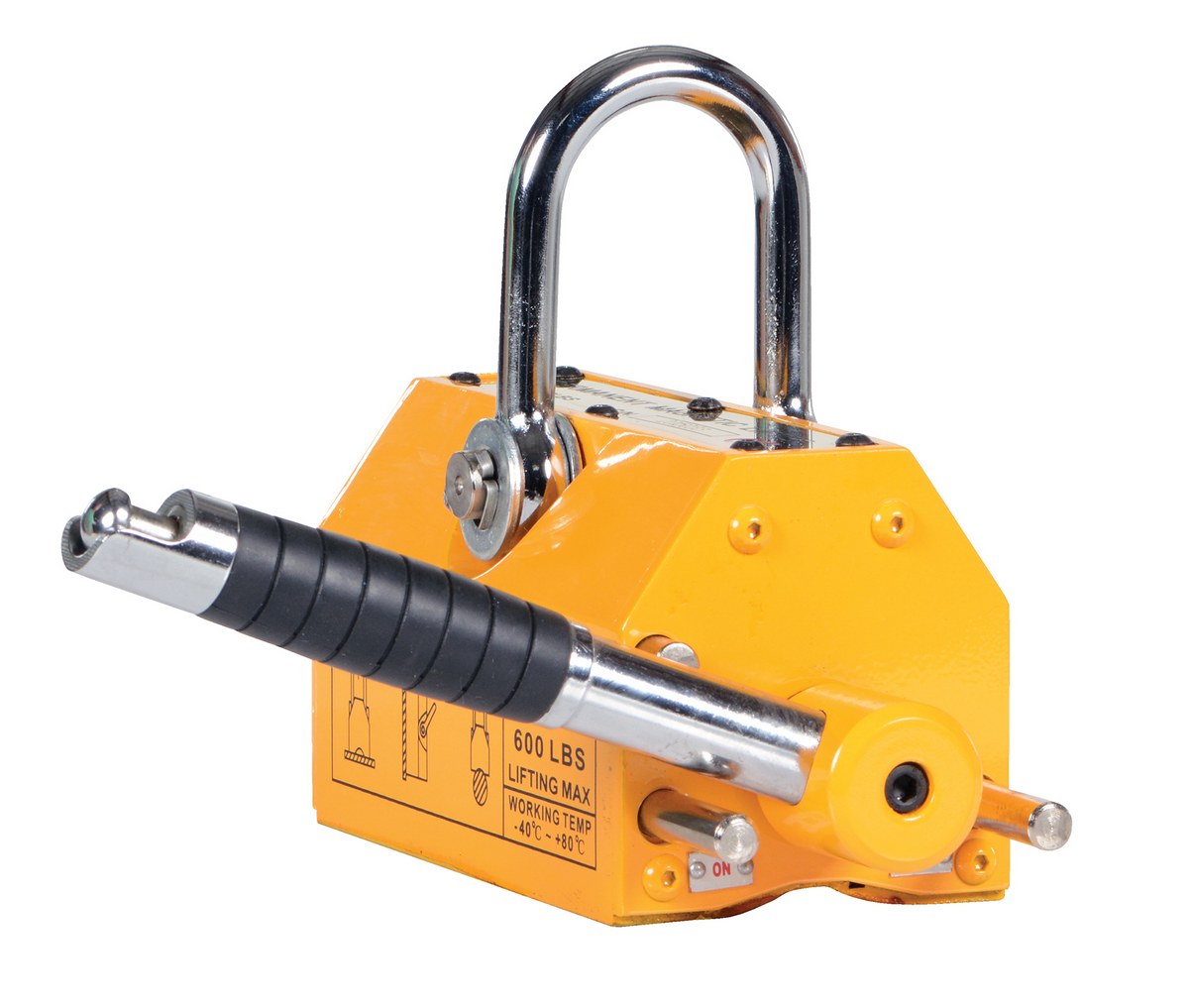

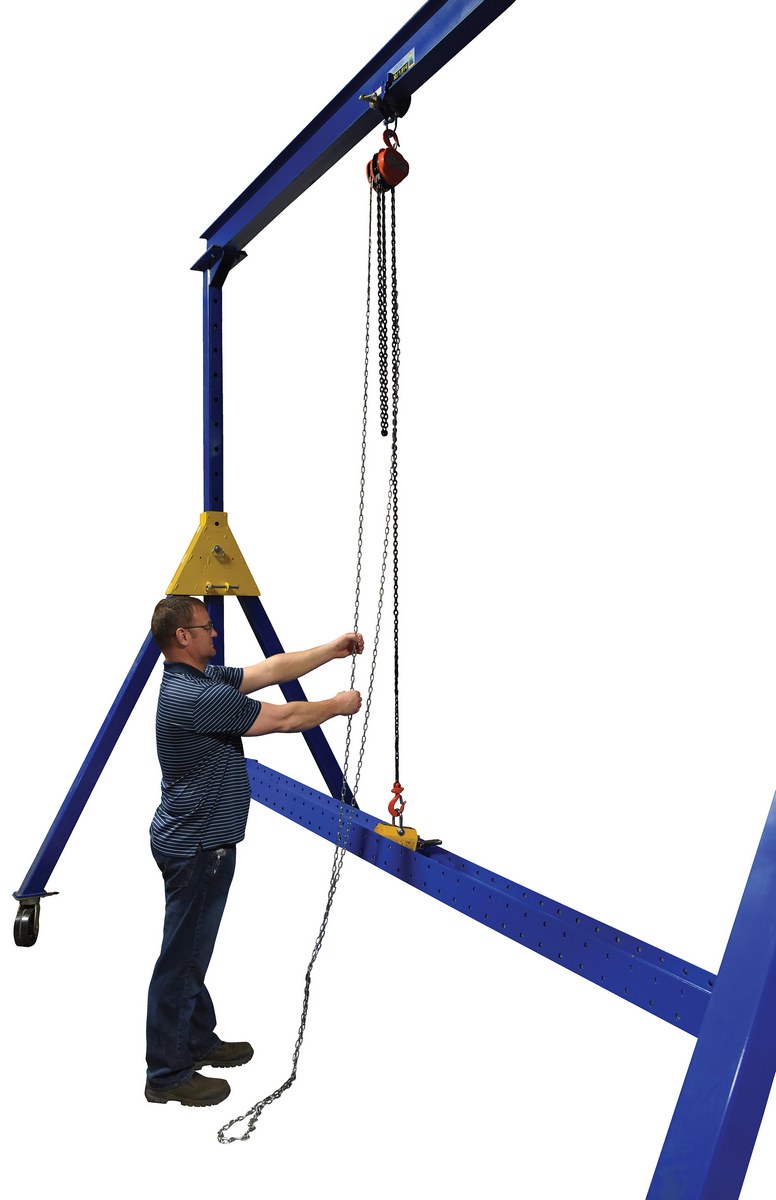

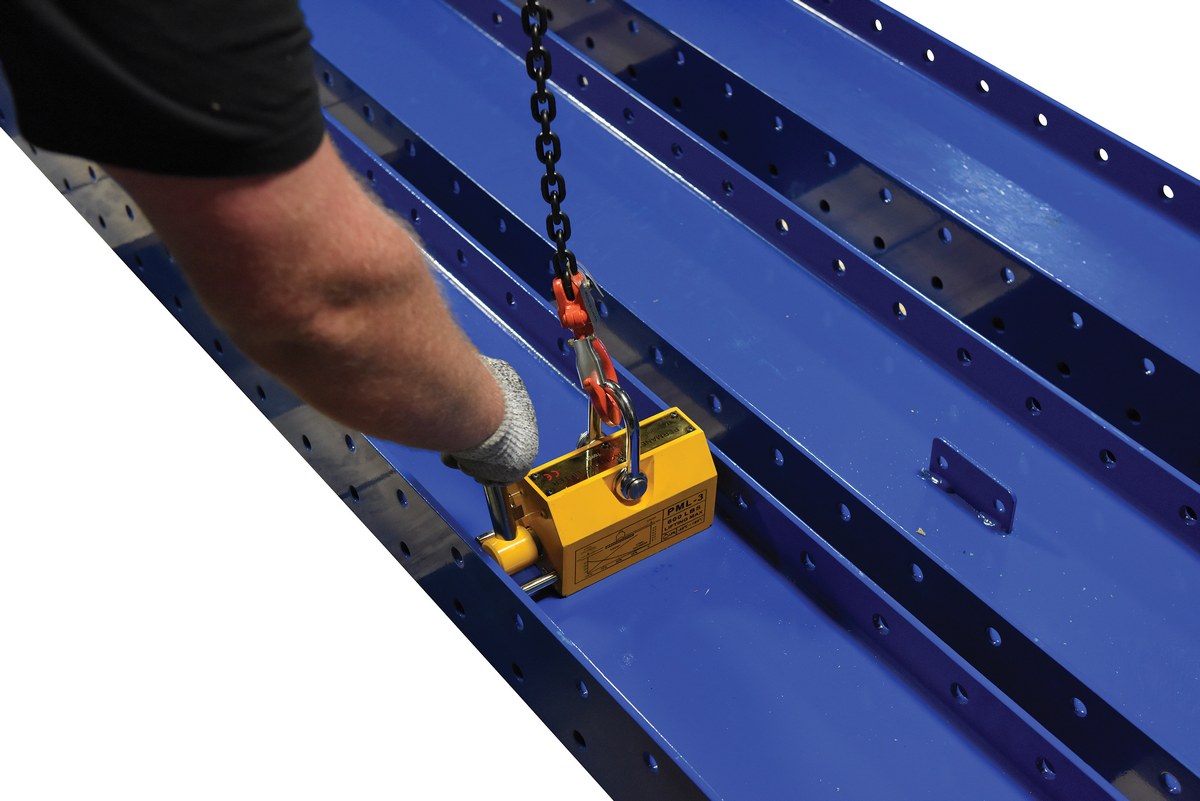

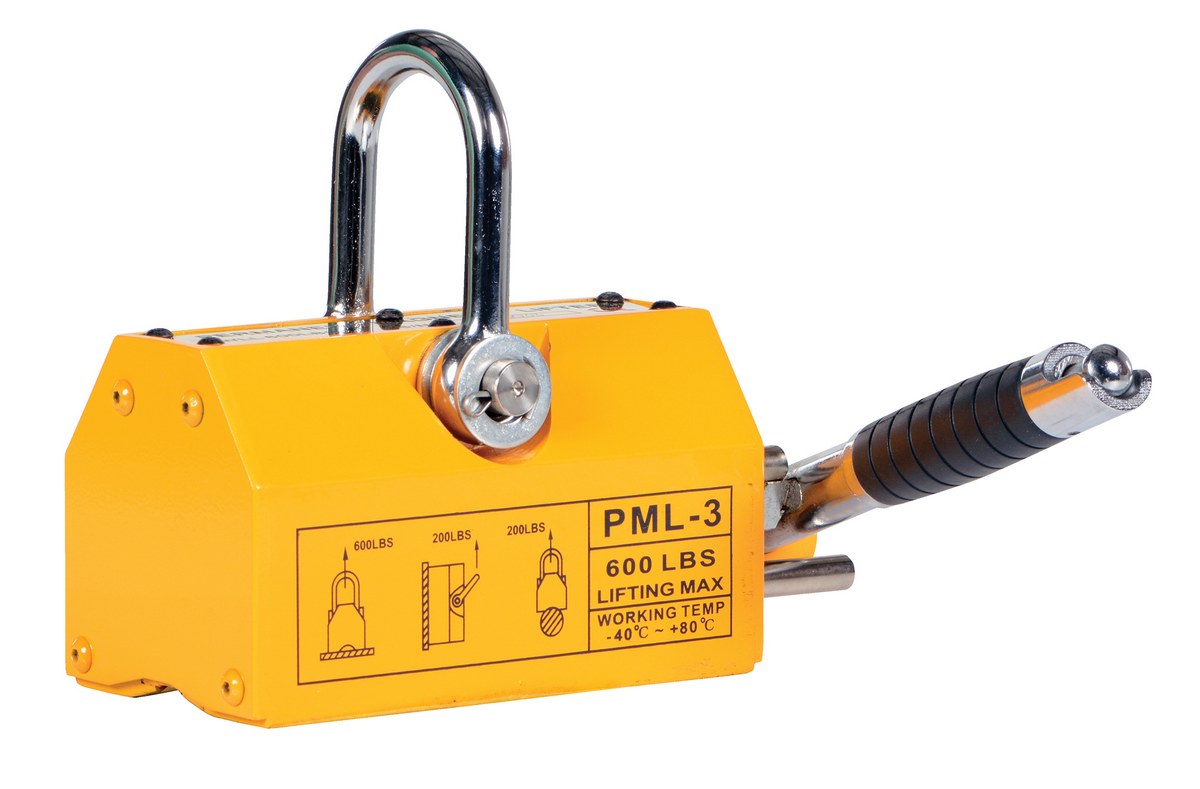

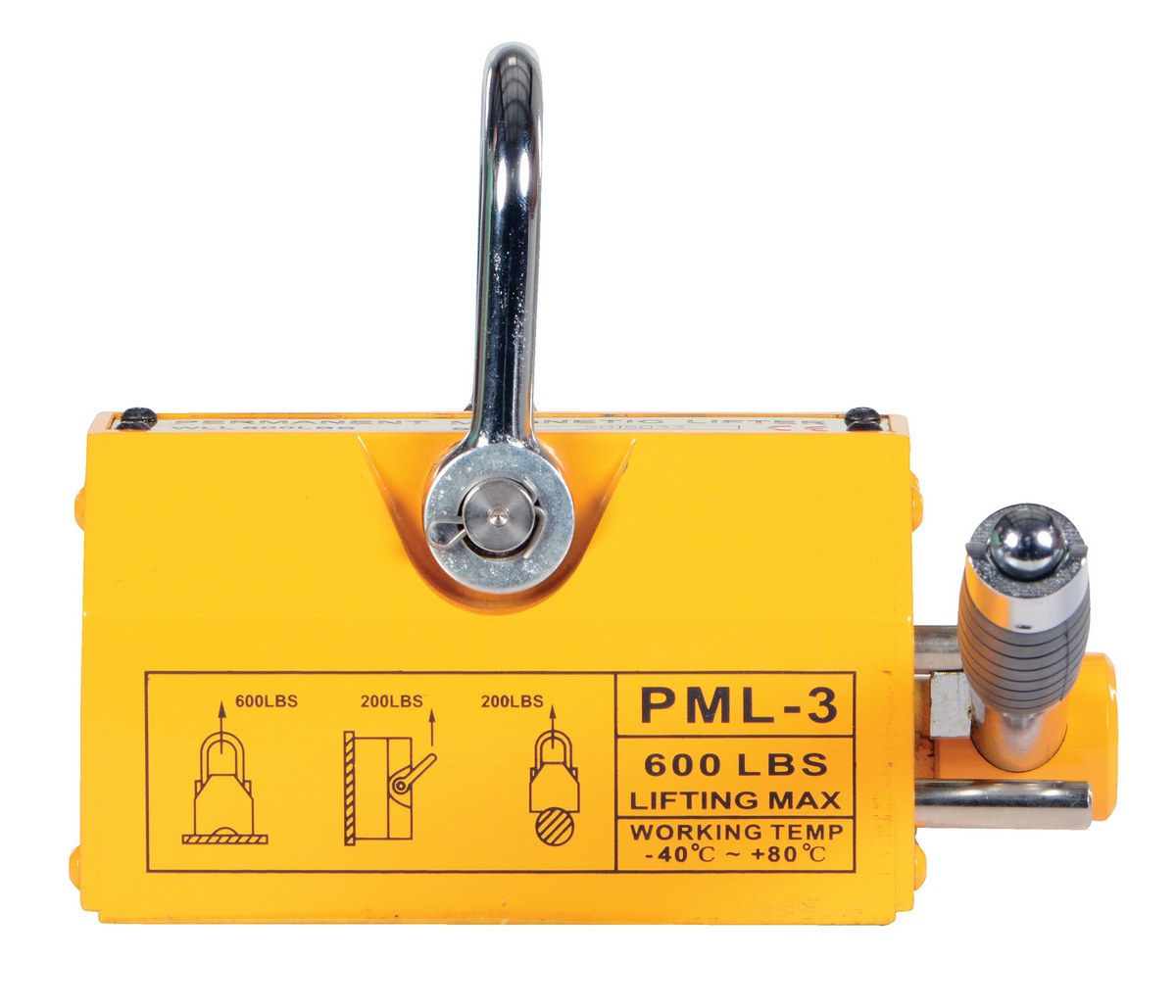

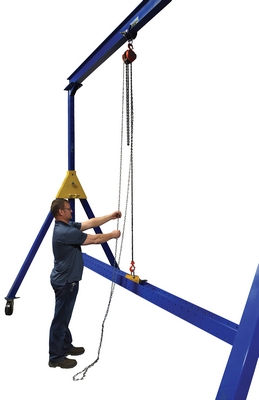

ML-6Pick up sheets of material by use of overhead crane or chain with the permanent Magnetic Lifter. Magnet is activated or deactivated by simply rotating the lever. Units are lightweight, so transporting from work area to work area is convenient.

  • Pick up sheets of material by use of overhead crane or chain
  • Magnet is activated or deactivated by simply rotating the lever
  • Transporting from work area to work area is convenient
  • Lifter is permanent lightweight

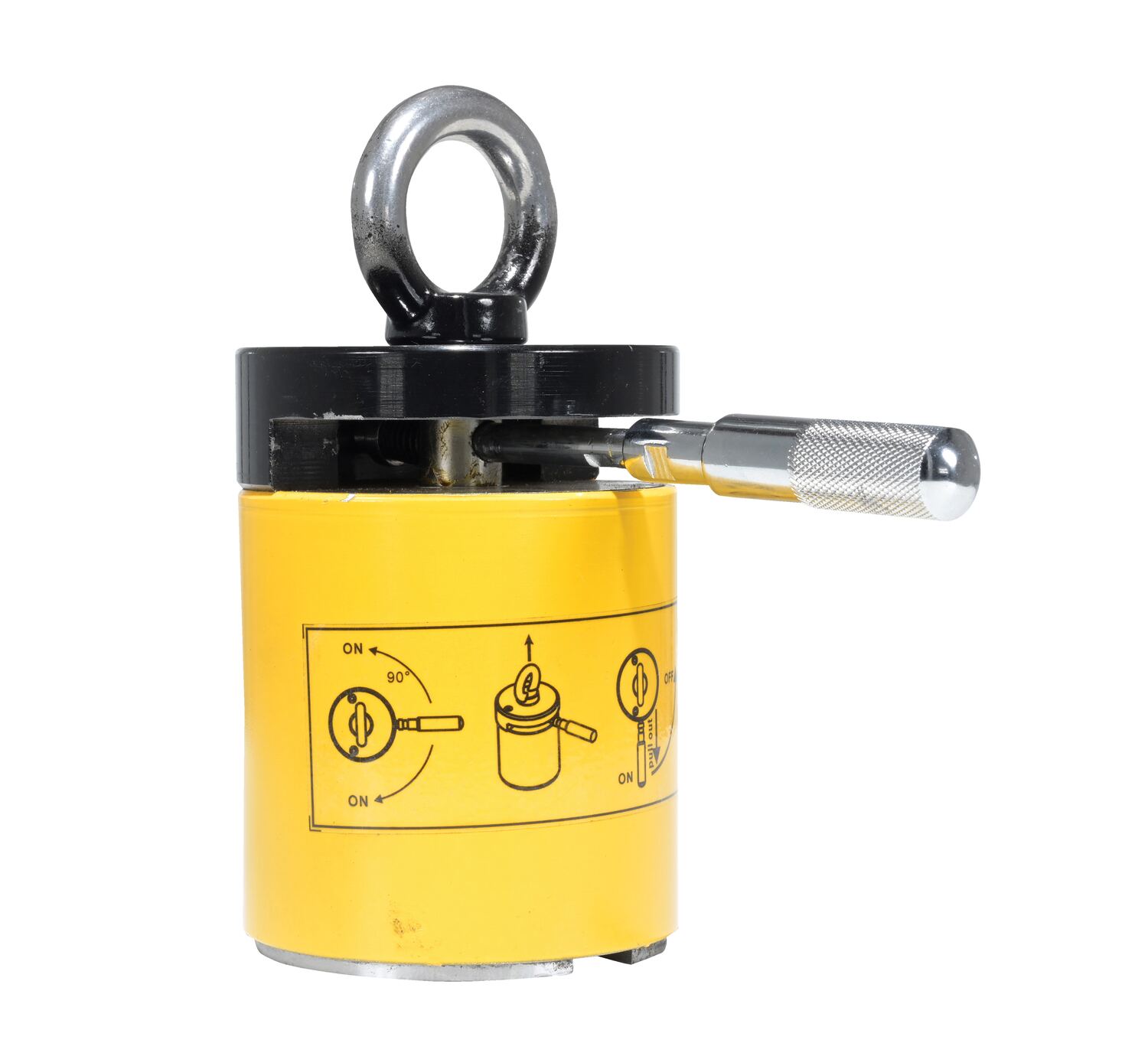

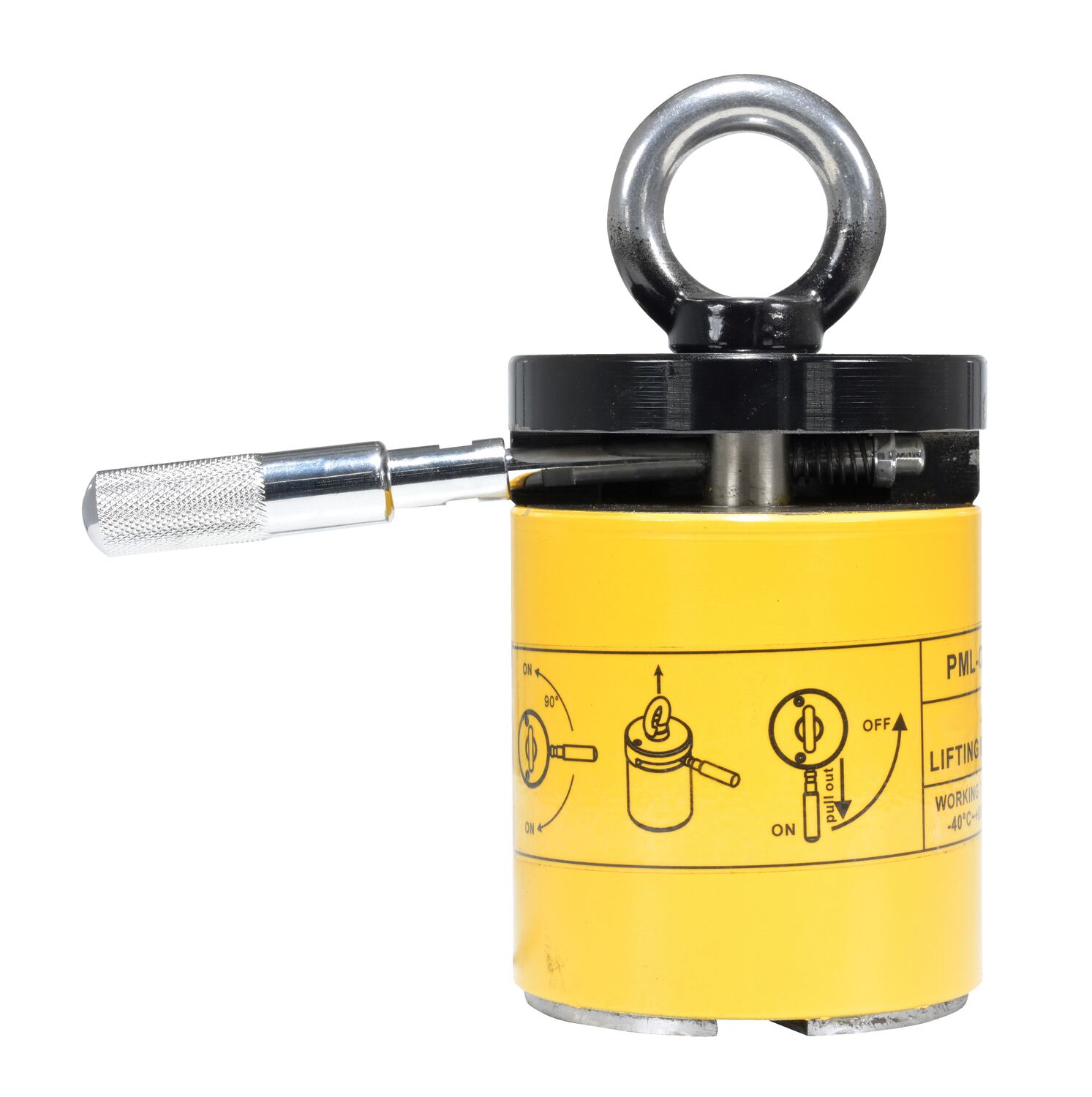

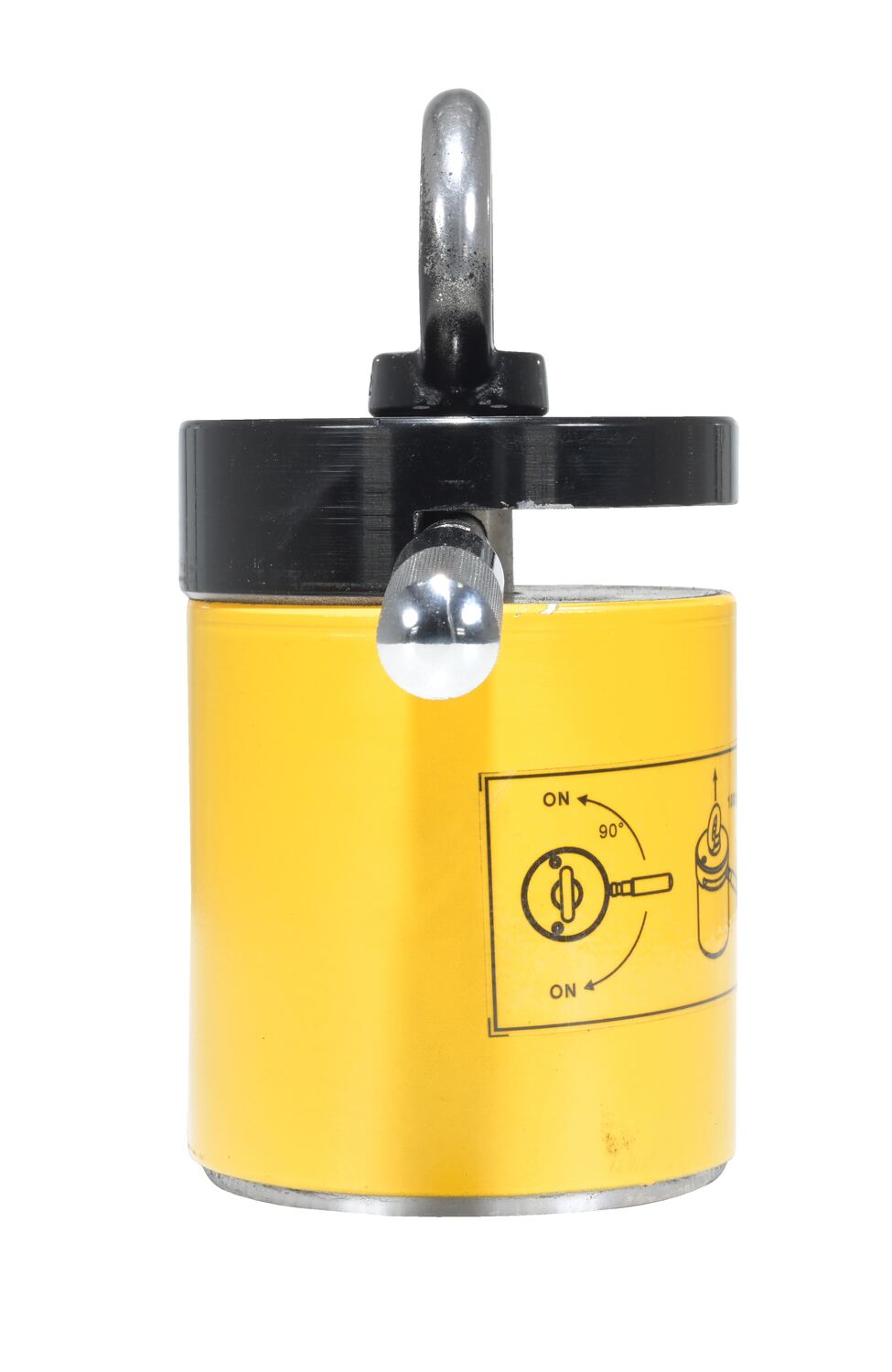

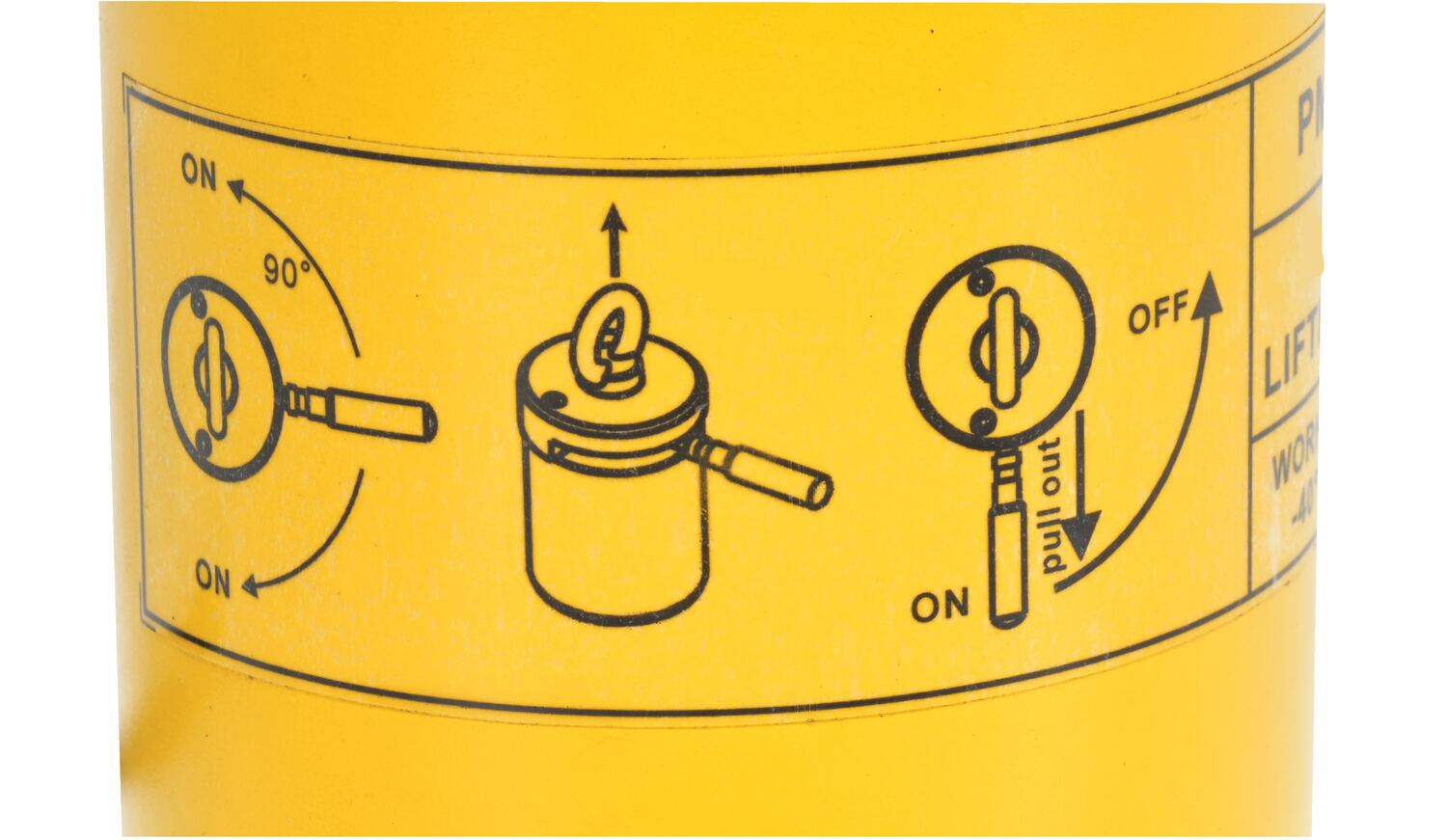

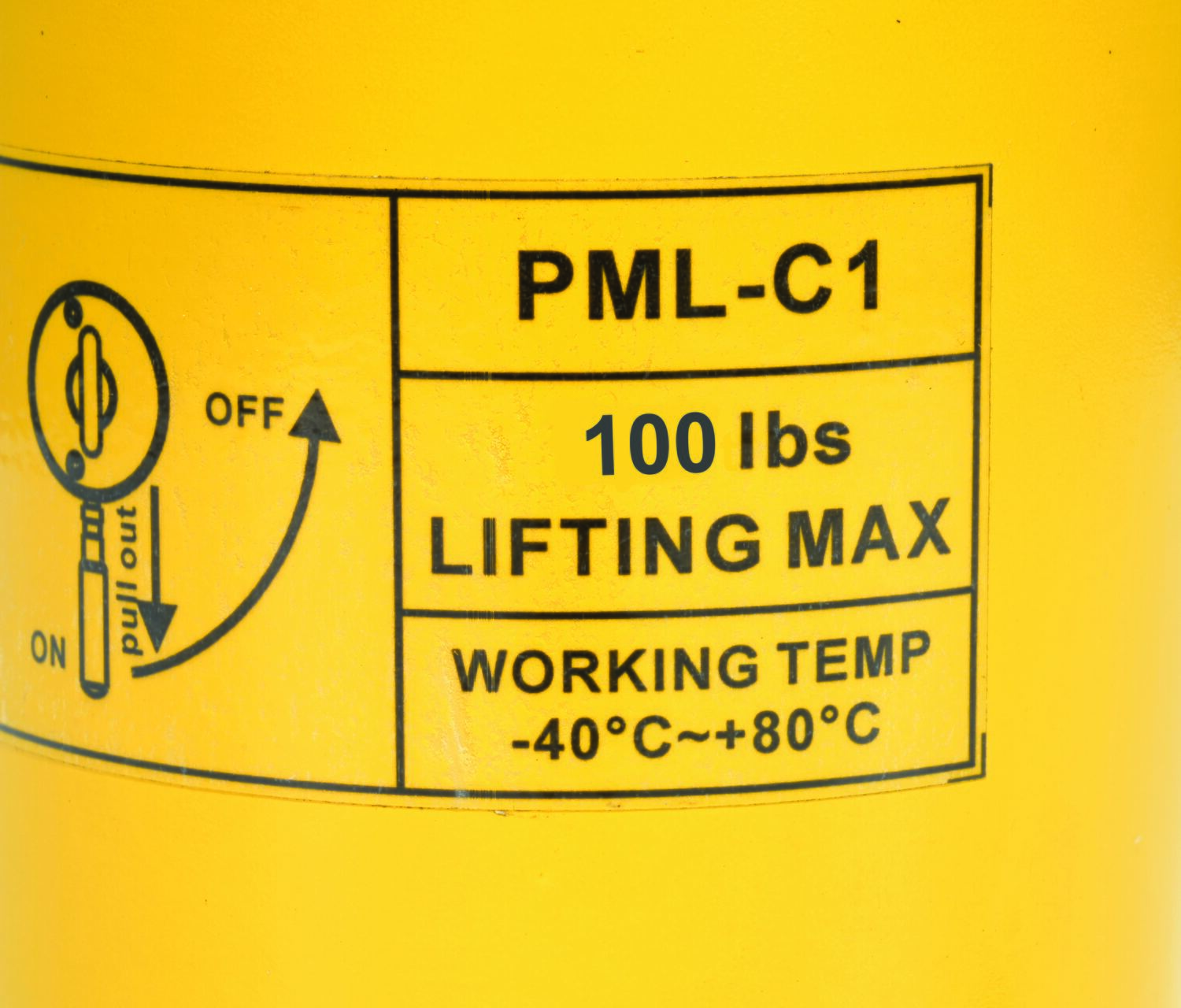

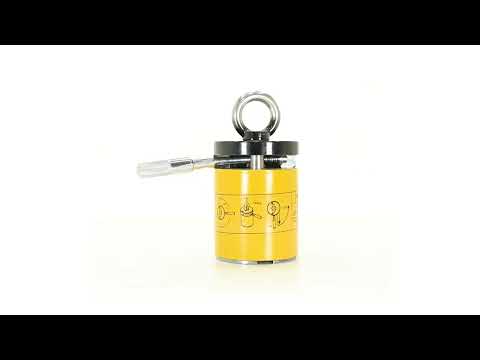

ML-C-2_B.jpgCylindrical Magnetic Lifter
Model ML-C-2 is a 3.5" cylinder diameter providing a substantial lifting force in a condensed area, making it a convenient choice for lifting large and small items with an overhead lift. This magnet is built of steel with a yellow powder coat finish.

Model Description Chart
Rated lifting Capacity (lbs) Size (in.) Weight
(lbs)
Flat
Steel		 Round
Steel		 L B H R
ML-2 200 60 3.5 2.5 2.7 5.7 6
ML-6 600 200 6.7 3.7 3.9 6.3 22
ML-12 1200 400 8.7 5.5 4.9 9.1 52
ML-22 2200 990 10.2 5.7 5.7 11 110

KEY
L = Plate Length B = Plate Width H = Magnet Height R = Handle Length
Magnetic Lifters

model: ML-6

Model # Description Attributes Net Wt.
(lbs)

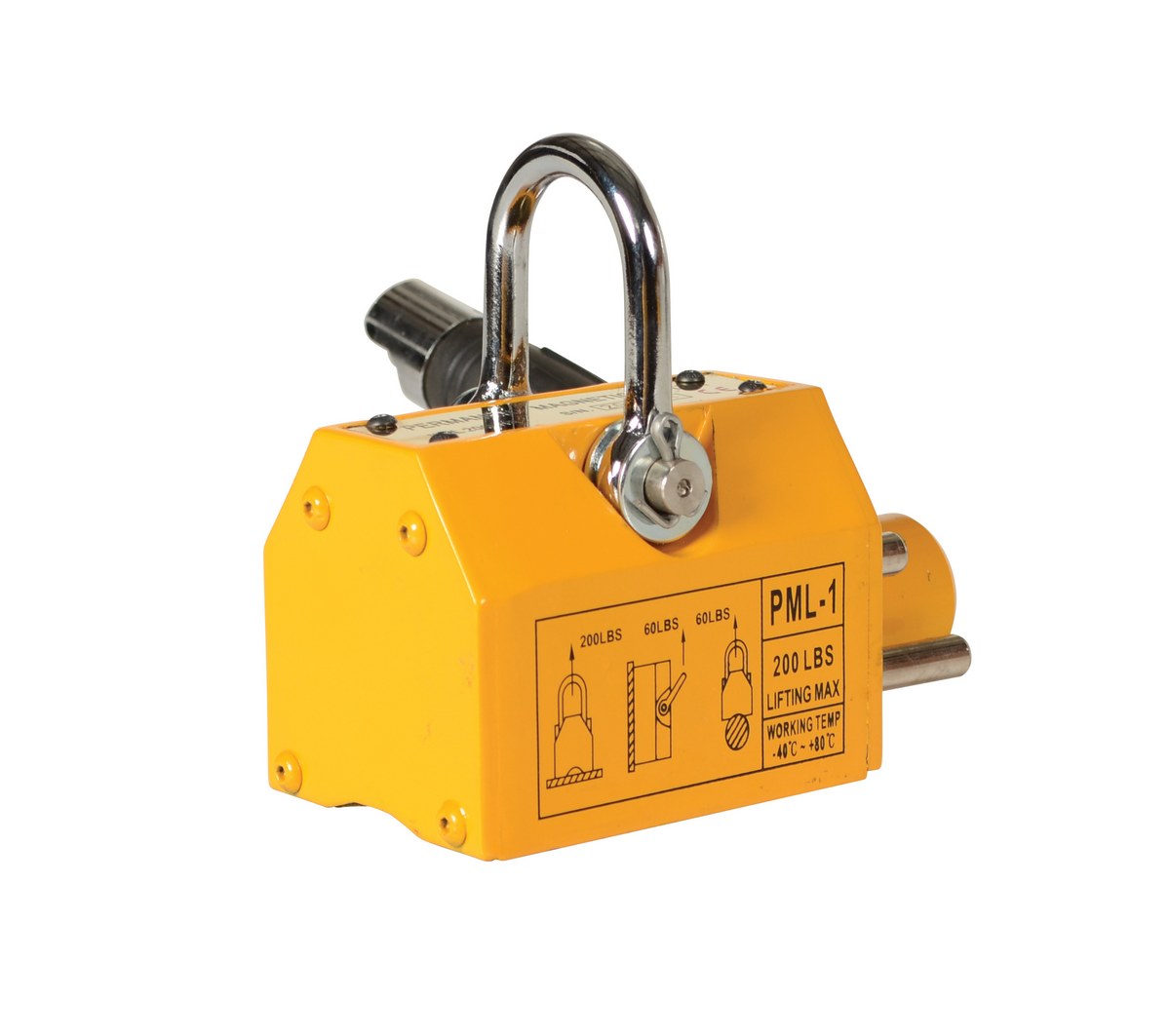

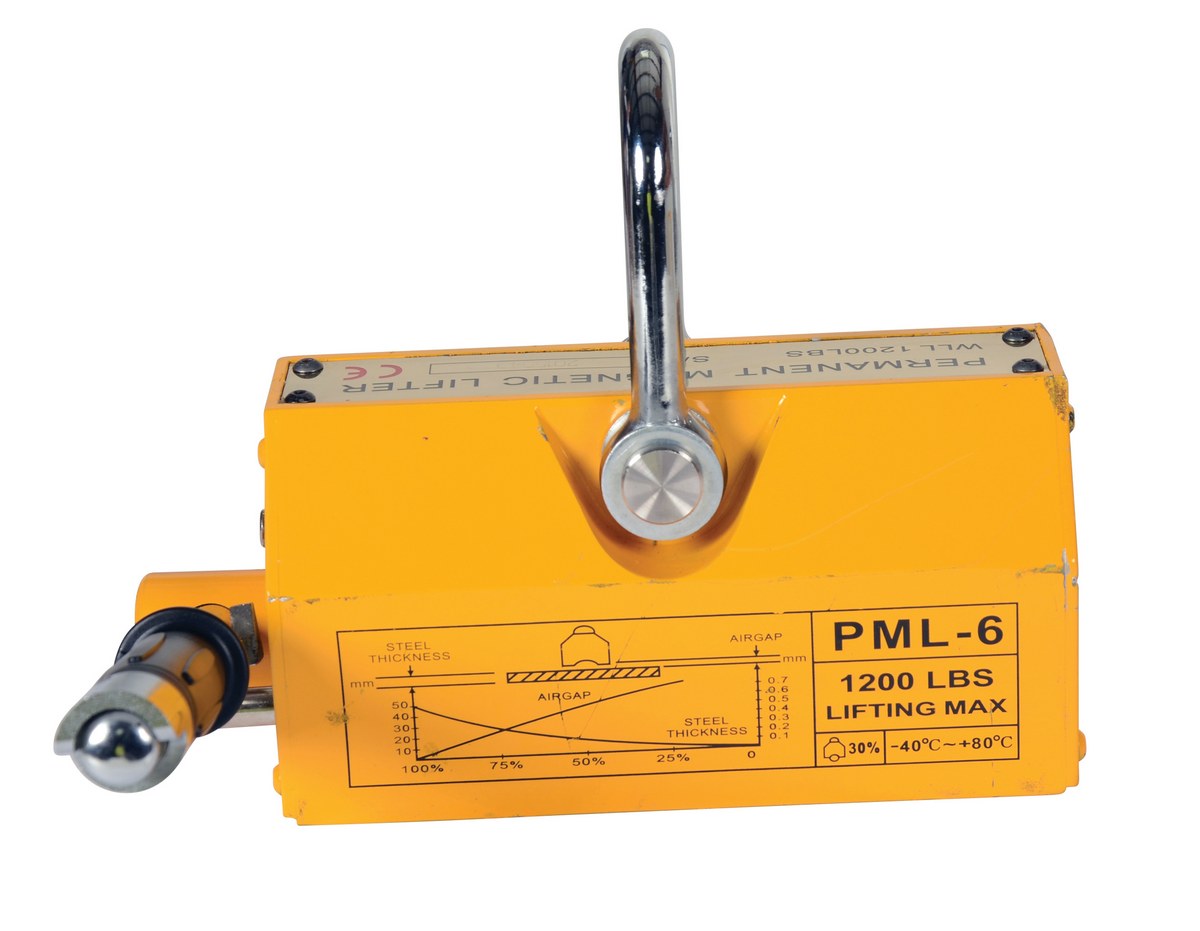

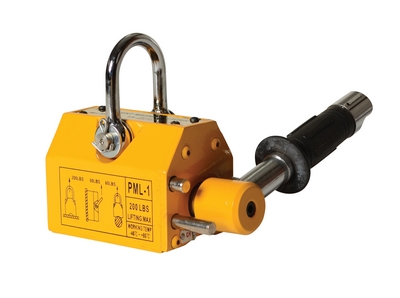

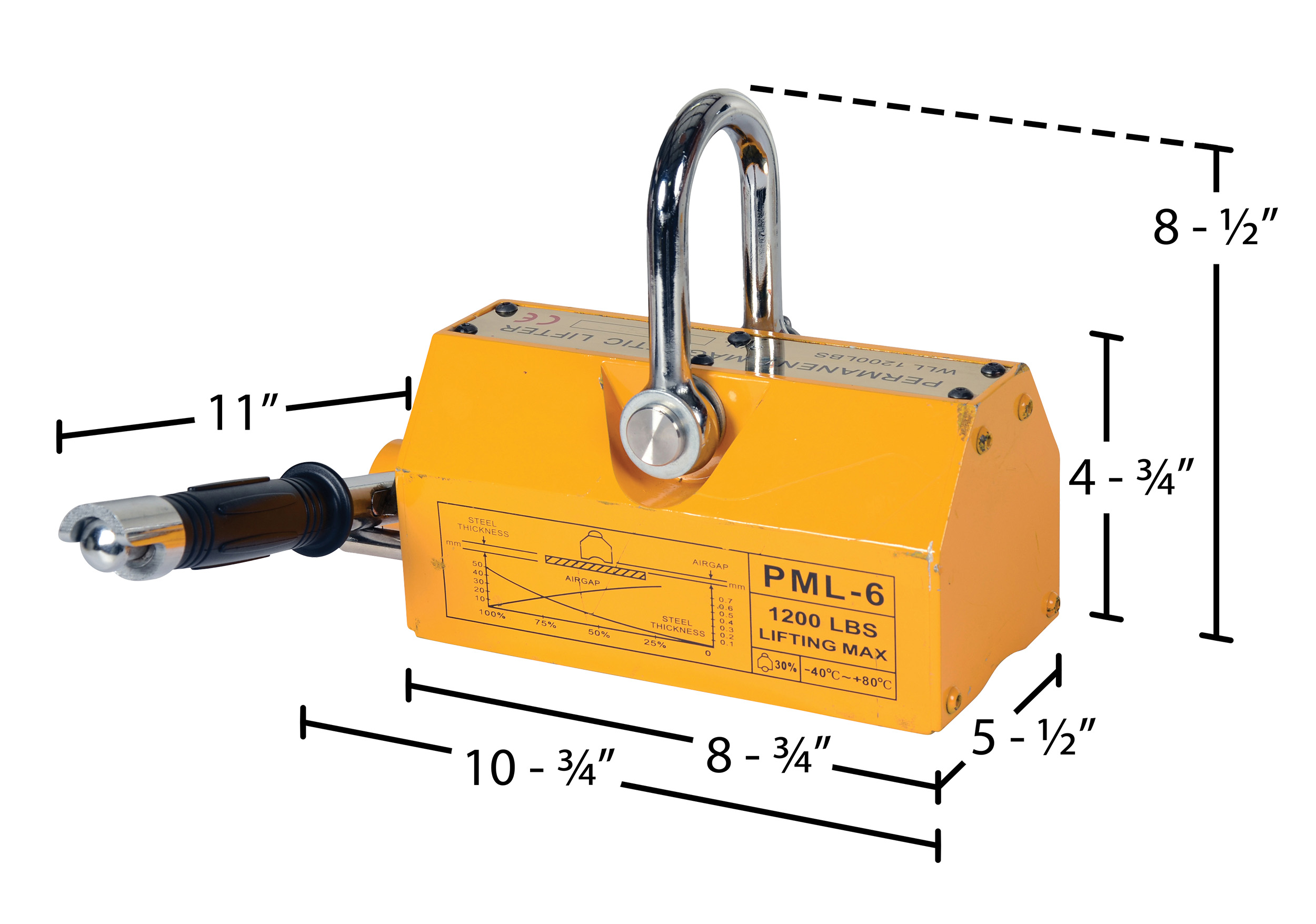

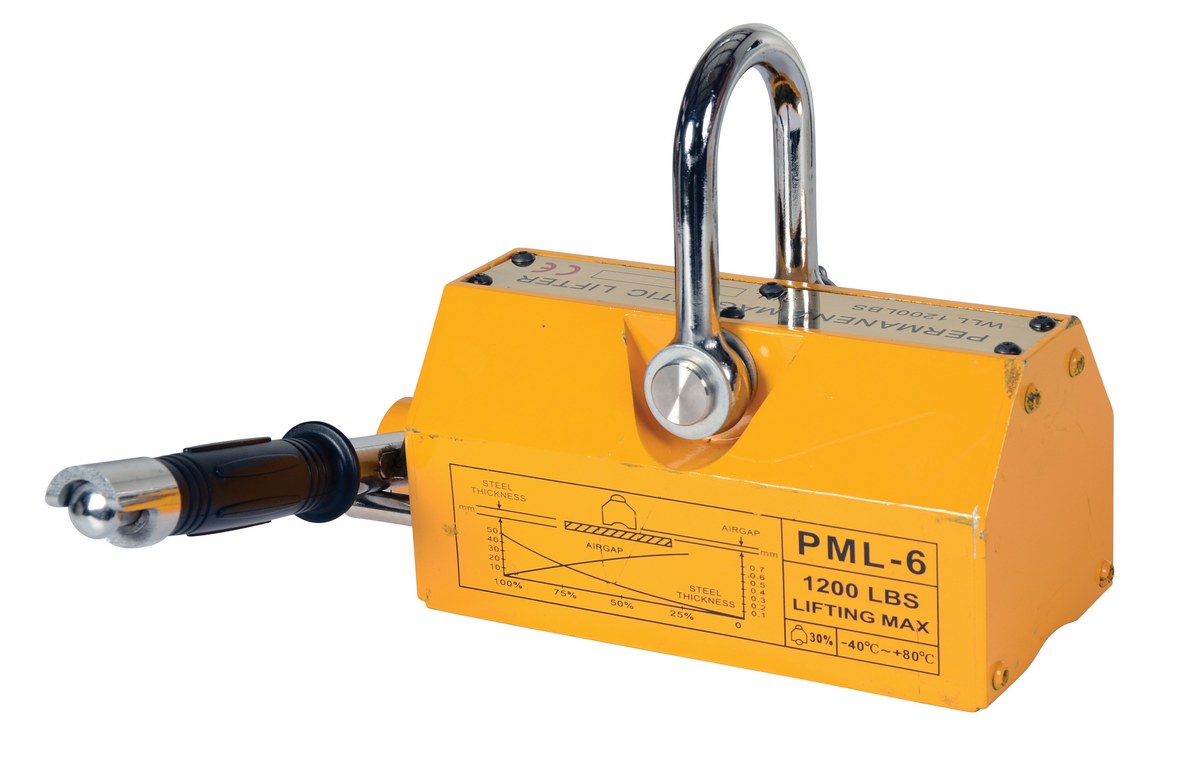

ML-12 POPULAR ML-1290 Days Limited WarrantySteel and Neodymium Magnetic Lifter 10-3/4 In. x 11 In. x 8-1/2 In. 1,200 Lb. Capacity YellowUniform Flat Surface Capacity (lb.): 1,200
Uniform Round Surface Capacity (lb.): 400		52

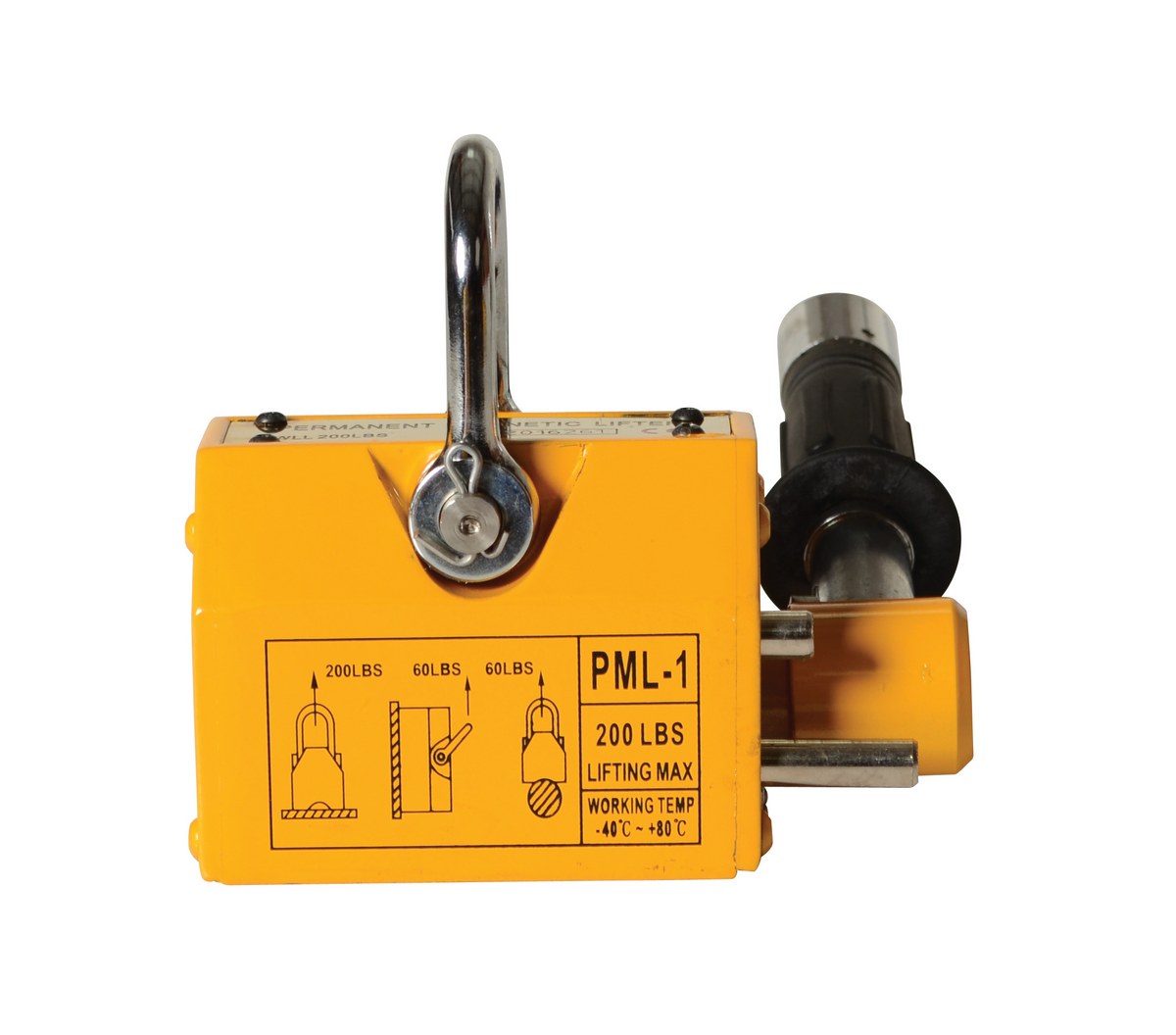

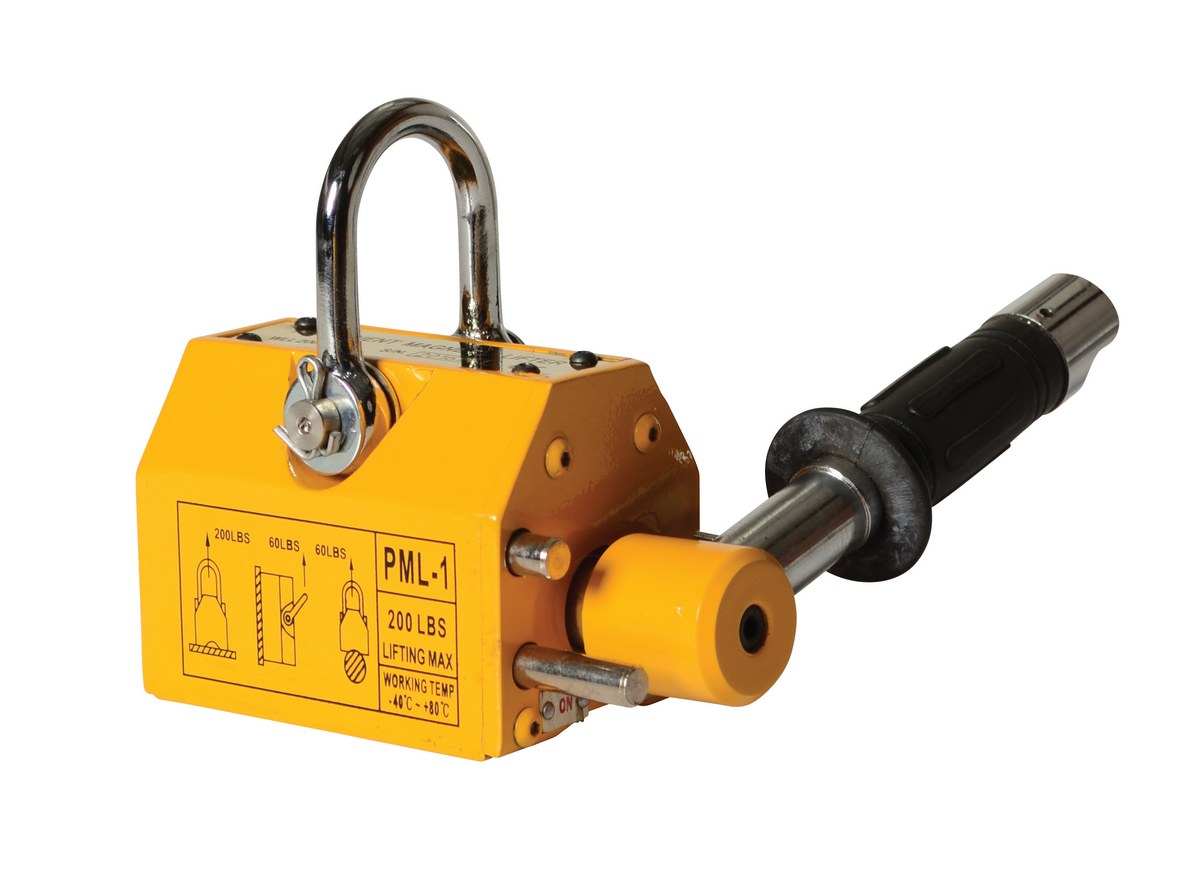

ML-2 ML-290 Days Limited WarrantySteel and Neodymium Magnetic Lifter 5-15/16 In. x 6-3/4 In. x 4-29/32 In. 200 Lb. Capacity YellowUniform Flat Surface Capacity (lb.): 200
Uniform Round Surface Capacity (lb.): 60		7

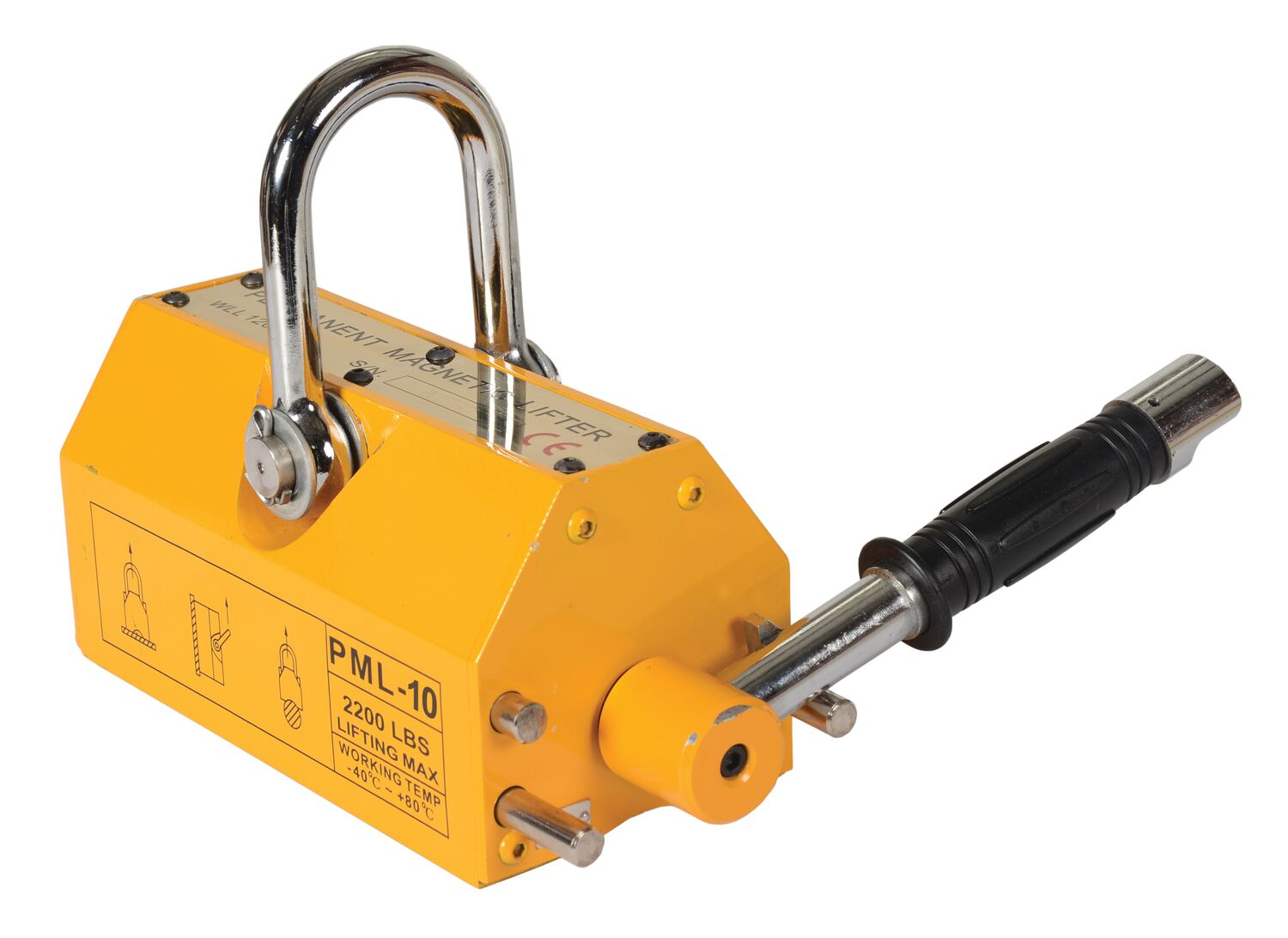

ML-22 NEW ML-2290 Days Limited WarrantySteel and Neodymium Magnetic Lifter 10-3/8 In. x 6-5/8 In. x 6-5/8 In. 2,200 Lb. Capacity YellowUniform Flat Surface Capacity (lbs): 2,200
Uniform Round Surface Capacity (lbs): 990		115
ML-6 ML-690 Days Limited WarrantySteel and Neodymium Magnetic Lifter 8 In. x 8-11/16 In. x 6-13/16 In. 600 Lb. Capacity YellowUniform Flat Surface Capacity (lb.): 600
Uniform Round Surface Capacity (lb.): 200		22
ML-C-2 NEW ML-C-290 Days Limited WarrantySteel Magnetic Lifter Cylindrical 3-1/2 x 6-7/8 x6-7/8 100 Lb. Capacity YellowUniform Flat Surface Capacity (lb.): 100
Uniform Round Surface Capacity (lb.): 40		11

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Dimension Image = Works w/ Skid Only = Flatbed Truck Required

ML-12
ML-2
ML-22
ML-6
ML-C-2
PDFs will open in a new window when clicked.

Manuals

ML-12

ML-2

Survey Sheets

No Survey Sheets For This Product

Engineering Drawings

ML-2

ML-6

ML-12

Testing Certificates

ML-12

ML-2

ML-6

ML-C-2

SDS Sheets

No SDS Sheets For This Product

Other PDFs

No "Other PDFs" For This Product







Visit Our Youtube Channel For All Available Videos For All Products
ML-2 - Nominal Capacity 220 lbs ML-6 - Nominal Capacity 660 lbs.
Min. Thickness (in) Holding Power (%) Actual Capacity (lbs) Min. Thickness (in) Holding Power (%) Actual Capacity (lbs)
1/16 60 132 1/8 40 264
Up to 1/4 100 220 1/4 70 462
- 3/8 & Up 100 660
ML-12 - Nominal Capacity 1320 lbs ML-22 - Nominal Capacity 2200 lbs
Min. Thickness (in) Holding Power (%) Actual Capacity (lbs) Min. Thickness (in) Holding Power (%) Actual Capacity (lbs)
1/8 20 264 1/8 15 330
1/4 40 528 1/4 30 660
3/8 60 792 3/8 40 880
5/8 85 1122 5/8 65 1430
3/4 95 1254 3/4 70 1540
1 & Up 100 1320 1 87 1914
- 1-1/4 & Up 100 2200
I am looking for the safety factor on the magnetic lifter. ASME uses a 3:1 but I didn't see that.
The safety factor on the magnetic lifters depends on the material thickness of the plate.
What does uniform round capacity mean?
Uniform round capacity is the total capacity of the unit when lifting round steel. Because there is less surface contact with a round pipe the capacity is depleted.
