Mezzanine Safety Gates| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|

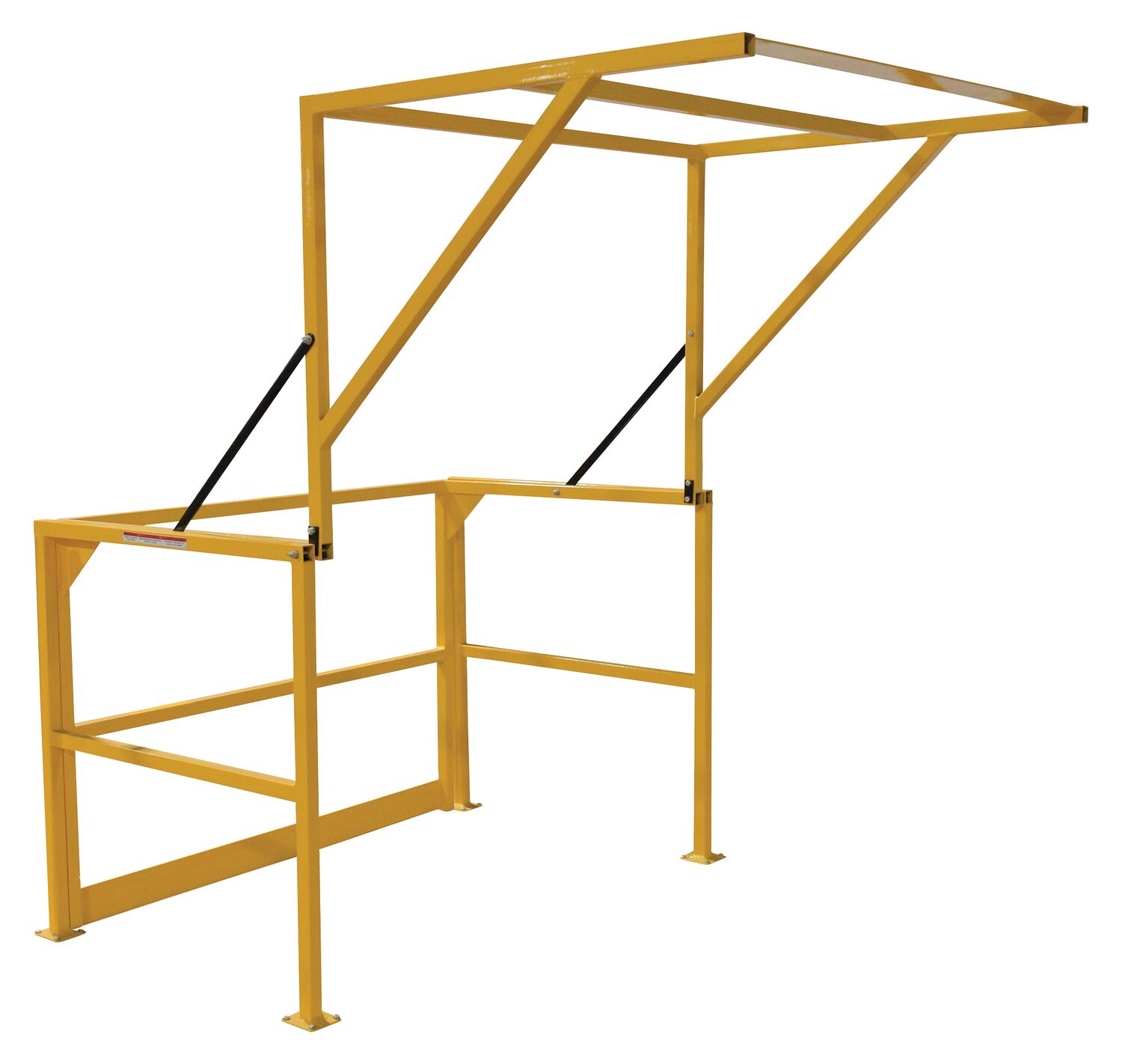

| MEZZ-200 | POPULAR |  | 90 Days Limited Warranty | Steel Mezzanine Safety Gate 79-5/16 In. x 68-1/2 In. x 80-1/16 In. Yellow | Handrail Height (in.): 42-3/8 Mid-Rail Height (in.): 21 | 215 | |

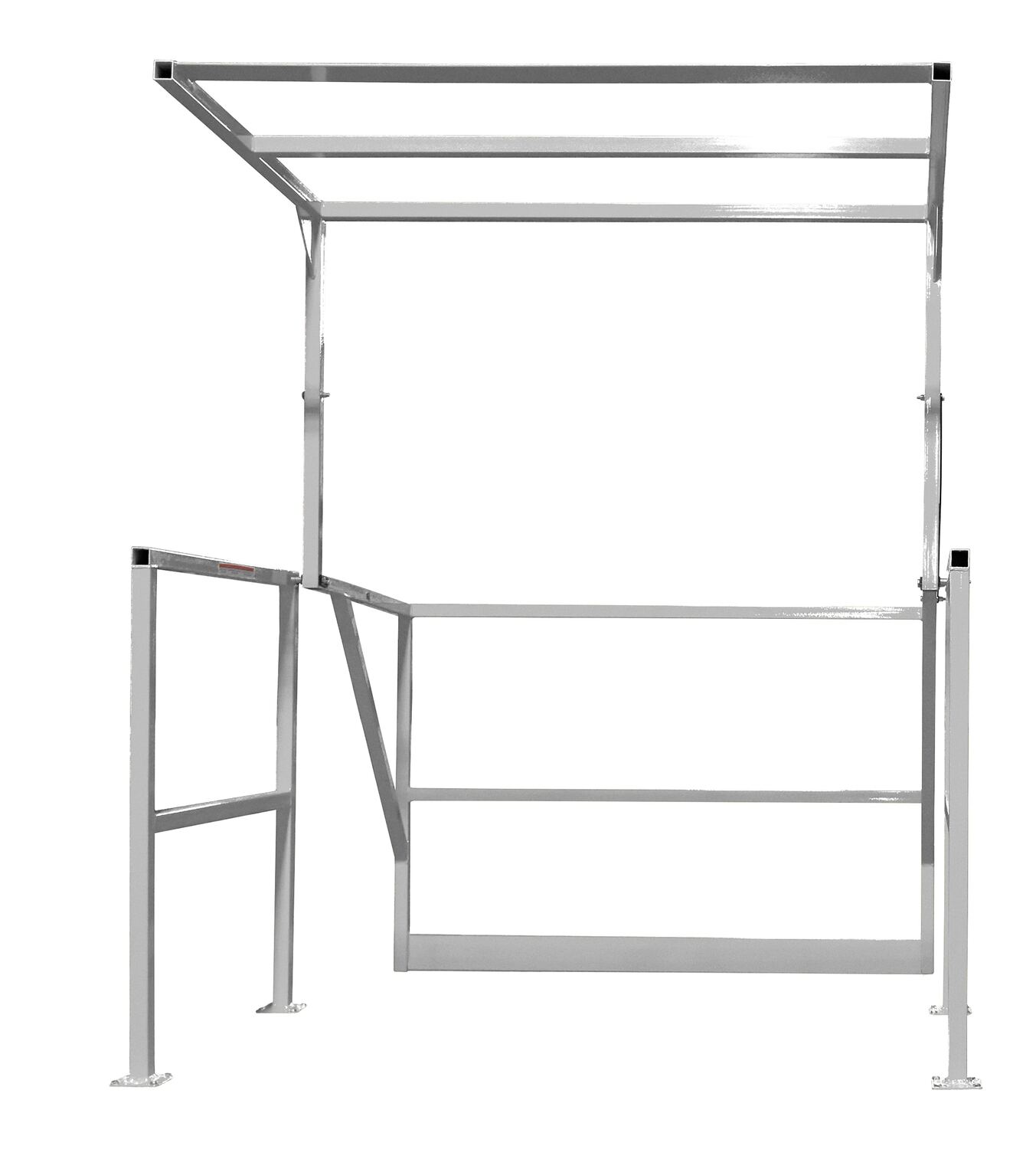

| MEZZ-200-A |  | 90 Days Limited Warranty | Aluminum Mezzanine Safety Gate 56 In. Width Silver | Usable Width (IN):: 56 Handrail Height (IN): 42-7/16" | 149 | ||

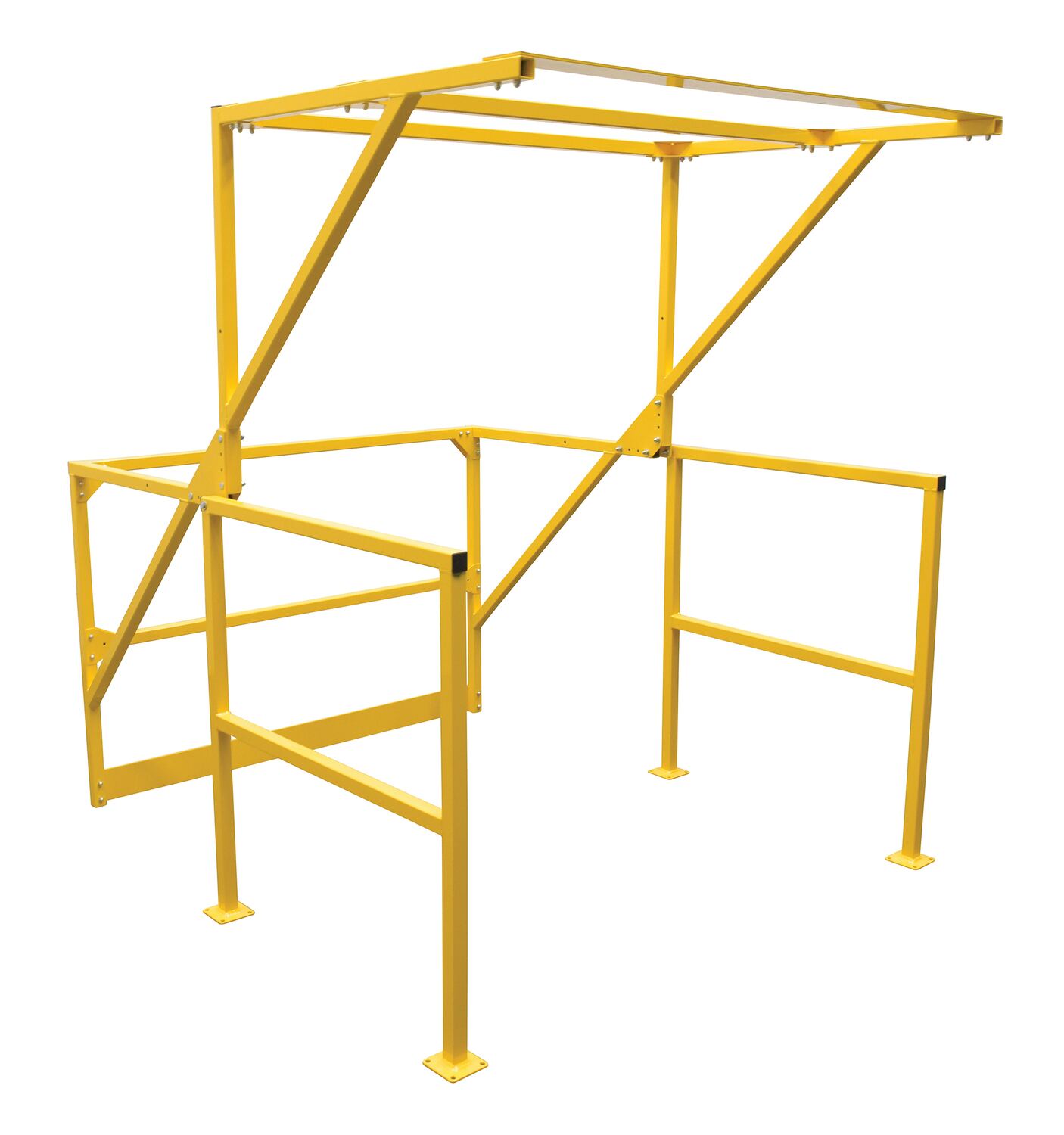

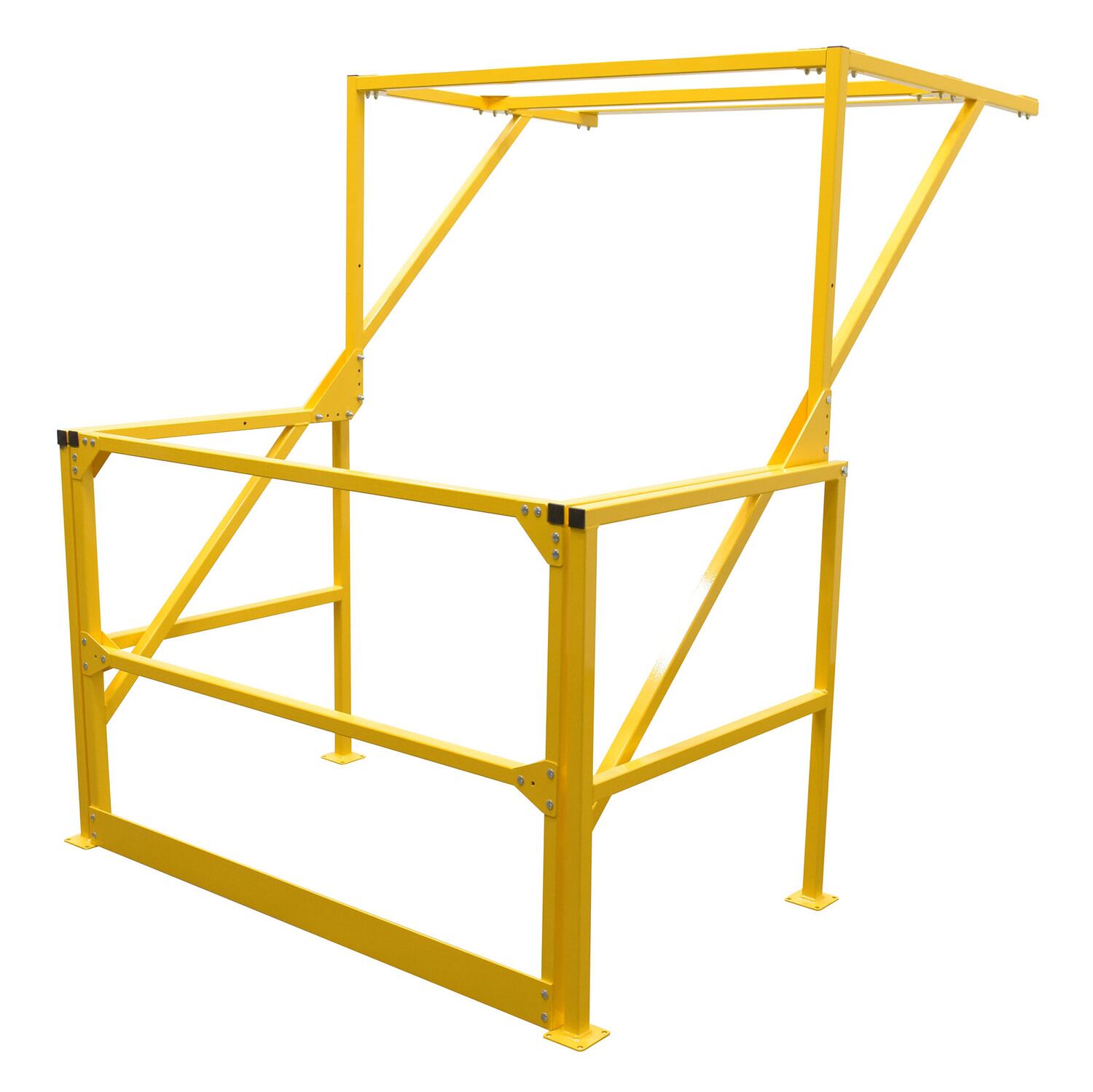

| MEZZ-200-BT | NEW |  | 90 Days Limited Warranty | Steel Bolt Together Mezzanine Safety Gate 111 in. x 68.5 in. x 80 in. Yellow | Base Plate Width (in.): 4 Base Plate Length (in.): 4 | 258 | |

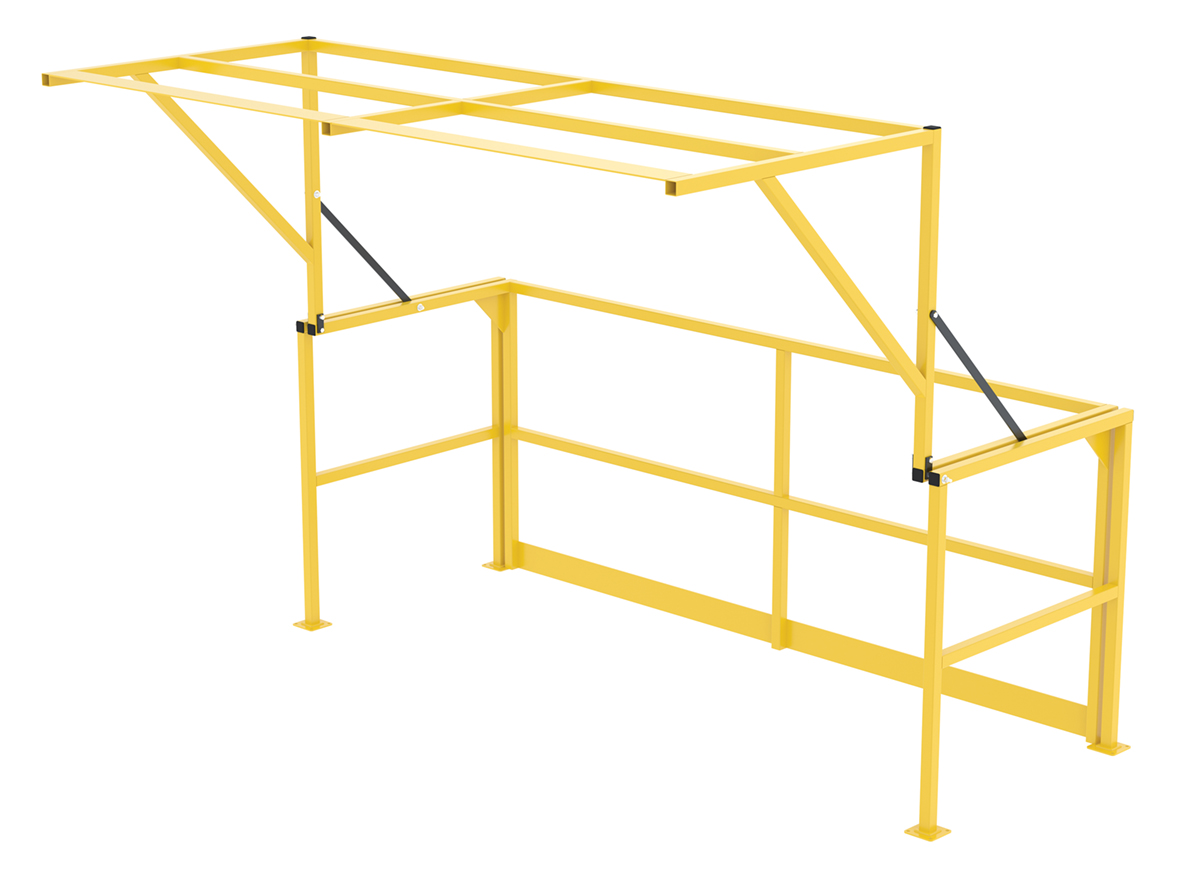

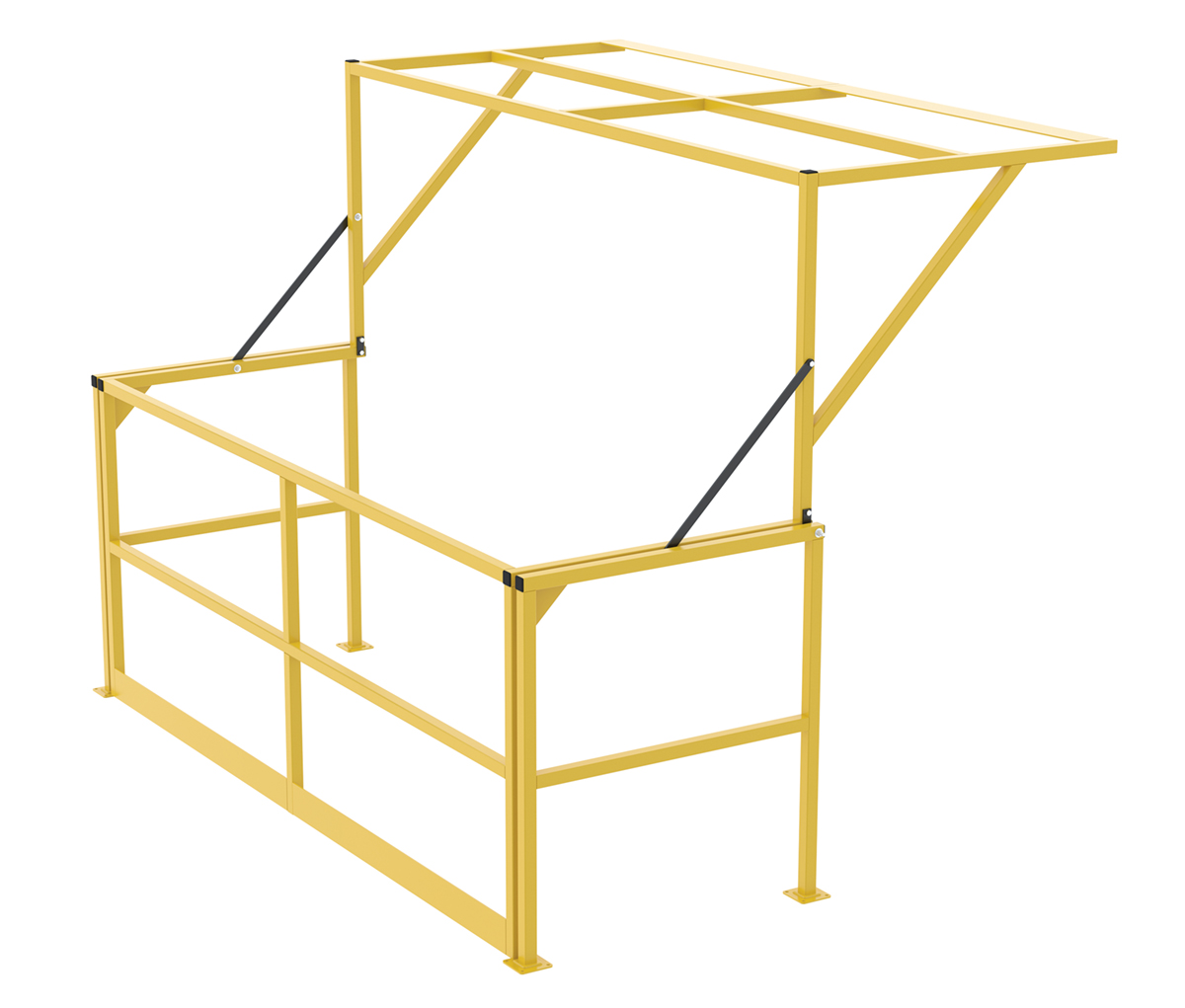

| MEZZ-200-DW |  | 90 Days Limited Warranty | Steel Mezzanine Safety Double Wide Gate 79-5/16 In. x 108-1/2 In. x 80-1/16 In. Yellow | Handrail Height (in.): 42-3/8 Mid-Rail Height (in.): 21 | 344 | ||

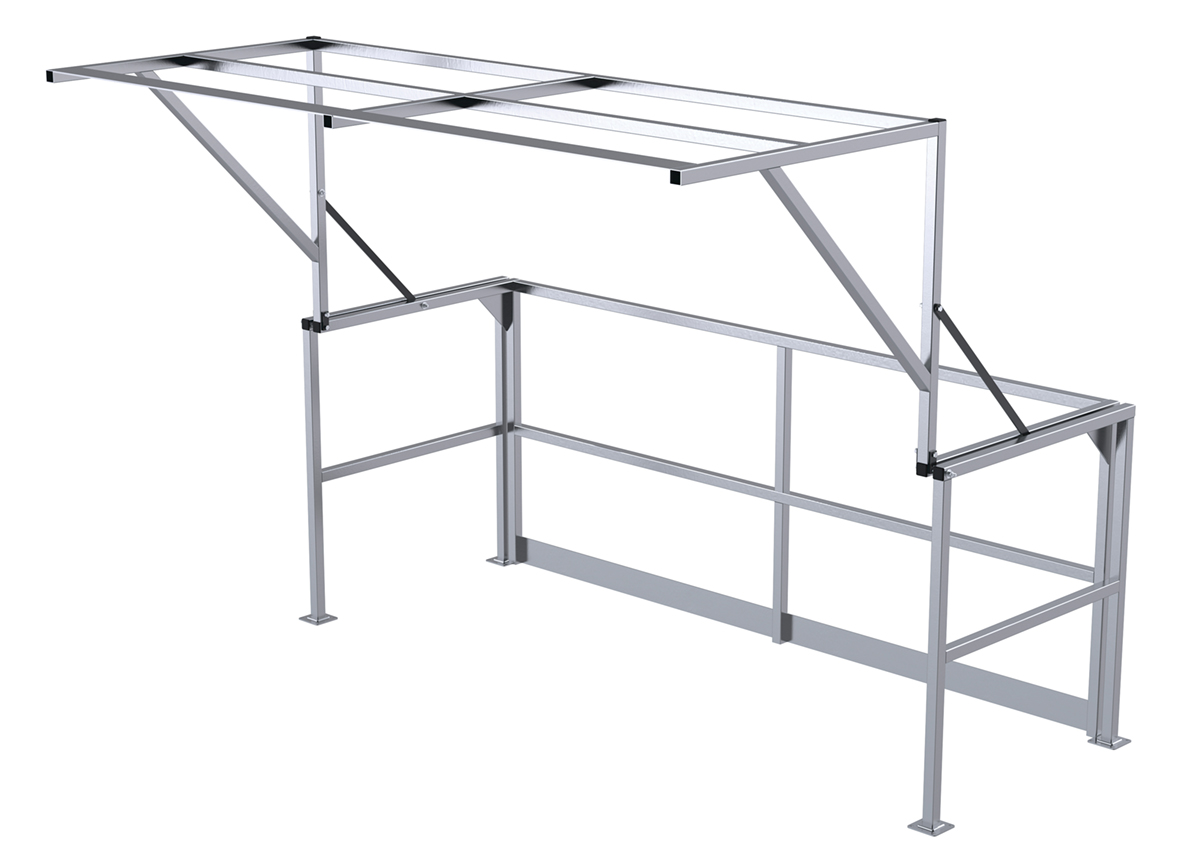

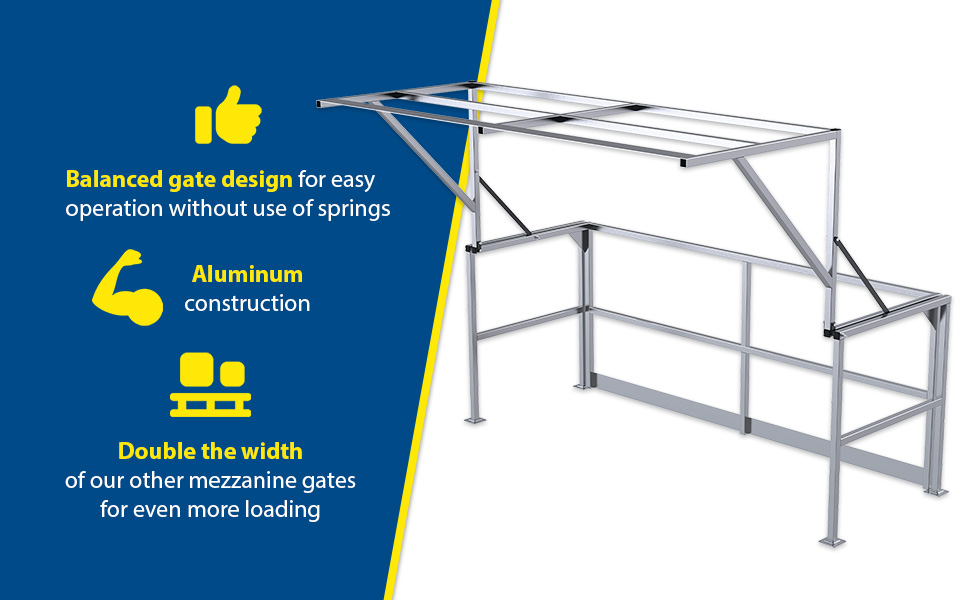

| MEZZ-200-DW-A |  | 90 Days Limited Warranty | Aluminum Double Wide Mezzanine Safety Gate 42-3/8 In. Handrail Height Silver | Handrail Height (in.): 42-3/8 Mid-Rail Height (in.): 21 | 218 | ||

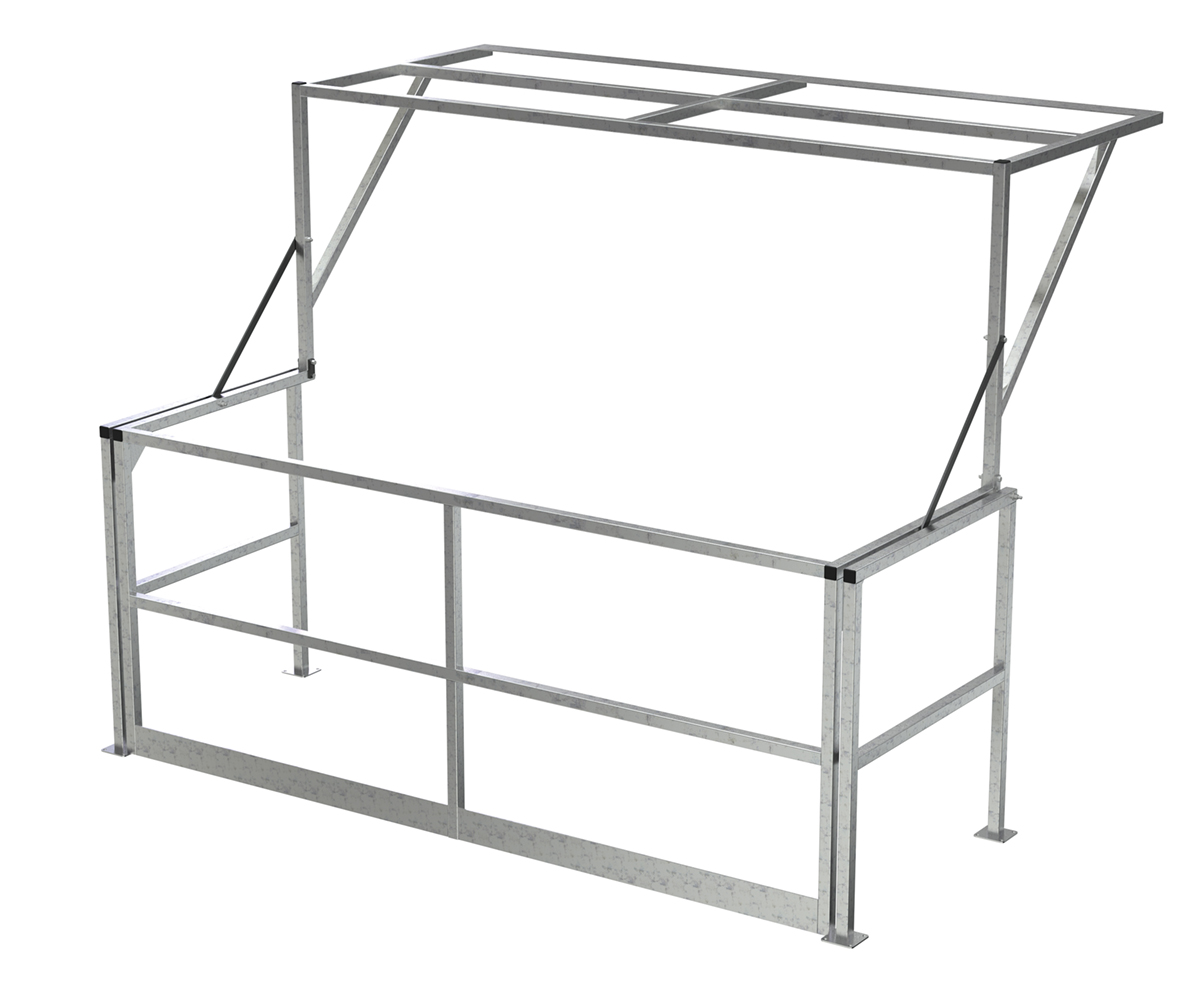

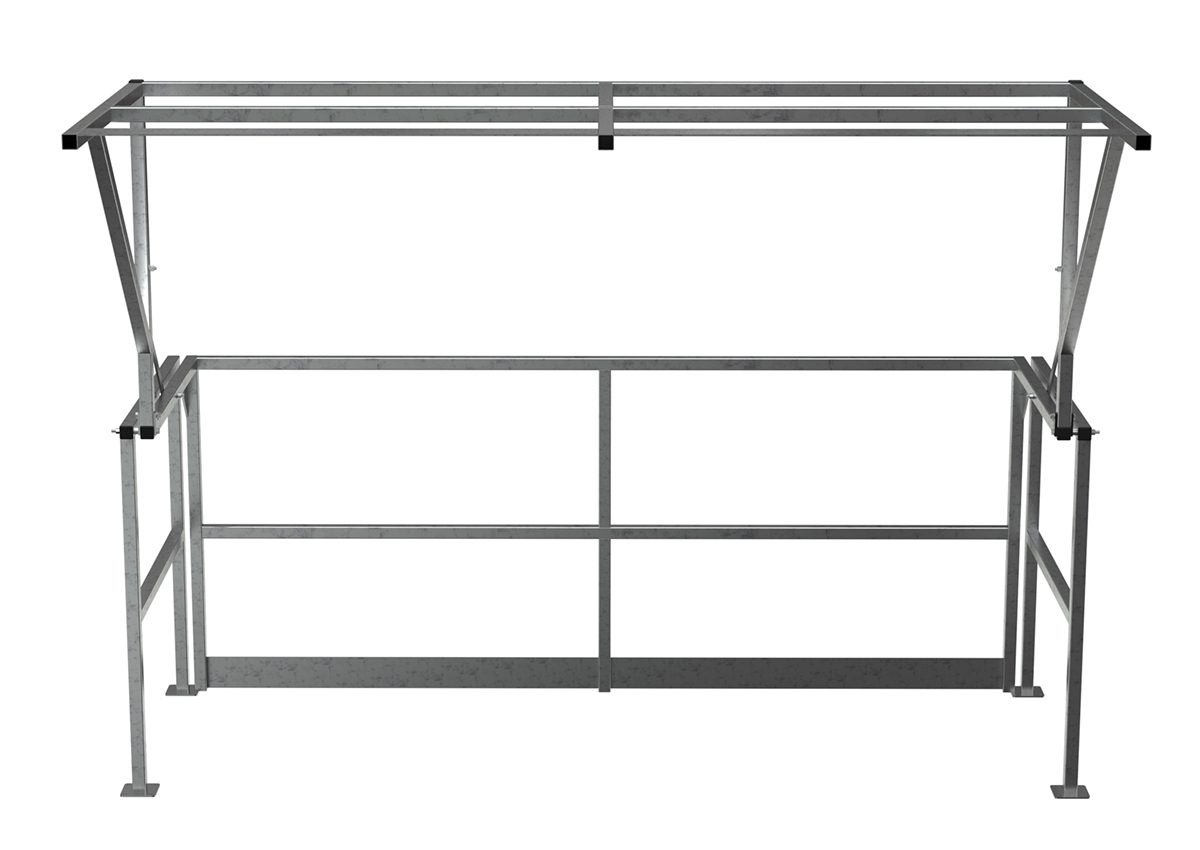

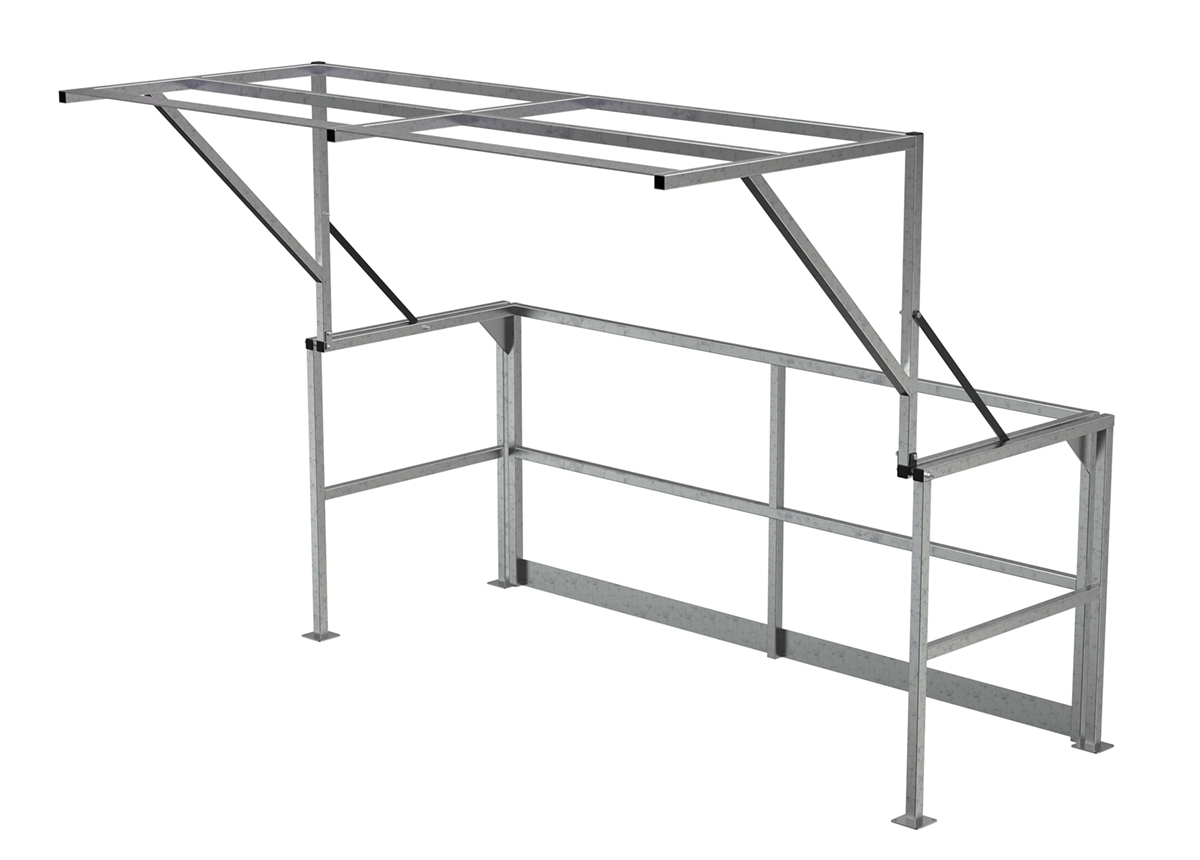

| MEZZ-200-DW-SS | |  | 90 Days Limited Warranty | Stainless Steel Mezzanine Safety Double Wide Gate 79-5/16 In. x 108-1/2 In. x 80-1/16 In. Silver | Handrail Height (in.): 42-3/8 Mid-Rail Height (in.): 21 | 284 | |

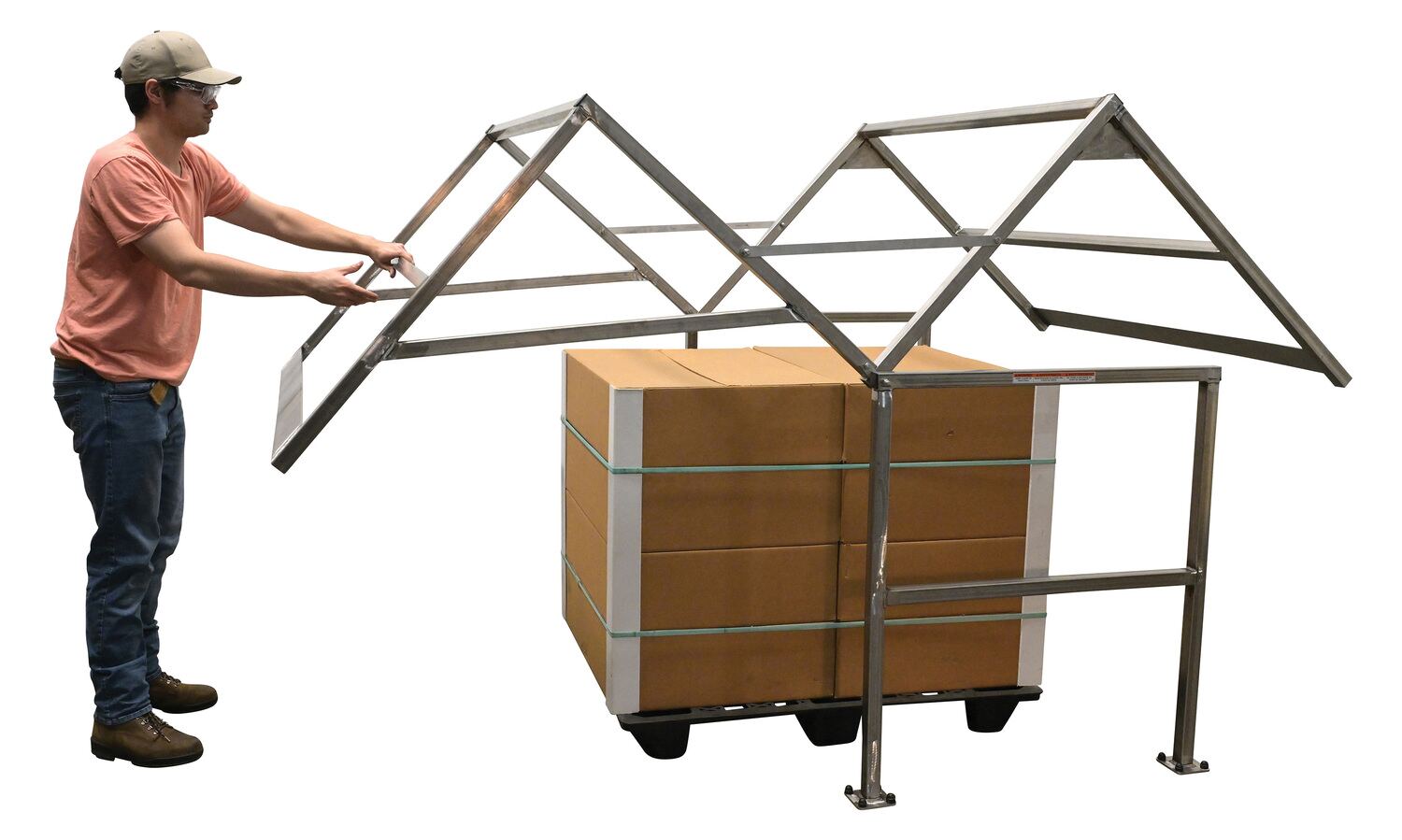

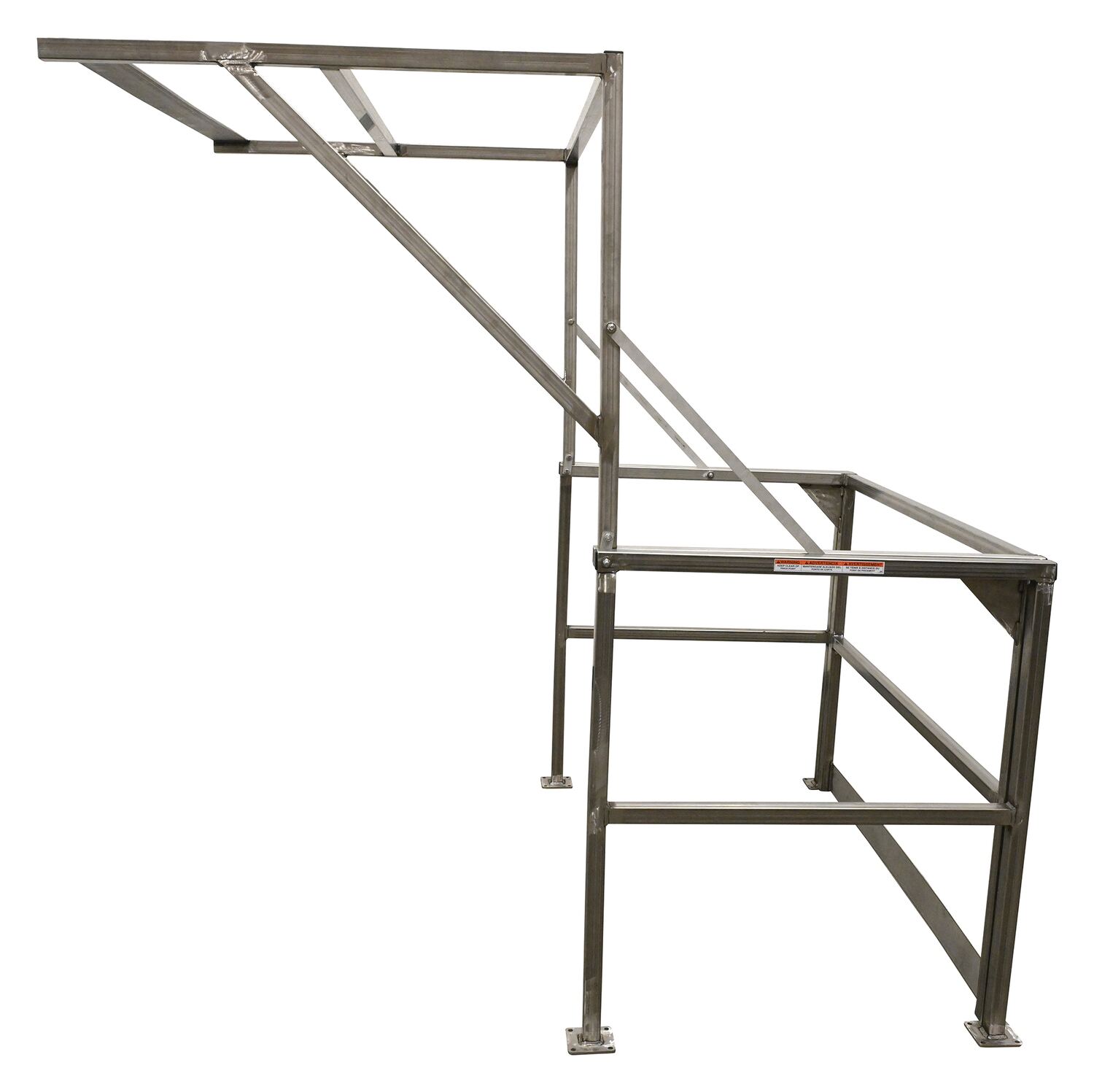

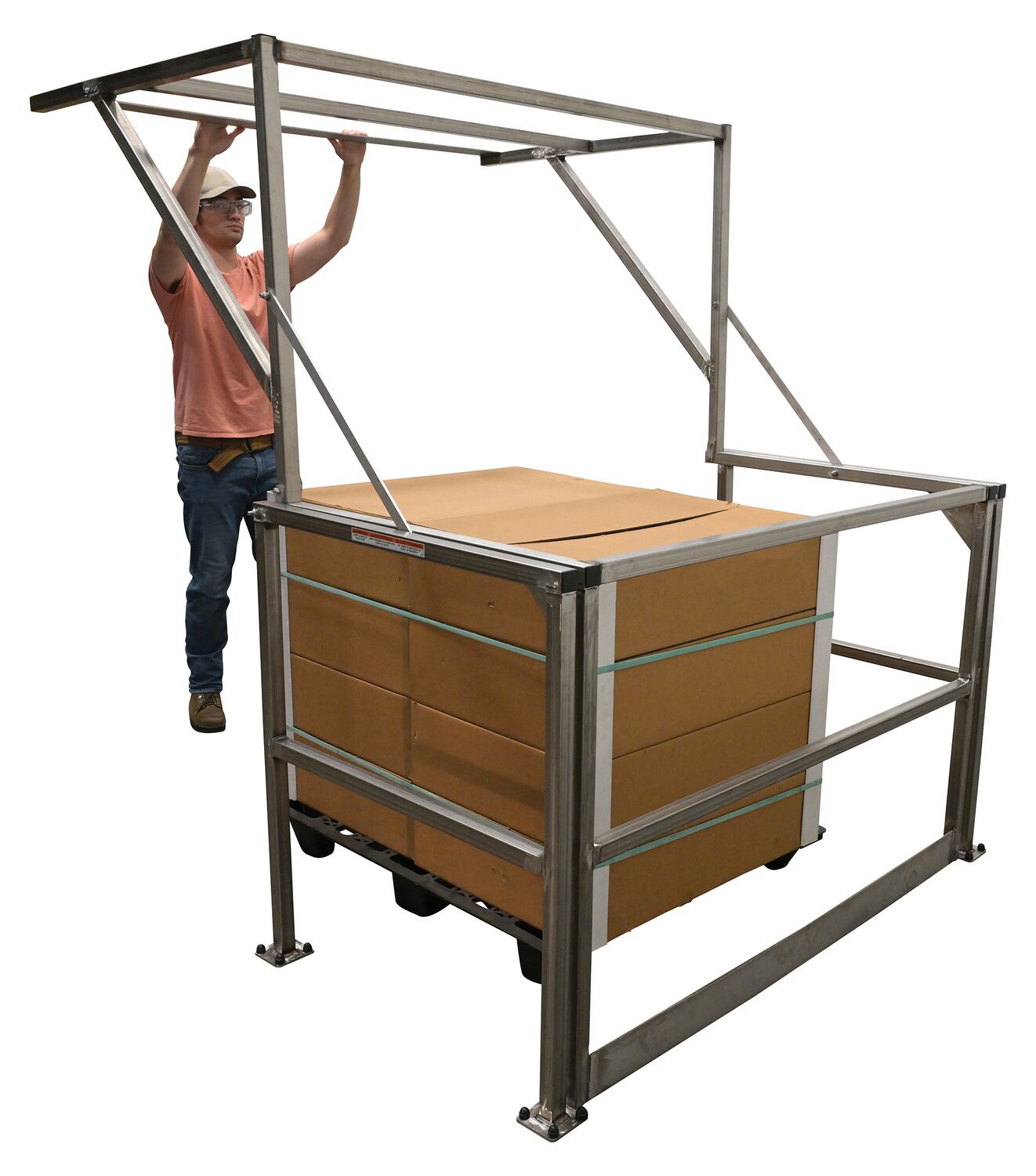

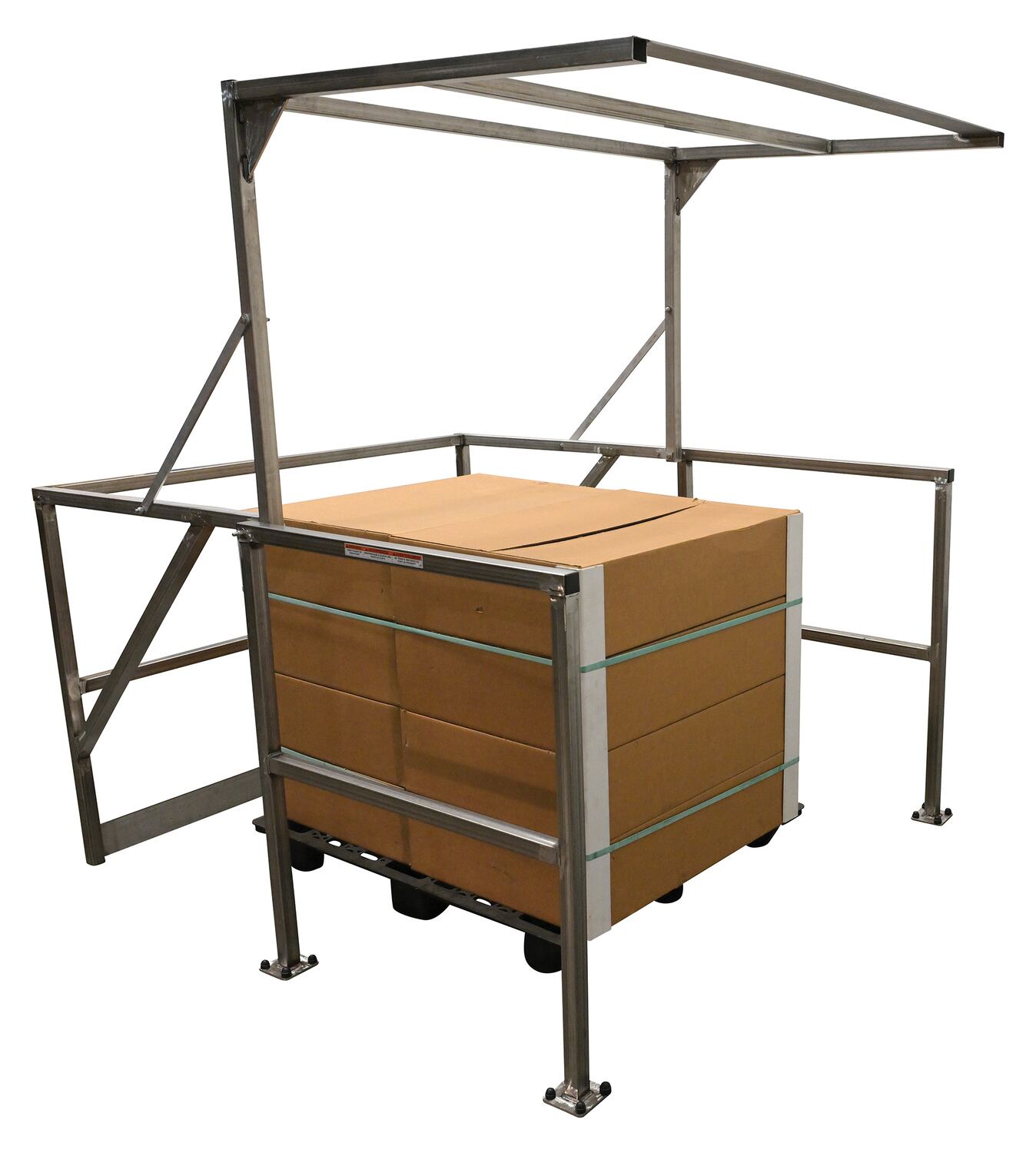

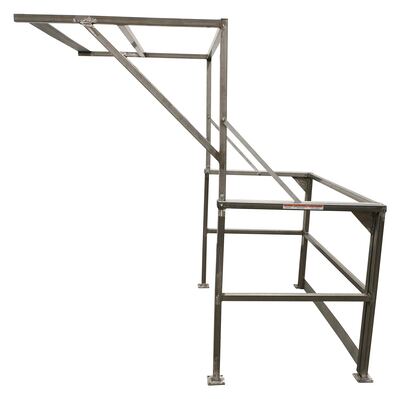

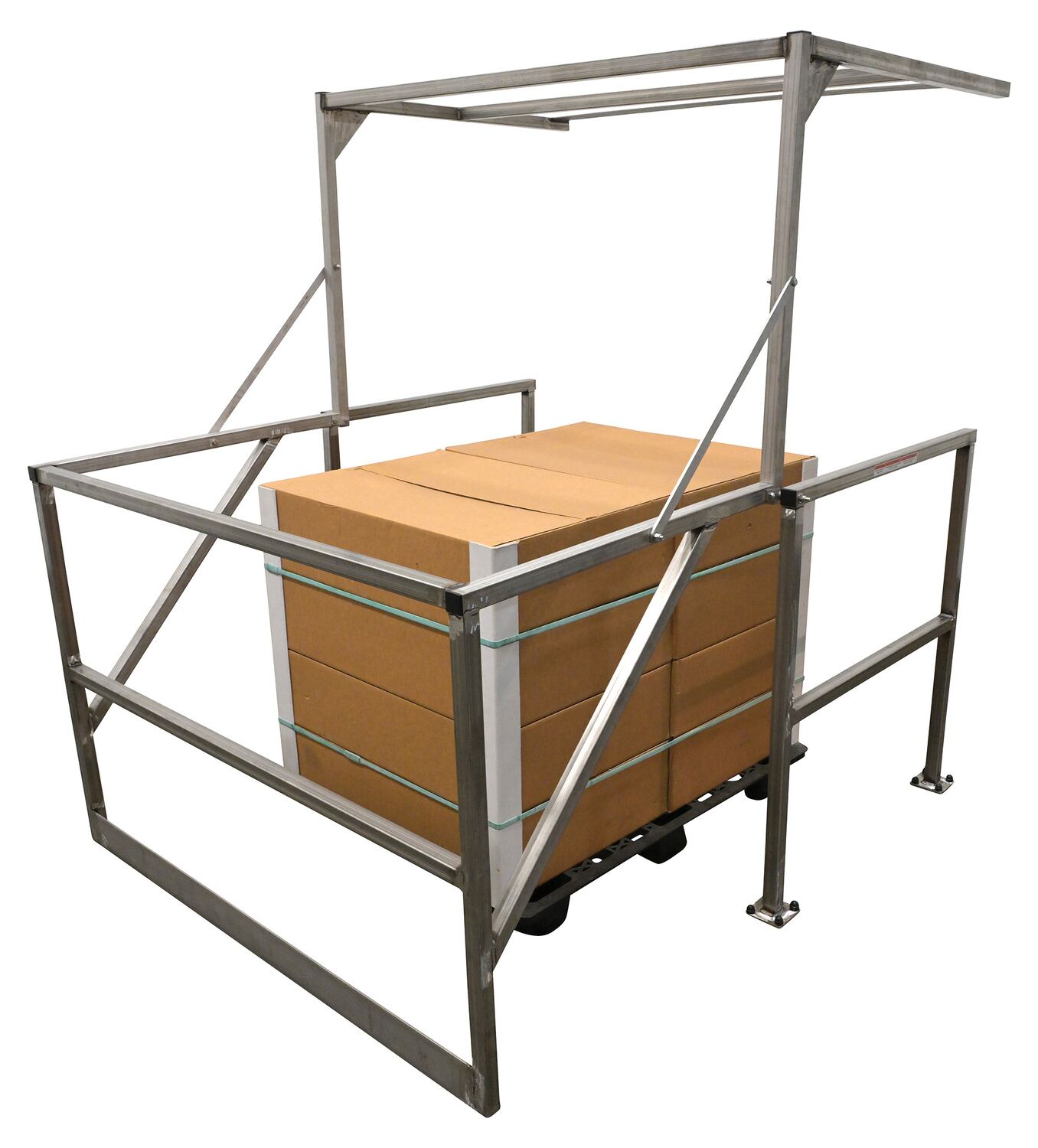

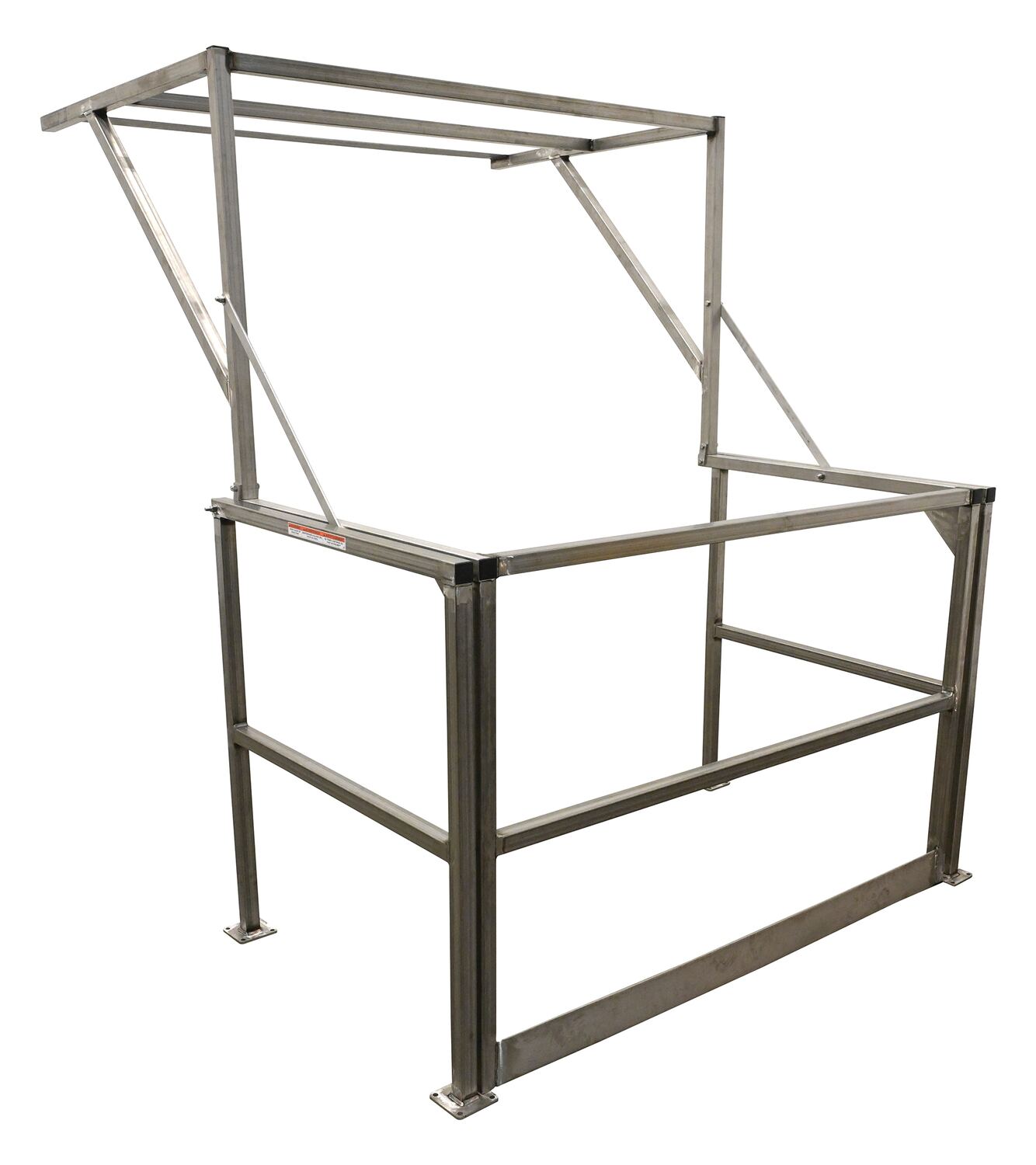

| MEZZ-200-SS | |  | 90 Days Limited Warranty | Stainless Steel Mezzanine Safety Gate 79-5/16 In. x 68-1/2 In. x 80-1/16 In. Silver | Handrail Height (in.): 42-3/8 Mid-Rail Height (in.): 21 | 215 | |

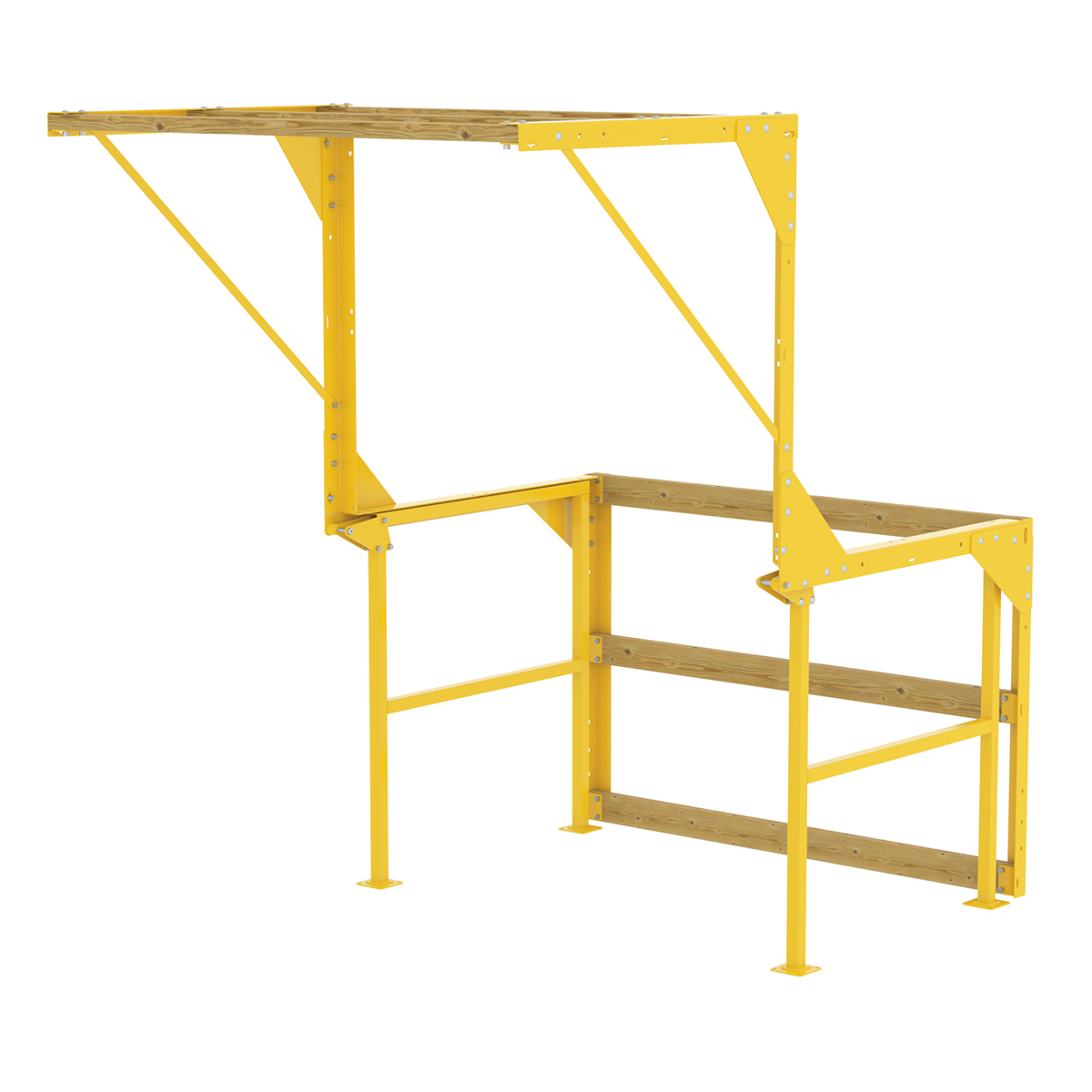

| MEZZ-KD-88T-93D |  | 90 Days Limited Warranty | Steel Mezzanine Safety Gate Knockdown 87-3/16 In x 96 In x 87-9/16 In Yellow | Base Plate Thickness (in.): 3/16 Base Plate Width/Length (in.): 4/4 | 186 | ||

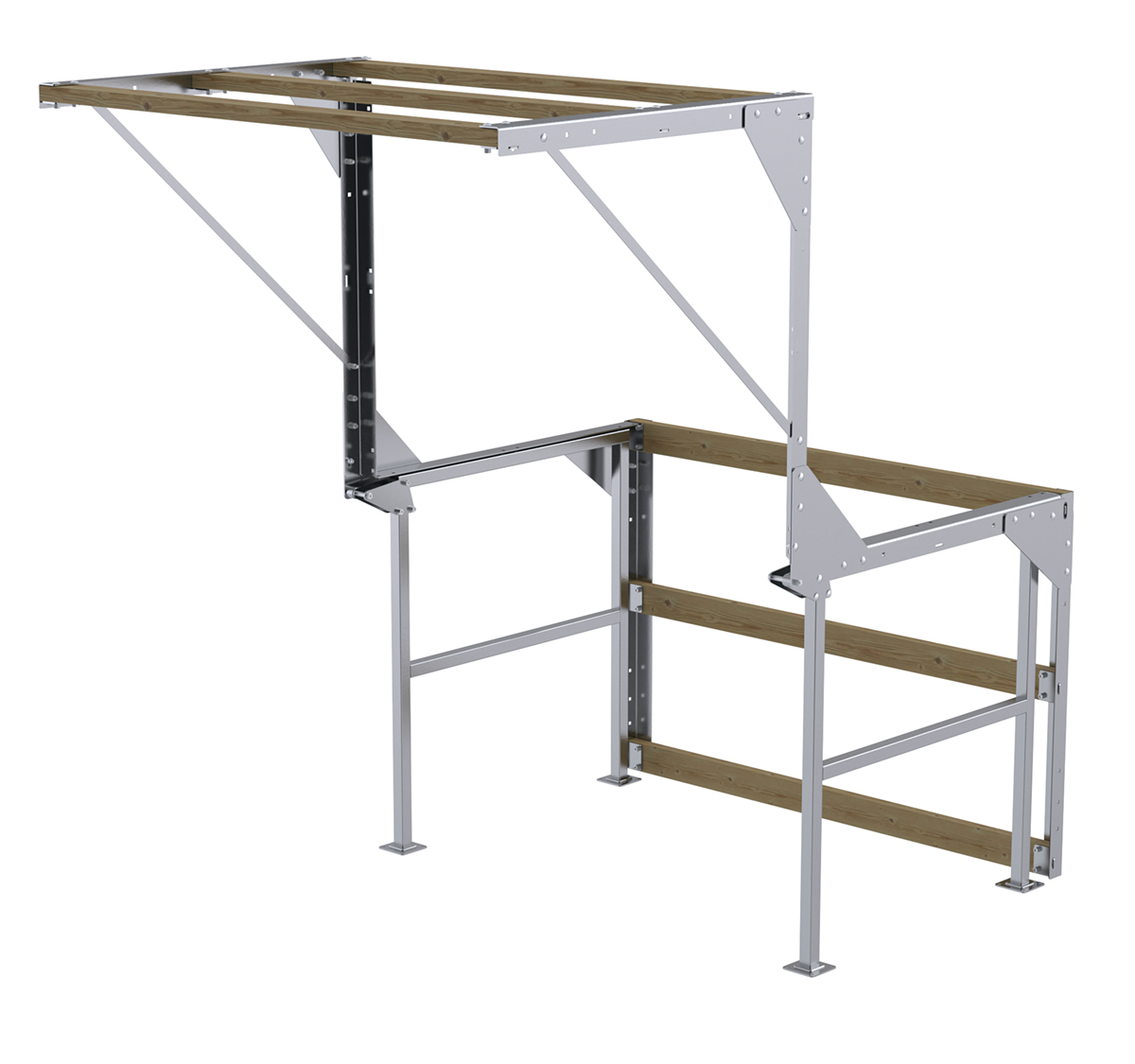

| MEZZ-KD-88T-93D-A |  | 90 Days Limited Warranty | Aluminum Knockdown Mezzanine Safety Gate 42-7/8 In Handrail Height Silver | Handrail Height: 42-7/8" | 71 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

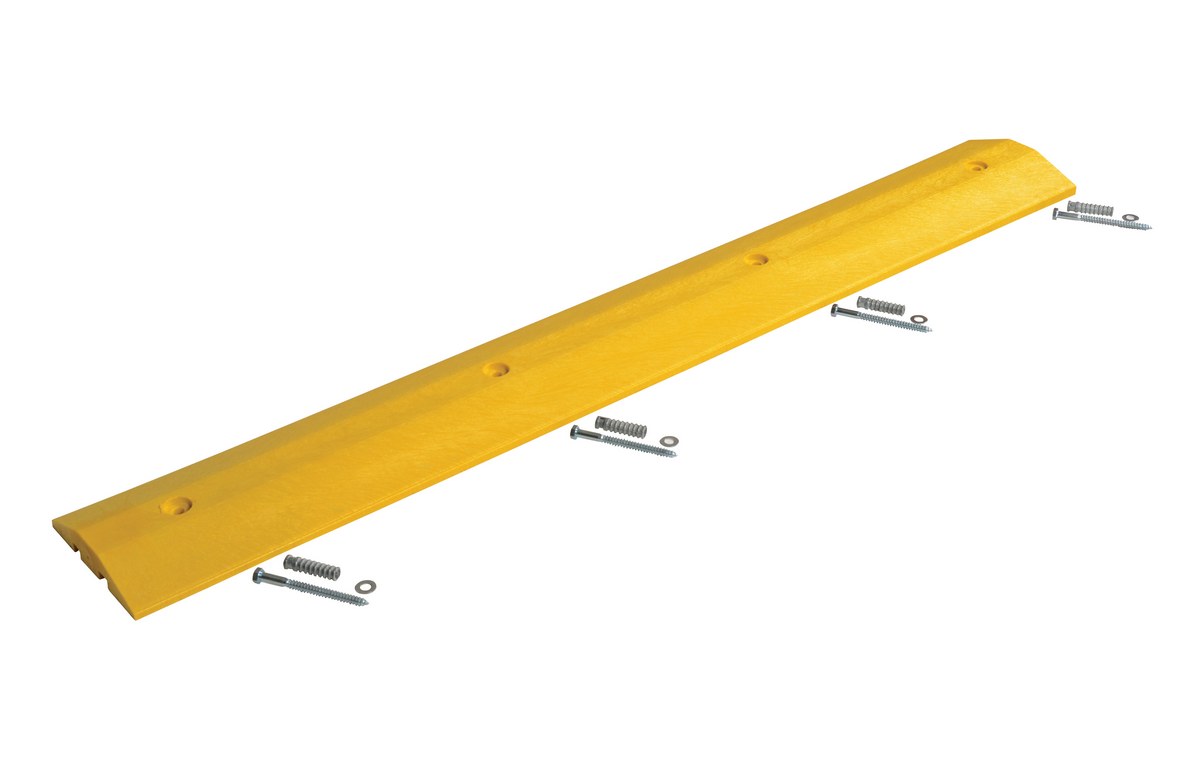

| M-BUMP |  | 30 Days Limited Warranty | Polyethylene Wall Guard/Surface Bumper 2 In. x 72 In. x 10 In. Yellow | Attachment Method: Bolt On Hardware Included: Yes | 26 |
.
|
||||||||||||||||||||||||||||||||||||||||||||||||||||
Mezzanine Safety Gates |
||||||||||||||||||||||||||||||||||||||||||||||||||||
 |
||||||||||||||||||||||||||||||||||||||||||||||||||||

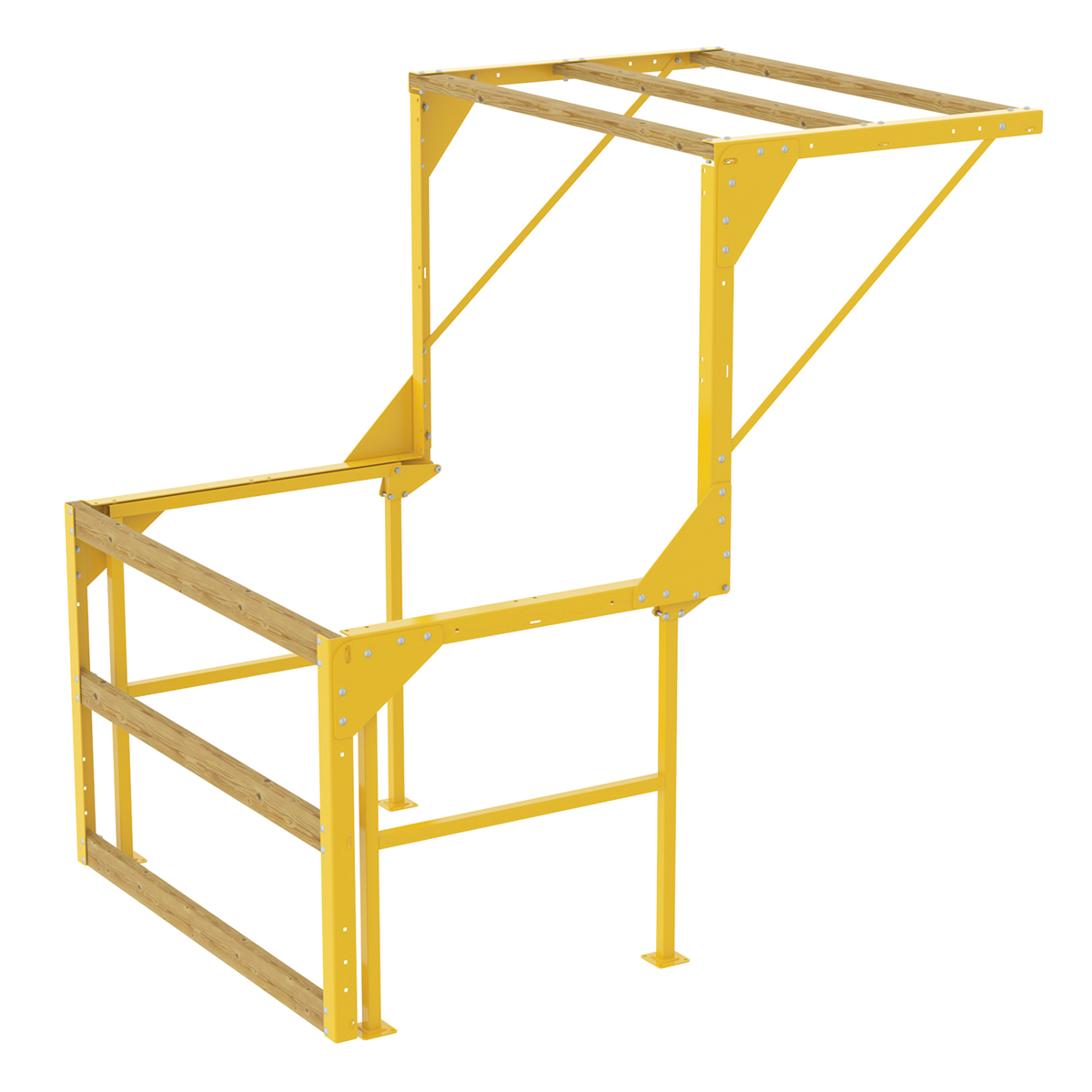

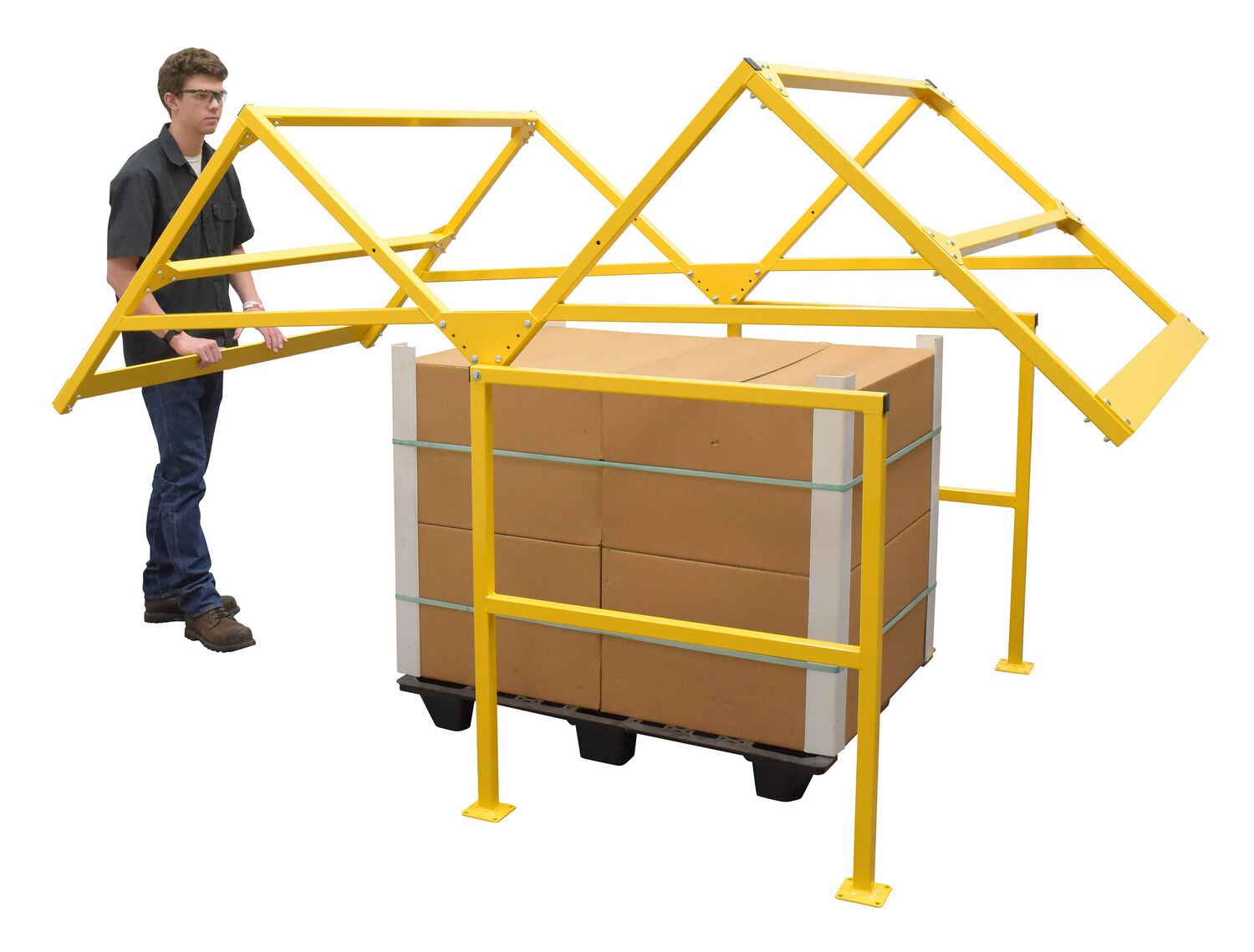

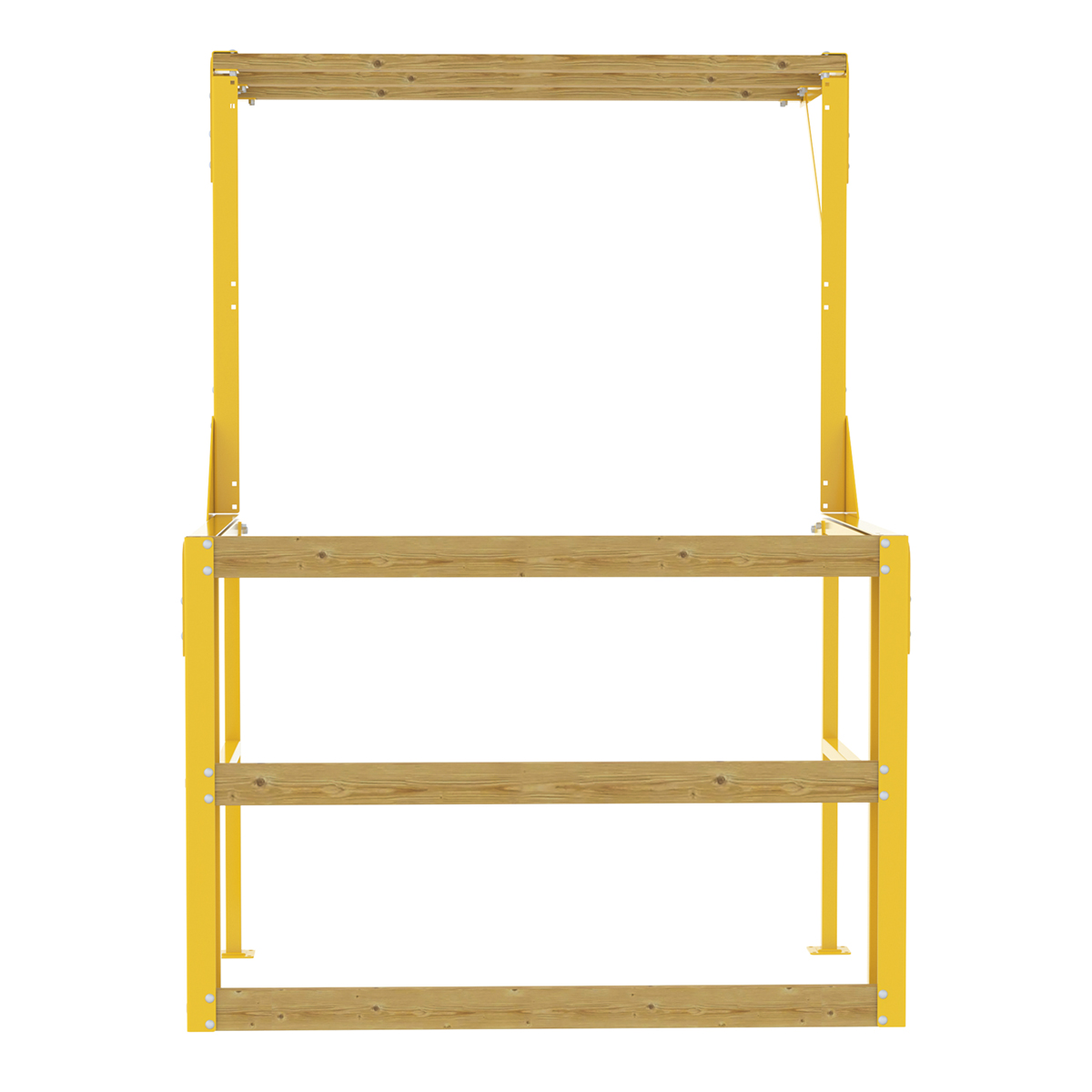

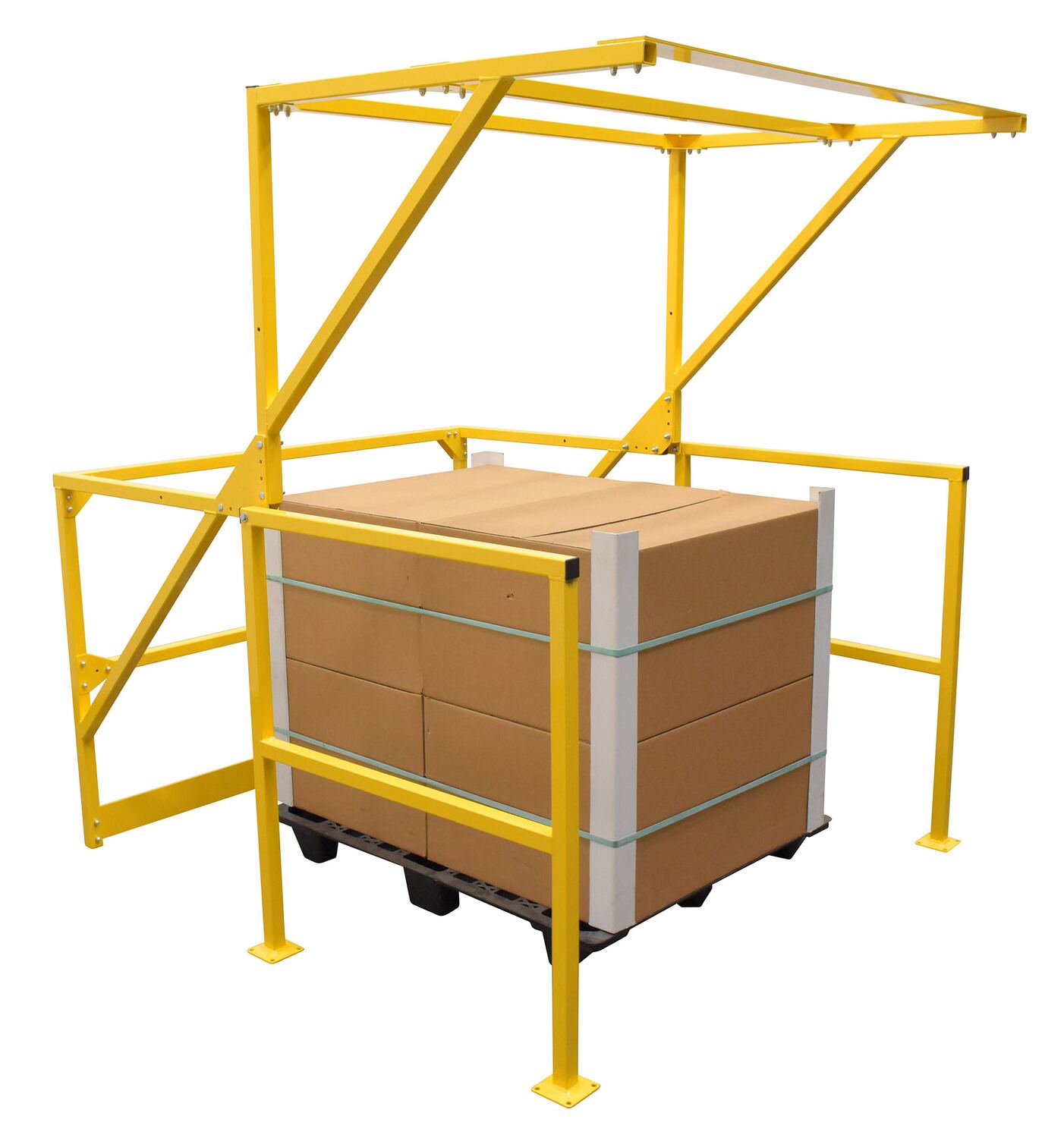

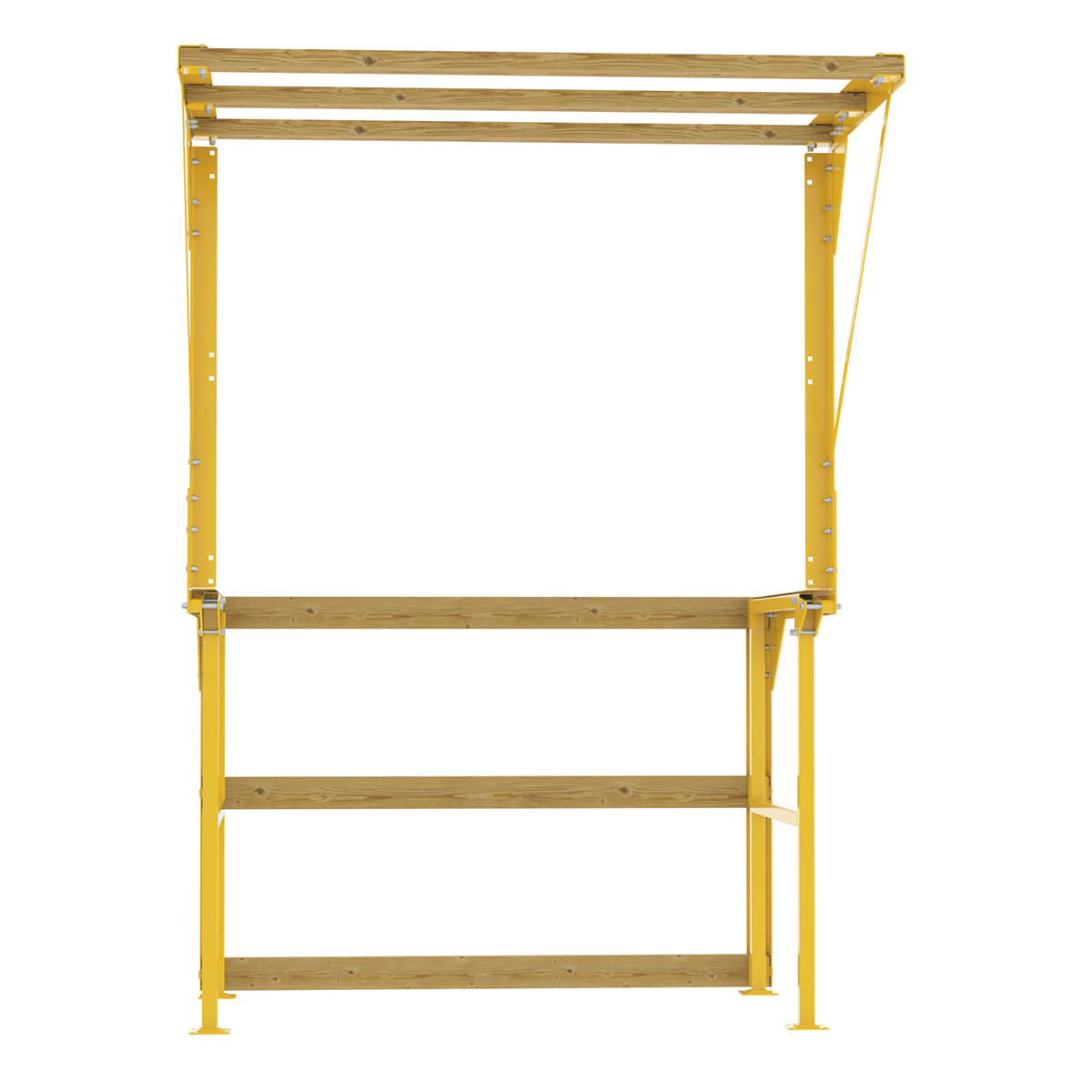

The MEZZ-KD-88T-93D ships knockdown to the customer. The 6 wooden cross rails are not included and must be supplied by the customer. Cross rails can have a maximum overall length up to 96" The MEZZ-200-BT has a bolt-together design, so the gate can be constructed, disassembled, or easily transferred to a new location. Other Mezzanine Safety Gates: Sliding Mezzanine Safety Gates | Rotating Mezzanine Gate System |
||||||||||||||||||||||||||||||||||||||||||||||||||||
 |
||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||
Options. |
||||||||||||||||||||||||||||||||||||||||||||||||||||
Our Customer Service Associates Are Here To Assist You! |
||||||||||||||||||||||||||||||||||||||||||||||||||||

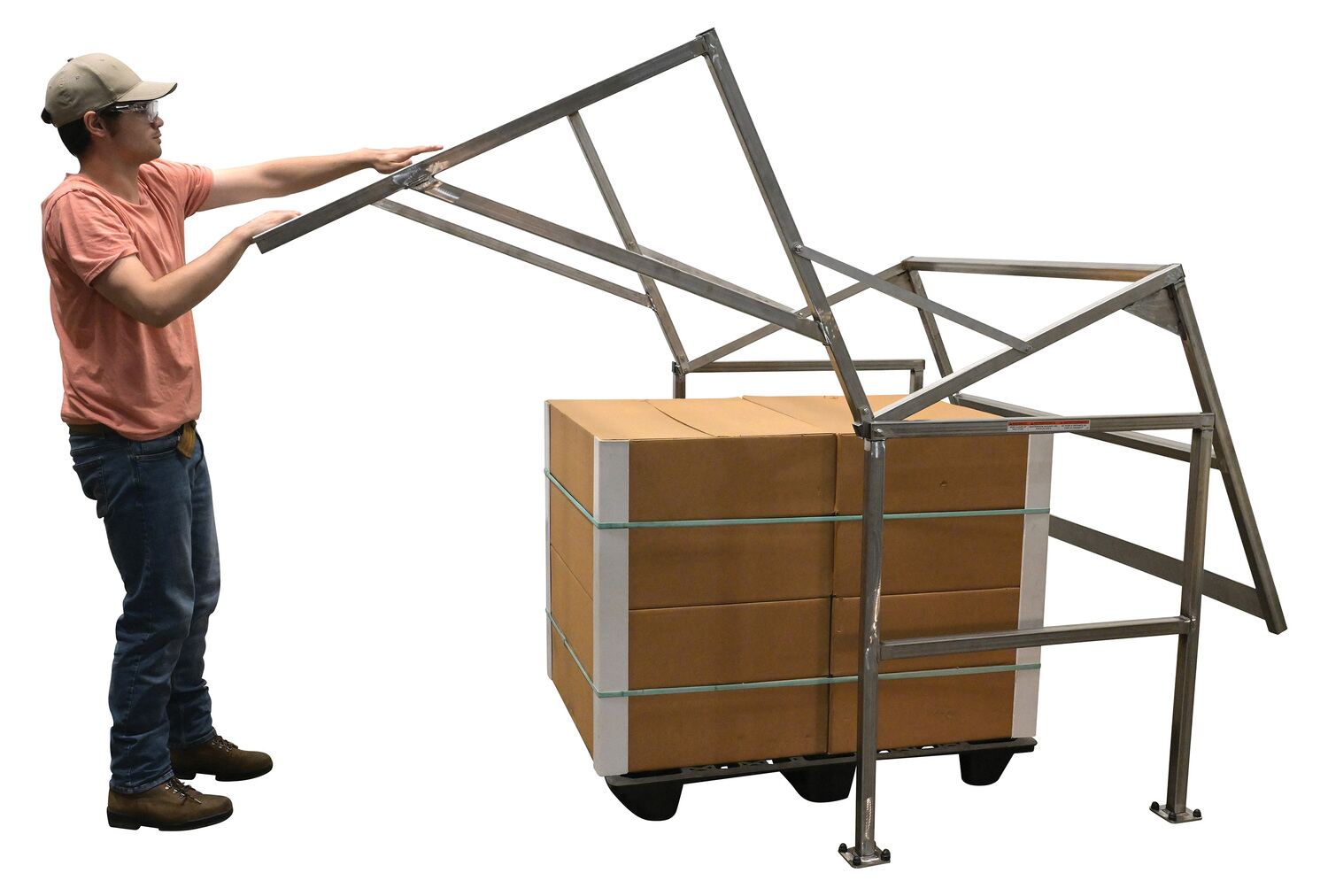

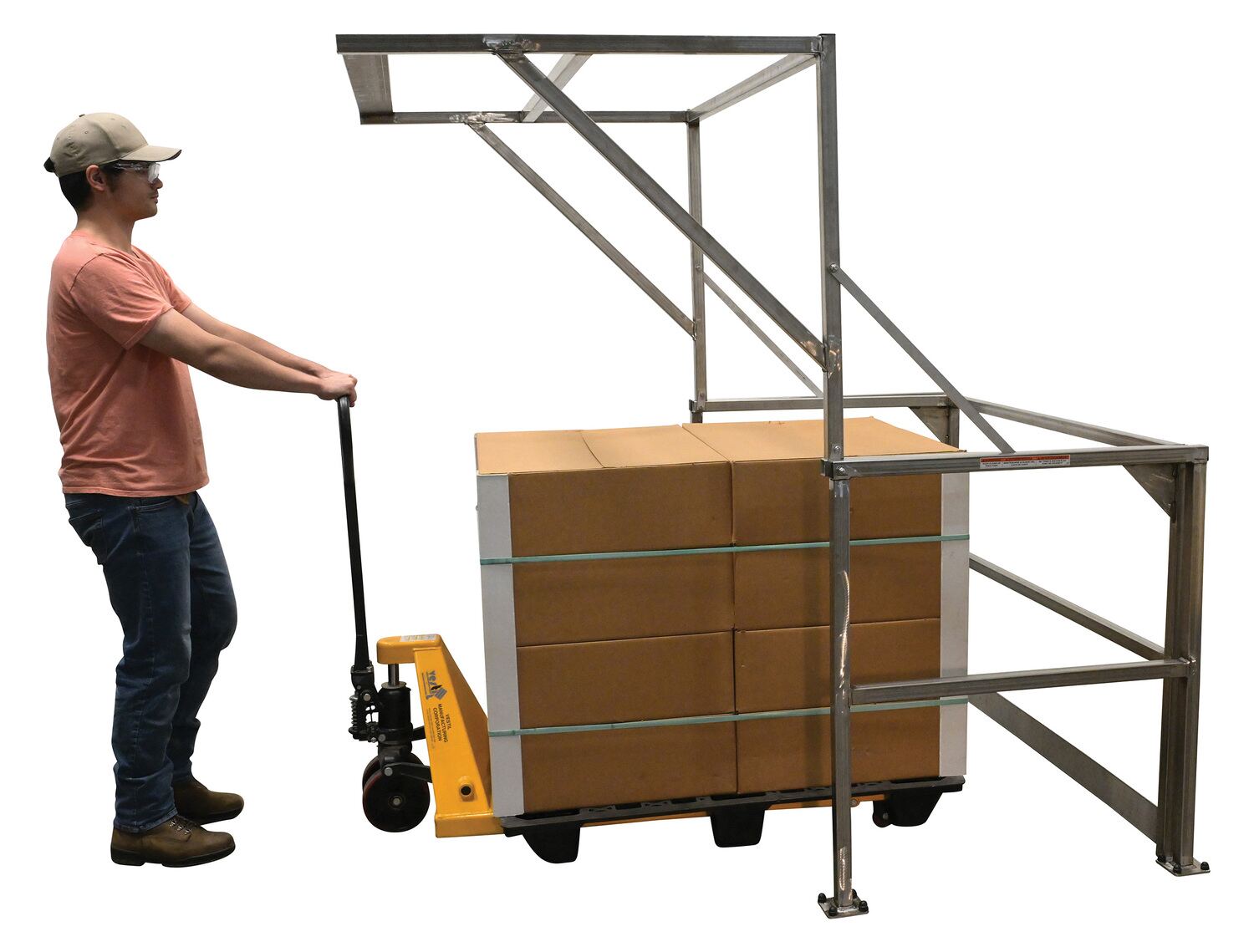

The Mezzanine Safety Gate provides an OSHA required 42-3/8" high handrail, 21" high mid-rail, and 4" high toe board for mezzanines without sacrificing load accessibility. To accommodate the maximum load height of 68", when utilizing a standard 48"W x 48"D pallet (two standard, side by side pallets for models MEZZ-200-DW & MEZZ-200-DW-SS) load positioning within the gate is critical. For greatest amount of clearance and item placement flexibility, shorter loads are recommended. Gate design is balanced to allow for easy operation without use of springs. Baked-in powder-coated toughness. Welded steel construction.
