Model Details

CCF-60-4

Printer Friendly
CCF-60-4

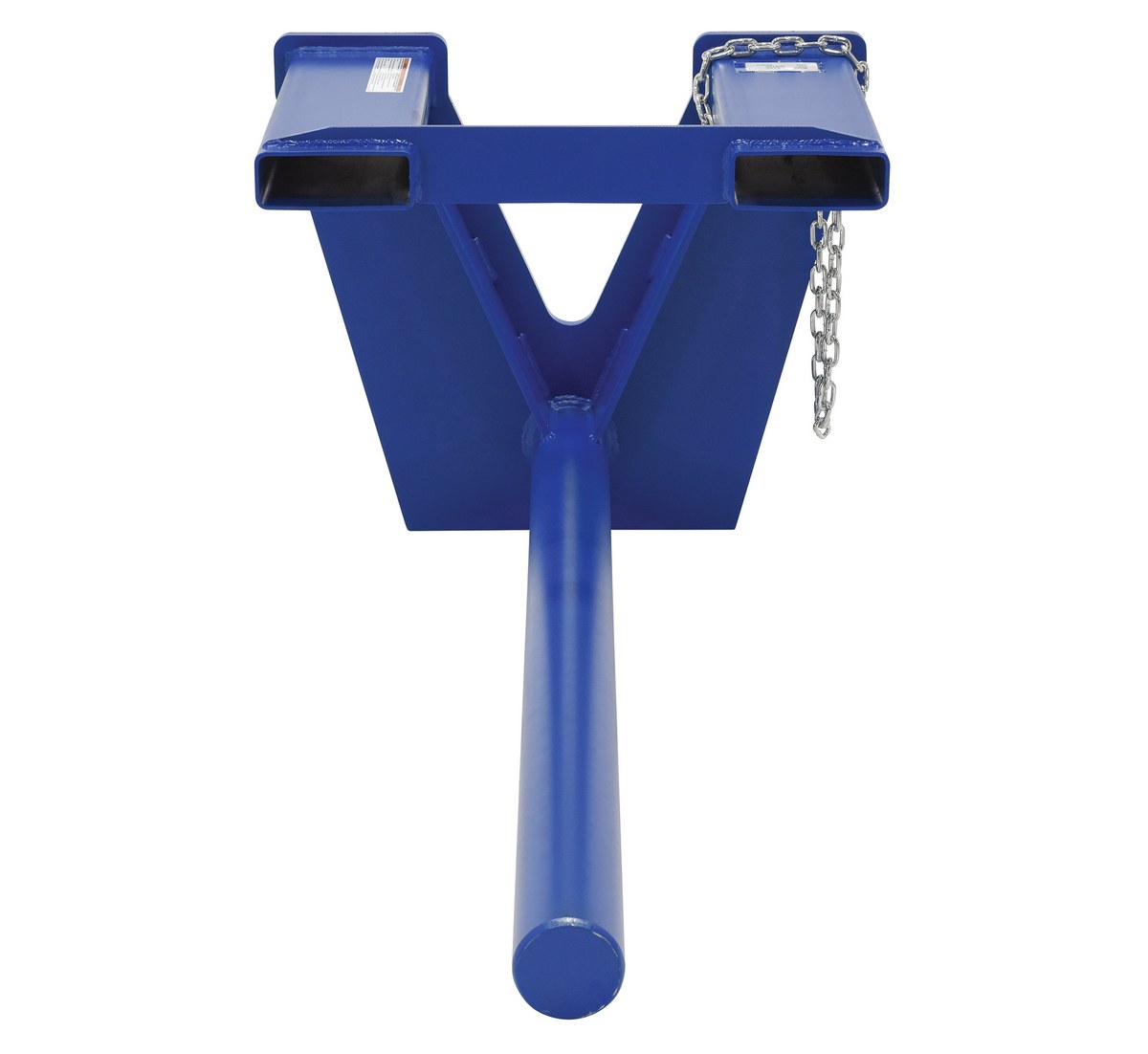

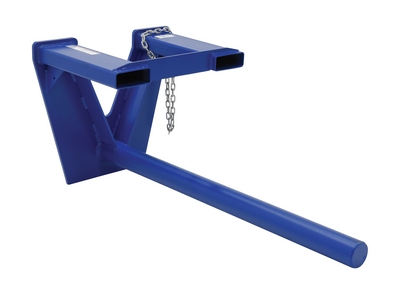

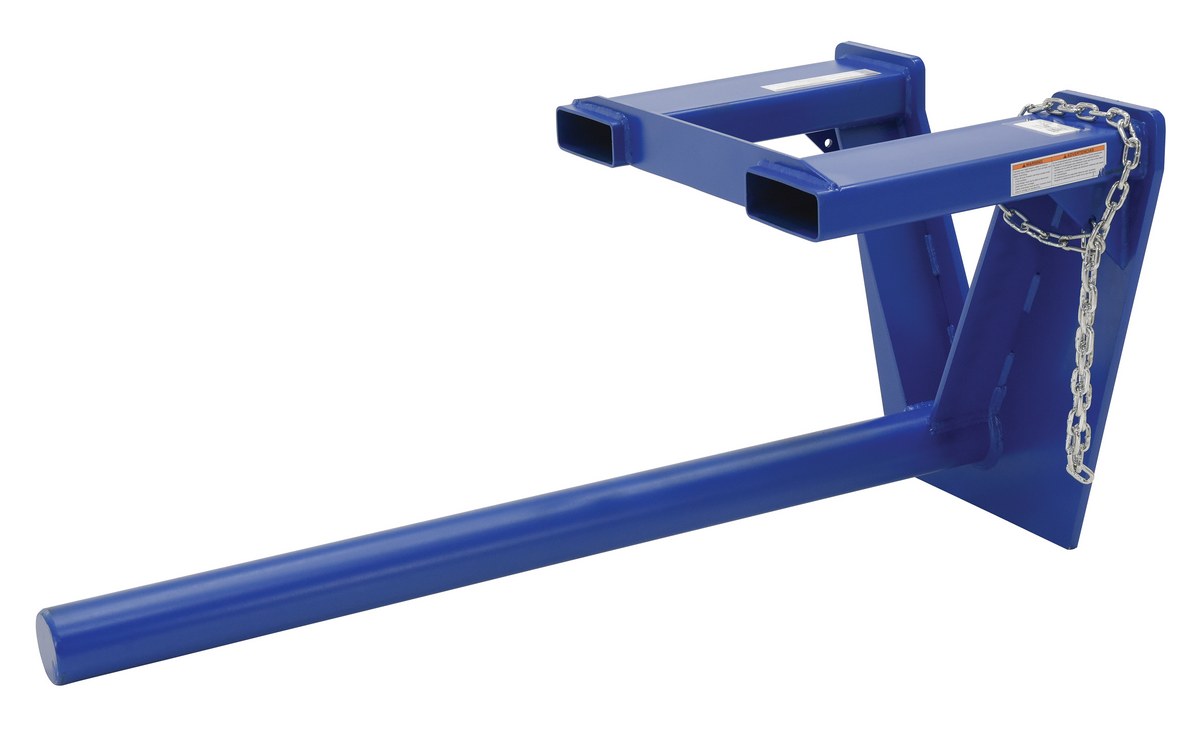

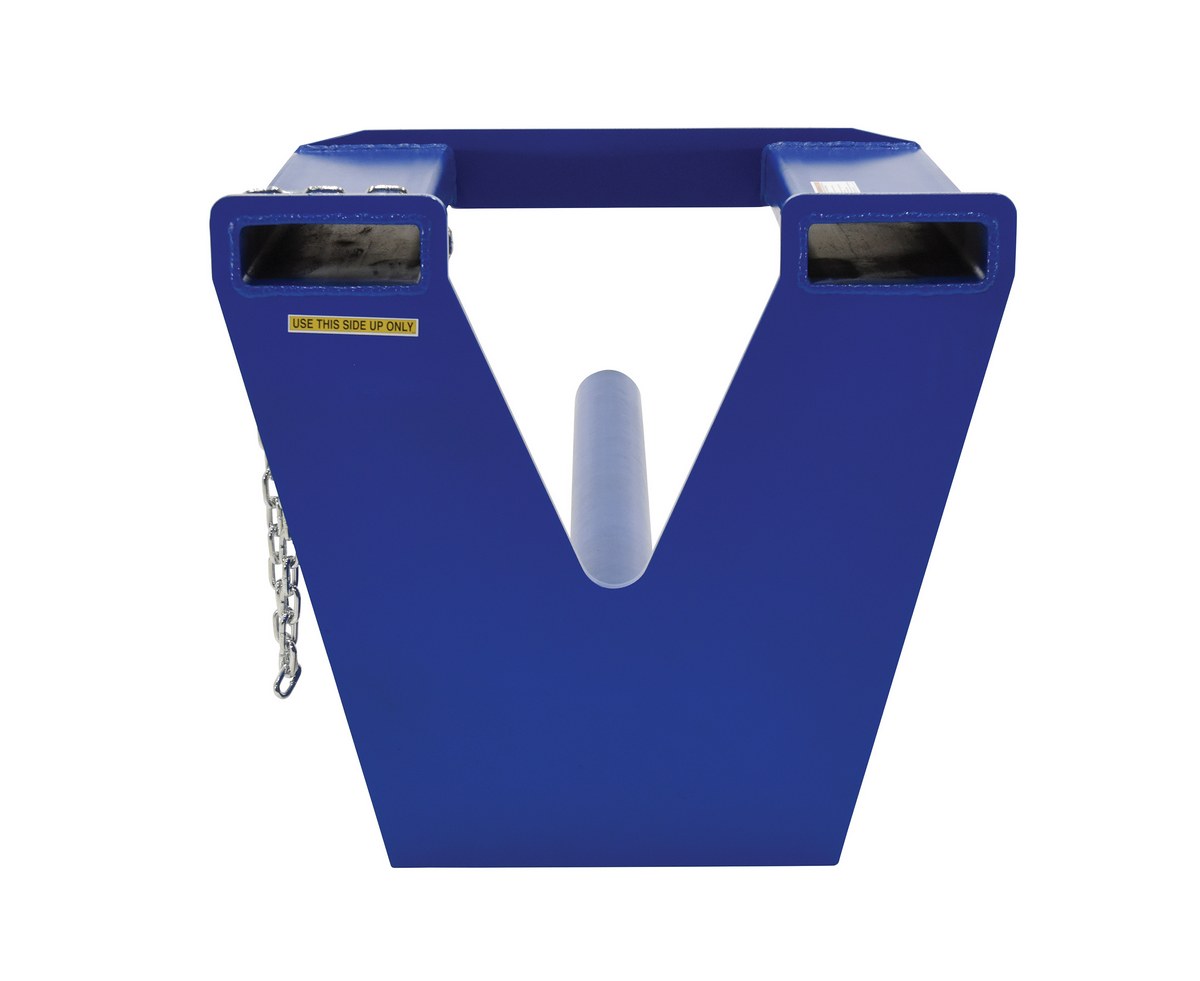

Steel Coil Lifter Fork Mounted Inverted 60 In 3000 Lb Capacity Blue

The coil ram/lifter is used to easily maneuver many types of coiled material. To accommodate multiple core sizes and capacities select different diameter ram poles. With a sturdy steel construction, the carriage mounted unit is class II with a spring loaded lock pin to secure the unit to fork truck carriage.

  • 24" fork pocket centers
  • Painted blue coat provides a long lasting tough finish
  • Safety device secures unit to fork truck
  • Sturdy steel construction provides long lasting rugged use
Total Ship Wt.(lbs.): 325 (only 1 package) Size: 34"W x 66"L x 29.25"H Color: Blue

Uniform Capacity (lb.): 3,000 Usable Ram Length (in.): 60 Ram Diameter (in.): 4-1/2
Mount Style: Fork, Inverted Usable Fork Pocket Width (in.): 7-1/2 Usable Fork Pocket Height (in.): 2-1/2
Fork Center (in.): 24 Maximum Coil Width (in.): 17-1/2 Horizontal Center of Gravity (in.): 12-1/8
Vertical Center of Gravity (in.): 15-1/8

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: CCF-60-4
CCF-60-4

Steel Coil Lifter Fork Mounted Inverted 60 In 3000 Lb Capacity Blue

The coil ram/lifter is used to easily maneuver many types of coiled material. To accommodate multiple core sizes and capacities select different diameter ram poles. With a sturdy steel construction, the carriage mounted unit is class II with a spring loaded lock pin to secure the unit to fork truck carriage.

  • 24" fork pocket centers
  • Painted blue coat provides a long lasting tough finish
  • Safety device secures unit to fork truck
  • Sturdy steel construction provides long lasting rugged use
Dimensions: 34"W x 66"L x 29.25"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215059893 GTIN: 00691215059893
Warranty: -- Shipping Weight: 325 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 3,000 Usable Ram Length (in.): 60 Ram Diameter (in.): 4-1/2
Mount Style: Fork, Inverted Usable Fork Pocket Width (in.): 7-1/2 Usable Fork Pocket Height (in.): 2-1/2
Fork Center (in.): 24 Maximum Coil Width (in.): 17-1/2 Horizontal Center of Gravity (in.): 12-1/8
Vertical Center of Gravity (in.): 15-1/8
