Model Details

PG-S-060

Printer Friendly
PG-S-060

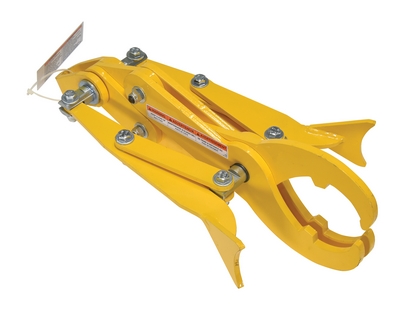

Steel Heavy Duty Pipe Grab 27 In. x 8-3/8 In. x 18-3/4 In. 600 Lb. Capacity Yellow

A noteworthy addition to any manufacturing and maintenance field. Brightly colored for strong visibility while maneuvering. The grab is produced in the fashion of a two hook method with the addition of two side braces for stability.

  • Designed for lifting steel pipe with overhead lifting device
  • Automatic operation allows for easy use by anyone
  • Loads must be centered and guided during lifting operations
  • Heavy-duty steel construction for strength & durability
Total Ship Wt.(lbs.): 21 (only 1 package) Size: 8.375"W x 27"L x 18.75"H Color: Yellow

Uniform Working Load Limit (lb.): 600 Works with Pipe (O.D.): 4-1/2 to 4-3/4 Designed For Use With: Steel
Lifting Clamp Style: Horizontal Jaw Depth (in.): 4 Minimum Jaw Opening Height (in.): 3-1/8
Includes: Clamp Lock Mechanism Overall Thickness (in.): 3/8

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?

Parcel - Can Go UPS

Image Gallery

PDF Documents

Details For Model: PG-S-060
PG-S-060

Steel Heavy Duty Pipe Grab 27 In. x 8-3/8 In. x 18-3/4 In. 600 Lb. Capacity Yellow

A noteworthy addition to any manufacturing and maintenance field. Brightly colored for strong visibility while maneuvering. The grab is produced in the fashion of a two hook method with the addition of two side braces for stability.

  • Designed for lifting steel pipe with overhead lifting device
  • Automatic operation allows for easy use by anyone
  • Loads must be centered and guided during lifting operations
  • Heavy-duty steel construction for strength & durability
Dimensions: 8.375"W x 27"L x 18.75"H Sell UOM: EA-Each Color: Yellow
Material: Steel UPC: 691215054744 GTIN: 00691215054744
Warranty: -- Shipping Weight: 21 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Working Load Limit (lb.): 600 Works with Pipe (O.D.): 4-1/2 to 4-3/4 Designed For Use With: Steel
Lifting Clamp Style: Horizontal Jaw Depth (in.): 4 Minimum Jaw Opening Height (in.): 3-1/8
Includes: Clamp Lock Mechanism Overall Thickness (in.): 3/8
