Model Details

← All Products- ← Protective Barriers- ← Safety Railing -← Steel Safety Railings- VDKR-BASE

VDKR-BASE

Printer Friendly
Available
VDKR-BASE
VDKR-BASE VDKR-BASE VDKR-BASE VDKR-BASE

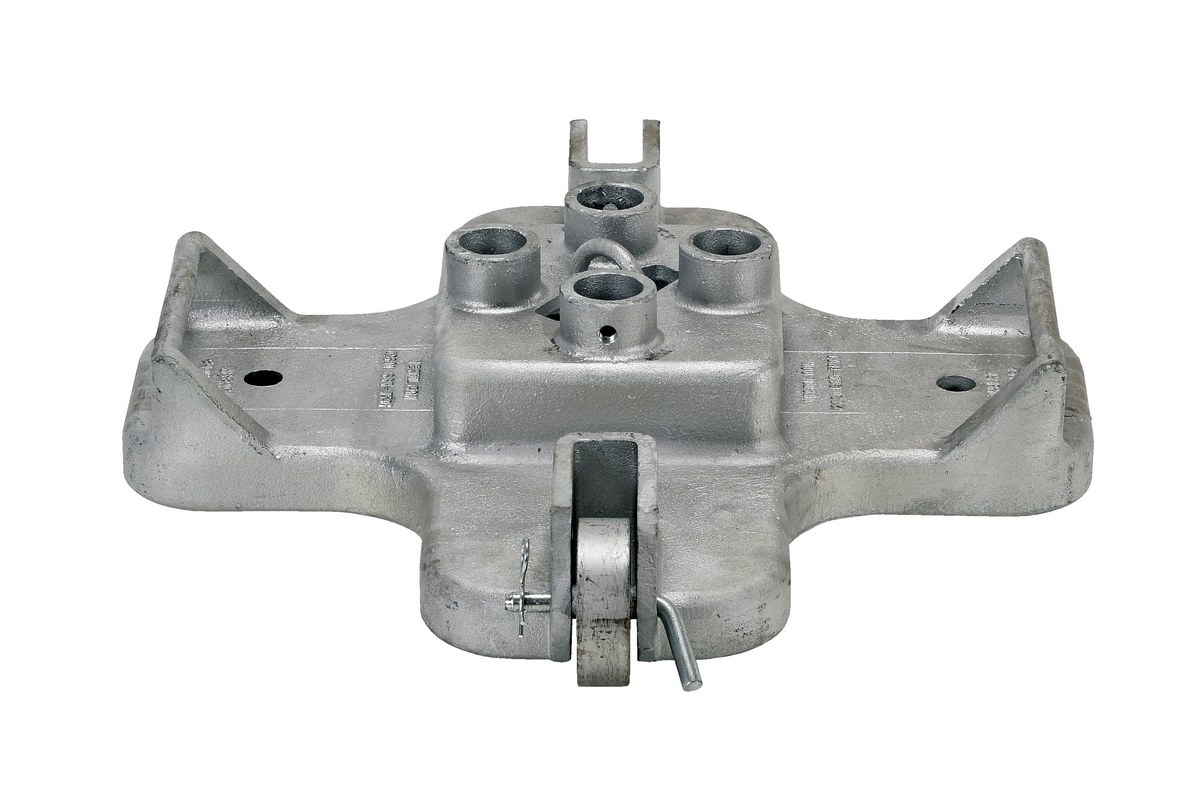

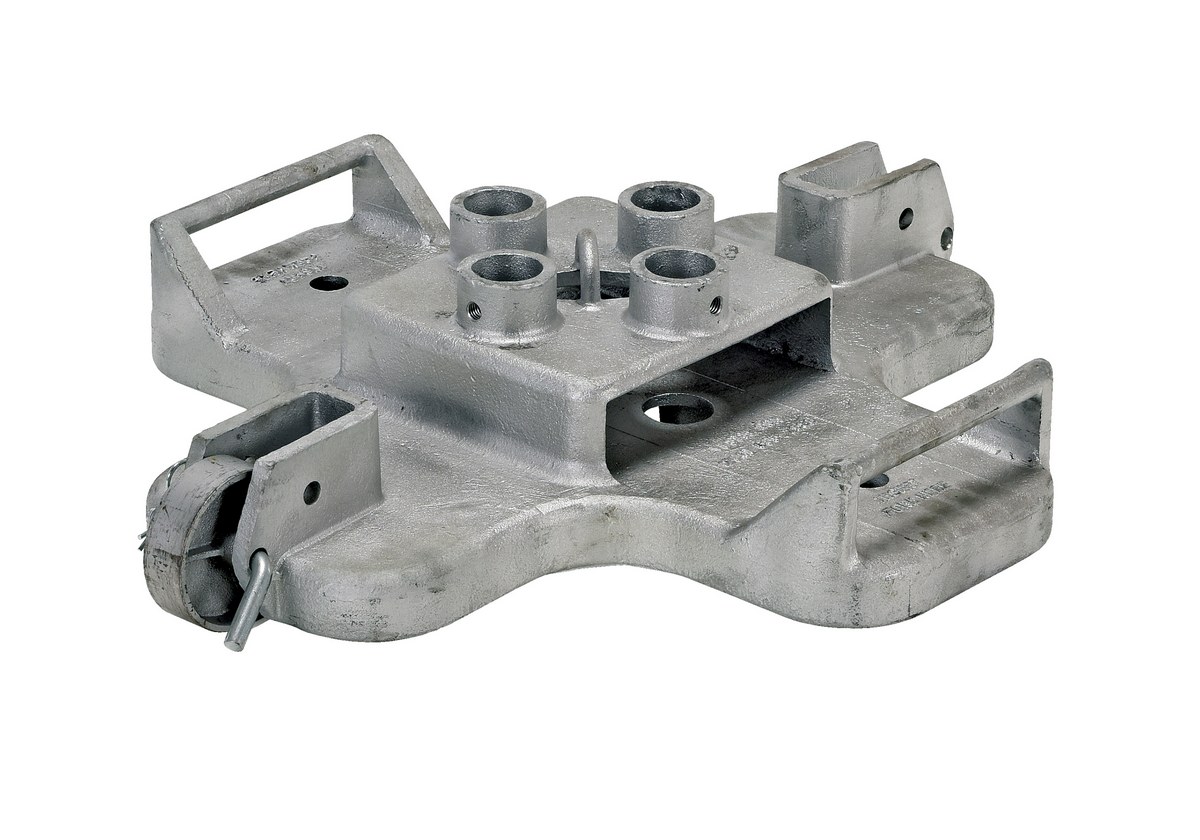

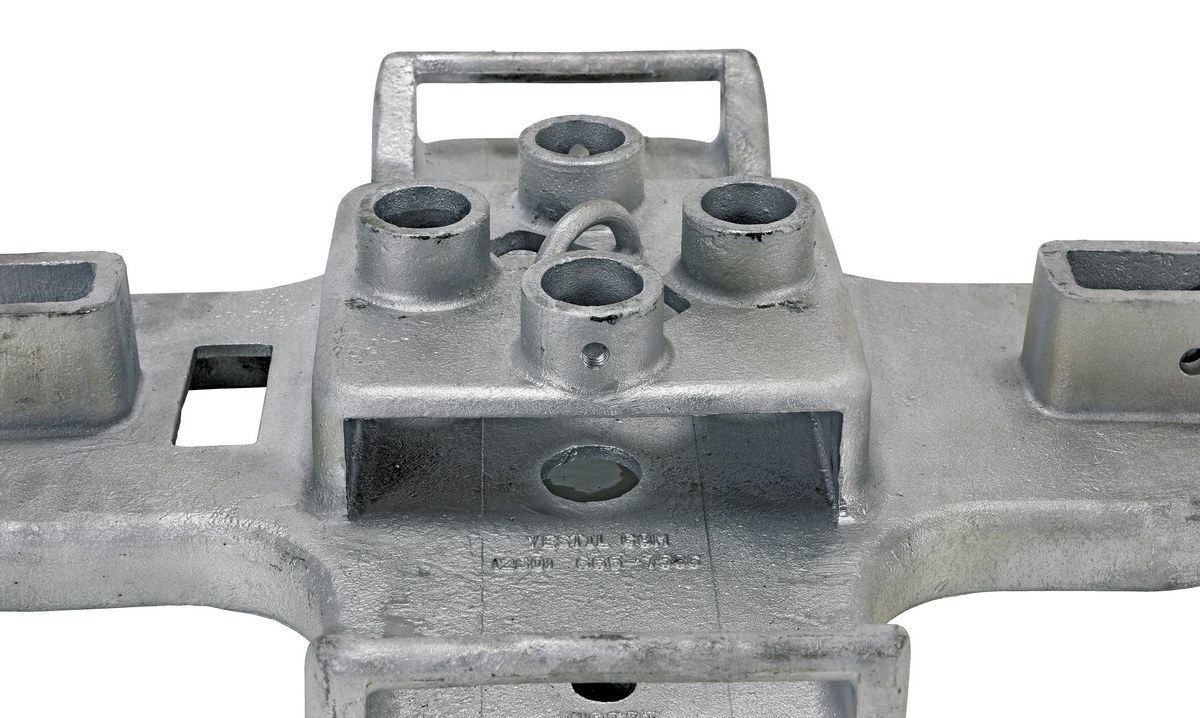

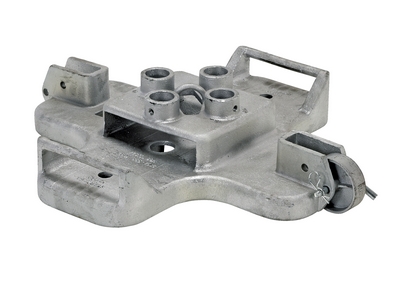

Cast Iron Pipe Safety Railing Base 2.13 In. x 28.5 In. x 5.7 In. Gray

The cast steel base is the perfect accessory for the pipe safety railing. The unit allows the pipe railing to be secured to a central location, while diminishing the chances of personal injuries. When the unit need to be moved, the base includes a caster for smooth rolling from area to area. Great for both indoor and outdoor use.

  • Robust construction for use in harsh conditions
  • Great for both permanent and portable uses
  • Pre-drilled lag down points saves time with installation
  • Attached caster for simple transference
Assembled Wt.(lbs.): 102 Assembled Size: 25.125"W x 28.5625"L x 5.6875"H

Total Ship Wt.(lbs.): 137 (only 1 package) Package 1 Size: 24"W x 24"D x 12"H Color: Silver

Wood Toe Board Length (in.): 2 Wood Toe Board Height (in.): 4 or 5 Lag Down Hole (qty.): 2
Bolt Holes (qty.): 4 Lag Down Mounting Hole Diameter (in.): 1 Rigid Caster (qty.): 1
Caster Width (in.): 1-1/4 Caster Diameter (in.): 4 OSHA: 1926.5

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

90 Days Limited Warranty

Details For Model: VDKR-BASE
Available
VDKR-BASE

Cast Iron Pipe Safety Railing Base 2.13 In. x 28.5 In. x 5.7 In. Gray

The cast steel base is the perfect accessory for the pipe safety railing. The unit allows the pipe railing to be secured to a central location, while diminishing the chances of personal injuries. When the unit need to be moved, the base includes a caster for smooth rolling from area to area. Great for both indoor and outdoor use.

  • Robust construction for use in harsh conditions
  • Great for both permanent and portable uses
  • Pre-drilled lag down points saves time with installation
  • Attached caster for simple transference
Dimensions: 25.125"W x 28.5625"L x 5.6875"H Sell UOM: -- Color: Silver
Material: -- UPC: -- GTIN: --
Warranty: -- Shipping Weight: 137 Quickship Item? --
Can It Ship UPS? -- Option? -- Origin: --
Assembly: -- Packaging: -- Drawing Required? --
Wood Toe Board Length (in.): 2 Wood Toe Board Height (in.): 4 or 5 Lag Down Hole (qty.): 2
Bolt Holes (qty.): 4 Lag Down Mounting Hole Diameter (in.): 1 Rigid Caster (qty.): 1
Caster Width (in.): 1-1/4 Caster Diameter (in.): 4 OSHA: 1926.5
