Steel Safety Railings

model: VDKR

VDKR_A.jpg VDKR_1.jpg VDKR-P101_E.jpg VDKR-P102_D.jpg More Images +

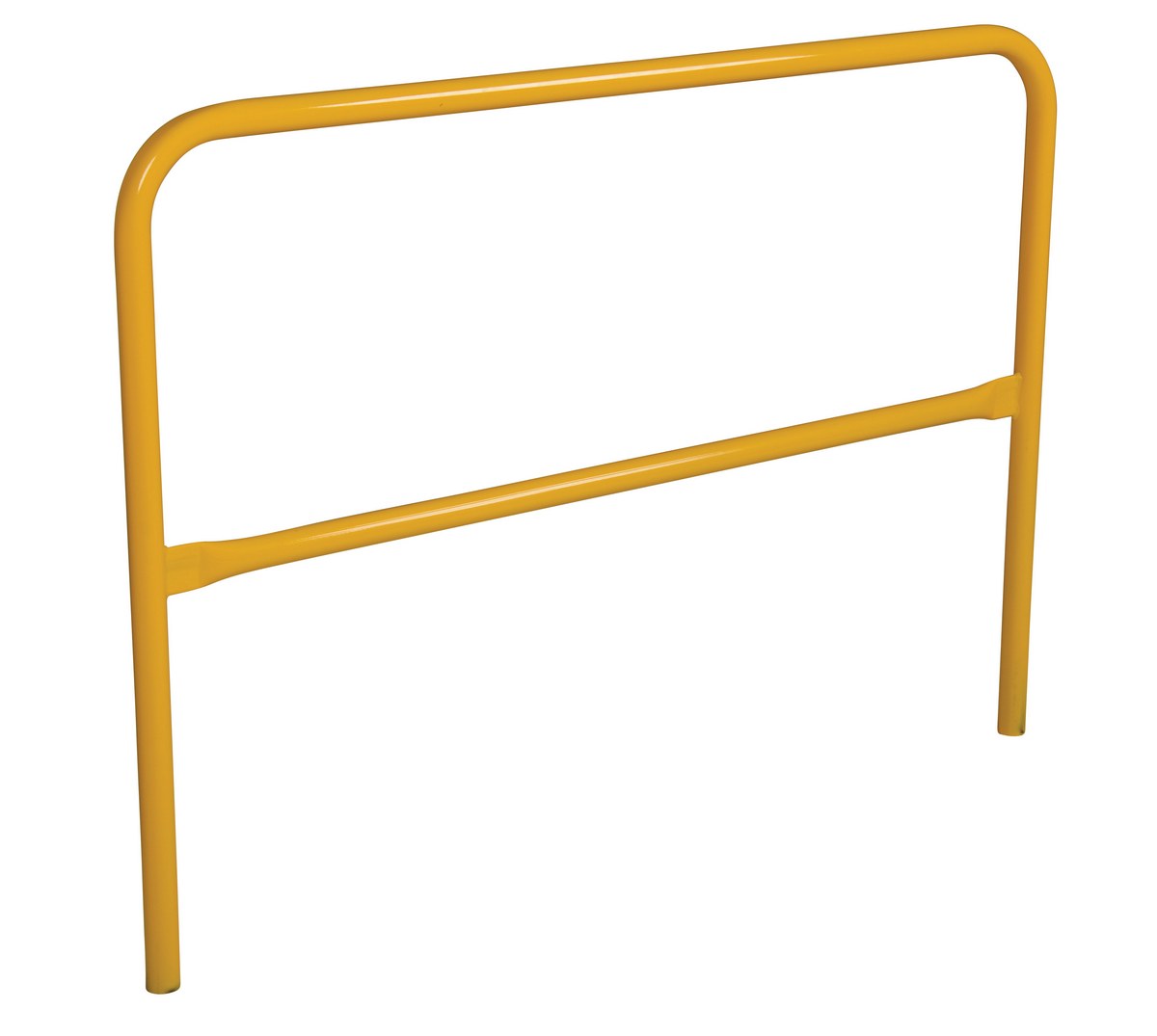

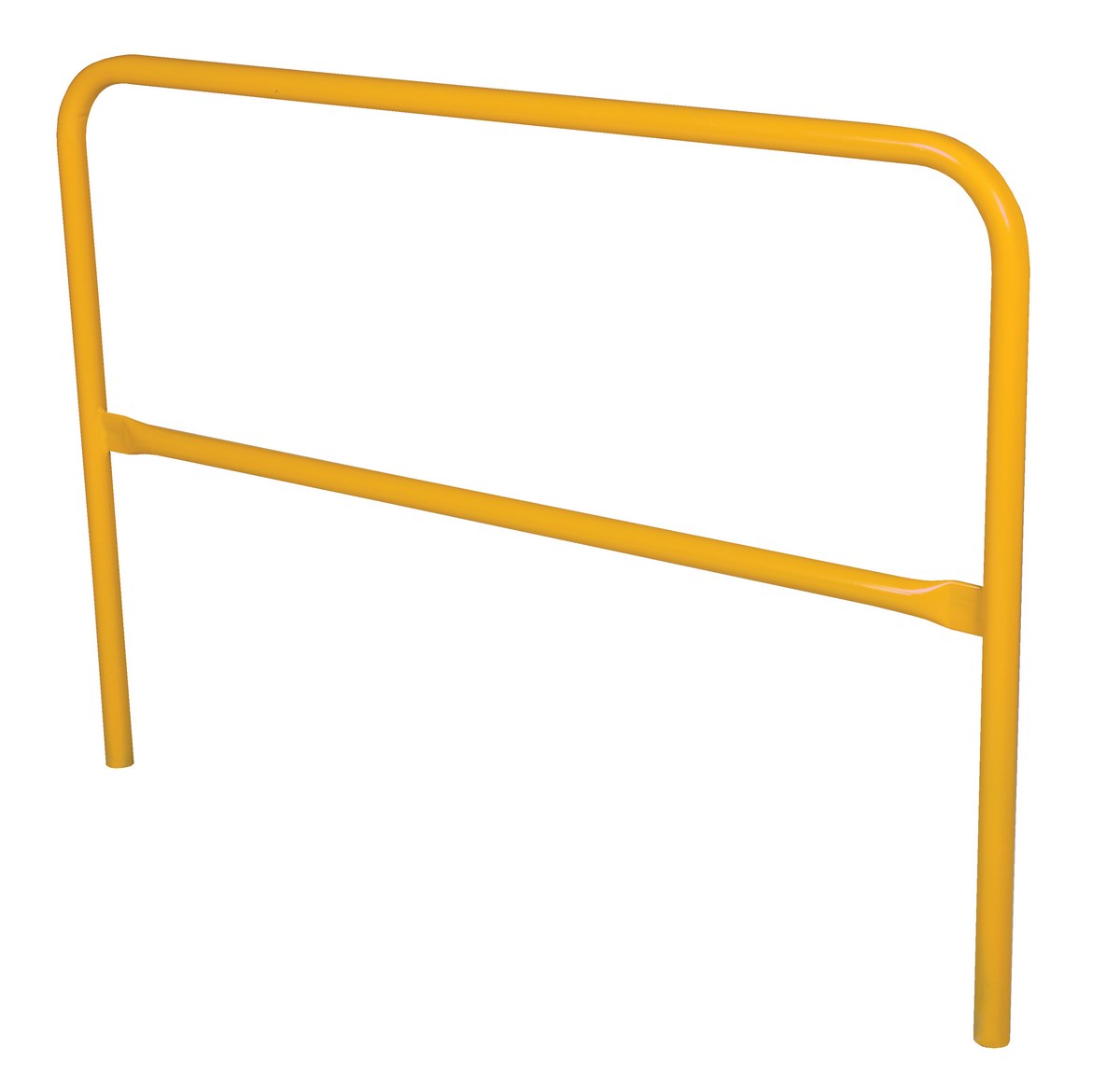

Steel Safety Railings
SERIES: VDKR

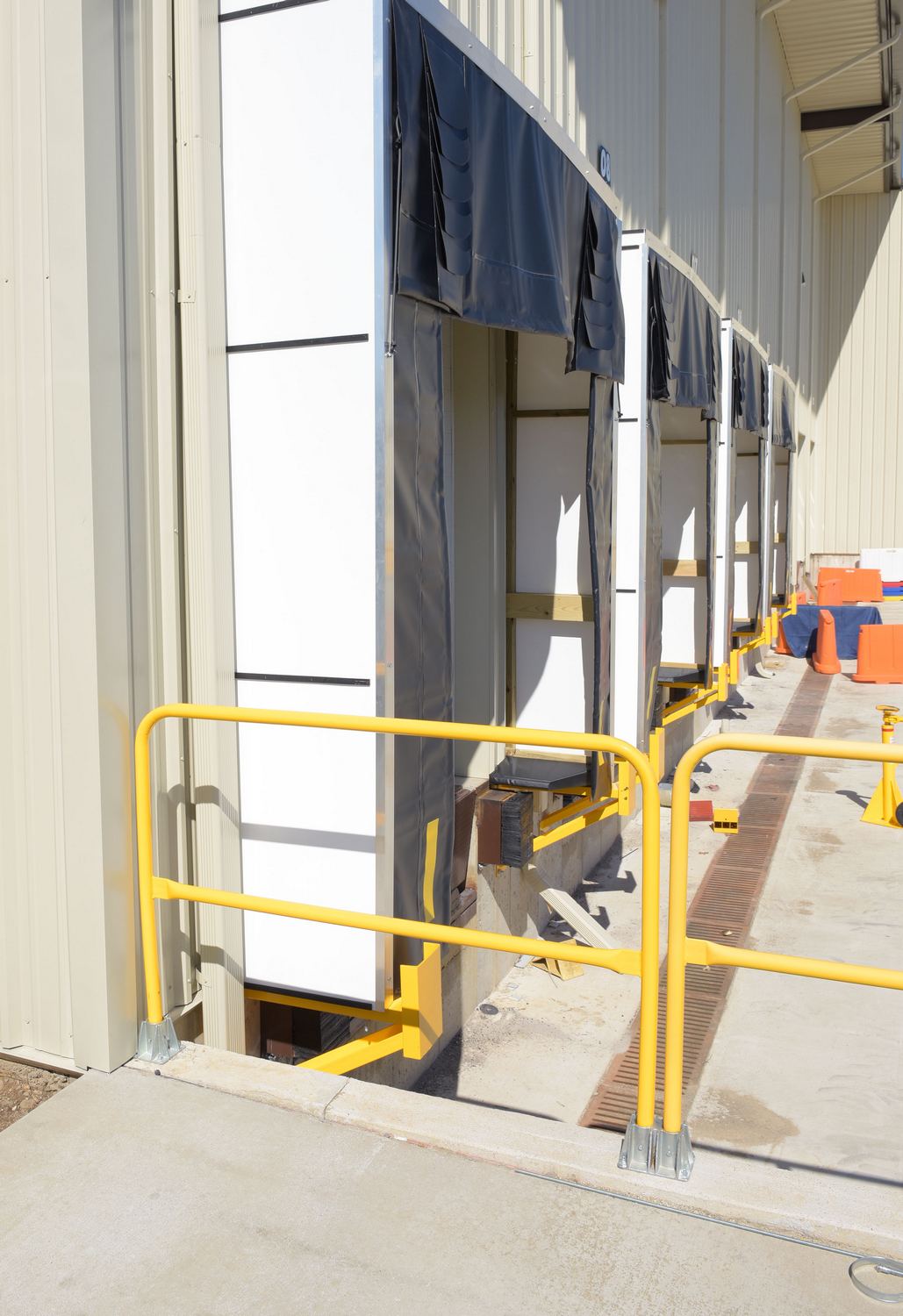

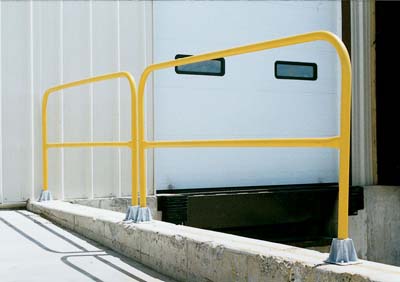

Protect people from uneven walkways and mezzanine drop-off's. The safety railing is constructed of schedule 10 steel. All models have an outside pipe diameter of 1-5/8". Handrails are 42" high with a 21" mid-rail. Mounting options include socket sleeves, cast steel base, barricade base, or cast steel sockets for convenient handrail removal. The cast steel sockets accept wood 2" x 4" or 2" x 6" when toe boards are required. Two (2) lag down holes are pre-drilled for permanently mounting the railing. The steel design includes a baked-in powder-coated finish, which is available in a variety of colors found in the table below. The VDKR series safety rail products comply with U.S. Occupational Safety and Health Administration (OSHA) General Industry requirements for guardrail systems in 29 CFR 1910.29.

central rudder

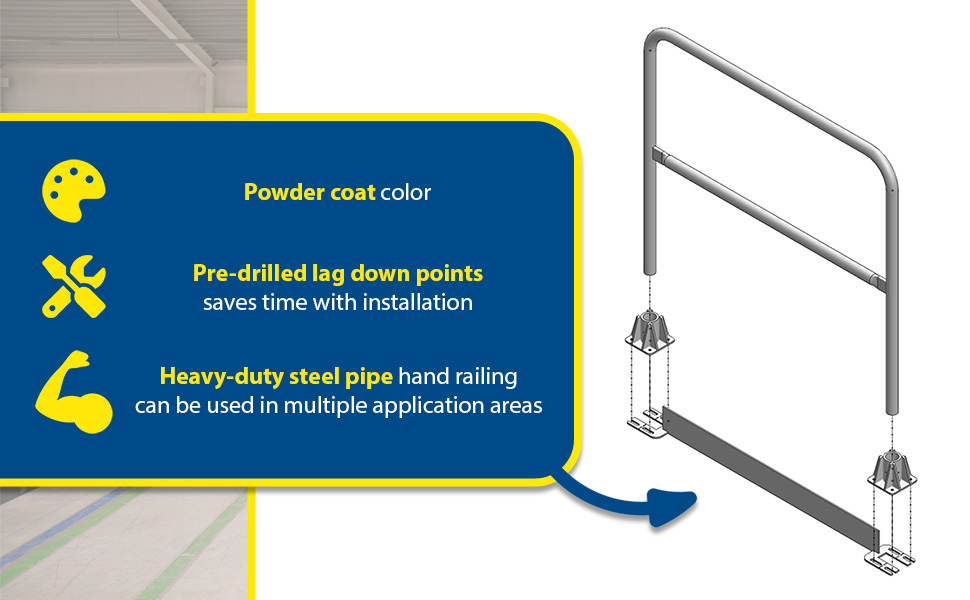

Rail + Sockets + Toe Board

Add a toe board to your railing for extra safety! Installation is fast and easy with the predrilled lag down points. Protect people or employees from uneven walkways and mezzanine drop-offs.

Check Out Vestil's Other Safety Railing Styles:


Aluminum Safety Railing 		VDKR-PP-5_A.jpg
Pour-In-Place Safety Railing
Steel Safety Railing w/ Welded Baseplate
Steel Safety Railings

model: VDKR

Model # Description Attributes Net Wt.
(lbs)

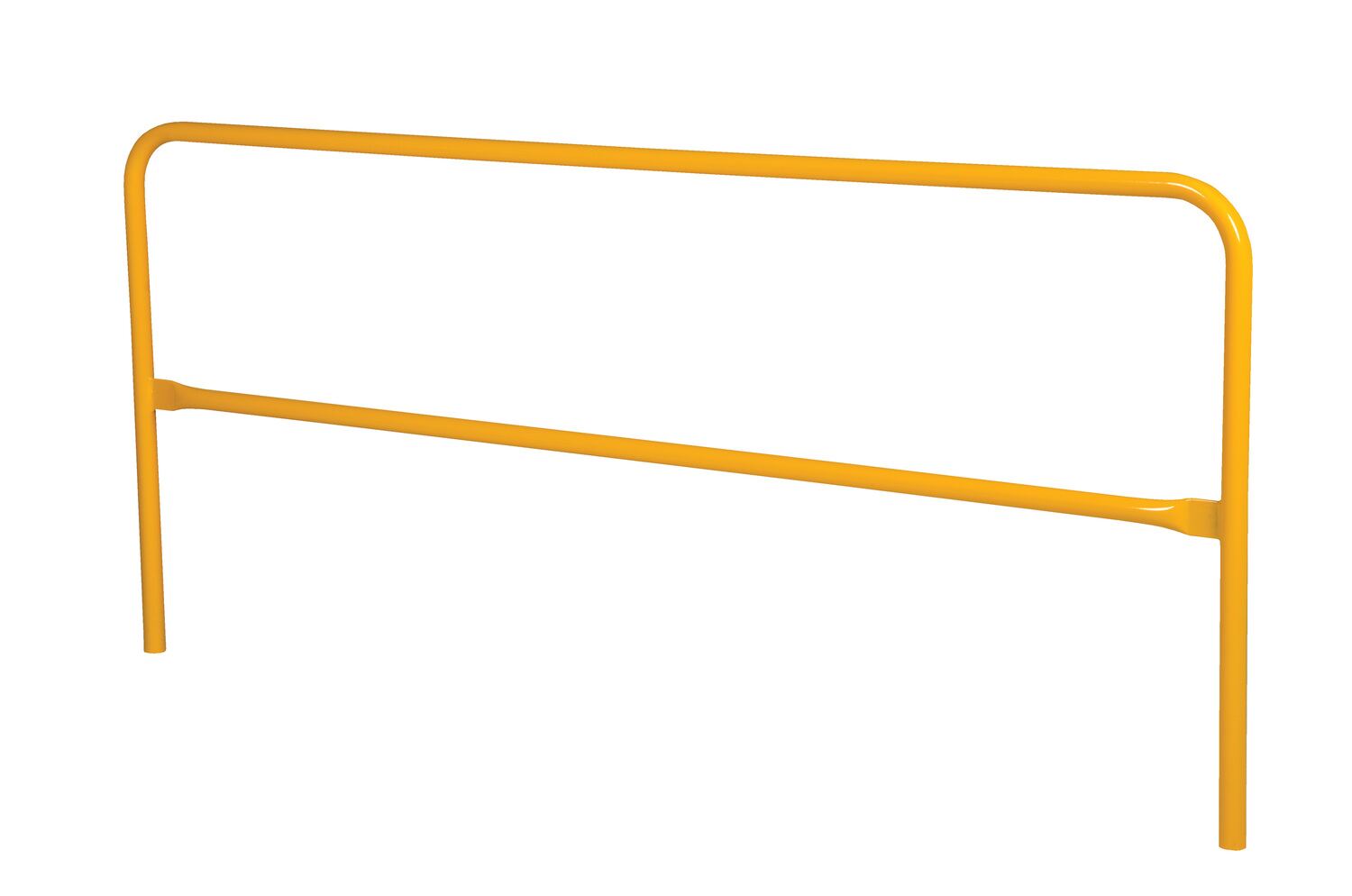

VDKR-10 VDKR-1090 Days Limited WarrantySteel Safety Railing 10 Ft. Length YellowMidrail Height (in.): 21
Steel Pipe (schedule): 10		99

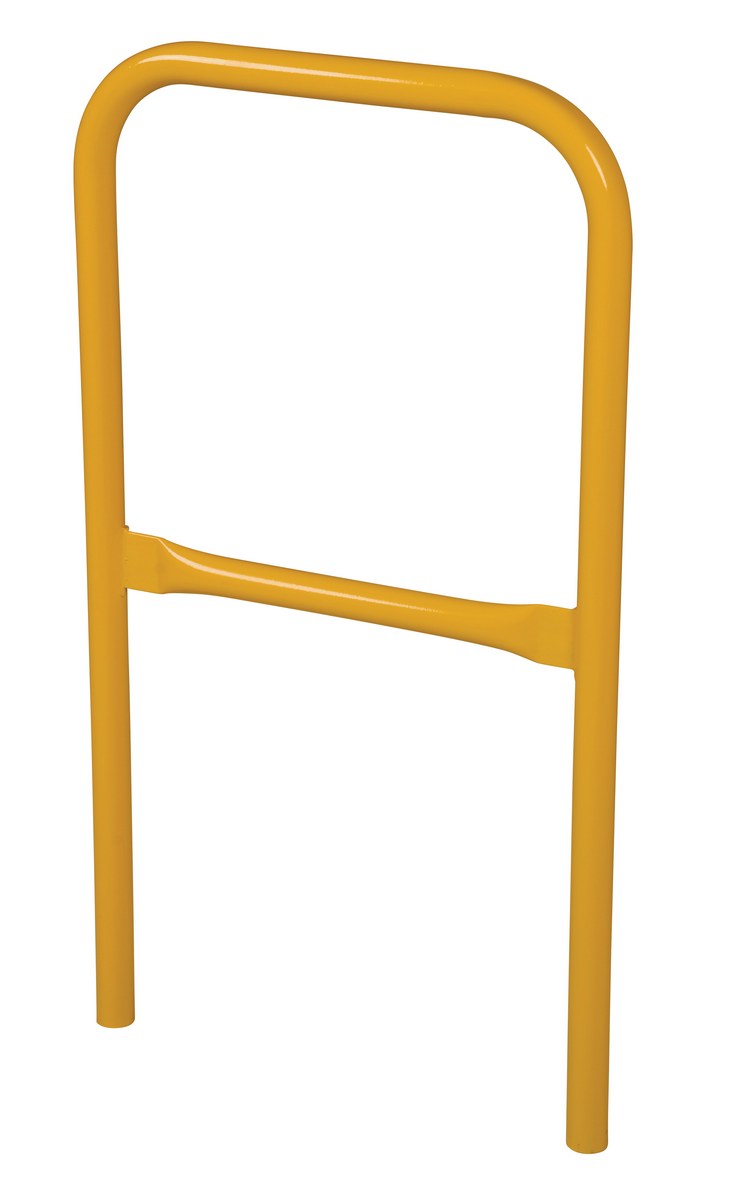

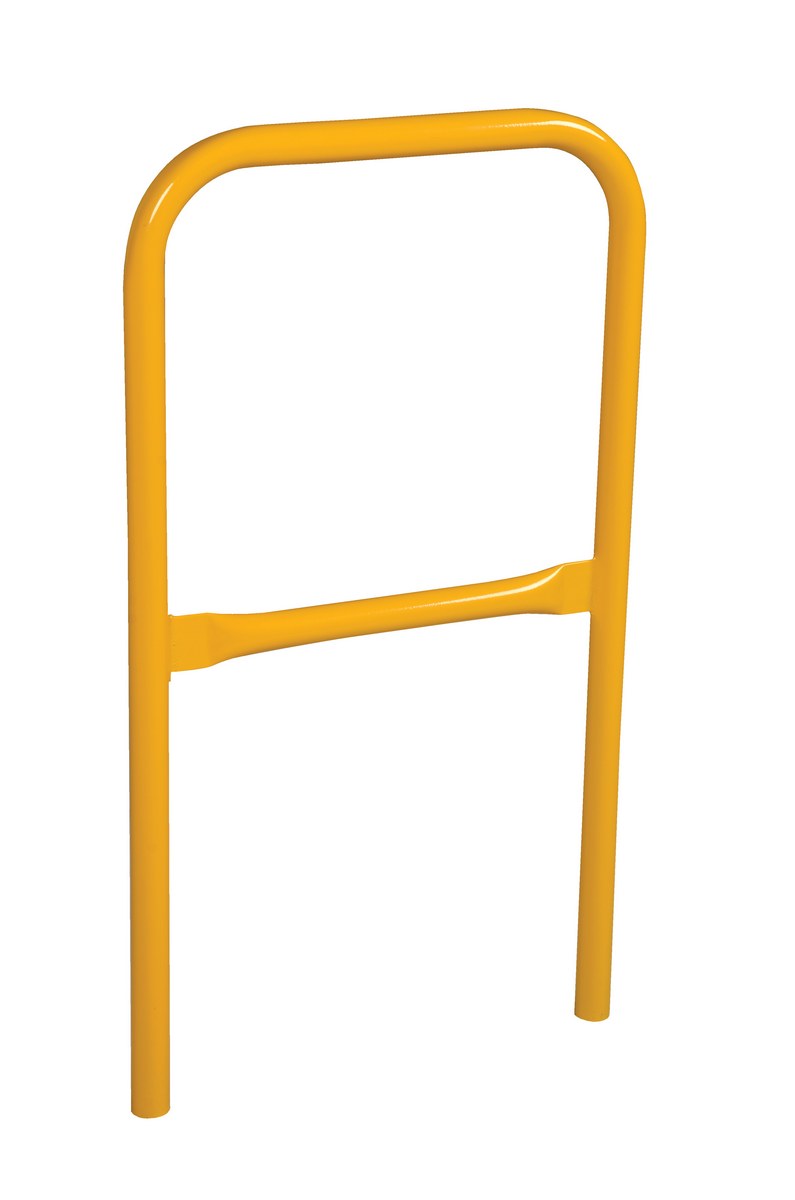

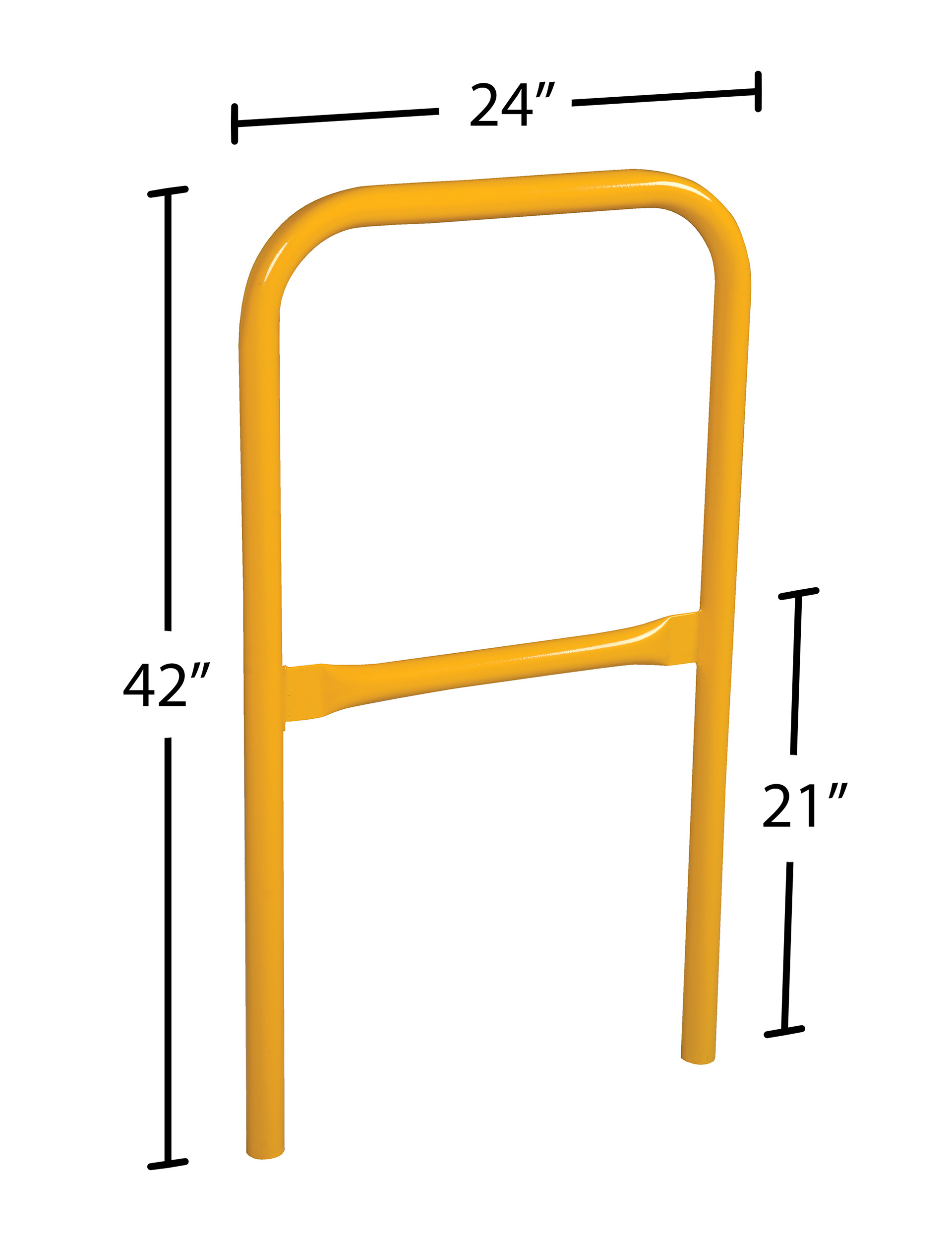

VDKR-2 VDKR-290 Days Limited WarrantySteel Safety Railing 2 Ft. Length YellowMidrail Height (in.): 21
Steel Pipe (schedule): 10		19

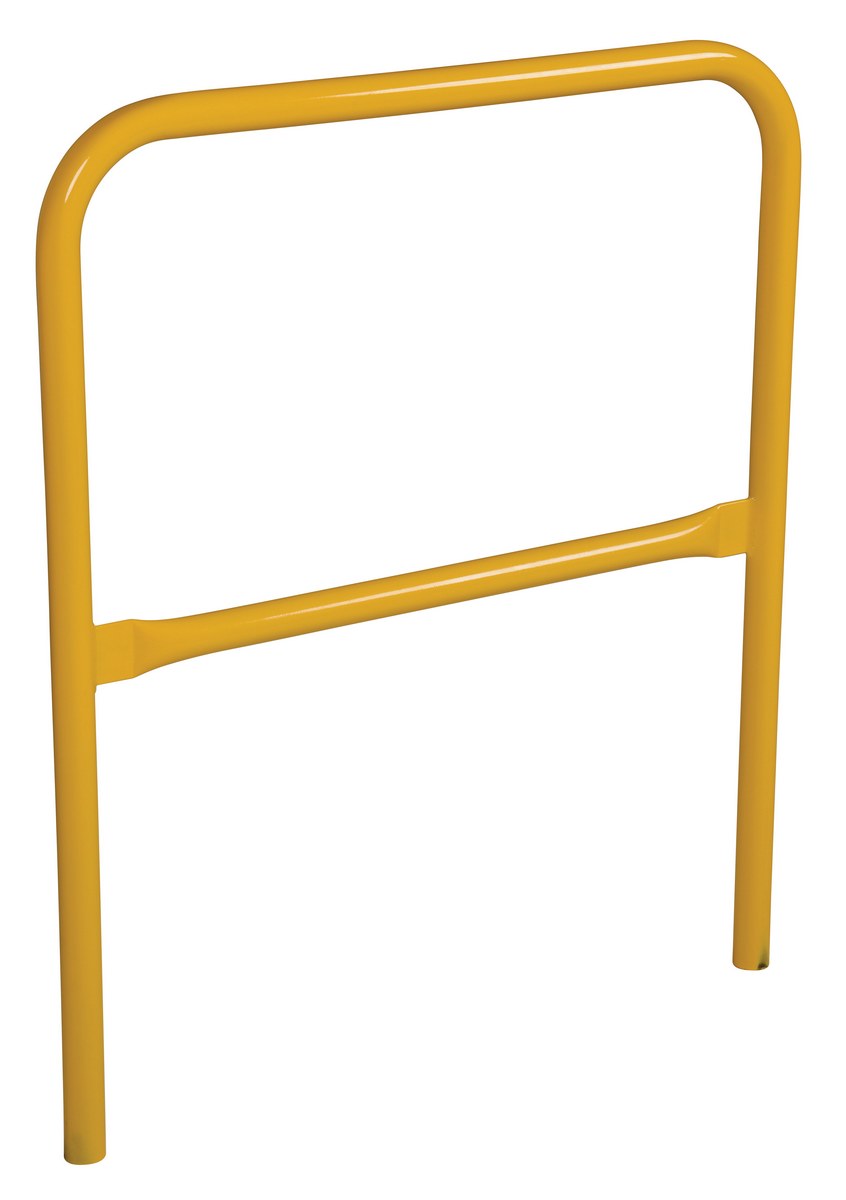

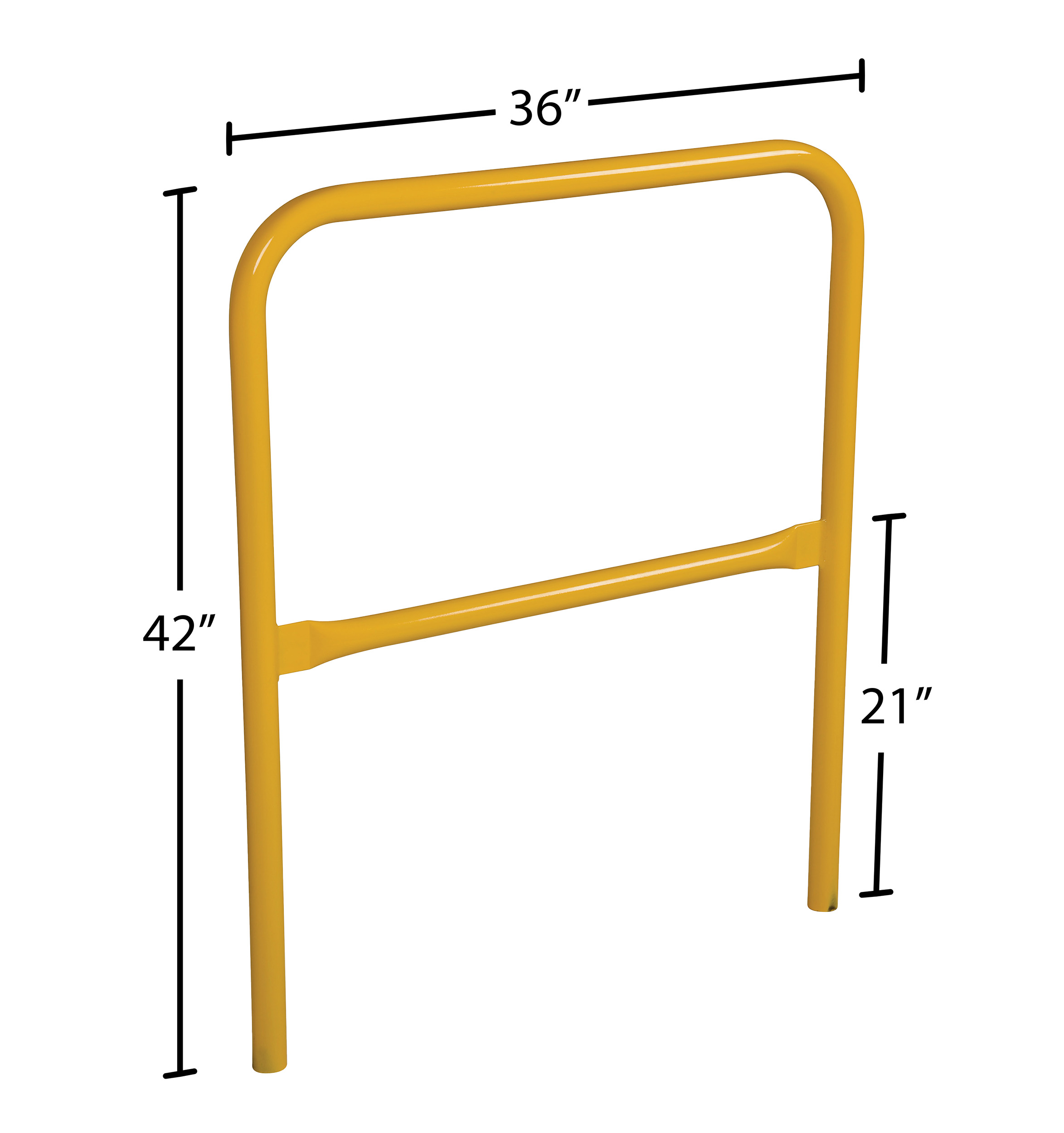

VDKR-3 VDKR-390 Days Limited WarrantySteel Safety Railing 3 Ft. Length YellowMidrail Height (in.): 21
Steel Pipe (schedule): 10		24

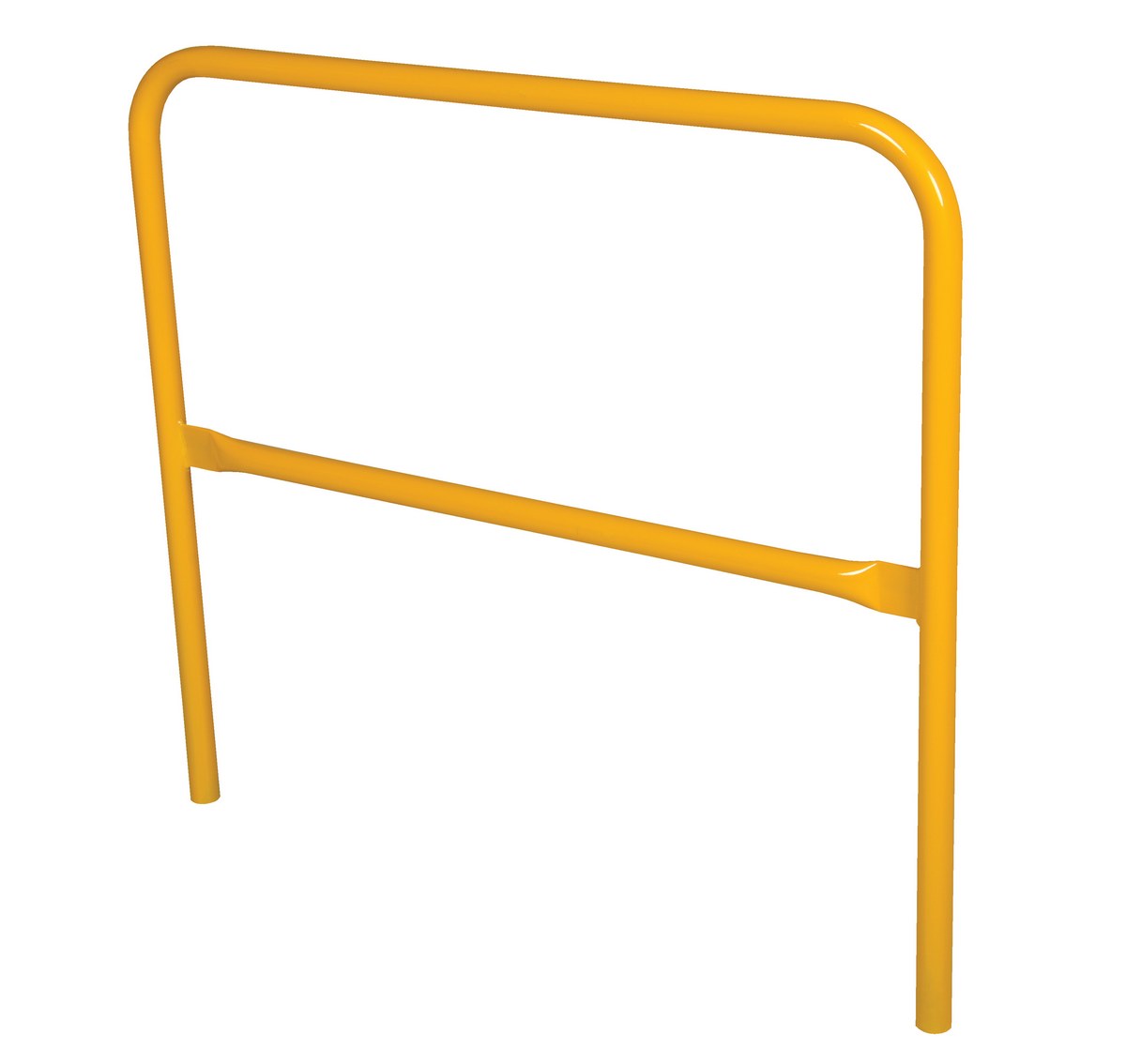

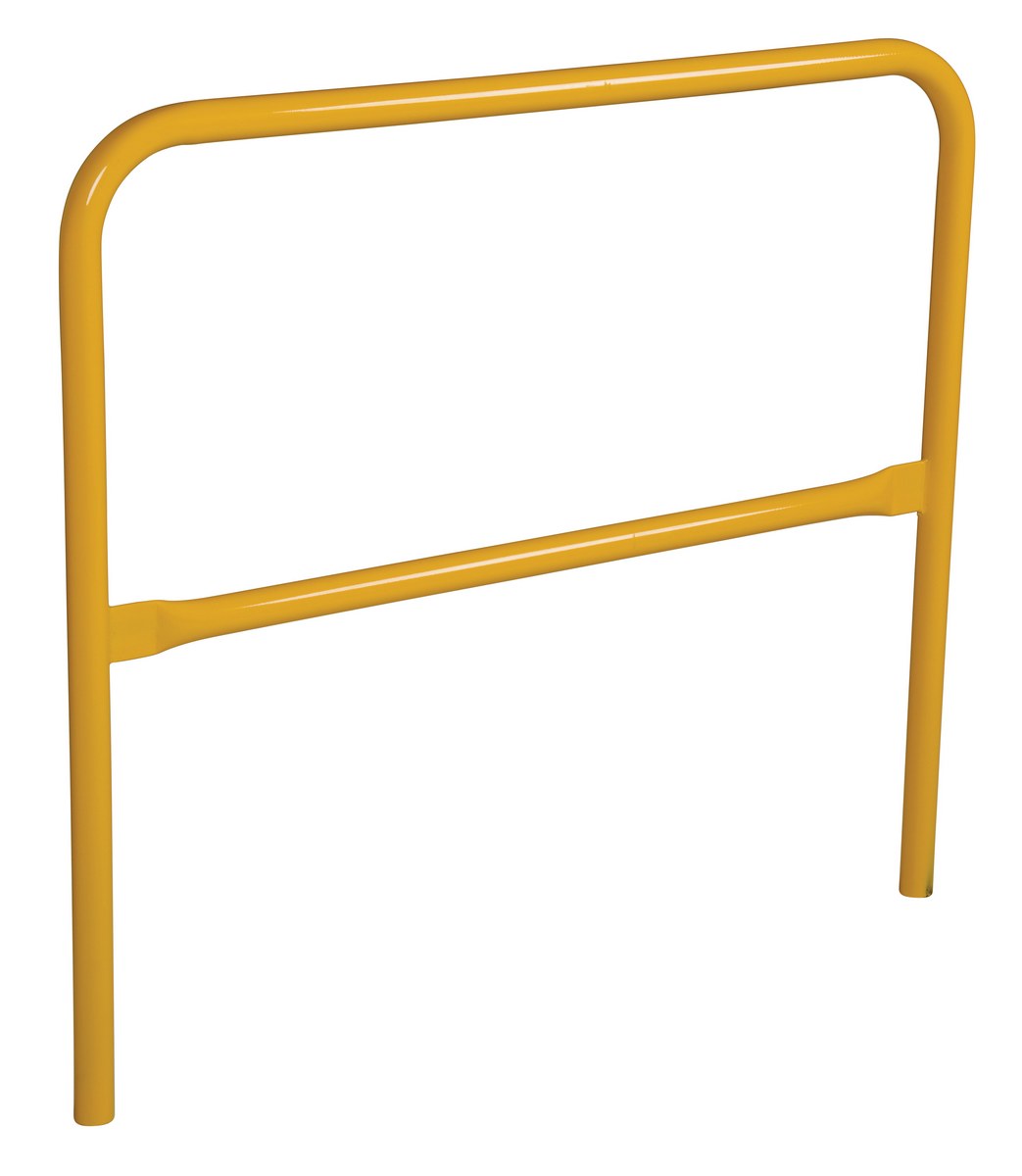

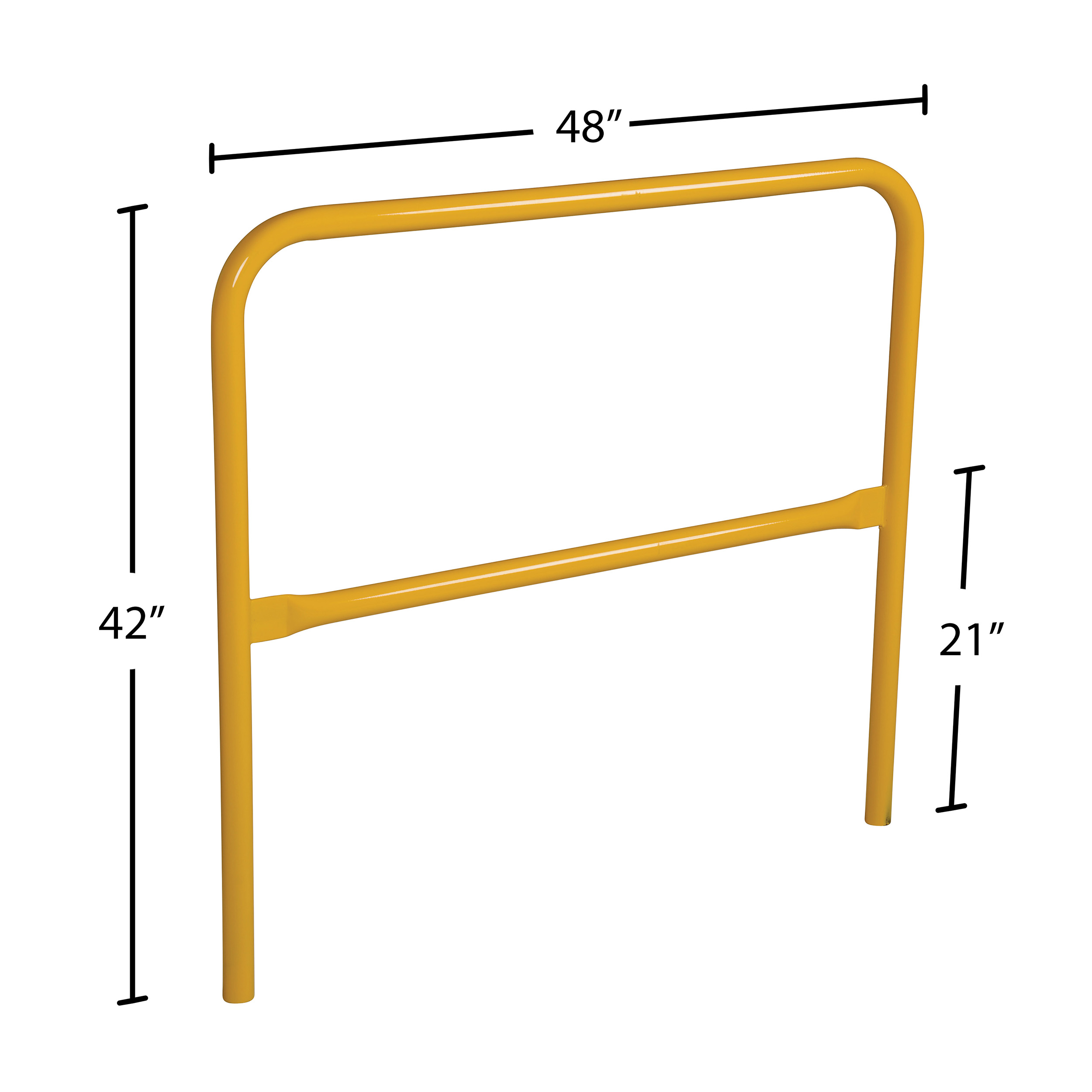

VDKR-4 VDKR-490 Days Limited WarrantySteel Safety Railing 4 Ft. Length YellowMidrail Height (in.): 21
Steel Pipe (schedule): 10		54

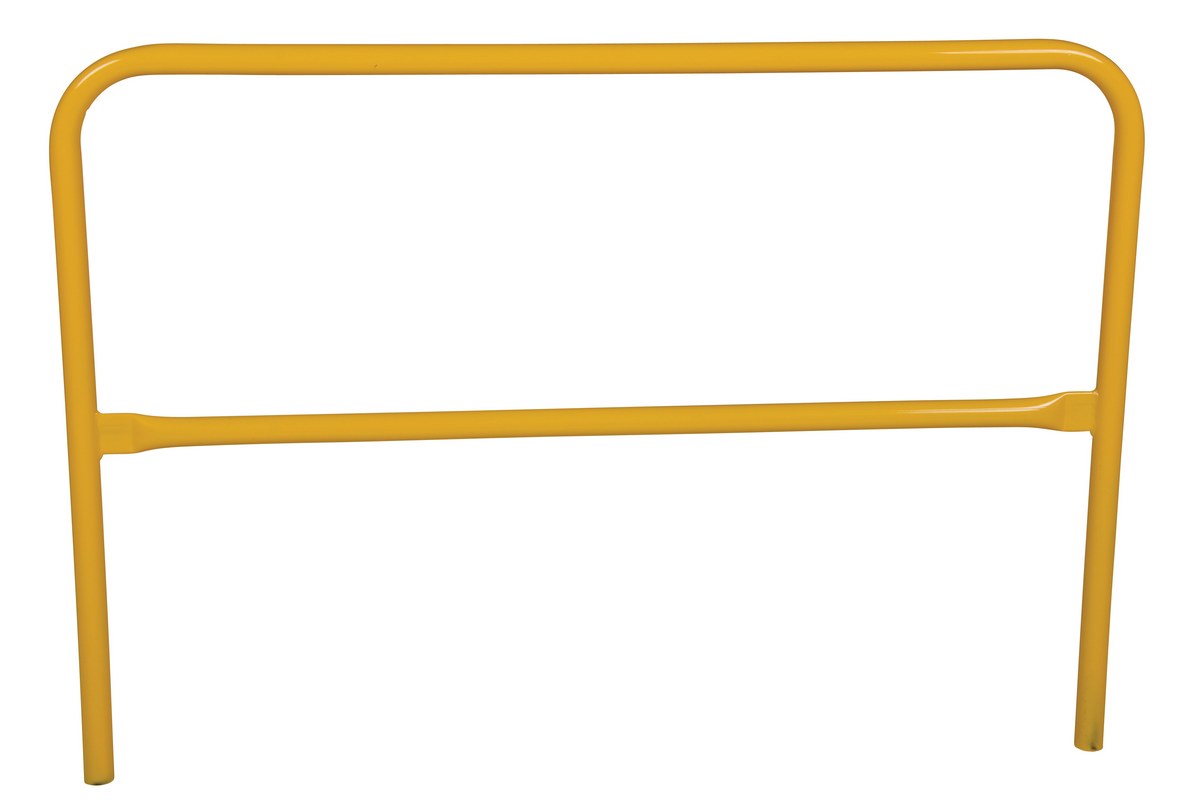

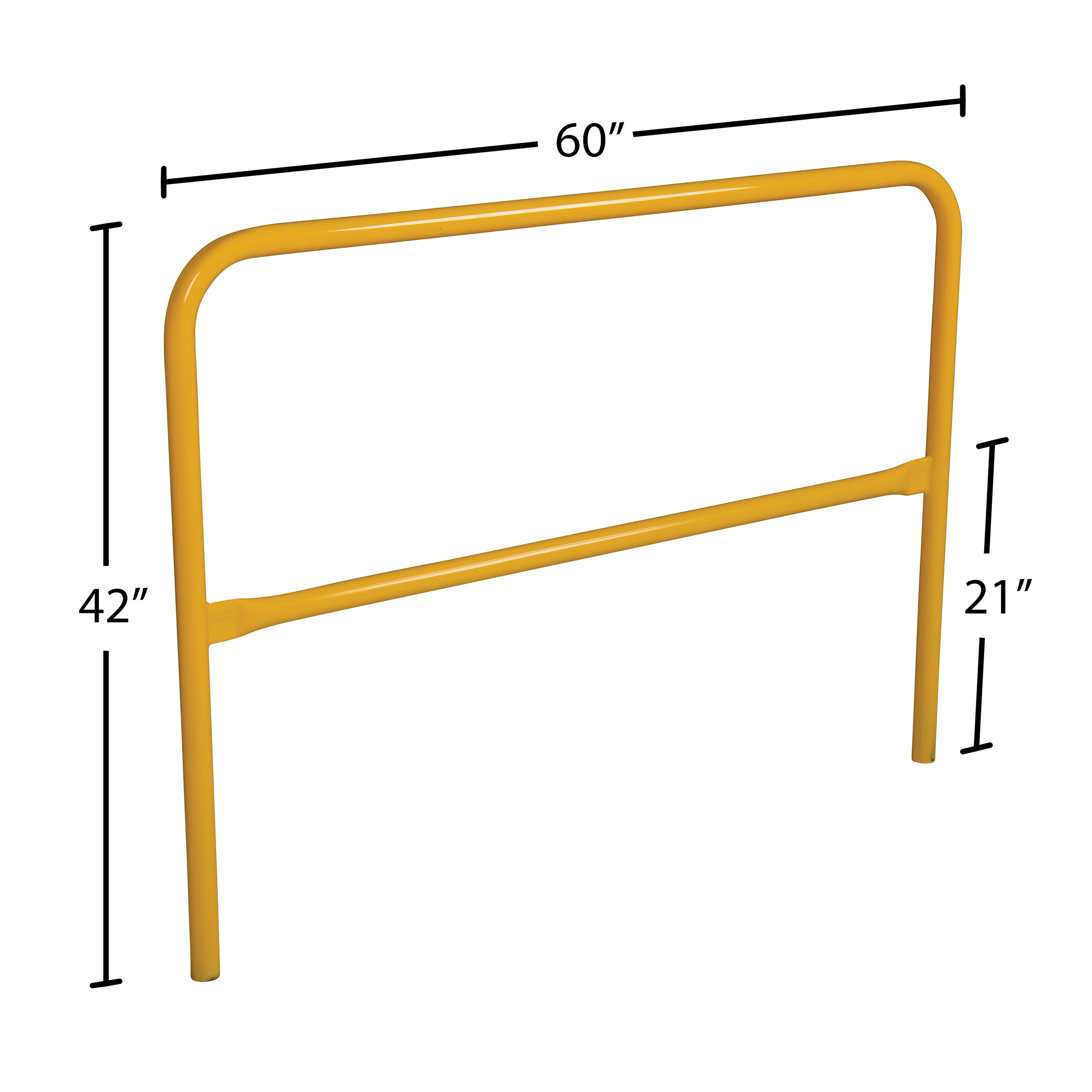

VDKR-5 VDKR-590 Days Limited WarrantySteel Safety Railing 5 Ft. Length YellowMidrail Height (in.): 21
Steel Pipe (schedule): 10		72

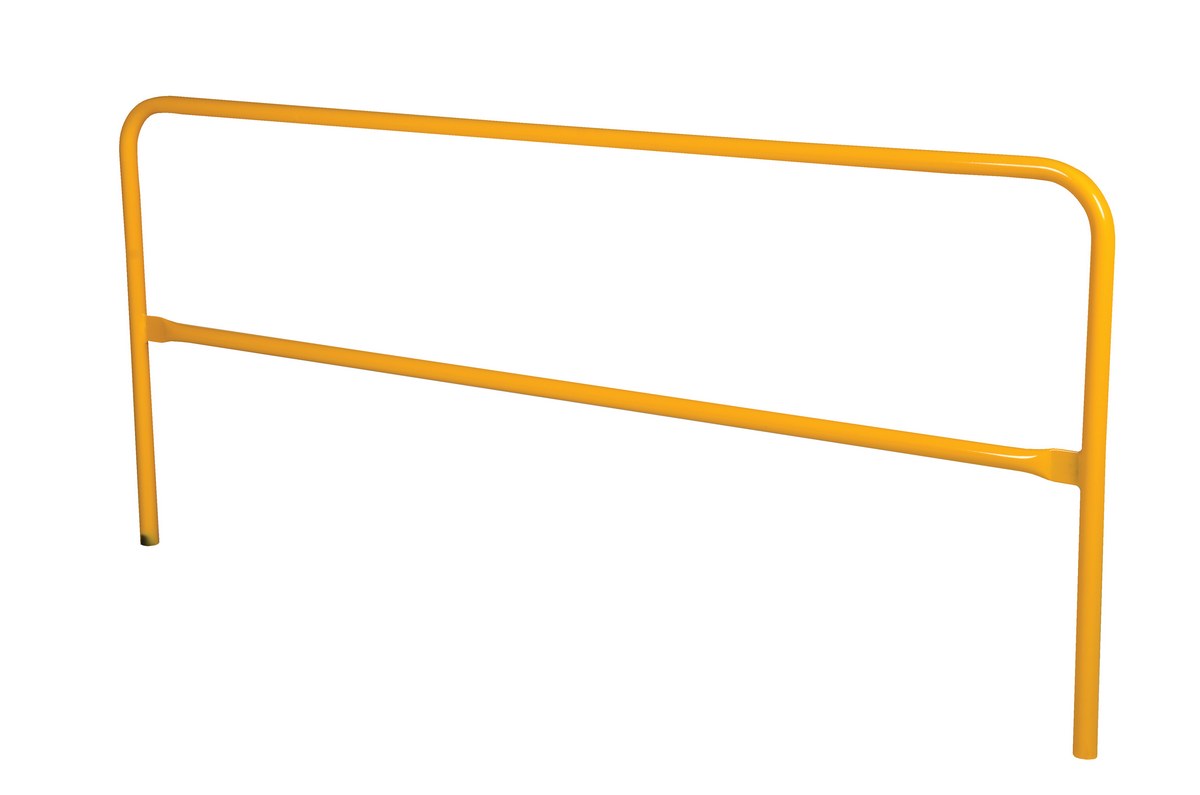

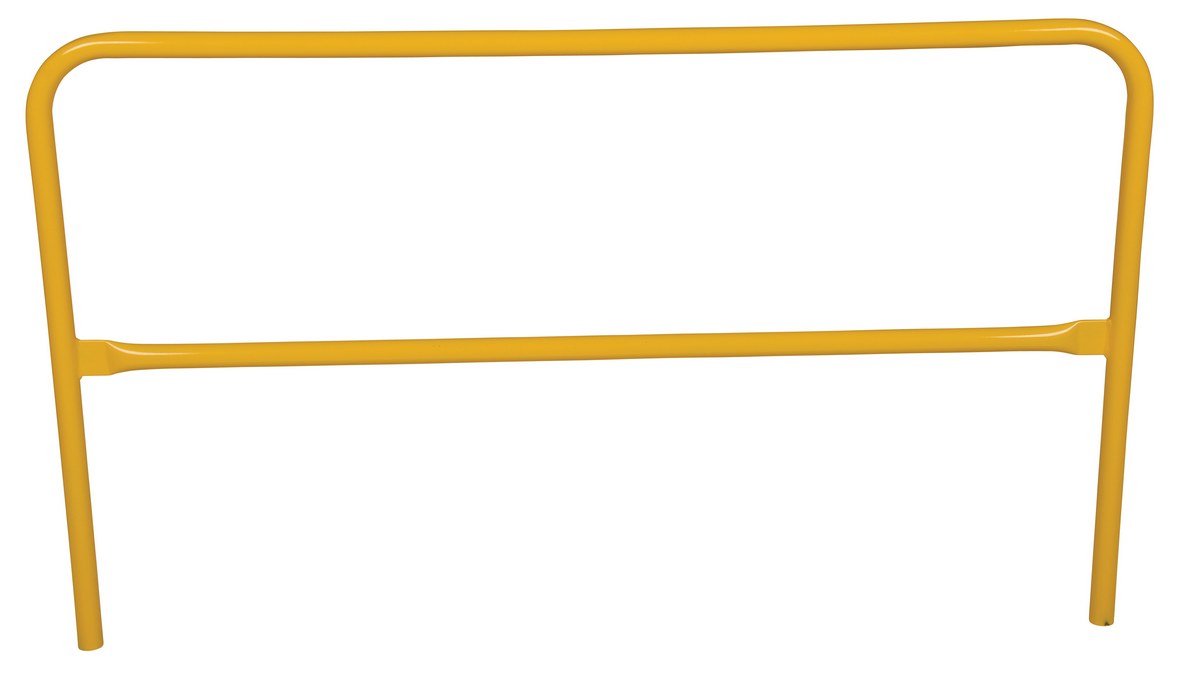

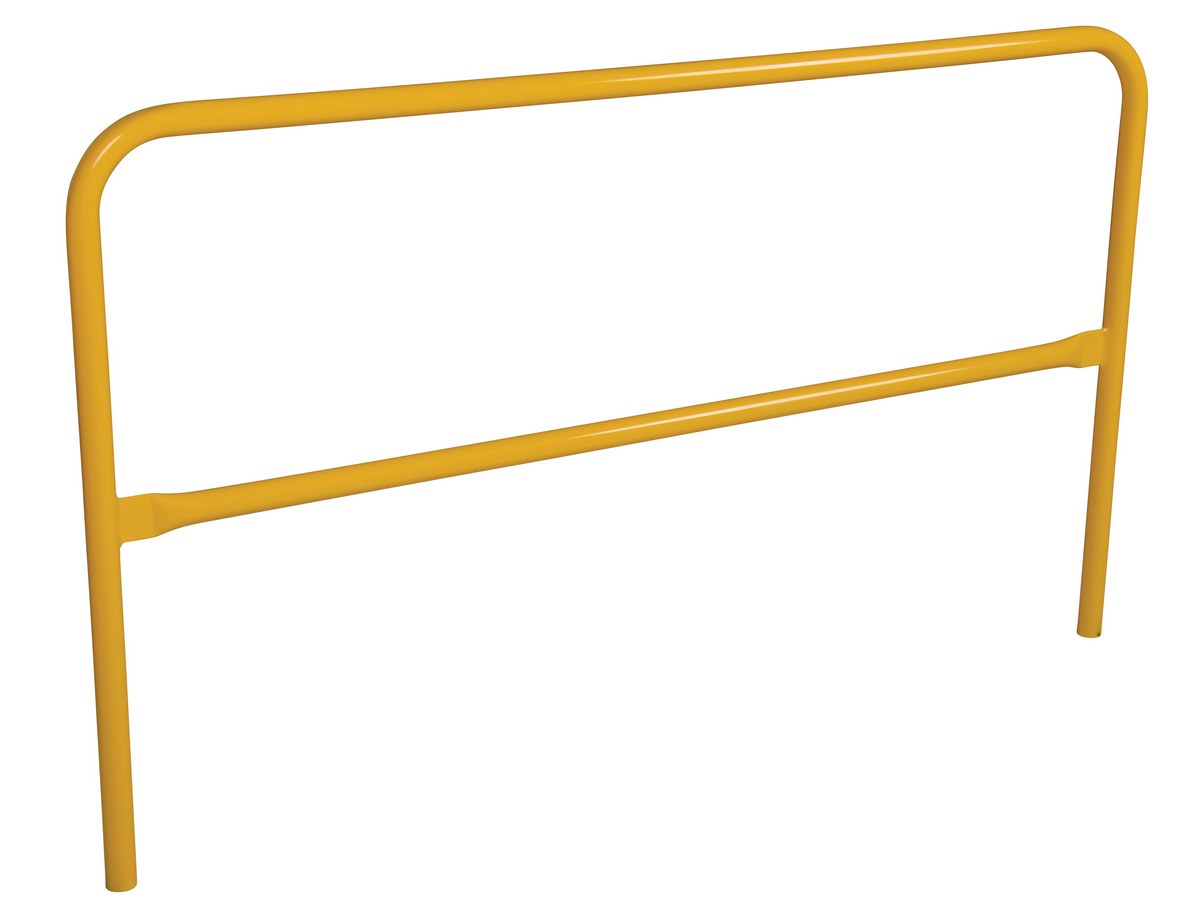

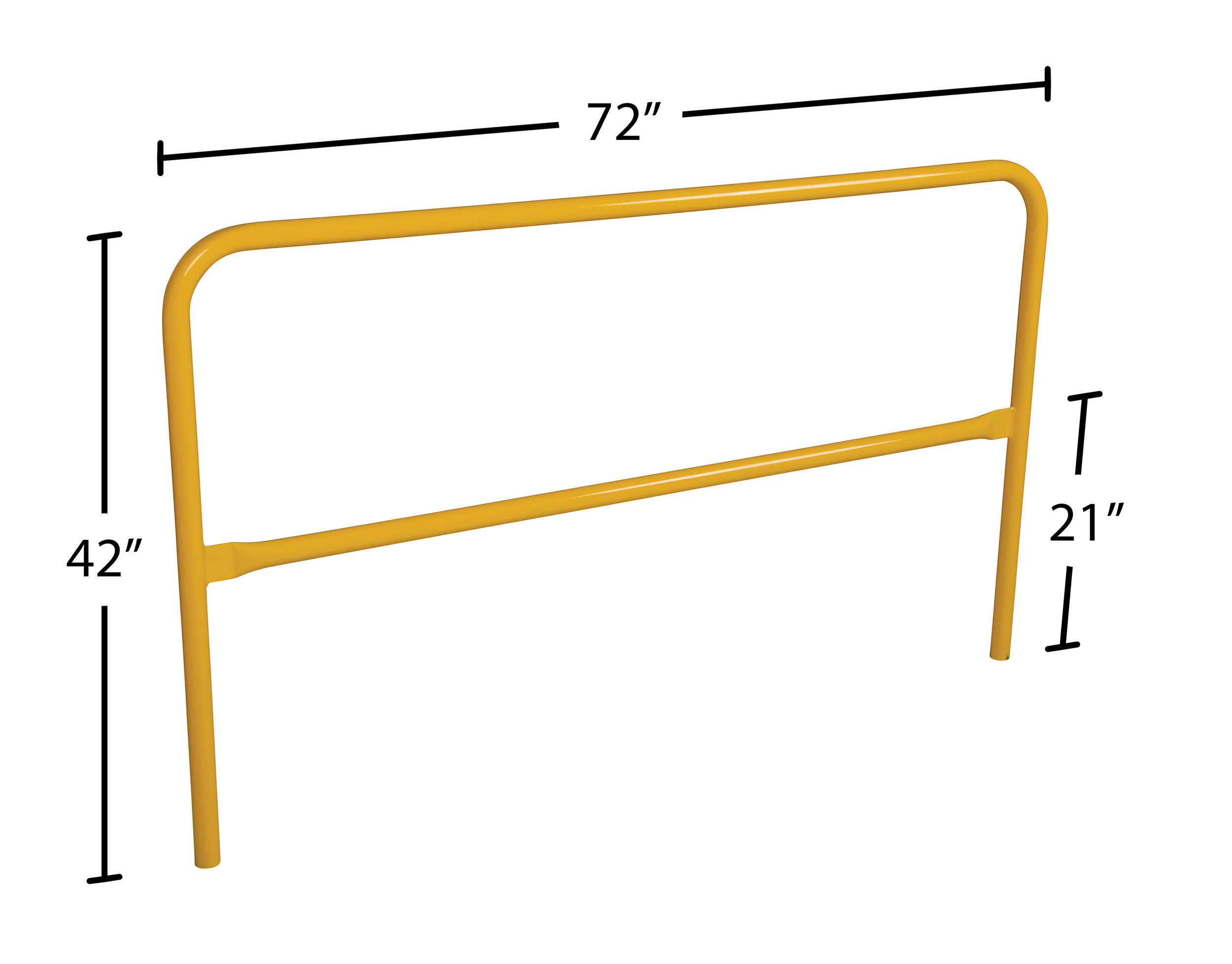

VDKR-6 VDKR-690 Days Limited WarrantySteel Safety Railing 6 Ft. Length YellowMidrail Height (in.): 21
Steel Pipe (schedule): 10		106

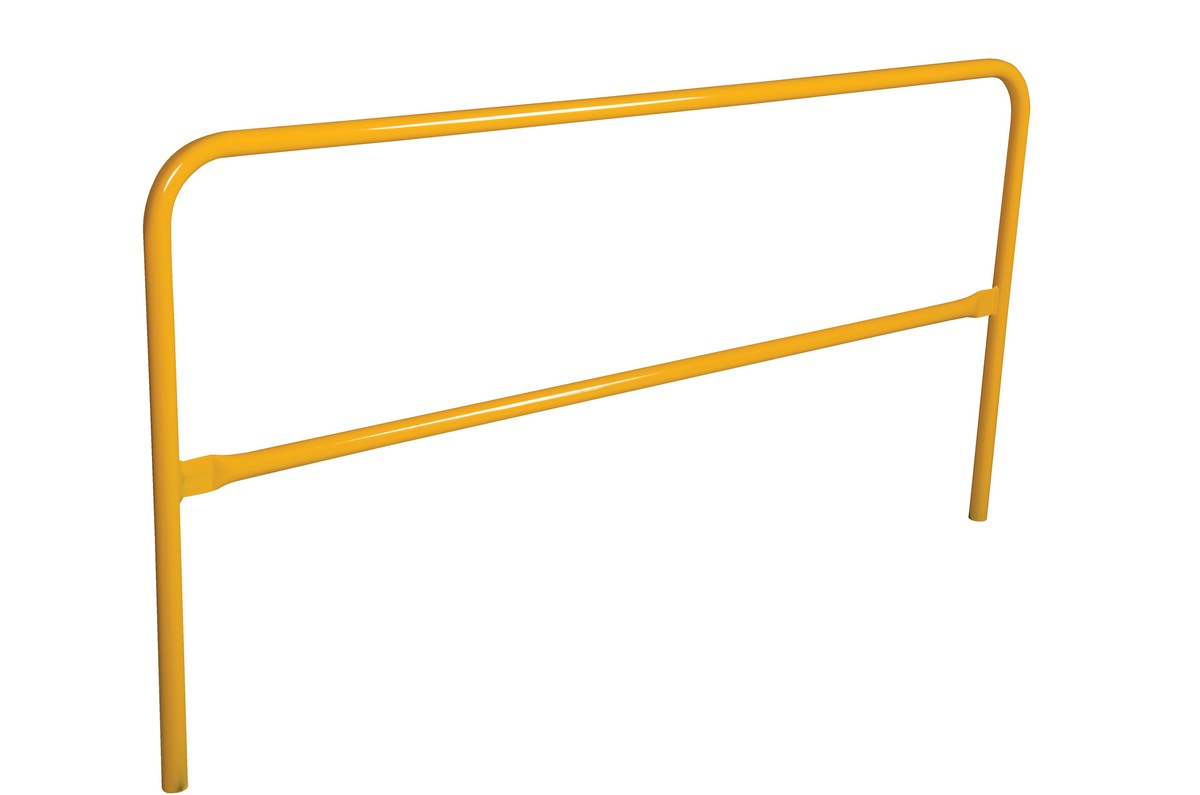

VDKR-7 VDKR-790 Days Limited WarrantySteel Safety Railing 7 Ft. Length YellowMidrail Height (in.): 21
Steel Pipe (schedule): 10		86

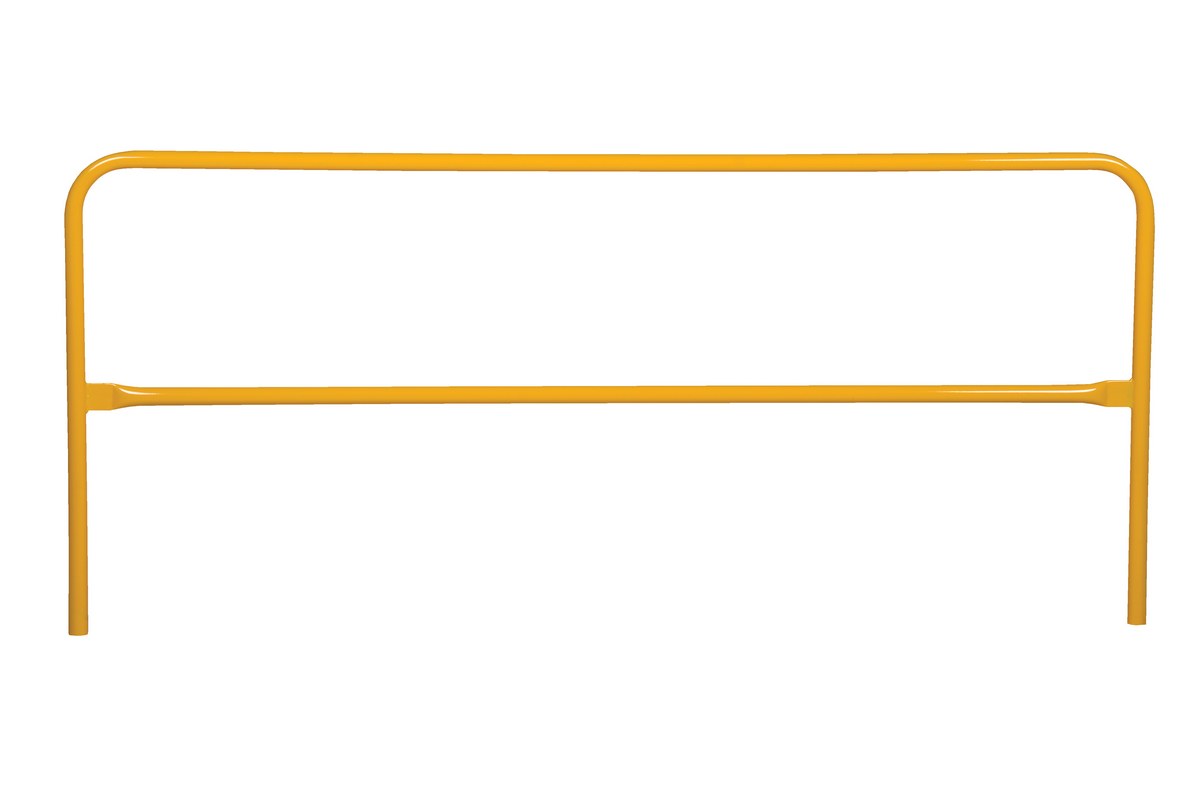

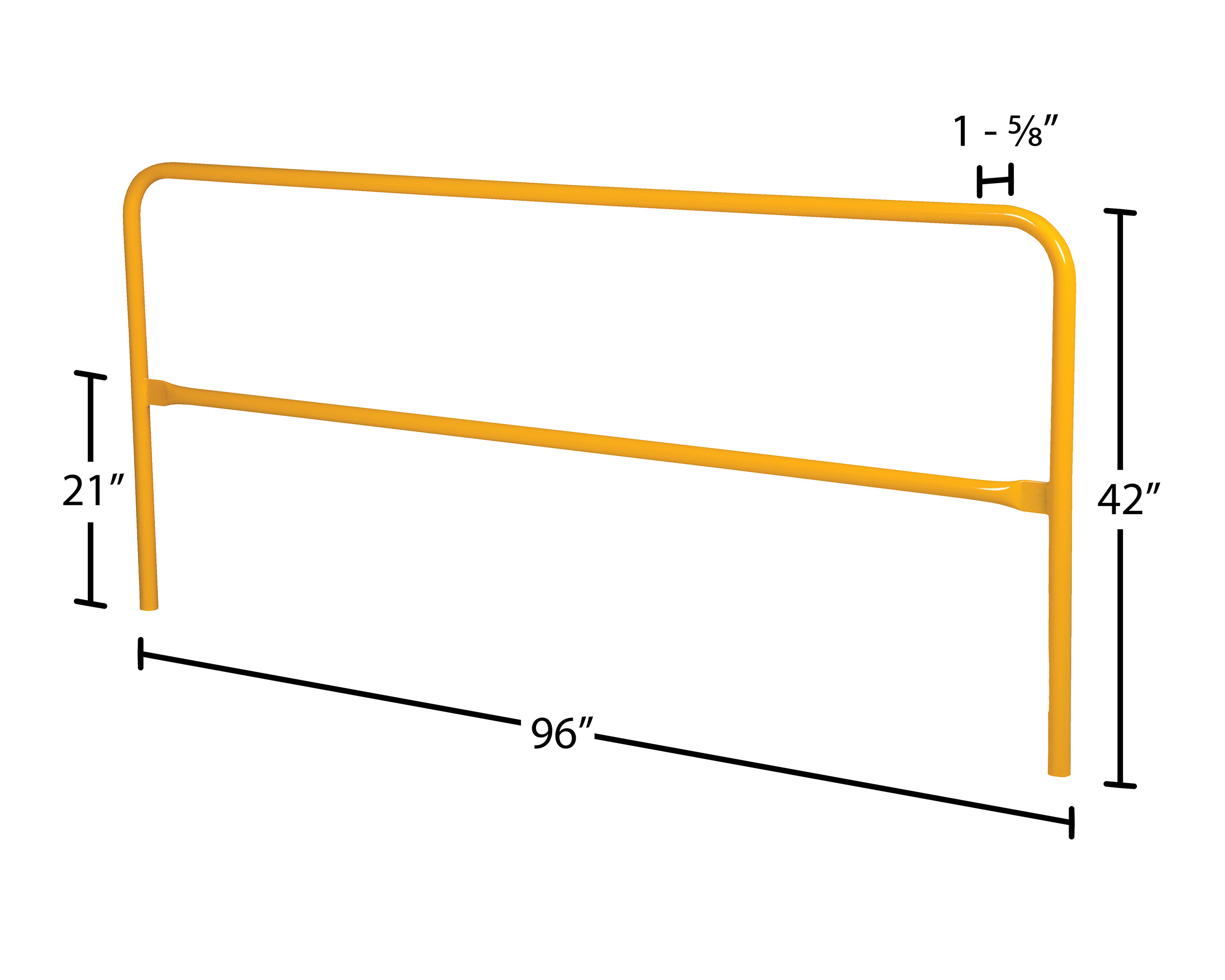

VDKR-8 VDKR-890 Days Limited WarrantySteel Safety Railing 8 Ft. Length YellowMidrail Height (in.): 21
Steel Pipe (schedule): 10		112

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Dimension Image = Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below
VDKR-10
VDKR-10-TB
VDKR-2
VDKR-2-TB
VDKR-3
VDKR-3-TB
VDKR-4
VDKR-4-TB
VDKR-5
VDKR-5-TB
VDKR-6
VDKR-6-TB
VDKR-7
VDKR-7-TB
VDKR-8
VDKR-8-TB
VDKR-BASE
VDKR-BASE-W
VDKR-BB-F
VDKR-BB-W
VDKR-CON
VDKR-G3
VDKR-G3-B
VDKR-G4
VDKR-P101
VDKR-P102
VDKR-P107
VDKR-VM1
VDKR-VM2
VDKR-W-101
VDKR-W-102
For More Details of the Option Click the Red Model Button
Model Image Details Icons Wt.

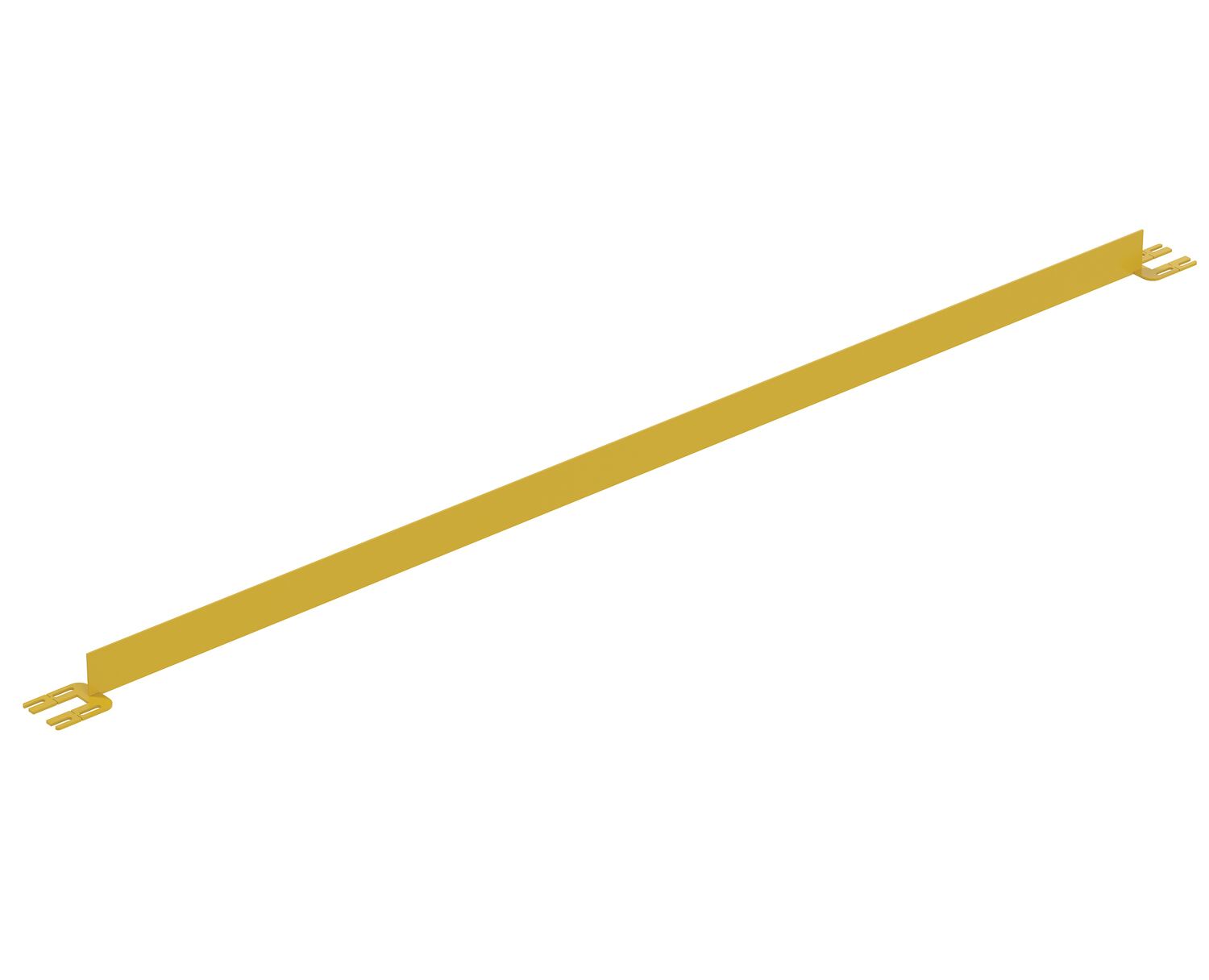

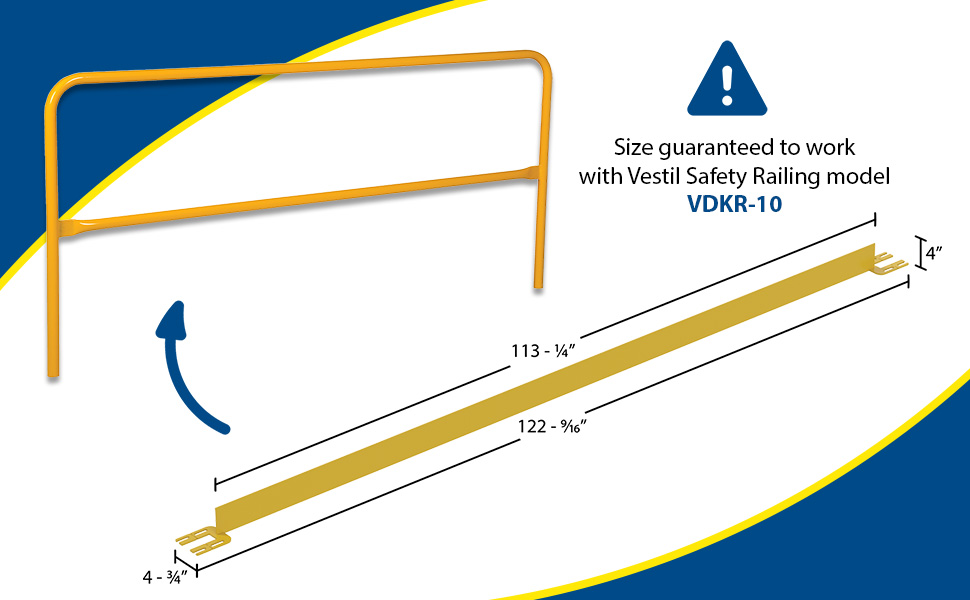

VDKR-10-TB VDKR-10-TBSteel Toe Board for Pipe Safety Railing 10 Ft. Length Yellow90 Days Limited Warranty27

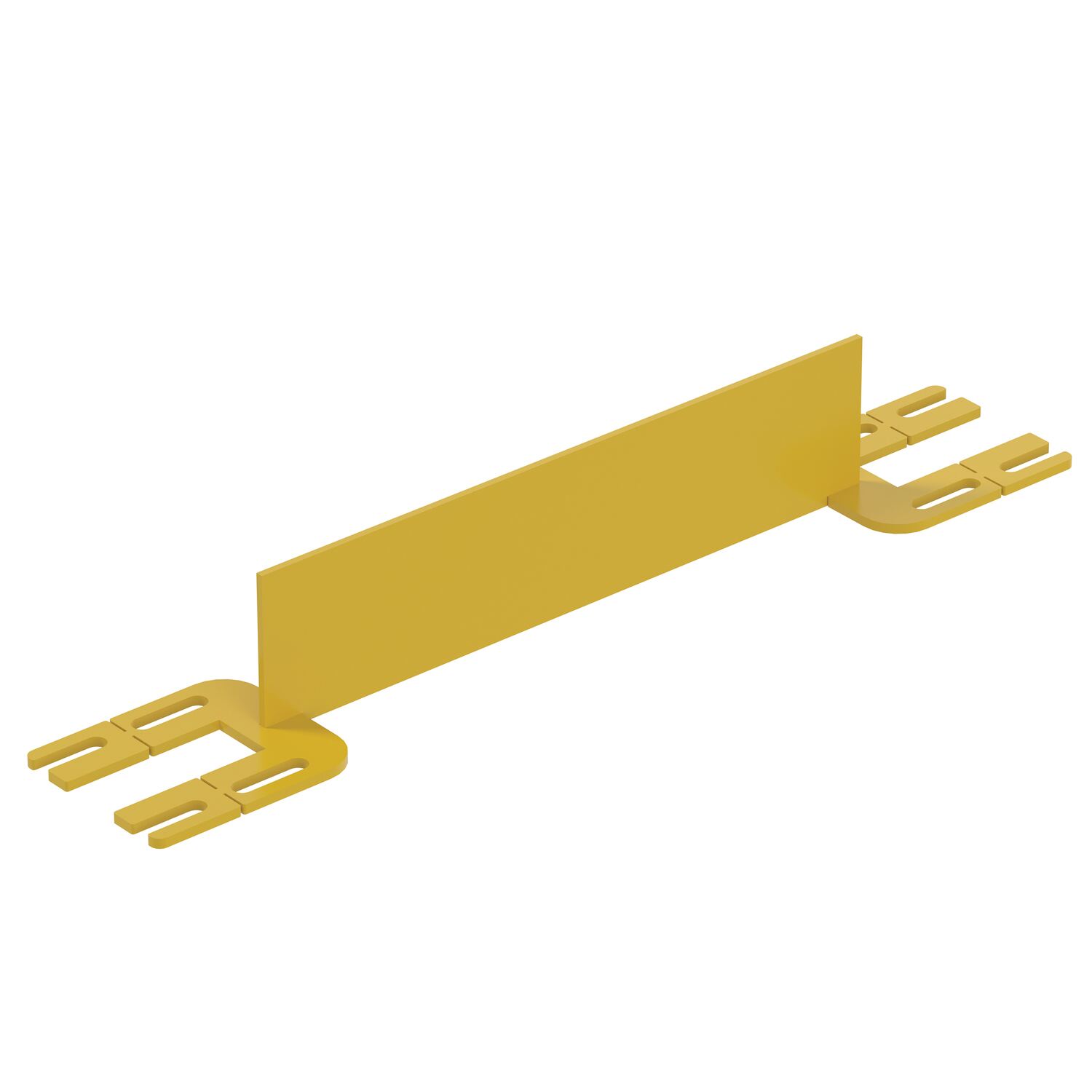

VDKR-2-TB VDKR-2-TBSteel Toe Board for Pipe Safety Railing 2 Ft. Length Yellow90 Days Limited Warranty7

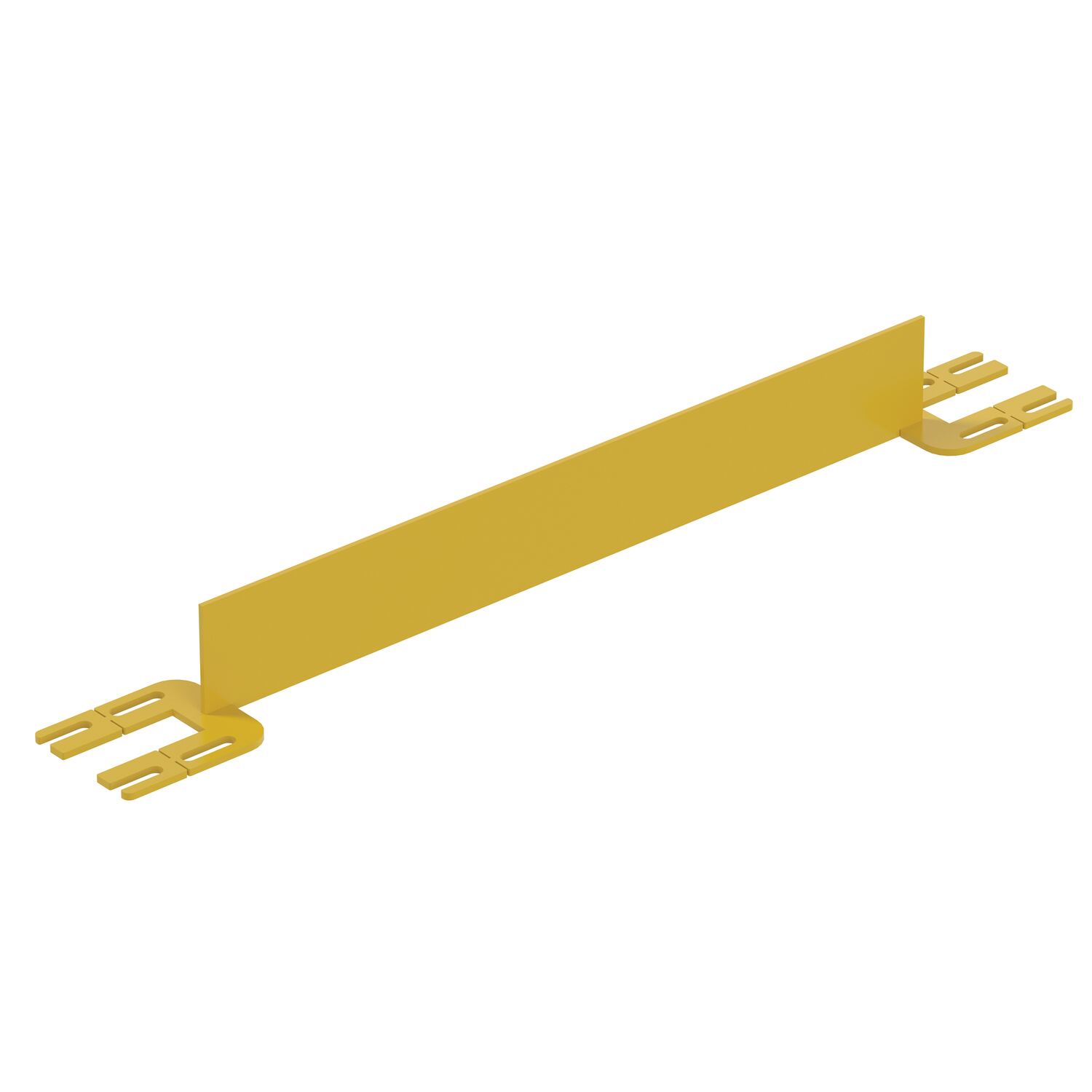

VDKR-3-TB VDKR-3-TBSteel Toe Board for Pipe Safety Railing 3 Ft. Length Yellow90 Days Limited Warranty10

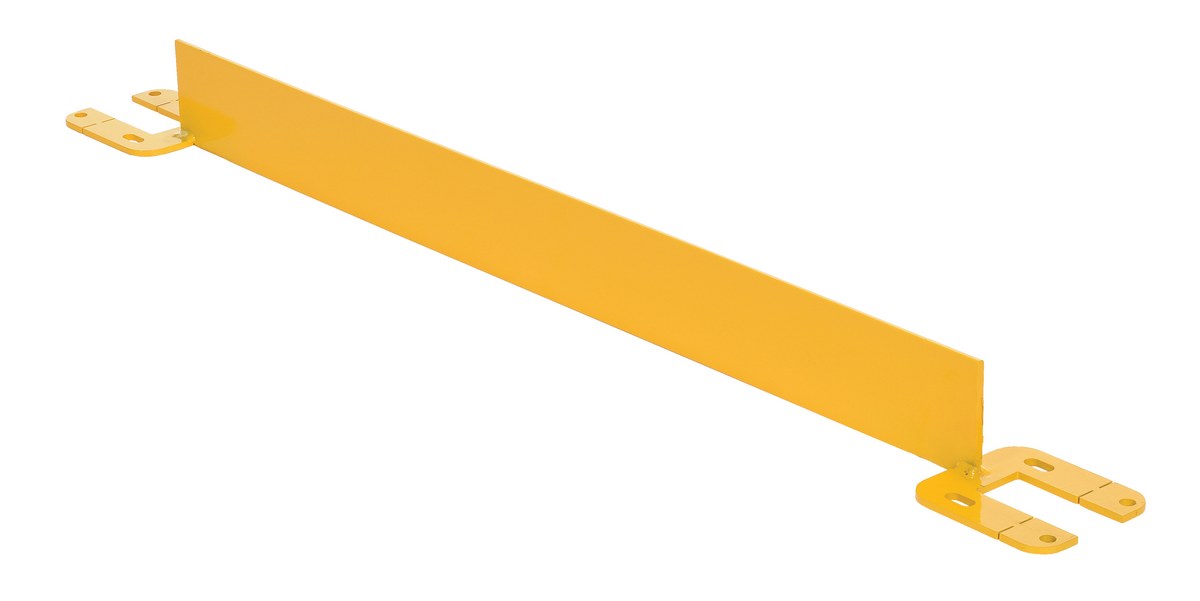

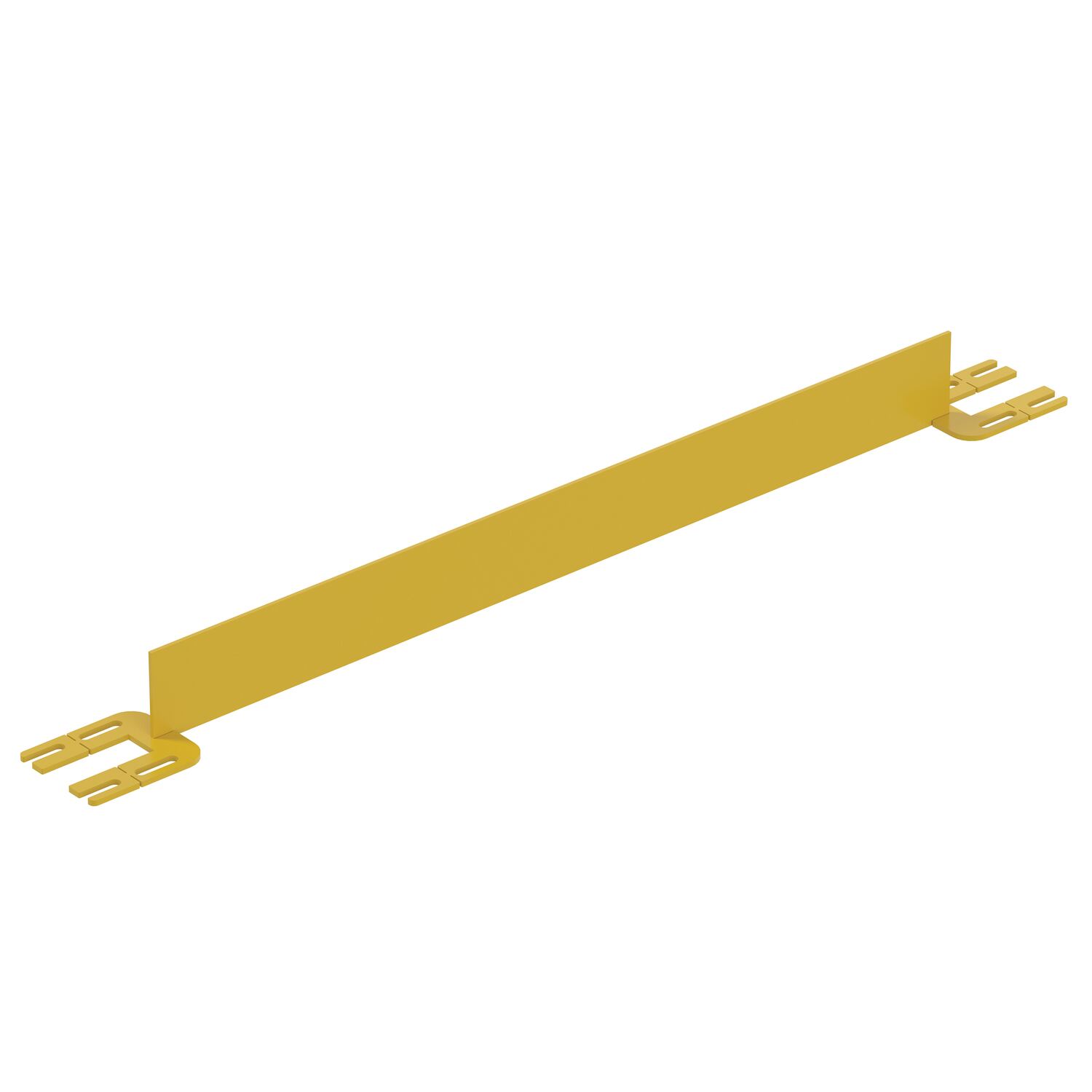

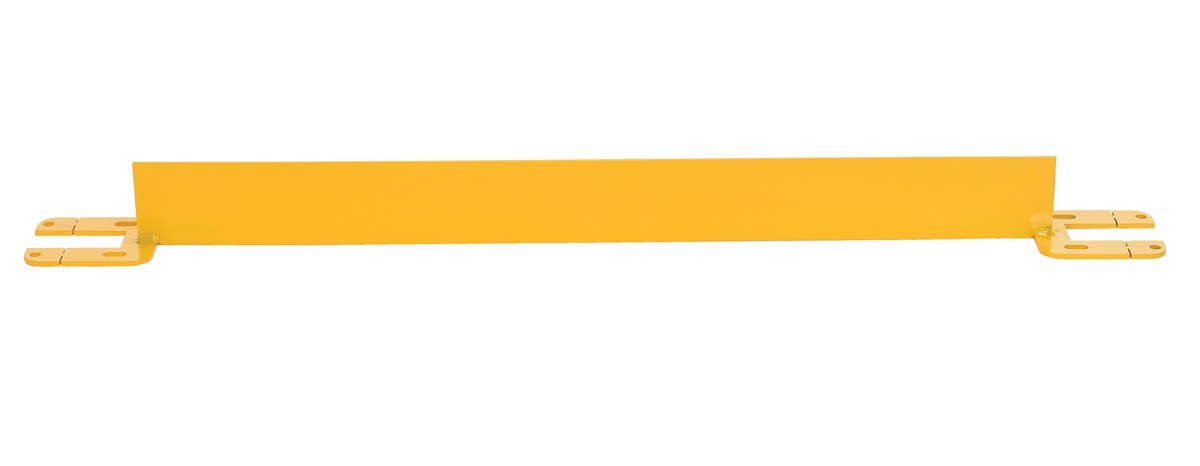

VDKR-4-TB VDKR-4-TBSteel Toe Board for Pipe Safety Railing 4 Ft. Length Yellow90 Days Limited Warranty14

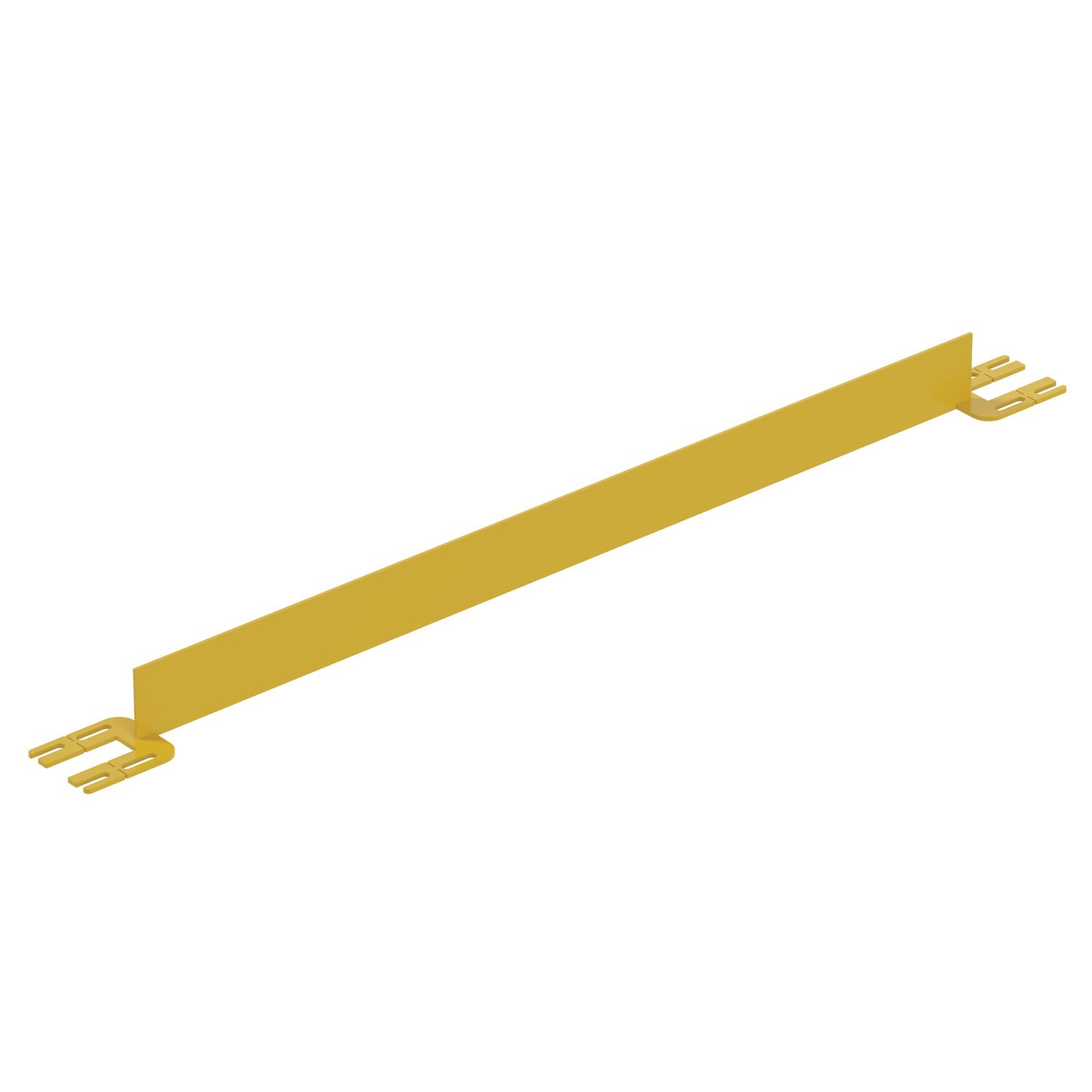

VDKR-5-TB VDKR-5-TBSteel Toe Board for Pipe Safety Railing 5 Ft. Length Yellow90 Days Limited Warranty22

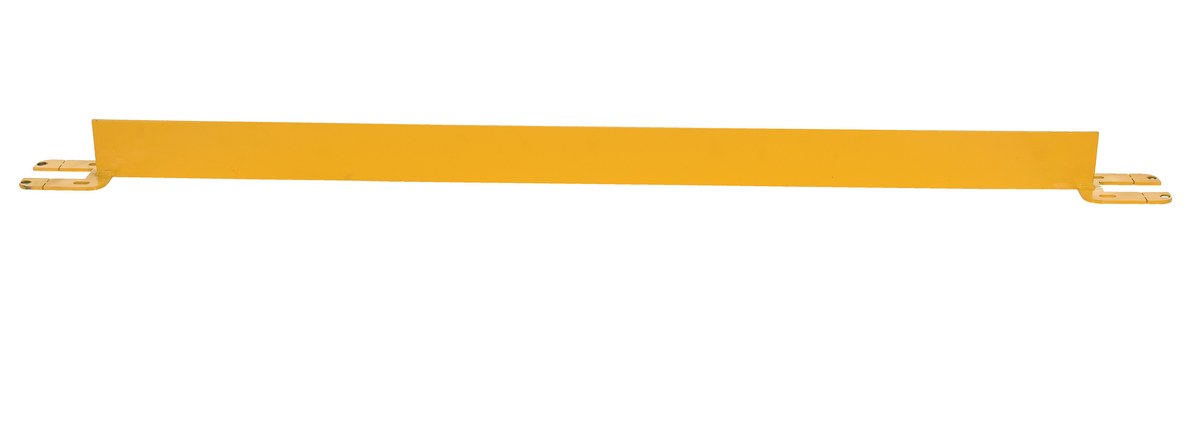

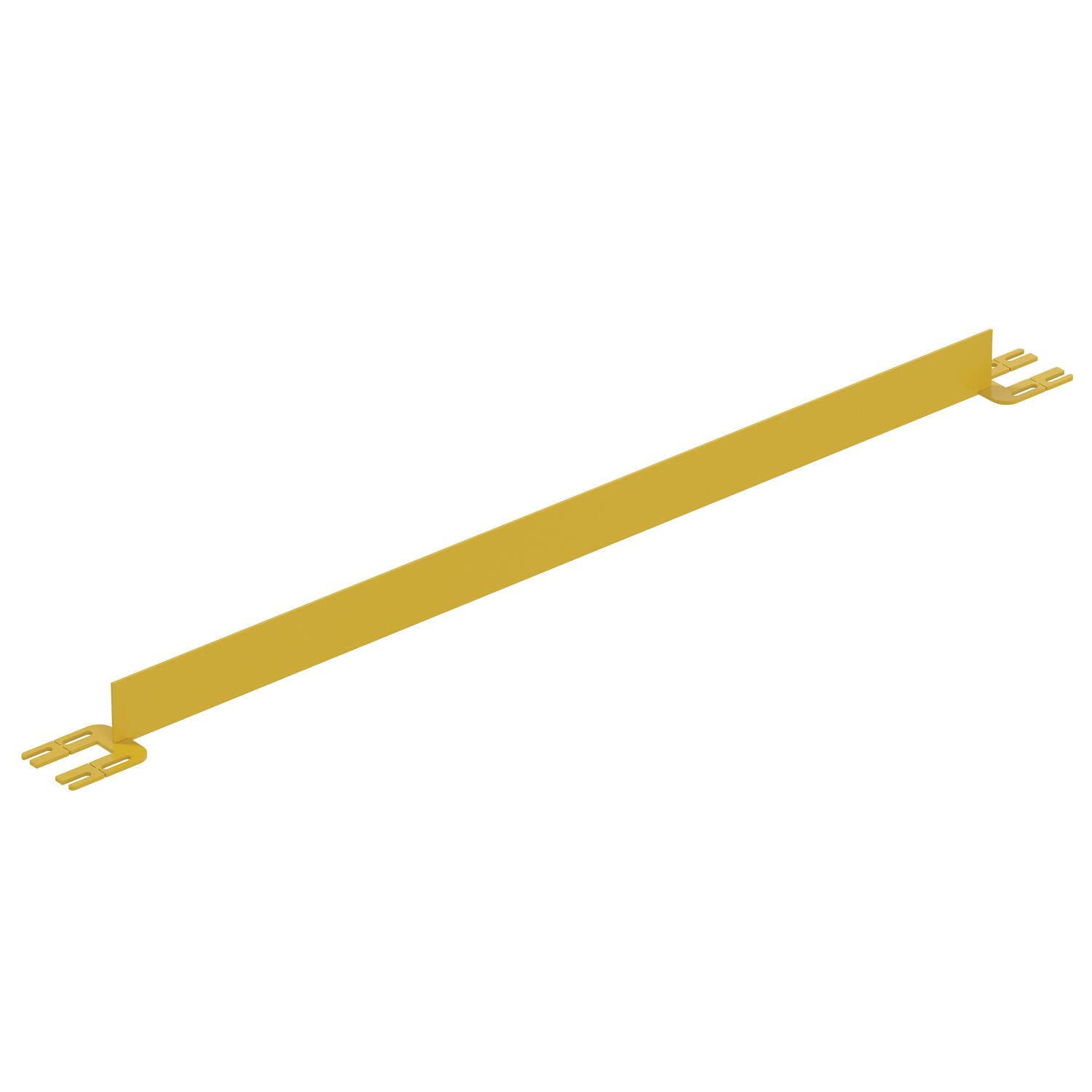

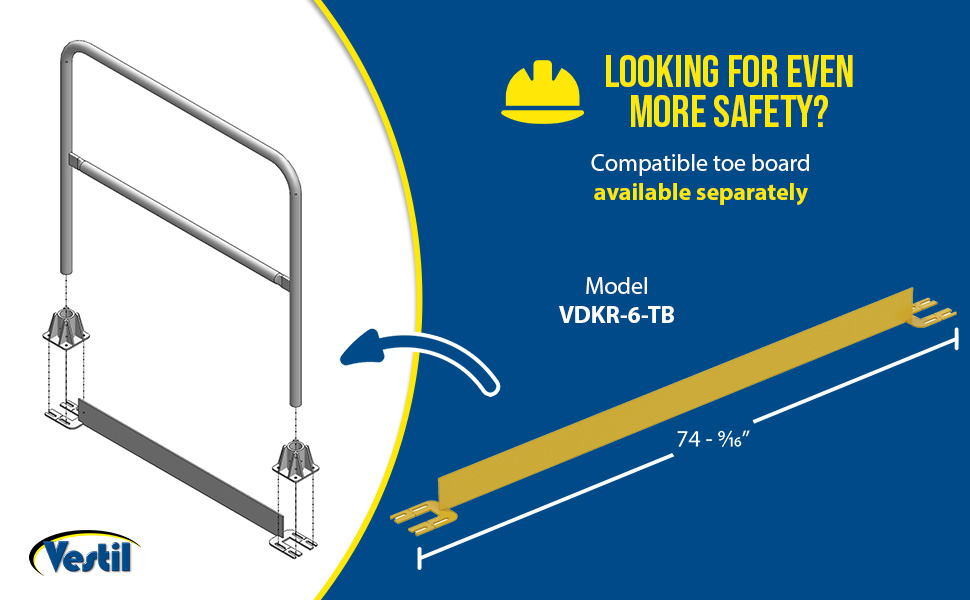

VDKR-6-TB VDKR-6-TBSteel Toe Board for Pipe Safety Railing 6 Ft. Length Yellow90 Days Limited Warranty51

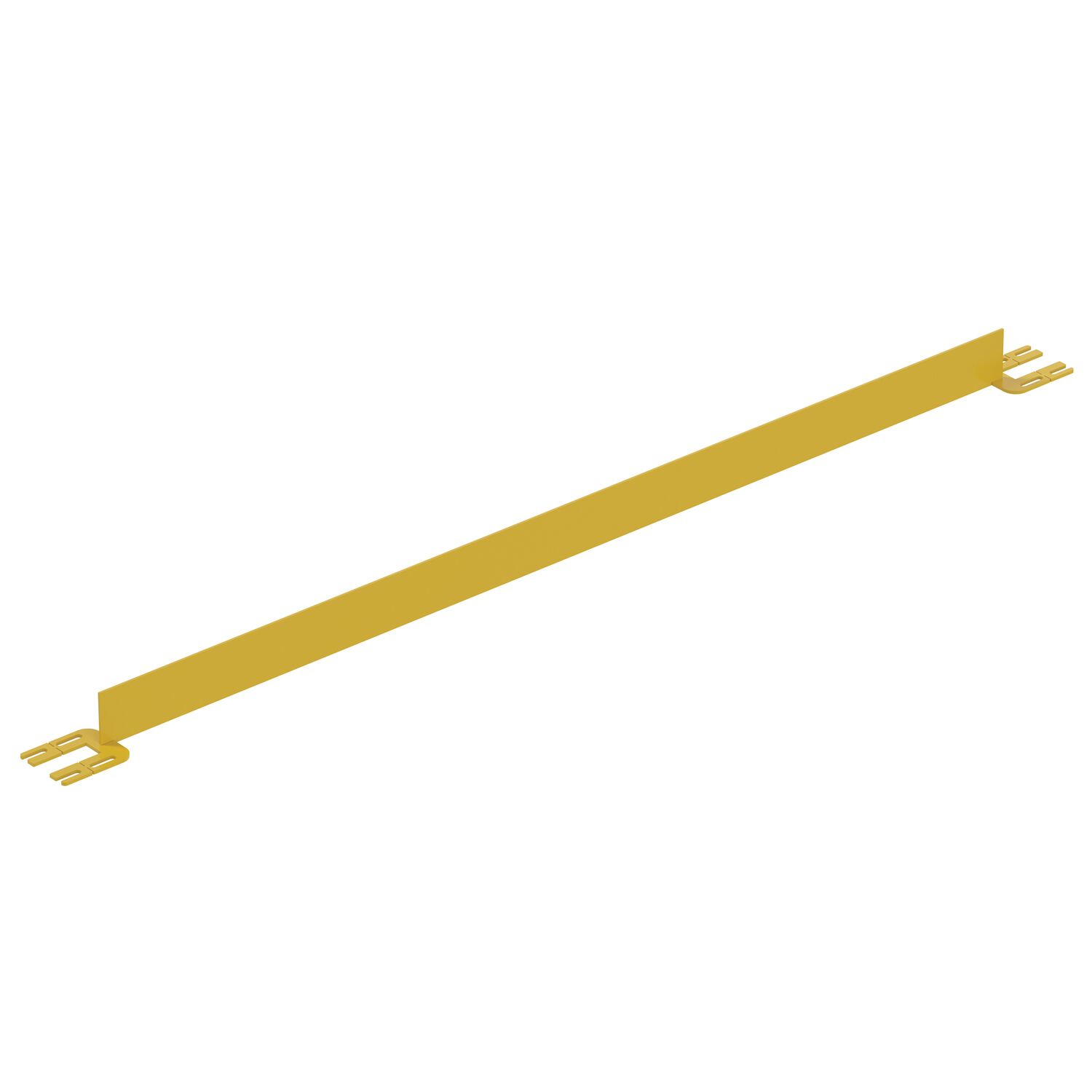

VDKR-7-TB VDKR-7-TBSteel Toe Board for Pipe Safety Railing 7 Ft. Length Yellow90 Days Limited Warranty30

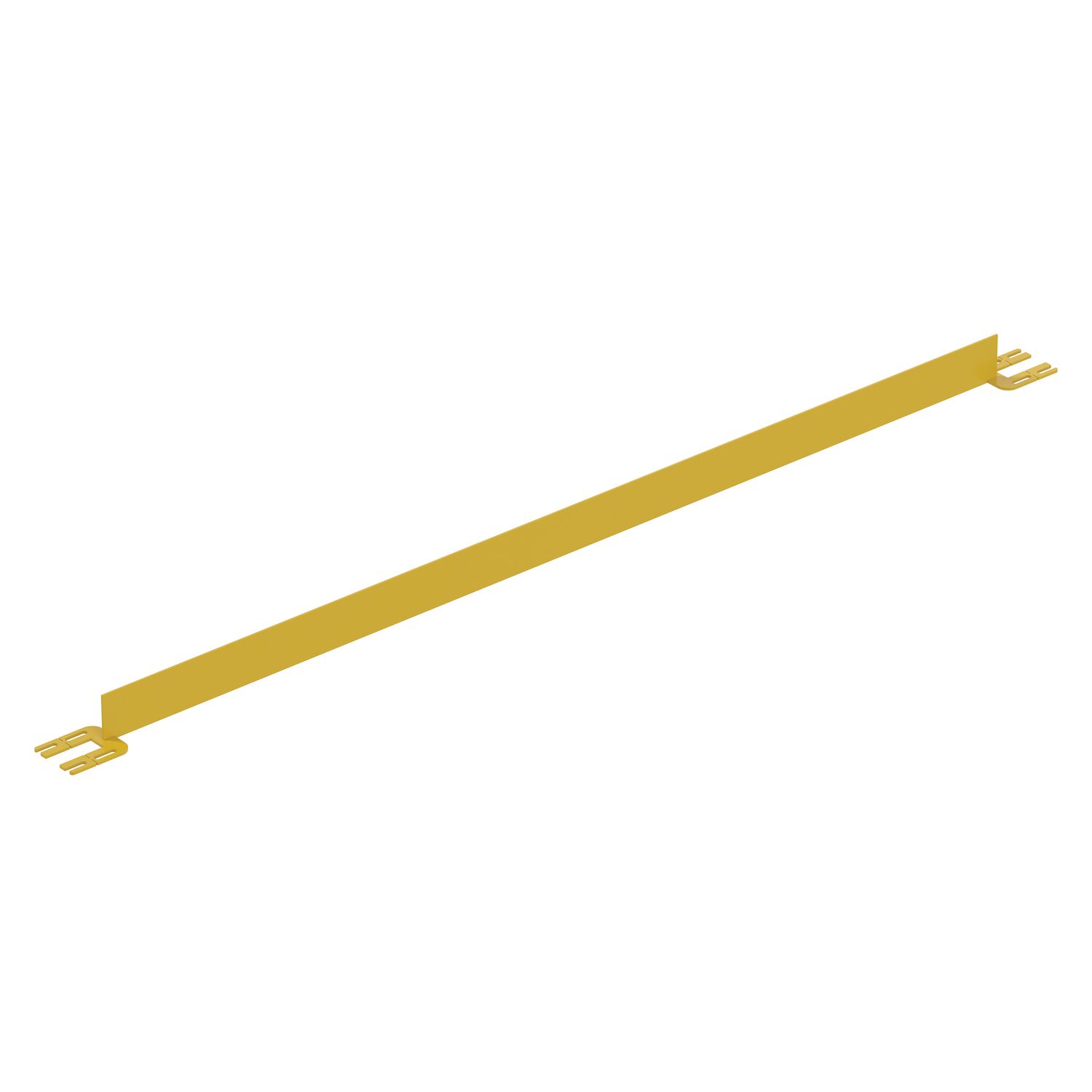

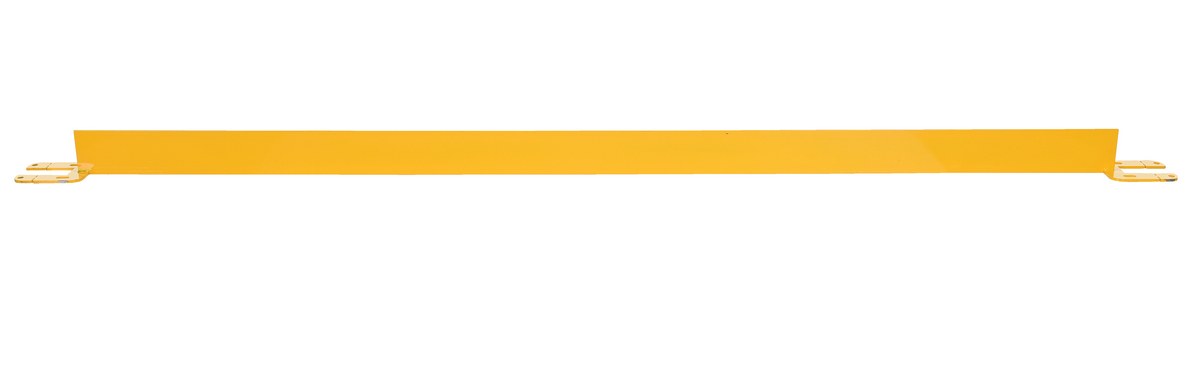

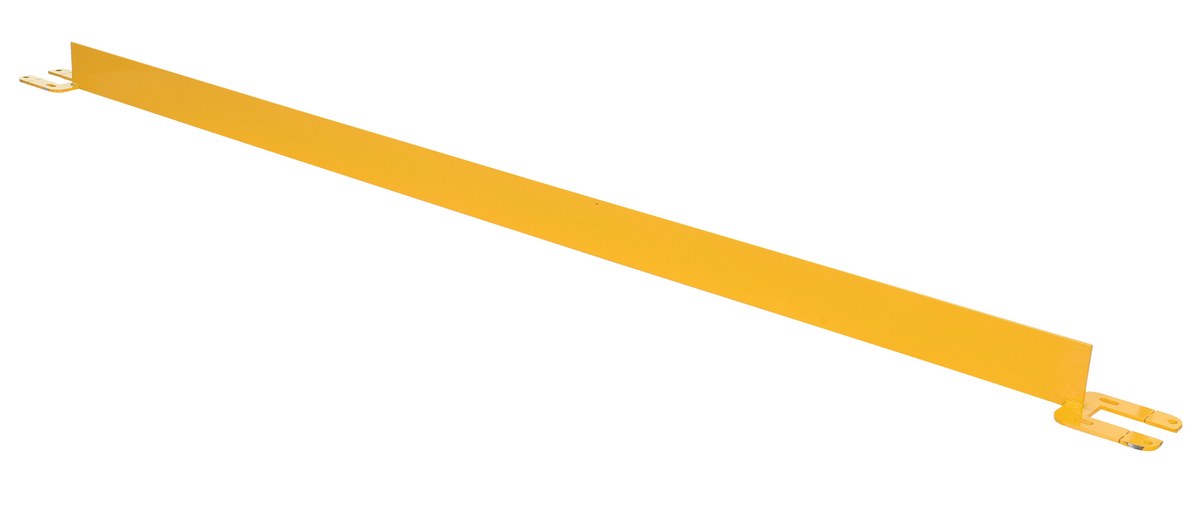

VDKR-8-TB VDKR-8-TBSteel Toe Board for Pipe Safety Railing 8 Ft. Length Yellow90 Days Limited Warranty58

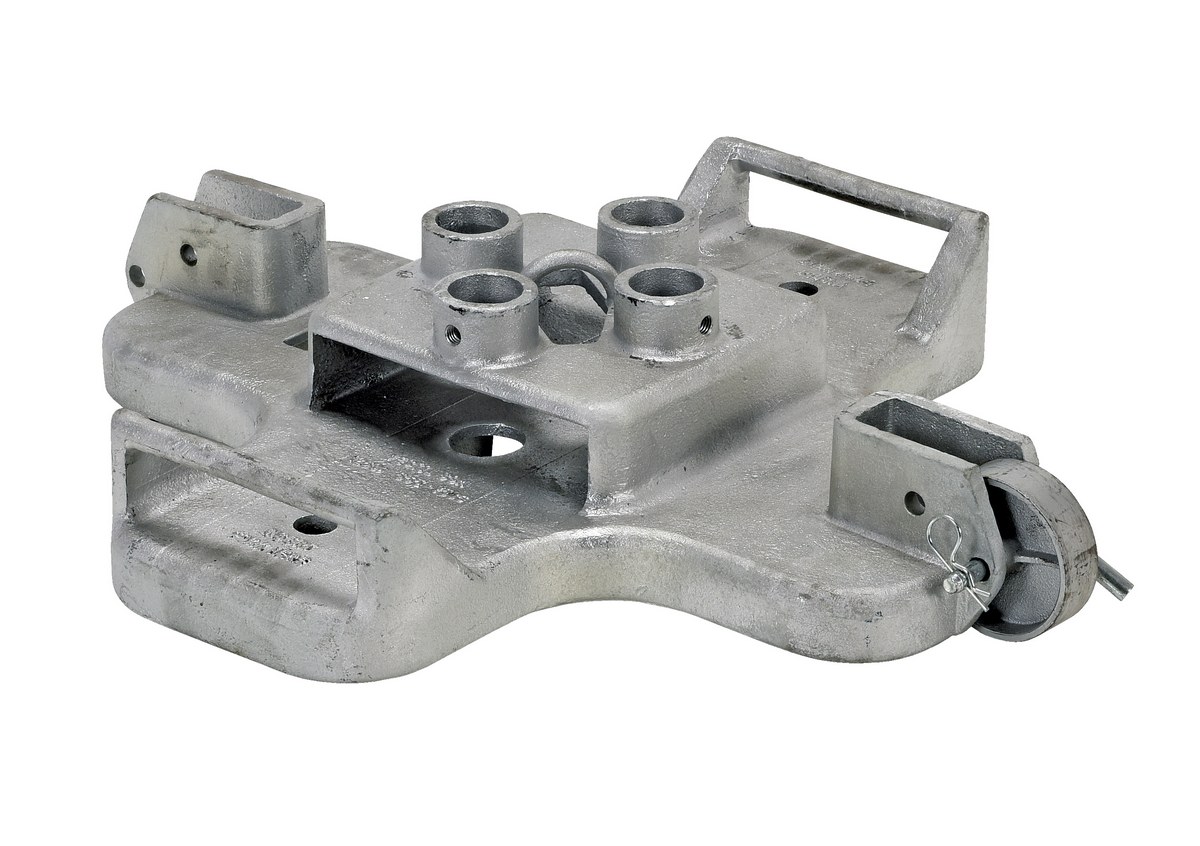

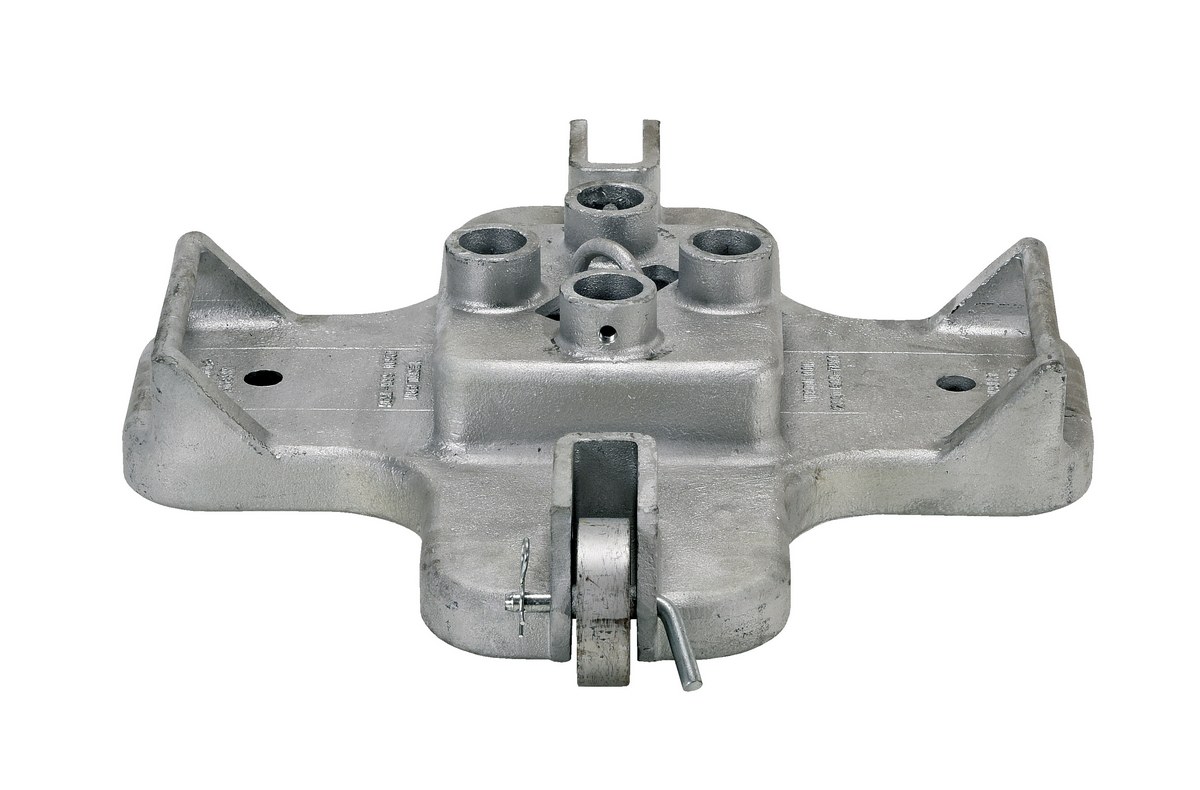

VDKR-BASE VDKR-BASECast Iron Pipe Safety Railing Base 2.13 In. x 28.5 In. x 5.7…90 Days Limited Warranty137

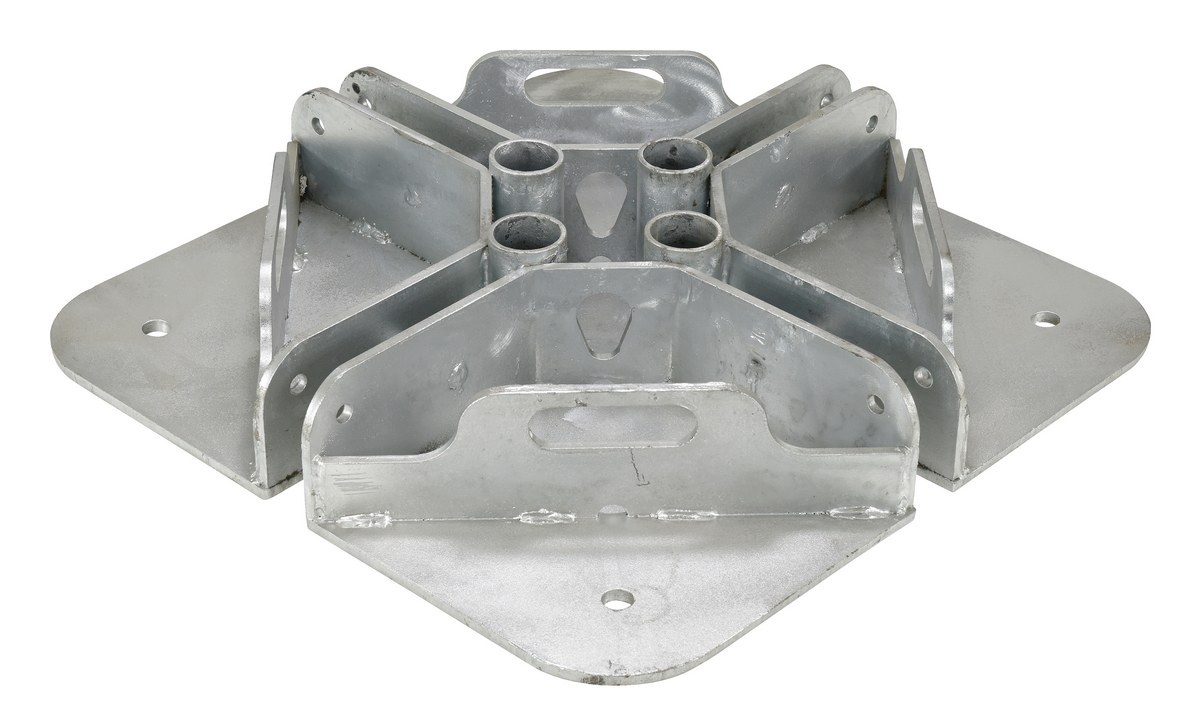

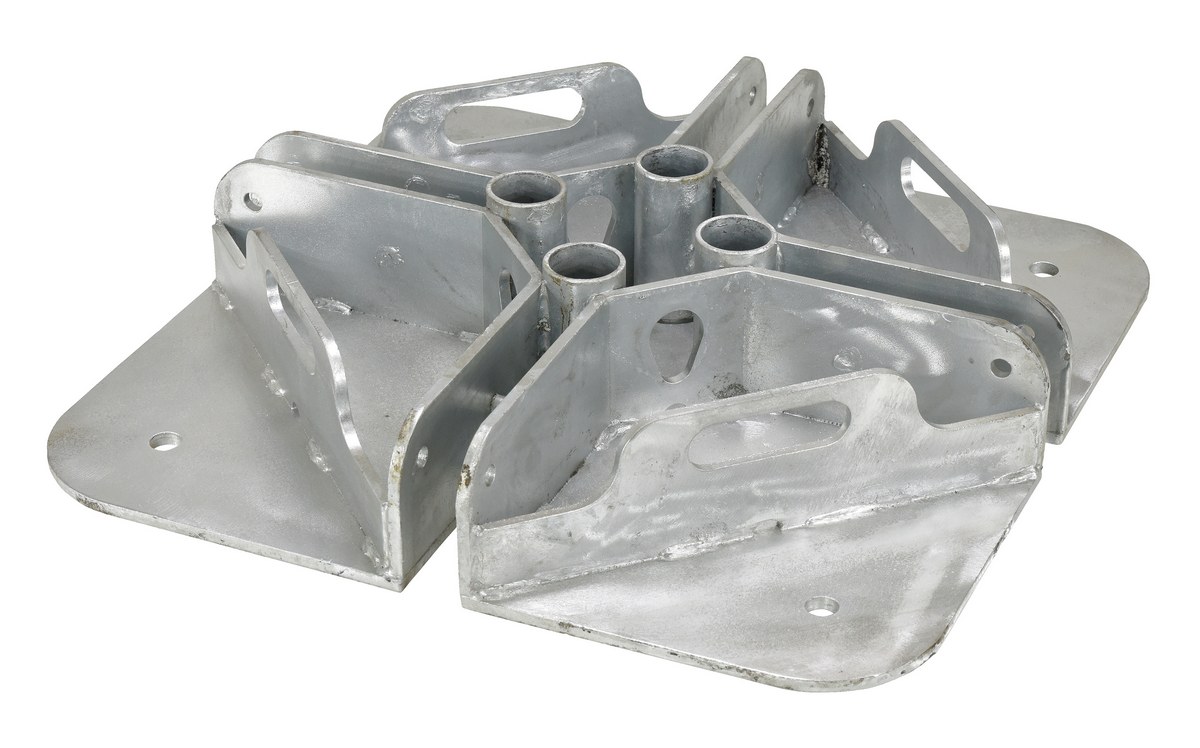

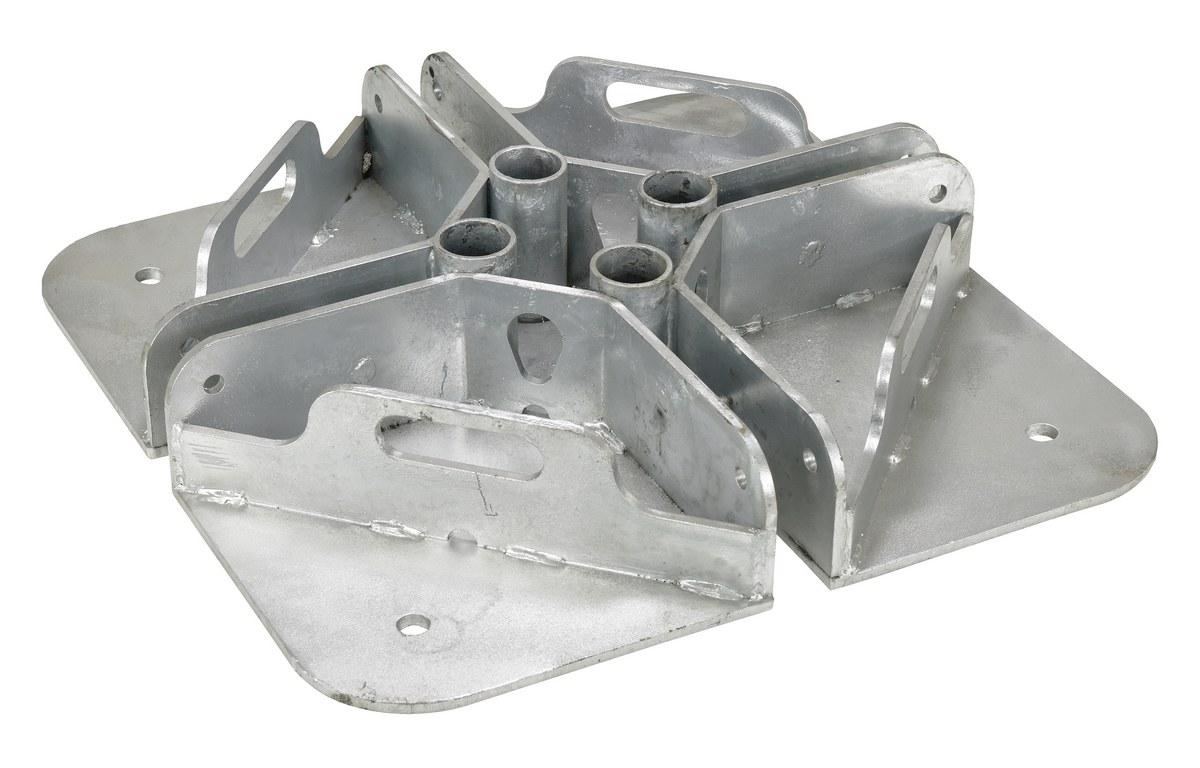

VDKR-BASE-W VDKR-BASE-WGalvanized Steel Pipe Safety Railing Welded Base 24 In. x 24…90 Days Limited Warranty135

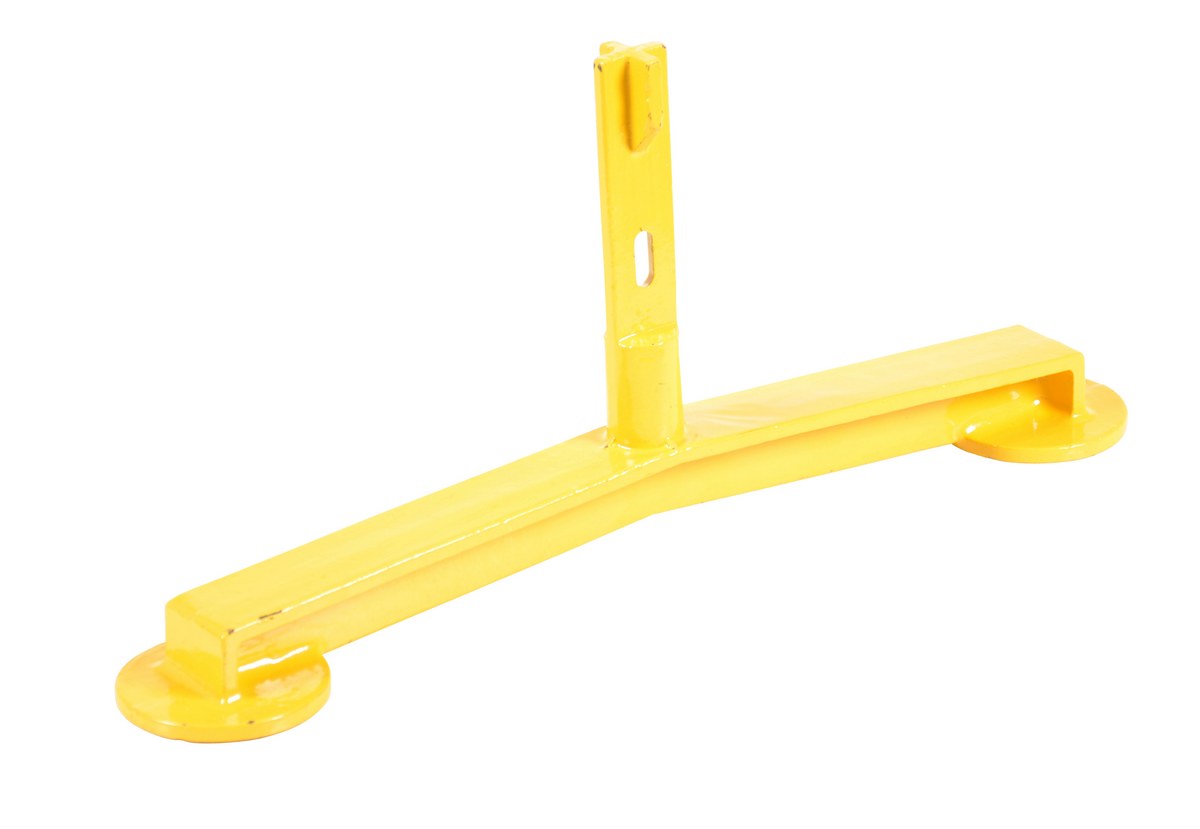

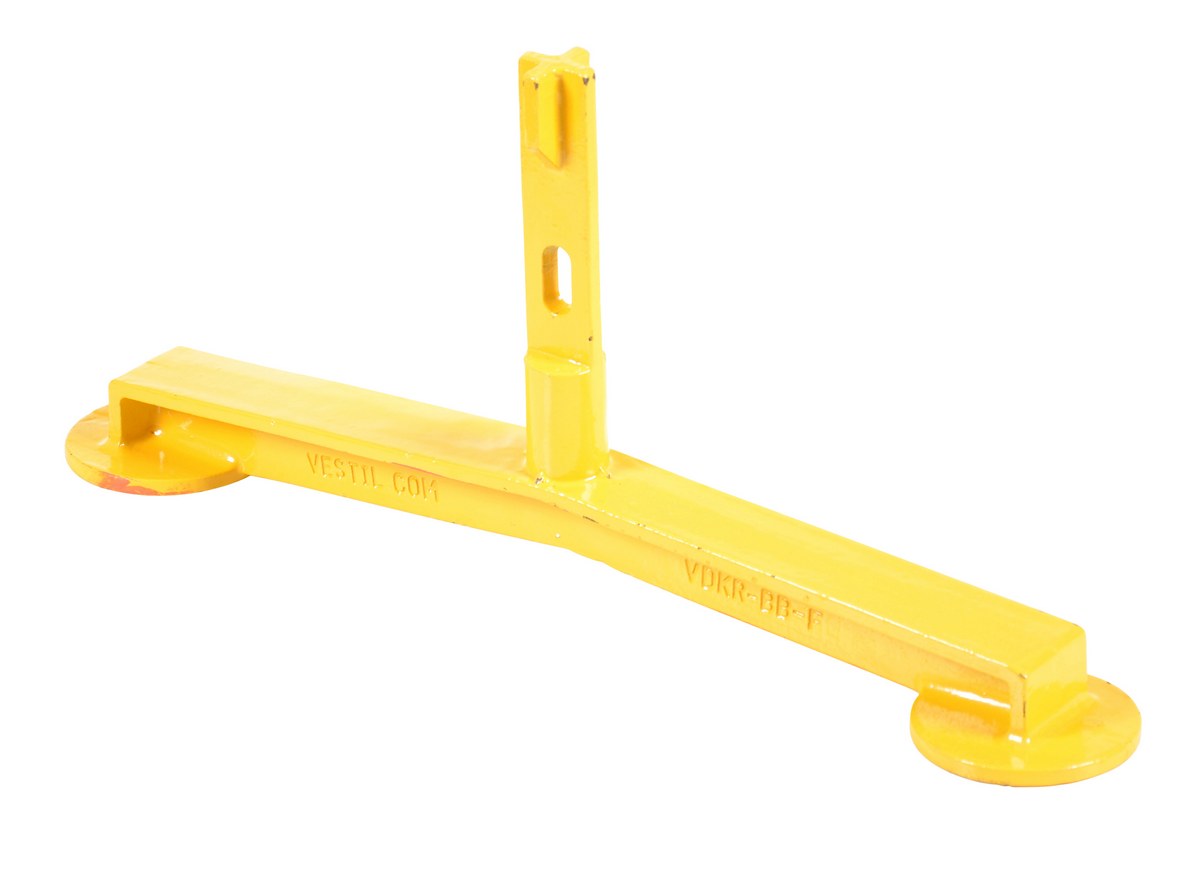

VDKR-BB-F VDKR-BB-FSteel Pipe Railing Barricade Base with Feet Yellow90 Days Limited Warranty6

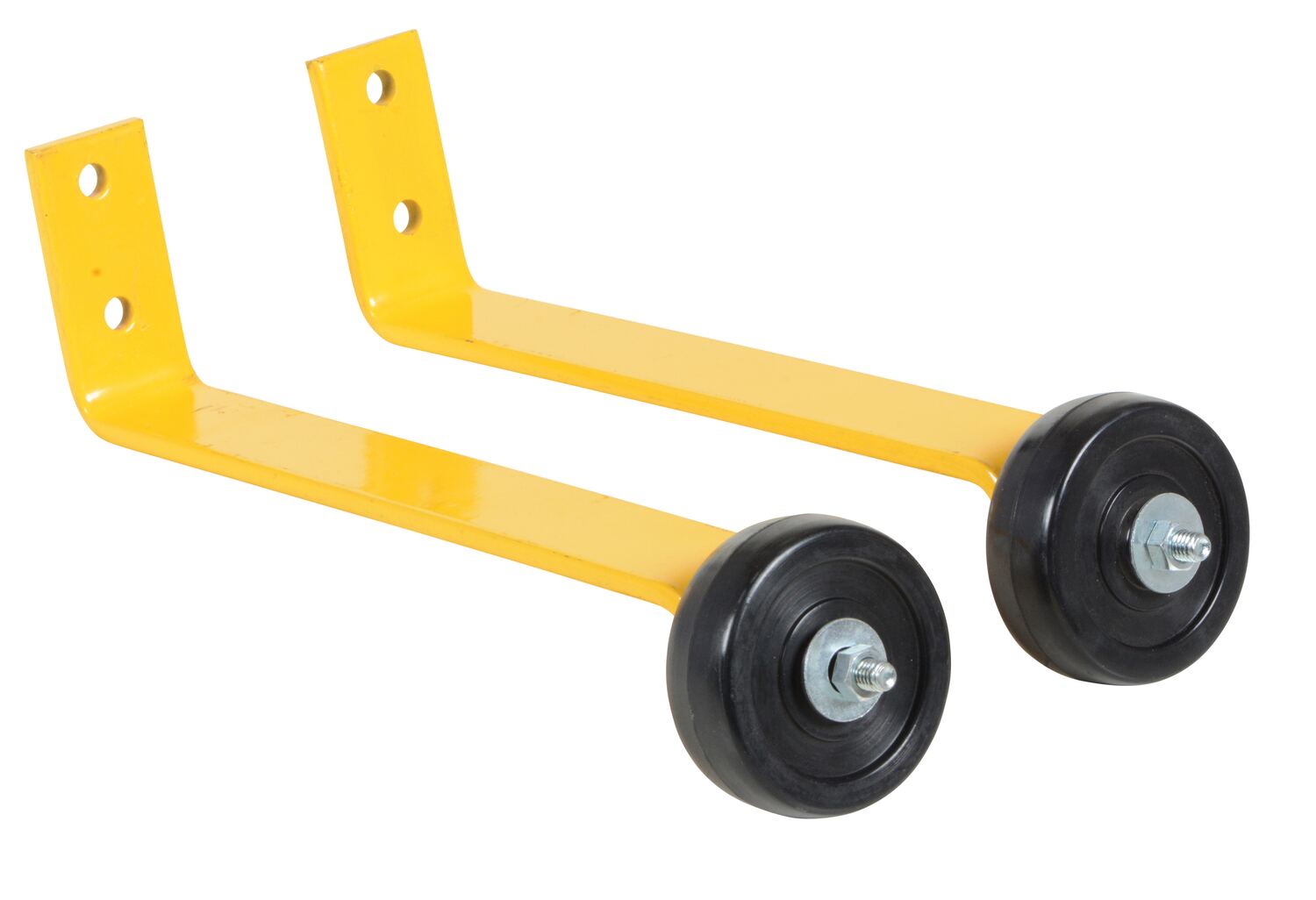

VDKR-BB-W VDKR-BB-WSteel Pipe Railing Barricade Base With Wheels Yellow90 Days Limited Warranty7

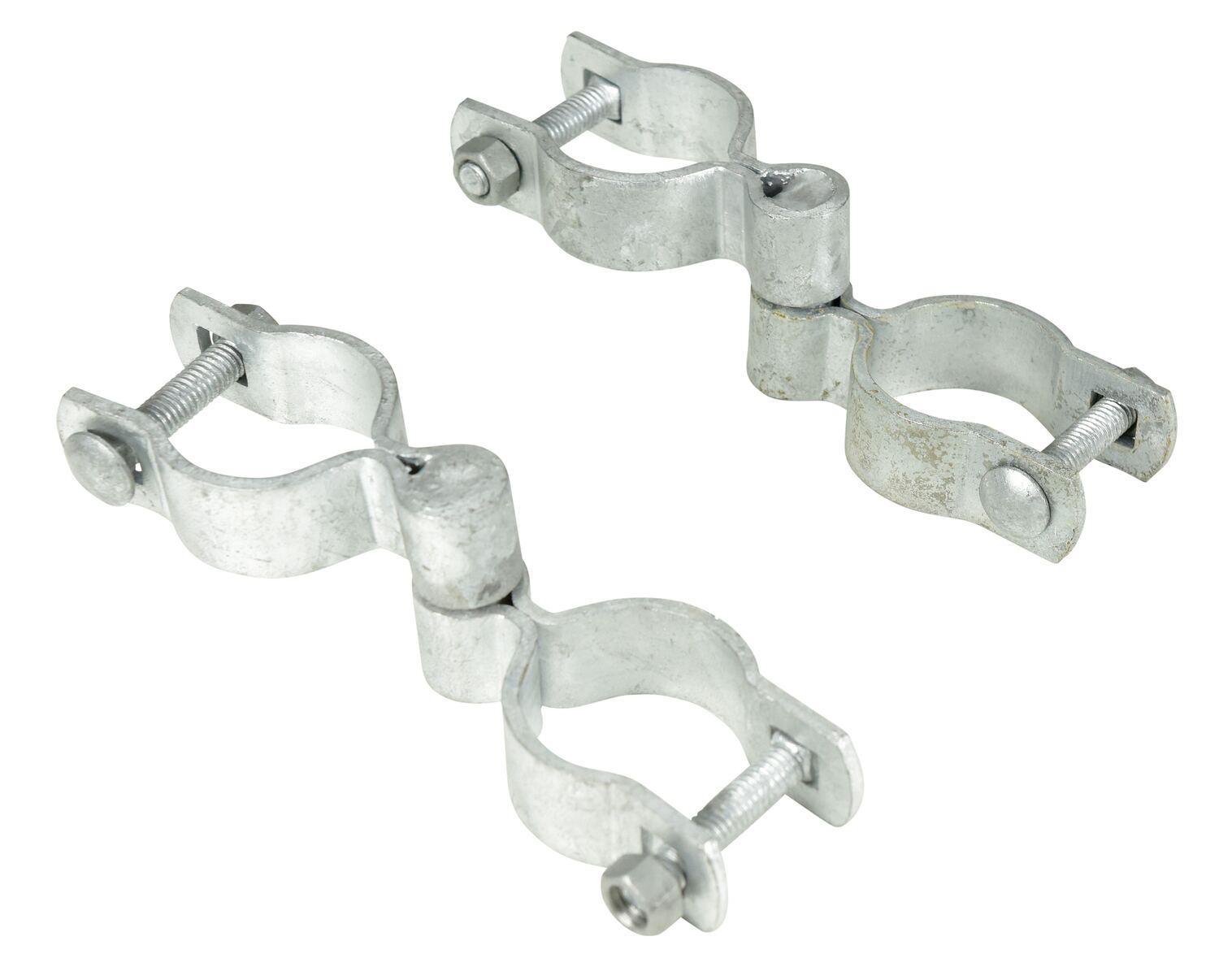

VDKR-CON VDKR-CONSteel Hinged Connectors For Pipe Safety Railing Silver90 Days Limited Warranty3

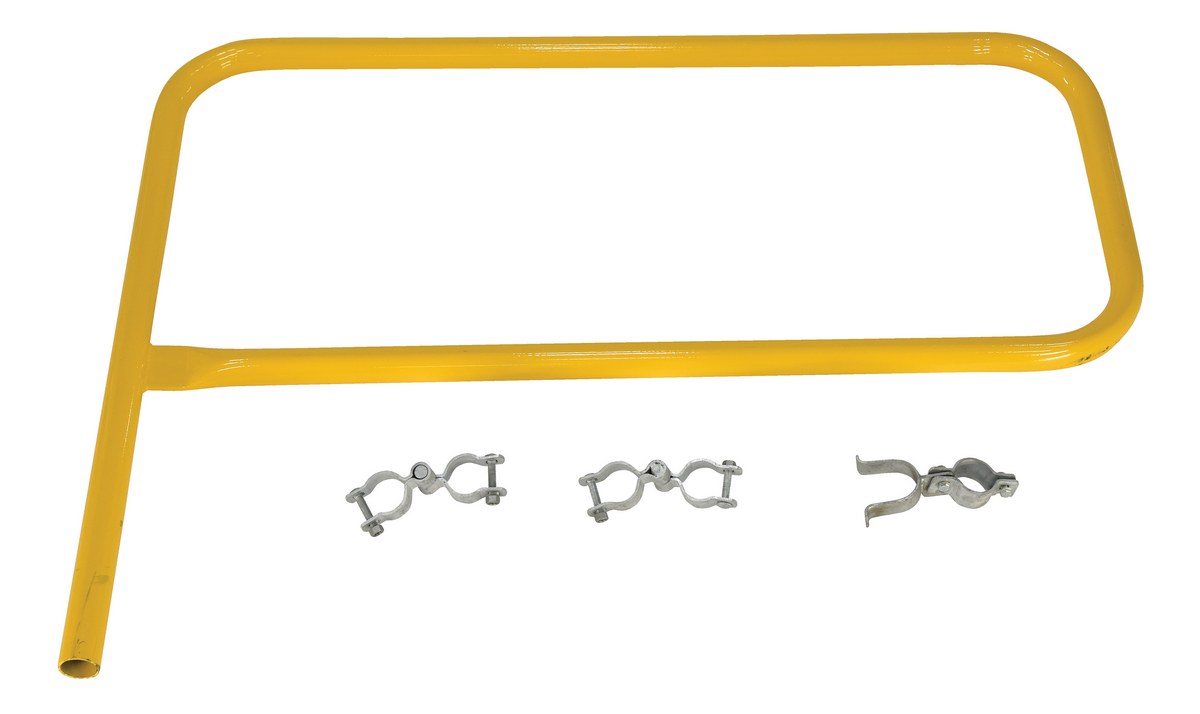

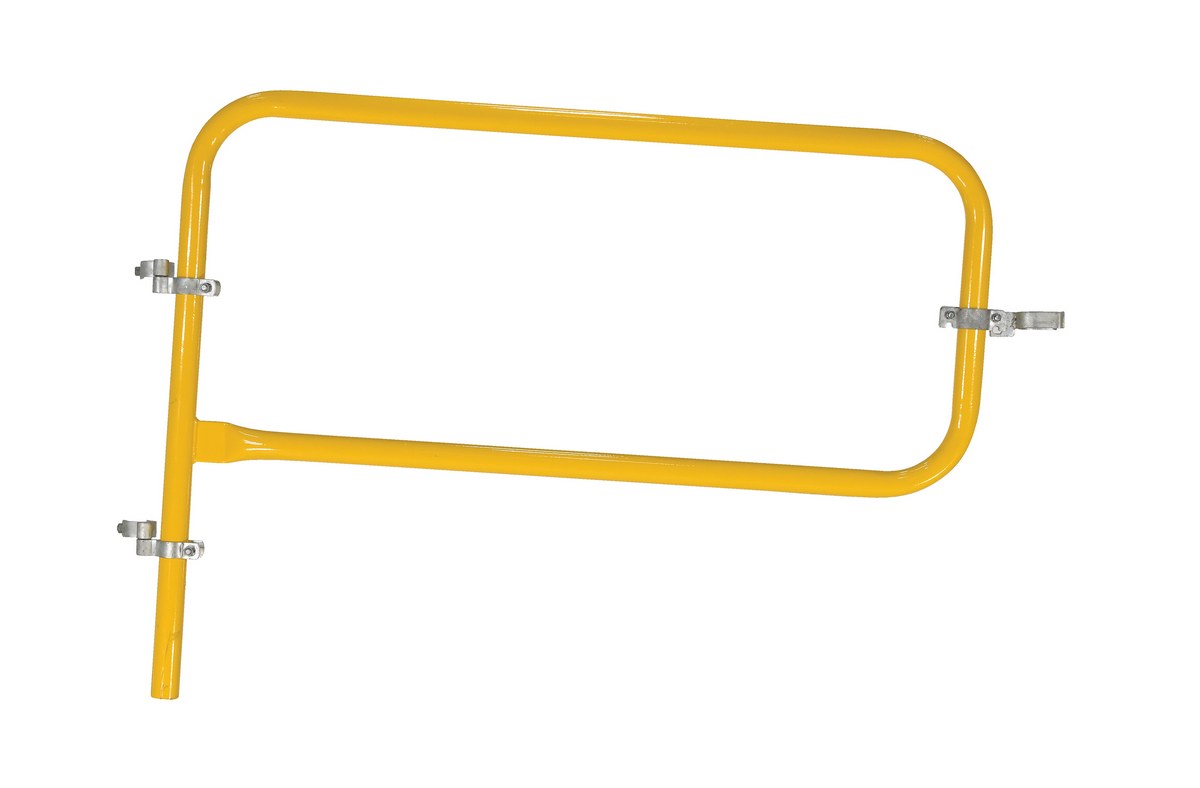

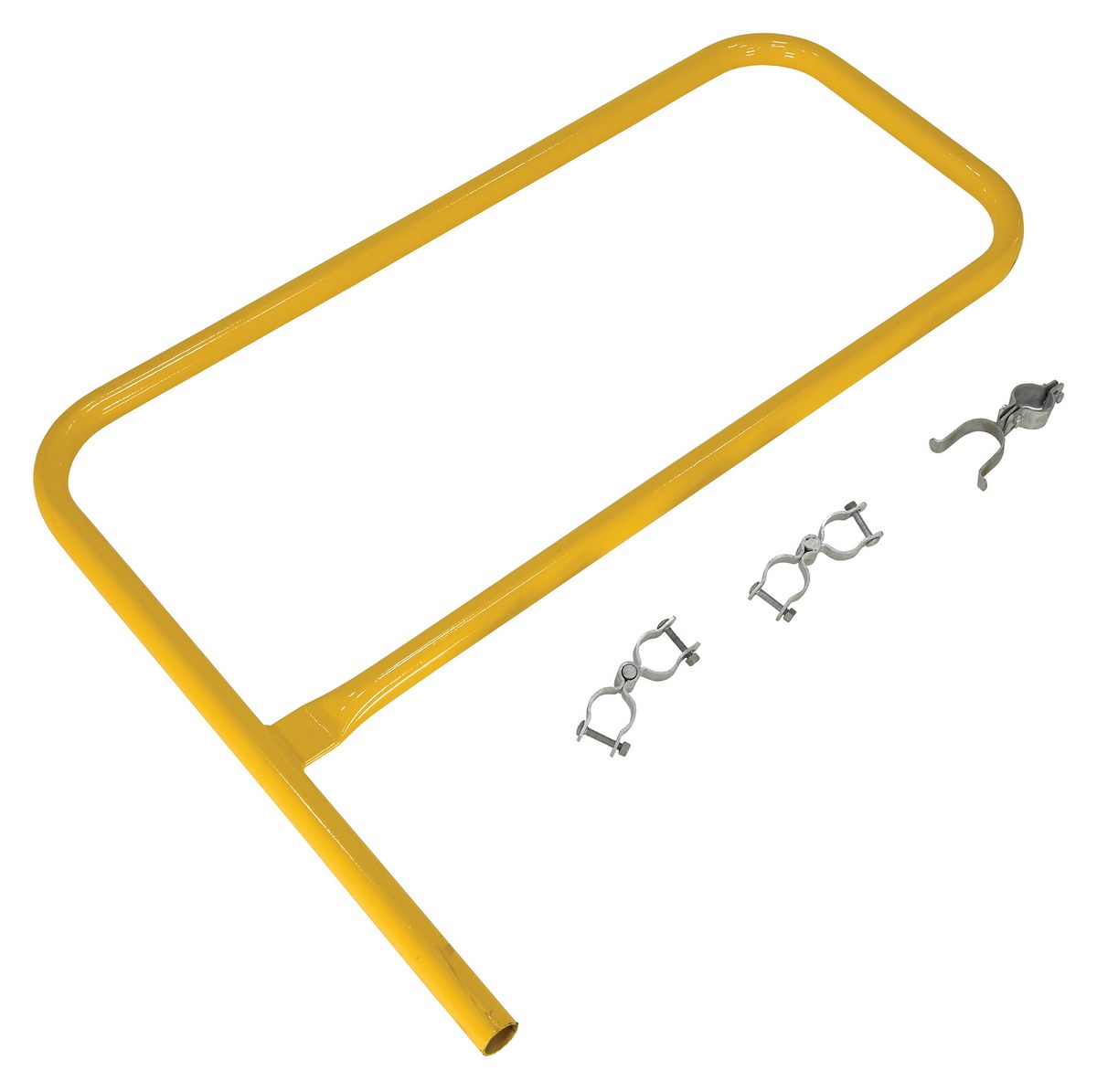

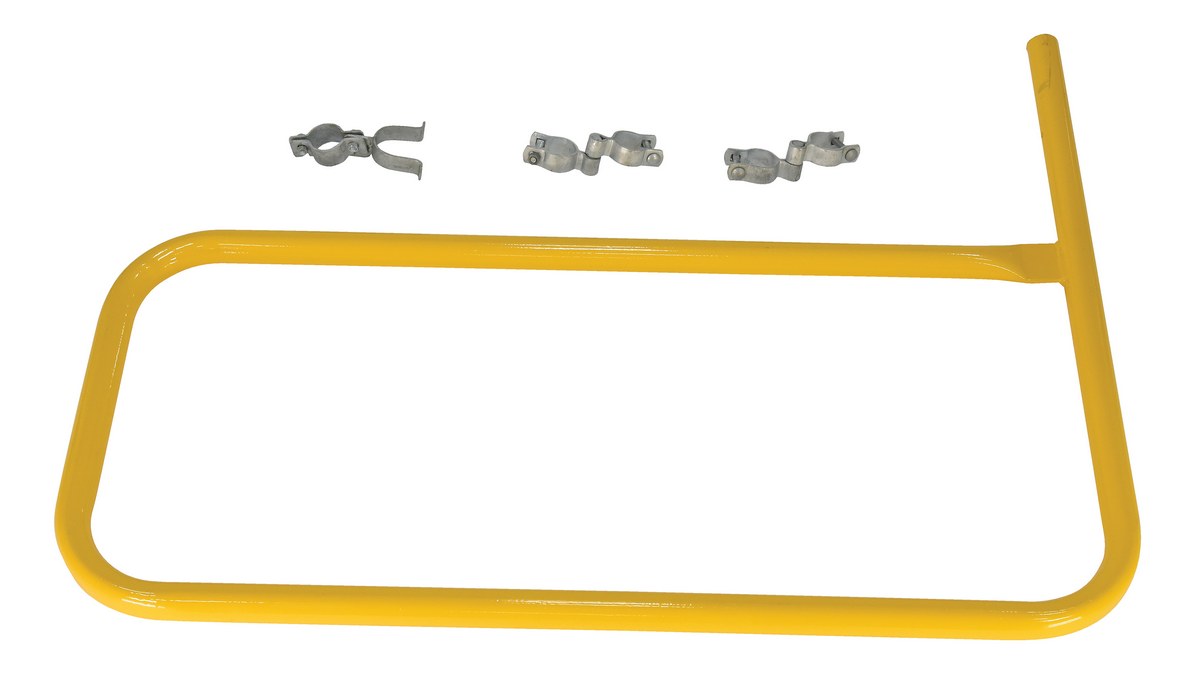

VDKR-G3 VDKR-G3Steel Pipe Safety Railing Gate P-Shaped 36 In. x 36 In. Yell…90 Days Limited Warranty23

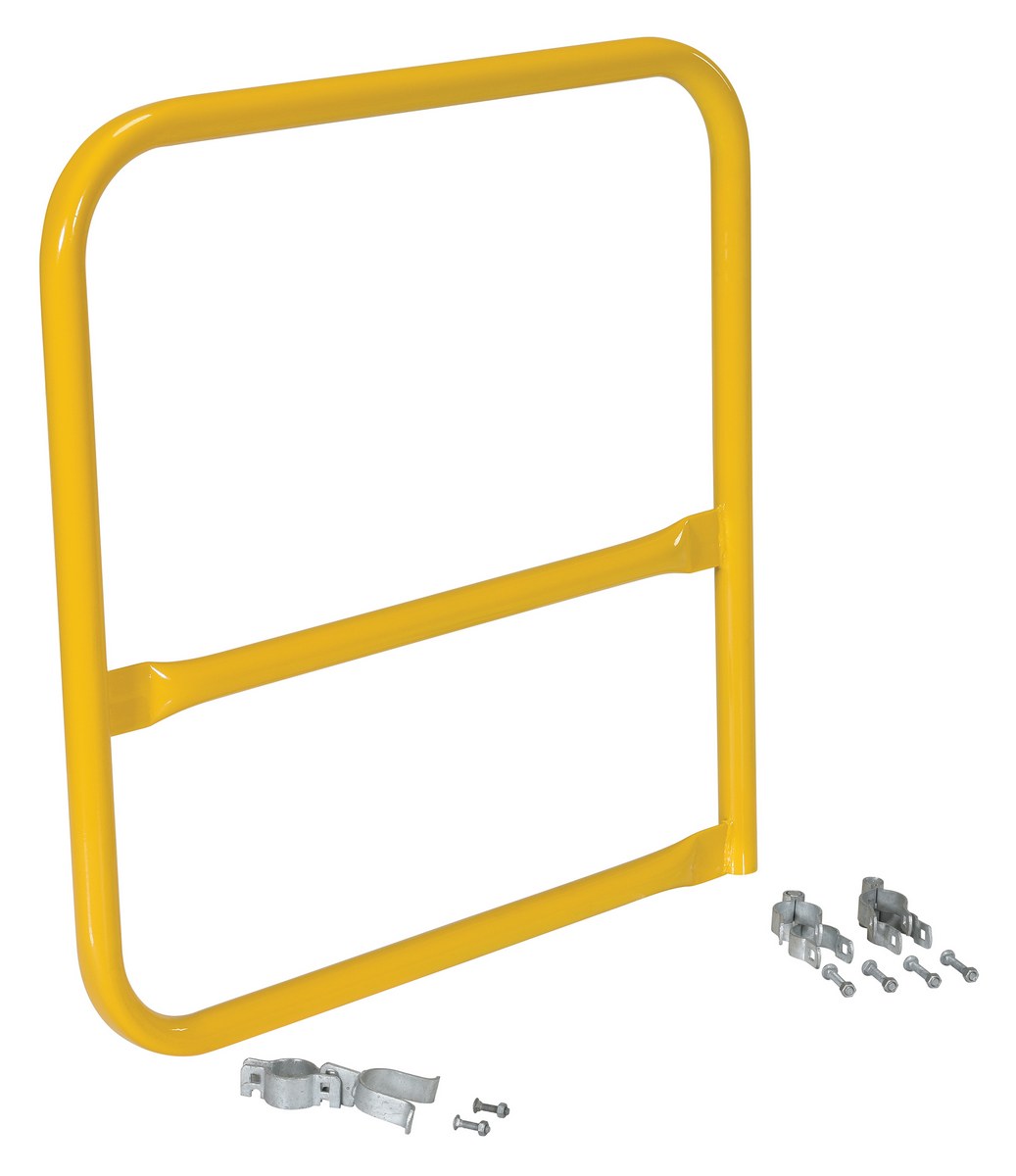

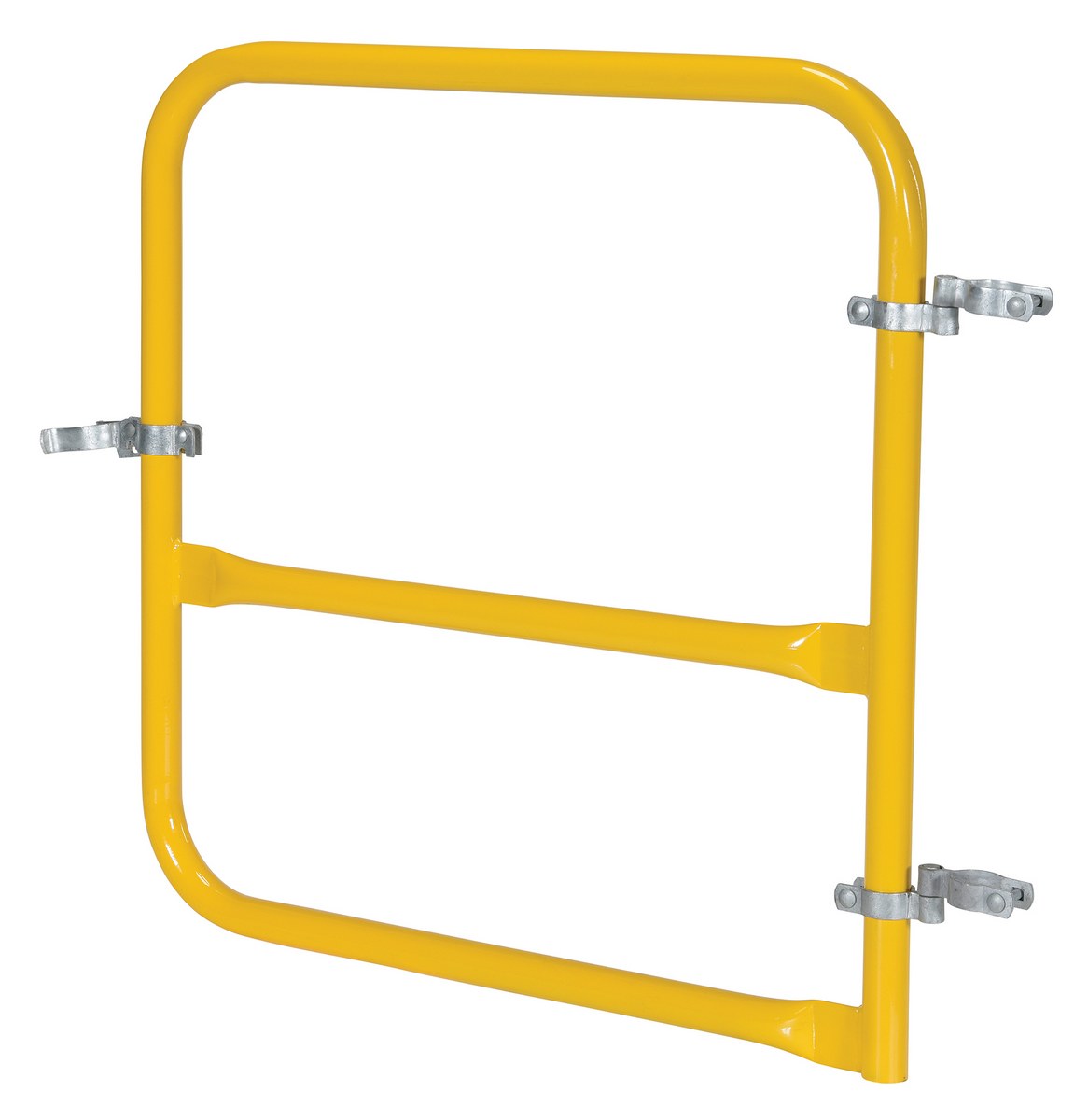

VDKR-G3-B VDKR-G3-BSteel Pipe Safety Railing Gate B-Shaped 36 In. x 36 In. Yell…90 Days Limited Warranty35

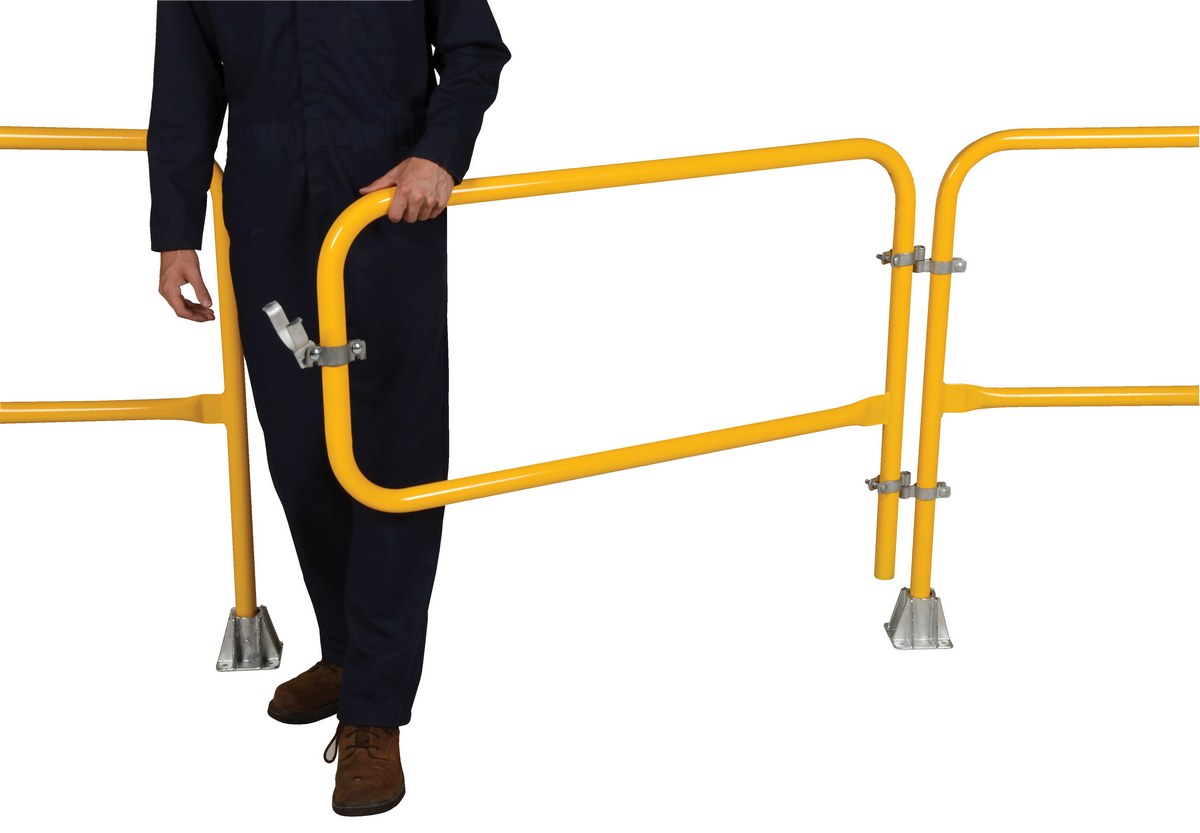

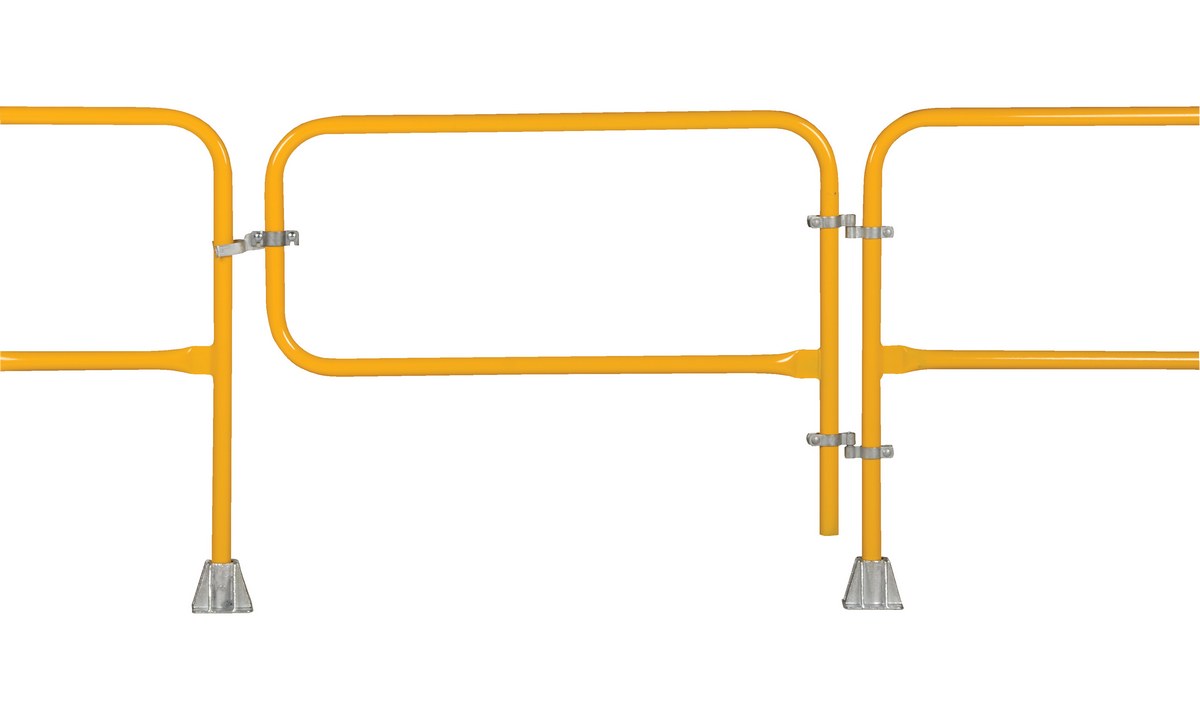

VDKR-G4 VDKR-G4Steel Pipe Safety Railing Gate-P Shaped 48 In. x 36 In. Yell…90 Days Limited Warranty55

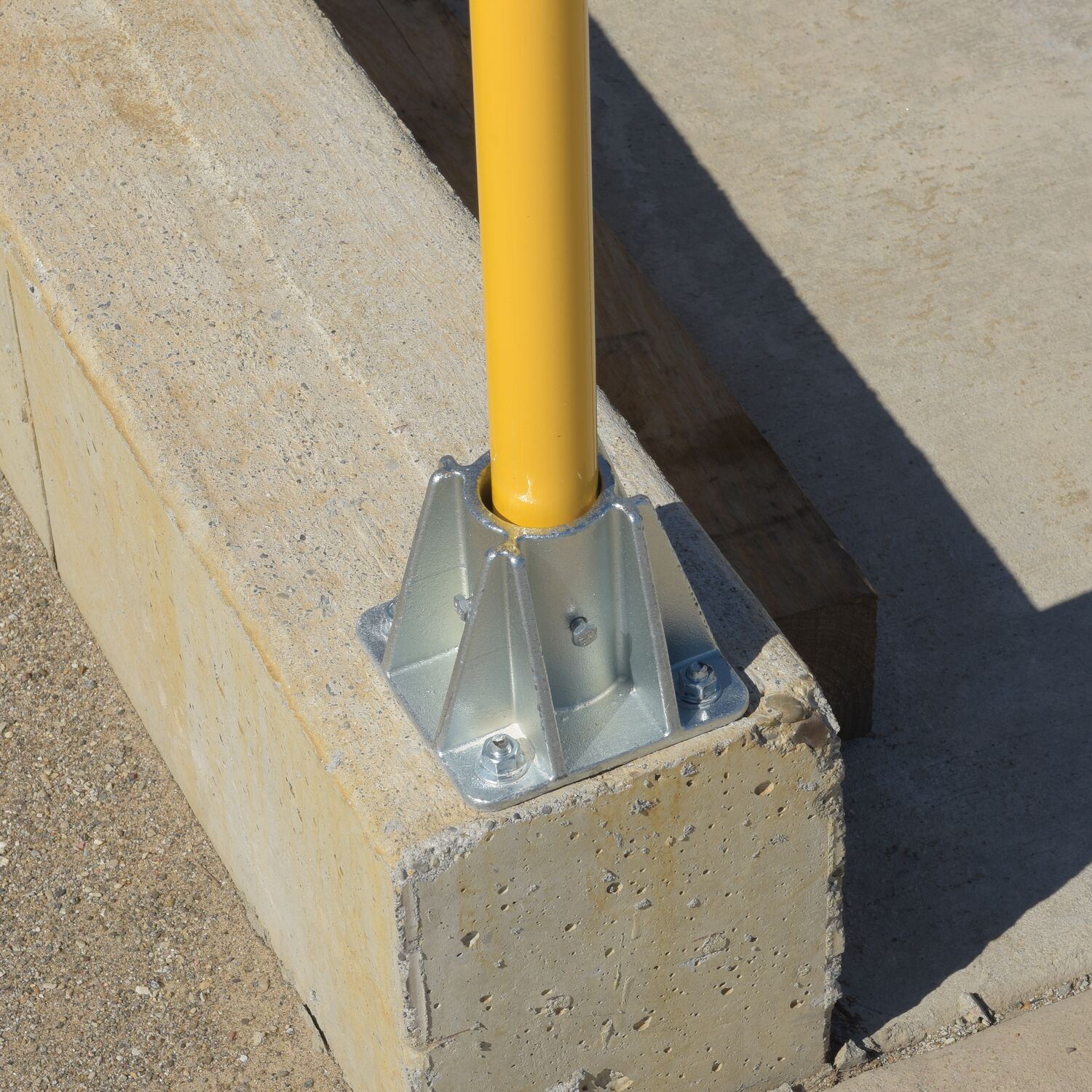

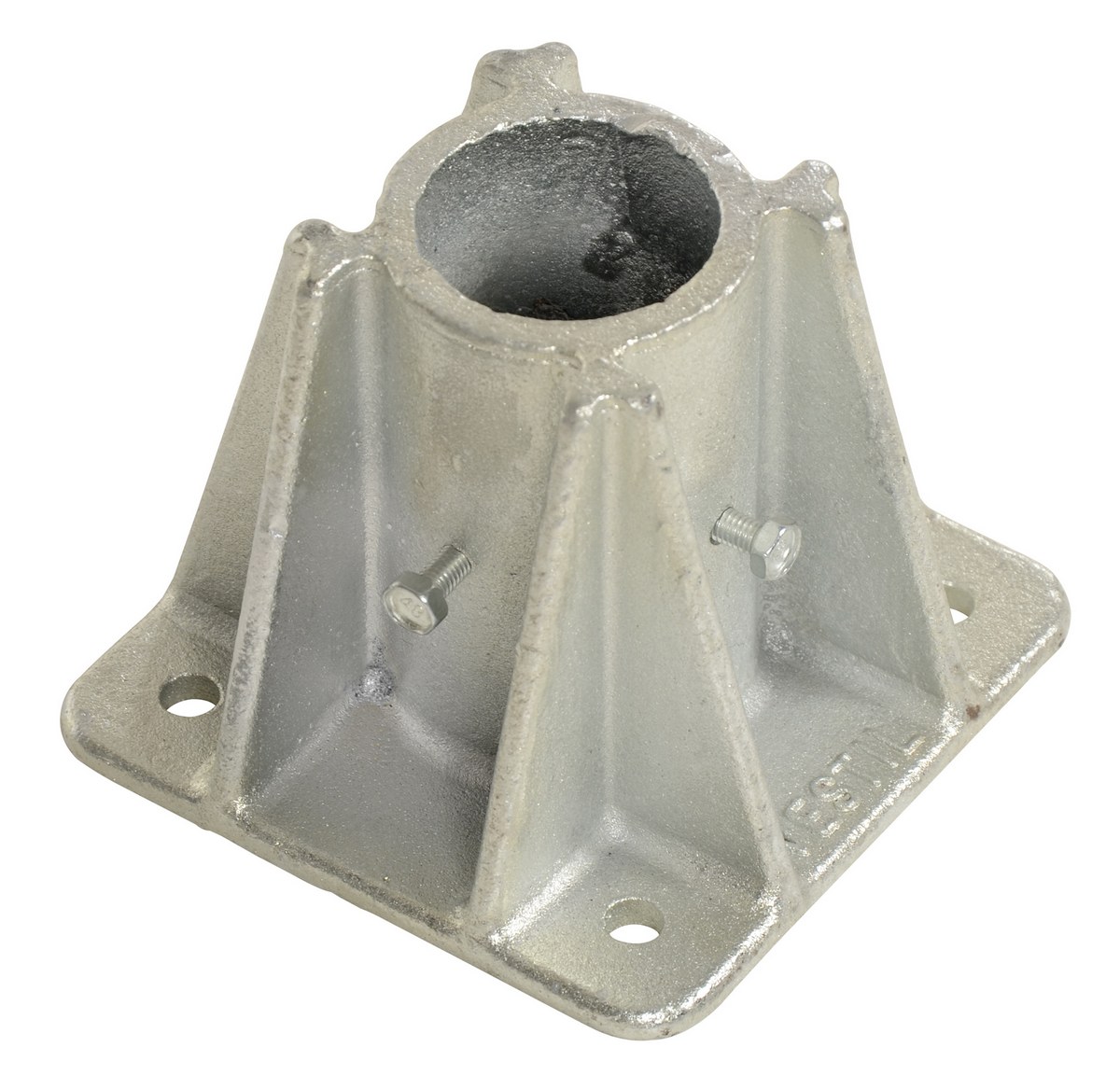

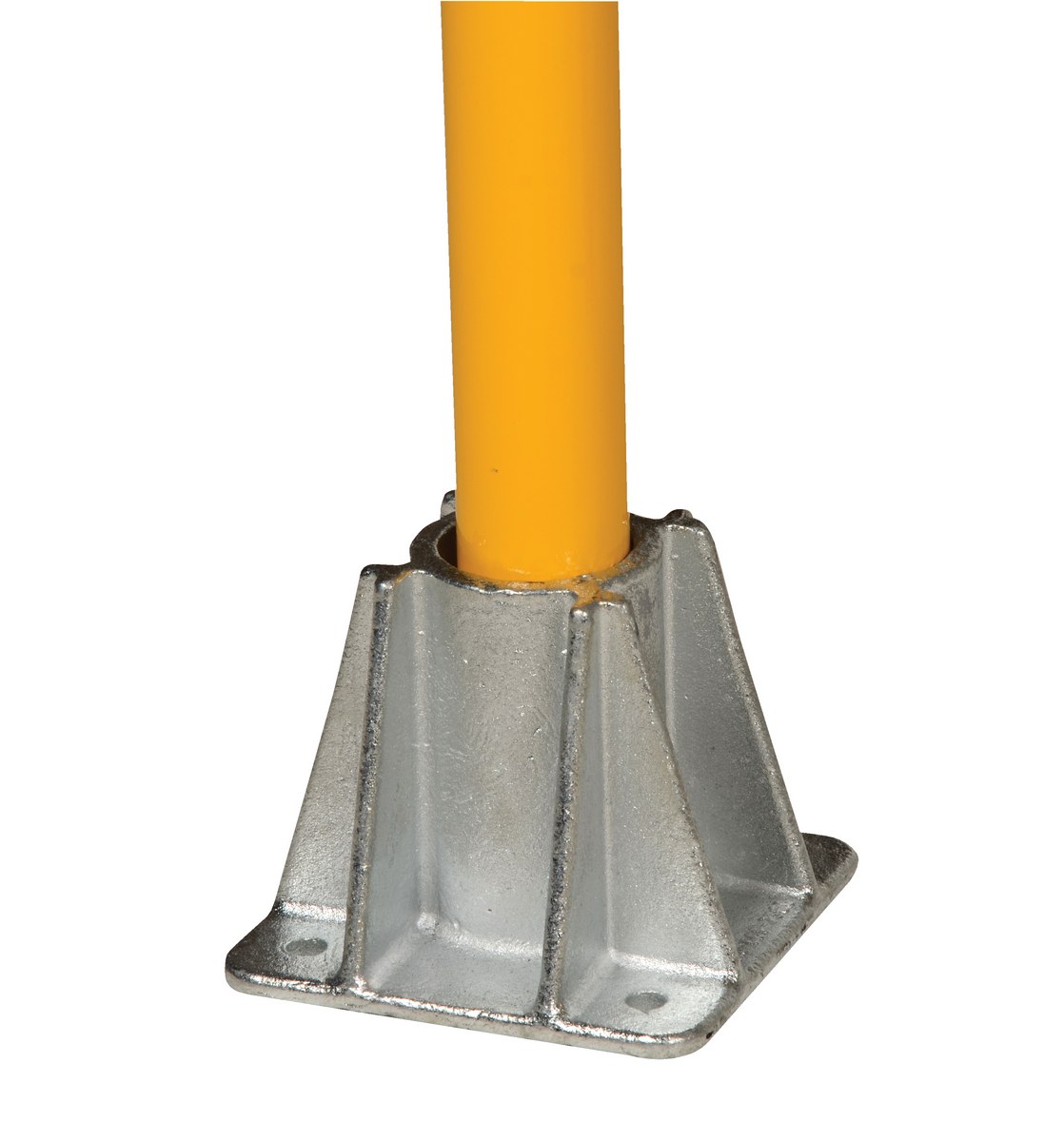

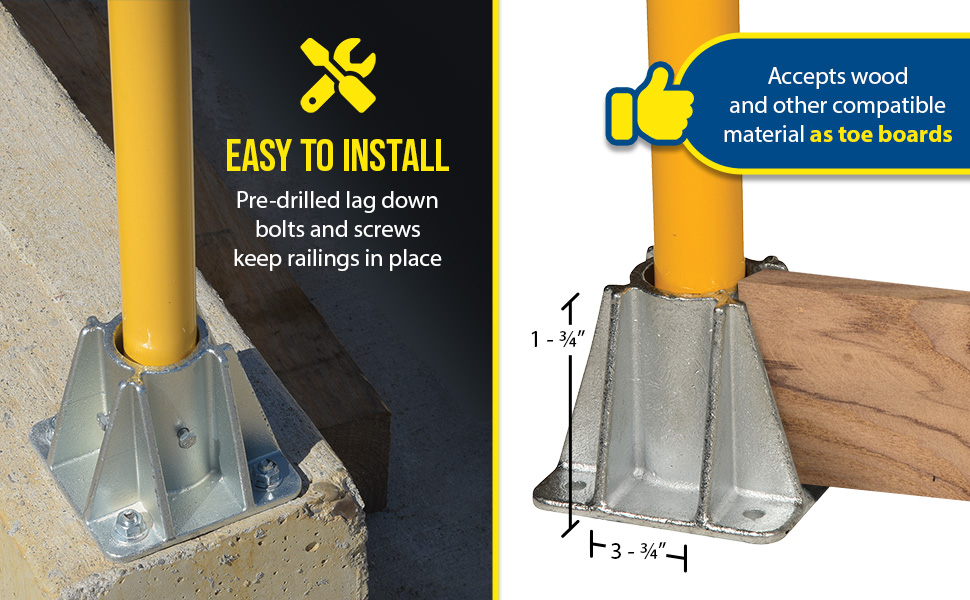

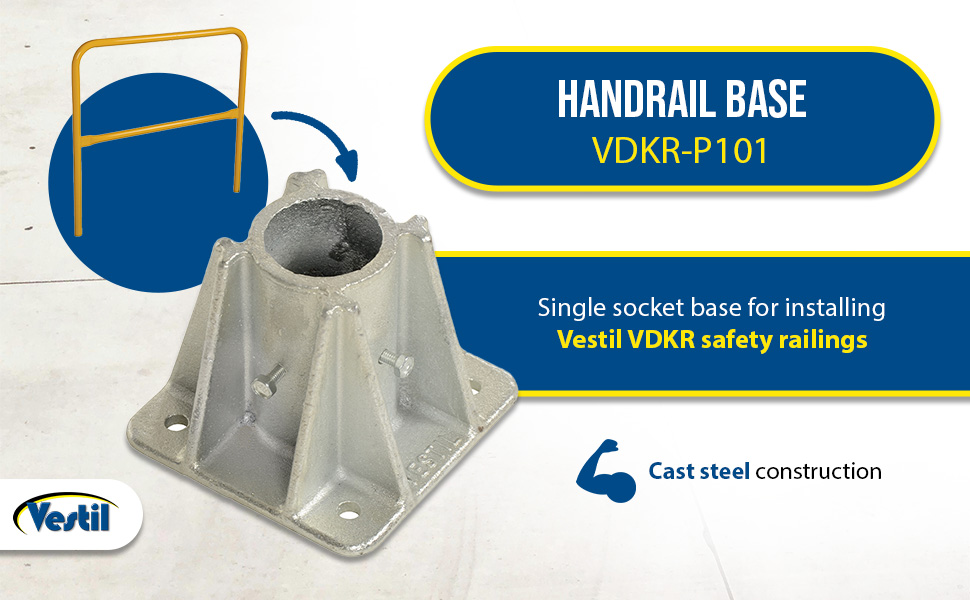

VDKR-P101 VDKR-P101Cast Steel Single Socket For Pipe Safety Railing Silver90 Days Limited Warranty6

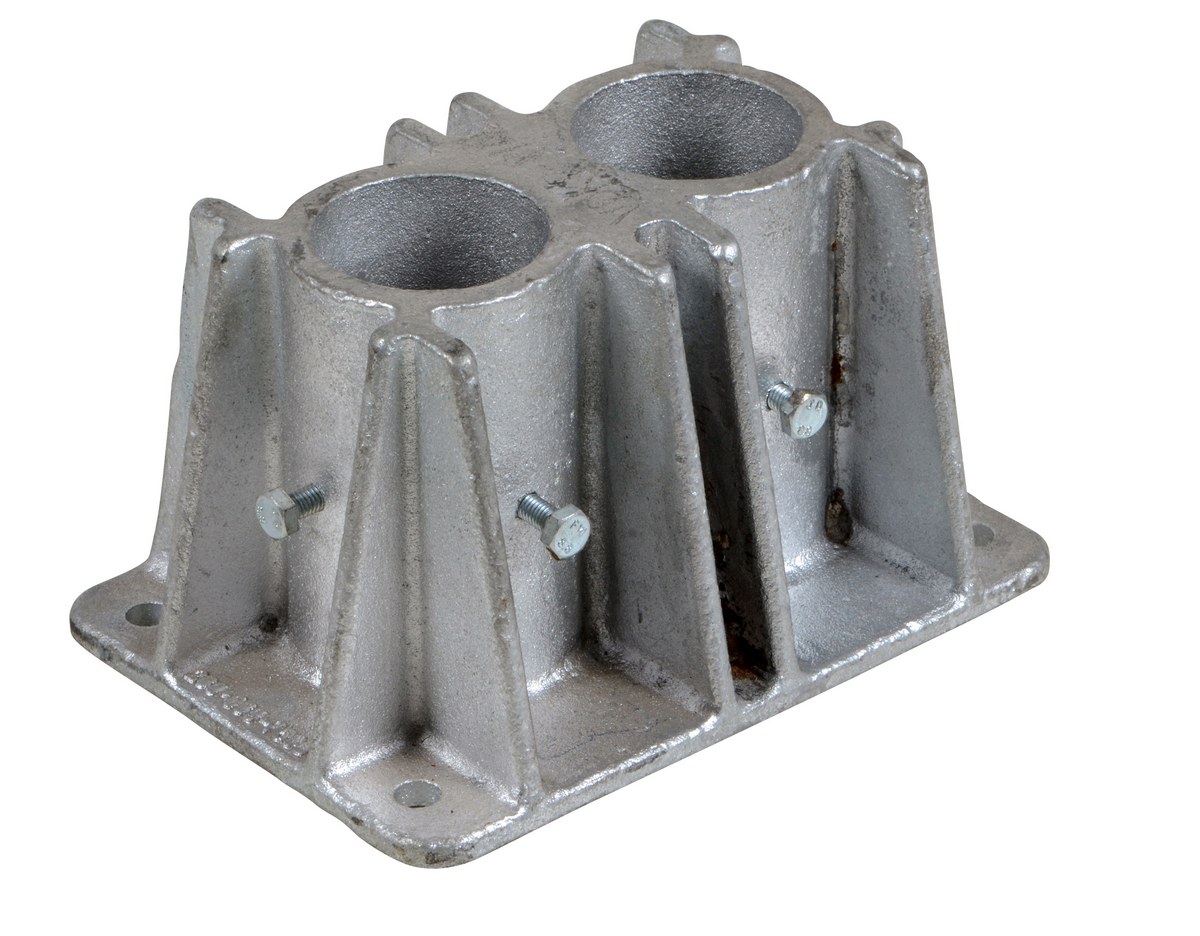

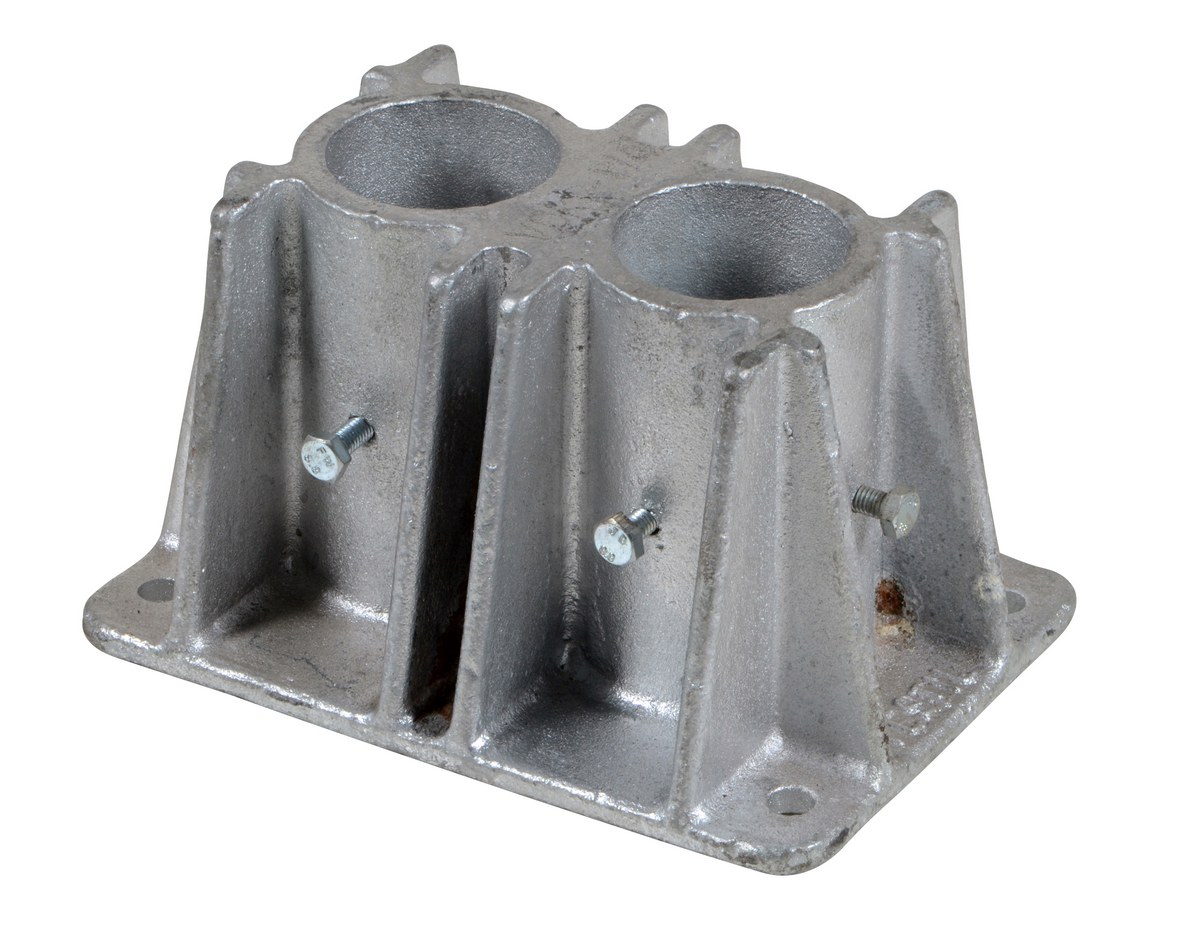

VDKR-P102 VDKR-P102Cast Steel Double Socket For Pipe Safety Railing Silver90 Days Limited Warranty11

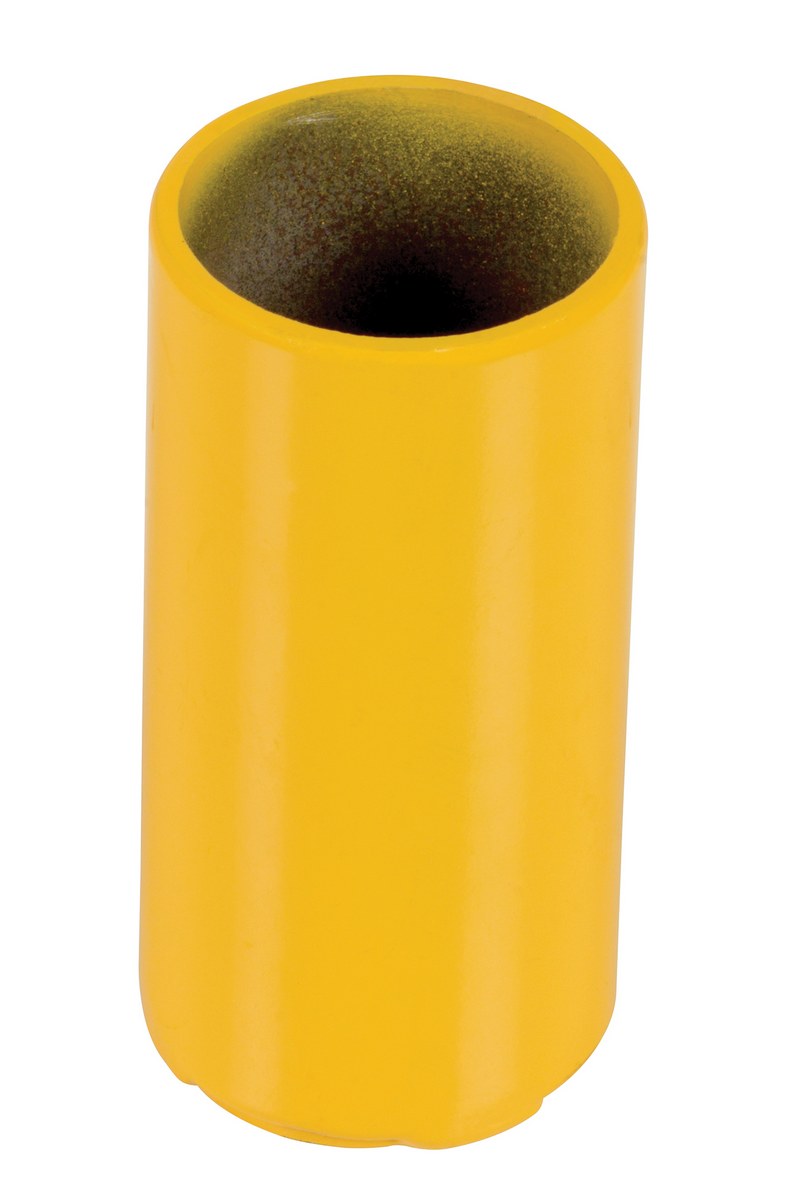

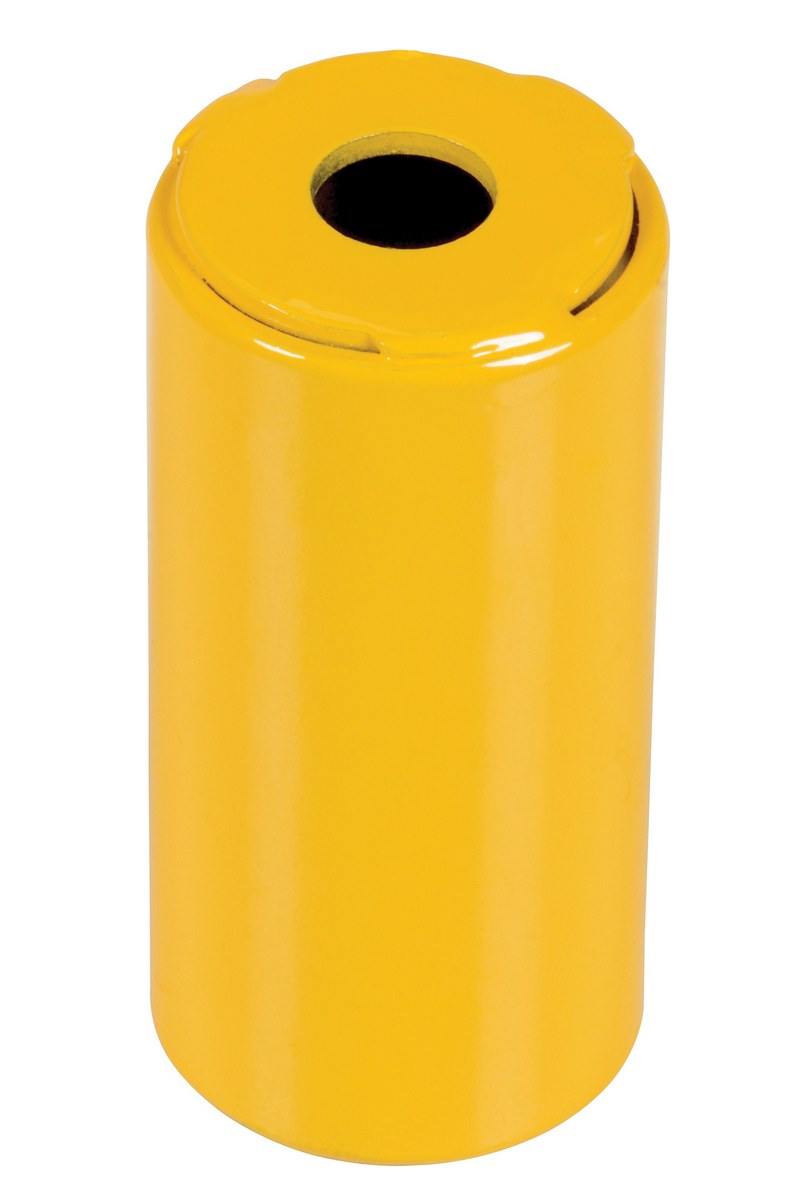

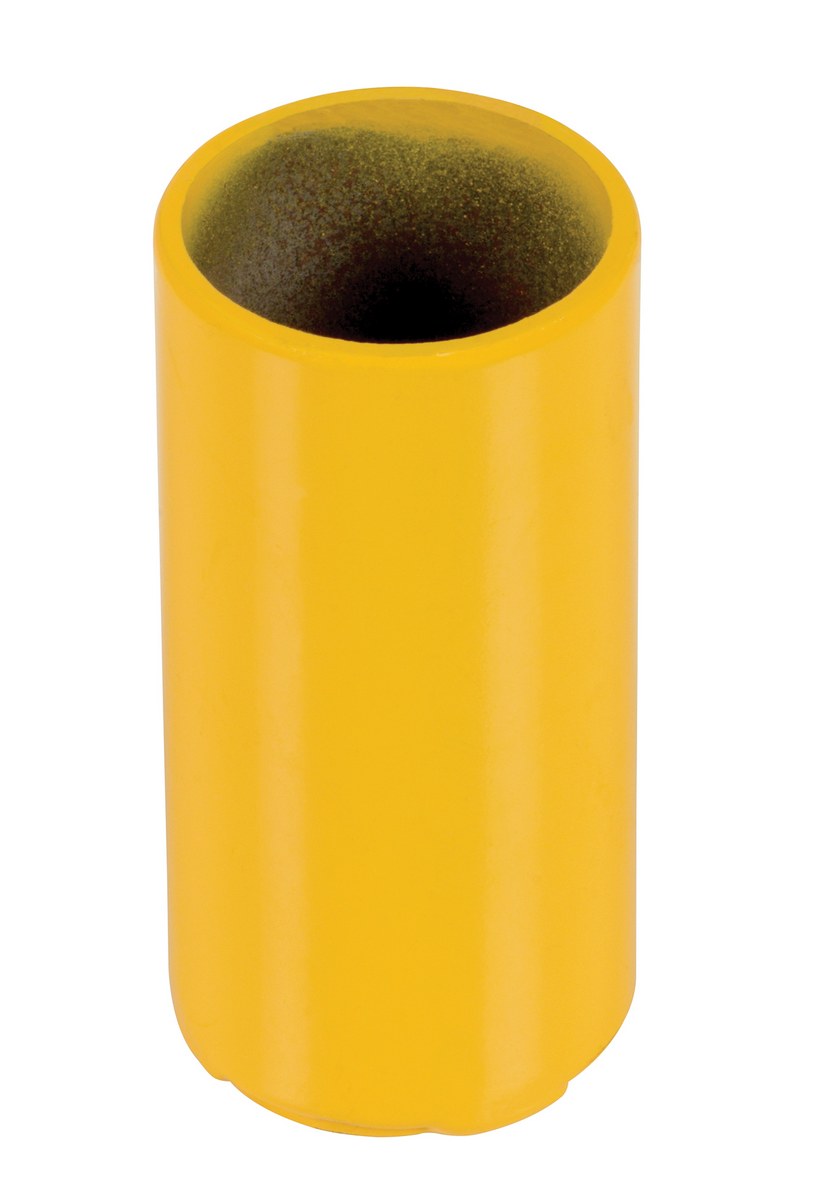

VDKR-P107 VDKR-P107Steel Sleeve 2 In. Diameter For Pipe Safety Railing Yellow90 Days Limited Warranty1

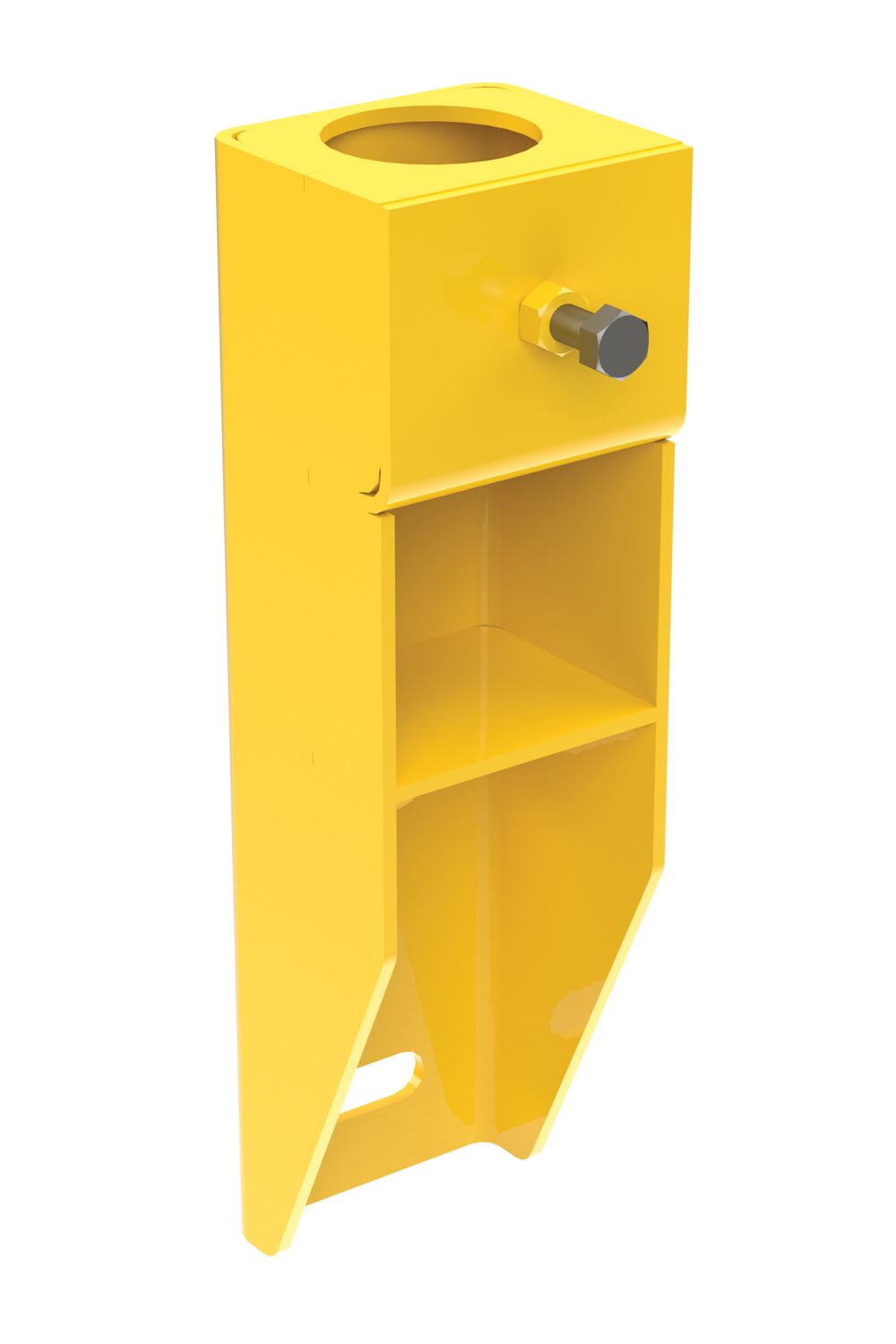

VDKR-VM1 VDKR-VM1Steel Vertical Wall Mount Handrail Socket Single Pocket90 Days Limited Warranty6

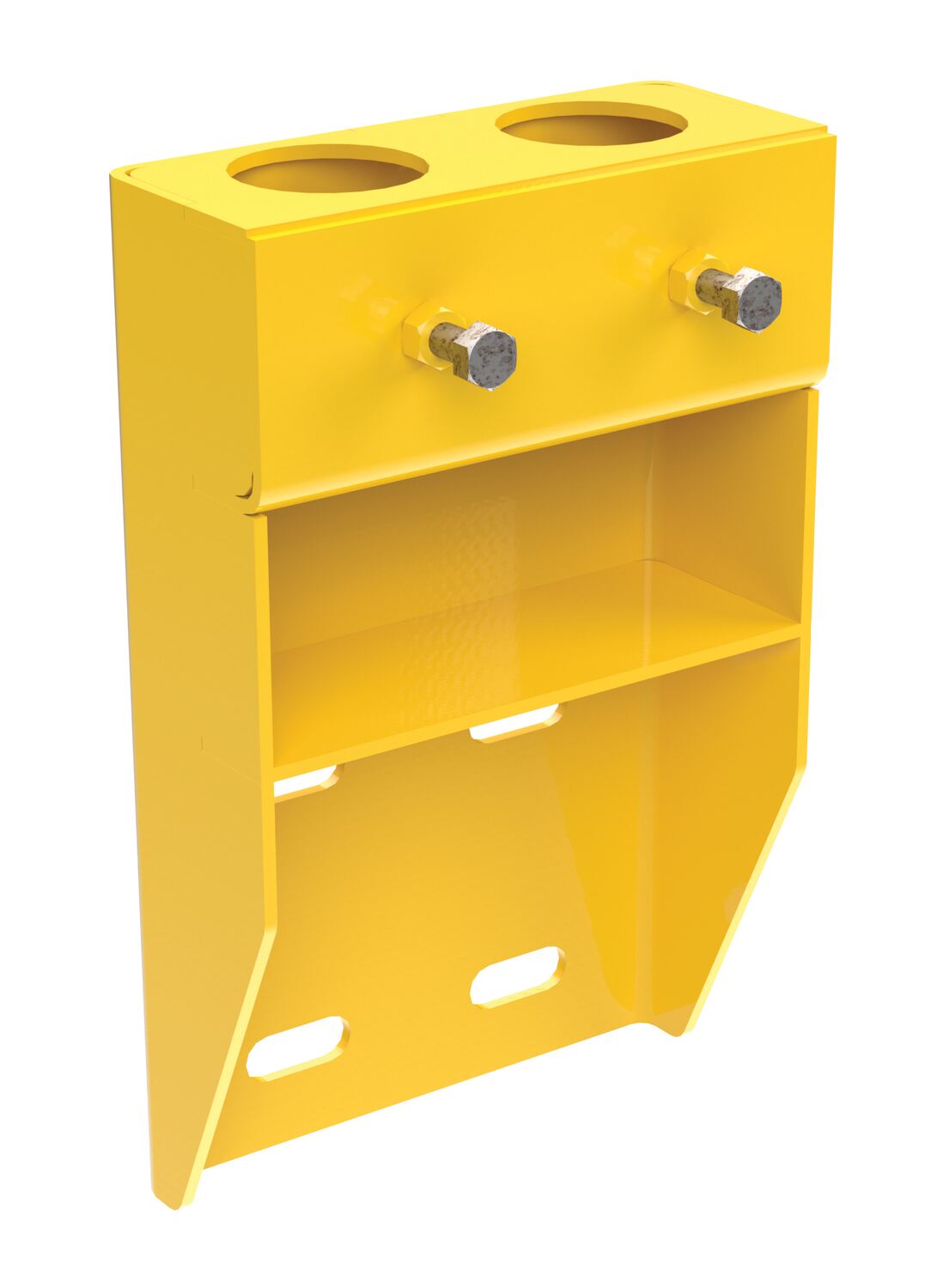

VDKR-VM2 VDKR-VM2Steel Wall Mount Bracket For Pipe Safety Railing Yellow90 Days Limited Warranty10

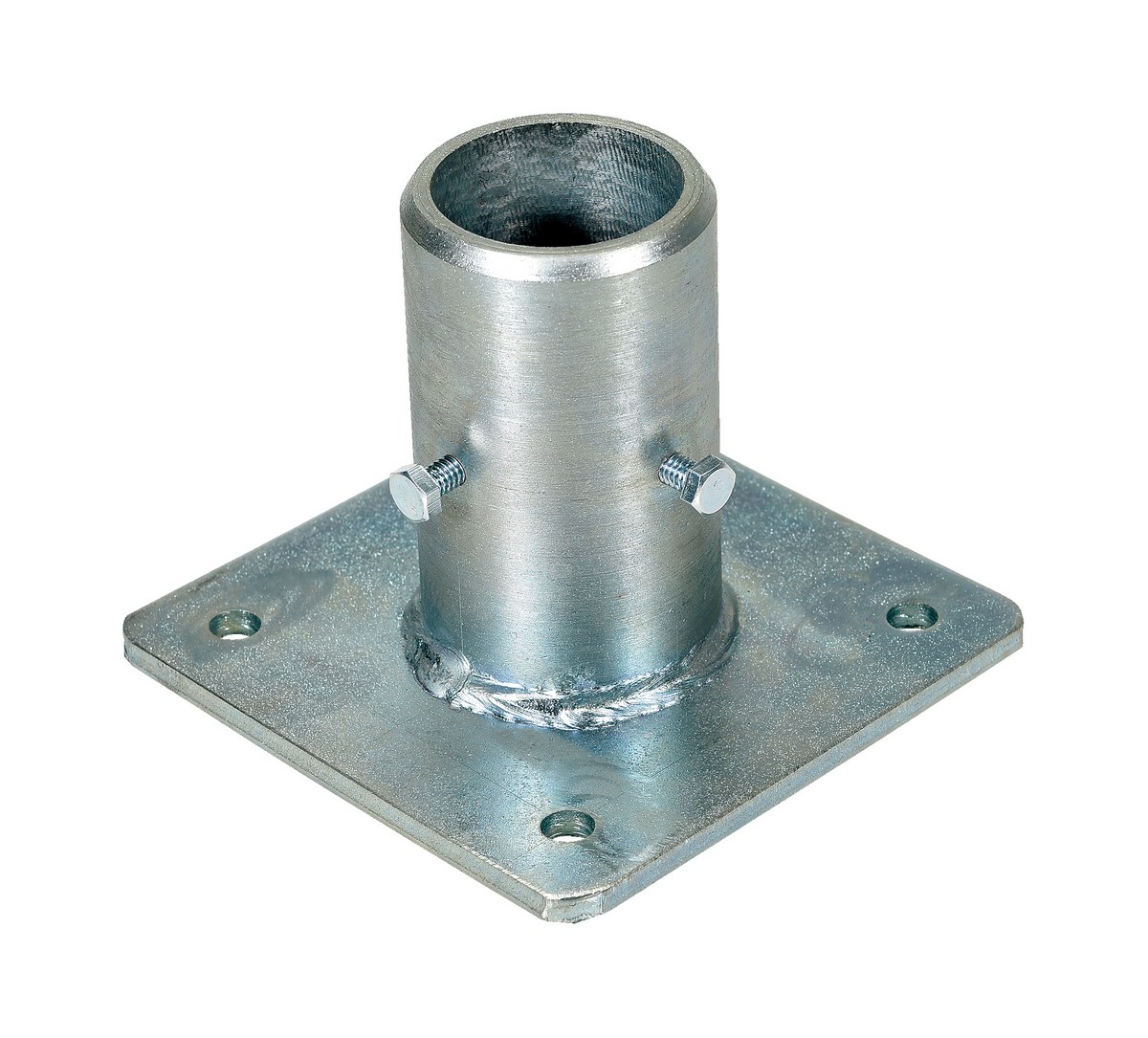

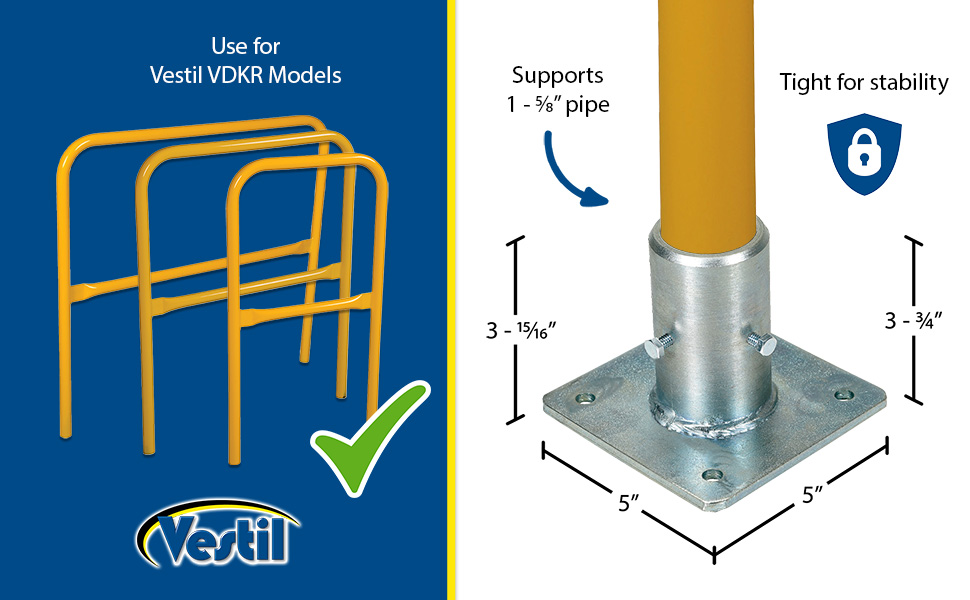

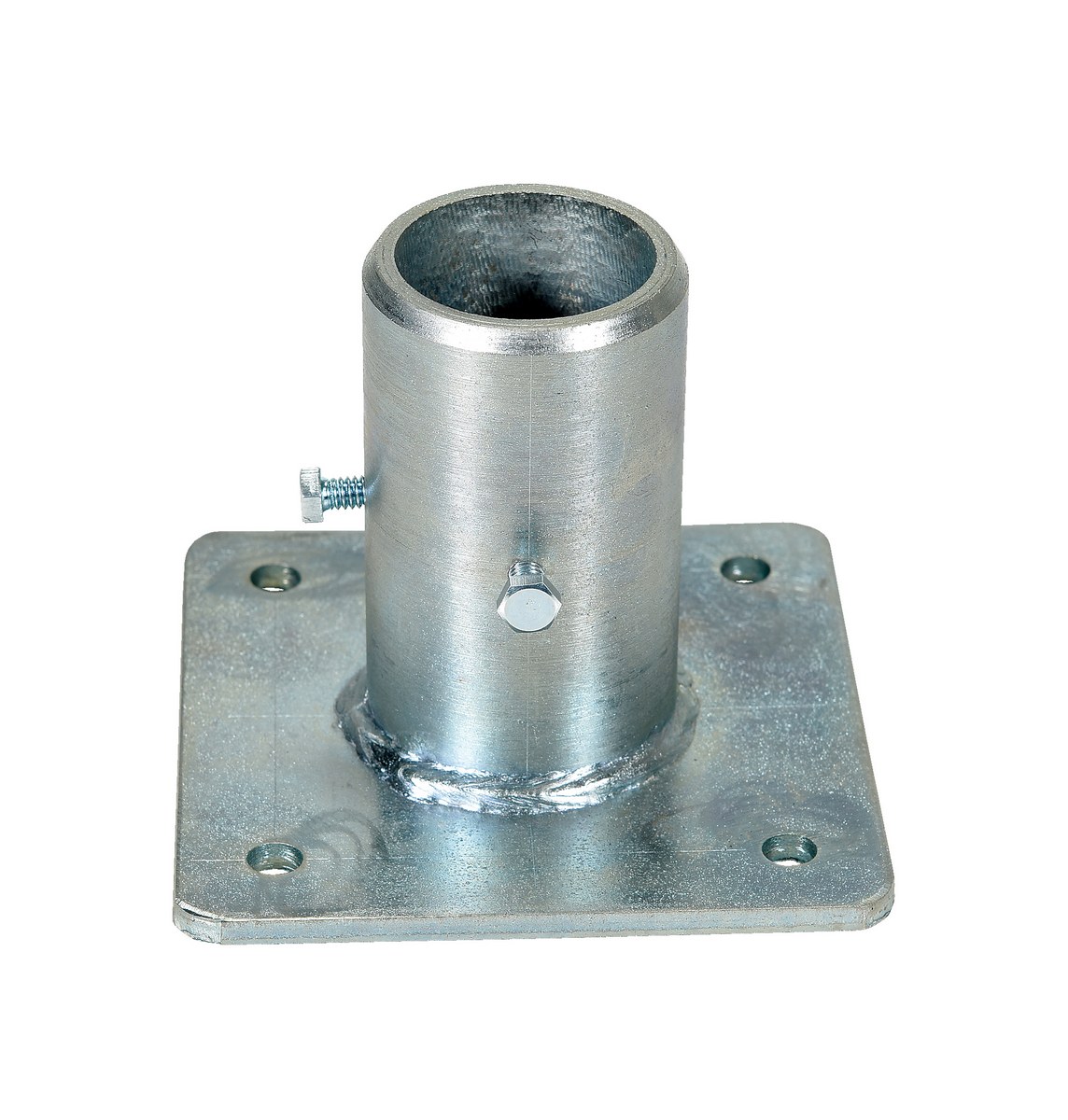

VDKR-W-101 VDKR-W-101Galvanized Steel Single Socket Without Toe Board For VDKR Mo…90 Days Limited Warranty5

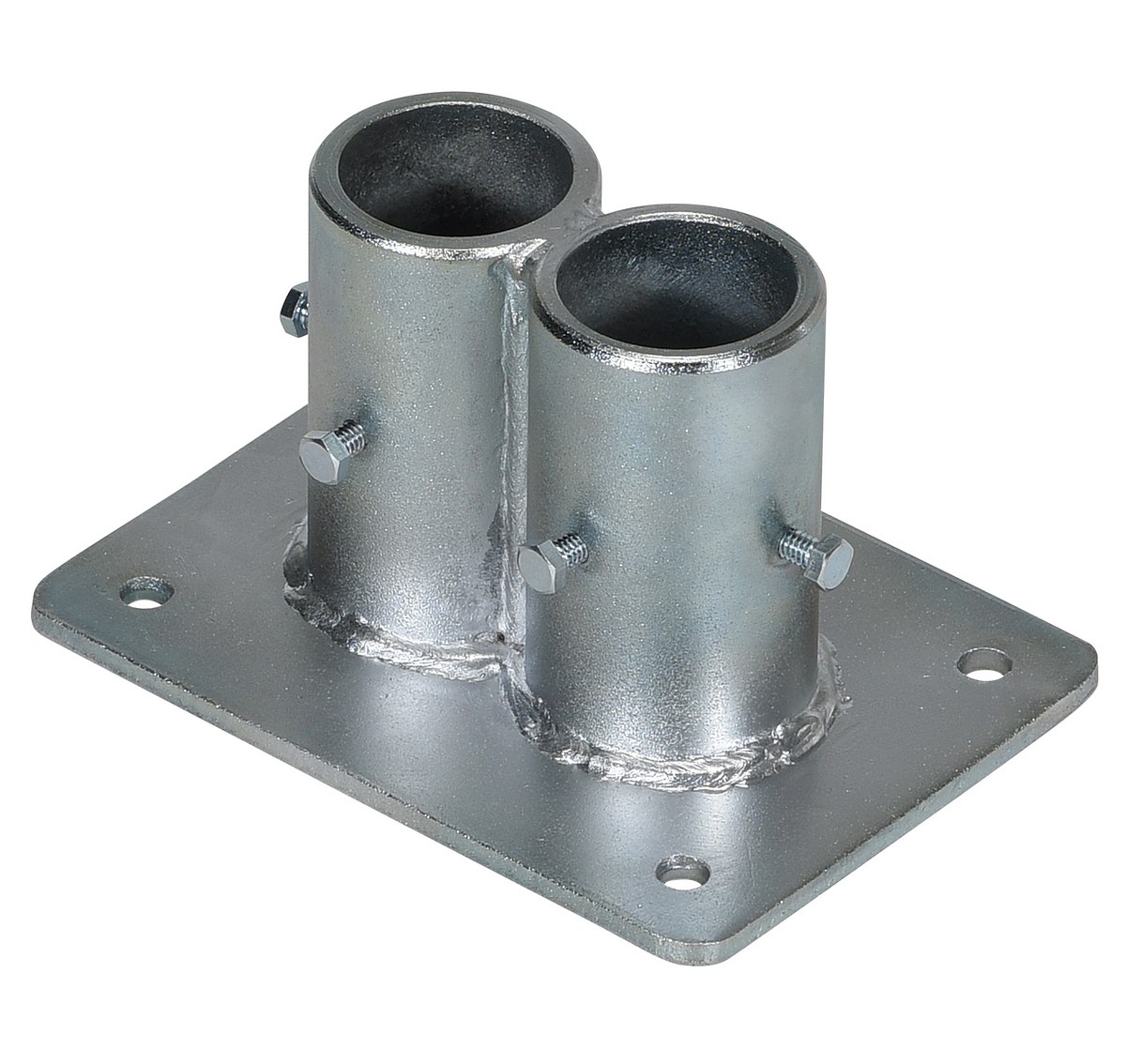

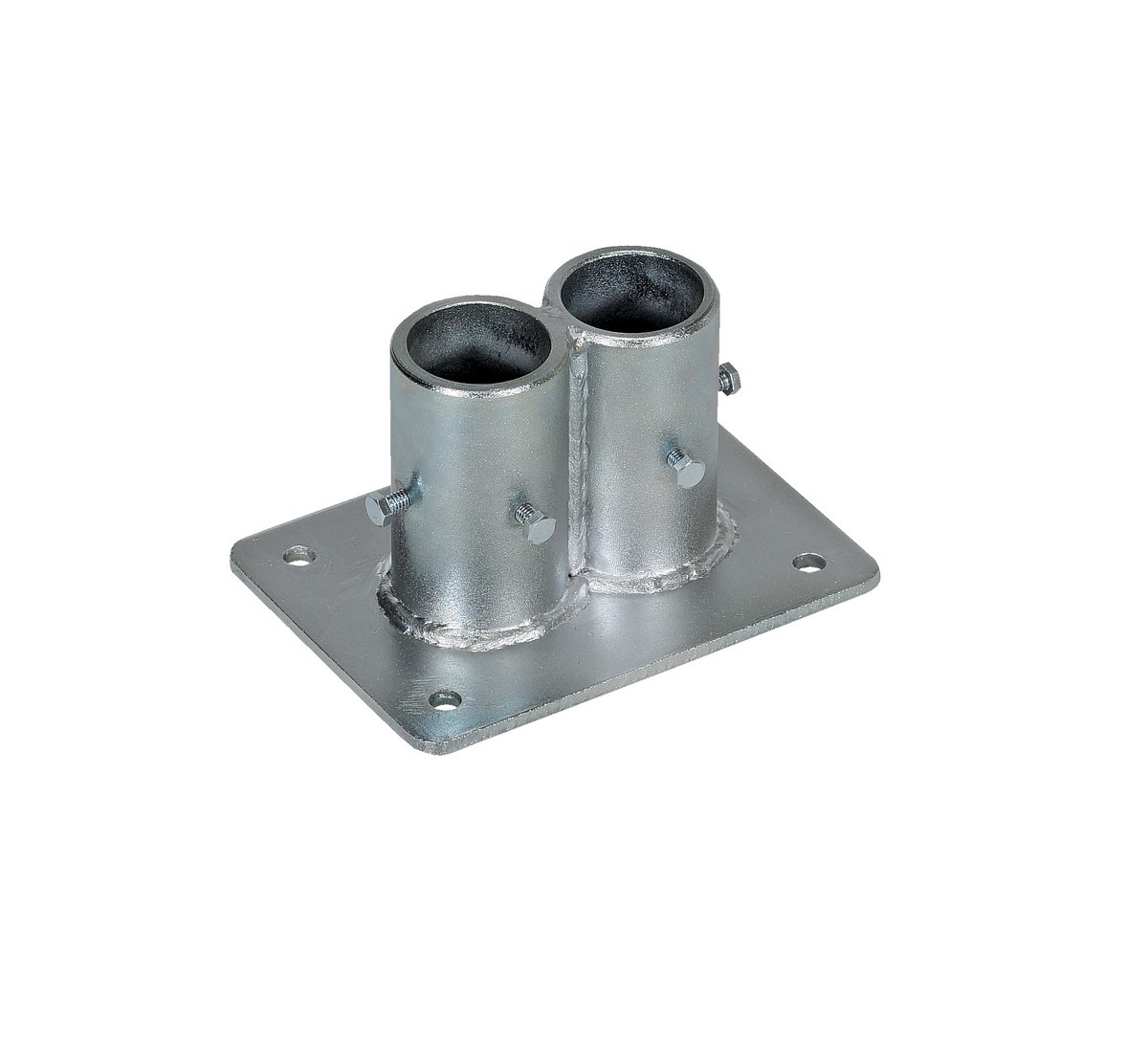

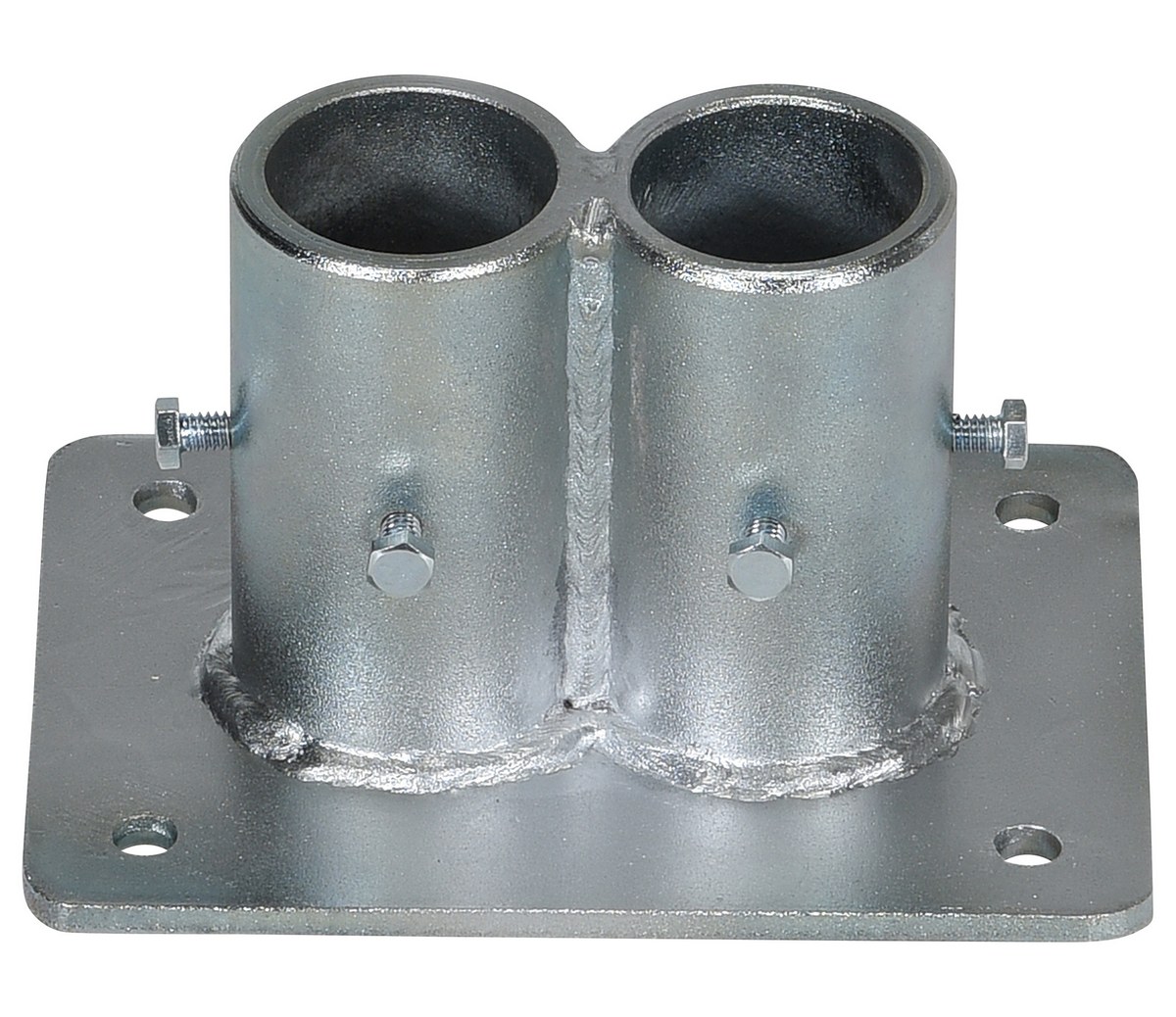

VDKR-W-102 VDKR-W-102Galvanized Steel Double Socket Without Toe Board For VDKR Mo…90 Days Limited Warranty7
Model Image PDF Description Wt.
(lbs)
AS-383 Warranty PDF Anchor Bolts [for concrete (1) 3/8" x 3"] 1
AS-383-4PK Warranty PDF Anchor Bolts [for concrete (4) 3/8" x 3"] 4
If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
PDFs will open in a new window when clicked.

Manuals

No Owners Manuals For This Product

Survey Sheets

VDKR

VDKR-BASE

Engineering Drawings

VDKR-2

VDKR-2-TB

VDKR-3

VDKR-3-TB

VDKR-4

VDKR-4-TB

VDKR-5

VDKR-5-TB

VDKR-6

VDKR-6-TB

VDKR-7

VDKR-7-TB

VDKR-8

VDKR-8-TB

VDKR-10

VDKR-BASE

VDKR-BASE-W

VDKR-BB-F

VDKR-BB-W

VDKR-CON

VDKR-G3

VDKR-G3-B

VDKR-G4

VDKR-P101

VDKR-P102

VDKR-VM2

VDKR-W-101

VDKR-W-102

VDKR-VM1

VDKR-10-TB

Testing Certificates

VDKR-10

VDKR-10-TB

VDKR-2

VDKR-2-TB

VDKR-3

VDKR-3-TB

VDKR-4

VDKR-4-TB

VDKR-5

VDKR-5-TB

VDKR-6

VDKR-6-TB

VDKR-7

VDKR-7-TB

VDKR-8

VDKR-8-TB

VDKR-BASE

VDKR-BASE-W

VDKR-BB-F

VDKR-BB-W

VDKR-CON

VDKR-G3

VDKR-G3-B

VDKR-G4

VDKR-P101

VDKR-P102

VDKR-P107

VDKR-VM1

VDKR-VM2

VDKR-W-101

VDKR-W-102

SDS Sheets

No SDS Sheets For This Product

Other PDFs

No "Other PDFs" For This Product







Visit Our Youtube Channel For All Available Videos For All Products

Enhanced Product Content

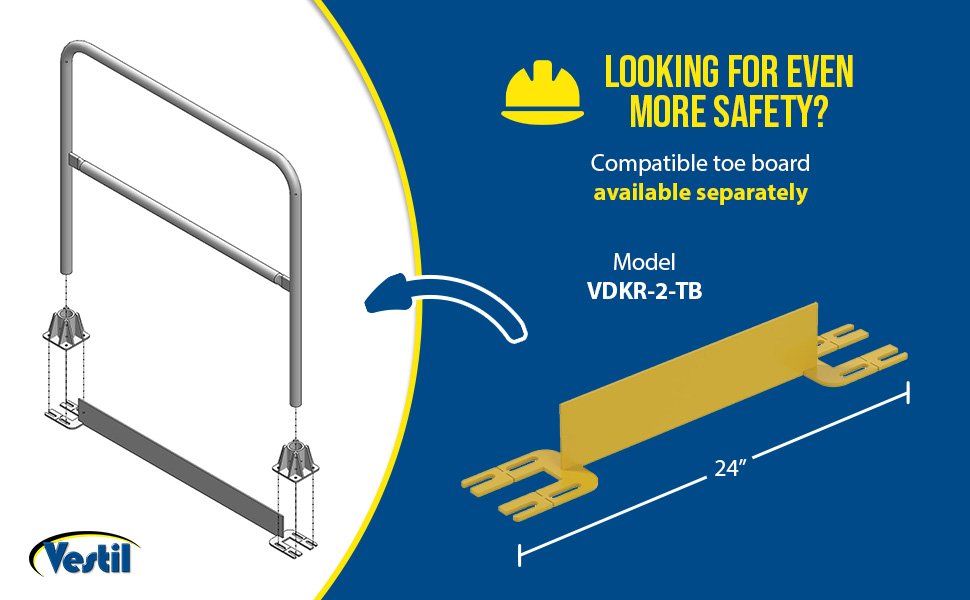

VDKR-2

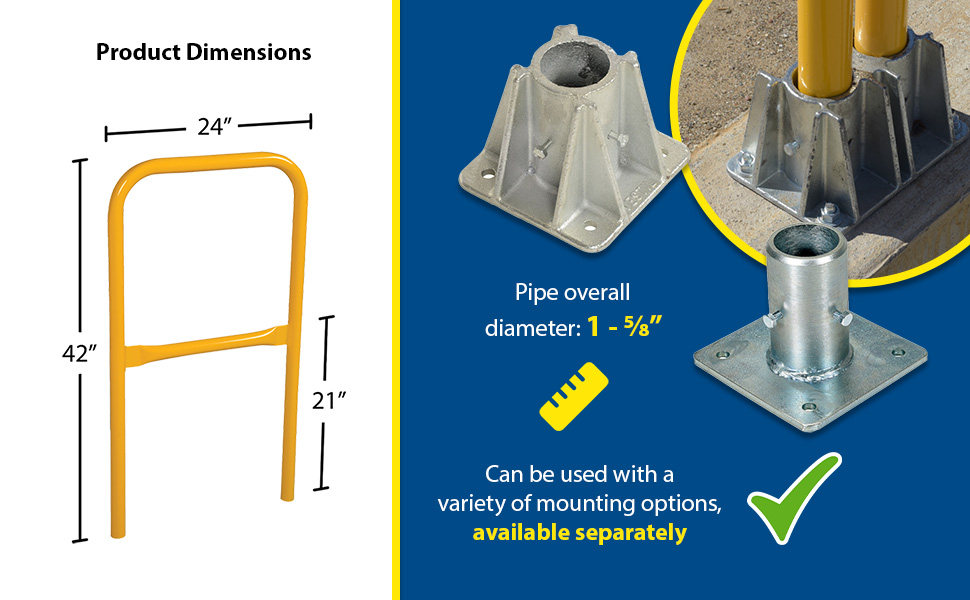

VDKR-2 VDKR-2 A+ Content - 1
VDKR-2 VDKR-2 A+ Content - 4
VDKR-2 VDKR-2 A+ Content - 3
VDKR-2 VDKR-2 A+ Content - 2
VDKR-3

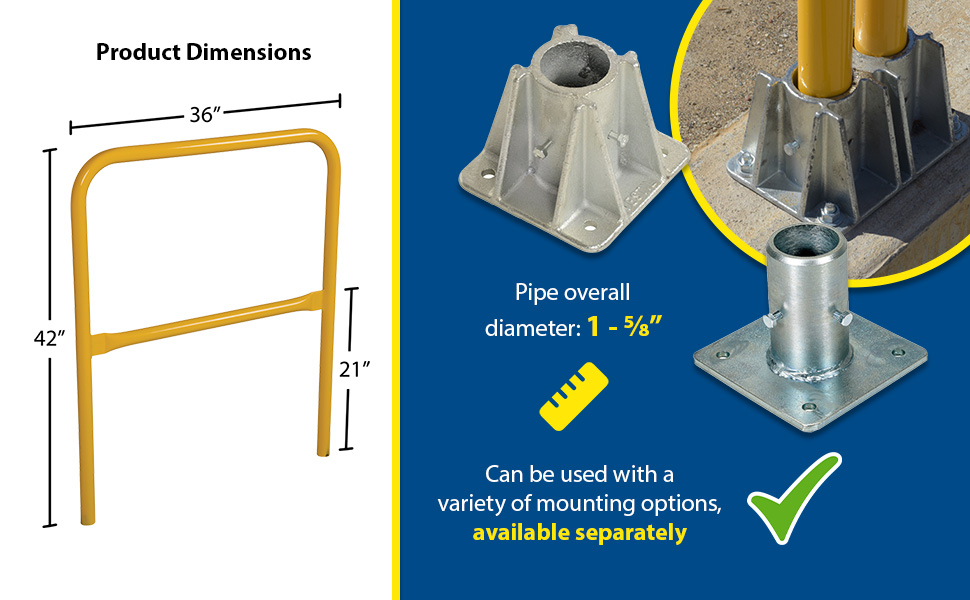

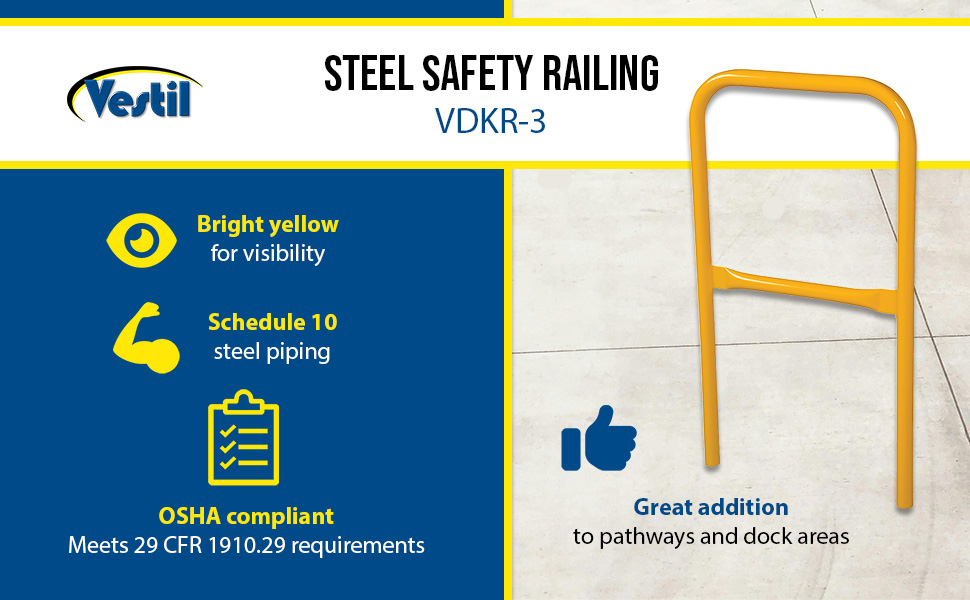

VDKR-3 VDKR-3 A+ Content - 2
VDKR-3 VDKR-3 A+ Content - 1
VDKR-3 VDKR-3 A+ Content - 4
VDKR-3 VDKR-3 A+ Content - 3

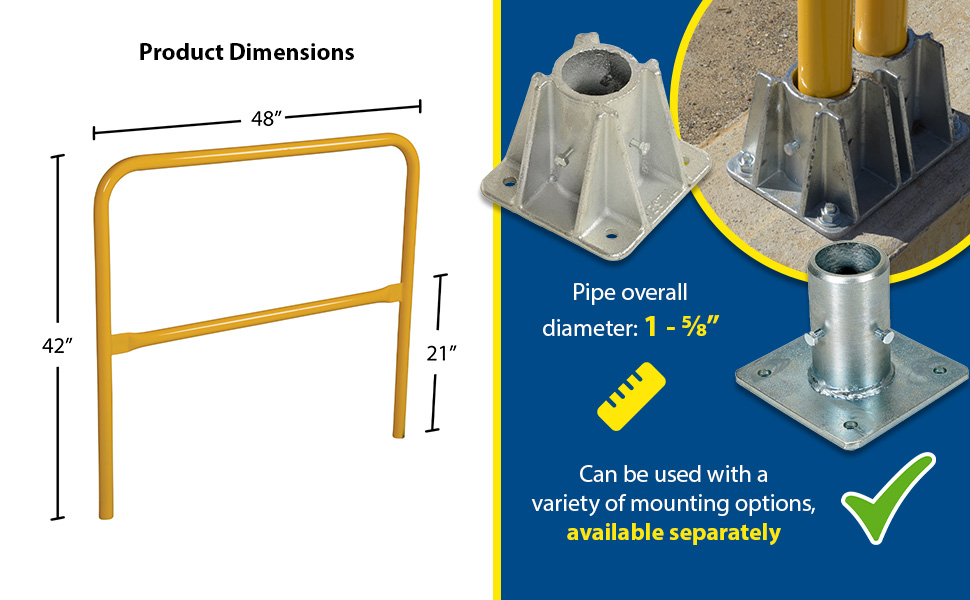

VDKR-4
VDKR-4 VDKR-4 A+ Content - 3
VDKR-4 VDKR-4 A+ Content - 2
VDKR-4 VDKR-4 A+ Content - 1
VDKR-4 VDKR-4 A+ Content - 4
VDKR-5

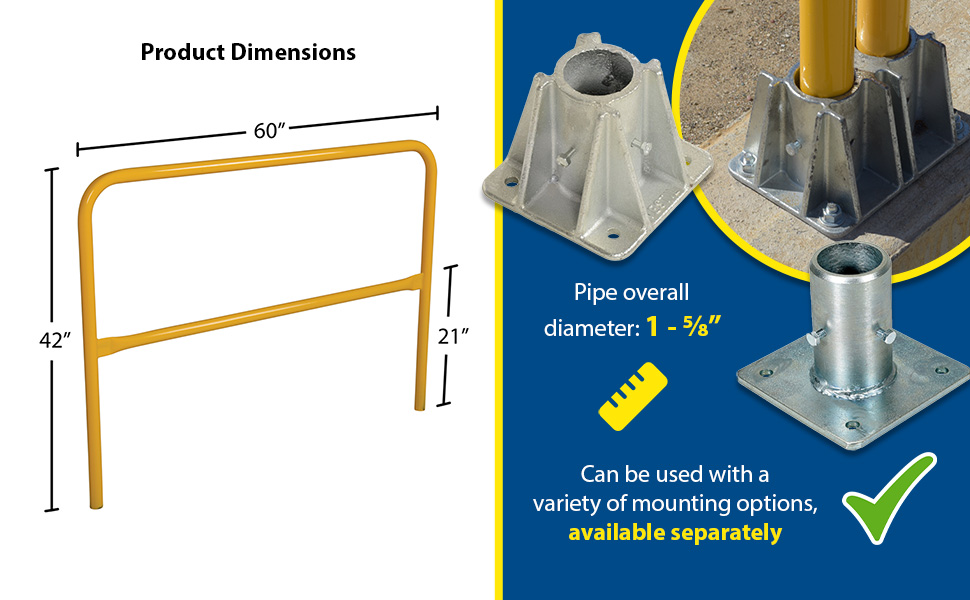

VDKR-5 VDKR-5 A+ Content - 3
VDKR-5 VDKR-5 A+ Content - 2
VDKR-5 VDKR-5 A+ Content - 1
VDKR-5 VDKR-5 A+ Content - 4
VDKR-6

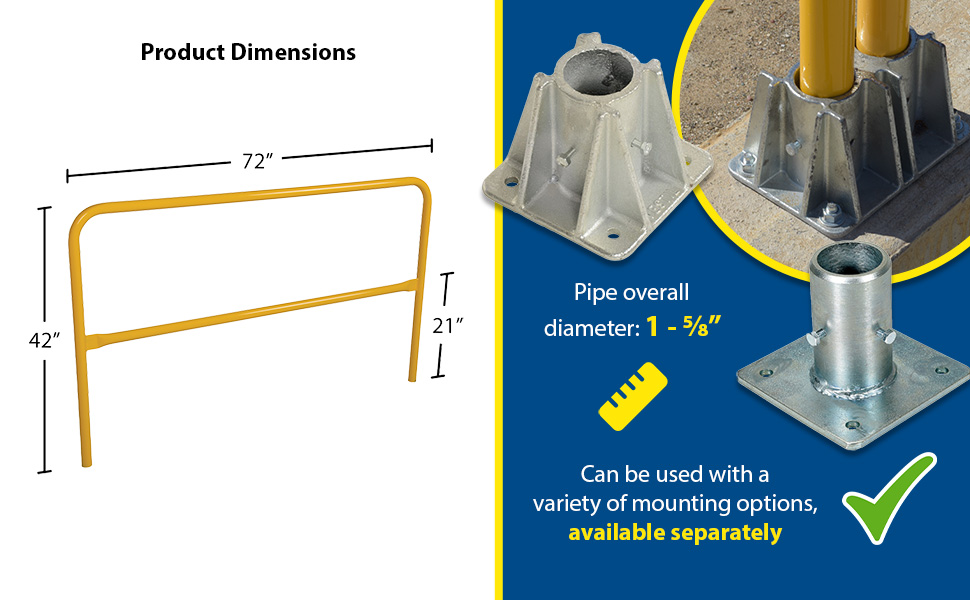

VDKR-6 VDKR-6 A+ Content - 4
VDKR-6 VDKR-6 A+ Content - 3
VDKR-6 VDKR-6 A+ Content - 2
VDKR-6 VDKR-6 A+ Content - 1
VDKR-8

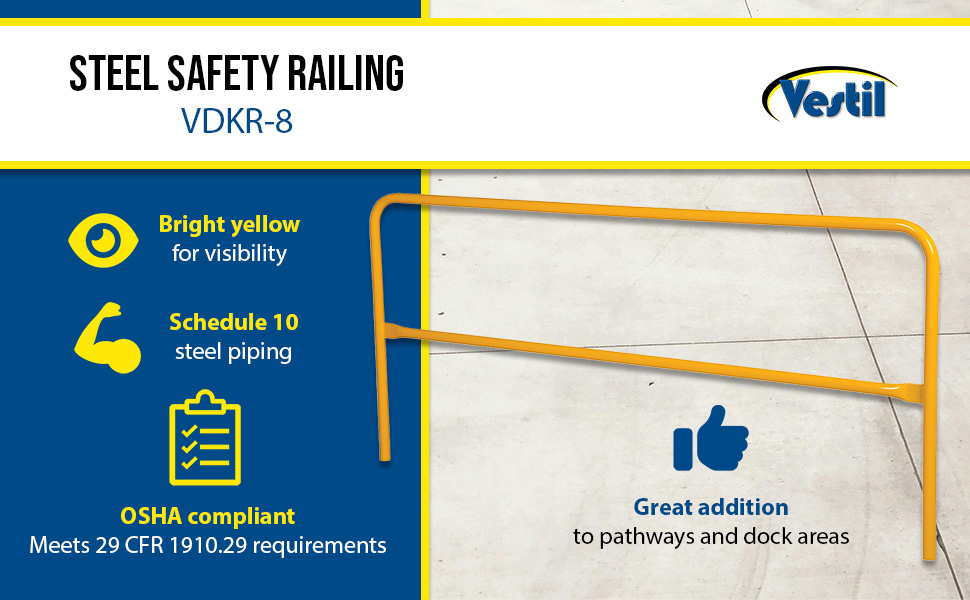

VDKR-8 VDKR-8 A+ Content - 4
VDKR-8 VDKR-8 A+ Content - 3
VDKR-8 VDKR-8 A+ Content - 2
VDKR-8 VDKR-8 A+ Content - 1

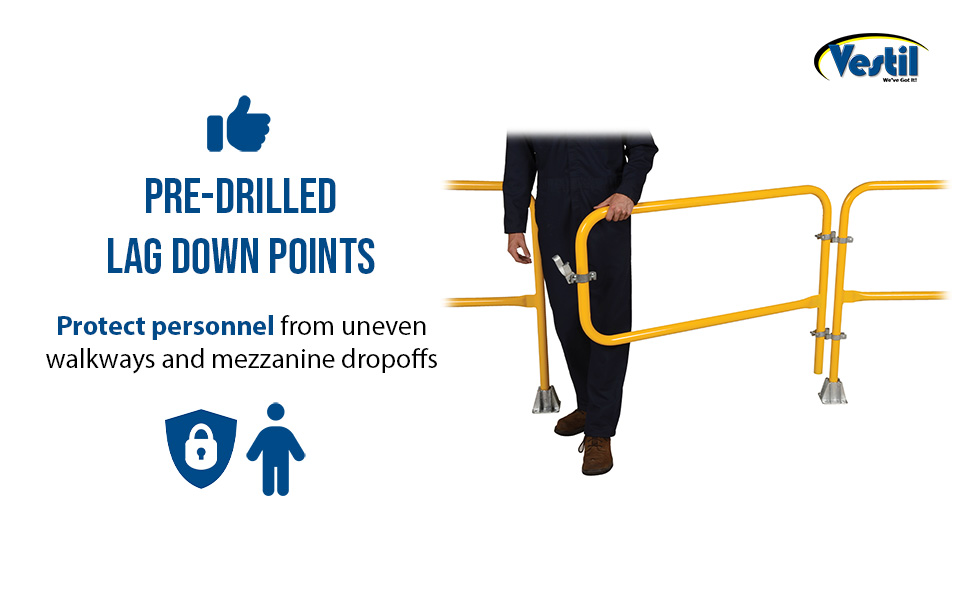

VDKR-G4
VDKR-G4 VDKR-G4 A+ Content - 2
VDKR-G4 VDKR-G4 A+ Content - 1
VDKR-W-101

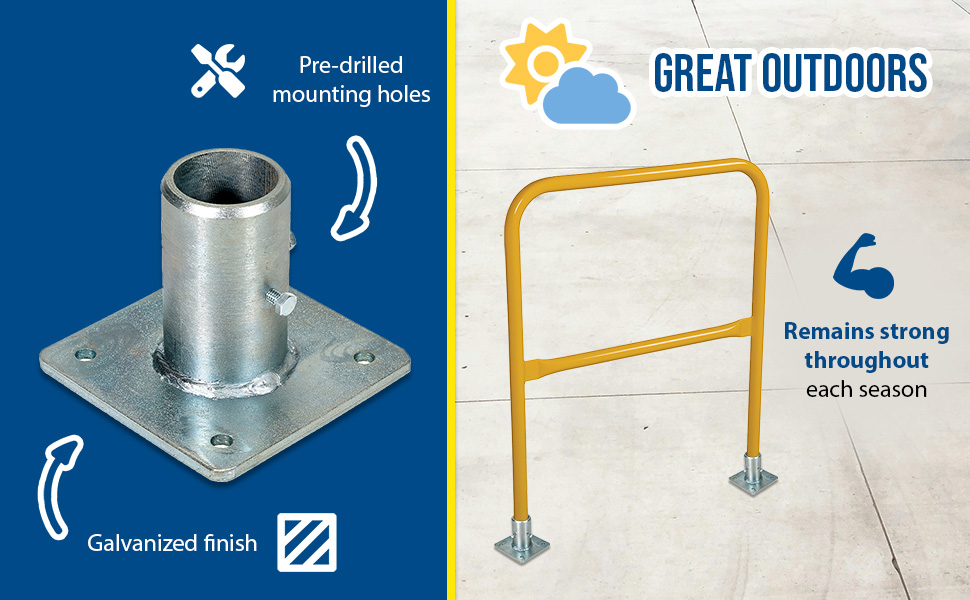

VDKR-W-101 VDKR-W-101 A+ Content - 3
VDKR-W-101 VDKR-W-101 A+ Content - 2
VDKR-W-101 VDKR-W-101 A+ Content - 1

Safety Railing Specialty Colors Available!

Steel VDKR Colors

YELLOW (standard)

VDKR-6

YELLOW (standard)
Model Suffix: No Suffix

BLACK

VDKR-6-BK

BLACK
Model Suffix: -BK

BLUE

VDKR-6-BL

BLUE
Model Suffix: -BL

GRAY


GRAY
Model Suffix: -GYSG

ORANGE

VDKR-6-OR

ORANGE
Model Suffix: -OR

RED

VDKR-6-RD

RED
Model Suffix: -RD

SILVER

VDKR-6-SL

SILVER
Model Suffix: -SL

WHITE

VDKR-6-WT

WHITE
Model Suffix: -WT


Notice These swatches are a representation of the colors available, and may not be exact.

For a list of Model Numbers of each Color, Go down to the Model chart below and choose your color from the
Alternate Colors Menu alt-colors-icon.jpg

Applications



Construction Projects

Municipalities

Universities

Military

Restaurants

Warehouses

Hotels

Train Stations

Superstores
I'm interested in the steel safety railing. When using the double socket what is the gap between the two railings?

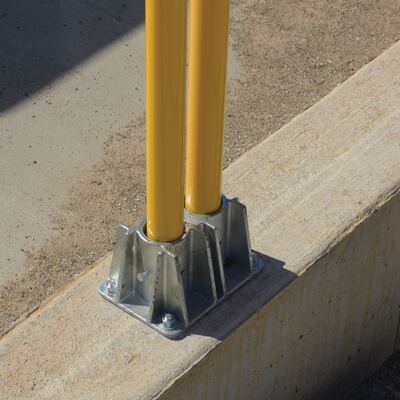

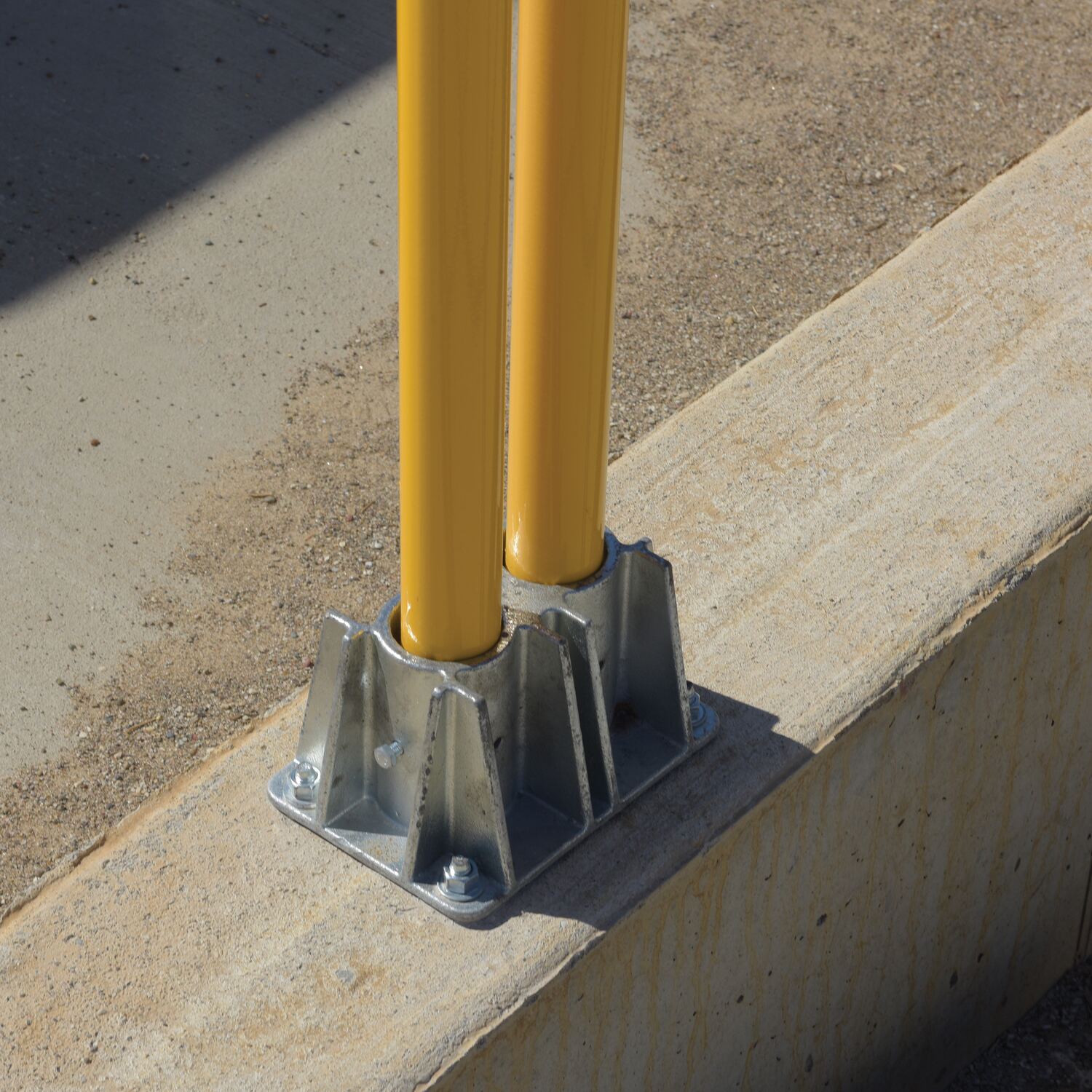

When using the VDKR-P102 socket the distance between the two railings is approximately 1".
We are installing the safety railing and using the double socket. VDKR-P102. How much does it add to the length of the safety railings?
The VDKR-P102 double socket has approximately 1" in between the two railings
We are interested in the safety railings. Will we need the VDKR-CON to connect multiple rails?
The VDKR-CON can be used with some of the bases. Please note if you are using VDKR-P102, VDKR-W-102, VDKR-BASE, or VDKR-BASE-W the connectors (VDKR-CON) should be excluded.
What is the capacity of the railing?
The VDKR will support 200 lbs. of force in any direction.
Does this gate swing in both directions?
Yes, the gate swings in both directions.
What grade is the steel?
The VDKR steel is Grade B.
