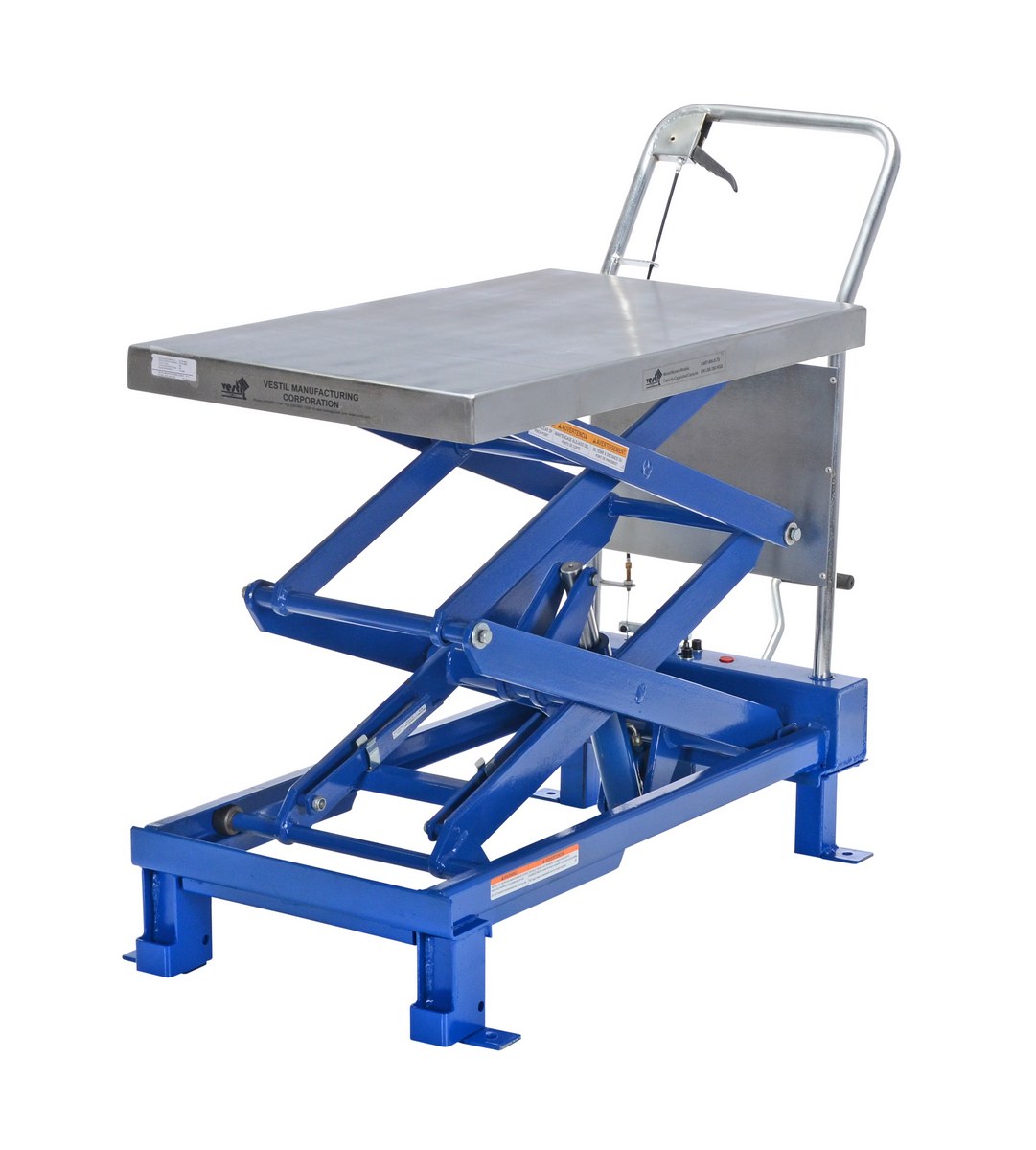

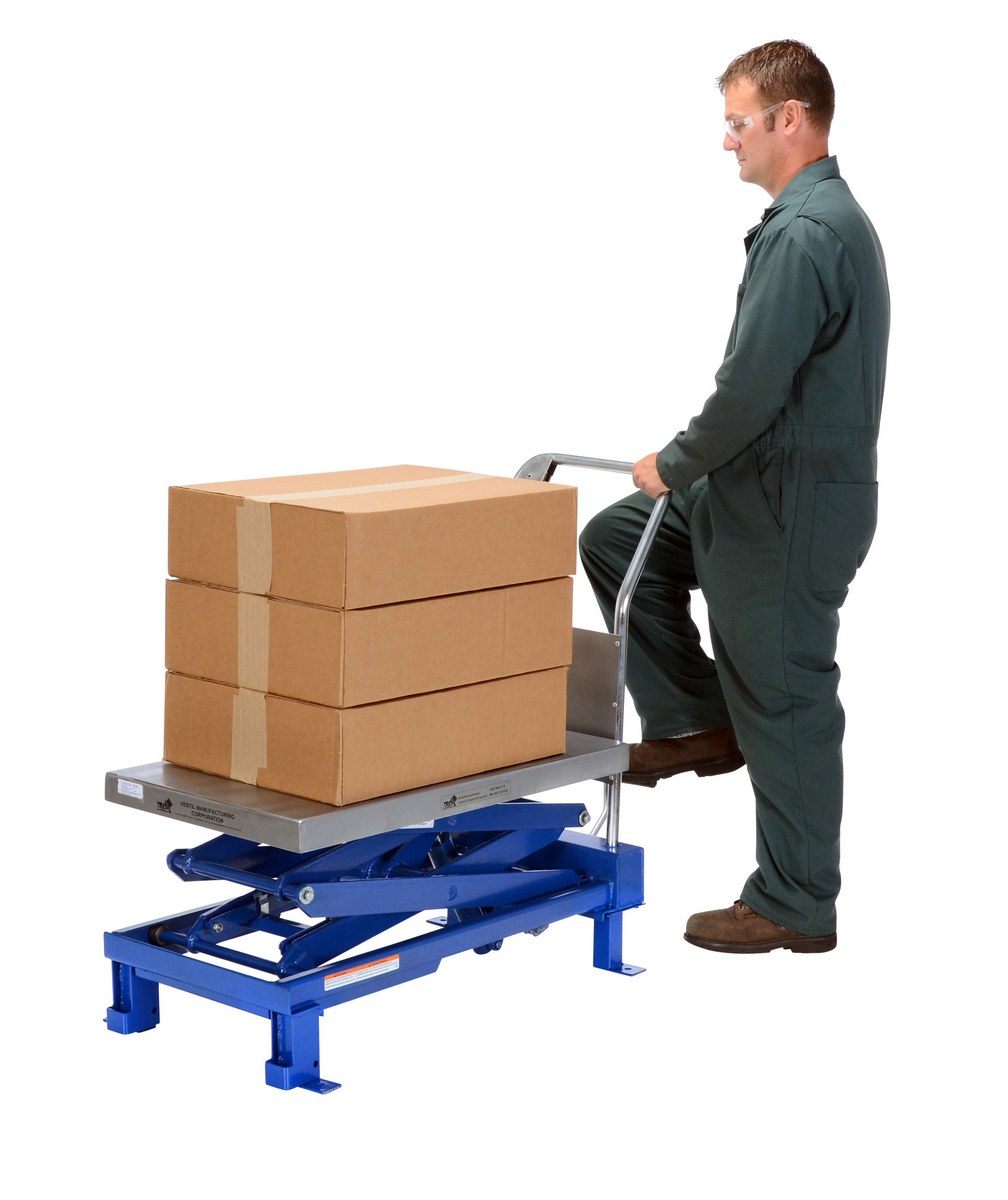

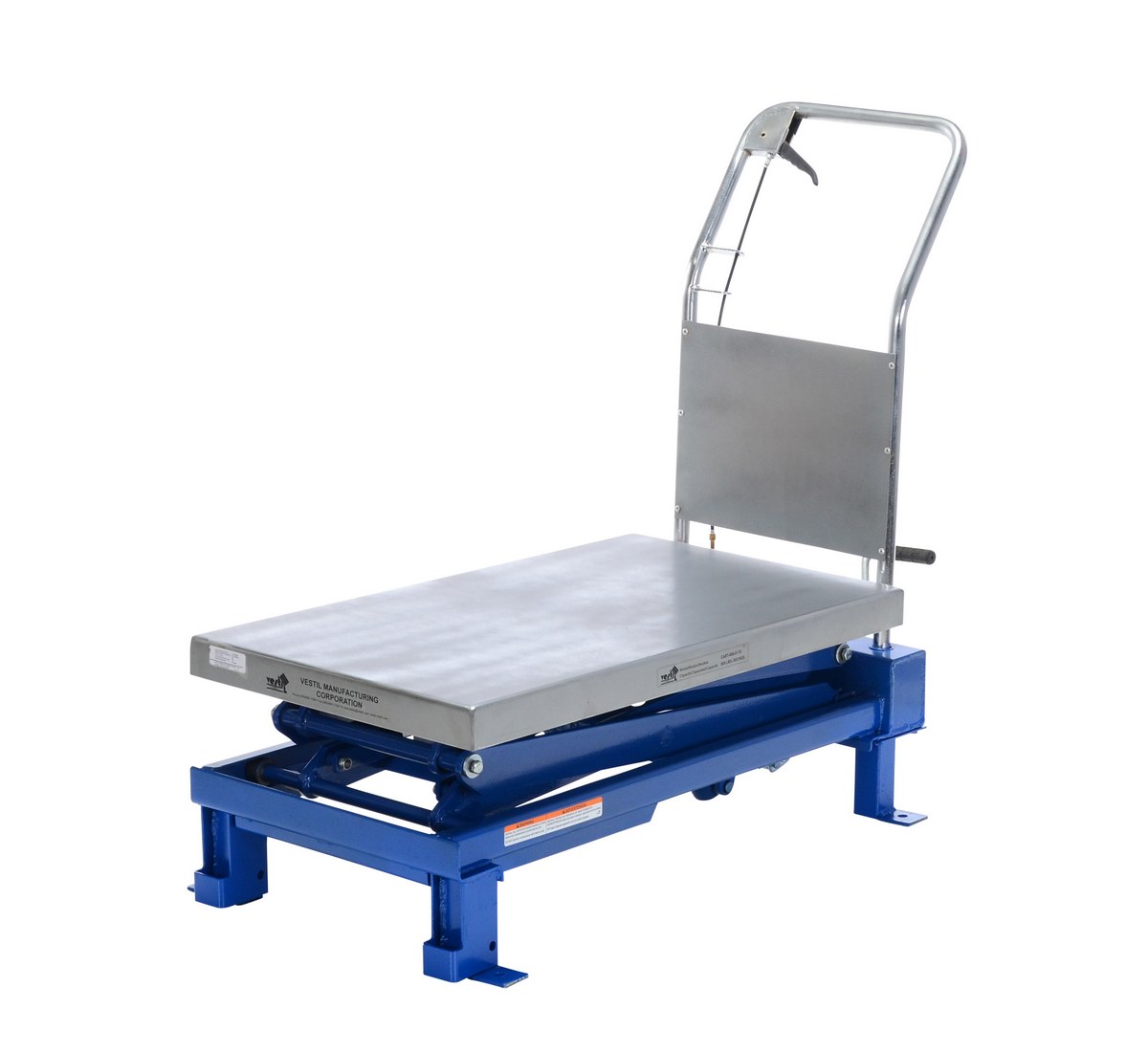

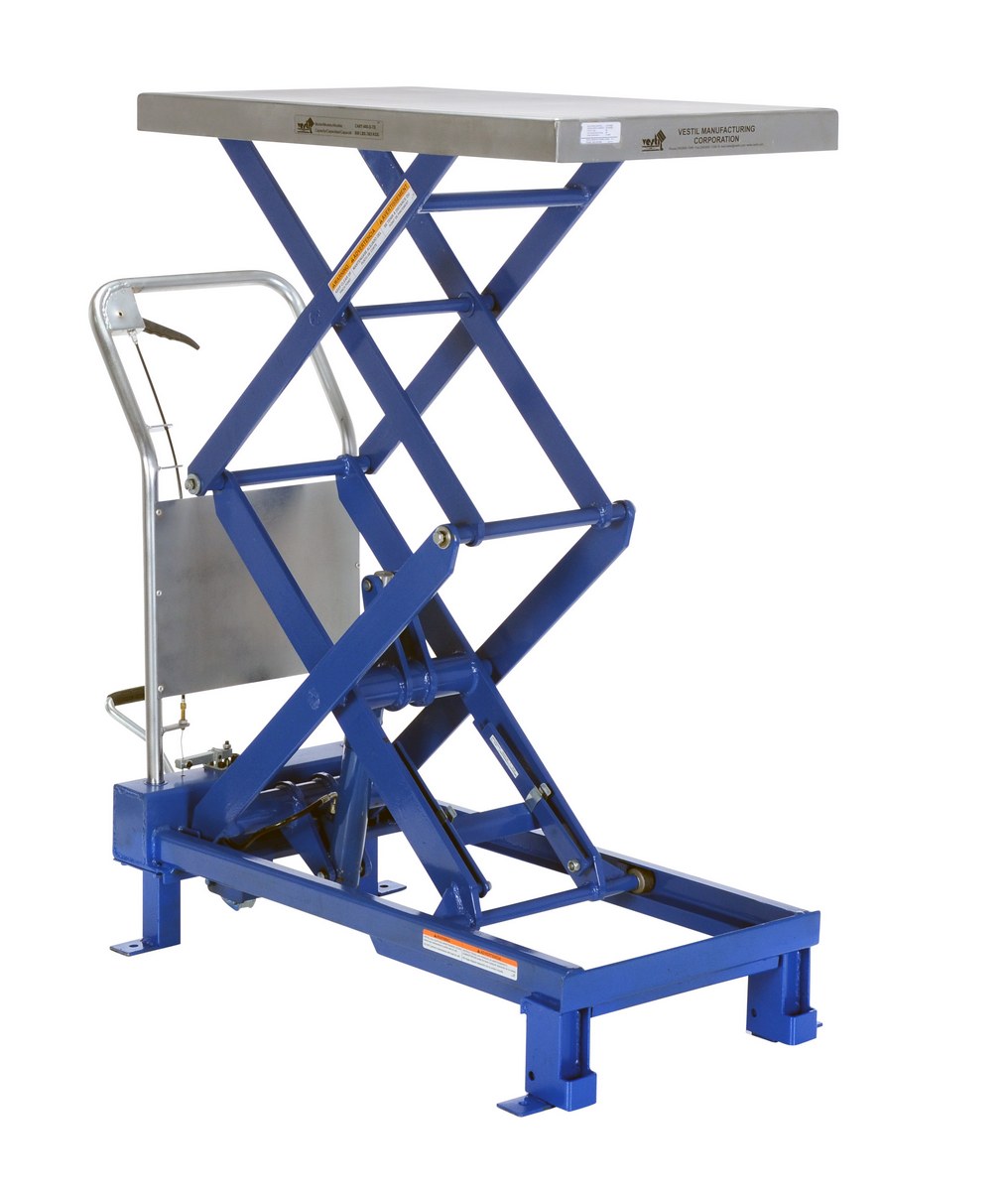

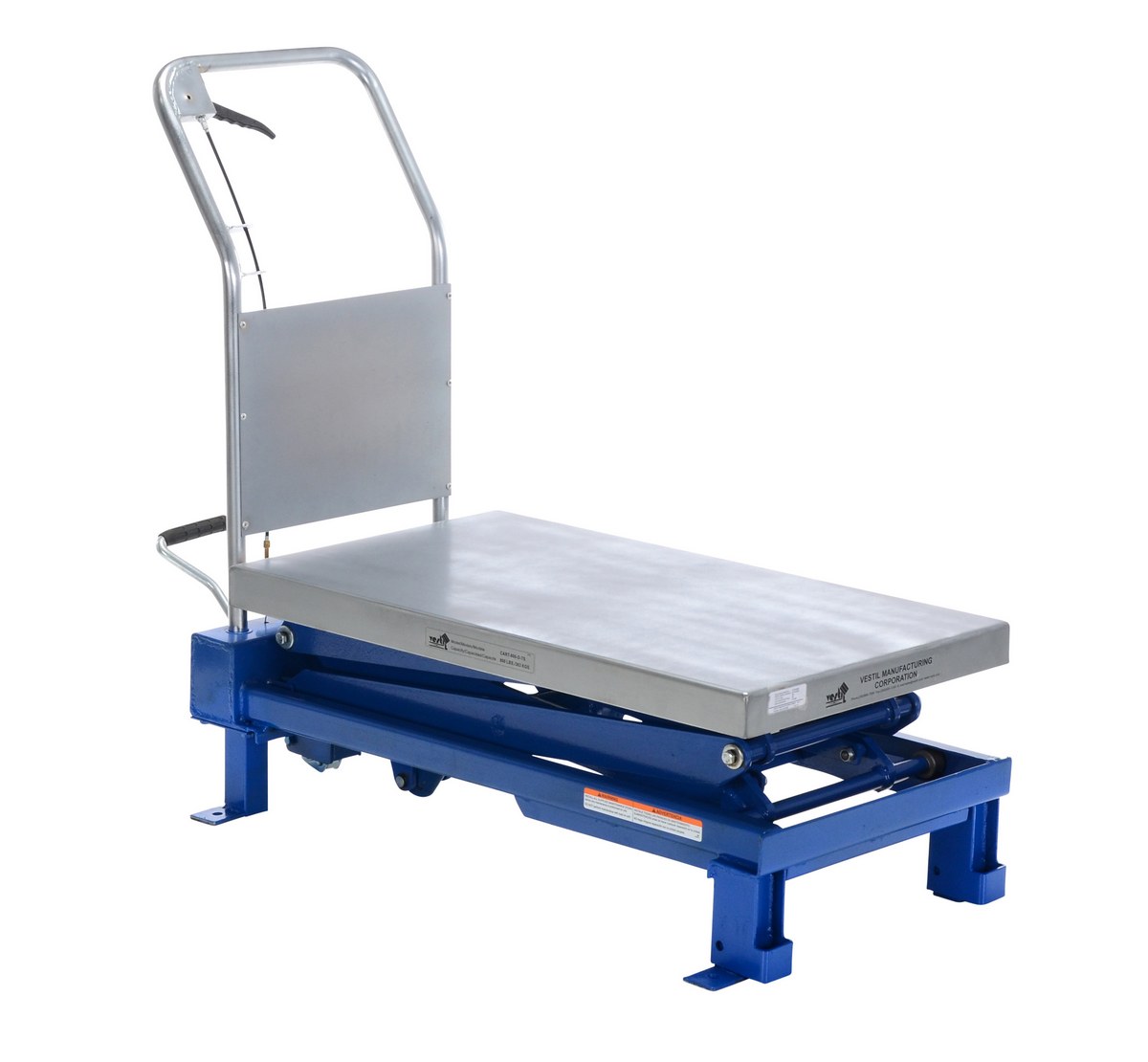

SCTAB-800D_F.jpg SCTAB-800D_A.jpg SCTAB-800D_B.jpg SCTAB-800D_C.jpg
SCTAB-800D_D.jpg SCTAB-800D_E.jpg
Foot Pump & Powered Scissor Lift Tables

model: SCTAB-800D



Featured Ergonomic Solutions


Scissor Carts
Pallet Truck with Digital Scale (Pramac)
Powered Lift Table With Manual Rotation
Pallet Inverters
Safety Back Rest for Pallet Jacks
Pallet Trucks with Hand Brake
Ergonomic Work Chair and Stool
Portable Electric Hydraulic Lift Table
Ergonomic Lumbar Support Stand
model chart

Product Family Overview

Print Friendly
Foot Pump & Powered Scissor Lift Tables
SERIES: SCTAB

Foot Pump Scissor Lift Tables are used by all types of manufacturing and warehousing facilities.Features torsion tubes for side to side stability, pressure flow control valve for controlled lowering, and foot pump. Rugged welded steel construction. Painted blue finish.

DC Scissor Lift Tables utilizes (1) 12V battery, raised and lowered buttons are on top of power unit with on board charger and handheld 2 push-button hand control on an 8' coil cord.

AC Scissor Lift Tables are 460V, 3 phase power with handheld 2 push-button hand control on an 8' coil cord.

Foot Pump Scissor Lift Tables are used by all types of manufacturing and warehousing facilities.Features torsion tubes for side to side stability, pressure flow control valve for controlled lowering, and foot pump. Rugged welded steel construction. Painted blue finish.

DC Scissor Lift Tables utilizes (1) 12V battery, raised and lowered buttons are on top of power unit with on board charger and handheld 2 push-button hand control on an 8' coil cord.

AC Scissor Lift Tables are 460V, 3 phase power with handheld 2 push-button hand control on an 8' coil cord.

Other Elevating Lift Carts

 Heavy Duty Low Profile Scissor Lift Cart Linear Actuated Elevating Carts Low Profile Scissor Cart w/ Auto-Shift Foot Pump & Powered Scissor Lift Tables

Additional Models In This Family
view entire Image Gallery

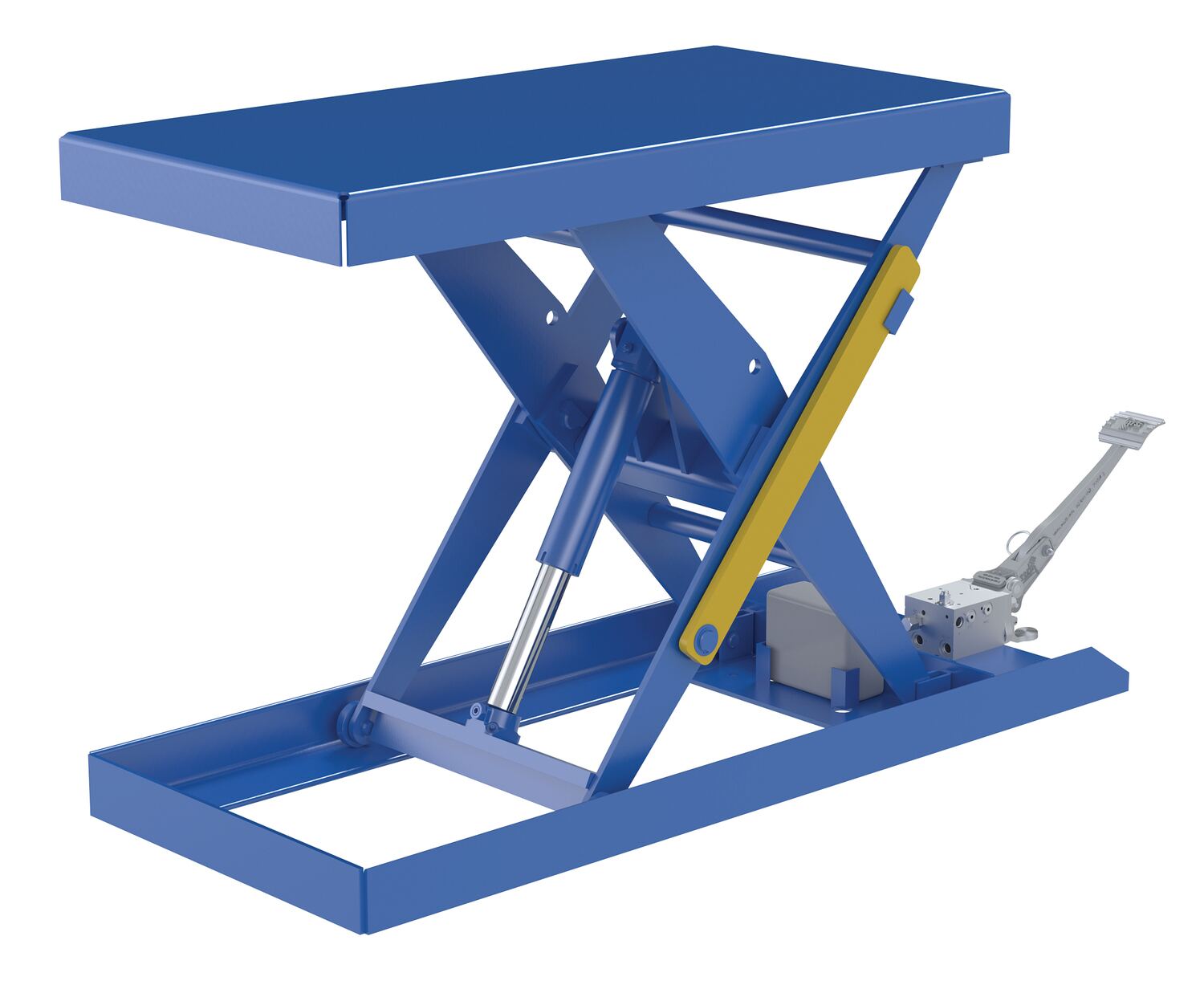

SCTAB-1000-2040-FP

SCTAB-1000-2040-FP

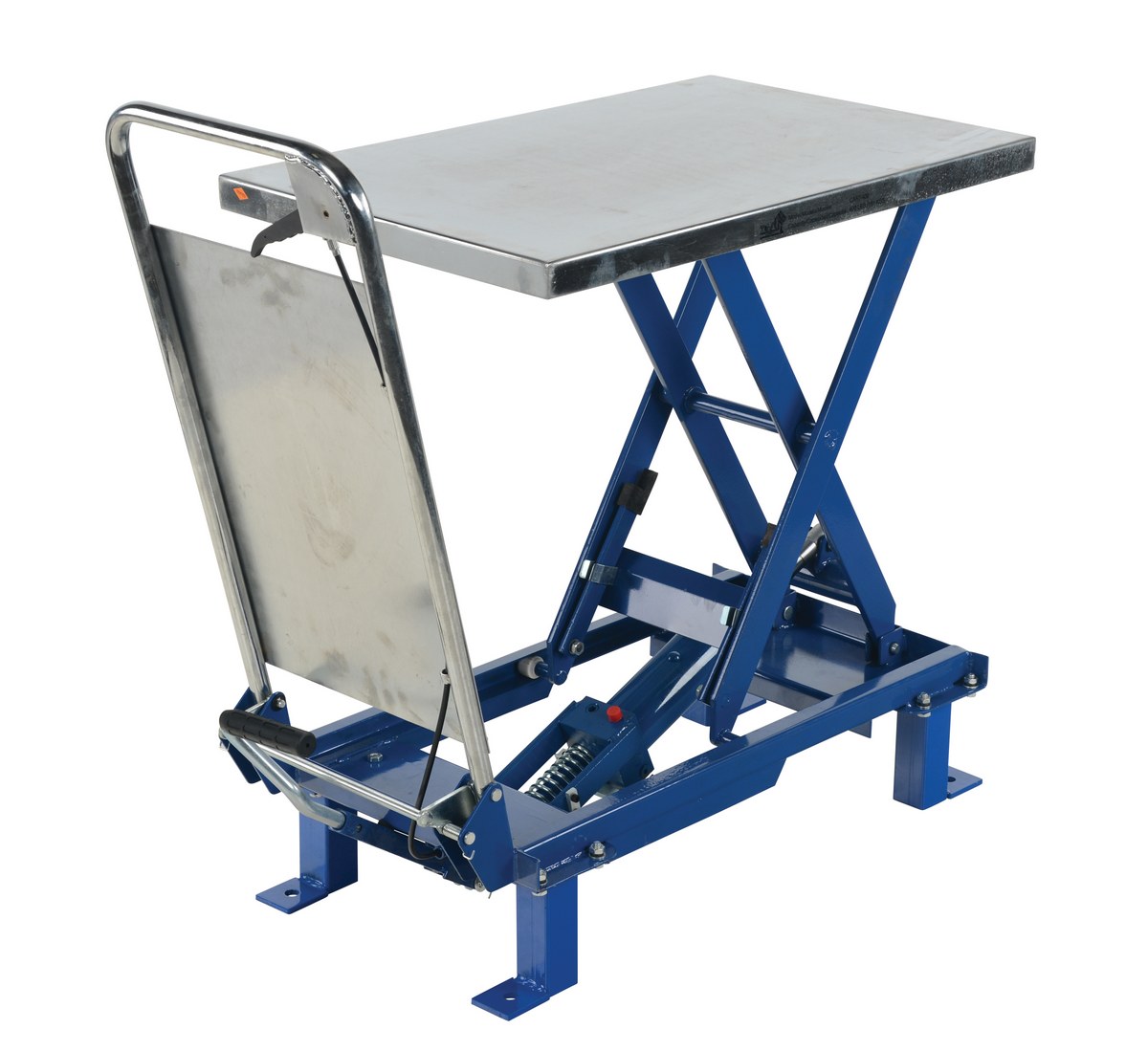

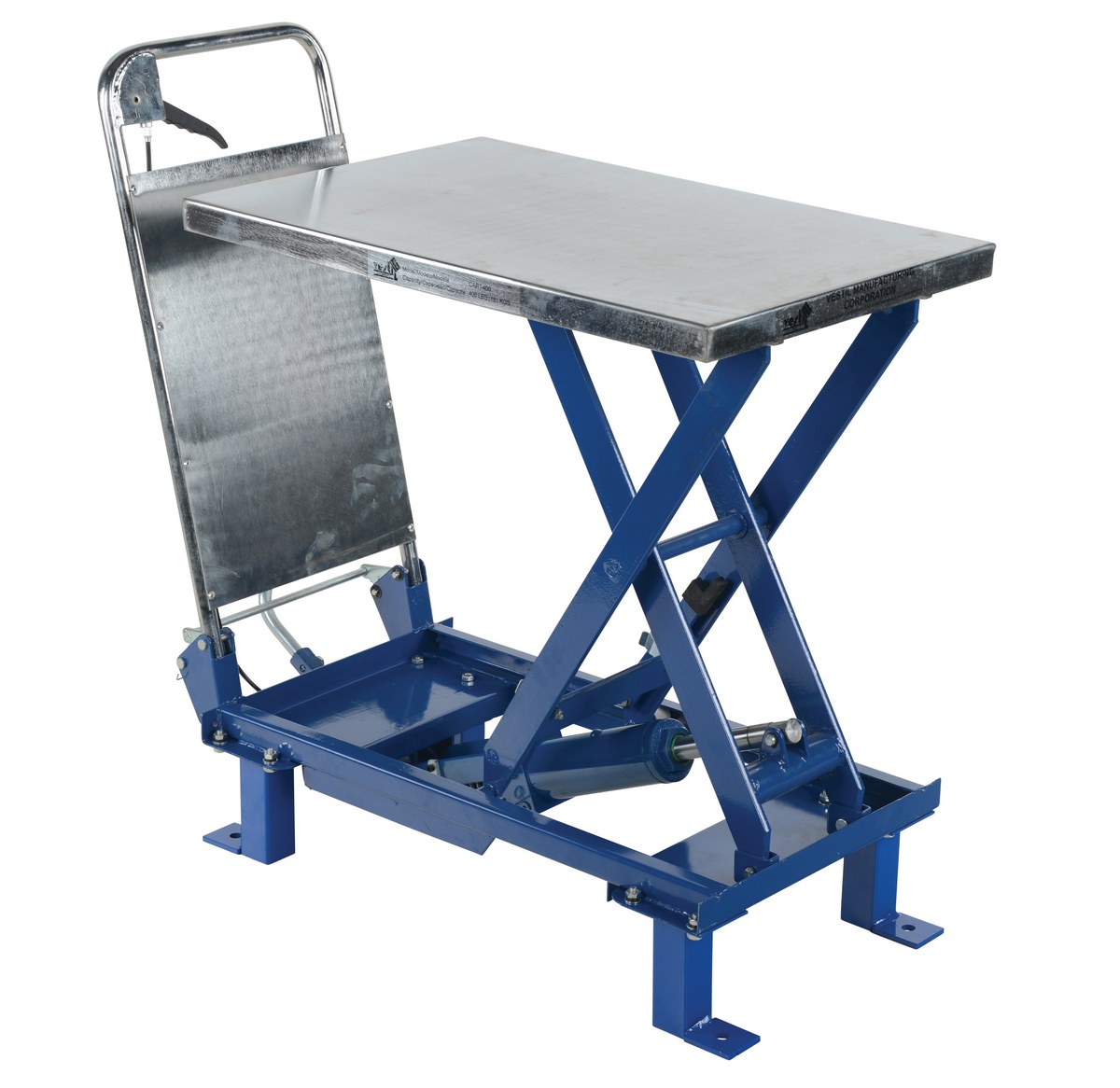

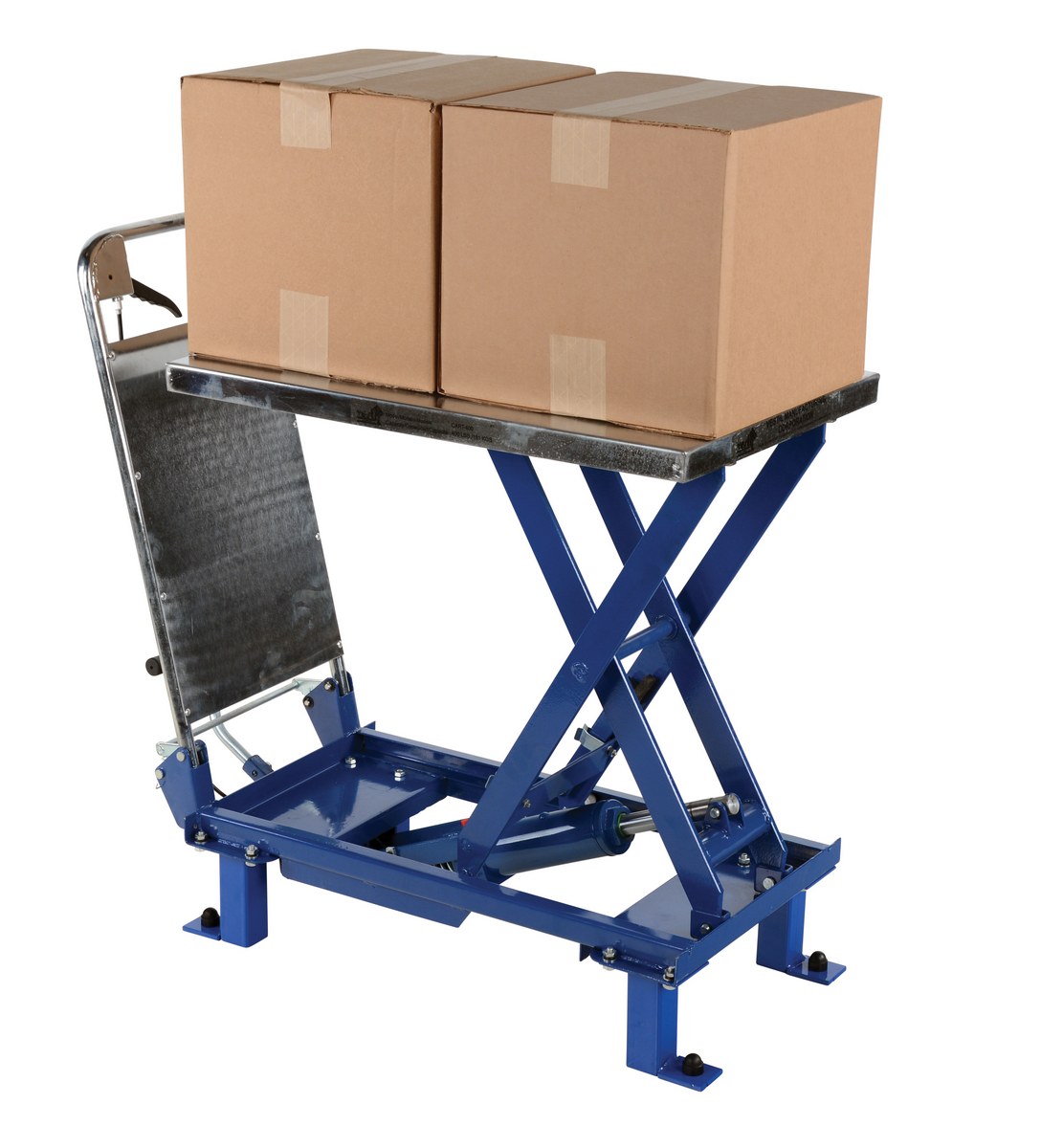

SCTAB-400

SCTAB-400

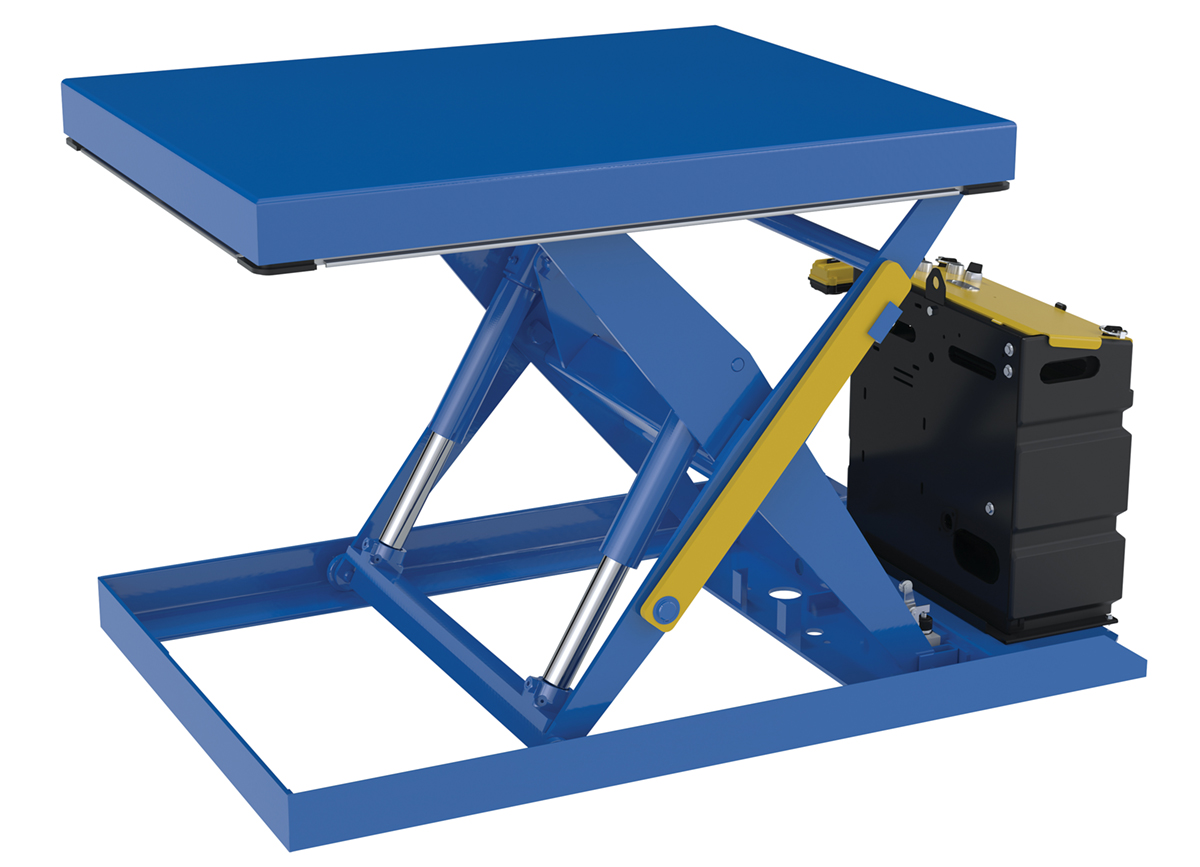

SCTAB-2000-3240-AC

SCTAB-2000-3240-AC

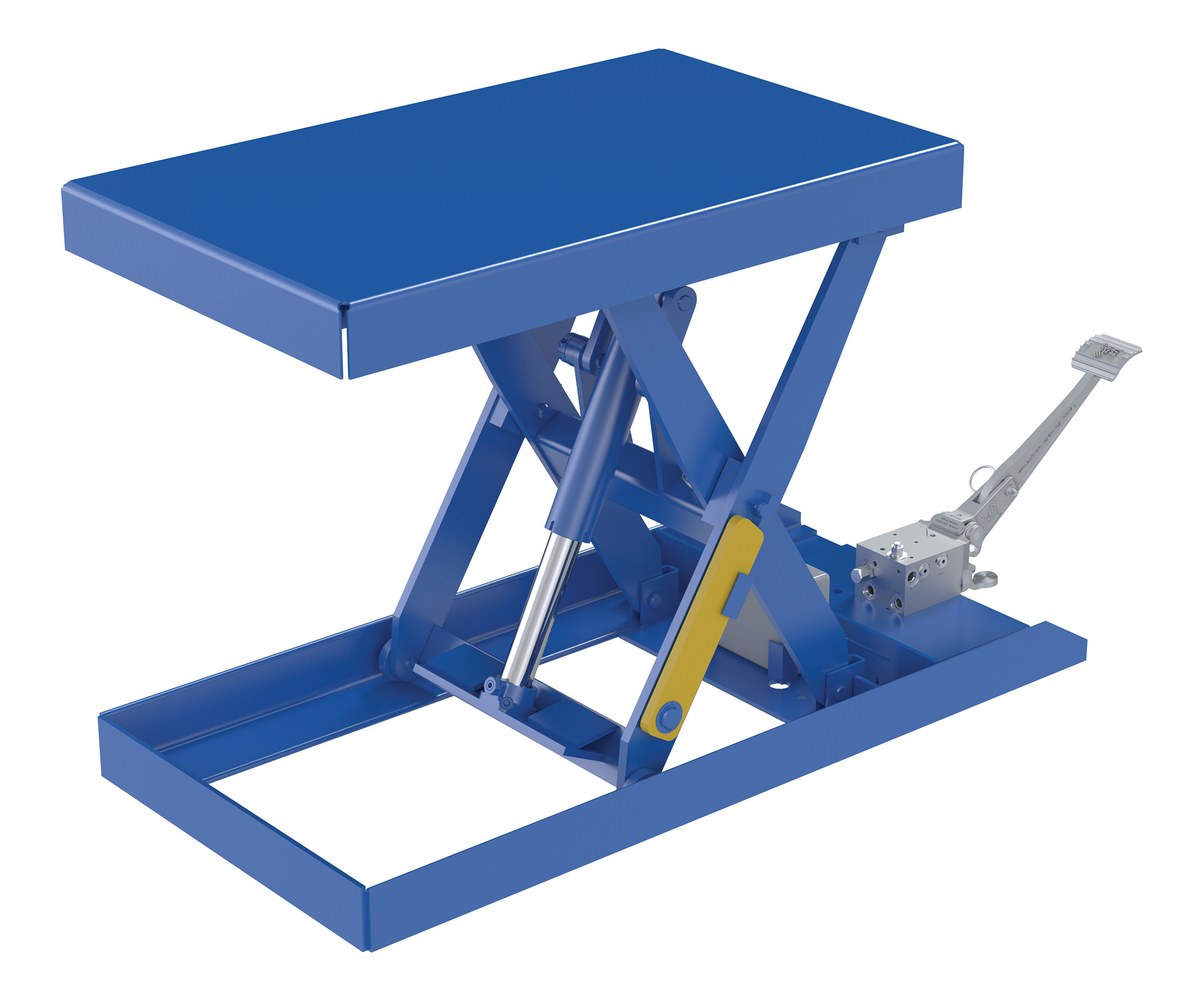

SCTAB-500-2033-FP

SCTAB-500-2033-FP

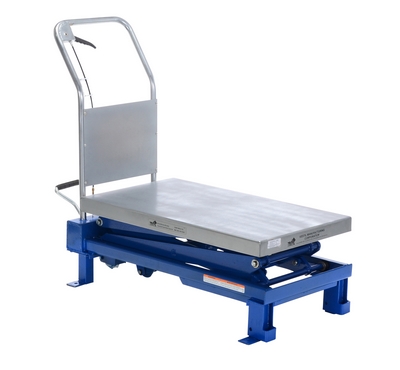

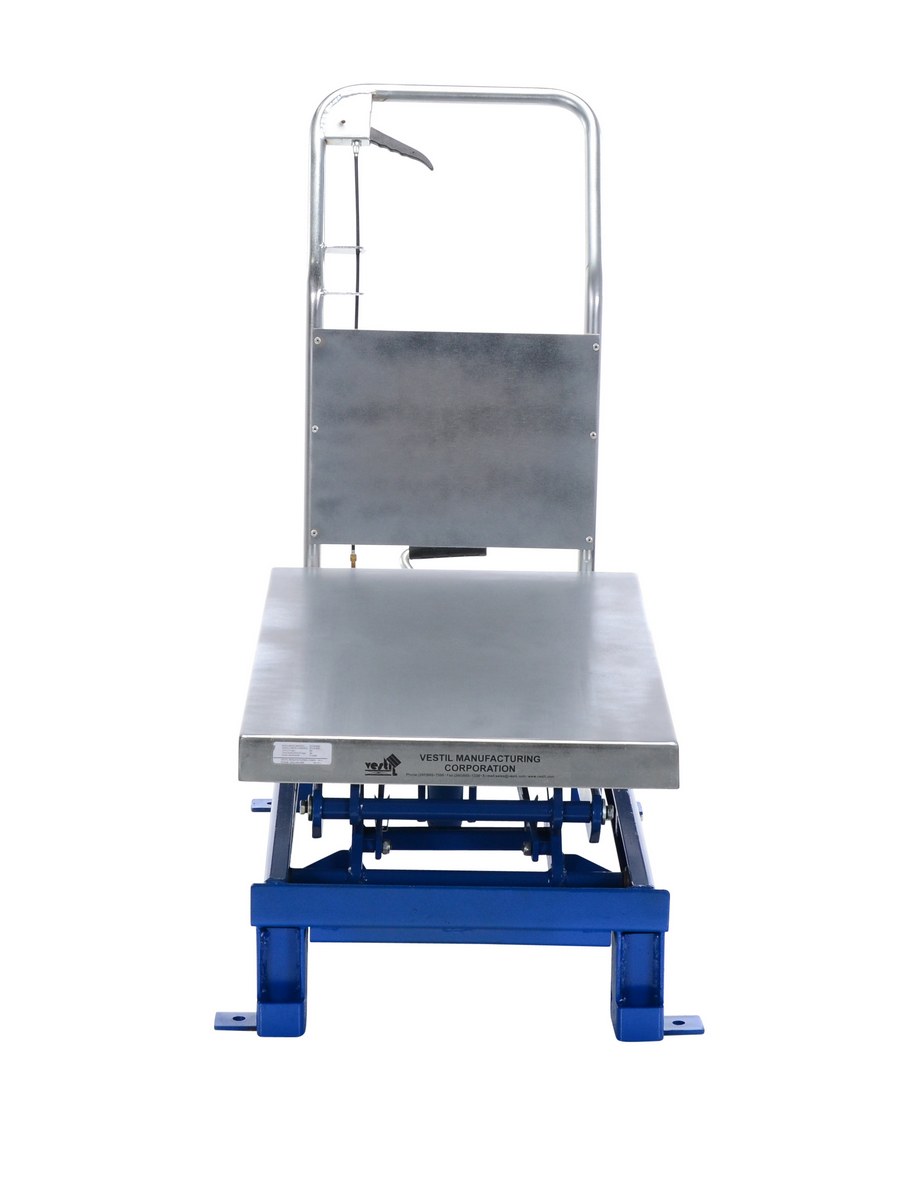

SCTAB-800D

SCTAB-800D

SCTABD-1000-2033-FP

SCTABD-1000-2033-FP

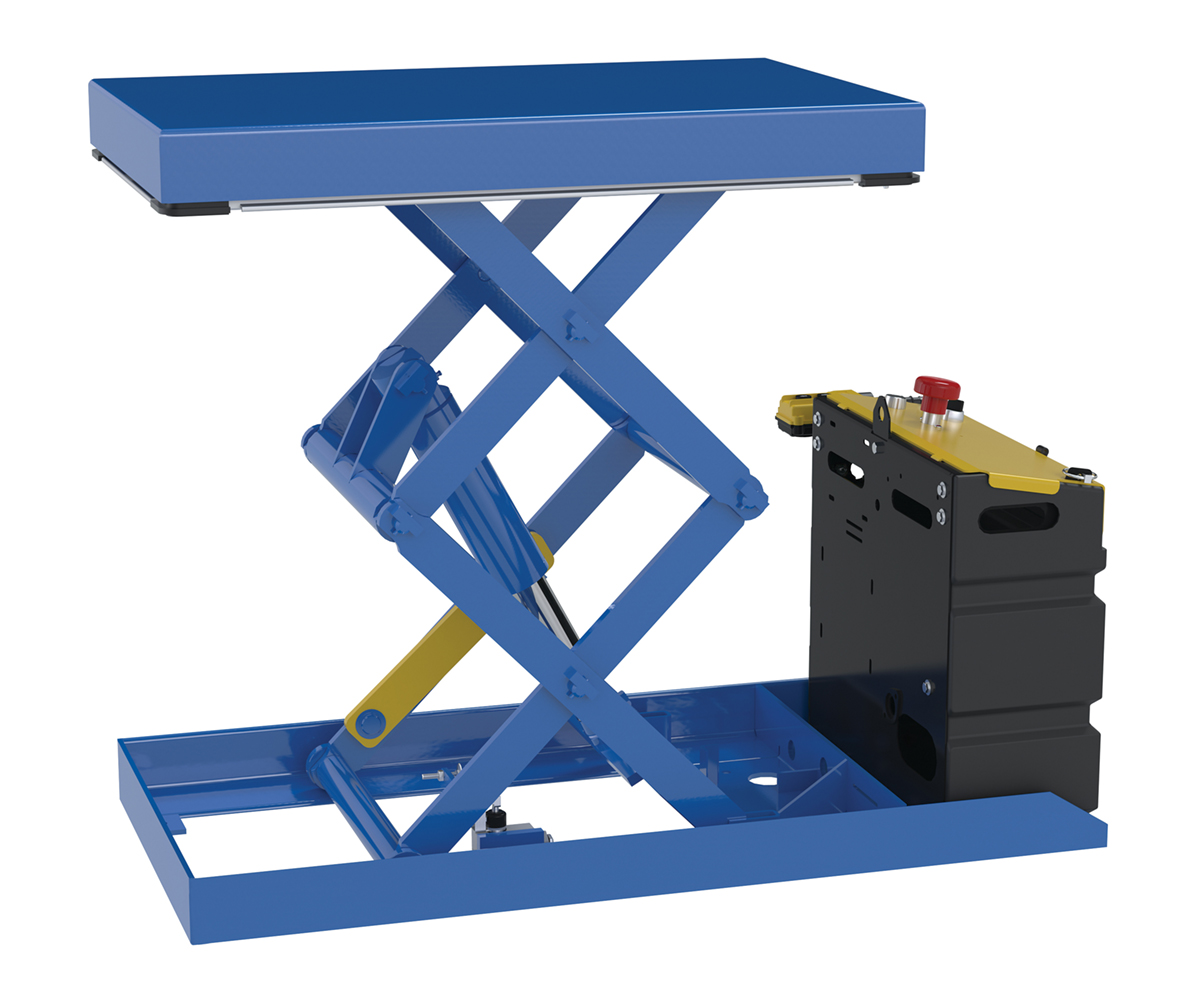

SCTABD-1000-2033-DC

SCTABD-1000-2033-DC

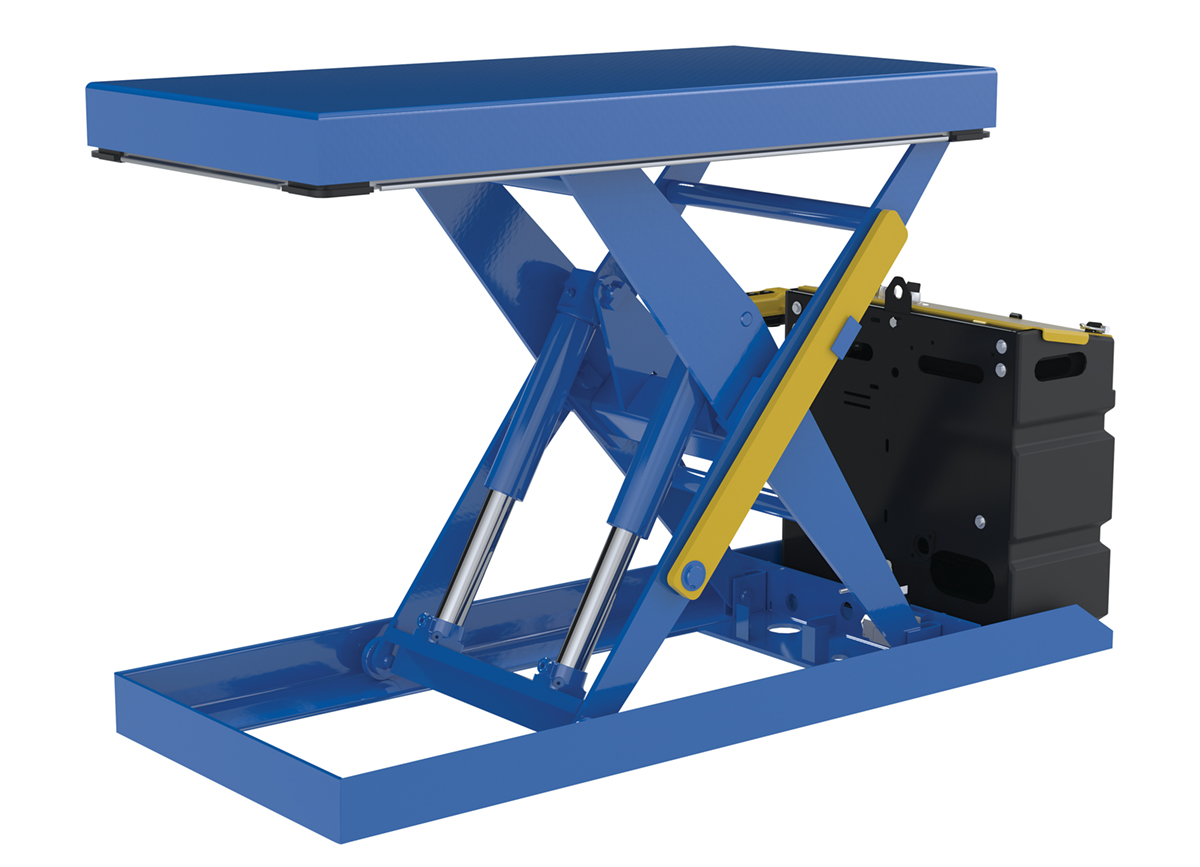

SCTAB-2000-2040-AC

SCTAB-2000-2040-AC

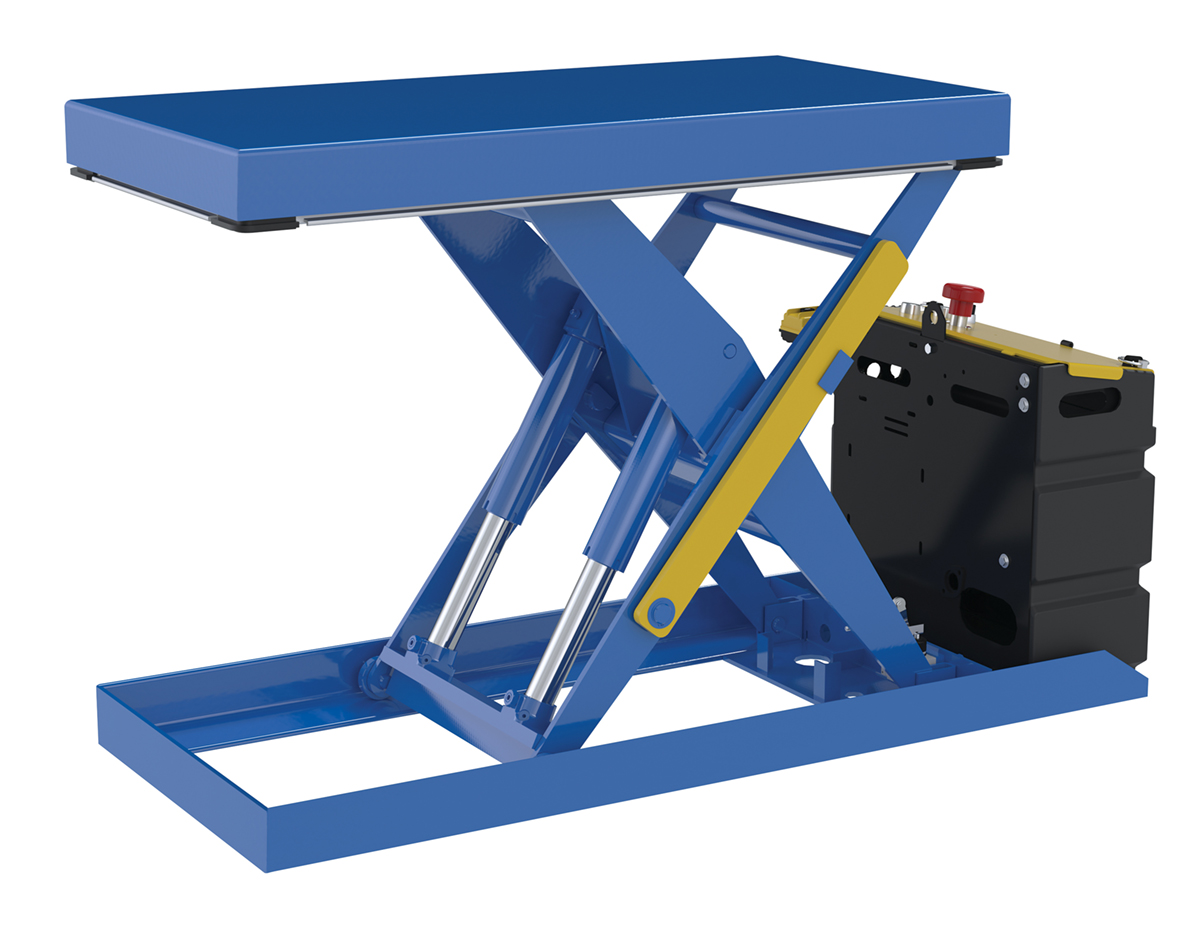

SCTAB-2000-2040-DC

SCTAB-2000-2040-DC

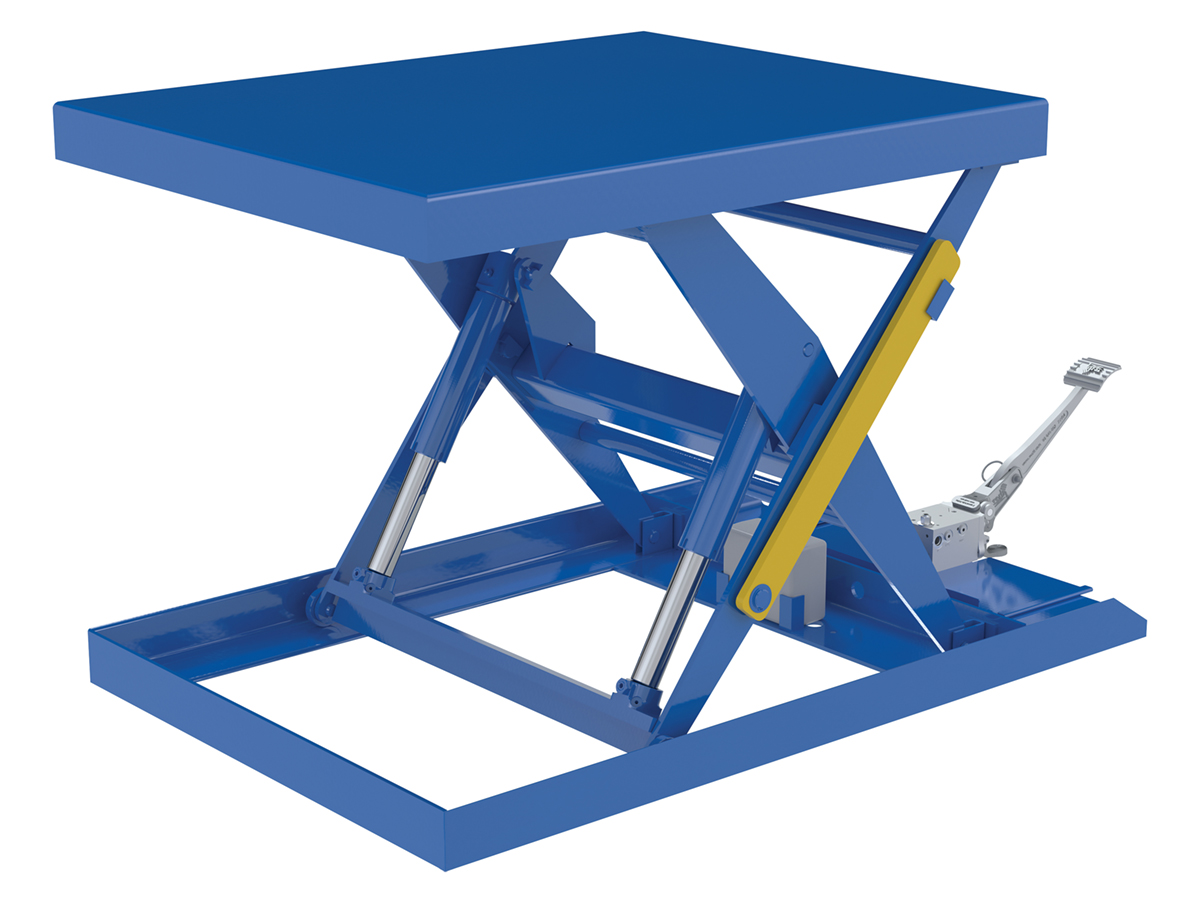

SCTAB-2000-3240-FP

SCTAB-2000-3240-FP

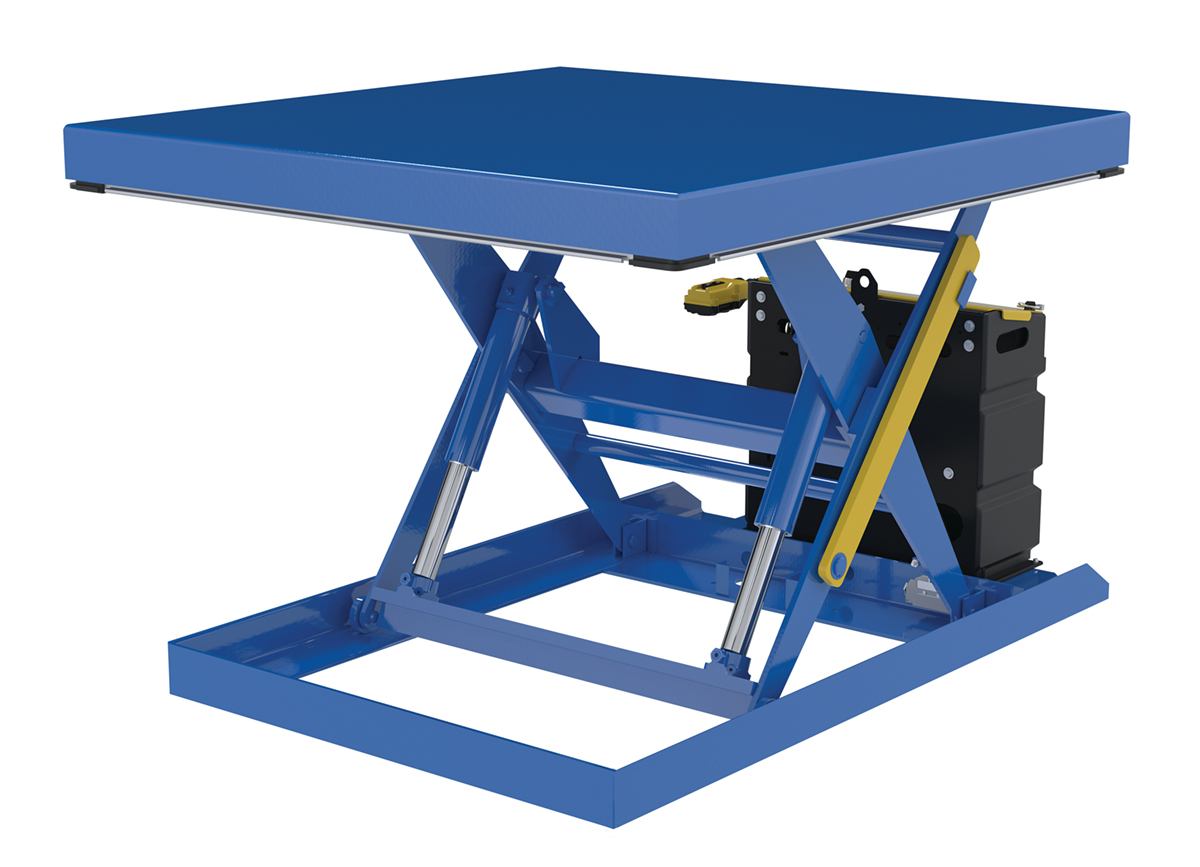

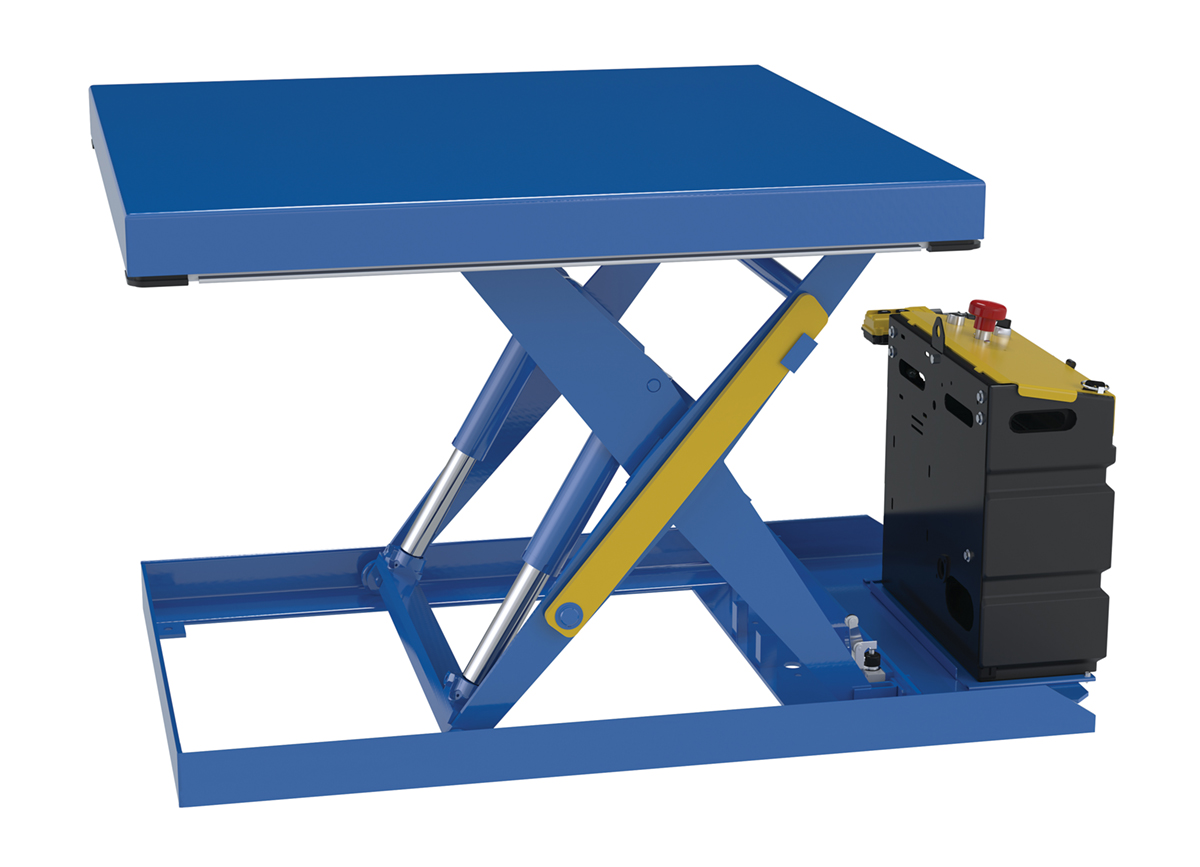

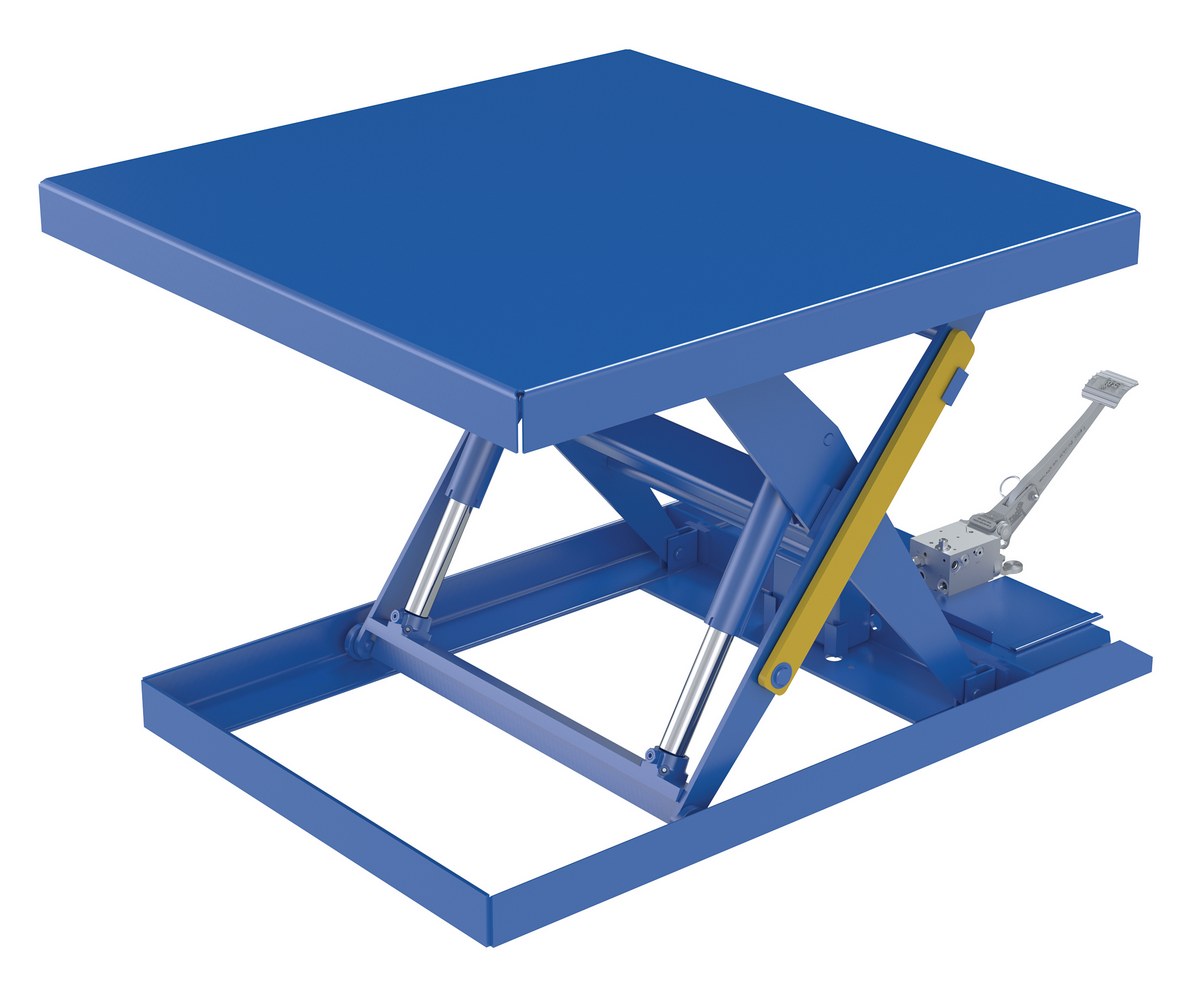

SCTAB-2000-4242-AC

SCTAB-2000-4242-AC

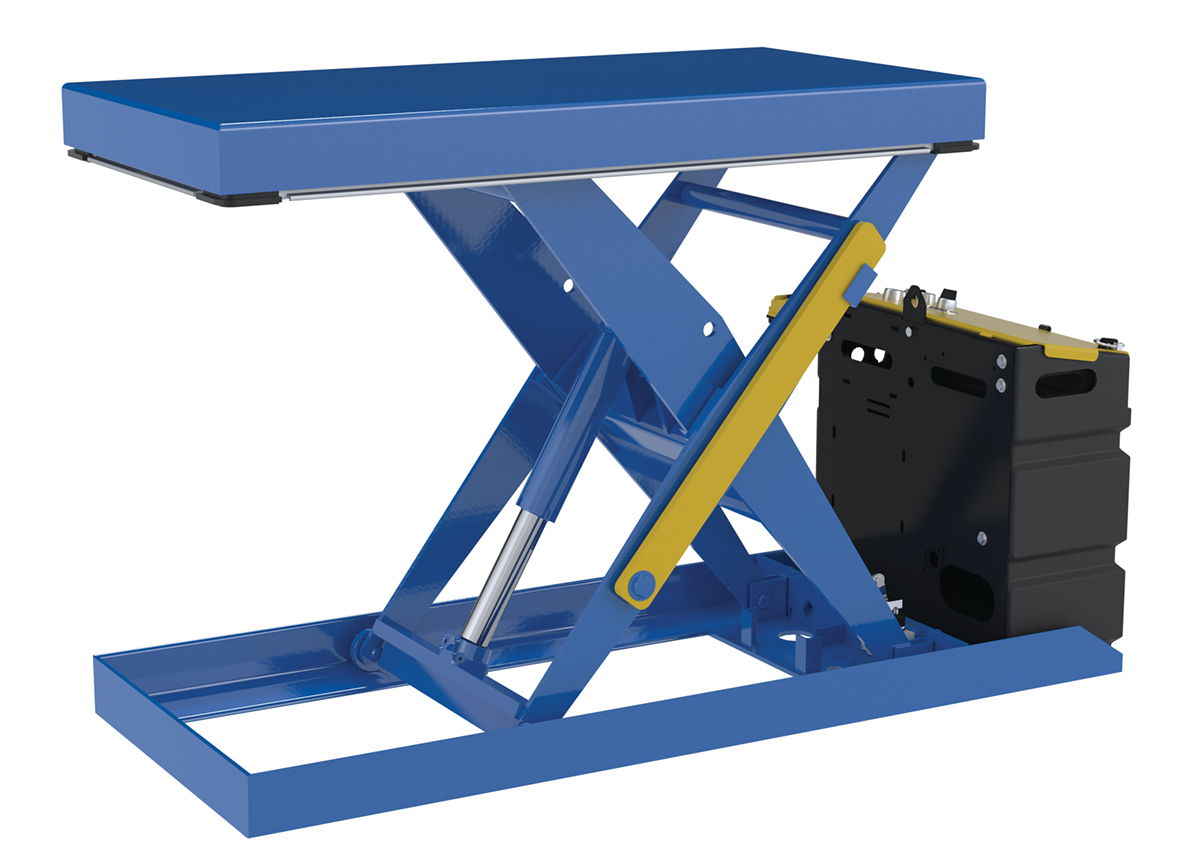

SCTAB-1000-2040-AC

SCTAB-1000-2040-AC

SCTABD-750-2040-AC

SCTABD-750-2040-AC

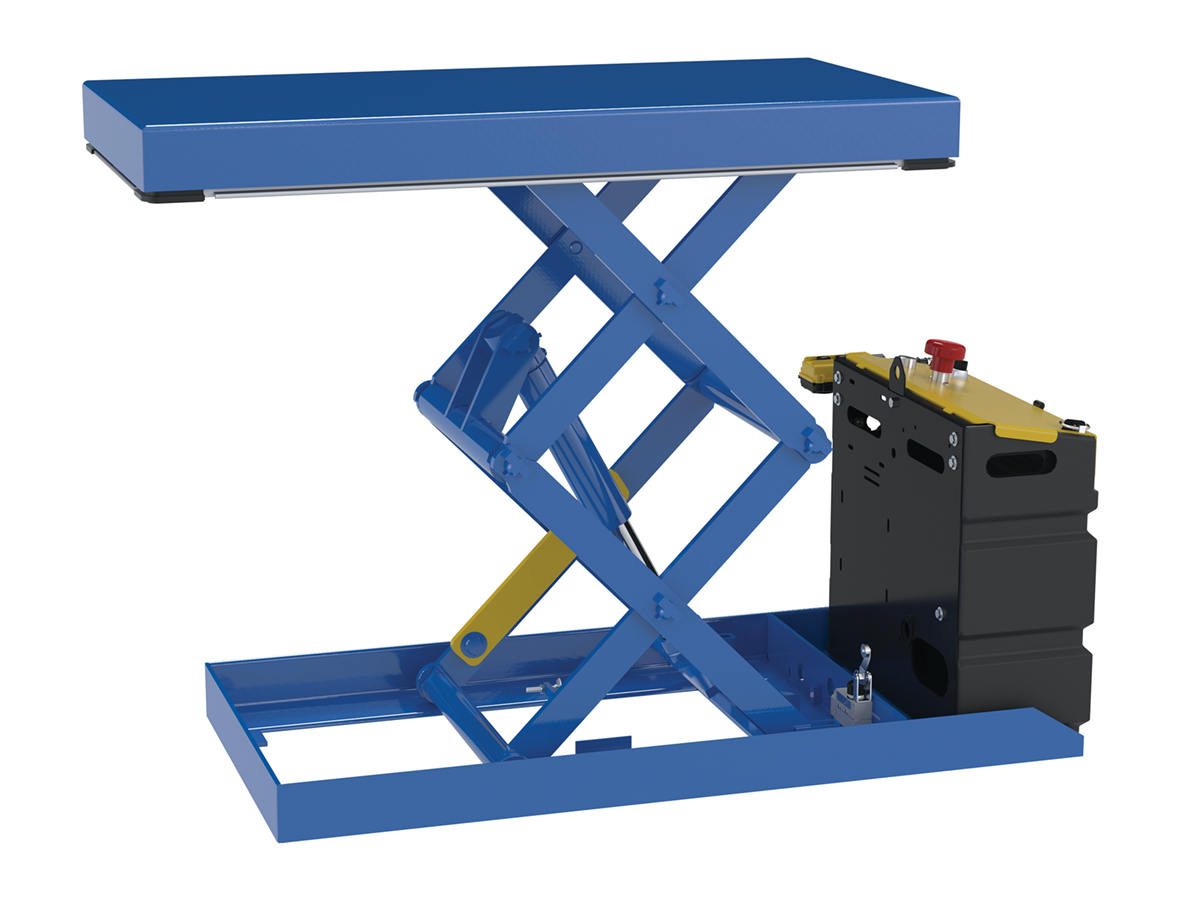

SCTABD-750-2040-DC

SCTABD-750-2040-DC

SCTAB-800D

SCTAB-800D

model chart
How To Order
Share:

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
SCTAB-1000-2040-AC SCTAB-1000-2040-AC1 Year Limited WarrantySteel Scissor Lift Table AC Power 51-9/16 In. x 20-1/2 In. x 32 In. 1,000 Lb. Capacity BlueUniform Capacity (lb.): 1000
Platform Width (in.): 20-3/8		315

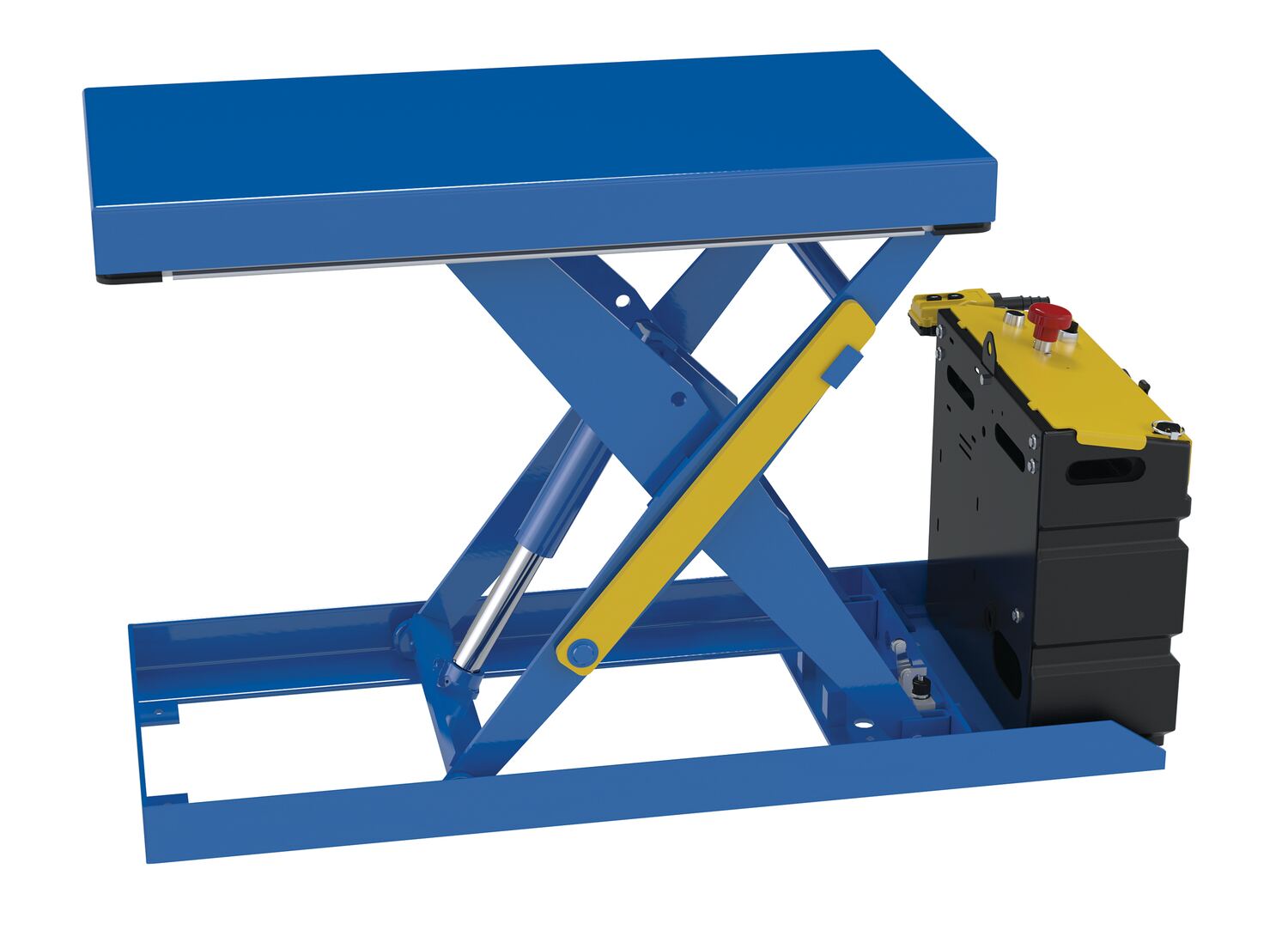

SCTAB-1000-2040-DC SCTAB-1000-2040-DC1 Year Limited WarrantySteel Scissor Lift Table DC Power 51-9/16 In. x 20-1/2 In. x 32 In. 1,000 Lb. Capacity BlueUniform Capacity (lb.): 1000
Platform Width (in.): 20-3/8		378
SCTAB-1000-2040-FP SCTAB-1000-2040-FP1 Year Limited WarrantySteel Scissor Lift Table Foot Pump 63-1/16 In. x 20-1/2 In. x 32 In. 1,000 Lb. Capacity BlueUniform Capacity (lb.): 1000
Platform Width (in.): 20-3/8		298
SCTAB-2000-2040-AC SCTAB-2000-2040-AC1 Year Limited WarrantySteel Scissor Lift Table AC Power 51-1/2 In. x 20-1/2 In. x 32 In. 2,000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Platform Width (in.): 20-3/8		328
SCTAB-2000-2040-DC SCTAB-2000-2040-DC1 Year Limited WarrantySteel Scissor Lift Table DC Power 51-9/16 In. x 20-1/2 In. x 32 In. 2,000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Platform Width (in.): 20-3/8		396
SCTAB-2000-2040-FP SCTAB-2000-2040-FP1 Year Limited WarrantySteel Scissor Lift Table Foot Pump 63-1/16 In. x 20-1/2 In. x 32 In. 2,000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Platform Width (in.): 20-3/8		314
SCTAB-2000-3240-AC SCTAB-2000-3240-AC1 Year Limited WarrantySteel Scissor Lift Table AC Power 54-1/16 In. x 32-1/2 In. x 32 In. 2,000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Platform Width (in.): 32-3/8		394
SCTAB-2000-3240-DC SCTAB-2000-3240-DC1 Year Limited WarrantySteel Scissor Lift Table DC Power 54-1/8 In. x 32-1/2 In. x 32 In. 2,000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Platform Width (in.): 32-3/8		438
SCTAB-2000-3240-FP SCTAB-2000-3240-FP1 Year Limited WarrantySteel Scissor Lift Table Foot Pump 65 In. x 32-1/2 In. x 32 In. 2,000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Platform Width (in.): 32-3/8		430
SCTAB-2000-4242-AC SCTAB-2000-4242-AC1 Year Limited WarrantySteel Scissor Lift Table AC Power 55-3/8 In. x 42-3/8 In. x 32 In. 2,000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Platform Width (in.): 42-3/8		417
SCTAB-2000-4242-DC SCTAB-2000-4242-DC1 Year Limited WarrantySteel Scissor Lift Table DC Power 55-7/16 In. x 42-3/8 In. x 32 In. 2,000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Platform Width (in.): 42-3/8		456
SCTAB-2000-4242-FP SCTAB-2000-4242-FP1 Year Limited WarrantySteel Scissor Lift Table Foot Pump 64-9/16 In. x 42-3/8 In. x 32 In. 2,000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Platform Width (in.): 42-3/8		400

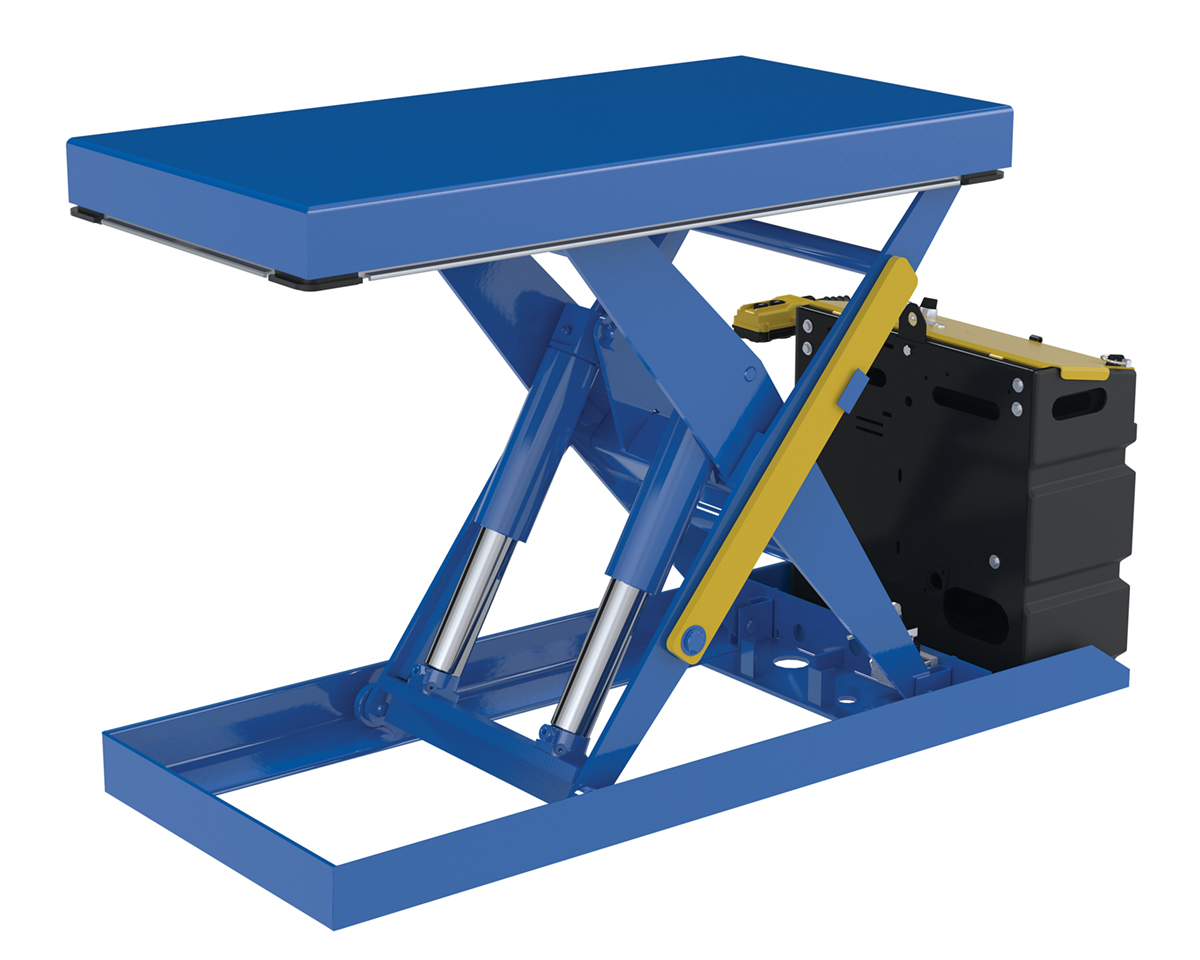

SCTAB-2500-2040-AC SCTAB-2500-2040-AC1 Year Limited WarrantySteel Scissor Lift Table AC Power 51-1/2 In. x 20-1/2 In. x 32 In. 2,500 Lb. Capacity BlueUniform Capacity (lb.): 2500
Platform Width (in.): 20-3/8		347
SCTAB-2500-2040-DC SCTAB-2500-2040-DC1 Year Limited WarrantySteel Scissor Lift Table DC Power 51-9/16 In. x 20-1/2 In. x 32 In. 2,500 Lb. Capacity BlueUniform Capacity (lb.): 2500
Platform Width (in.): 20-3/8		385
SCTAB-2500-2040-FP SCTAB-2500-2040-FP1 Year Limited WarrantySteel Scissor Lift Table Foot Pump 63-7/16 In. x 20-1/2 In. x 32 In. 2,500 Lb. Capacity BlueUniform Capacity (lb.): 2500
Platform Width (in.): 20-3/8		332
SCTAB-400 SCTAB-4001 Year Limited WarrantySteel Scissor Lift Table Foot Pump 34-9/16 In. x 17-3/4 In. x 34-1/2 In. 400 Lb. Capacity BlueUniform Capacity (lb.): 400
Platform Width (in.): 17-3/4		269

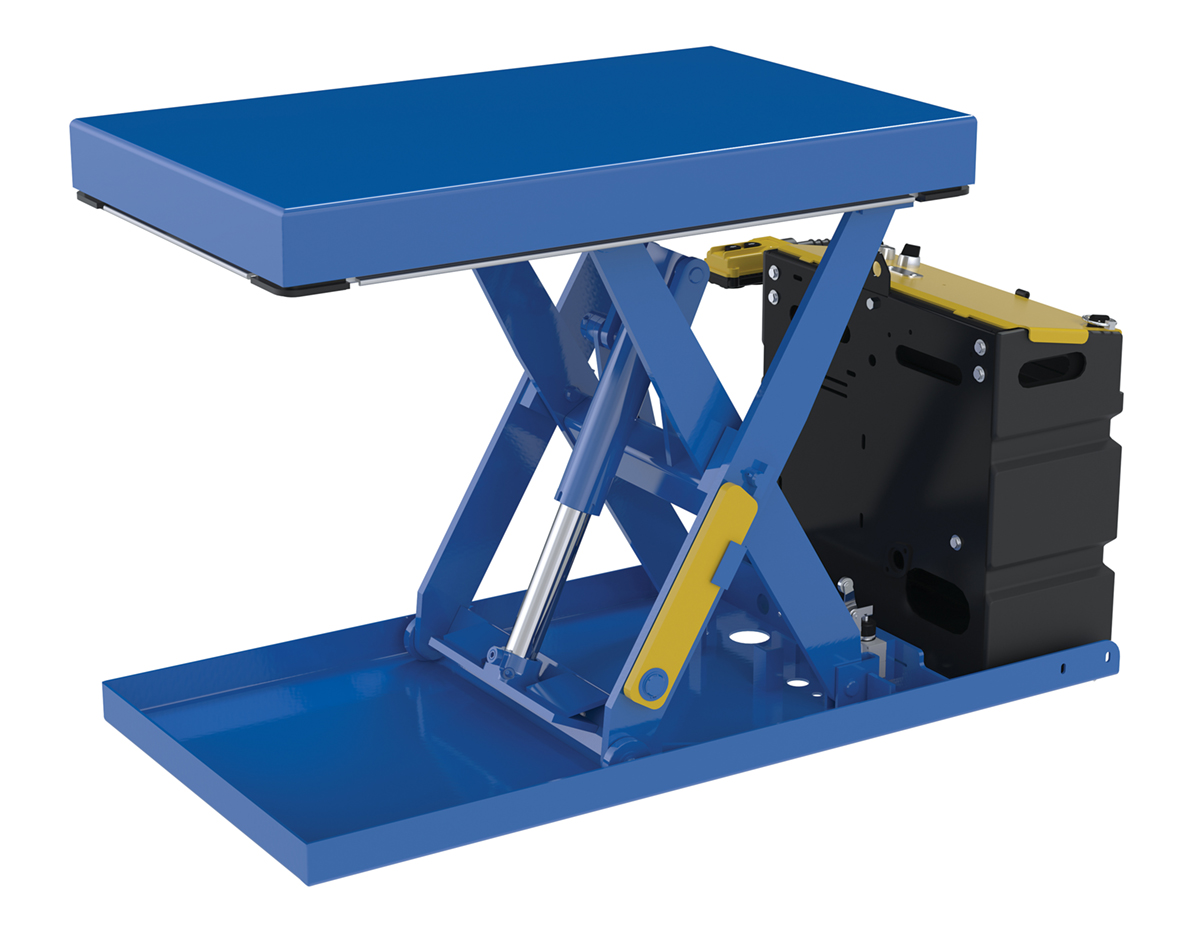

SCTAB-500-2033-AC SCTAB-500-2033-AC1 Year Limited WarrantySteel Scissor Lift Table AC Power 44-3/16 In. x 20-1/2 In. x 28 In. 500 Lb. Capacity BlueUniform Capacity (lb.): 500
Platform Width (in.): 20-3/8		263

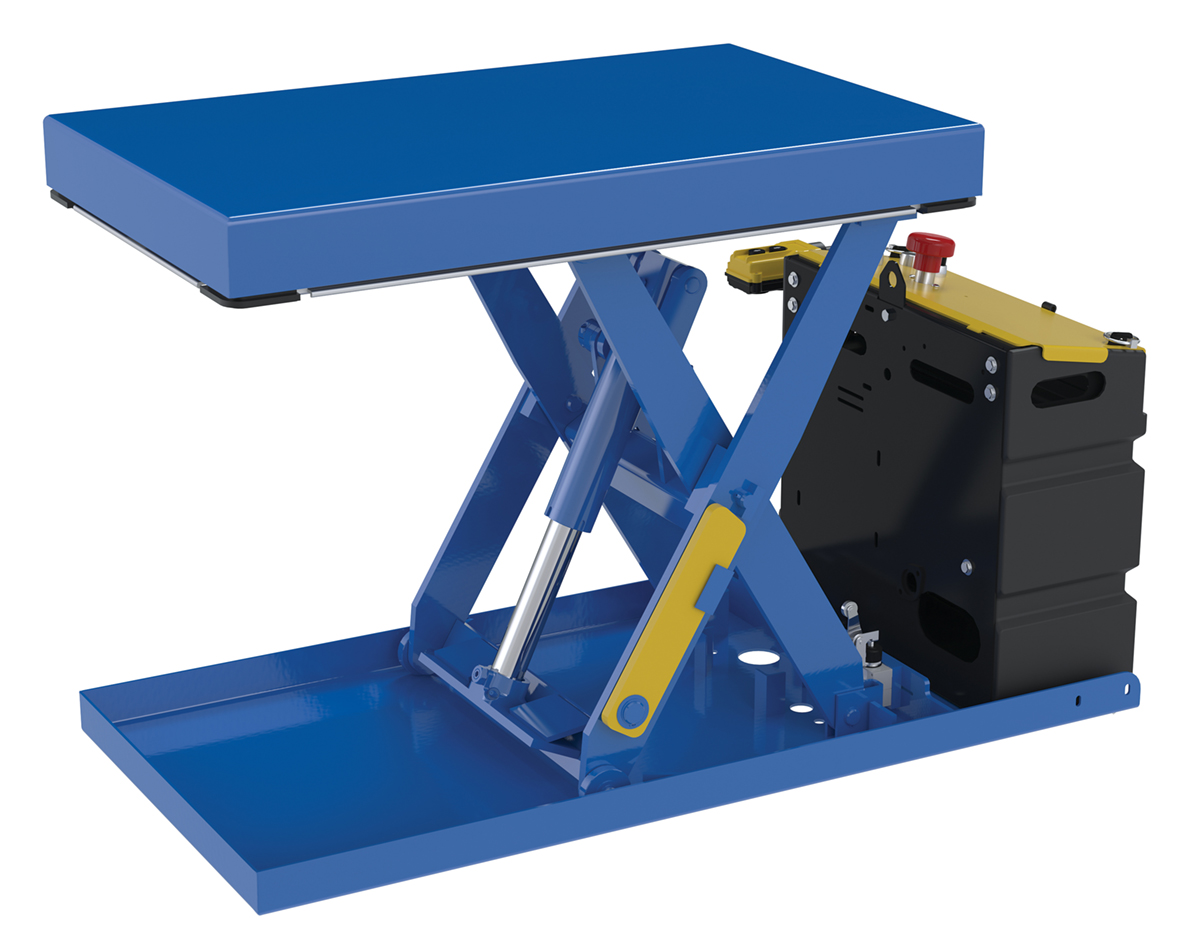

SCTAB-500-2033-DC SCTAB-500-2033-DC1 Year Limited WarrantySteel Scissor Lift Table DC Power 44-3/16 In. x 20-1/2 In. x 28 In. 500 Lb. Capacity BlueUniform Capacity (lb.): 500
Platform Width (in.): 20-3/8		320
SCTAB-500-2033-FP SCTAB-500-2033-FP1 Year Limited WarrantySteel Scissor Lift Table Foot Pump 56-1/16 In. x 20-1/2 In. x 28 In. 500 Lb. Capacity BlueUniform Capacity (lb.): 500
Platform Width (in.): 20-3/8		263
SCTAB-800D SCTAB-800D1 Year Limited WarrantySteel Scissor Lift Table Double Foot Pump 52-5/8 In. x 21-3/8 In. x 39-1/2 In. 800 Lb. Capacity BlueUniform Capacity (lb.): 800
Platform Width (in.): 20		290
SCTABD-1000-2033-AC SCTABD-1000-2033-AC1 Year Limited WarrantySteel Double Scissor Lift Table AC Power 43-1/4 In. x 20-1/2 In. x 35 In. 1,000 Lb. Capacity BlueUniform Capacity (lb.): 1000
Platform Width (in.): 20-3/8		302
SCTABD-1000-2033-DC SCTABD-1000-2033-DC1 Year Limited WarrantySteel Double Scissor Lift Table DC Power 43-1/4 In. x 20-1/2 In. x 35 In. 1,000 Lb. Capacity BlueUniform Capacity (lb.): 1000
Platform Width (in.): 20-3/8		346
SCTABD-1000-2033-FP SCTABD-1000-2033-FP1 Year Limited WarrantySteel Double Scissor Lift Table Foot Pump 56-1/16 In. x 20-1/2 In. x 35 In. 1,000 Lb. Capacity BlueUniform Capacity (lb.): 1000
Platform Width (in.): 20-3/8		309
SCTABD-750-2040-AC SCTABD-750-2040-AC1 Year Limited WarrantySteel Double Scissor Lift Table AC Power 49-1/2 In. x 20-1/2 In. x 35 In. 750 Lb. Capacity BlueUniform Capacity (lb.): 750
Platform Width (in.): 20-3/8		304
SCTABD-750-2040-DC SCTABD-750-2040-DC1 Year Limited WarrantySteel Double Scissor Lift Table DC Power 49-9/16 In. x 20-1/2 In. x 35 In. 750 Lb. Capacity BlueUniform Capacity (lb.): 750
Platform Width (in.): 20-3/8		339
SCTABD-750-2040-FP SCTABD-750-2040-FP1 Year Limited WarrantySteel Double Scissor Lift Table Foot Pump 61-7/16 In. x 20-1/2 In. x 35 In. 750 Lb. Capacity BlueUniform Capacity (lb.): 750
Platform Width (in.): 20-3/8		291

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

SCTAB-1000-2040-AC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1000
Platform Width (in.): 20-3/8
Uniform Capacity (lb.): 1000
Platform Width (in.): 20-3/8

SCTAB-1000-2040-DC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1000
Platform Width (in.): 20-3/8
Uniform Capacity (lb.): 1000
Platform Width (in.): 20-3/8

SCTAB-1000-2040-FP
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1000
Platform Width (in.): 20-3/8
Uniform Capacity (lb.): 1000
Platform Width (in.): 20-3/8

SCTAB-2000-2040-AC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Platform Width (in.): 20-3/8
Uniform Capacity (lb.): 2000
Platform Width (in.): 20-3/8

SCTAB-2000-2040-DC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Platform Width (in.): 20-3/8
Uniform Capacity (lb.): 2000
Platform Width (in.): 20-3/8

SCTAB-2000-2040-FP
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Platform Width (in.): 20-3/8
Uniform Capacity (lb.): 2000
Platform Width (in.): 20-3/8

SCTAB-2000-3240-AC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Platform Width (in.): 32-3/8
Uniform Capacity (lb.): 2000
Platform Width (in.): 32-3/8

SCTAB-2000-3240-DC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Platform Width (in.): 32-3/8
Uniform Capacity (lb.): 2000
Platform Width (in.): 32-3/8

SCTAB-2000-3240-FP
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Platform Width (in.): 32-3/8
Uniform Capacity (lb.): 2000
Platform Width (in.): 32-3/8

SCTAB-2000-4242-AC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Platform Width (in.): 42-3/8
Uniform Capacity (lb.): 2000
Platform Width (in.): 42-3/8

SCTAB-2000-4242-DC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Platform Width (in.): 42-3/8
Uniform Capacity (lb.): 2000
Platform Width (in.): 42-3/8

SCTAB-2000-4242-FP
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Platform Width (in.): 42-3/8
Uniform Capacity (lb.): 2000
Platform Width (in.): 42-3/8

SCTAB-2500-2040-AC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2500
Platform Width (in.): 20-3/8
Uniform Capacity (lb.): 2500
Platform Width (in.): 20-3/8

SCTAB-2500-2040-DC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2500
Platform Width (in.): 20-3/8
Uniform Capacity (lb.): 2500
Platform Width (in.): 20-3/8

SCTAB-2500-2040-FP
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2500
Platform Width (in.): 20-3/8
Uniform Capacity (lb.): 2500
Platform Width (in.): 20-3/8

SCTAB-400
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 400
Platform Width (in.): 17-3/4
Uniform Capacity (lb.): 400
Platform Width (in.): 17-3/4

SCTAB-500-2033-AC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 500
Platform Width (in.): 20-3/8
Uniform Capacity (lb.): 500
Platform Width (in.): 20-3/8

SCTAB-500-2033-DC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 500
Platform Width (in.): 20-3/8
Uniform Capacity (lb.): 500
Platform Width (in.): 20-3/8

SCTAB-500-2033-FP
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 500
Platform Width (in.): 20-3/8
Uniform Capacity (lb.): 500
Platform Width (in.): 20-3/8

SCTAB-800D
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 800
Platform Width (in.): 20
Uniform Capacity (lb.): 800
Platform Width (in.): 20

SCTABD-1000-2033-AC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1000
Platform Width (in.): 20-3/8
Uniform Capacity (lb.): 1000
Platform Width (in.): 20-3/8

SCTABD-1000-2033-DC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1000
Platform Width (in.): 20-3/8
Uniform Capacity (lb.): 1000
Platform Width (in.): 20-3/8

SCTABD-1000-2033-FP
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1000
Platform Width (in.): 20-3/8
Uniform Capacity (lb.): 1000
Platform Width (in.): 20-3/8

SCTABD-750-2040-AC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 750
Platform Width (in.): 20-3/8
Uniform Capacity (lb.): 750
Platform Width (in.): 20-3/8

SCTABD-750-2040-DC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 750
Platform Width (in.): 20-3/8
Uniform Capacity (lb.): 750
Platform Width (in.): 20-3/8

SCTABD-750-2040-FP
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 750
Platform Width (in.): 20-3/8
Uniform Capacity (lb.): 750
Platform Width (in.): 20-3/8
Foot Pump & Powered Scissor Lift Tables PDF's will open in a new window when clicked.

Manuals


SCTAB
Owners Manual

SCTAB-FP
Owners Manual

SCTAB-DC
Owners Manual

CHK
Owners Manual

Survey Sheets


SCTAB
Survey Sheet

Approval Drawings


SCTAB-1000-2040-AC

SCTAB-1000-2040-DC

SCTAB-1000-2040-FP

SCTAB-2000-2040-AC

SCTAB-2000-2040-DC

SCTAB-2000-2040-FP

SCTAB-2000-3240-AC

SCTAB-2000-3240-DC

SCTAB-2000-3240-FP

SCTAB-2000-4242-AC

SCTAB-2000-4242-DC

SCTAB-2000-4242-FP

SCTAB-2500-2040-AC

SCTAB-2500-2040-DC

SCTAB-2500-2040-FP

SCTAB-500-2033-AC

SCTAB-500-2033-DC

SCTAB-500-2033-FP

SCTAB-800D

SCTABD-1000-2033-AC

SCTABD-1000-2033-DC

SCTABD-1000-2033-FP

SCTABD-750-2040-AC

SCTABD-750-2040-DC

SCTABD-750-2040-FP

Testing Certificates


SCTAB-1000-2040-AC

SCTAB-1000-2040-DC

SCTAB-1000-2040-FP

SCTAB-2000-2040-AC

SCTAB-2000-2040-DC

SCTAB-2000-2040-FP

SCTAB-2000-3240-AC

SCTAB-2000-3240-DC

SCTAB-2000-3240-FP

SCTAB-2000-4242-AC

SCTAB-2000-4242-DC

SCTAB-2000-4242-FP

SCTAB-2500-2040-AC

SCTAB-2500-2040-DC

SCTAB-2500-2040-FP

SCTAB-400

SCTAB-500-2033-AC

SCTAB-500-2033-DC

SCTAB-500-2033-FP

SCTAB-800D

SCTABD-1000-2033-AC

SCTABD-1000-2033-DC

SCTABD-1000-2033-FP

SCTABD-750-2040-AC

SCTABD-750-2040-DC

SCTABD-750-2040-FP

SDS Sheets

Hydraulic Oil SDS Sheet for: SCTAB-1000-2040-AC
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: SCTAB-1000-2040-DC
Hydraulic Oil SDS Sheet for: SCTAB-1000-2040-DC
Hydraulic Oil SDS Sheet for: SCTAB-1000-2040-FP
Hydraulic Oil SDS Sheet for: SCTAB-2000-2040-AC
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: SCTAB-2000-2040-DC
Hydraulic Oil SDS Sheet for: SCTAB-2000-2040-DC
Hydraulic Oil SDS Sheet for: SCTAB-2000-2040-FP
Hydraulic Oil SDS Sheet for: SCTAB-2000-3240-AC
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: SCTAB-2000-3240-DC
Hydraulic Oil SDS Sheet for: SCTAB-2000-3240-DC
Hydraulic Oil SDS Sheet for: SCTAB-2000-3240-FP
Hydraulic Oil SDS Sheet for: SCTAB-2000-4242-AC
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: SCTAB-2000-4242-DC
Hydraulic Oil SDS Sheet for: SCTAB-2000-4242-DC
Hydraulic Oil SDS Sheet for: SCTAB-2000-4242-FP
Hydraulic Oil SDS Sheet for: SCTAB-2500-2040-AC
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: SCTAB-2500-2040-DC
Hydraulic Oil SDS Sheet for: SCTAB-2500-2040-DC
Hydraulic Oil SDS Sheet for: SCTAB-2500-2040-FP
Hydraulic Oil SDS Sheet for: SCTAB-400
Hydraulic Oil SDS Sheet for: SCTAB-500-2033-AC
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: SCTAB-500-2033-DC
Hydraulic Oil SDS Sheet for: SCTAB-500-2033-DC
Hydraulic Oil SDS Sheet for: SCTAB-500-2033-FP
Hydraulic Oil SDS Sheet for: SCTAB-800D
Hydraulic Oil SDS Sheet for: SCTABD-1000-2033-AC
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: SCTABD-1000-2033-DC
Hydraulic Oil SDS Sheet for: SCTABD-1000-2033-DC
Hydraulic Oil SDS Sheet for: SCTABD-1000-2033-FP
Hydraulic Oil SDS Sheet for: SCTABD-750-2040-AC
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: SCTABD-750-2040-DC
Hydraulic Oil SDS Sheet for: SCTABD-750-2040-DC
Hydraulic Oil SDS Sheet for: SCTABD-750-2040-FP

Other PDF's

pdf-logo.gifAuto-Shifting Foot Pump Instruction Manual(For All Foot Pump SCTAB Models)


Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets







Visit Our Youtube Channel For All Available Videos For All Products

Q: How loud is the motor in the model SCTAB-1000-2040-AC?

A: The power unit is approximately 72 dB at 2' away.




Related or Similar Products:

Pneumatic Tire Elevating Carts
Product

Pneumatic Tire Elevating Carts

Hydraulic Elevating Carts
Product

Hydraulic Elevating Carts

Auto-Shift Hydraulic Elevating Carts
Product

Auto-Shift Hydraulic Elevating Carts

DC Powered and Manual Scissor Carts
Product

DC Powered and Manual Scissor Carts

DC Powered Hydraulic Elevating Carts
Product

DC Powered Hydraulic Elevating Carts

Powered Drive and Powered Lift Hydraulic Scissor Carts
Product

Powered Drive and Powered Lift Hydraulic Scissor Carts

Some of our products may be temporarily unavailable due to supply chain disruptions. Contact our Sales Department for help with finding alternate product solutions. We apologize for the inconvenience.

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Foot Pump & Powered Scisso...




Foot Pump Scissor Lift Tables are used by all types of manufacturing and warehousing facilities.Features torsion tubes for side to side stability, pressure flow control valve for controlled lowering, and foot pump. Rugged welded steel construction. Painted blue finish.

DC Scissor Lift Tables utilizes (1) 12V battery, raised and lowered buttons are on top of power unit with on board charger and handheld 2 push-button hand control on an 8' coil cord.

AC Scissor Lift Tables are 460V, 3 phase power with handheld 2 push-button hand control on an 8' coil cord.


Model # Description Attributes Net Wt.
(lbs)
SCTAB-1000-2040-AC SCTAB-1000-2040-ACSteel Scissor Lift Table AC Power 51-9/16 In. x 20-1/2 In. x 32 In. 1,000 Lb. Capacity BlueUniform Capacity (lb.): 1000
Platform Width (in.): 20-3/8		315
SCTAB-1000-2040-DC SCTAB-1000-2040-DCSteel Scissor Lift Table DC Power 51-9/16 In. x 20-1/2 In. x 32 In. 1,000 Lb. Capacity BlueUniform Capacity (lb.): 1000
Platform Width (in.): 20-3/8		378
SCTAB-1000-2040-FP SCTAB-1000-2040-FPSteel Scissor Lift Table Foot Pump 63-1/16 In. x 20-1/2 In. x 32 In. 1,000 Lb. Capacity BlueUniform Capacity (lb.): 1000
Platform Width (in.): 20-3/8		298
SCTAB-2000-2040-AC SCTAB-2000-2040-ACSteel Scissor Lift Table AC Power 51-1/2 In. x 20-1/2 In. x 32 In. 2,000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Platform Width (in.): 20-3/8		328
SCTAB-2000-2040-DC SCTAB-2000-2040-DCSteel Scissor Lift Table DC Power 51-9/16 In. x 20-1/2 In. x 32 In. 2,000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Platform Width (in.): 20-3/8		396

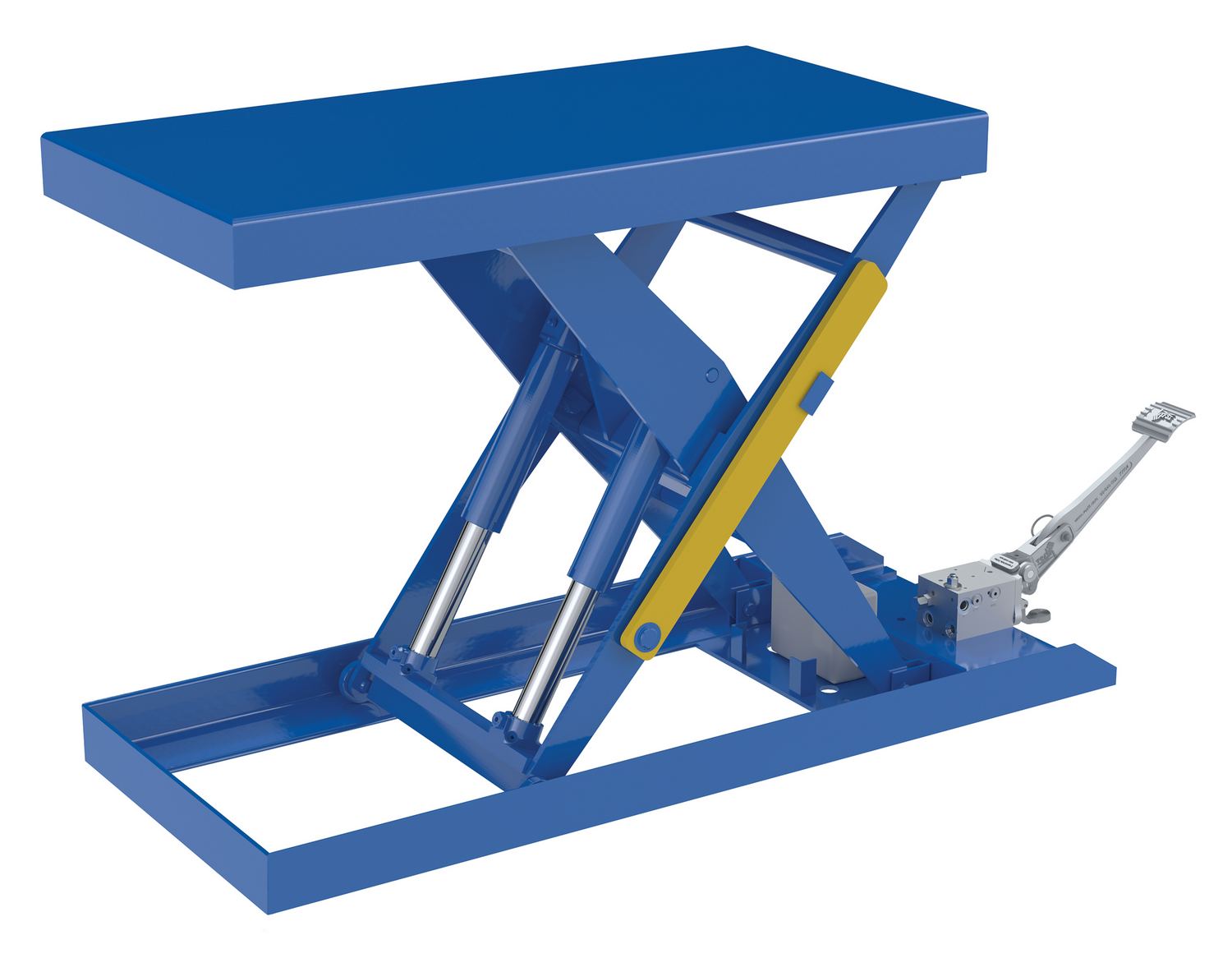

SCTAB-2000-2040-FP SCTAB-2000-2040-FPSteel Scissor Lift Table Foot Pump 63-1/16 In. x 20-1/2 In. x 32 In. 2,000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Platform Width (in.): 20-3/8		314
SCTAB-2000-3240-AC SCTAB-2000-3240-ACSteel Scissor Lift Table AC Power 54-1/16 In. x 32-1/2 In. x 32 In. 2,000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Platform Width (in.): 32-3/8		394

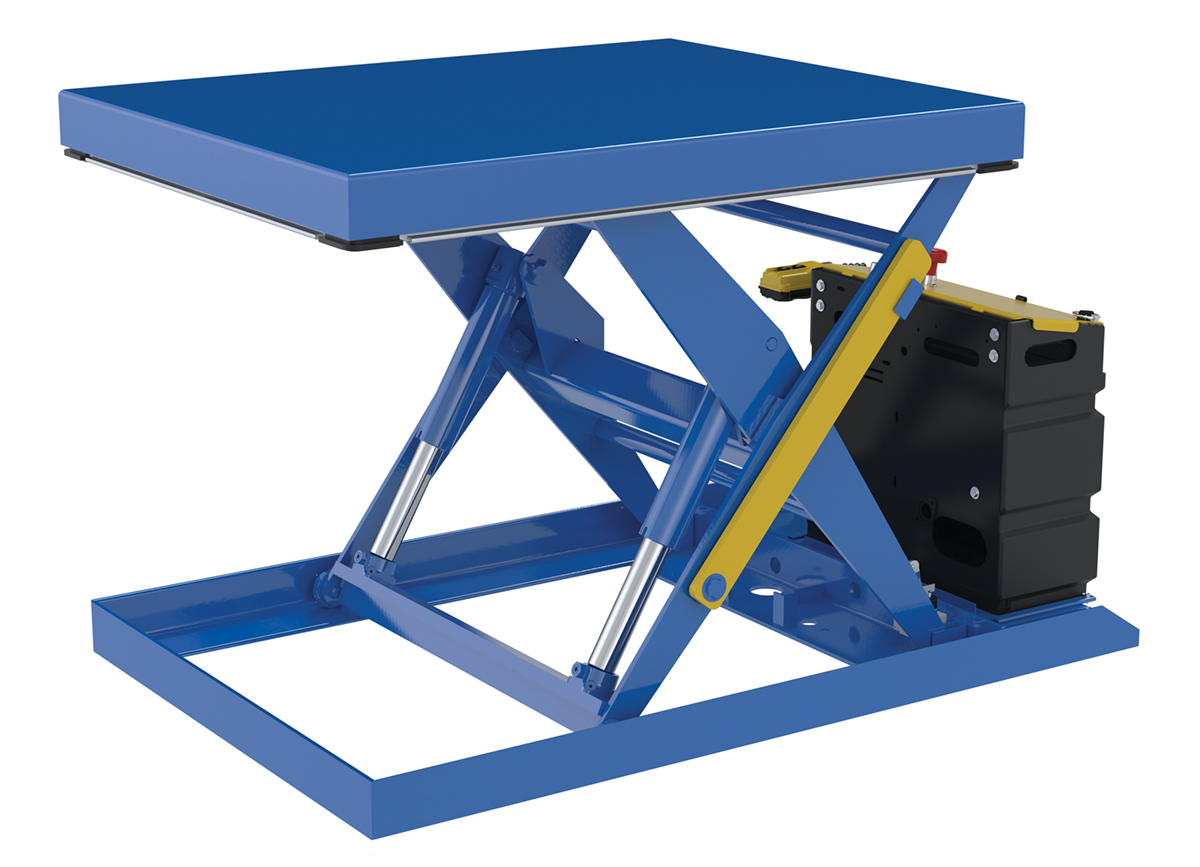

SCTAB-2000-3240-DC SCTAB-2000-3240-DCSteel Scissor Lift Table DC Power 54-1/8 In. x 32-1/2 In. x 32 In. 2,000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Platform Width (in.): 32-3/8		438
SCTAB-2000-3240-FP SCTAB-2000-3240-FPSteel Scissor Lift Table Foot Pump 65 In. x 32-1/2 In. x 32 In. 2,000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Platform Width (in.): 32-3/8		430
SCTAB-2000-4242-AC SCTAB-2000-4242-ACSteel Scissor Lift Table AC Power 55-3/8 In. x 42-3/8 In. x 32 In. 2,000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Platform Width (in.): 42-3/8		417
SCTAB-2000-4242-DC SCTAB-2000-4242-DCSteel Scissor Lift Table DC Power 55-7/16 In. x 42-3/8 In. x 32 In. 2,000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Platform Width (in.): 42-3/8		456
SCTAB-2000-4242-FP SCTAB-2000-4242-FPSteel Scissor Lift Table Foot Pump 64-9/16 In. x 42-3/8 In. x 32 In. 2,000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Platform Width (in.): 42-3/8		400
SCTAB-2500-2040-AC SCTAB-2500-2040-ACSteel Scissor Lift Table AC Power 51-1/2 In. x 20-1/2 In. x 32 In. 2,500 Lb. Capacity BlueUniform Capacity (lb.): 2500
Platform Width (in.): 20-3/8		347

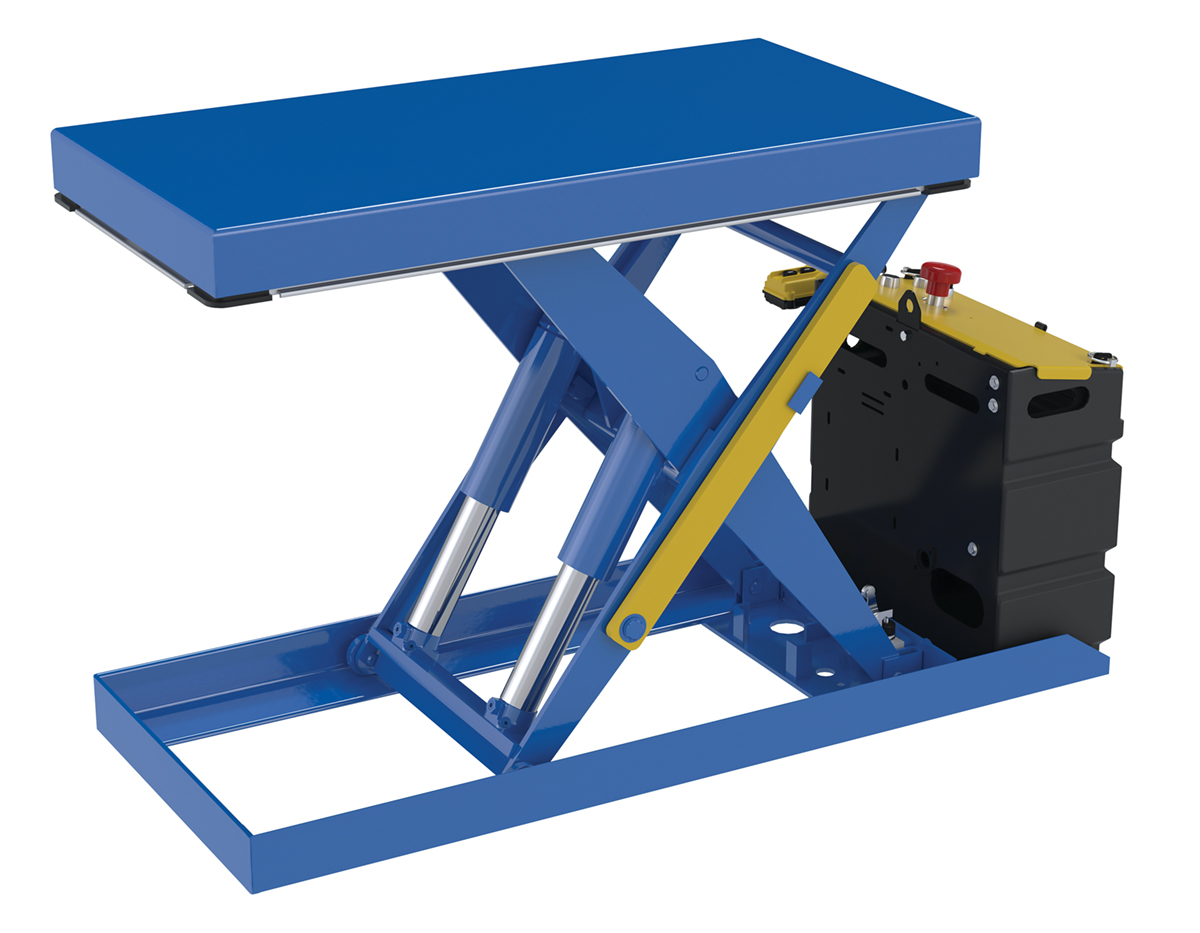

SCTAB-2500-2040-DC SCTAB-2500-2040-DCSteel Scissor Lift Table DC Power 51-9/16 In. x 20-1/2 In. x 32 In. 2,500 Lb. Capacity BlueUniform Capacity (lb.): 2500
Platform Width (in.): 20-3/8		385

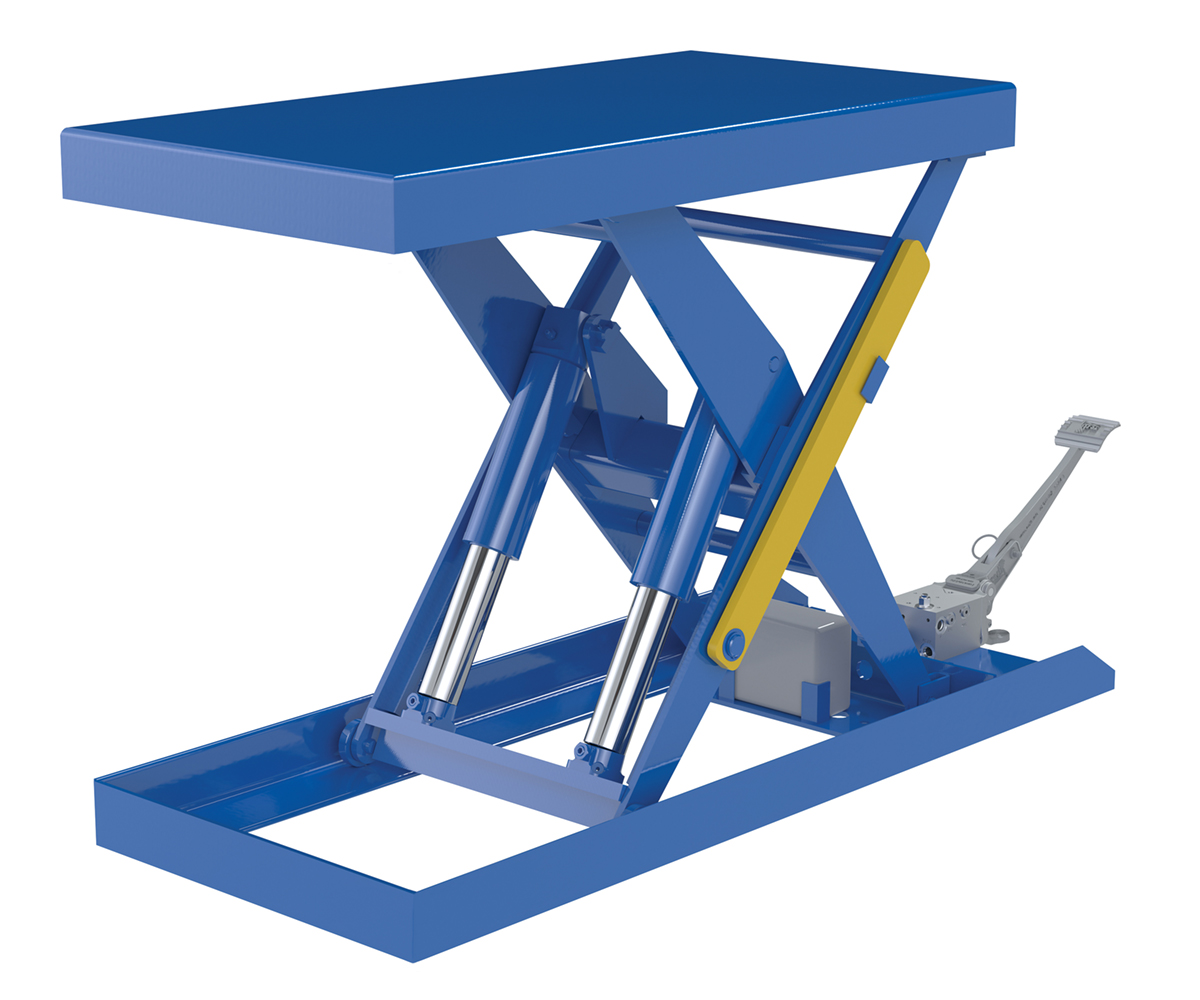

SCTAB-2500-2040-FP SCTAB-2500-2040-FPSteel Scissor Lift Table Foot Pump 63-7/16 In. x 20-1/2 In. x 32 In. 2,500 Lb. Capacity BlueUniform Capacity (lb.): 2500
Platform Width (in.): 20-3/8		332
SCTAB-400 SCTAB-400Steel Scissor Lift Table Foot Pump 34-9/16 In. x 17-3/4 In. x 34-1/2 In. 400 Lb. Capacity BlueUniform Capacity (lb.): 400
Platform Width (in.): 17-3/4		269
SCTAB-500-2033-AC SCTAB-500-2033-ACSteel Scissor Lift Table AC Power 44-3/16 In. x 20-1/2 In. x 28 In. 500 Lb. Capacity BlueUniform Capacity (lb.): 500
Platform Width (in.): 20-3/8		263
SCTAB-500-2033-DC SCTAB-500-2033-DCSteel Scissor Lift Table DC Power 44-3/16 In. x 20-1/2 In. x 28 In. 500 Lb. Capacity BlueUniform Capacity (lb.): 500
Platform Width (in.): 20-3/8		320
SCTAB-500-2033-FP SCTAB-500-2033-FPSteel Scissor Lift Table Foot Pump 56-1/16 In. x 20-1/2 In. x 28 In. 500 Lb. Capacity BlueUniform Capacity (lb.): 500
Platform Width (in.): 20-3/8		263
SCTAB-800D SCTAB-800DSteel Scissor Lift Table Double Foot Pump 52-5/8 In. x 21-3/8 In. x 39-1/2 In. 800 Lb. Capacity BlueUniform Capacity (lb.): 800
Platform Width (in.): 20		290
SCTABD-1000-2033-AC SCTABD-1000-2033-ACSteel Double Scissor Lift Table AC Power 43-1/4 In. x 20-1/2 In. x 35 In. 1,000 Lb. Capacity BlueUniform Capacity (lb.): 1000
Platform Width (in.): 20-3/8		302
SCTABD-1000-2033-DC SCTABD-1000-2033-DCSteel Double Scissor Lift Table DC Power 43-1/4 In. x 20-1/2 In. x 35 In. 1,000 Lb. Capacity BlueUniform Capacity (lb.): 1000
Platform Width (in.): 20-3/8		346
SCTABD-1000-2033-FP SCTABD-1000-2033-FPSteel Double Scissor Lift Table Foot Pump 56-1/16 In. x 20-1/2 In. x 35 In. 1,000 Lb. Capacity BlueUniform Capacity (lb.): 1000
Platform Width (in.): 20-3/8		309
SCTABD-750-2040-AC SCTABD-750-2040-ACSteel Double Scissor Lift Table AC Power 49-1/2 In. x 20-1/2 In. x 35 In. 750 Lb. Capacity BlueUniform Capacity (lb.): 750
Platform Width (in.): 20-3/8		304
SCTABD-750-2040-DC SCTABD-750-2040-DCSteel Double Scissor Lift Table DC Power 49-9/16 In. x 20-1/2 In. x 35 In. 750 Lb. Capacity BlueUniform Capacity (lb.): 750
Platform Width (in.): 20-3/8		339
SCTABD-750-2040-FP SCTABD-750-2040-FPSteel Double Scissor Lift Table Foot Pump 61-7/16 In. x 20-1/2 In. x 35 In. 750 Lb. Capacity BlueUniform Capacity (lb.): 750
Platform Width (in.): 20-3/8		291

Our Customer Service Associates Are Here To Assist You!
Call Vestil At 260-665-7586 Or info@vestil.com
