Multi-Station Transportable Jib Cranes

model: JIB-P-10-6-8

JIB-P-10-6-8_B.jpg JIB-P-10-6-8_A.jpg JIB-P-10-6-8_D.jpg JIB-P-10-6-8_C.jpg JIB-P-10-6-8_E.jpg JIB-P-10-6-8_F.jpg More Images +

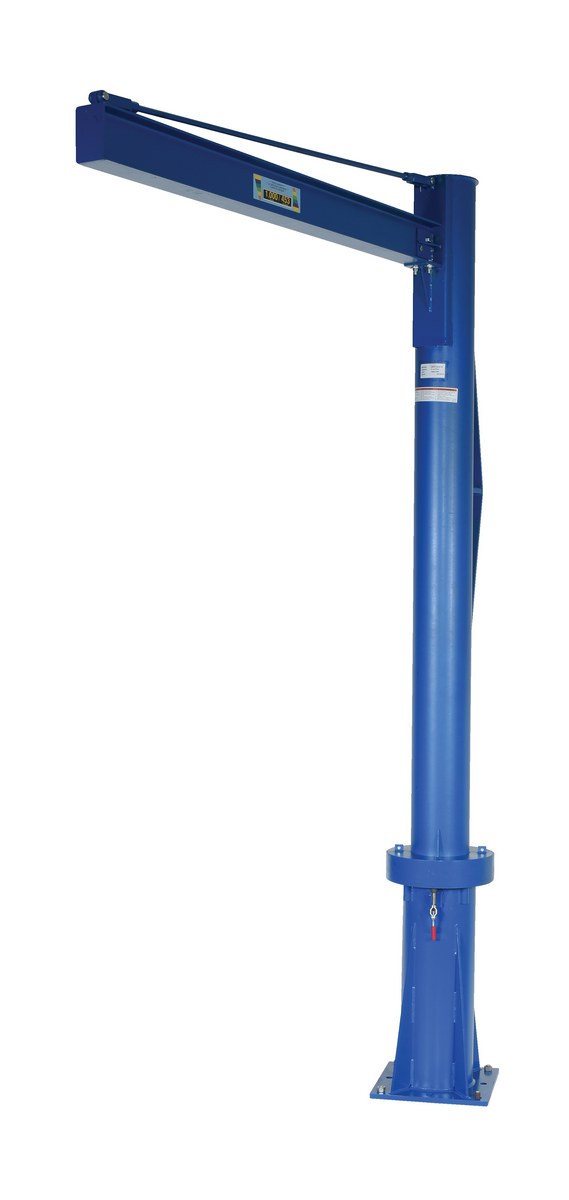

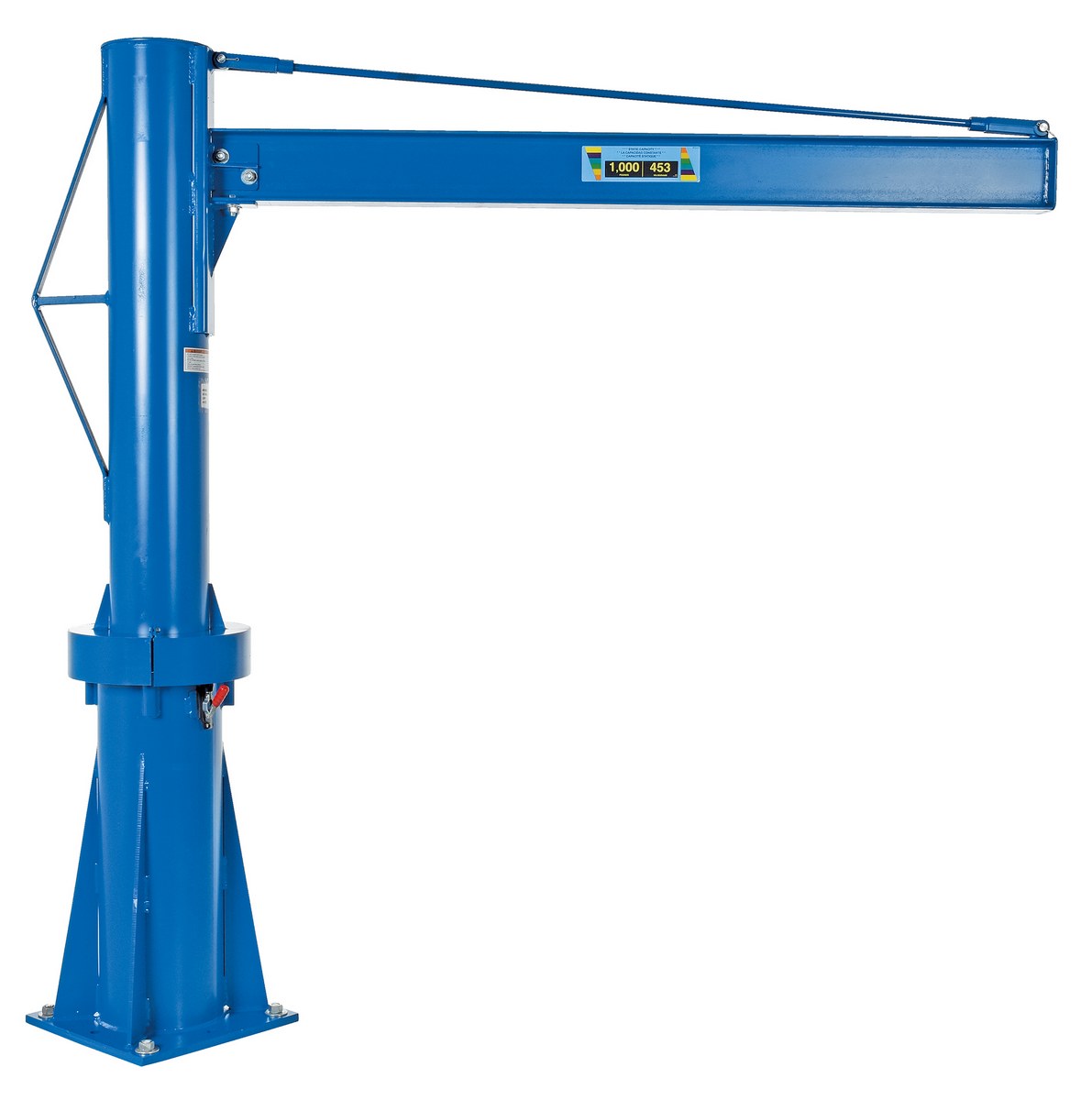

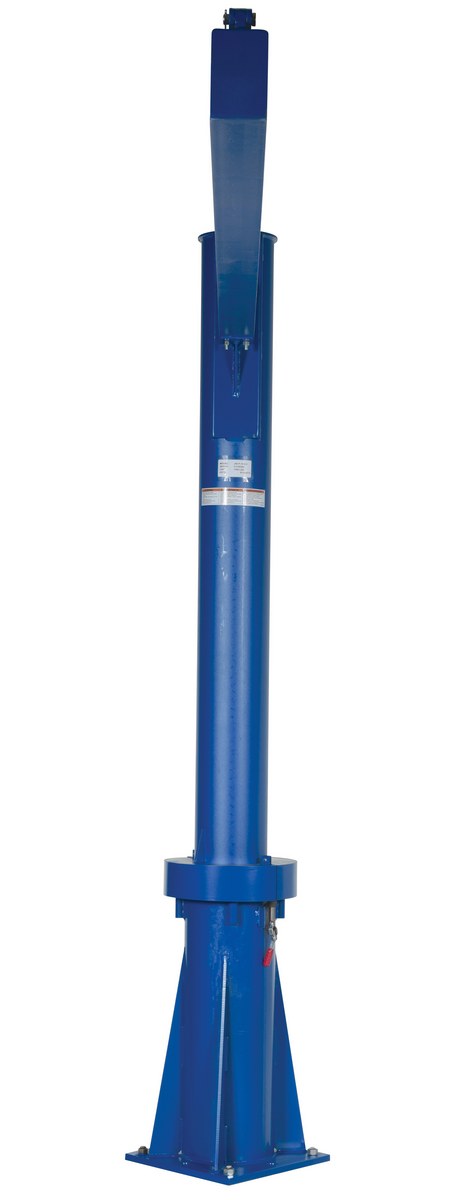

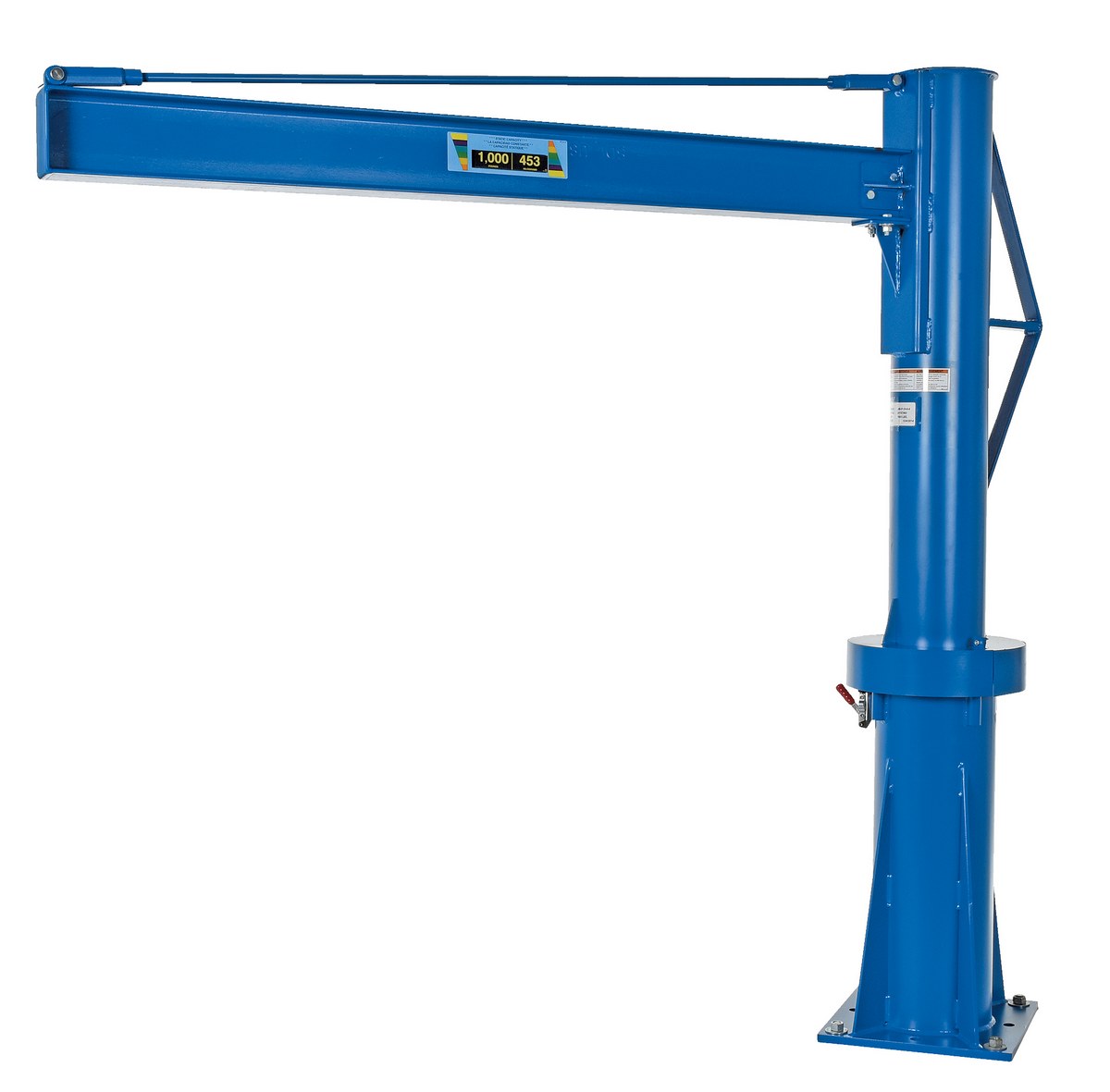

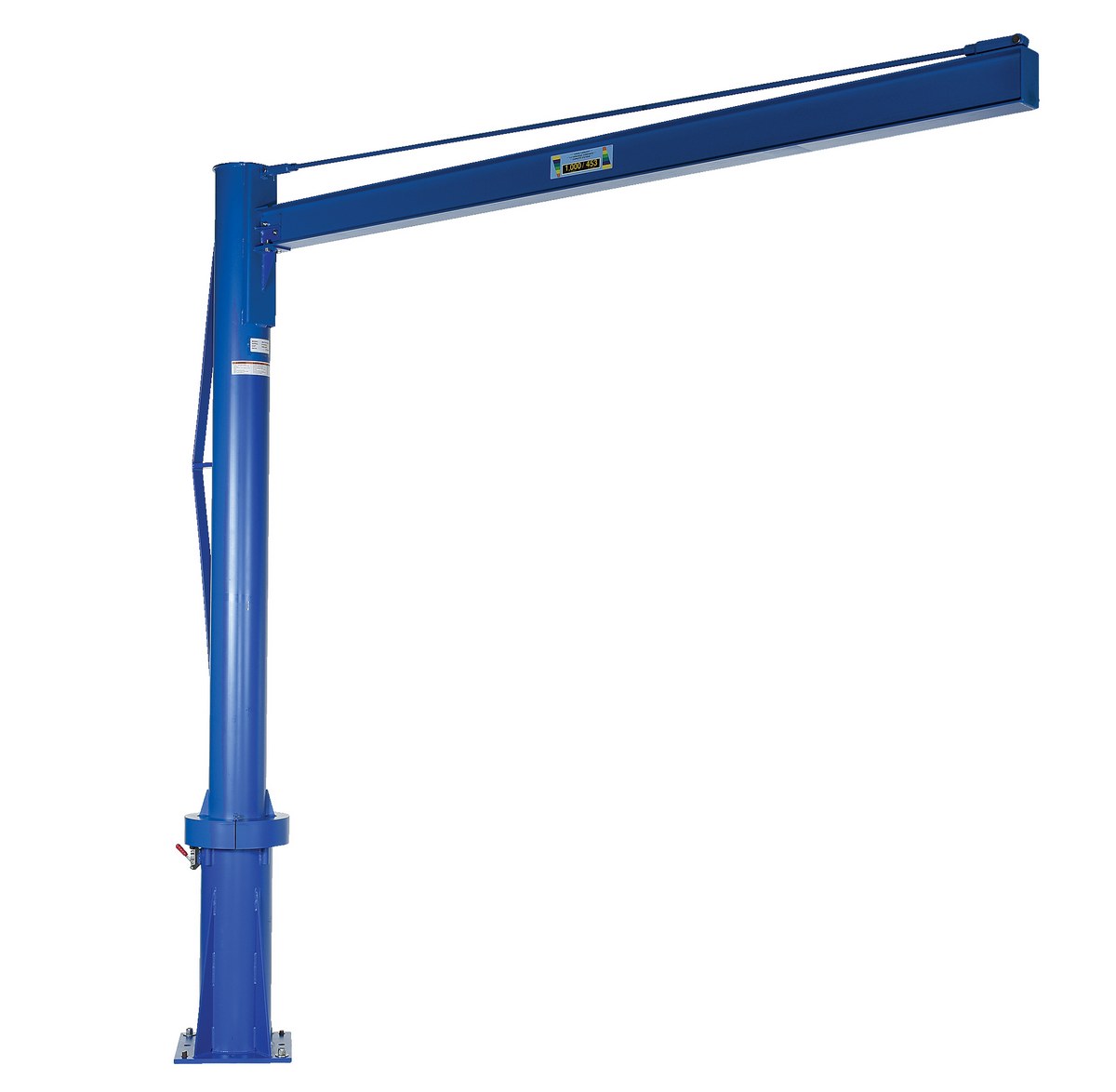

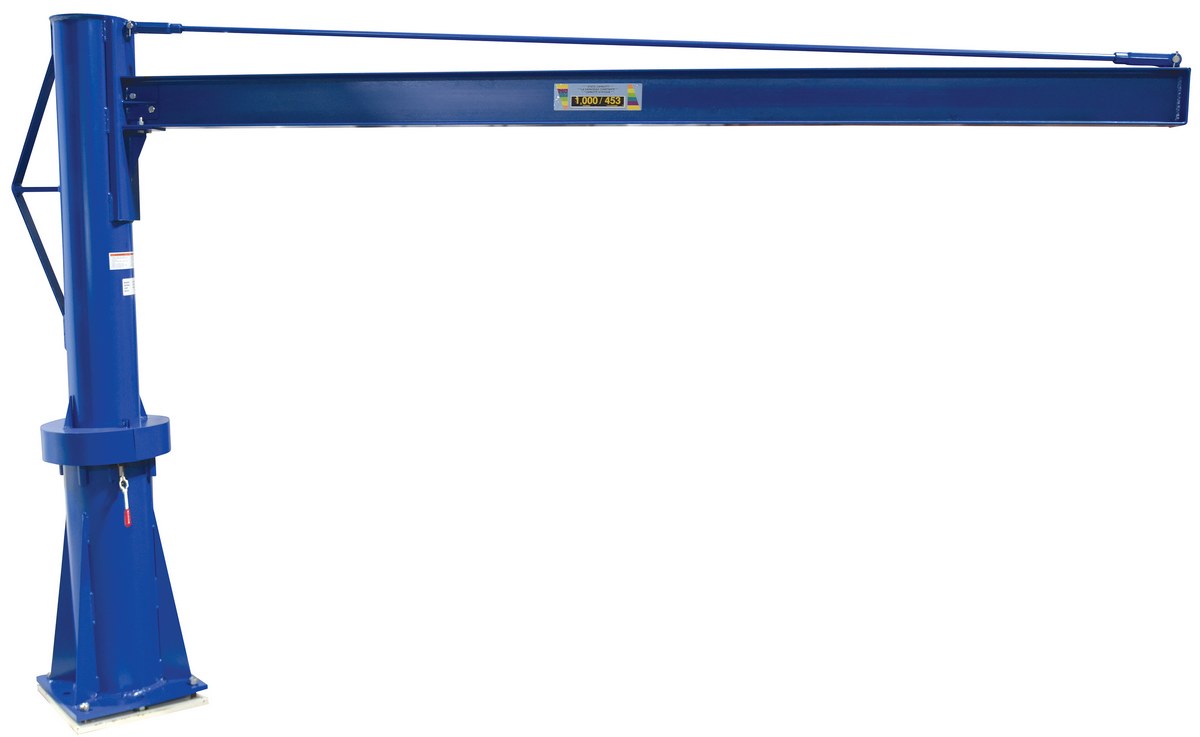

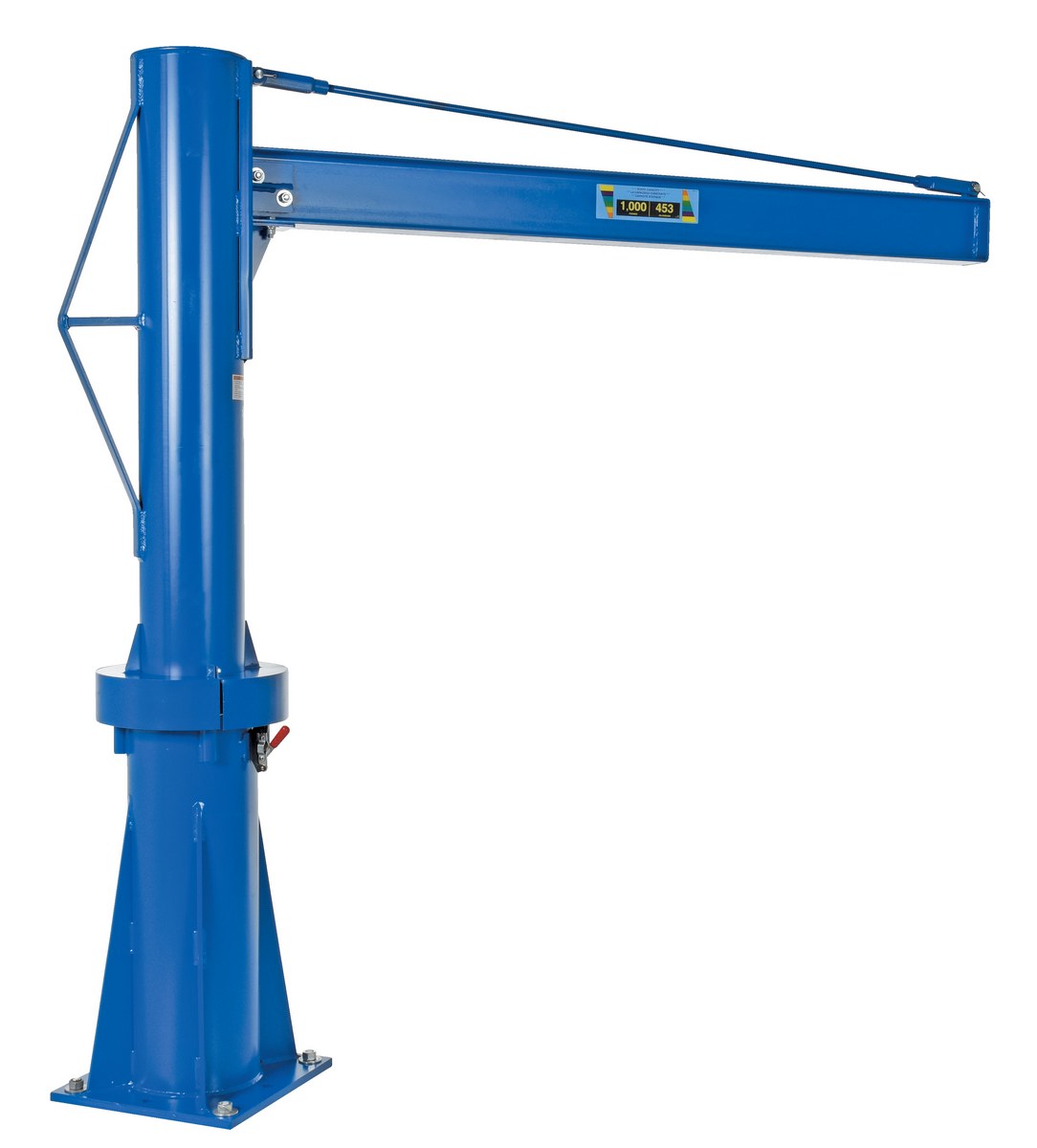

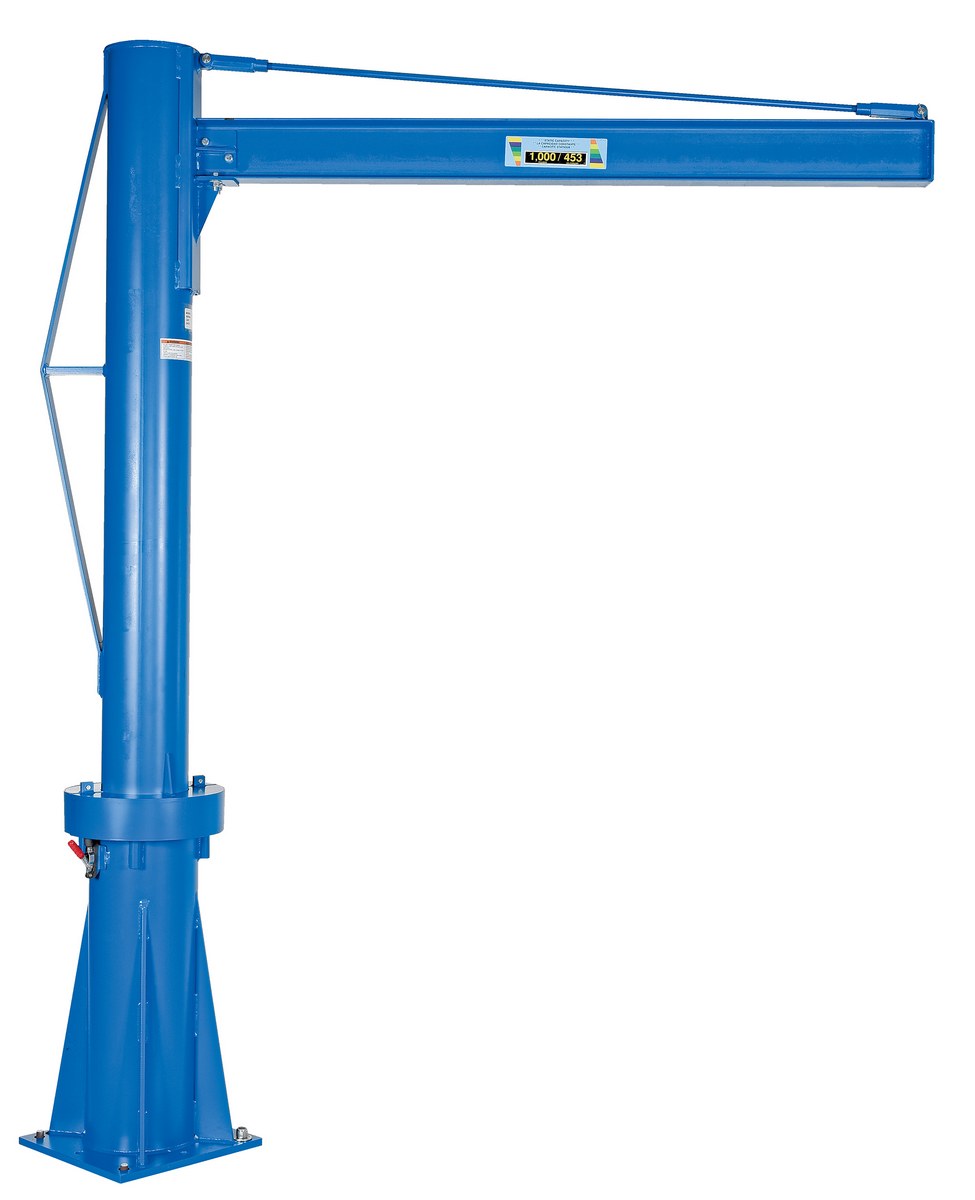

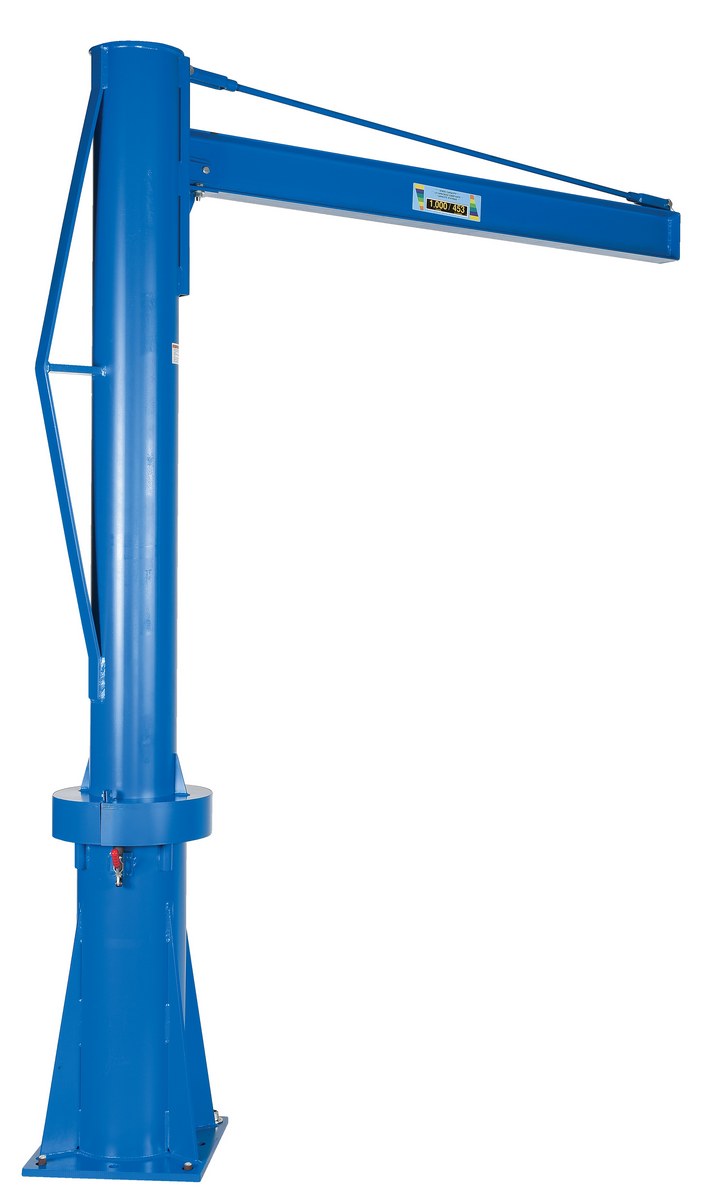

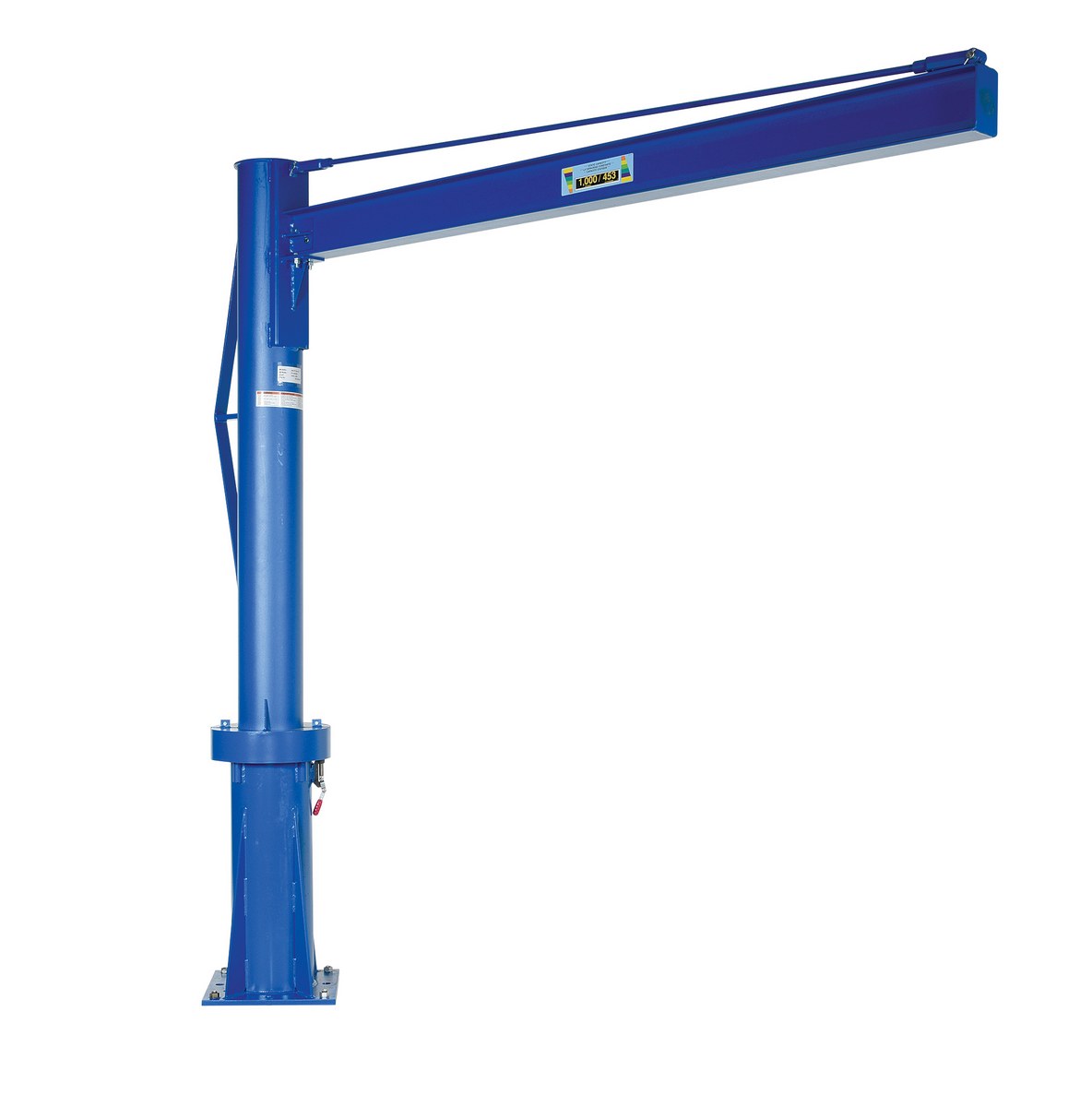

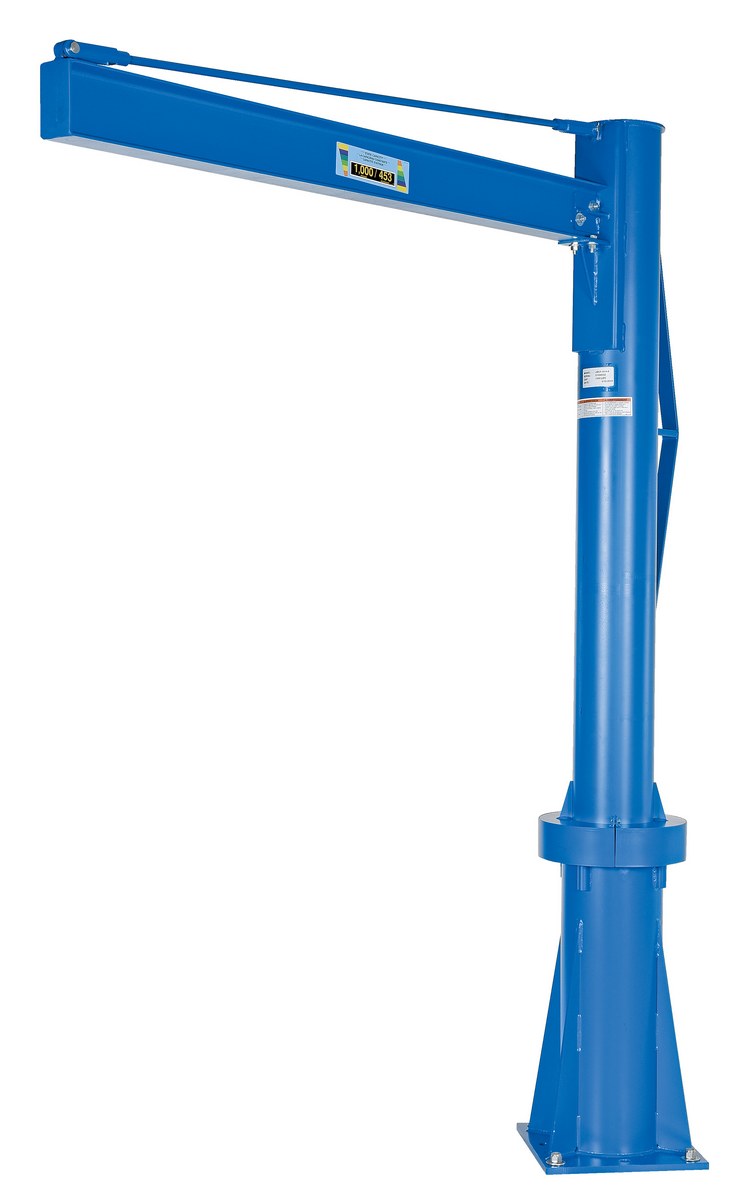

Multi-Station Transportable Jib Cranes
SERIES: JIB-P

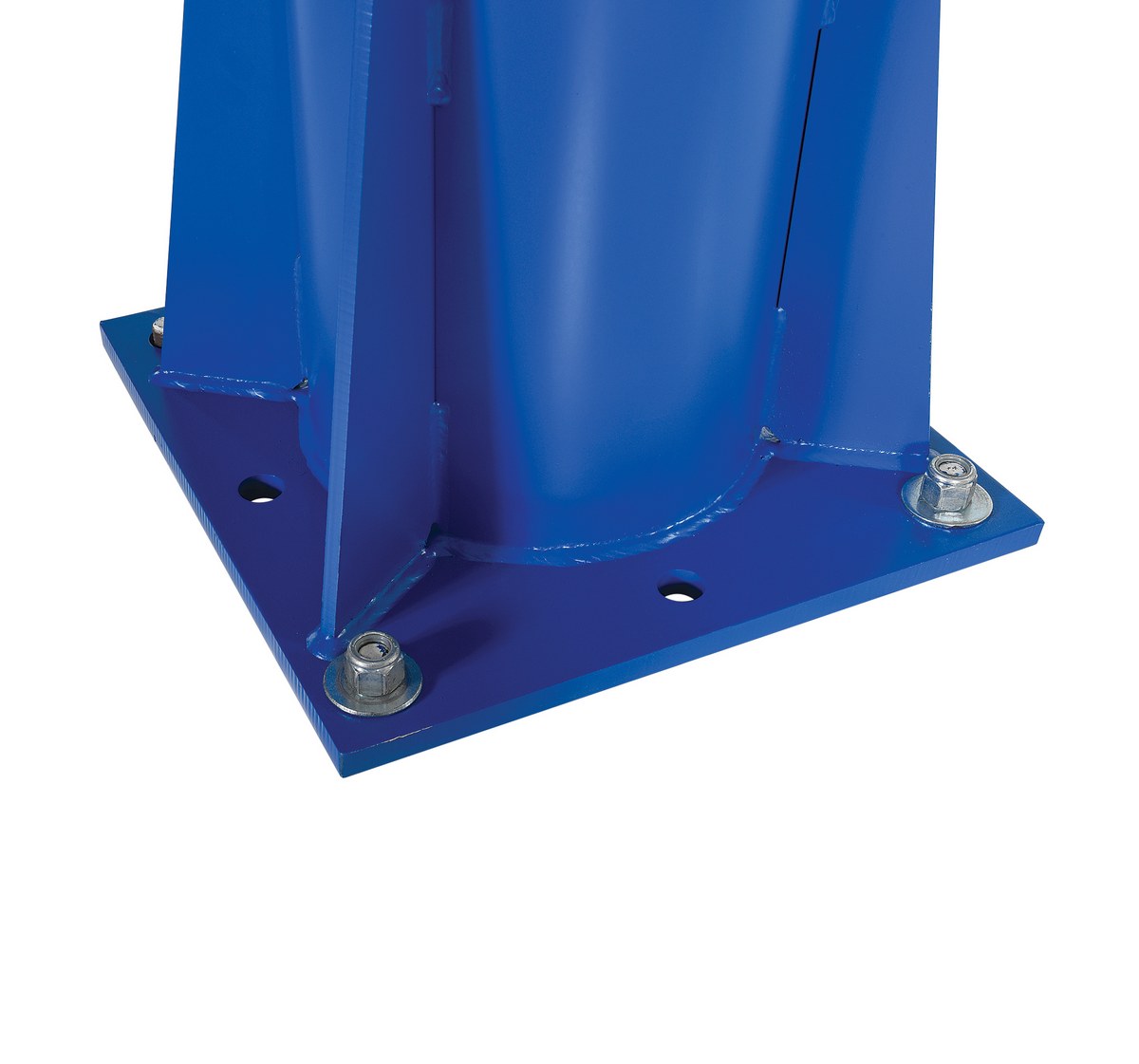

Designed for use in multiple locations, includes jib crane and one base socket. Extra base sockets may be purchased for use in other locations. Friction brake design allows positive locking and controlled rotation of heavy loads. 360 degree continuous rotation of heavy loads. Handle most applications up to 1,000 lbs. 6" high I-beam with 4" flange width. Rugged welded steel construction. Requires reinforced concrete pad for installation. Hoists & Trollies can be ordered seperately. Painted finish.

  • Unique Jib designed can be used in multiple locations

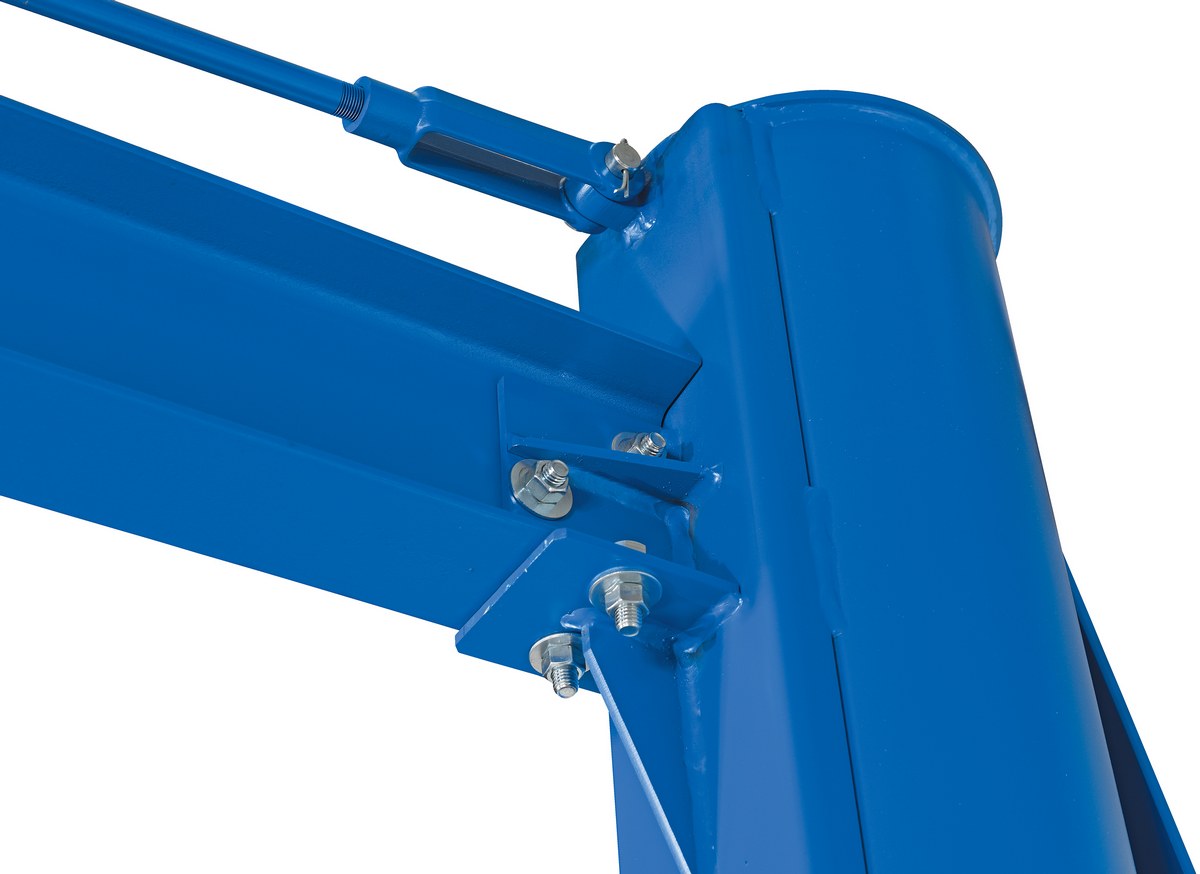

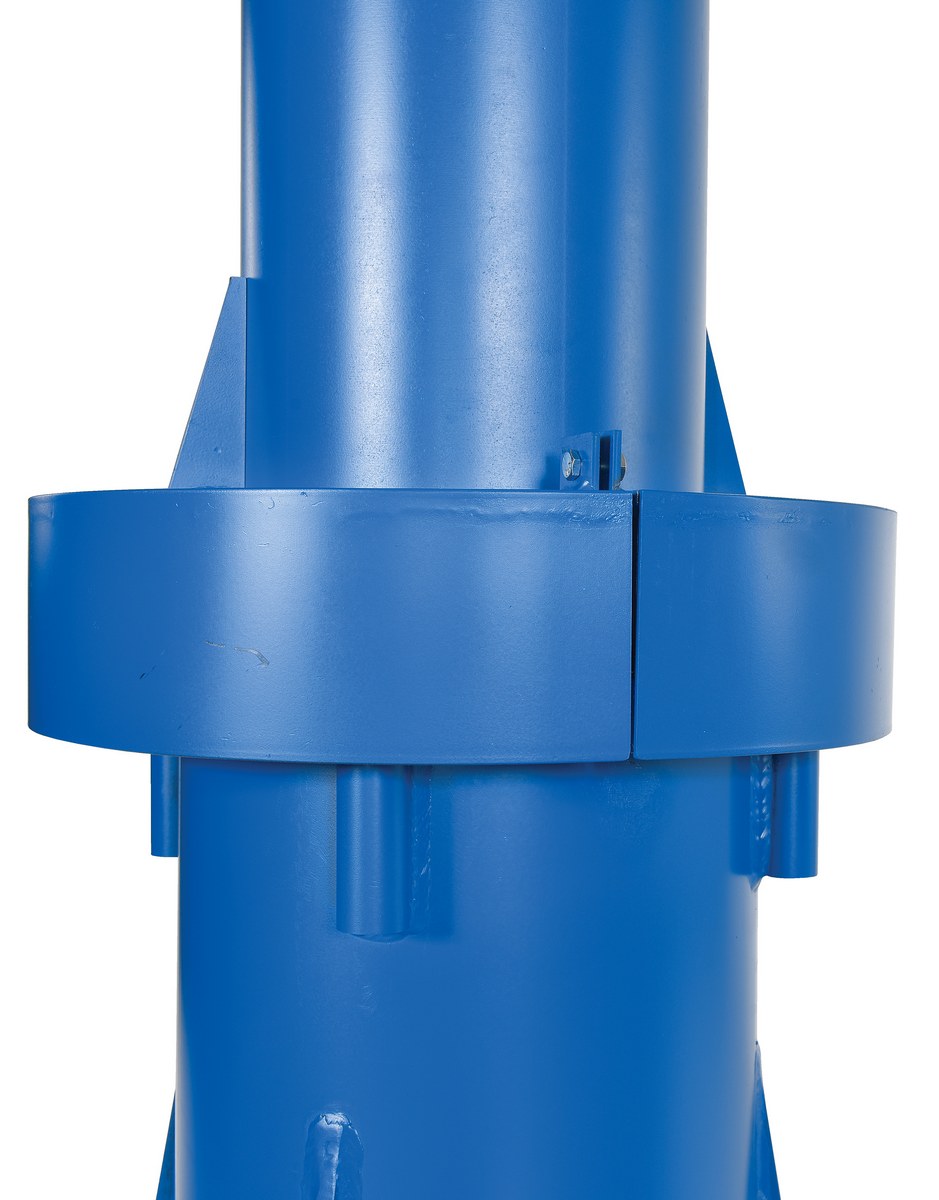

  • Friction brake design allows positive locking and controlled rotation of heavy loads
  • Arm manually rotates 360 degrees for maximum versatility
  • Rugged welded steel construction provides long lasting use
Multi-Station Transportable Jib Cranes

model: JIB-P-10-6-8

Model # Description Attributes Net Wt.
(lbs)

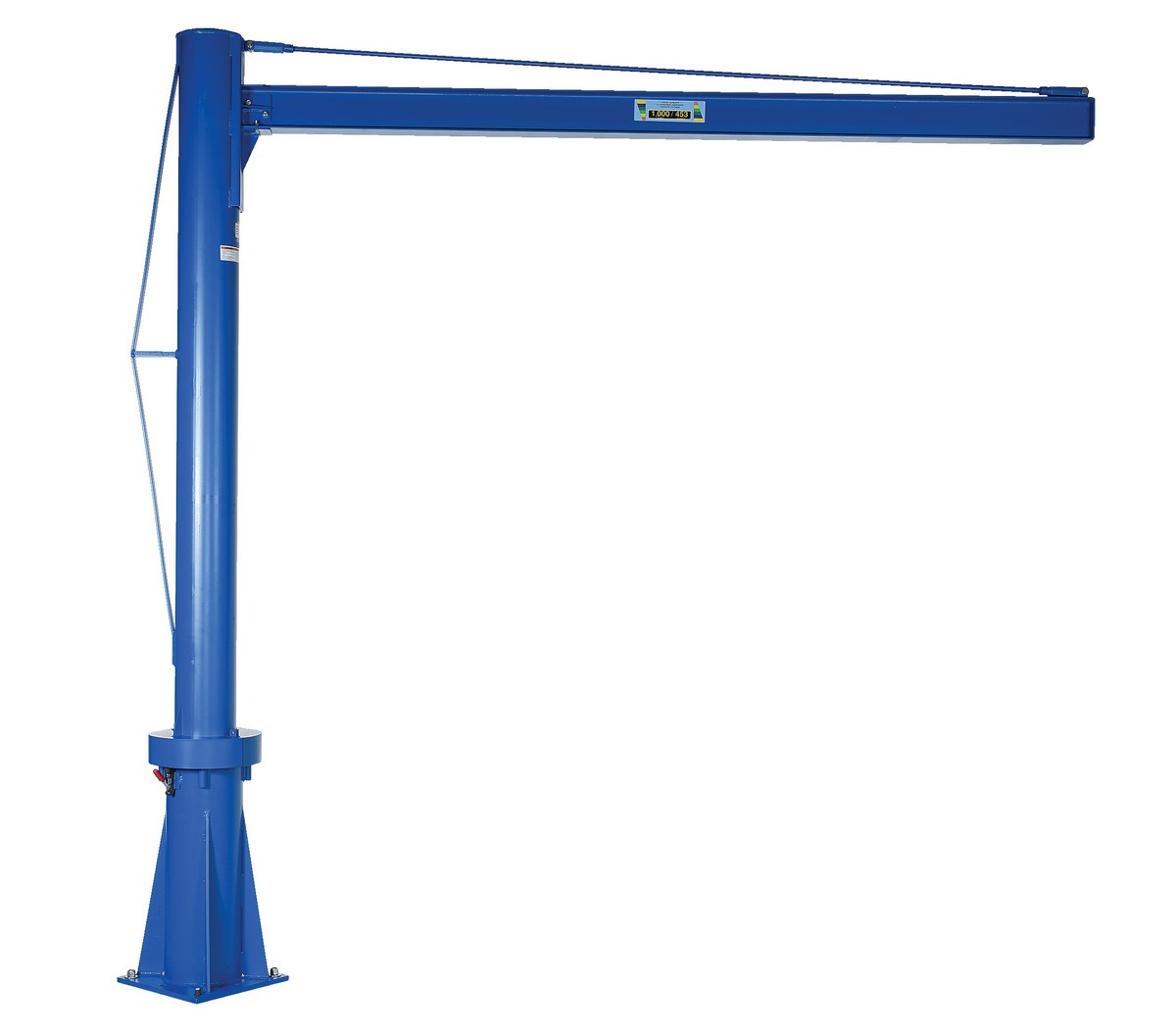

JIB-P-10-10-10 POPULAR JIB-P-10-10-101 Year Limited WarrantySteel Multi Station Jib Crane 120 In. I-Beam 1000 Lb. Capacity BlueUniform Capacity (lb.): 1,000
Overall I-Beam Span (in.): 120		640
JIB-P-10-10-6 JIB-P-10-10-61 Year Limited WarrantySteel Multi Station Jib Crane 120 In. I-Beam 1000 Lb. Capacity BlueUniform Capacity (lb.): 1,000
Overall I-Beam Span (in.): 120		710

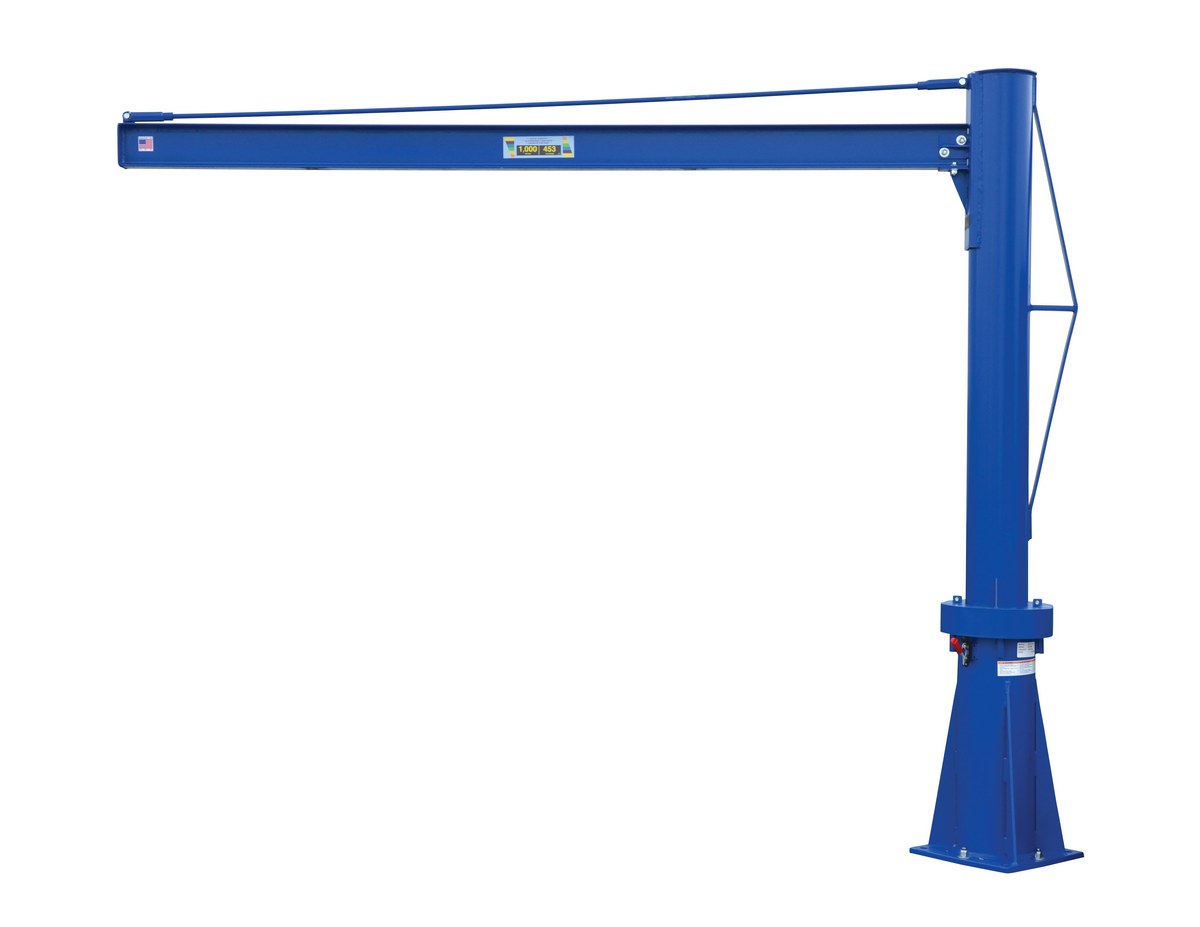

JIB-P-10-10-8 JIB-P-10-10-81 Year Limited WarrantySteel Multi Station Jib Crane 120 In. I-Beam 1000 Lb. Capacity BlueUniform Capacity (lb.): 1,000
Overall I-Beam Span (in.): 120		790

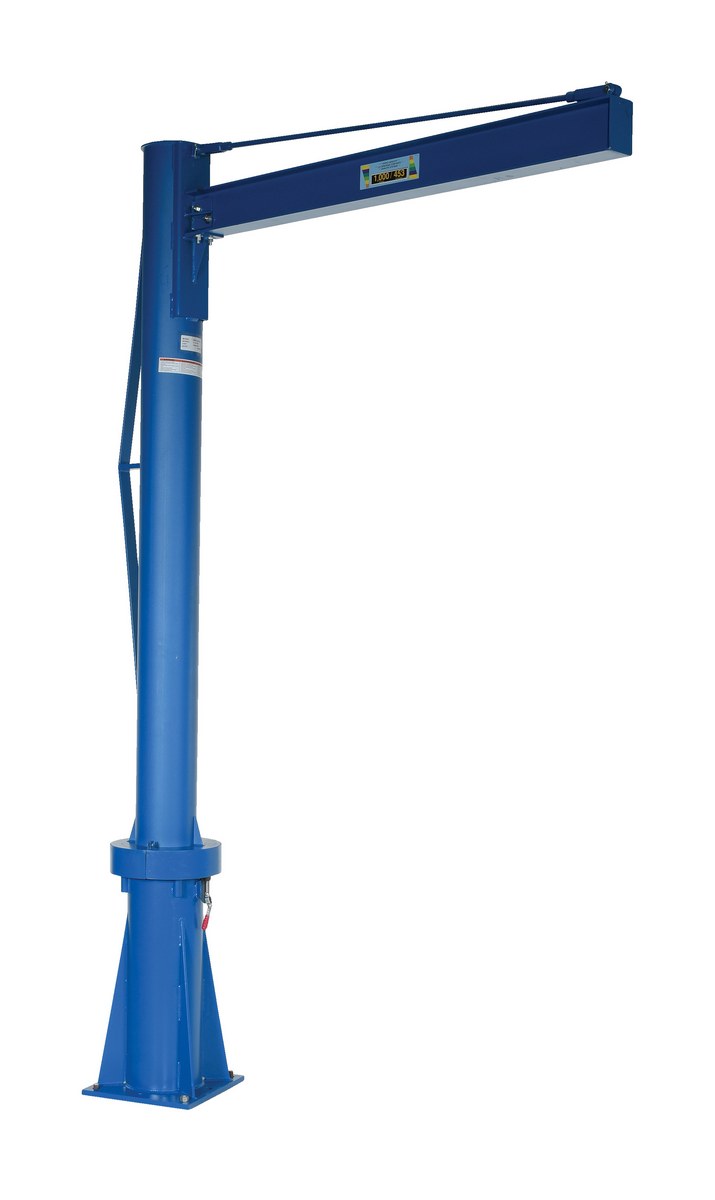

JIB-P-10-6-10 JIB-P-10-6-101 Year Limited WarrantySteel Multi Station Jib Crane 72 In. I-Beam 1000 Lb. Capacity BlueUniform Capacity (lb.): 1,000
Overall I-Beam Span (in.): 72		731
JIB-P-10-6-6 JIB-P-10-6-61 Year Limited WarrantySteel Multi Station Jib Crane 72 In. I-Beam 1000 Lb. Capacity BlueUniform Capacity (lb.): 1,000
Overall I-Beam Span (in.): 72		710
JIB-P-10-6-8 JIB-P-10-6-81 Year Limited WarrantySteel Multi Station Jib Crane 72 In. I-Beam 1000 Lb. Capacity BlueUniform Capacity (lb.): 1,000
Overall I-Beam Span (in.): 72		716

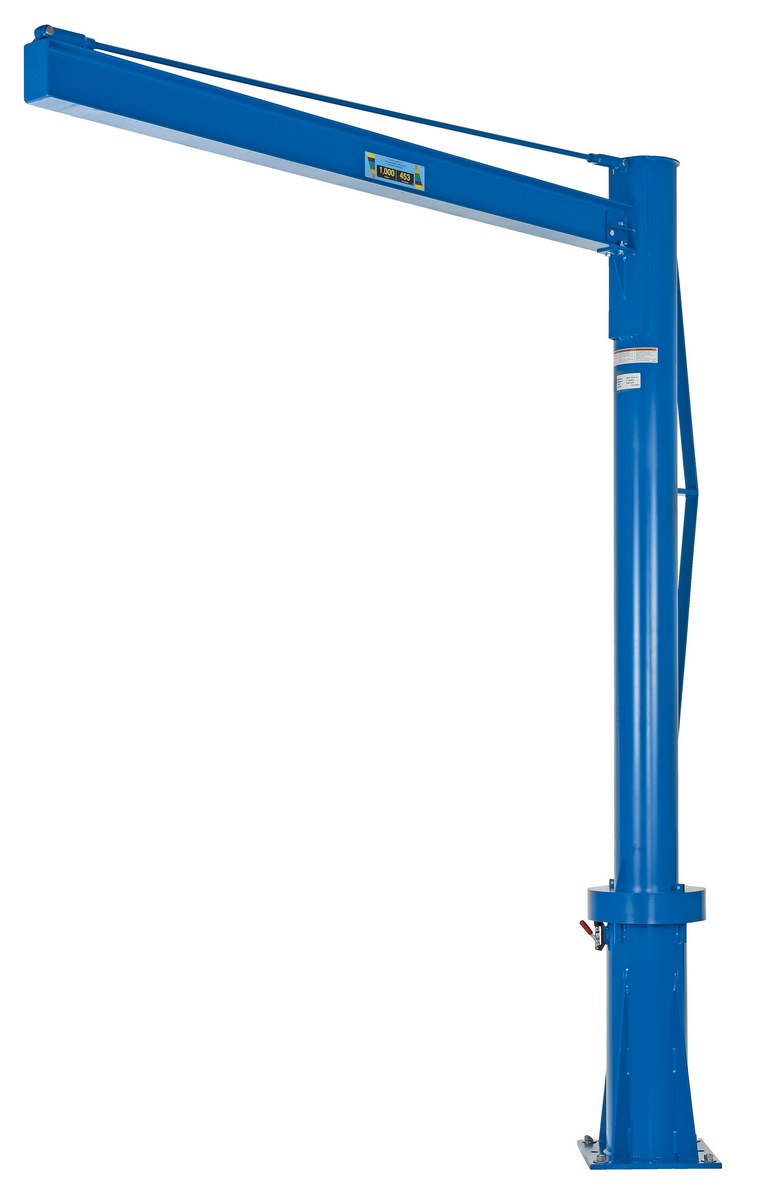

JIB-P-10-8-10 JIB-P-10-8-101 Year Limited WarrantySteel Multi Station Jib Crane 96 In. I-Beam 1000 Lb. Capacity BlueUniform Capacity (lb.): 1,000
Overall I-Beam Span (in.): 96		773
JIB-P-10-8-6 JIB-P-10-8-61 Year Limited WarrantySteel Multi Station Jib Crane 96 In. I-Beam 1000 Lb. Capacity BlueUniform Capacity (lb.): 1,000
Overall I-Beam Span (in.): 96		606
JIB-P-10-8-8 JIB-P-10-8-81 Year Limited WarrantySteel Multi Station Jib Crane 96 In. I-Beam 1000 Lb. Capacity BlueUniform Capacity (lb.): 1,000
Overall I-Beam Span (in.): 96		683

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Dimension Image = Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below
JIB-P-10-10-10
JIB-P-10-10-6
JIB-P-10-10-8
JIB-P-10-6-10
JIB-P-10-6-6
JIB-P-10-6-8
JIB-P-10-8-10
JIB-P-10-8-6
JIB-P-10-8-8
JIB-P-B
For More Details of the Option Click the Red Model Button
Model Image Details Icons Wt.

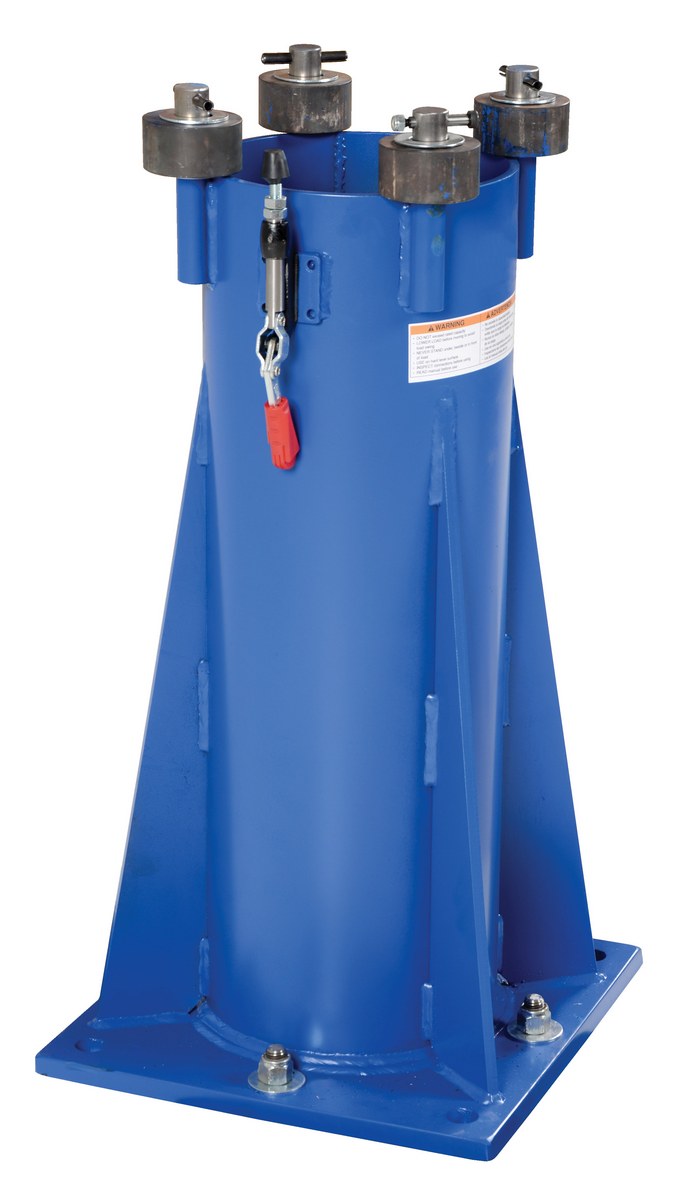

JIB-P-B JIB-P-BFactory Installed Steel Base Socket For Multi Station Transp…1 Year Limited Warranty267

.

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
PDFs will open in a new window when clicked.

Manuals

JIB-P

Survey Sheets

JIB-P

Engineering Drawings

JIB-P-10-6-6

JIB-P-10-6-8

JIB-P-10-6-10

JIB-P-10-8-6

JIB-P-10-8-8

JIB-P-10-8-10

JIB-P-10-10-6

JIB-P-10-10-8

JIB-P-10-10-10

JIB-P-B

Testing Certificates

JIB-P-10-10-10

JIB-P-10-10-6

JIB-P-10-10-8

JIB-P-10-6-10

JIB-P-10-6-6

JIB-P-10-6-8

JIB-P-10-8-10

JIB-P-10-8-6

JIB-P-10-8-8

JIB-P-B

SDS Sheets

No SDS Sheets For This Product

Other PDFs

No "Other PDFs" For This Product
I am interested in the multi station JIB. I have concrete where I want to install it. Must we pour a new foundation?
Because we do not know the condition and strength of the users concrete, pouring a new foundation is the only way we can guarantee the unit will not fail. We can only recommend installing per the instructions in the owners manual. Normal use of the jib causes vibrations that could potentially loosen a wedge anchor. We spec out J-anchors for use in new concrete.
