Product Family Overview

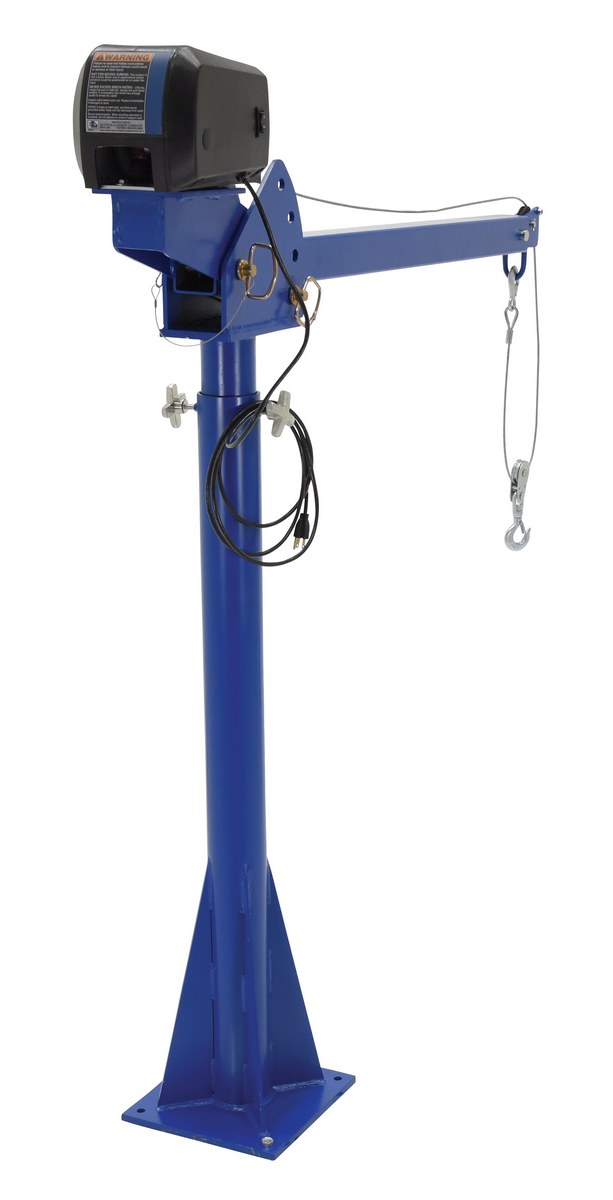

Power Lift Jib Cranes
SERIES: WTJ

Designed for material handling applications on docks, in warehouses, or in truck beds. Choose either 12V DC, 1 HP with 6' long non-removable pendant control or 115V AC, 1/3 HP with fingertip switch to raise and lower hook. Powered winches are designed for intermediate lifting. Meets ANSI and OSHA specifications. 12" x 12" mounting plate. Unit is designed for vertical lifting only. Do not use unit for lifting personnel or overhead lifting. Battery not included. Models with suffix -CSA feature a winch that meets Canadian requirements.

  • Powered cable winch makes lifting and maneuvering easy

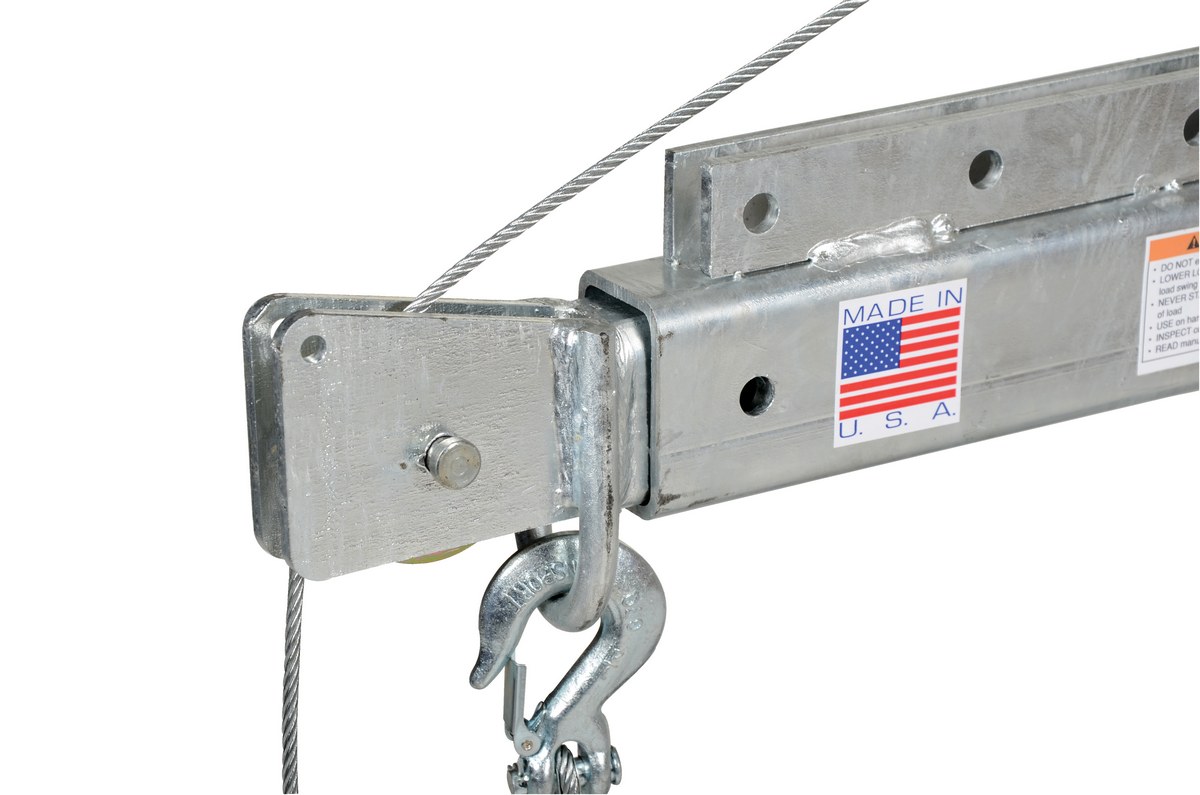

  • Boom telescopes in and out for greater reach and versatility
  • 360 Degrees swivel design allows for maximum accessibility
  • Pre-drilled base plate makes mounting quick and easy

Designed for material handling applications on docks, in warehouses, or in truck beds. Choose either 12V DC, 1 HP with 6' long non-removable pendant control or 115V AC, 1/3 HP with fingertip switch to raise and lower hook. Powered winches are designed for intermediate lifting. Meets ANSI and OSHA specifications. 12" x 12" mounting plate. Unit is designed for vertical lifting only. Do not use unit for lifting personnel or overhead lifting. Battery not included. Models with suffix -CSA feature a winch that meets Canadian requirements.

  • Powered cable winch makes lifting and maneuvering easy
  • Boom telescopes in and out for greater reach and versatility
  • 360 Degrees swivel design allows for maximum accessibility
  • Pre-drilled base plate makes mounting quick and easy

Additional Models In This Family

Model Specific Details


All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)

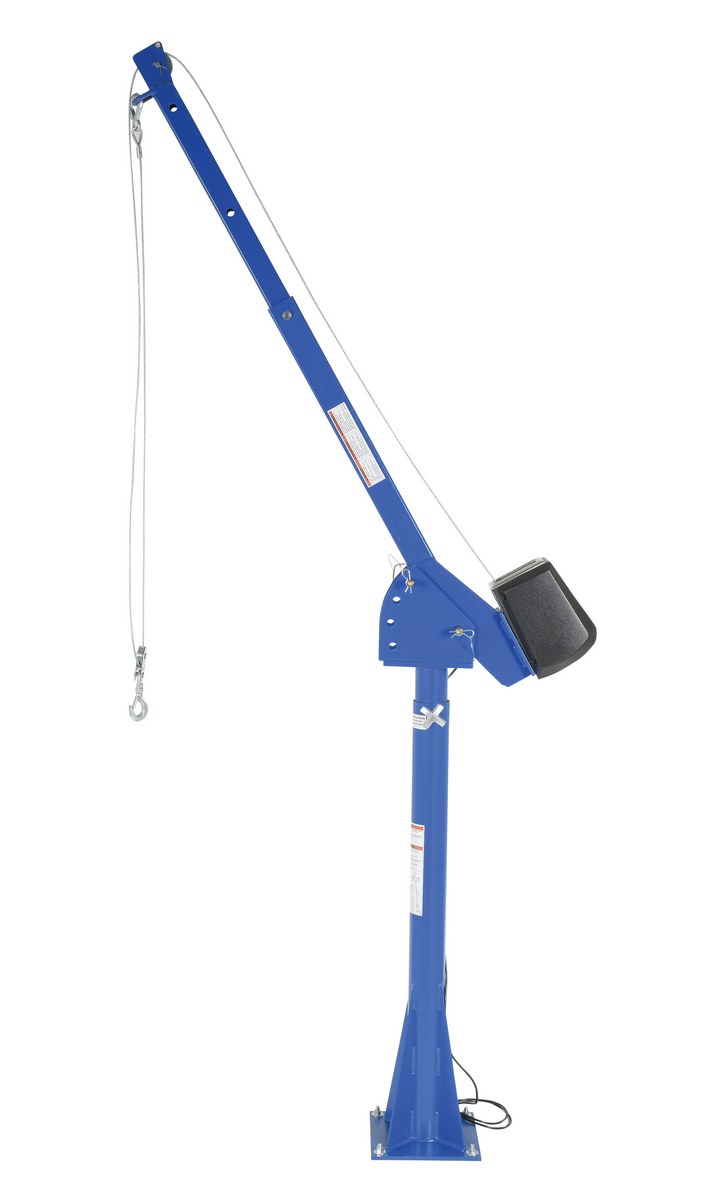

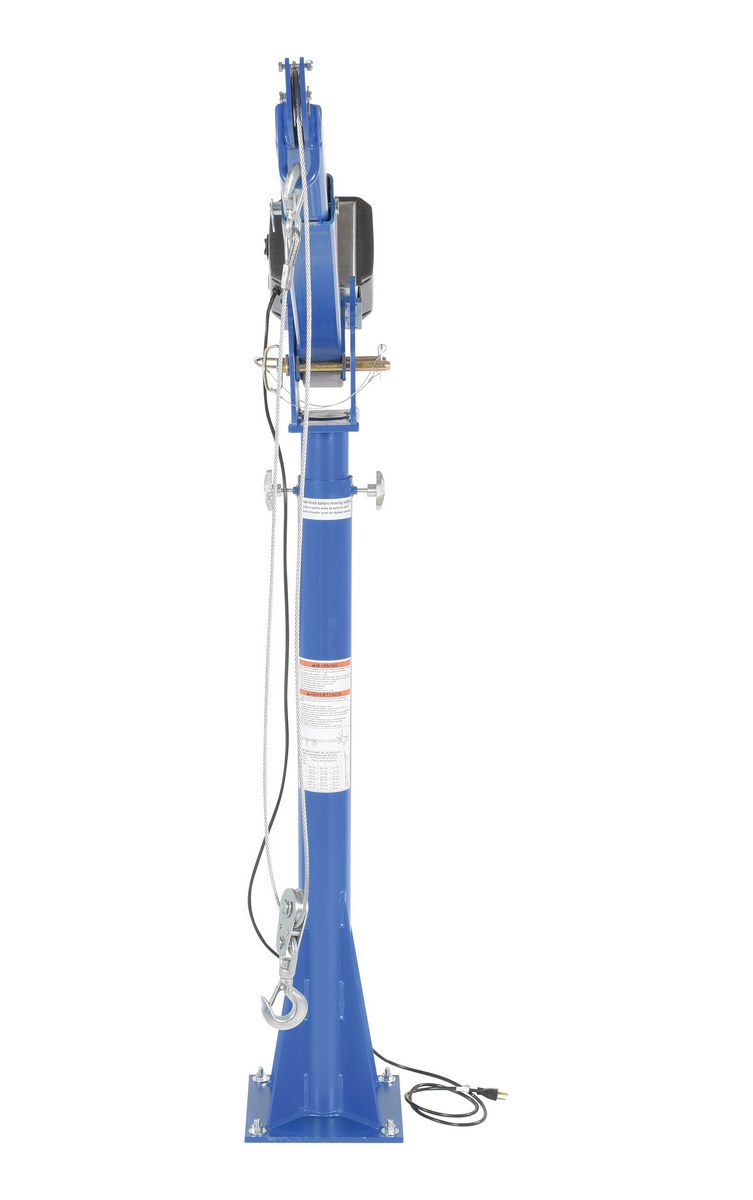

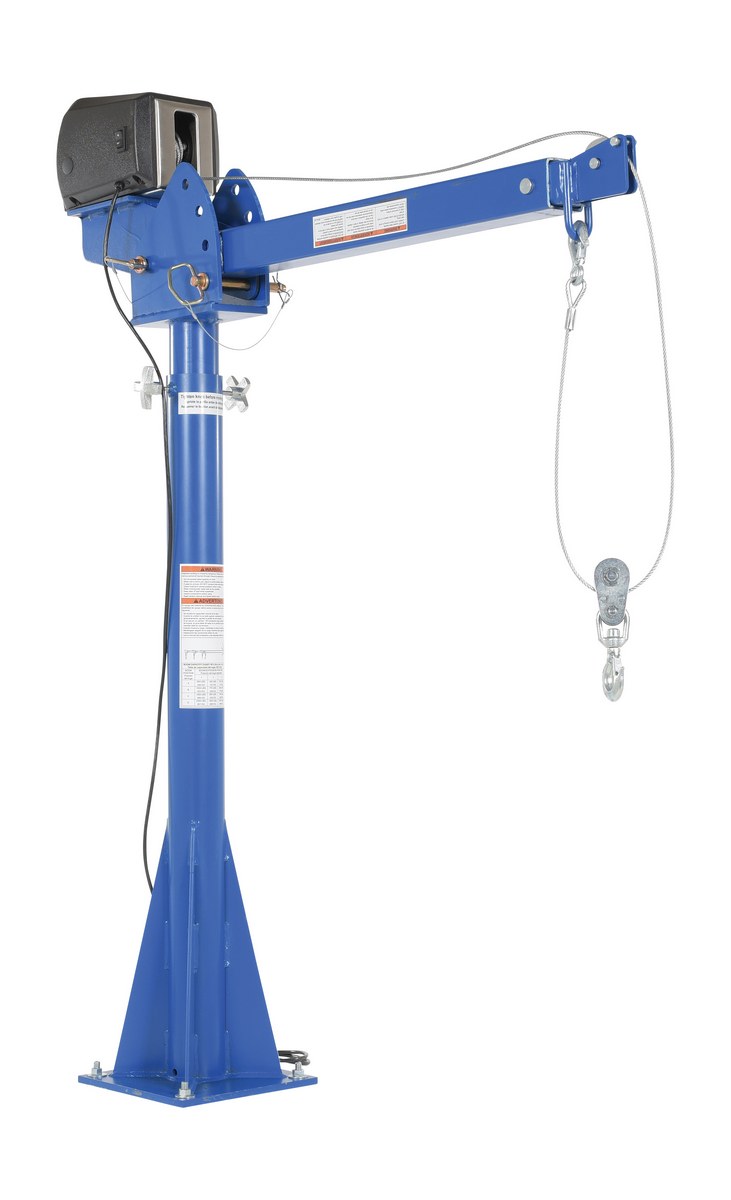

WTJ-20-3-AC WTJ-20-3-AC90 Days Limited WarrantySteel AC Powered Jib Crane 3-5 Ft. Boom 2,000 Lb. Capacity BlueUniform Capacity (lb.): 2,000
Boom Reach (in.): 39-1/4 to 63-1/4
280
WTJ-20-3-AC-CSA WTJ-20-3-AC-CSA90 Days Limited WarrantySteel AC Powered Jib Crane CSA Compliant 3-5 Ft. Boom 2,000 Lb. Capacity BlueUniform Capacity (lb.): 2,000
Boom Reach (in.): 39-1/4 to 63-1/4
280

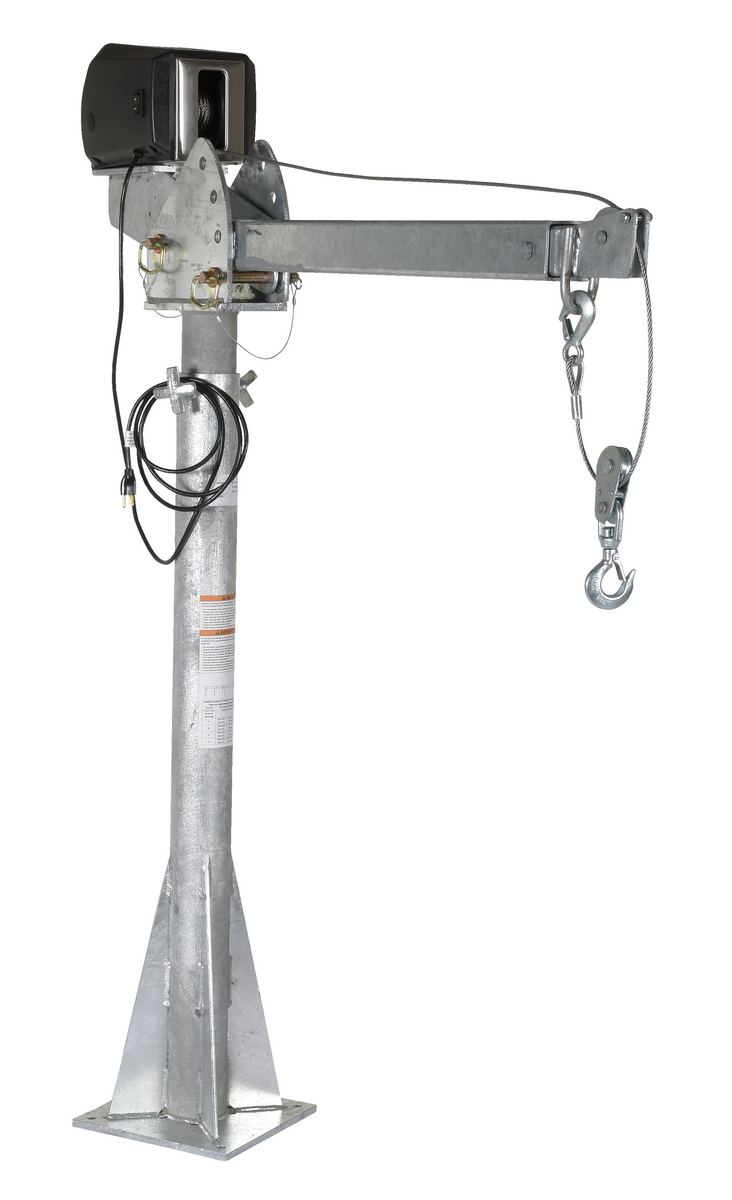

WTJ-20-3-AC-CSA-GAL WTJ-20-3-AC-CSA-GAL90 Days Limited WarrantyGalvanized Steel AC Powered Jib Crane CSA Compliant 3-5 Ft. Boom 2,000 Lb. Capacity GrayUniform Capacity (lb.): 2000
Boom Reach (in.): 39-1/4 to 63-1/4
284
WTJ-20-3-AC-GAL WTJ-20-3-AC-GAL90 Days Limited WarrantyGalvanized Steel AC Powered Jib Crane 3-5 Ft. Boom 2,000 Lb. Capacity GrayUniform Capacity (lb.): 2,000
Boom Reach (in.): 39-1/4 to 63-1/4
284

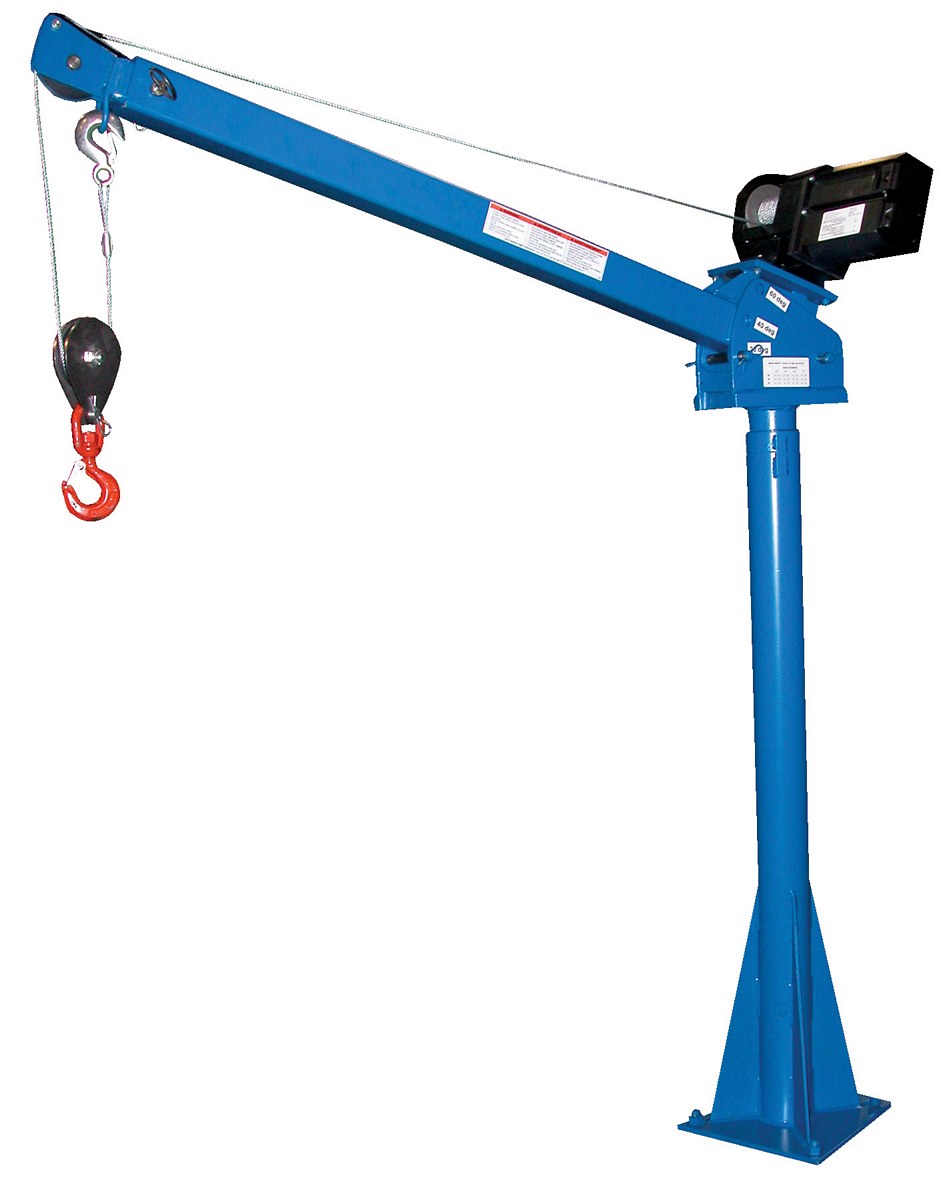

WTJ-20-3-DC WTJ-20-3-DC90 Days Limited WarrantySteel DC Powered Jib Crane 3-5 Ft. Boom 2,000 Lb. Capacity BlueUniform Capacity (lb.): 2,000
Boom Reach (in.): 39-1/4 to 63-1/4
261

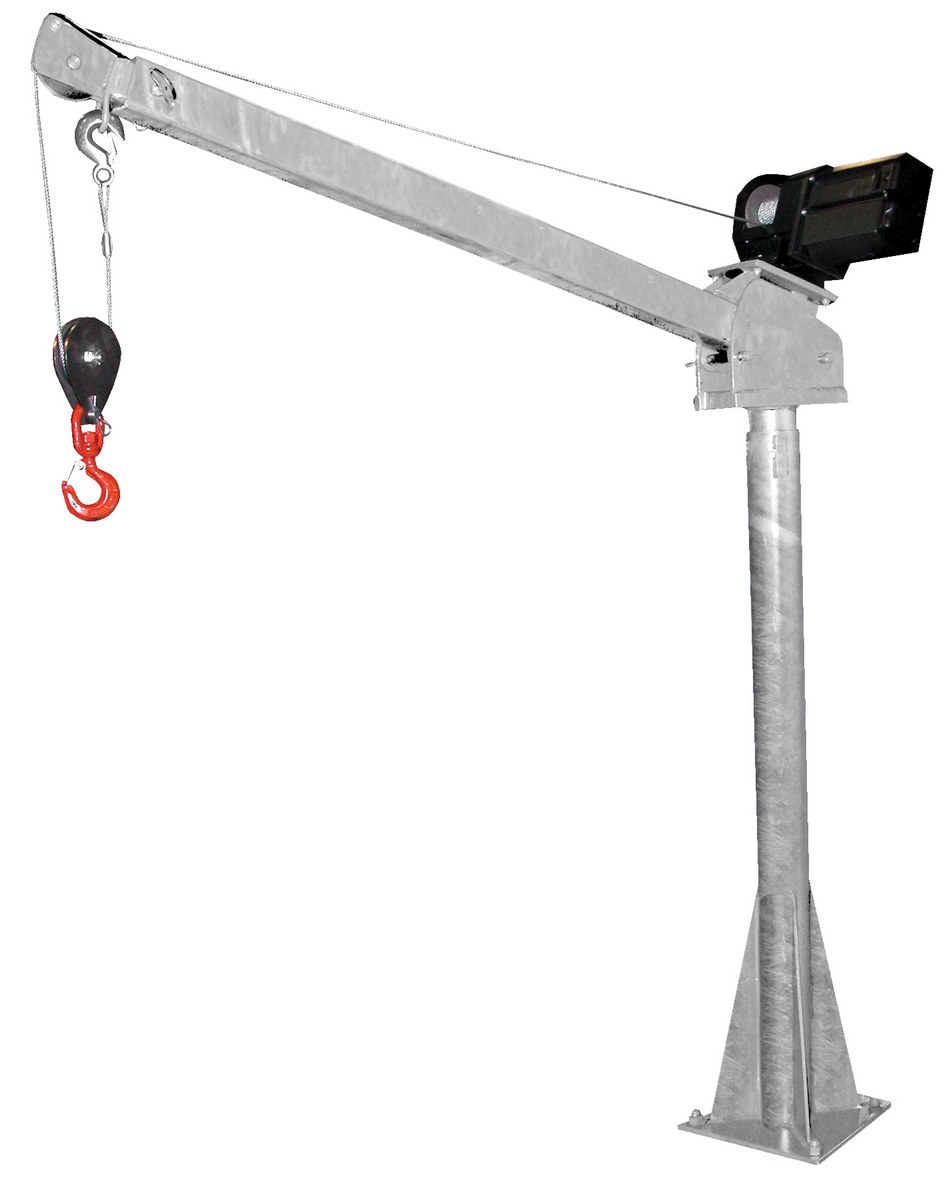

WTJ-20-3-DC-GAL WTJ-20-3-DC-GAL90 Days Limited WarrantyGalvanized Steel DC Powered Jib Crane 3-5 Ft. Boom 2,000 Lb. Capacity GrayUniform Capacity (lb.): 2,000
Boom Reach (in.): 39-1/4 to 63-1/4
265

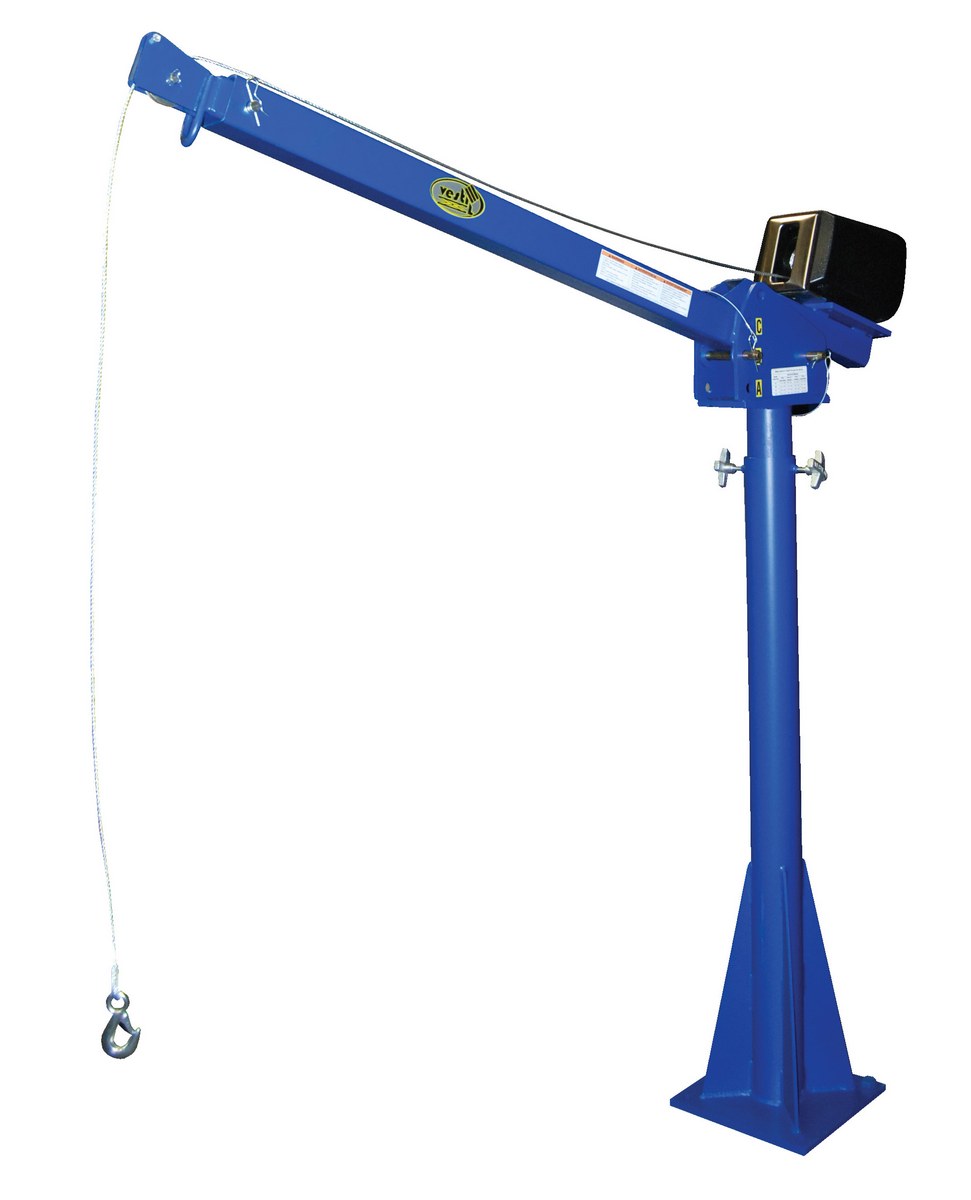

WTJ-20-4-AC WTJ-20-4-AC90 Days Limited WarrantySteel AC Powered Jib Crane 4-7 Ft. Boom 2,000 Lb. Capacity BlueUniform Capacity (lb.): 2,000
Boom Reach (in.): 51-1/4 to 87-1/4
290

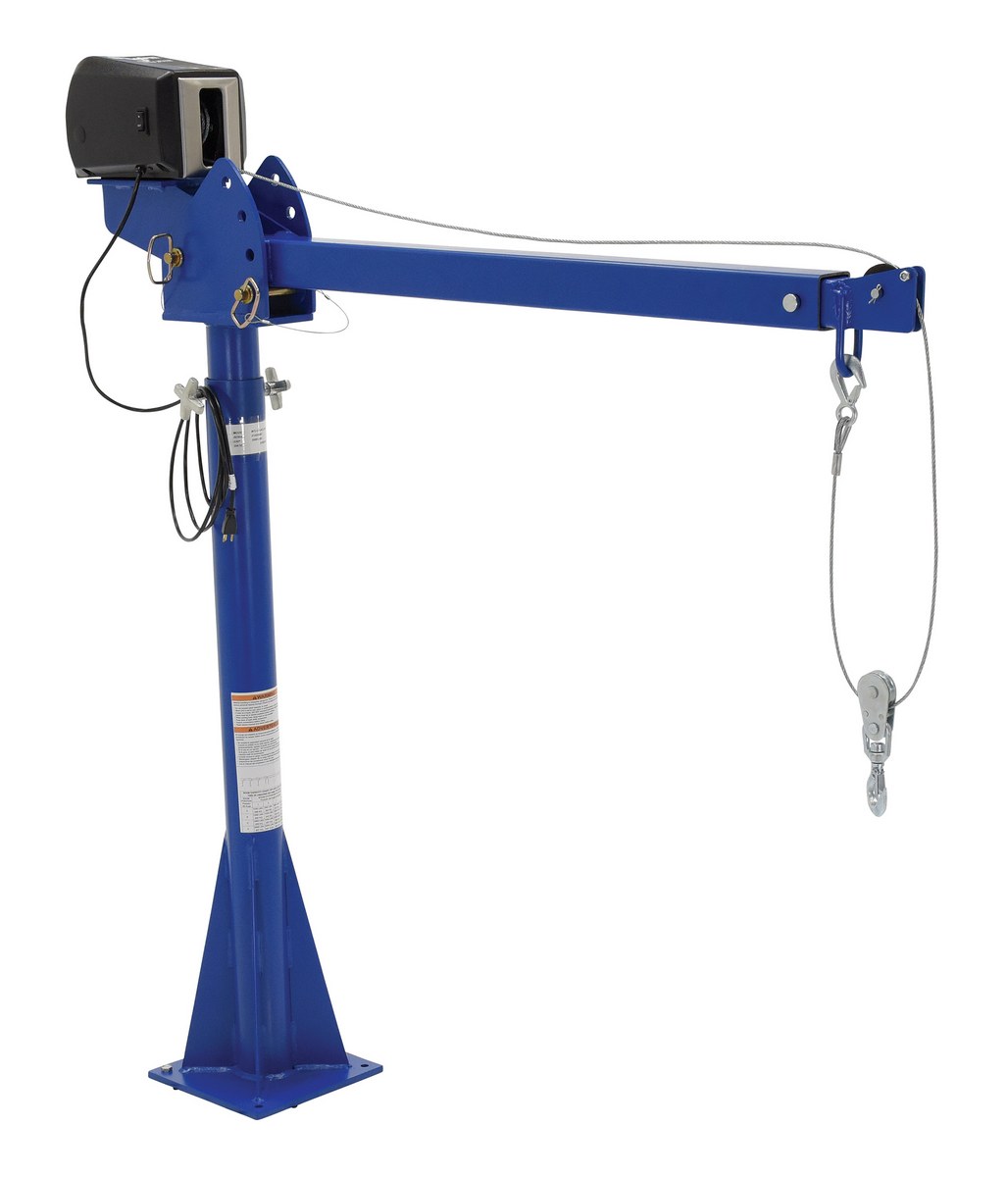

WTJ-20-4-AC-CSA WTJ-20-4-AC-CSA90 Days Limited WarrantySteel AC Powered Jib Crane CSA Compliant 4-7 Ft. Boom 2,000 Lb. Capacity BlueUniform Capacity (lb.): 2,000
Boom Reach (in.): 51-1/4 to 87-1/4
275

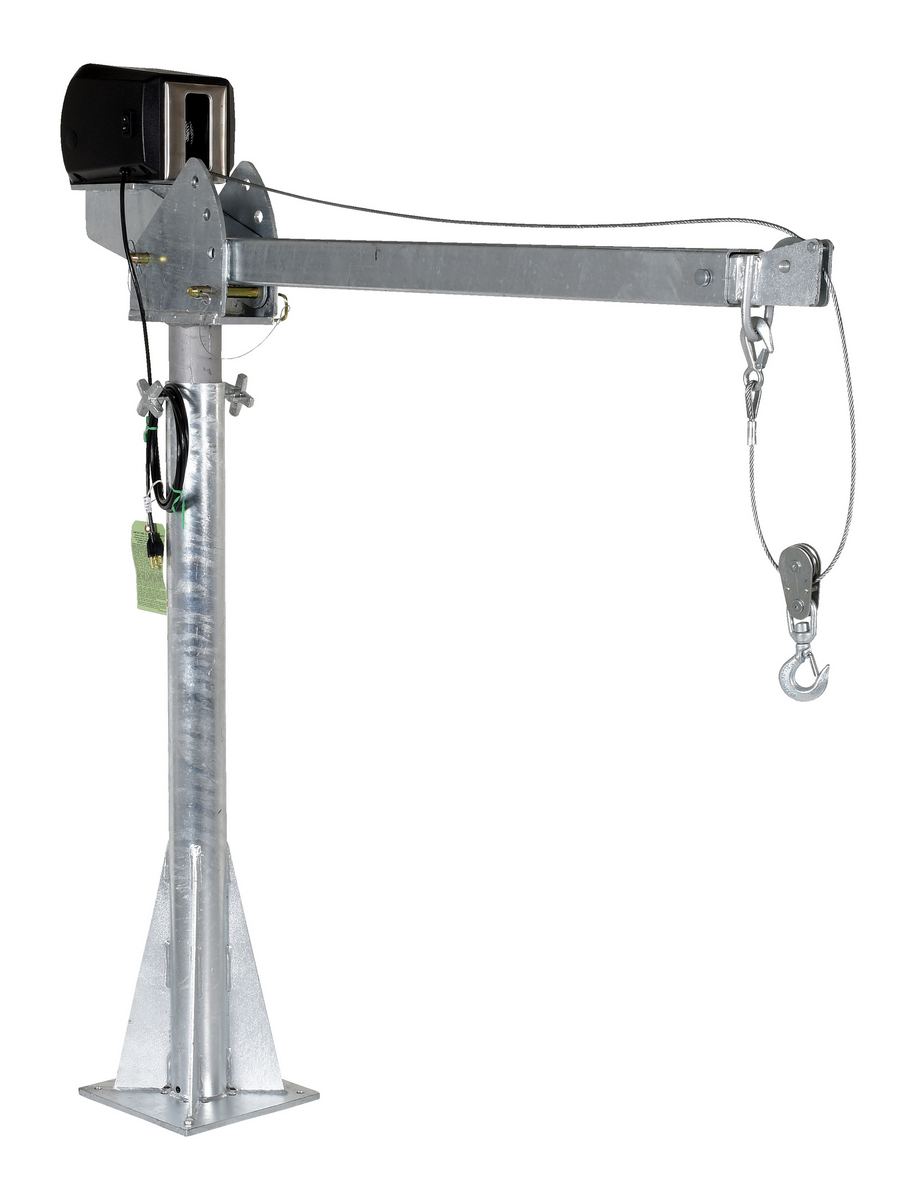

WTJ-20-4-AC-CSA-GAL WTJ-20-4-AC-CSA-GAL90 Days Limited WarrantyGalvanized Steel AC Powered Jib Crane CSA Compliant 4-7 Ft. Boom 2,000 Lb. Capacity GrayUniform Capacity (lb.): 2000
Boom Reach (in.): 51-1/4 to 87-1/4
281

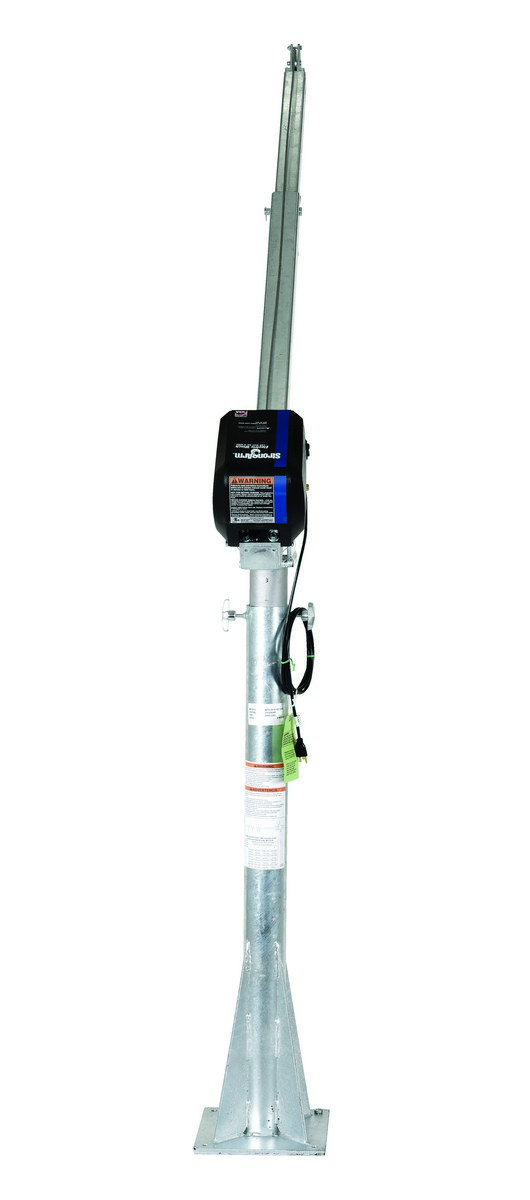

WTJ-20-4-AC-GAL WTJ-20-4-AC-GAL90 Days Limited WarrantyGalvanized Steel AC Powered Jib Crane 4-7 Ft. Boom 2,000 Lb. Capacity GrayUniform Capacity (lb.): 2,000
Boom Reach (in.): 51-1/4 to 87-1/4
294

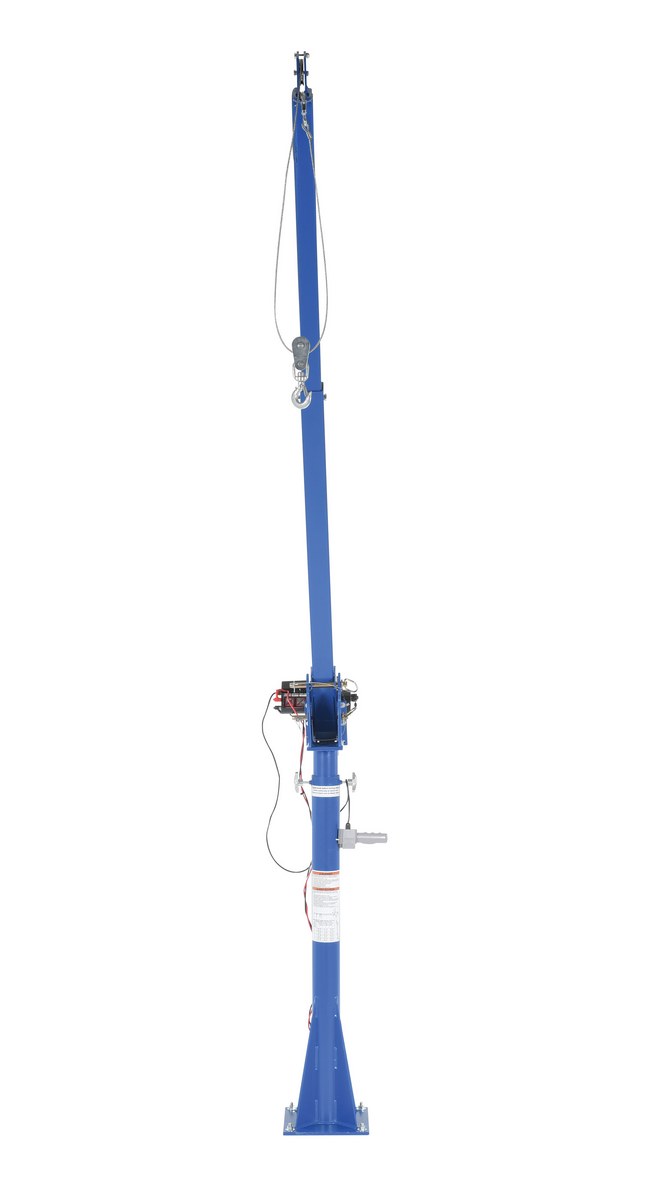

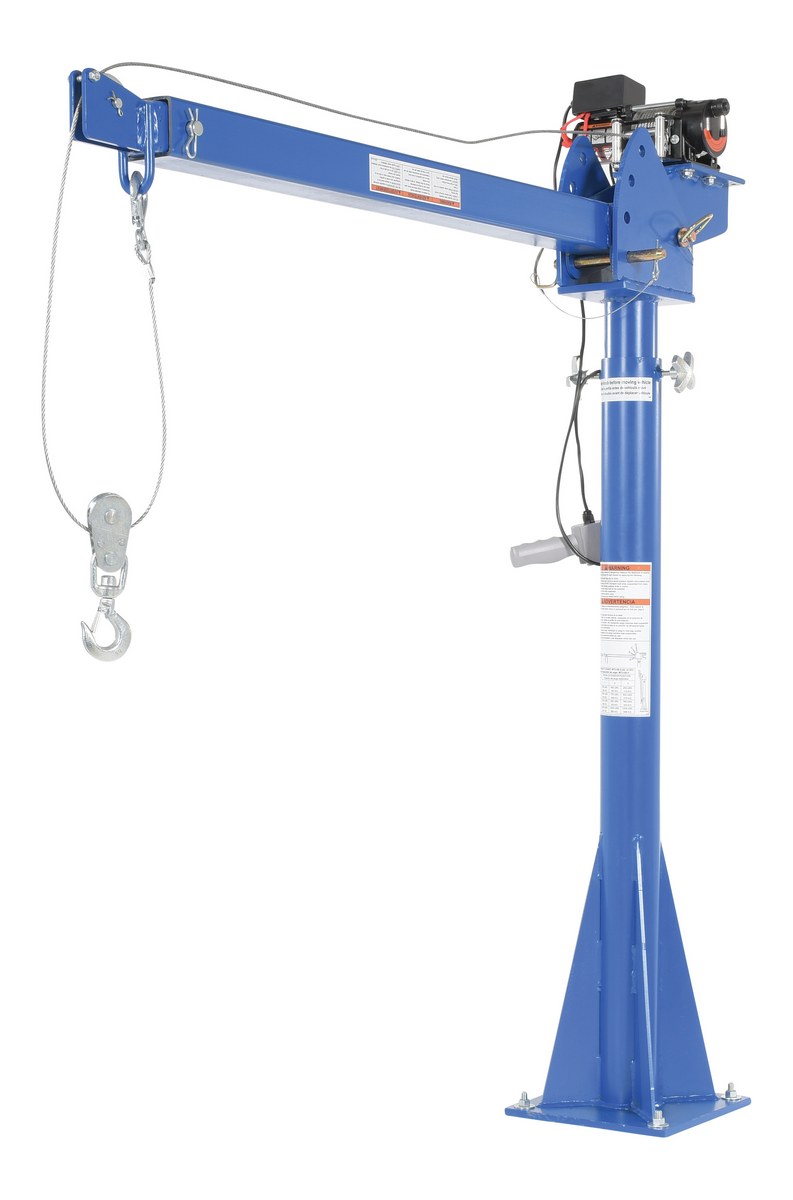

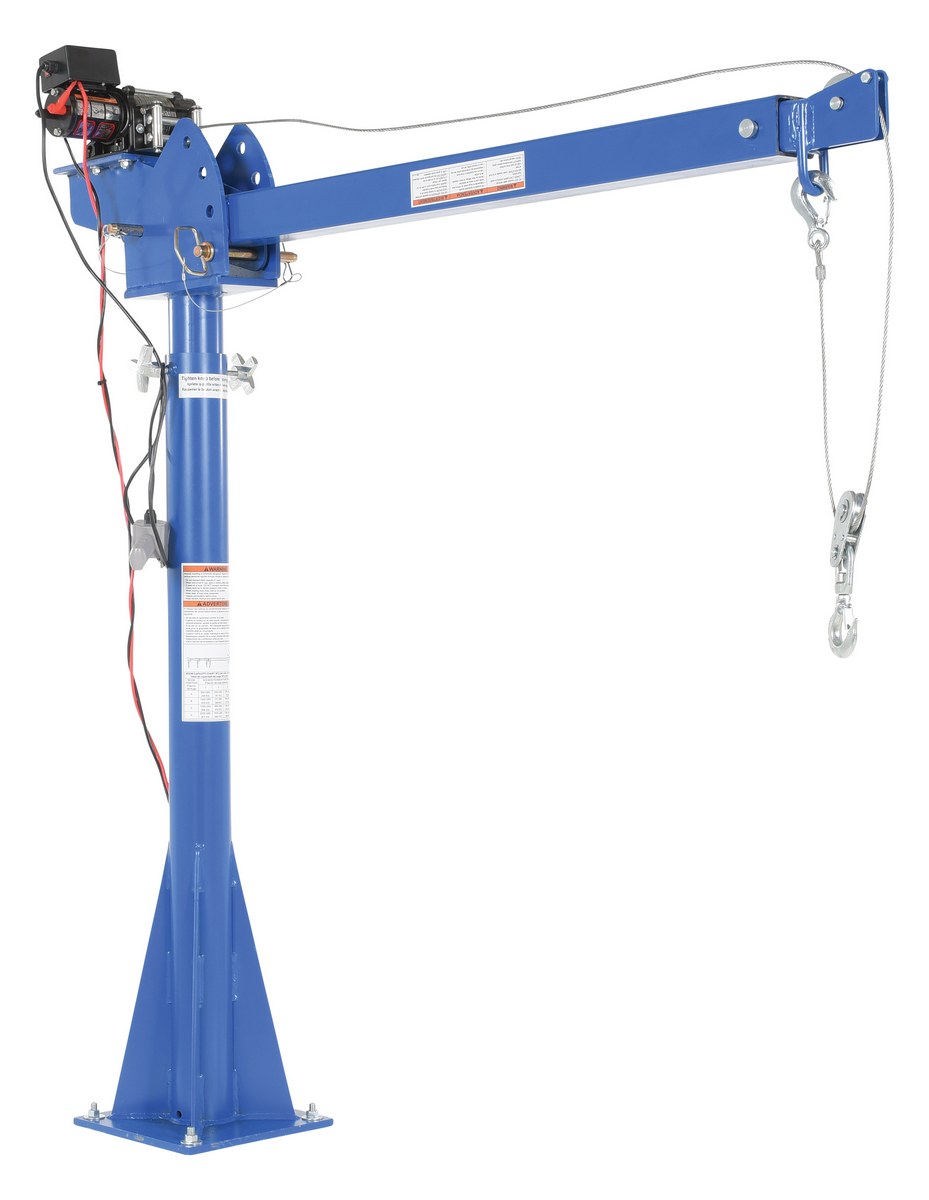

WTJ-20-4-DC WTJ-20-4-DC90 Days Limited WarrantySteel DC Powered Jib Crane 4-7 Ft. Boom 2,000 Lb. Capacity BlueUniform Capacity (lb.): 2,000
Boom Reach (in.): 51-1/4 to 87-1/4
260

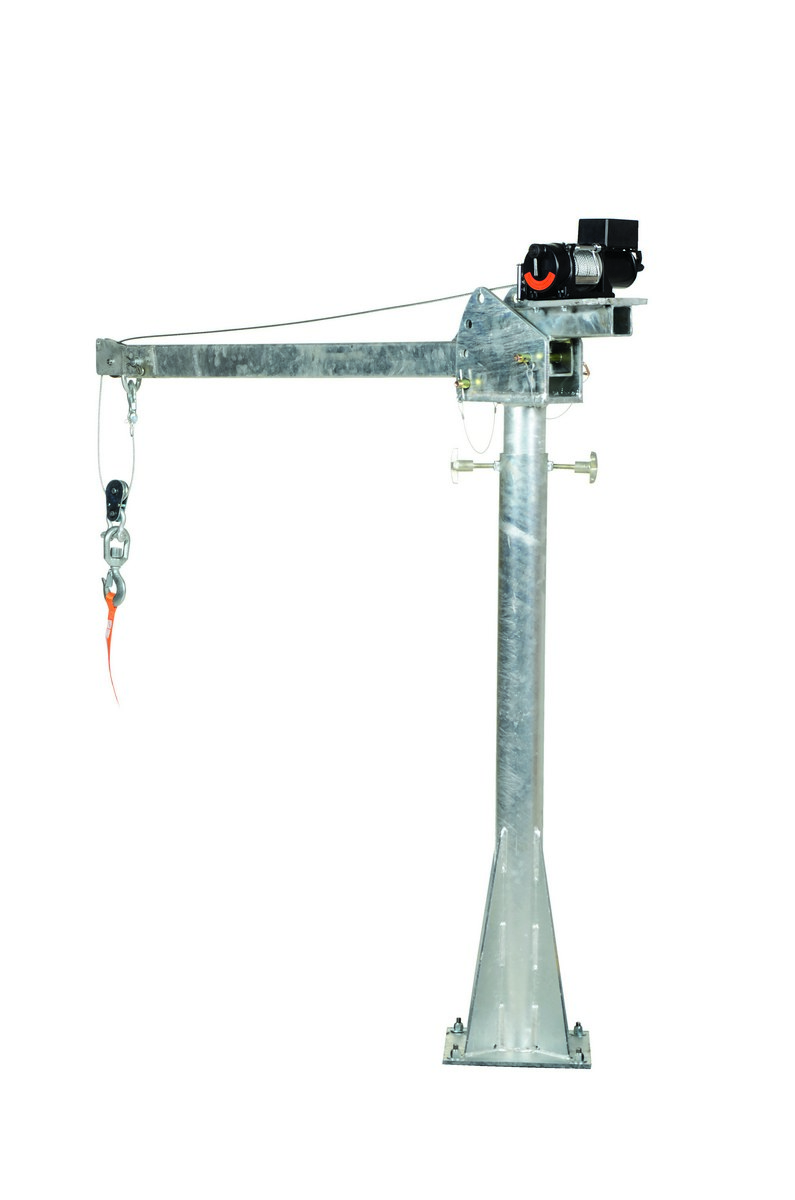

WTJ-20-4-DC-GAL WTJ-20-4-DC-GAL90 Days Limited WarrantyGalvanized Steel DC Powered Jib Crane 4-7 Ft. Boom 2,000 Lb. Capacity GrayUniform Capacity (lb.): 2,000
Boom Reach (in.): 51-1/4 to 87-1/4
266

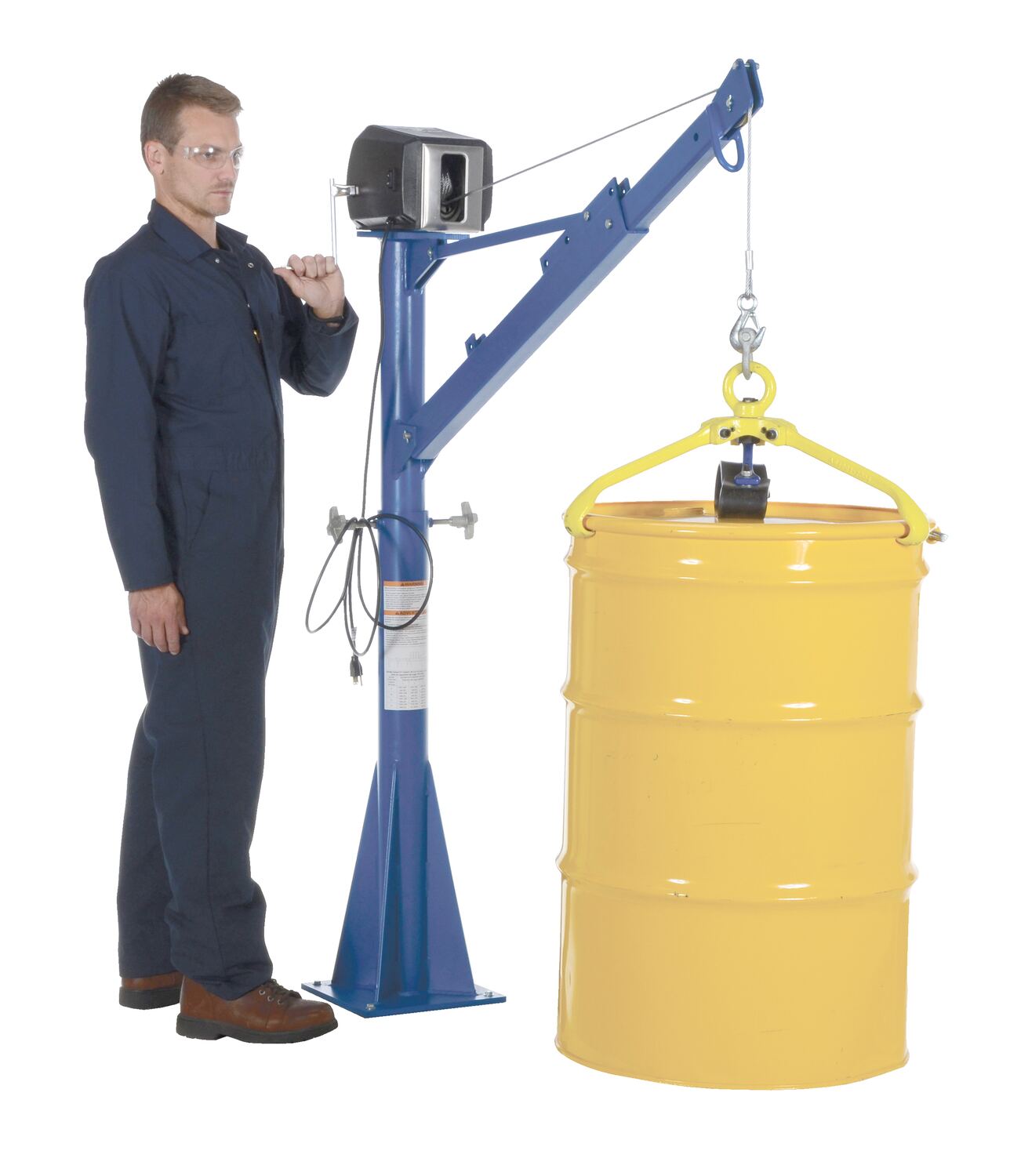

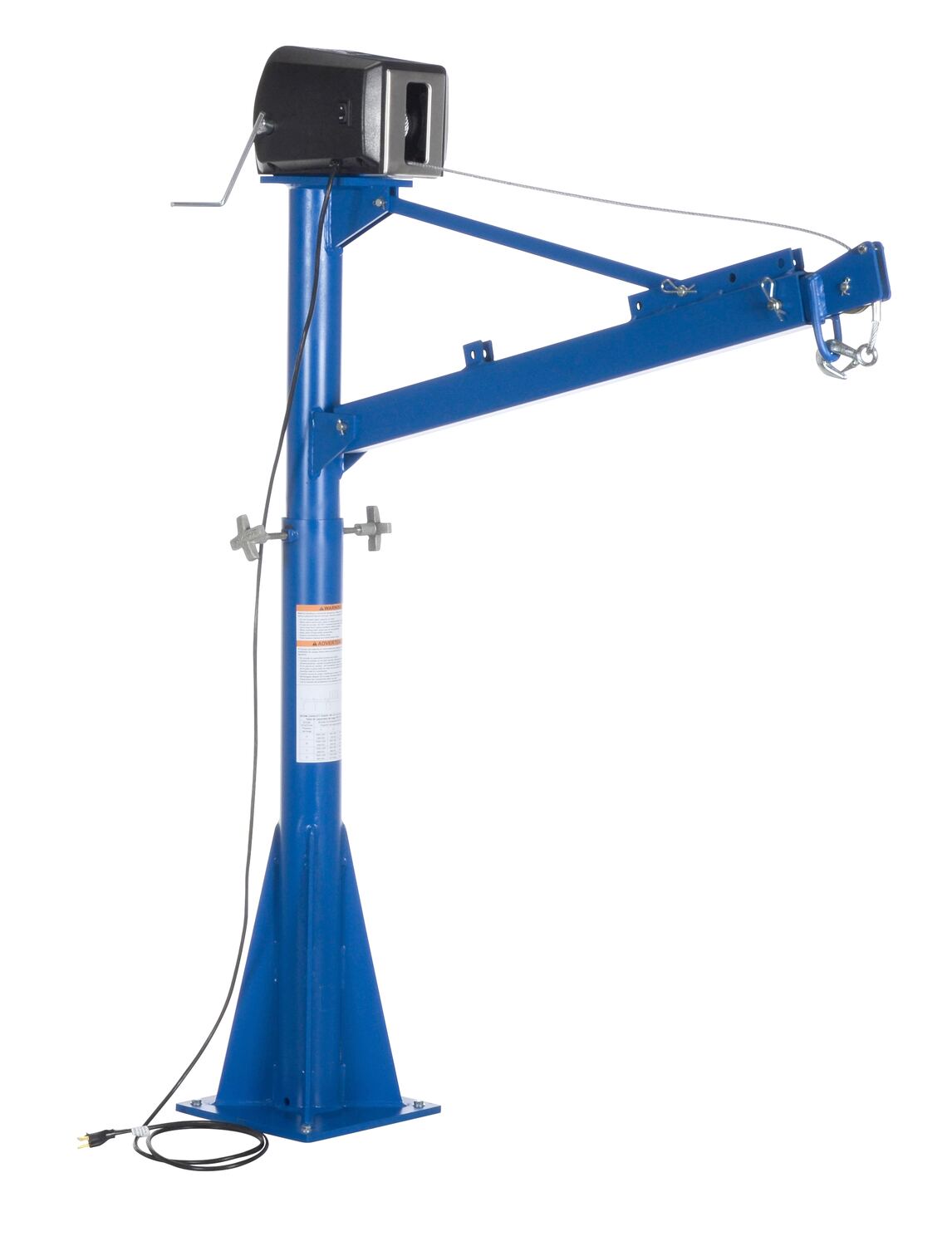

WTJ-E-15-3-AC WTJ-E-15-3-AC90 Days Limited WarrantySteel AC Powered Jib Crane 3-1/2 to 5-1/2 Ft. Boom 1,500 Lb. Capacity BlueUniform Capacity (lb.): 1,500
Boom Reach (in.): 43-1/16 to 66-3/4
223

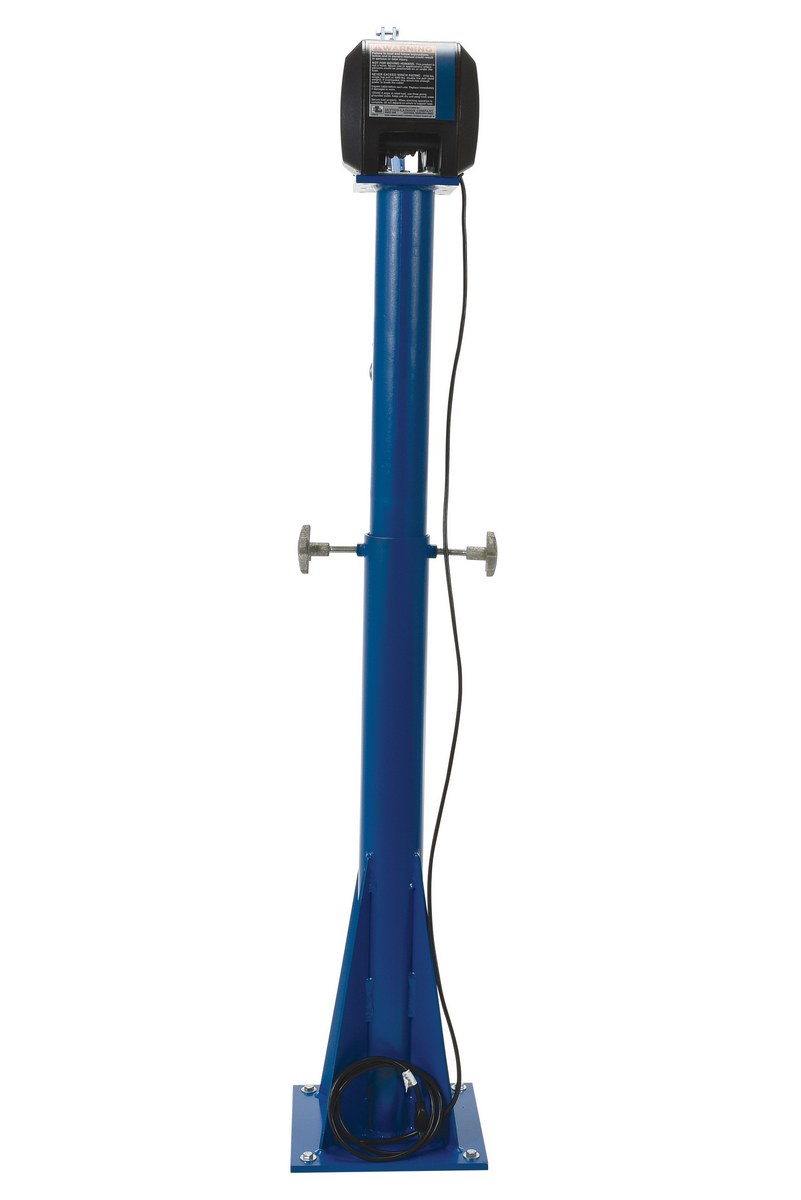

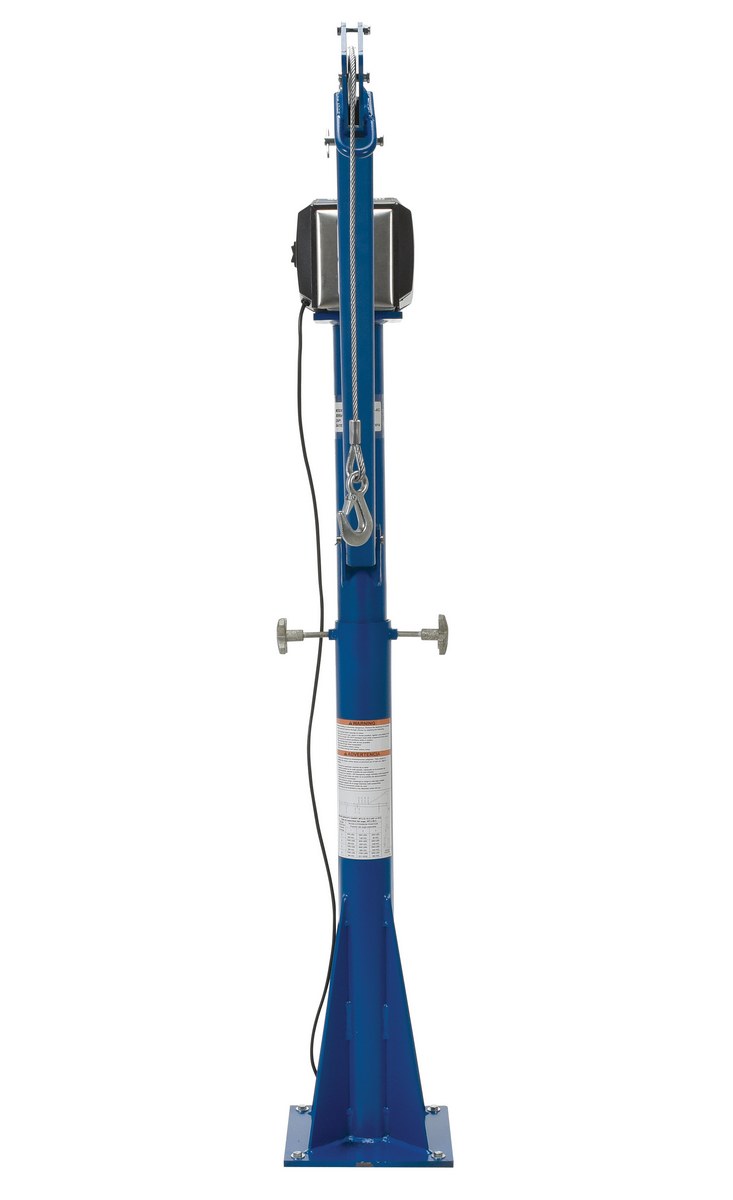

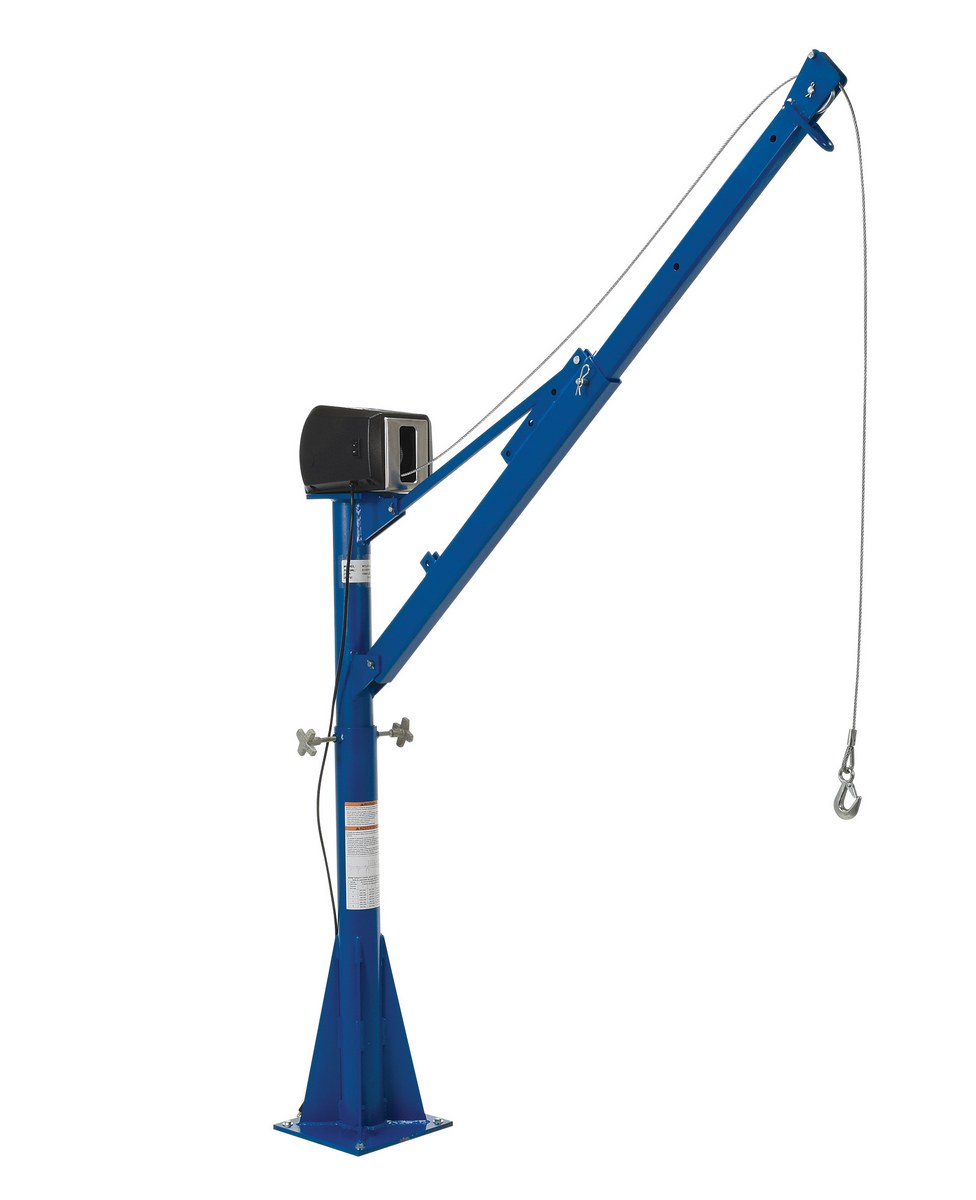

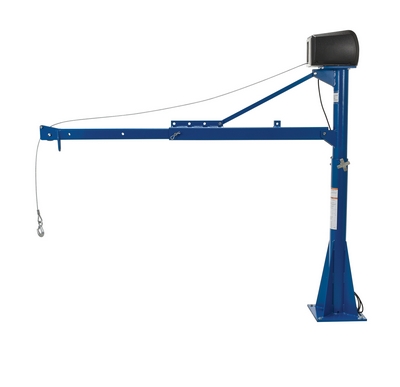

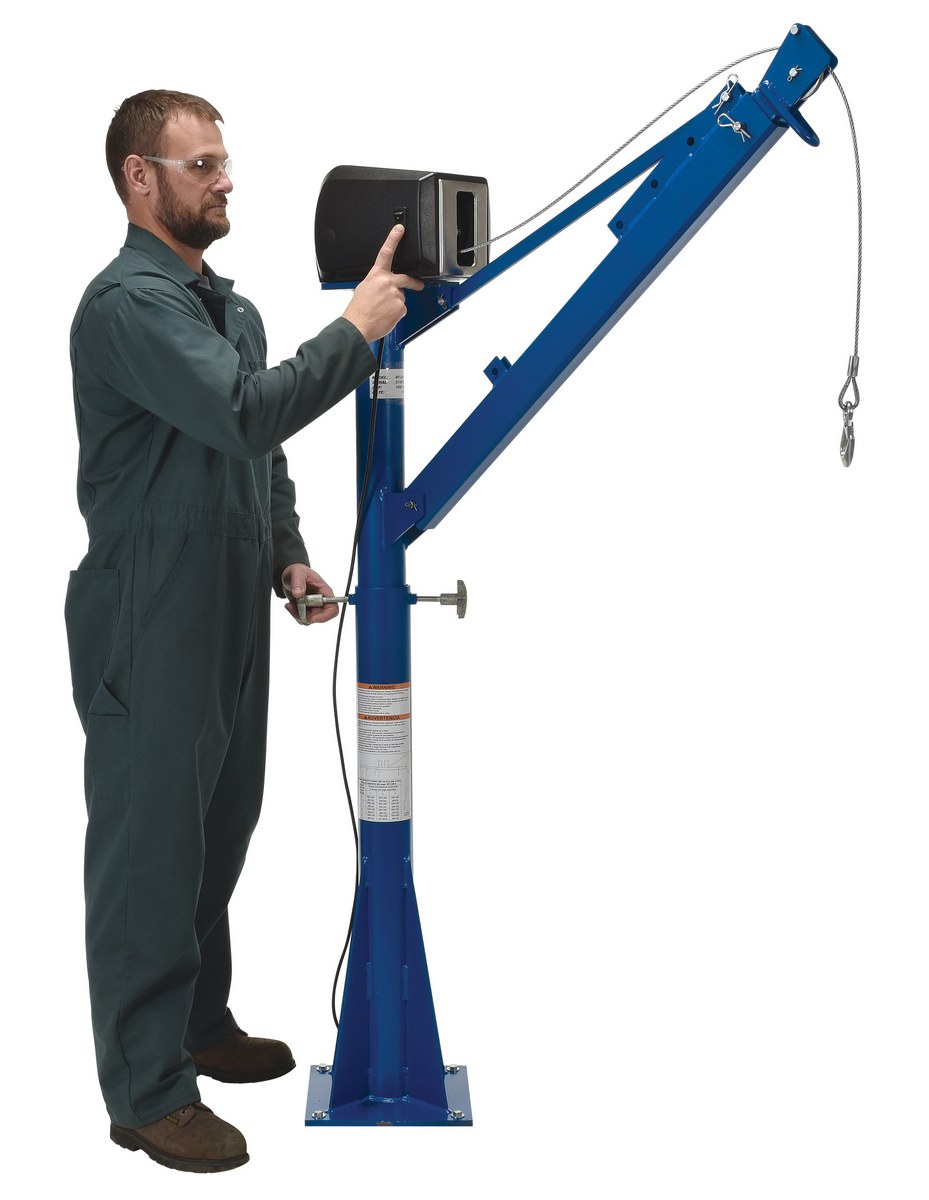

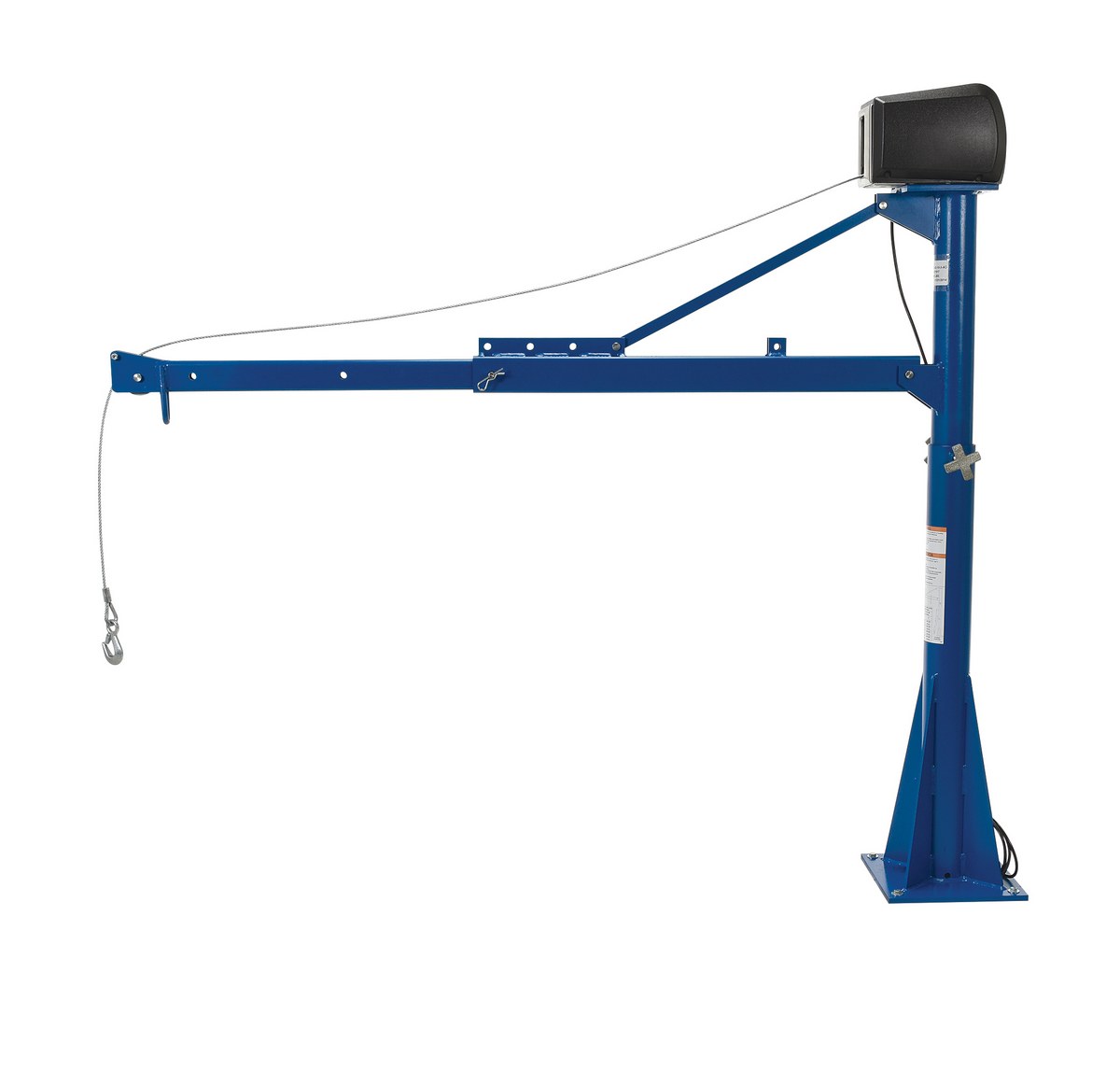

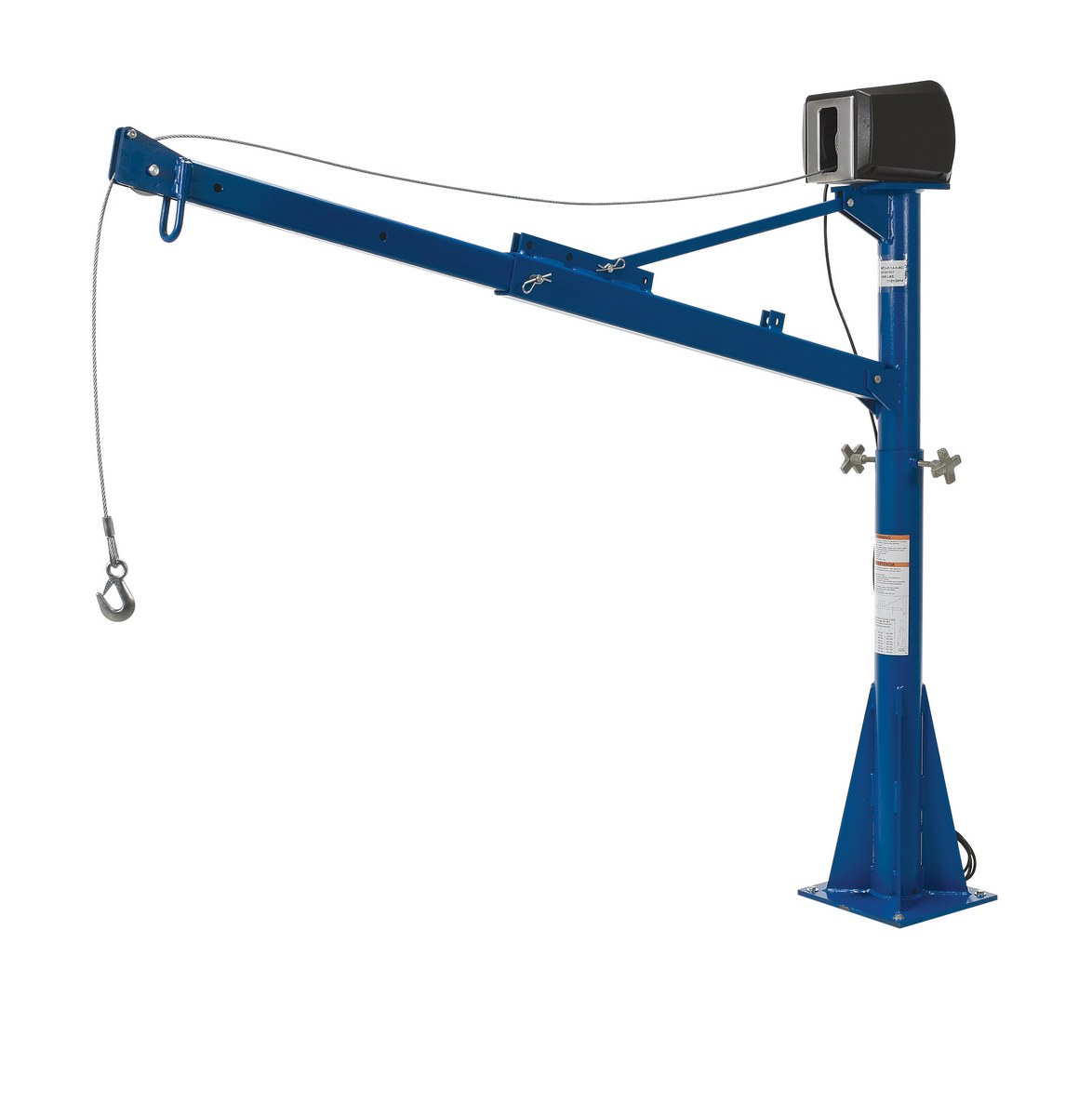

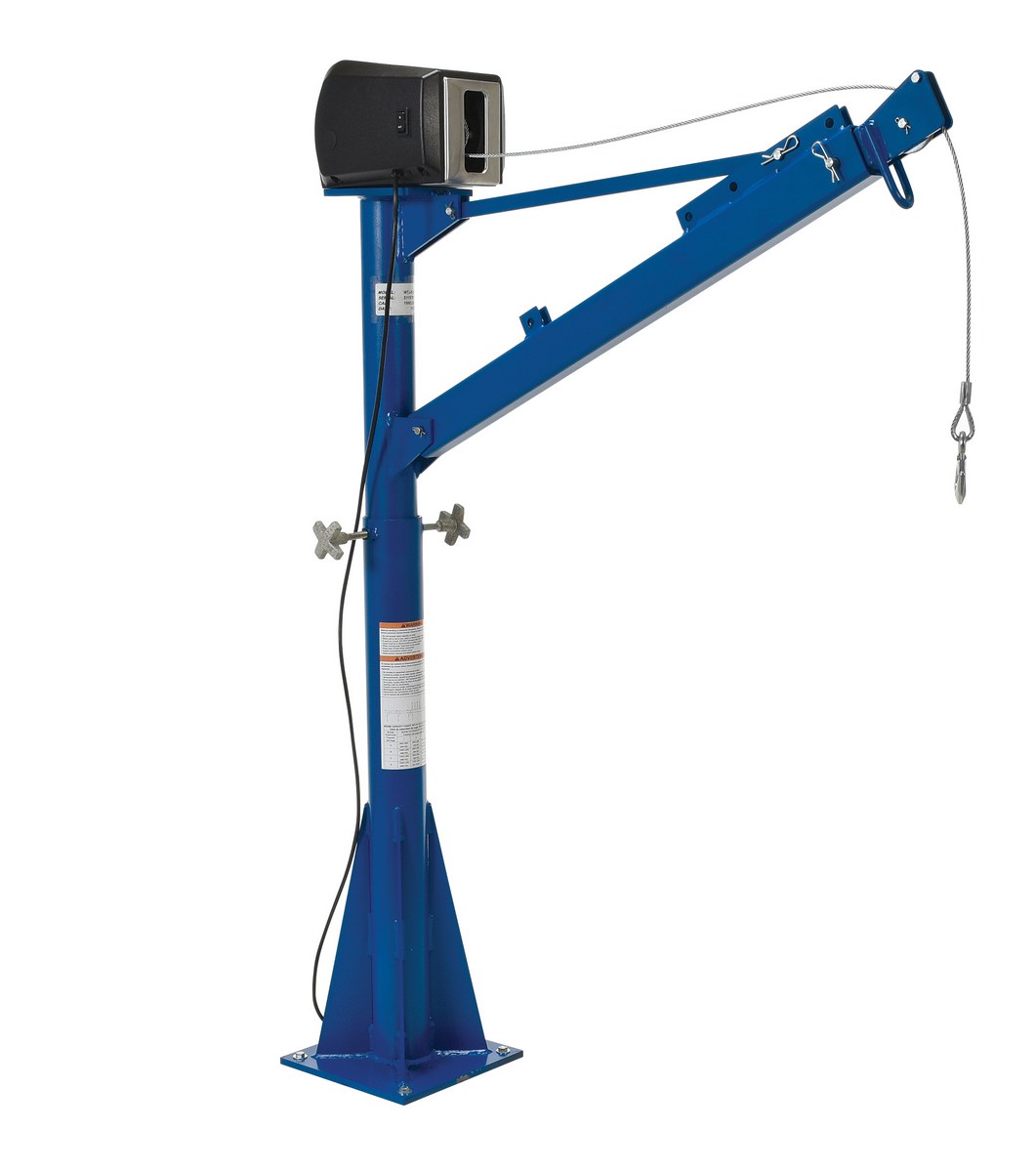

WTJ-E-15-3-AC-CSA WTJ-E-15-3-AC-CSA90 Days Limited WarrantySteel AC Powered Jib Crane CSA Compliant 3-1/2 to 5-1/2 Ft. Boom 1,500 Lb. Capacity BlueUniform Capacity (lb.): 1,500
Boom Reach (in.): 43-1/16 to 66-3/4
227

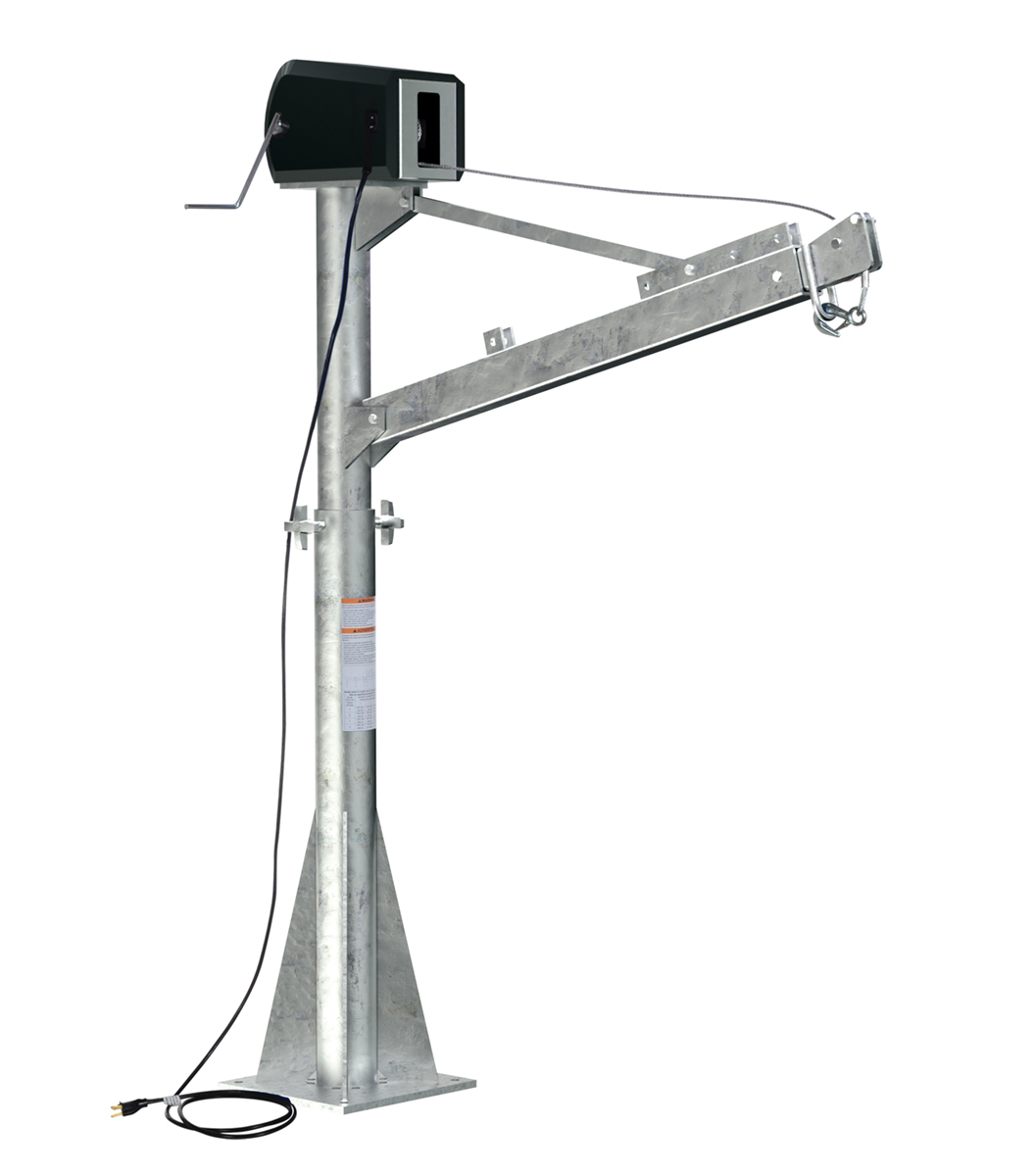

WTJ-E-15-3-AC-CSA-GA WTJ-E-15-3-AC-CSA-GA90 Days Limited WarrantyGalvanized Steel AC Powered Jib Crane CSA Compliant 3-1/2 to 5-1/2 Ft. Boom 1,500 lb. Capacity GrayUniform Capacity (lb.): 1500
Boom Reach (in.): 43-1/16 to 66-3/4
223
WTJ-E-15-3-AC-GAL WTJ-E-15-3-AC-GAL90 Days Limited WarrantyGalvanized Steel AC Powered Jib Crane 3-1/2 to 5-1/2 Ft. Boom 1,500 Lb. Capacity GrayUniform Capacity (lb.): 1,500
Boom Reach (in.): 43-1/16 to 66-3/4
305

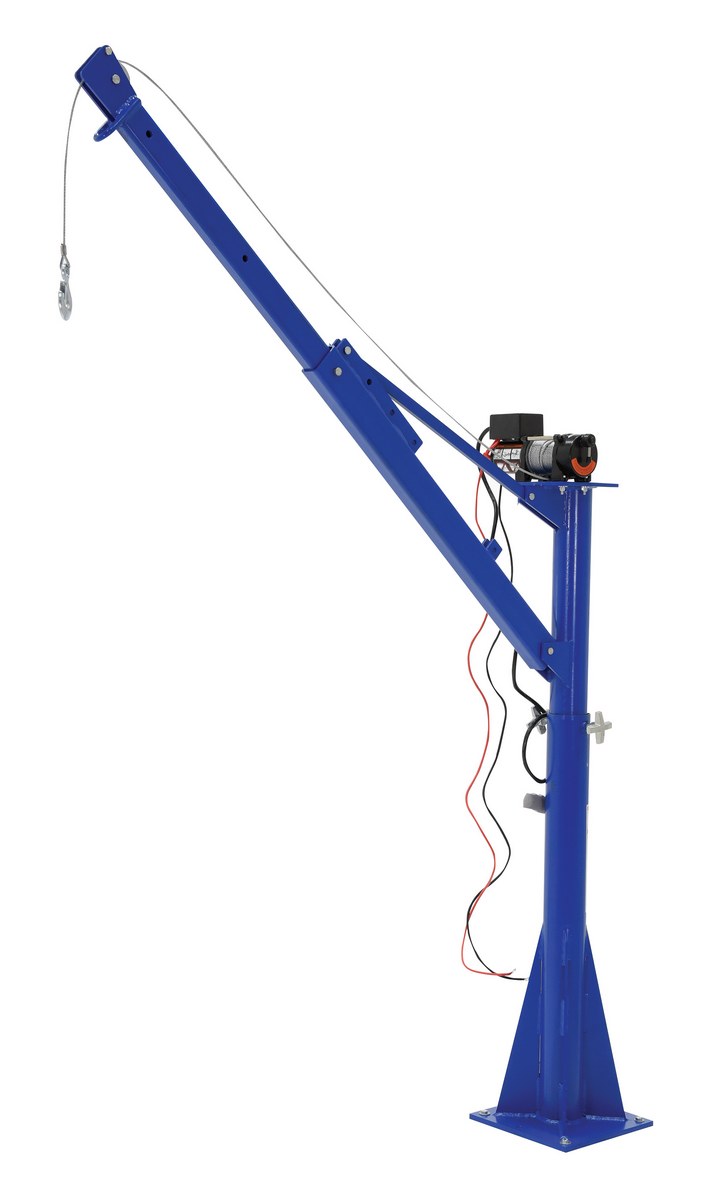

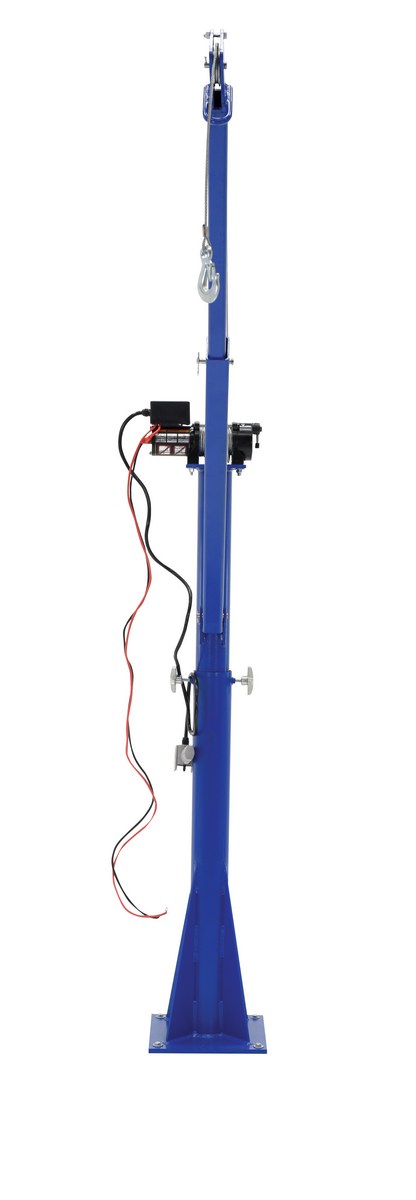

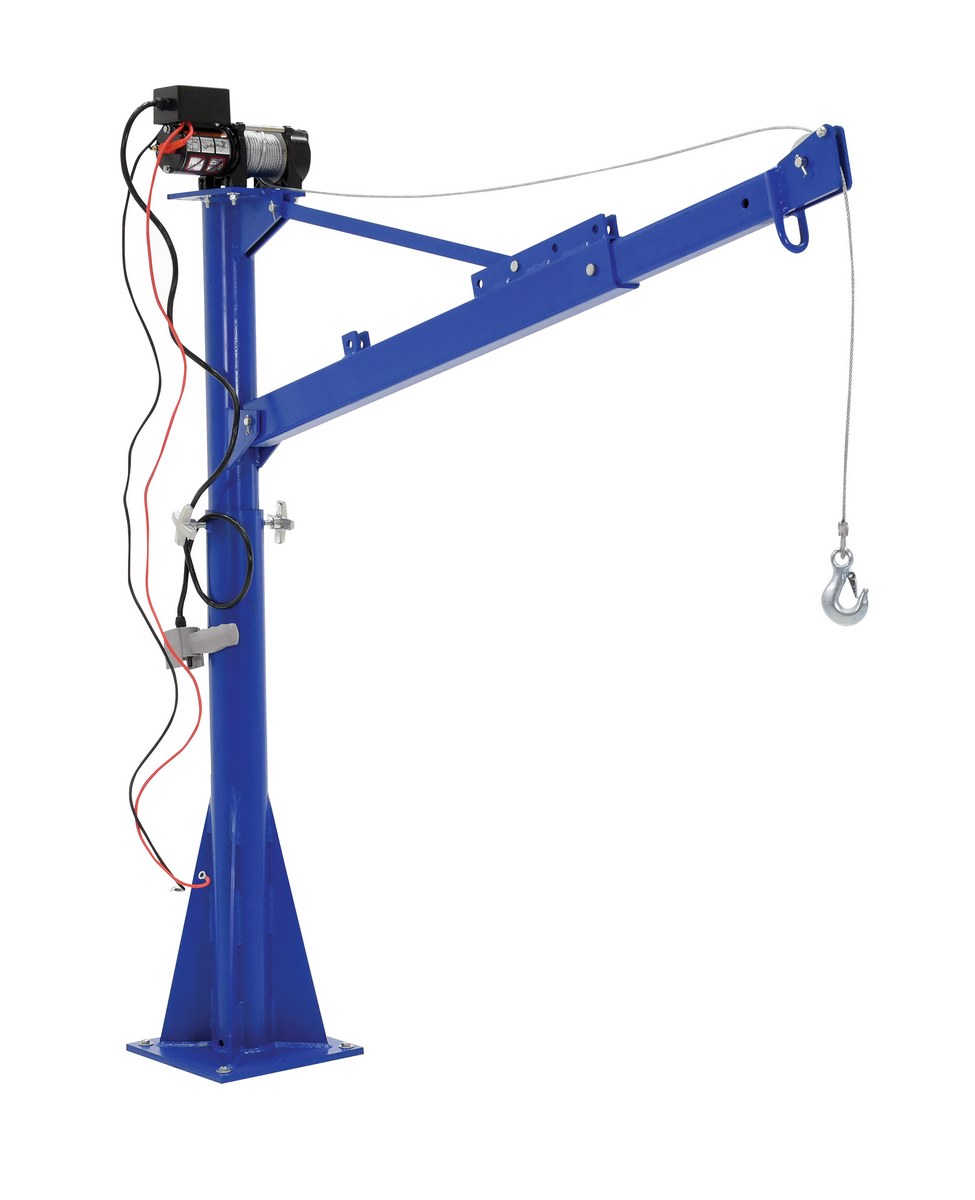

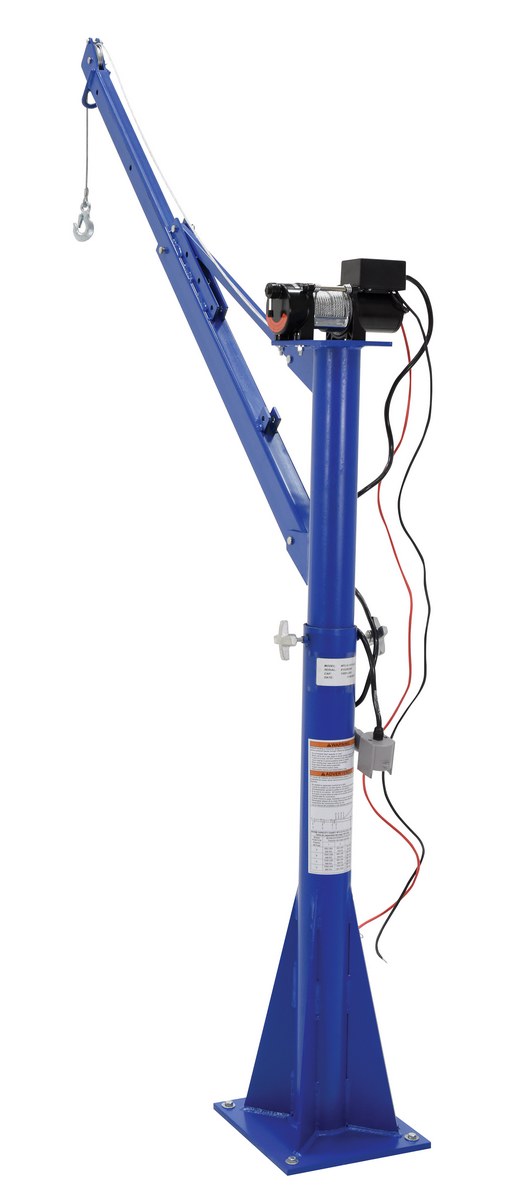

WTJ-E-15-3-DC WTJ-E-15-3-DC90 Days Limited WarrantySteel DC Powered Jib Crane 3-1/2 to 5-1/2 Ft. Boom 1,500 Lb. Capacity BlueUniform Capacity (lb.): 1,500
Boom Reach (in.): 43-1/16 to 66-3/4
213

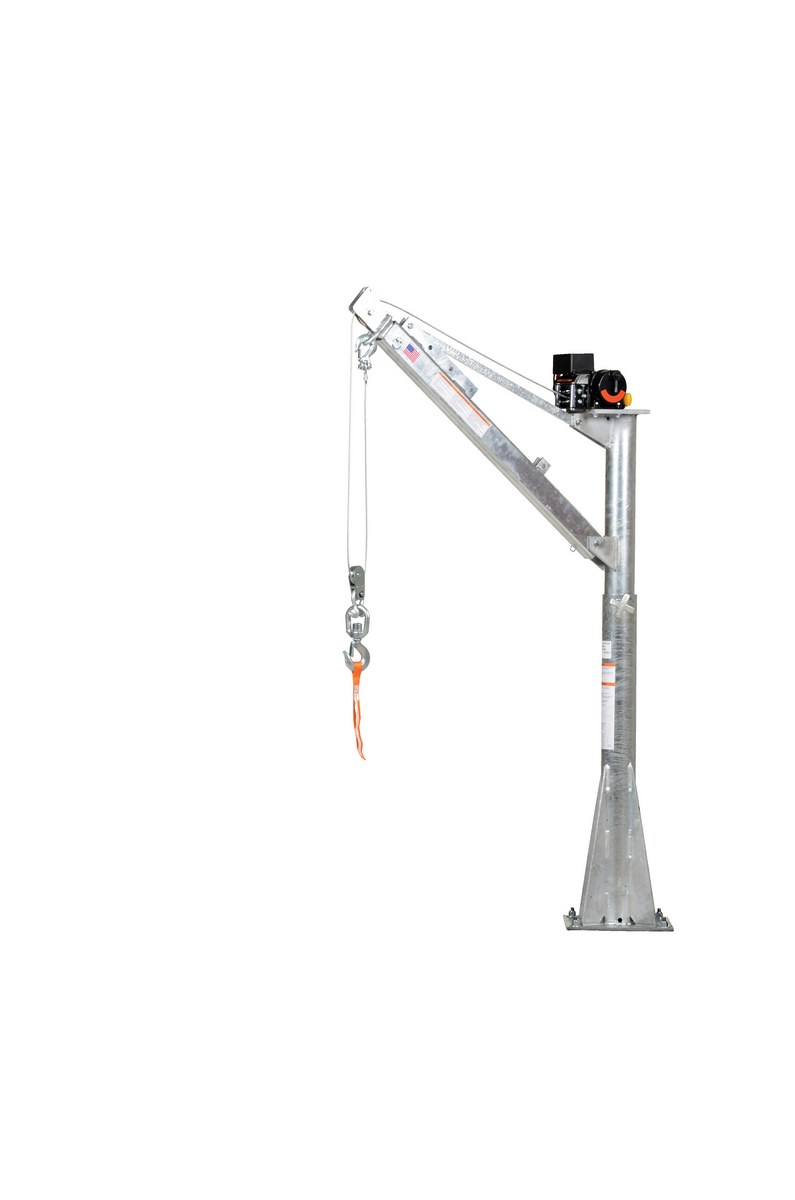

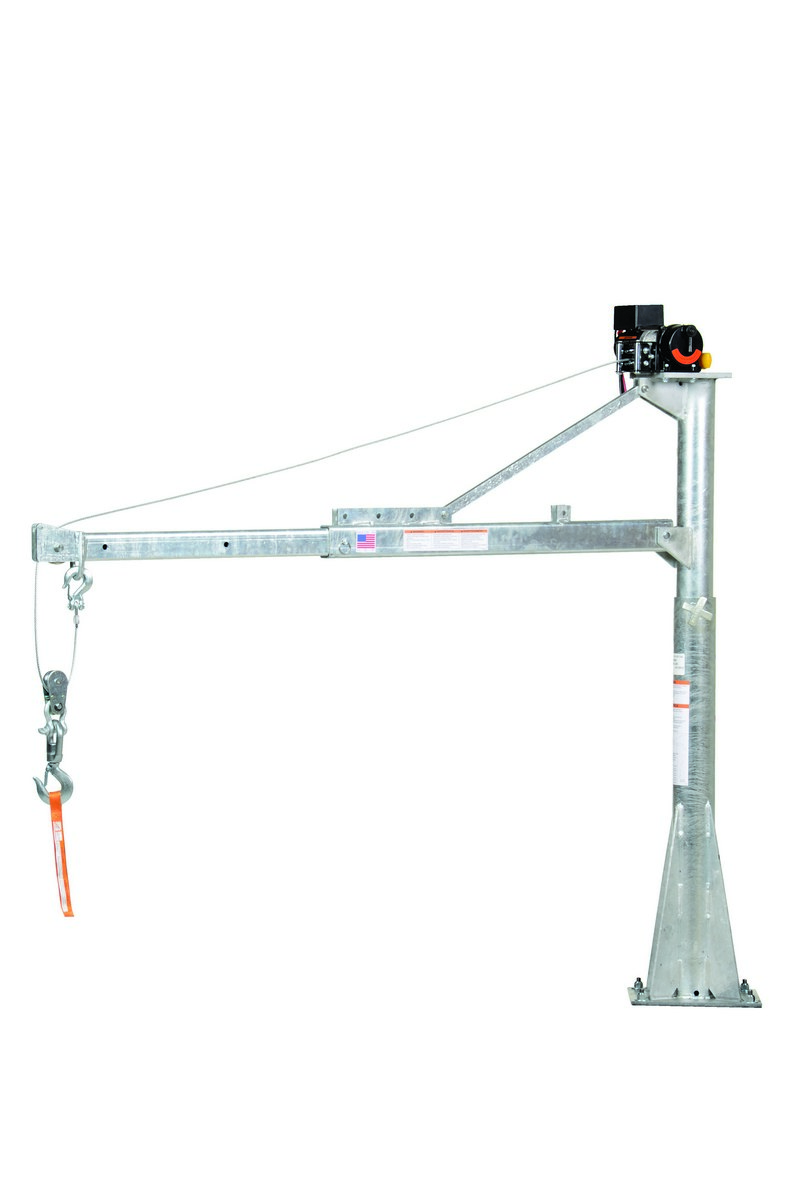

WTJ-E-15-3-DC-GAL WTJ-E-15-3-DC-GAL90 Days Limited WarrantyGalvanized Steel DC Powered Jib Crane 3-1/2 to 5-1/2 Ft. Boom 1,500 Lb. Capacity GrayUniform Capacity (lb.): 1,500
Boom Reach (in.): 43-1/16 to 66-3/4
213

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

WTJ-20-3-AC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,000
Boom Reach (in.): 39-1/4 to 63-1/4
Uniform Capacity (lb.): 2,000
Boom Reach (in.): 39-1/4 to 63-1/4

WTJ-20-3-AC-CSA
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,000
Boom Reach (in.): 39-1/4 to 63-1/4
Uniform Capacity (lb.): 2,000
Boom Reach (in.): 39-1/4 to 63-1/4

WTJ-20-3-AC-CSA-GAL
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Boom Reach (in.): 39-1/4 to 63-1/4
Uniform Capacity (lb.): 2000
Boom Reach (in.): 39-1/4 to 63-1/4

WTJ-20-3-AC-GAL
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,000
Boom Reach (in.): 39-1/4 to 63-1/4
Uniform Capacity (lb.): 2,000
Boom Reach (in.): 39-1/4 to 63-1/4

WTJ-20-3-DC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,000
Boom Reach (in.): 39-1/4 to 63-1/4
Uniform Capacity (lb.): 2,000
Boom Reach (in.): 39-1/4 to 63-1/4

WTJ-20-3-DC-GAL
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,000
Boom Reach (in.): 39-1/4 to 63-1/4
Uniform Capacity (lb.): 2,000
Boom Reach (in.): 39-1/4 to 63-1/4

WTJ-20-4-AC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,000
Boom Reach (in.): 51-1/4 to 87-1/4
Uniform Capacity (lb.): 2,000
Boom Reach (in.): 51-1/4 to 87-1/4

WTJ-20-4-AC-CSA
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,000
Boom Reach (in.): 51-1/4 to 87-1/4
Uniform Capacity (lb.): 2,000
Boom Reach (in.): 51-1/4 to 87-1/4

WTJ-20-4-AC-CSA-GAL
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Boom Reach (in.): 51-1/4 to 87-1/4
Uniform Capacity (lb.): 2000
Boom Reach (in.): 51-1/4 to 87-1/4

WTJ-20-4-AC-GAL
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,000
Boom Reach (in.): 51-1/4 to 87-1/4
Uniform Capacity (lb.): 2,000
Boom Reach (in.): 51-1/4 to 87-1/4

WTJ-20-4-DC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,000
Boom Reach (in.): 51-1/4 to 87-1/4
Uniform Capacity (lb.): 2,000
Boom Reach (in.): 51-1/4 to 87-1/4

WTJ-20-4-DC-GAL
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,000
Boom Reach (in.): 51-1/4 to 87-1/4
Uniform Capacity (lb.): 2,000
Boom Reach (in.): 51-1/4 to 87-1/4

WTJ-E-15-3-AC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,500
Boom Reach (in.): 43-1/16 to 66-3/4
Uniform Capacity (lb.): 1,500
Boom Reach (in.): 43-1/16 to 66-3/4

WTJ-E-15-3-AC-CSA
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,500
Boom Reach (in.): 43-1/16 to 66-3/4
Uniform Capacity (lb.): 1,500
Boom Reach (in.): 43-1/16 to 66-3/4

WTJ-E-15-3-AC-CSA-GA
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1500
Boom Reach (in.): 43-1/16 to 66-3/4
Uniform Capacity (lb.): 1500
Boom Reach (in.): 43-1/16 to 66-3/4

WTJ-E-15-3-AC-GAL
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,500
Boom Reach (in.): 43-1/16 to 66-3/4
Uniform Capacity (lb.): 1,500
Boom Reach (in.): 43-1/16 to 66-3/4

WTJ-E-15-3-DC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,500
Boom Reach (in.): 43-1/16 to 66-3/4
Uniform Capacity (lb.): 1,500
Boom Reach (in.): 43-1/16 to 66-3/4

WTJ-E-15-3-DC-GAL
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,500
Boom Reach (in.): 43-1/16 to 66-3/4
Uniform Capacity (lb.): 1,500
Boom Reach (in.): 43-1/16 to 66-3/4
For More Details of the Option Click the Red Model Button
Model Image PDF's Description Wt
(lbs)
WINCH-AC-HHPB - UPGRADE AC WINCH WITH HANDHELD PUSH BUTTON CONTROL
(THIS OPTION REPLACES STANDARD FINGERTIP SWITCH ON AC WINCHES)
5
If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above

Power Lift Jib Cranes PDF's will open in a new window when clicked.

Manuals


Survey Sheets


Approval Drawings

Testing Certificates


WTJ-20-3-AC

WTJ-20-3-AC-CSA

WTJ-20-3-AC-CSA-GAL

WTJ-20-3-AC-GAL

WTJ-20-3-DC

WTJ-20-3-DC-GAL

WTJ-20-4-AC

WTJ-20-4-AC-CSA

WTJ-20-4-AC-CSA-GAL

WTJ-20-4-AC-GAL

WTJ-20-4-DC

WTJ-20-4-DC-GAL

WTJ-E-15-3-AC

WTJ-E-15-3-AC-CSA

WTJ-E-15-3-AC-CSA-GA

WTJ-E-15-3-AC-GAL

WTJ-E-15-3-DC

WTJ-E-15-3-DC-GAL

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

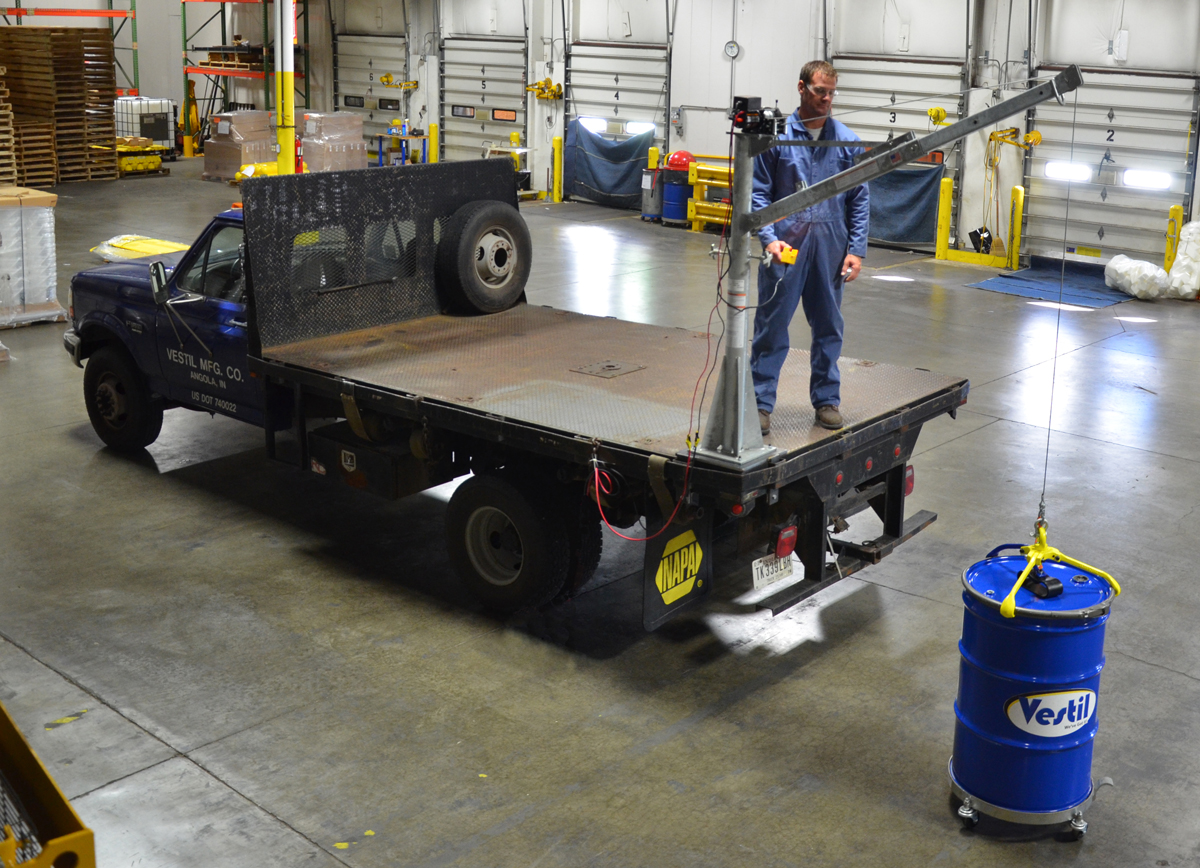

Q: I planning on mounting this at the rear of a 12' flat bed, and see that this is a 1 hp motor for the 12V DC - will that run off a standard truck battery ?

A: Yes, the WTJ-20-4-DC will run off a standard 12V truck battery.


Q: What is the diameter of the mast of the WTJ-20-4-DC?

A: The diameter of the mast is 4"


Q: What is the minimum factor of safety for the crane design for the WTJ-20-4-DC?

A: All units (WTJ series on this product page) are built to a 3:1 safety factor.


Q: In the event of a power failure (or if the battery becomes disconnected from the motor), what happens to the motor? Does the cargo remain at its current location mid-lift, or will the motor release the cargo?

A: Load will not drop if power is lost to the motor. The AC winch includes an emergency hand crank in the event of power loss.


Q: What is the longest usable cable?

A: The winch holds 25' of cable.






Some of our products may be temporarily unavailable due to supply chain disruptions. Contact our Sales Department for help with finding alternate product solutions. We apologize for the inconvenience.

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Power Lift Jib Cranes




Designed for material handling applications on docks, in warehouses, or in truck beds. Choose either 12V DC, 1 HP with 6' long non-removable pendant control or 115V AC, 1/3 HP with fingertip switch to raise and lower hook. Powered winches are designed for intermediate lifting. Meets ANSI and OSHA specifications. 12" x 12" mounting plate. Unit is designed for vertical lifting only. Do not use unit for lifting personnel or overhead lifting. Battery not included. Models with suffix -CSA feature a winch that meets Canadian requirements.

  • Powered cable winch makes lifting and maneuvering easy
  • Boom telescopes in and out for greater reach and versatility
  • 360 Degrees swivel design allows for maximum accessibility
  • Pre-drilled base plate makes mounting quick and easy



Model # Description Attributes Net Wt.
(lbs)
WTJ-20-3-AC WTJ-20-3-ACSteel AC Powered Jib Crane 3-5 Ft. Boom 2,000 Lb. Capacity BlueUniform Capacity (lb.): 2,000
Boom Reach (in.): 39-1/4 to 63-1/4
280
WTJ-20-3-AC-CSA WTJ-20-3-AC-CSASteel AC Powered Jib Crane CSA Compliant 3-5 Ft. Boom 2,000 Lb. Capacity BlueUniform Capacity (lb.): 2,000
Boom Reach (in.): 39-1/4 to 63-1/4
280
WTJ-20-3-AC-CSA-GAL WTJ-20-3-AC-CSA-GALGalvanized Steel AC Powered Jib Crane CSA Compliant 3-5 Ft. Boom 2,000 Lb. Capacity GrayUniform Capacity (lb.): 2000
Boom Reach (in.): 39-1/4 to 63-1/4
284
WTJ-20-3-AC-GAL WTJ-20-3-AC-GALGalvanized Steel AC Powered Jib Crane 3-5 Ft. Boom 2,000 Lb. Capacity GrayUniform Capacity (lb.): 2,000
Boom Reach (in.): 39-1/4 to 63-1/4
284
WTJ-20-3-DC WTJ-20-3-DCSteel DC Powered Jib Crane 3-5 Ft. Boom 2,000 Lb. Capacity BlueUniform Capacity (lb.): 2,000
Boom Reach (in.): 39-1/4 to 63-1/4
261
WTJ-20-3-DC-GAL WTJ-20-3-DC-GALGalvanized Steel DC Powered Jib Crane 3-5 Ft. Boom 2,000 Lb. Capacity GrayUniform Capacity (lb.): 2,000
Boom Reach (in.): 39-1/4 to 63-1/4
265
WTJ-20-4-AC WTJ-20-4-ACSteel AC Powered Jib Crane 4-7 Ft. Boom 2,000 Lb. Capacity BlueUniform Capacity (lb.): 2,000
Boom Reach (in.): 51-1/4 to 87-1/4
290
WTJ-20-4-AC-CSA WTJ-20-4-AC-CSASteel AC Powered Jib Crane CSA Compliant 4-7 Ft. Boom 2,000 Lb. Capacity BlueUniform Capacity (lb.): 2,000
Boom Reach (in.): 51-1/4 to 87-1/4
275
WTJ-20-4-AC-CSA-GAL WTJ-20-4-AC-CSA-GALGalvanized Steel AC Powered Jib Crane CSA Compliant 4-7 Ft. Boom 2,000 Lb. Capacity GrayUniform Capacity (lb.): 2000
Boom Reach (in.): 51-1/4 to 87-1/4
281
WTJ-20-4-AC-GAL WTJ-20-4-AC-GALGalvanized Steel AC Powered Jib Crane 4-7 Ft. Boom 2,000 Lb. Capacity GrayUniform Capacity (lb.): 2,000
Boom Reach (in.): 51-1/4 to 87-1/4
294
WTJ-20-4-DC WTJ-20-4-DCSteel DC Powered Jib Crane 4-7 Ft. Boom 2,000 Lb. Capacity BlueUniform Capacity (lb.): 2,000
Boom Reach (in.): 51-1/4 to 87-1/4
260
WTJ-20-4-DC-GAL WTJ-20-4-DC-GALGalvanized Steel DC Powered Jib Crane 4-7 Ft. Boom 2,000 Lb. Capacity GrayUniform Capacity (lb.): 2,000
Boom Reach (in.): 51-1/4 to 87-1/4
266
WTJ-E-15-3-AC WTJ-E-15-3-ACSteel AC Powered Jib Crane 3-1/2 to 5-1/2 Ft. Boom 1,500 Lb. Capacity BlueUniform Capacity (lb.): 1,500
Boom Reach (in.): 43-1/16 to 66-3/4
223
WTJ-E-15-3-AC-CSA WTJ-E-15-3-AC-CSASteel AC Powered Jib Crane CSA Compliant 3-1/2 to 5-1/2 Ft. Boom 1,500 Lb. Capacity BlueUniform Capacity (lb.): 1,500
Boom Reach (in.): 43-1/16 to 66-3/4
227
WTJ-E-15-3-AC-CSA-GA WTJ-E-15-3-AC-CSA-GAGalvanized Steel AC Powered Jib Crane CSA Compliant 3-1/2 to 5-1/2 Ft. Boom 1,500 lb. Capacity GrayUniform Capacity (lb.): 1500
Boom Reach (in.): 43-1/16 to 66-3/4
223
WTJ-E-15-3-AC-GAL WTJ-E-15-3-AC-GALGalvanized Steel AC Powered Jib Crane 3-1/2 to 5-1/2 Ft. Boom 1,500 Lb. Capacity GrayUniform Capacity (lb.): 1,500
Boom Reach (in.): 43-1/16 to 66-3/4
305
WTJ-E-15-3-DC WTJ-E-15-3-DCSteel DC Powered Jib Crane 3-1/2 to 5-1/2 Ft. Boom 1,500 Lb. Capacity BlueUniform Capacity (lb.): 1,500
Boom Reach (in.): 43-1/16 to 66-3/4
213
WTJ-E-15-3-DC-GAL WTJ-E-15-3-DC-GALGalvanized Steel DC Powered Jib Crane 3-1/2 to 5-1/2 Ft. Boom 1,500 Lb. Capacity GrayUniform Capacity (lb.): 1,500
Boom Reach (in.): 43-1/16 to 66-3/4
213

Options


Model Image PDF's Description Wt
(lbs)
WINCH-AC-HHPB - UPGRADE AC WINCH WITH HANDHELD PUSH BUTTON CONTROL
(THIS OPTION REPLACES STANDARD FINGERTIP SWITCH ON AC WINCHES)
5

Our Customer Service Associates Are Here To Assist You!
Call Vestil At 260-665-7586 Or info@vestil.com
