Lifter Jibs

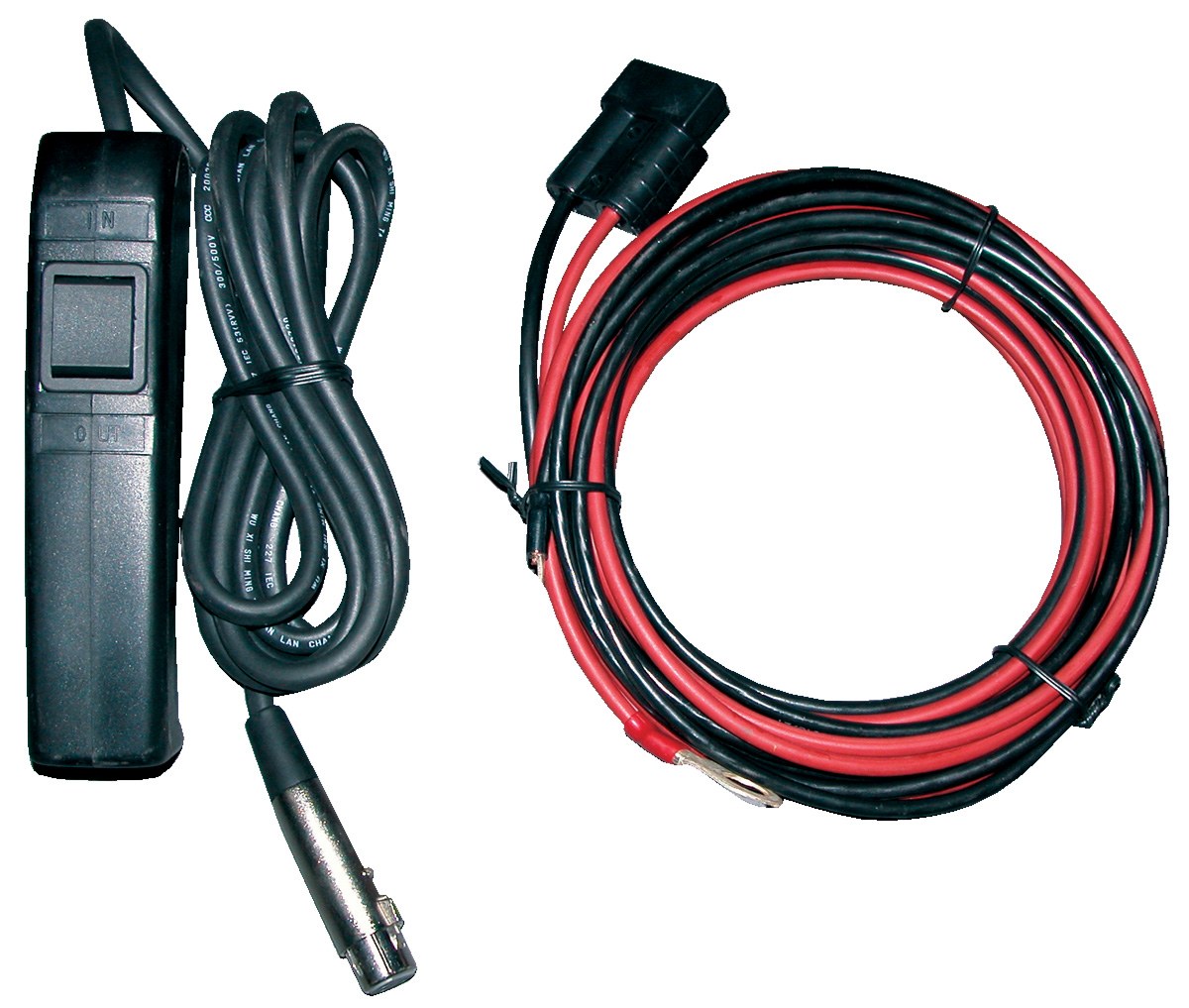

Lifter JibsLift items from the ground to van floor height, then rotate into cargo area. Manual, DC battery powered, and AC electrically powered winches are available. AC powered winch has a lift speed of 10 ft. per minute and DC powered at 7 ft. per minute at full capacity load. AC powered winch includes toggle switch. DC powered winch includes a pendant control. Battery powered winch includes 36" long leads. Battery not included. Van floor to raised hook height is 36-1/8". Double-pivot arm for use in tight spaces. Overall height is 46-1/16". Swing reach is 0" to 39-3/4". Steel construction. Painted finish. Unit is designed for vertical lifting only. Do not use unit for lifting personnel or overhead lifting.
| Model # | Description | Attributes | Net Wt. (lbs) | ||||
|---|---|---|---|---|---|---|---|

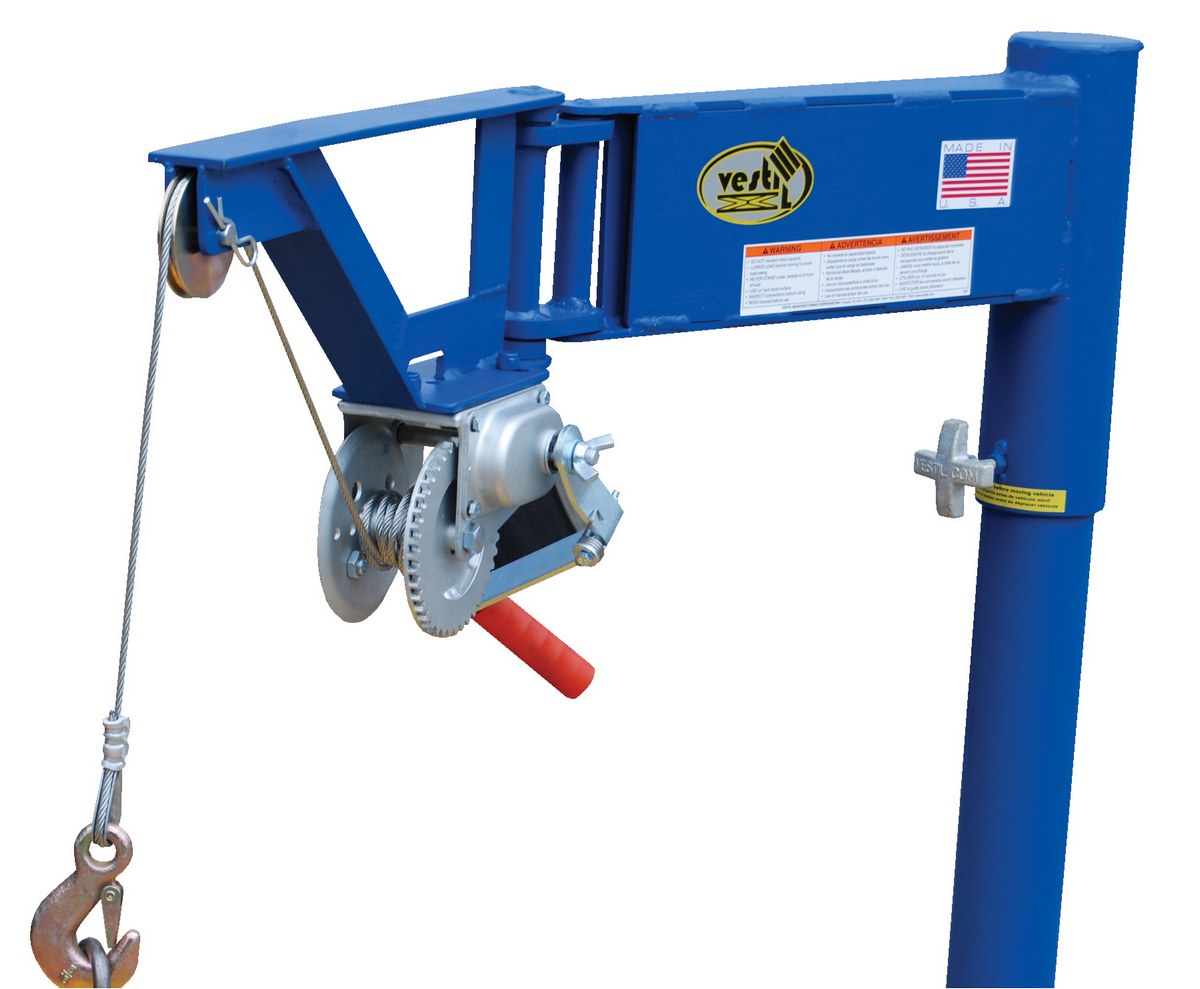

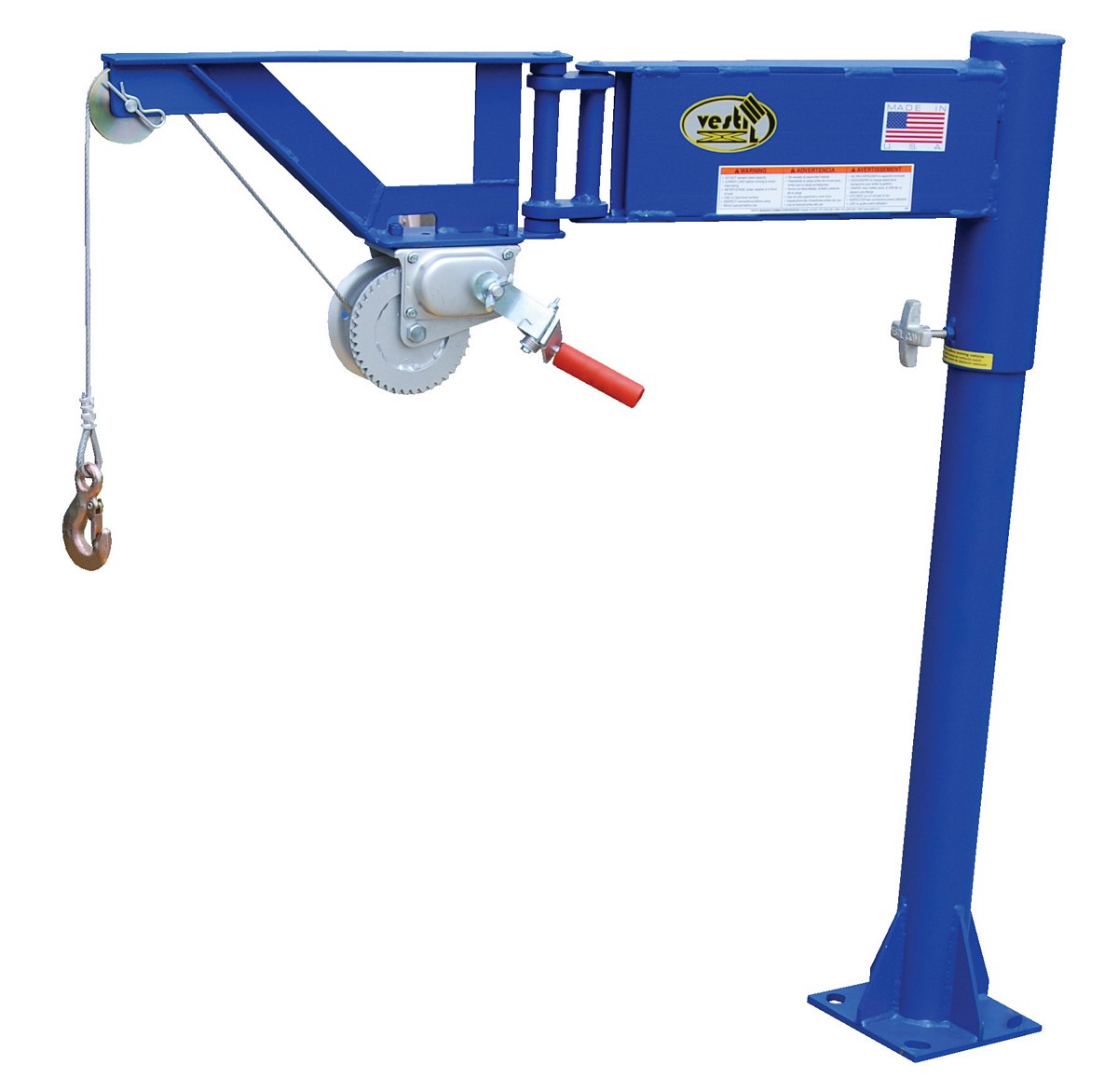

| VAN-J |  | 90 Days Limited Warranty | Steel Manual Lifter Jib 400 Lb. Capacity Blue | Uniform Capacity (lb.): 400 Swing Reach (in.): 0 to 39-3/4 | 143 | ||

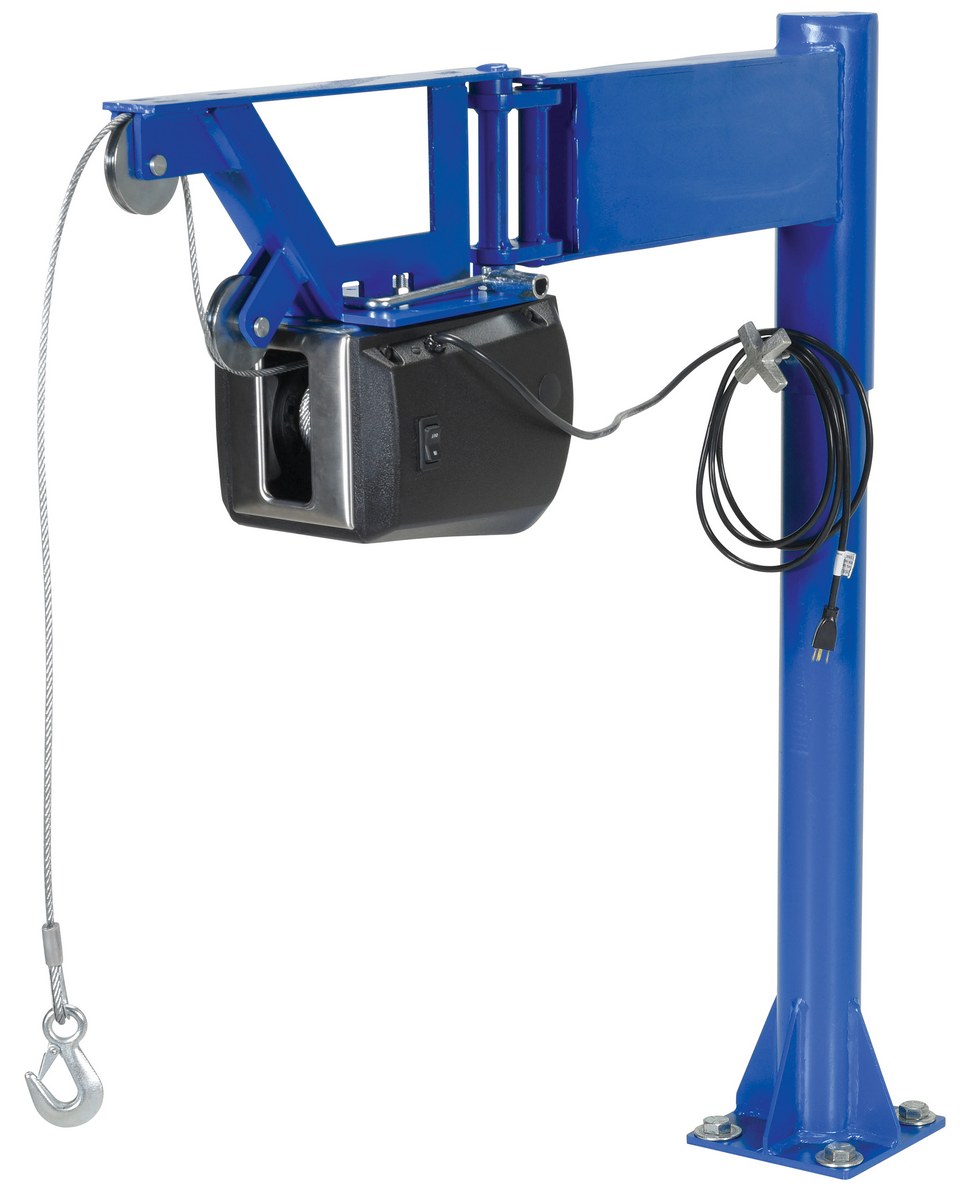

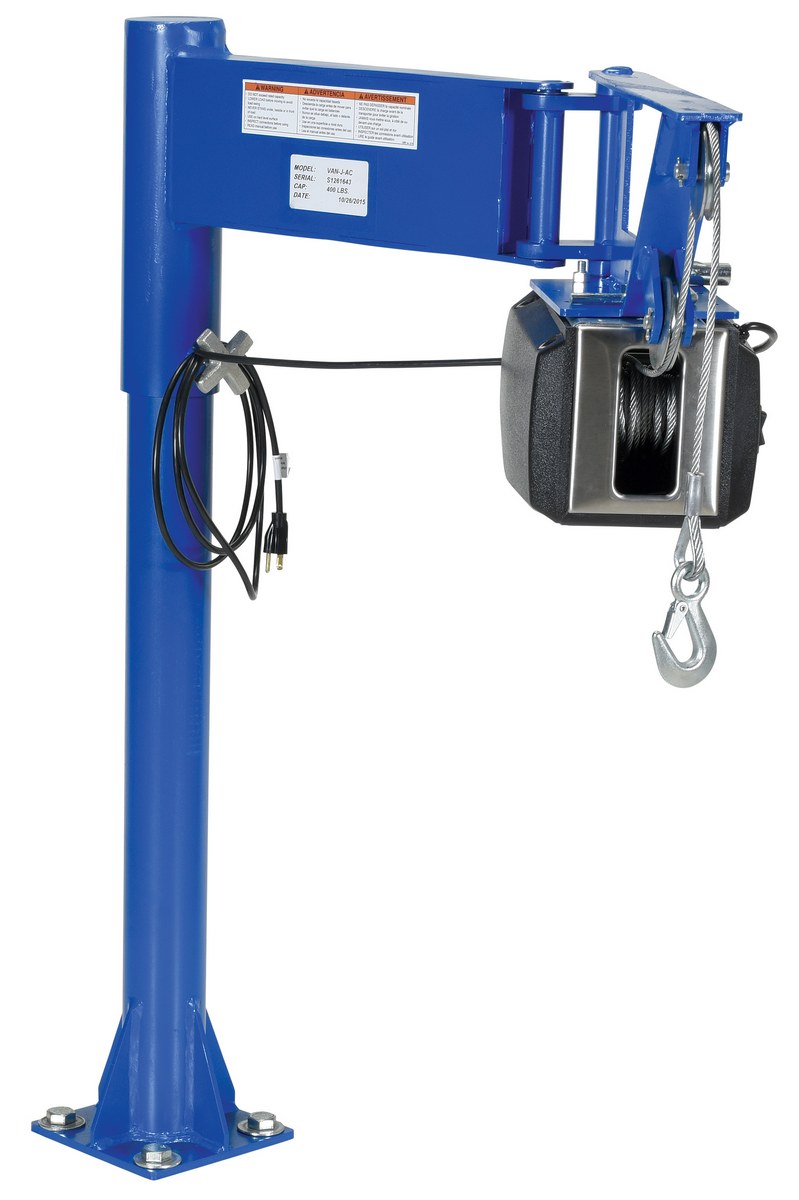

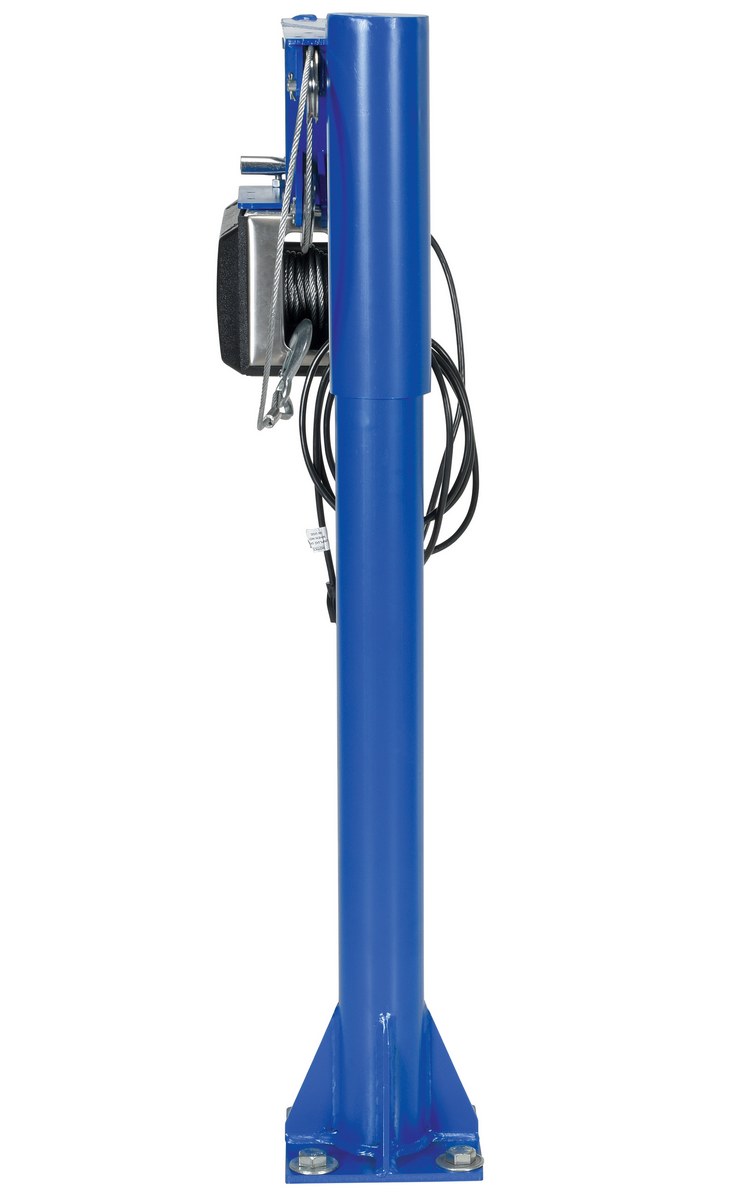

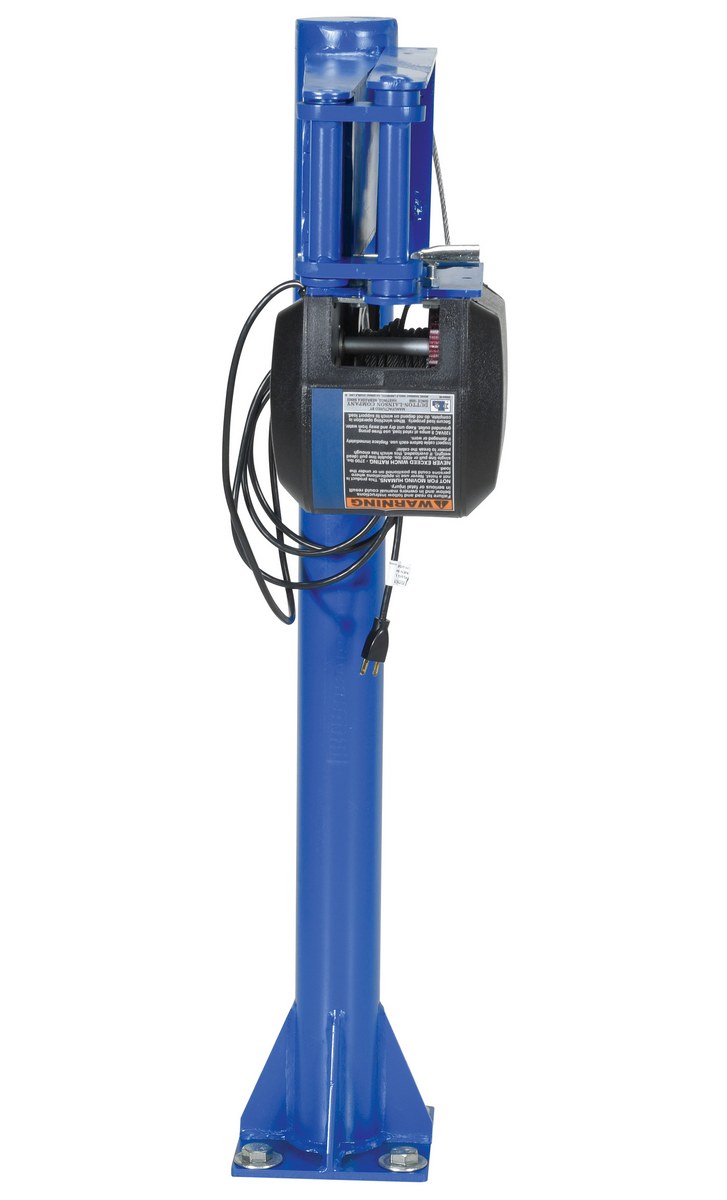

| VAN-J-AC |  | 90 Days Limited Warranty | Steel AC Powered Lifter Jib 400 Lb. Capacity Blue | Uniform Capacity (lb.): 400 Swing Reach (in.): 0 to 39-3/4 | 145 | ||

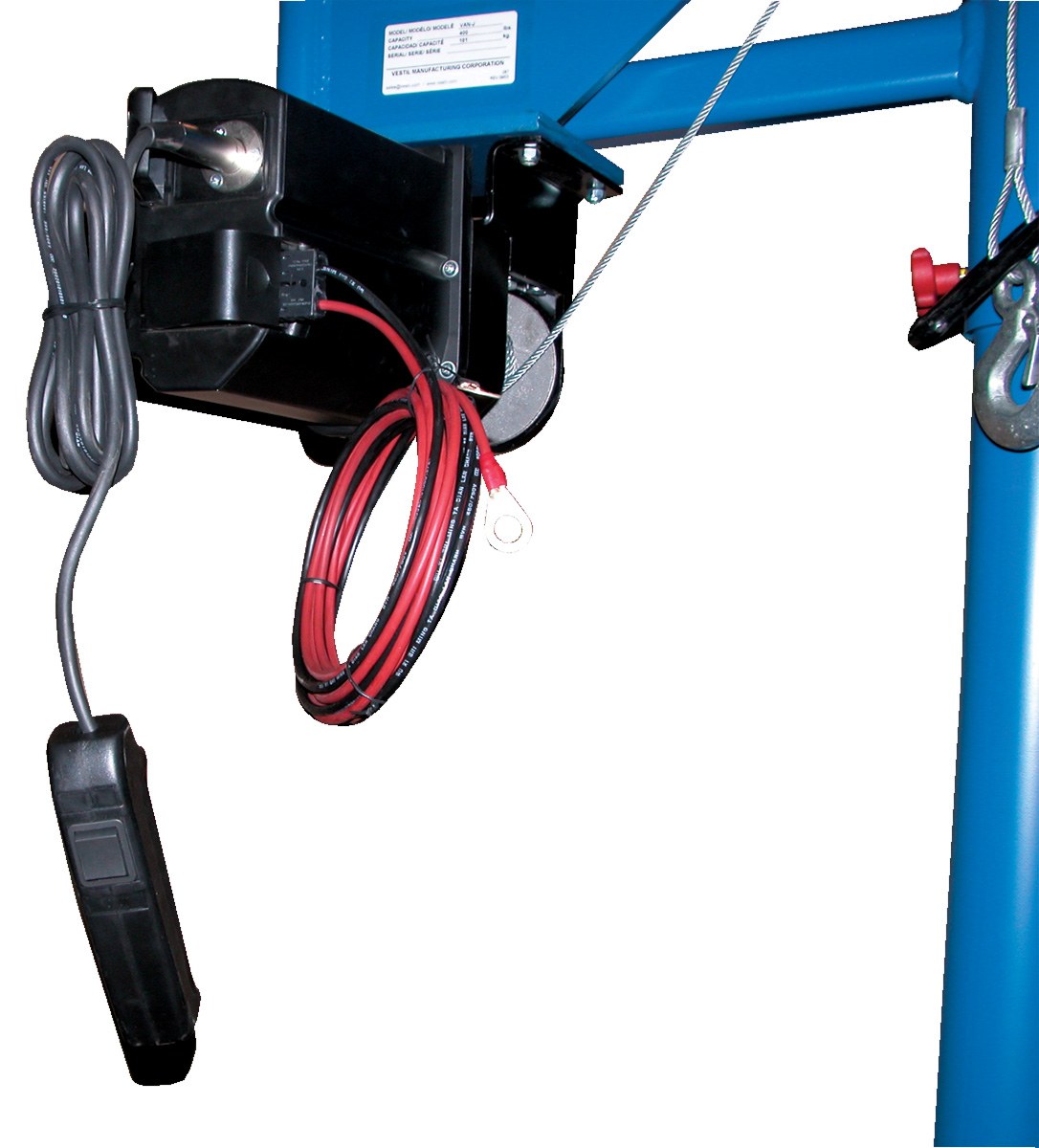

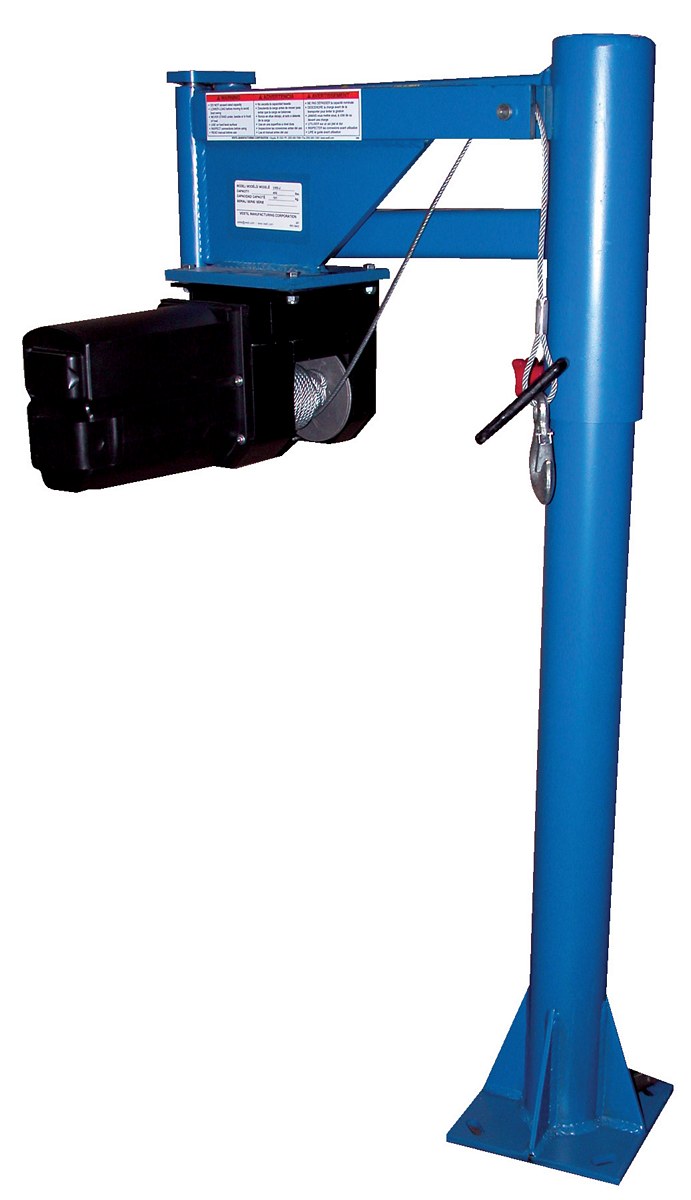

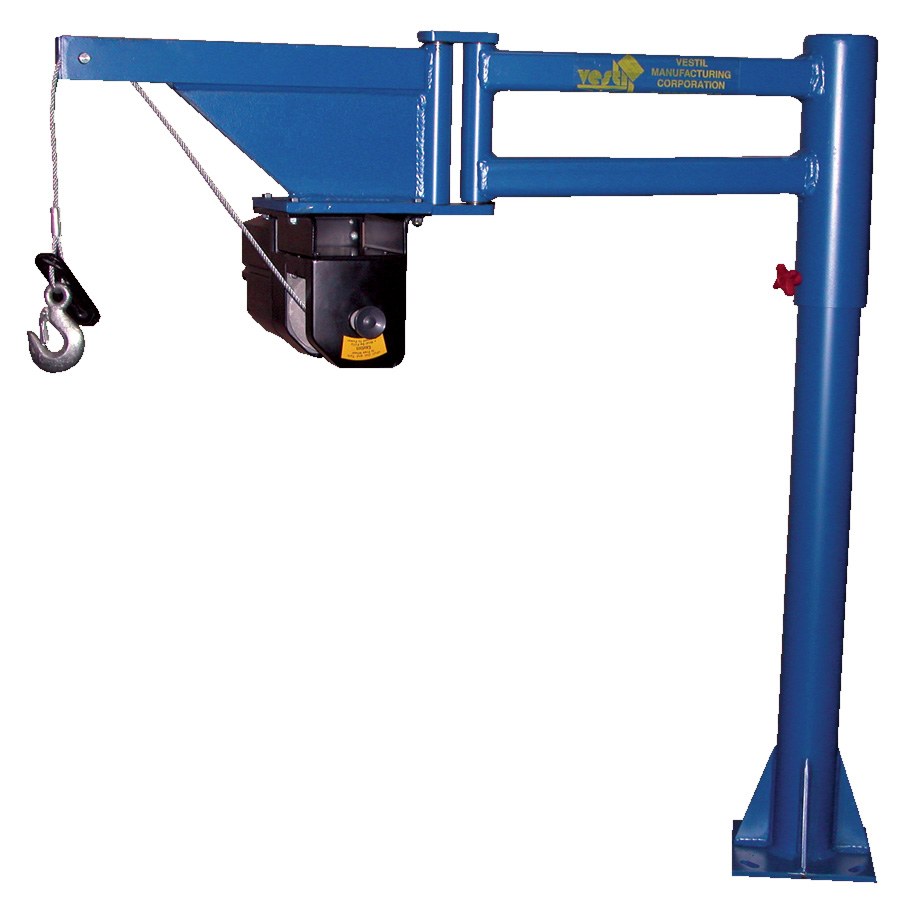

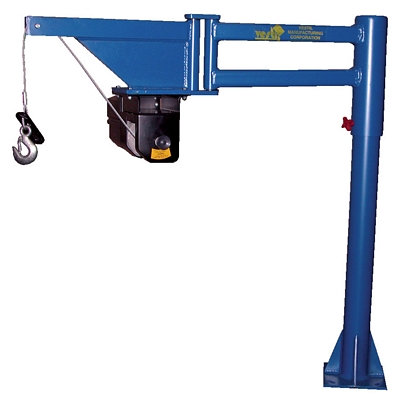

| VAN-J-DC | POPULAR |  | 90 Days Limited Warranty | Steel DC Powered Lifter Jib 400 Lb. Capacity Blue | Uniform Capacity (lb.): 400 Swing Reach (in.): 0 to 39-3/4 | 145 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

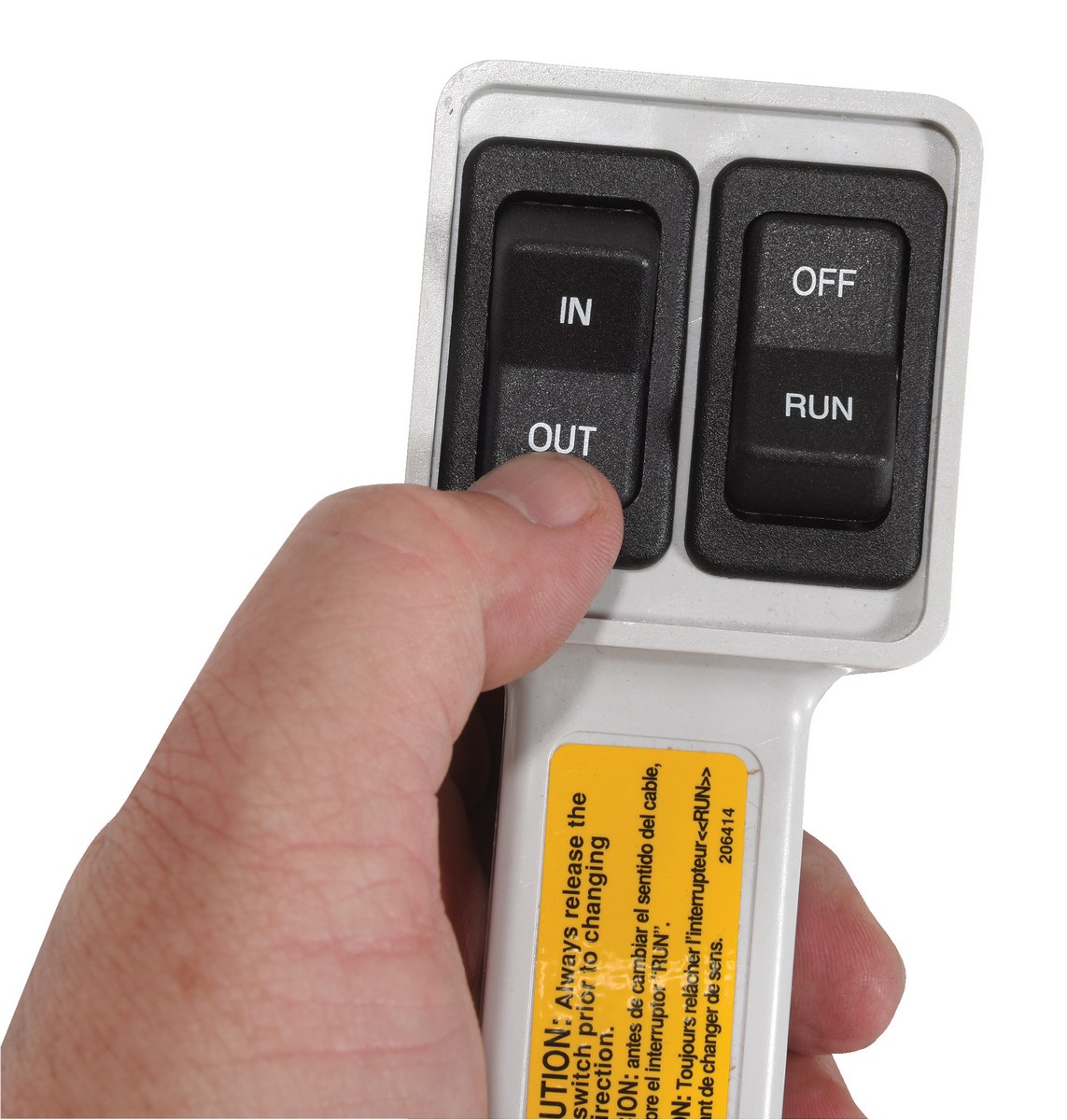

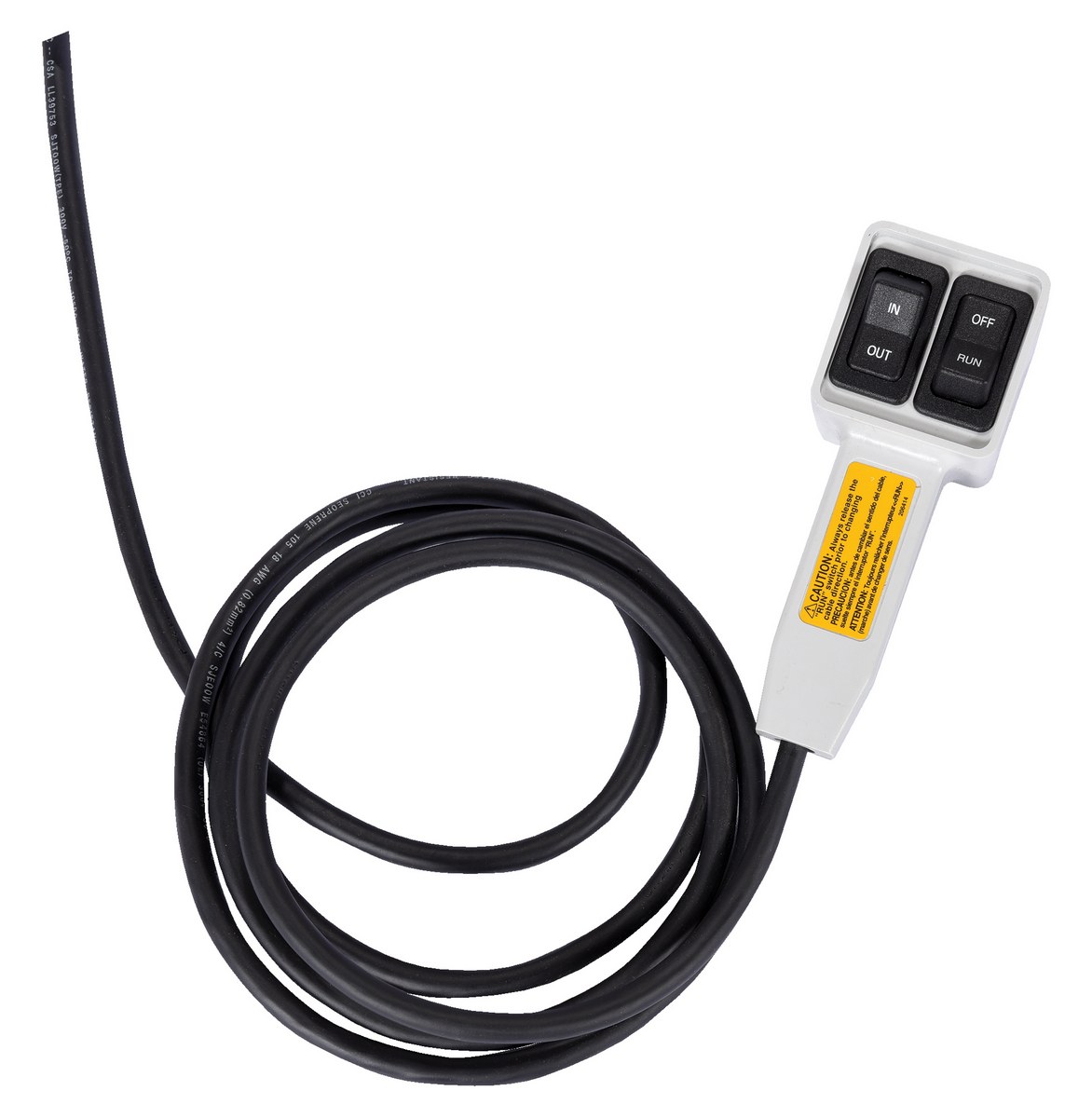

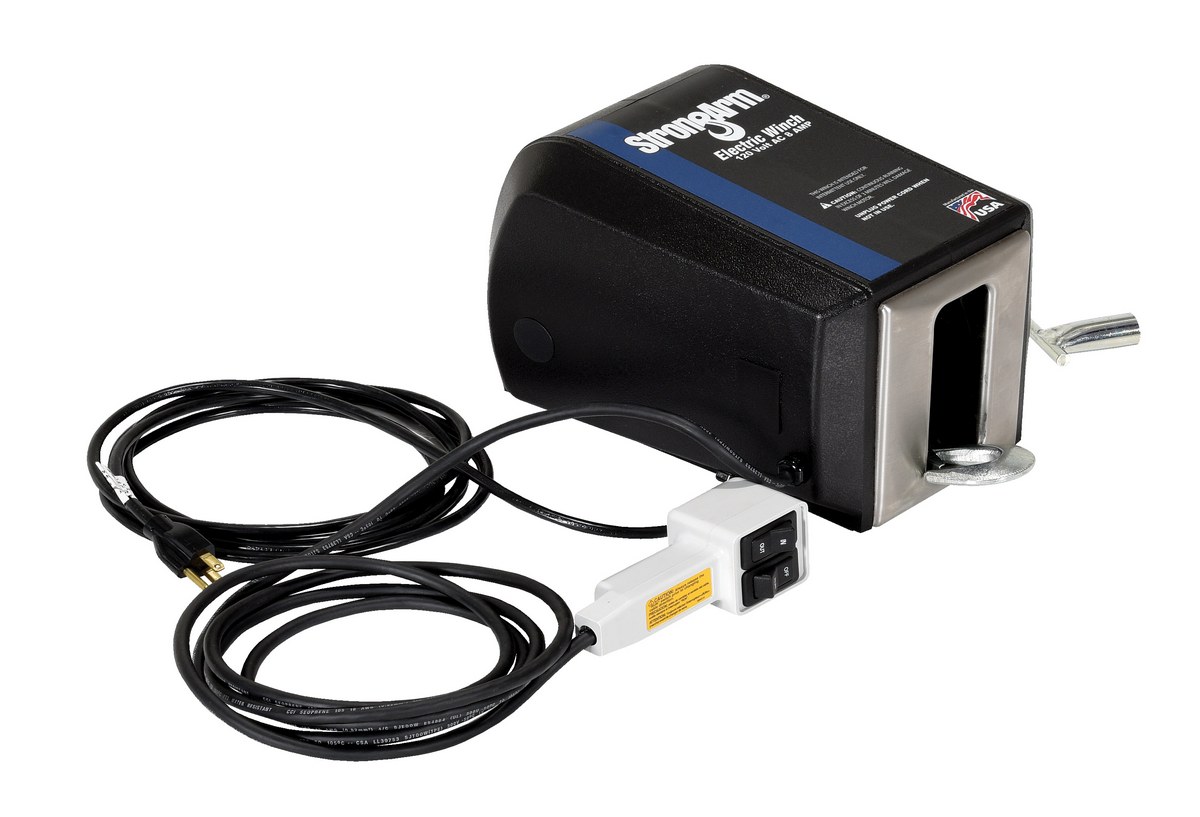

| WINCH-AC-HHPB |  | 30 Days Limited Warranty | Factory Installed Hand Held Push Button Control For AC Powered Jib Cranes | Cord Length (in.): 96 | 5 |
.
A: The VAN-J and the VAN-J-DC are powder-coat carbon steel, however the winch is not waterproof and cannot be used outside.
A: The diameter of the pole is 3-1/2".
Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date
|
||||||||||||||||||||||
Lifter Jibs |
||||||||||||||||||||||
 |
||||||||||||||||||||||
Lift items from the ground to van floor height, then rotate into cargo area. Manual, DC battery powered, and AC electrically powered winches are available. AC powered winch has a lift speed of 10 ft. per minute and DC powered at 7 ft. per minute at full capacity load. AC powered winch includes toggle switch. DC powered winch includes a pendant control. Battery powered winch includes 36" long leads. Battery not included. Van floor to raised hook height is 36-1/8". Double-pivot arm for use in tight spaces. Overall height is 46-1/16". Swing reach is 0" to 39-3/4". Steel construction. Painted finish. Unit is designed for vertical lifting only. Do not use unit for lifting personnel or overhead lifting.
|
||||||||||||||||||||||
 |
||||||||||||||||||||||
|
||||||||||||||||||||||
Options. |
||||||||||||||||||||||
